BY4TR58305.8GHz WIRELESS A/V SIGNAL SENDER

1500332 User’s Guide 5.8GHz Wireless A/V Signal Sender Thank you for purchasing your A/V Signal Sender from RadioShack. Please read this user’s guide before installing, setting up, and using your new sender. 2/3 15-332 -EN 033110.indd 14/6/2010 5:24:57 PM 2 Package contents • Transmitter • Receiver • IR Extender • AC Adapter (2) • RCA cable (2) • User’s Guide • Quick Start Features • 5.8 Ghz provides clean transmission from room to room (up to 200 ft away). • Use your existing remote to pause, play, fast forward or control the device you are enjoying. • Gold connectors are designed to enhance the performance of audio and video components by reducing signal loss and interference. 1 Install the Transmitter 1. Make sure the transmitter is off, then connect the transmitter to your A/V source (DVD player, TV, or VCR) with the RCA cable. For better picture quality, connect your transmitter to the A/V source with a S-Video cable (not included). If you use the S-Video connection and A/V connection together, the S-Video connection takes priority. 2. Connect the IR extender plug to the transmitter’s REMOTE OUT jack and place the IR extender in front of the A/V source’s IR sensor. To secure the IR extender, remove the tape backing and attach it securely. 2/3 15-332 -EN 033110.indd 24/6/2010 5:24:57 PM 3 Transmitter Antenna Power Indicator IR Extender Front side pointing at A/V source IR sensor within 50 cm ± 15 o . OR OR OR Back view of A/V source. 15-332 -EN 033110.indd 34/6/2010 5:25:02 PM 4 Receiver Antenna Power Indicator IR sensor 15-332 -EN 033110.indd 44/6/2010 5:25:09 PM 5 3. Connect the supplied AC adapter to the DC 12V jack, then plug it into a standard household outlet. 4. Adjust the flip-up antenna so that the dotted side faces the receiver. 2 Install the Receiver 1. Make sure the receiver is off, then connect the receiver to your TV with the RCA cable. 2. Connect the supplied AC adapter to the DC 12V jack, then plug it into a standard household outlet. 3. Adjust the antenna so that the dotted side faces the transmitter. nNotes: • S-Video and Composite Video are interchangeable, but S-Video is usually the dominant input. There will no picture output at the receiver, if your A/V device only has composite video and you connect S-Video cable to the transmitter. • If you use the S-Video connection on the transmitter, you must also use the S-Video connection on the receiver. • Make sure the receiver is set a little forward to the top of TV in order to have the best IR performance. • Turn the dotted side of the transmitter and receiver face to face to obtain the best performance. 15-332 -EN 033110.indd 54/6/2010 5:25:09 PM 6 • If you hear a popping sound when you place the receiver on top of your TV, move the receiver until the popping sound disappears. • S-Video connectors have a special orientation, when you want to use S-Video connection, carefully handle the connector, and make sure the orientation is correct. Push it gently, otherwise, you will break the connector and connector socket of device. • Be sure the RCA cable’s plug colors correspond with the receiver or transmitter and A/V device jacks: white for audio left, red for audio right, yellow for video. • For optimum performance and reception, keep the transmitter and receiver away from wireless LAN access points, microwave ovens, and wireless networks or phones that run on 5.8GHz frequency. • Rotating the antenna on either the receiver or transmitter 360 o or more may cause damage. • Unplug the AC adapters from the AC outlet before unplugging it from the transmitter or receiver. • Use the supplied AC adapters only. Using an AC adapter not designed for this product may cause damage. 15-332 -EN 033110.indd 64/6/2010 5:25:10 PM 7 3 Use Your A/V Signal Sender 1. Choose one of the 4 channels by sliding the channel switch to set the transmitter and receiver to the same channel. 2. Turn on the transmitter and receiver. The power indicators light red. 3. Turn on the connected A/V source and TV. Point your remote control (not included) at the receiver and make a selection. nNote: Most A/V devices work on 38kHz. Your transmitter is set to 38kHz by default (indicated by B position of the A/B Remote switch). If the connected A/V source does not respond to remote control commands, change the setting and try again. Side view of Transmitter Side view of Receiver Connect IR extender ON/OFF Channel Switch Must be set to same channel. Remote Switch 15-332 -EN 033110.indd 74/6/2010 5:25:12 PM 8 Further Application Use with a VCR, DVD, DSS, Satellite Receiver, or Laser Disc Player connected to a TV You can record transmitted audio and video on your remote VCR and also enjoy the picture and sound on a remote TV at the same time. 1. Make sure the transmitter and receiver are off, then connect the transmitter to your VCR, DVD, DSS or LDP with the supplied RCA cable. For better picture quality, connect your transmitter to the A/V source with a S-Video cable (not included). 2. Use another cable (not supplied) to connect your VCR, DVD, DSS or LDP and your TV. 3. Connect the receiver to the VCR with the RCA cable. Use another cable (not supplied) to connect your VCR and TV. nNote: If your TV does not have an A/V in port, use a 75Ω RF coaxial cable from the TV’s antenna IN (or VHF/ UHF) to your VCR’s modulator output. Side view of Receiver 15-332 -EN 033110.indd 84/6/2010 5:25:12 PM 9 ANT ANT Transmitter Receiver Recommended TV connection for dual output VCR 15-332 -EN 033110.indd 94/6/2010 5:25:17 PM 10 Troubleshooting ProblemPossible Solutions No picture or sound • Check the power on/off switches on the Transmitter, Receiver and TV. • Make sure the power plug and signal cables are firmly connected. • Check if the channel of transmitter and receiver are set to the same channel. • Make sure that all cables are connected correctly. • Check if there is any discontinuity inside the cable. • If you use S-Video connection, your TV set must be set to “S-Video” mode.…

Text truncated - open the document above for the full version.

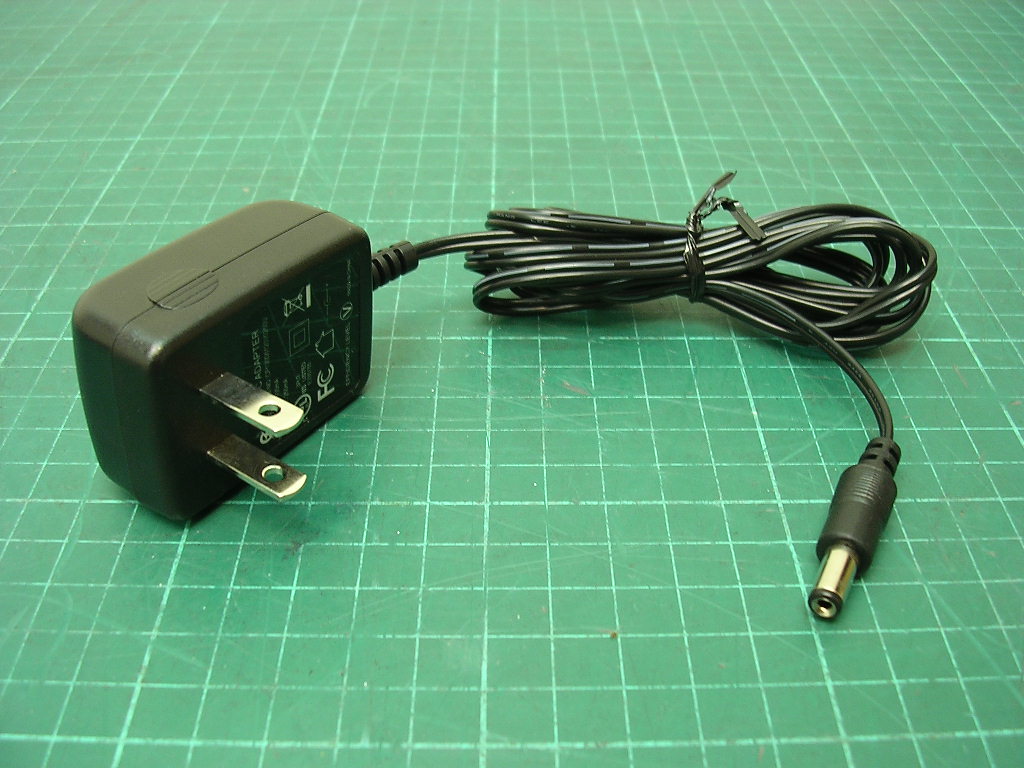

External photo of EUT

Internal photo of EUT 5.8 GHz RF module Antenna for 5.8 GHz Antenna for 5.8 GHz Antenna for 433 MHz

TR 5830 Operation Description Operation Description Tx-TR5830 Tx-5830 is a Video and audio sender which receive the input video and audio then modulated to FM-modulated signal and upconverting to 5.8GHz band and send it by 5.8GHz antenna. And also receive the IR extending signal from Rx-5830 via 433.92MHz carrier frequency and regenerated to IR signal to control the AV sources. The detailed operations are desribed as followed. Powering The Tx 5830 deploy a DC-12V adaptor, the input DC power are through 2 Voltage regulated ICs 7805,78L09 then provide 2 different voltage for modules. Video and audio Transmission 1. The input video and audio are sent to the “video and audio modulation module” then modulated to FM-modulated signal 2. The modulated FM signal is fed into 5.8GHz Tx module, which upconvert the signal into 5.8GHz band 3. There are 4 channels are available by sliding the slide switch, the frequencies are 5790,5828,5847,5866 MHz 4. Then the RF signal is fed to a 5.8GHz antenna and transmitt out. IR Extender reception and regeneration 1. IR receiving module take the received RF signal and decode it to original data 2. Then through a IR regenerated circuit to produce IR electric signal,(user can change the IR carrier frequency via a slide switch to match the IR carrier frequency of their device ) 3. Then the electric signal is convert via a IR Mouse( there is a IR LED) to IR signal to control the audio and video source. Approved
  Checked    Prepared   Page TR 5830IR Operation Description Operation Description Rx-TR5830 Rx-5830 is a Video and audio receiver which decoded the signal from 5.8GHz antenna then convert the signal to composite video and audio to TV set. And also transmitt the received IR signal from user press the remote controller, then coded and upconvert to 433.92MHz carrier frequency and sent to an IR extender antenna and radiated to the Tx-5830. The detailed operations are desribed as followed. Powering The Tx 5830 deploy a DC-12V adaptor, the input DC power is through Voltage regulated ICs 7805 to provide 5Vdc for modules. Video and audio reception 1. The input RF signal from a 5.8GHz antenna, then fed into a 5.8GHz Rx Module. 2. The 5.8GHz Rx module downconvert the RF signal into FM signal. There are 4 channels are available by sliding the slide switch, the frequencies are 5790,5828,5847,5866 MHz 3. The FM signal is fed into a FM de-modulation module and convert to Composite Video (or S-Video) and Audio RL 4. Then the Video and audio are fed into a TV set. IR Extender transmission 1. IR signal receiving module take the received IR signal from the remote controller (user to press any key) and code it to digital data 2. Then through a IR extender 433.92 MHz SAW filtered siganl generater circuit. Then through an amplifier circuit to produce RF signal, 3. Then the RF signal is thorugh a bandpass filter to provide useable 433.92MHz RF signal 4. Then the bandpass filtered RF signal is fed to a transmitter ciruit and though a 433.92MHz antenna to send back to Tx 5830.. Approved
  Checked    Prepared   Page

FCC ID: BY4TR5830 Report No.: TS10030155-EME Page 1 of 18 EMC TEST REPORT Report No.: TS10030155-EME Model No.: TR5830, 15-332, 1500332 Issued Date: May 12, 2010 Applicant: TRANS ELECTRIC CO., LTD. No.765, Sec. 2, Zhongshan Rd., Huatan Township, Changhua County 503, Taiwan Test Method/ Standard: 47 CFR FCC Part 15.249 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Shirla Hsiao / Office These measurements were taken by: Sign on File Leon Cheng / Engineer The test report was reviewed by: Name Rex Liao Title Engineer FCC ID: BY4TR5830 Report No.: TS10030155-EME Page 2 of 18 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT........................................................................................ 4 1.2 Additional information about the EUT ................................................................... 5 1.3 Antenna description ................................................................................................ 5 1.4 Peripherals equipment ............................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard ........................................................................................................... 6 2.2 Operation mode ...................................................................................................... 6 2.4 Test equipment........................................................................................................ 7 3. Radiated emission test FCC 15.249 (C) ....................................................................... 8 3.1 Operating environment ........................................................................................... 8 3.2 Test setup & procedure ........................................................................................... 8 3.3 Emission limit......................................................................................................... 9 3.3.1 Fundamental and harmonics emission limits ...................................................... 9 3.3.2 General radiated emission limits ......................................................................... 9 3.4 Radiated spurious emission test data .................................................................... 10 3.4.1 Measurement results: frequencies equal to or less than 1 GHz ......................... 10 3.4.2 Measurement results: frequency above 1GHz................................................... 13 3.4.3 Measurement results: Fundamental and harmonics emission ........................... 15 4. Conducted emission test FCC 15.207 ........................................................................ 16 4.1 Operating environment ......................................................................................... 16 4.2 Test setup & procedure ......................................................................................... 16 4.3 Emission limit....................................................................................................... 16 4.4 Conducted emission data FCC 15.207 ................................................................. 17 FCC ID: BY4TR5830 Report No.: TS10030155-EME Page 3 of 18 Summary of Tests Test Reference Results Radiated Emission test 15.249(c), 15.209 Pass Conducted Emission of AC Power 15.207 Pass FCC ID: BY4TR5830 Report No.: TS10030155-EME Page 4 of 18 1. General information 1.1 Identification of the EUT Product: 5.8GHz WIRELESS A/V SIGNAL SENDER Model No.: TR5830 FCC ID.: BY4TR5830 Frequency Range: 5790 MHz ~ 5866 MHz Channel Number: 4 channels: 5790 MHz, 5828 MHz, 5847 MHz, 5866 MHz Rated Power: DC 12 V from adapter model: CP130D0120V0250U, I/P Voltage: 120 Vac 60 Hz Power Cord: N/A Sample Received: Mar. 29, 2010 Test Date(s): Mar. 31, 2010 ~ May 11, 2010 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID: BY4TR5830 Report No.: TS10030155-EME Page 5 of 18 1.2 Additional information about the EUT The main function of TR5830 is to send the video and audio signals to receiver unit by 5 GHz RF signal and do the FM modulation, then put the video and audio signals to TV, or other AV device. The customer confirmed the models listed below are identical to model TR5830 (EUT). Different bran…

Text truncated - open the document above for the full version.

Conducted Emission Test Set-up photo

Radiated Emission Test set-up photo
