BY4TR5830IR5.8GHz WIRELESS A/V SIGNAL RECEIVER

15-333 User’s Guide 5.8GHz Wireless A/V Signal Receiver Thank you for purchasing your A/V Signal receiver from RadioShack. Please read this user’s guide before installing, setting up, and using your new receiver. 2/2 15-333 -EN 033110.indd 14/8/2010 11:35:28 AM 2 Package contents • Receiver • AC Adapter • RCA cable • User’s Guide • Quick Start Features • 5.8 GHz provides clean transmission from room to room (up to 200 ft away). • Use your existing remote to pause, play, fast forward or control the device you are enjoying. • Gold connectors are designed to enhance the performance of audio and video components by reducing signal loss and interference. Install the Receiver Your receiver works with the 5.8GHz Wireless A/V Signal Sender (not included). For signal sender installment information, refer to the user’s guide of the A/V signal sender. 1. Make sure the receiver is off, then connect the receiver to your TV with the RCA cable. 2. Connect the supplied AC adapter to the DC 12V jack, then plug it into a standard household outlet. 3. Adjust the antenna so that the four squares side faces the transmitter. 15-333 -EN 033110.indd 24/8/2010 11:35:28 AM 3 Receiver Antenna Back view of TV 15-333 -EN 033110.indd 34/8/2010 11:35:29 AM 4 4. Set the channel sitch to match with your transmitter channel setting. 5. Turn on the receiver and TV. nNotes: • If you use the S-Video connection on the transmitter, you must also use the S-Video connection on the receiver. • If you use the S-Video connection and A/V connection together, the S-Video connection takes priority. • Make sure the receiver is set 2-4 inches (5-10 cm) forward to the top of your CRT or to your flat panel TV in order to have the best IR performance. • If you hear a popping sound when you place the receiver on top of your TV, move the receiver until the popping sound disappears. • S-Video connectors have a special orientation. When you want to use S-Video connection, handle the connector carefully, and make sure the orientation is correct. Push it gently, otherwise, you will break the connector and connector socket of device. • Be sure the RCA cable’s plug colors correspond with the receiver and A/V device jacks: white for audio left, red for audio right, yellow for video. • For optimum performance and reception, keep the receiver away from wireless LAN access points, ON/OFF Channel Switch 15-333 -EN 033110.indd 44/8/2010 11:35:29 AM 5 microwave ovens, and wireless networks or phones that run on 5.8GHz frequency. • Rotating the antenna 360 o or more may cause damage. • Unplug the AC adapters from the AC outlet before unplugging it from the transmitter or receiver. • Use the supplied AC adapters only. Using an AC adapter not designed for this product may cause damage. • For more operations for the A/V signal receiver, refer to the user’s guide of the A/V signal sender. Important Safety Instructions • Keep your A/V signal receiver dry and clean. If it gets wet or dirty, wipe it dry or clean immediately. • Wipe your A/V signal receiver with a damp cloth to keep it looking new. • Use and store your signal receiver in room temperature environments only. • Modifying the A/V signal receiver’s internal components can cause malfunction and might invalidate its warranty. If your A/V signal receiver is not performing as it should, take it to your local RadioShack store for assistance. 15-333 -EN 033110.indd 54/8/2010 11:35:30 AM 6 Specifications Power Supply.................... ..........................12 V DC/250 mA Weight ...............................................................6.5 oz (180g) Dimensions................................. ............................................ .....................4.3 × 4.2 × 1.6 Inch (11 × 10.7 × 4 cm) (HWD) Output Level.............. ............................................................ .............................1 ± 0.2 Vpp (Audio), 1 ± 0.2 Vpp (Video) S-Video Output Level......................... ................................... ...................................Y: 1 Vpp ± 0.2 Vpp, C: 228 mV ± 20% Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date …

Text truncated - open the document above for the full version.

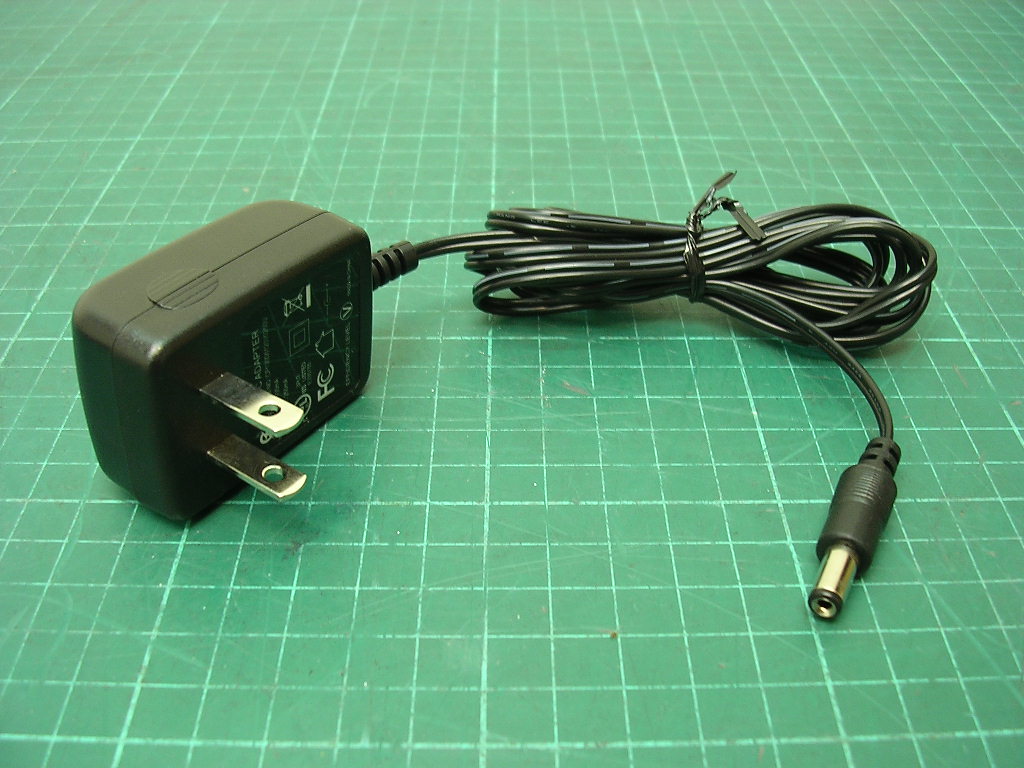

External photo of EUT

Internal photo of EUT Antenna for 433 MHz Antenna for 5.8 GHz Antenna for 5.8 GHz

TR-5830IR Operation Description Operation Description Rx-TR5830 Rx-5830 is a Video and audio receiver which decoded the signal from 5.8GHz antenna then convert the signal to composite video and audio to TV set. And also transmitt the received IR signal from user press the remote controller, then coded and upconvert to 433.92MHz carrier frequency and sent to an IR extender antenna and radiated to the Tx-5830. The detailed operations are desribed as followed. Powering The Tx-5830 deploy a DC-12V adaptor, the input DC power is through Voltage regulated ICs 7805 to provide 5Vdc for modules. Video and audio reception 1. The input RF signal from a 5.8GHz antenna, then fed into a 5.8GHz Rx Module. 2. The 5.8GHz Rx module downconvert the RF signal into FM signal. There are 4 channels are available by sliding the slide switch, the frequencies are 5790,5828,5847,5866 MHz 3. The FM signal is fed into a FM de-modulation module and convert to Composite Video (or S-Video) and Audio RL 4. Then the Video and audio are fed into a TV set. IR Extender transmission 1. IR signal receiving module take the received IR signal from the remote controller (user to press any key) and code it to digital data 2. Then through a IR extender 433.92 MHz SAW filtered siganl generater circuit. Then through an amplifier circuit to produce RF signal, 3. Then the RF signal is thorugh a bandpass filter to provide useable 433.92MHz RF signal 4. Then the bandpass filtered RF signal is fed to a transmitter ciruit and though a 433.92MHz antenna to send back to Tx-5830.. Approved
  Checked    Prepared   Page

FCC ID. : BY4TR5830IR Report No.: TS10030158-EME Page 1 of 19 EMC TEST REPORT Report No. : TS10030158-EME Model No. : TR5830IR, 15-333, 1500333 Issued Date : May 12, 2010 Applicant: TRANS ELECTRIC CO., LTD. No. 765, Sec. 2, Zhongshan Rd., Huatan Township, Changhua County 503, Taiwan Test Method/ Standard: 47 CFR FCC Part 15.231 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Shirla Hsiao / Officer These measurements were taken by: Sign on File Leon Cheng / Engineer The test report was reviewed by: Name Rex Liao Title Engineer FCC ID. : BY4TR5830IR Report No.: TS10030158-EME Page 2 of 19 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT........................................................................................ 4 1.2 Additional information about the EUT ................................................................... 5 1.3 Antenna description ................................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard ........................................................................................................... 6 2.2 Operation mode ...................................................................................................... 6 2.3 Test equipment........................................................................................................ 6 3. Periodic Operation test ................................................................................................. 7 3.1 Test requirement ..................................................................................................... 7 3.2 Test setup & procedure ........................................................................................... 7 3.3 Test result................................................................................................................7 4. Radiated emission test FCC 15.231 (b) ........................................................................ 8 4.1 Operating environment ........................................................................................... 8 4.2 Test setup & procedure ........................................................................................... 8 4.3 Radiated emission limit ........................................................................................ 10 4.3.1 Fundamental and harmonics emission limits..................................................... 10 4.3.2 General radiated emission limit ......................................................................... 10 4.4 Radiated emission test data FCC 15.231 ...............................................................11 4.4.1 Measurement results: frequencies equal to or less than 1 GHz ..........................11 4.4.2 Measurement results: frequencies above 1GHz ................................................ 12 5. Measured bandwidth FCC 15.231(c) ......................................................................... 13 6. Conducted emission test FCC 15.207 ........................................................................ 14 6.1 Operating environment ......................................................................................... 14 6.2 Test setup & procedure ......................................................................................... 14 6.3 Emission limit....................................................................................................... 14 6.4 Conducted emission data FCC 15.207 ................................................................. 15 7. Calculation of Average Factor .................................................................................... 17 FCC ID. : BY4TR5830IR Report No.: TS10030158-EME Page 3 of 19 Summary of Tests 5.8GHz WIRELESS A/V SIGNAL RECEIVER - Model: TR5830IR FCC ID: BY4TR5830IR Test Reference Results Periodic Operation test 15.231(a) Pass Radiated Emission test 15.231(b), 15.209 Pass Measured bandwidth 15.231(c) Pass Conducted Emission of AC Power 15.207 Pass Calculation of Average Factor 15.35 Pass FCC ID. : BY4TR5830IR Report No.: TS10030158-EME Page 4 of 19 1. General information 1.1 Identification of the EUT Product: 5.8GHz WIRELESS A/V SIGNAL RECEIVER Model No.: TR5830IR FCC ID.: BY4TR5830IR Frequency Range: 433.92 MHz Channel Number: Single channel Frequency of Each Channel: 433.92 MHz Type of Modulation: ASK Rated Power: DC 12 V from adapter model: CP130D0120V0250U, I/P Voltage: 120 Vac 60 Hz Power Cord: N/A Sample Received: Mar. 29, 2010 Test Date(s): Mar. 31, 2010~ May 11, 2010 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approve…

Text truncated - open the document above for the full version.

Conducted Emission Test Set-up photo

Radiated Emission Test set-up photo
