BY4WTR10001080P HD wireless sender

Trans Electric Co., Ltd.
1080P HD wireless sender - FCC ID BY4WTR1000 - Trans Electric Co., Ltd.
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Nov 15, 2015
Application Purpose
Original Equipment
Date of Application
Nov 11, 2015
Equipment Note
1080P HD wireless sender
Frequency Range
5745.00000000 - 5825.00000000
Company
Trans Electric Co., Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 HDMI Wireless Incorporates HDMI ® technology Model: WTR-1000 1080P Wireless HDMI Transmission Receiver side support Miracast function INTRODUCTION Thank you for purchasing WTR-1000 HDMI Wireless sender. Your satisfaction is very important to us. WTR-1000 is designed to make the use of your HDTV equipment more comfortable. WTR-1000 is the ideal product for HD wireless application. Sometime you will find cable connection is not suitable, long HDMI cable is not available, or cable connection is not an option. You can use WTR-1000 for you HD wireless application. For example, Home Theater, cross room HD wireless, meeting room, or game room application. WTR-1000 now supports Miracast™ Wireless Display. You can launch the wireless display application on a Miracast™-compatible Smartphone, tablet. allows you to send image or video on your Smartphone to a HDTV. Anything shows on the Smartphone will also show on the HDTV. FEATURES AND CONTENTS Features:  Support HDMI 1080p wireless transmission.  Transmitter side with HDMI loopthrough output.  Less than 500ms low latency.  Receiver side support Miracast function.  HDCP compliant.  Room to room HD wireless transmission.  Up to 30M L.O.S long distance transmission.  Low power consumption. Contents of Package  WTR-1000 Transmitter main unit *1  WTR-1000 Receiver main unit *1  DC 5V/1A power adaptor *1 , MicroUSB Power cable *1  User’s Manual *1 2 CONNECTION ILLUSTRATION CONNECTION & OPERATION Transmitter Box TOP Front Back Receiver Box TOP Front Back 3 Connection : Miracast Mode for Smartphone Step 1: Connect HDMI cable from HDMI output to HDTV. Step 2: Connect USB Power cable (attached) the micro USB end to the power port of WTR-1000 Receiver Box and the USB A to the USB port of TV, Set Top Box or power adapter with USB A port. The LED of WTR-1000 Receiver Box will light on and state into Miracast Mode but at this moment WTR-1000 Receiver Box is not connected to your Smartphone yet. Step 3: Turn on your HDTV TV and select the correct HDMI input. Note: (1) When you power on the receiver box, the priority is scan transmitter source in 12 seconds. If not found any source , it will into “Miracast Mode”. (2) Push the button of “MODE” will change into “Wireless AV Mode”, If you do not power on the transmitter source to connected in 2 minutes, after state will auto into “Miracast Mode”. HDMI Cable USB Cable HDTV WTR-1000 Receiver Box 30 feet 4 Operation : Miracast Mode for Smartphone PAIRING YOUR WTR-1000 Receiver Box EX: Samsung™ Galaxy S3 (support AllShare™ Cast) 1. Tap on the “Settings” of your Smartphone and make sure that the android version of your phone is upgraded to the Android version 4.1.2 or above . (If your android version of Samsung Smartphone is 4.1.2 or above, AllShare™ Cast is built in and workable with WTR-1000) Tap on the Setting and go to “More settings”, then select “AllShare Cast”. And You can find the available devices name: AV Receiver-XXXXXX. 2. Select the available devices _ AV Receiver-XXXXXX and into Connecting.... 5 3. When the pairing is finished successfully. You will see the Screen of Smartphone on your HDTV. Note: 1. Owing to the generic version of android, Miracast is supported in version 4.2.0 and above. So if your Smartphone can not connect to WFD-1000, Please check the version is correct (4.2.0 and above). If the version is not the right version (4.2.0 or above), you are encouraged to ask or wait the device vendors to release the new O.S to support Miracast. 2. The effective range of WTR-1000 Miracast Mode is 30 feet (L.O.S), if WiFi signal in your area is too strong or too crowded, the distance and the quality of Picture quality will decrease. 3. If you want to set to factory default, please press MODE button for 20 seconds. ATTENTIONS 1.Not all Smartphone can support WiFi Miracast™. Please make sure the Smartphone that you try to use with WTR-1000 Receiver Box can support Screen output. 2.Some Smartphone(Android 4.1.2) may not support Miracast™ function. When you try to upgrade the O.S. to the Smartphone, Please make sure the Smartphone vender that they have been released the function or not. 3.If the USB port on HDTV can not supply enough power, please connect to the USB port of HDTV which is for hard drive connection OR use the Smartphone's power adaptor for powering. NOTICE  Manufacturer reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.  WiFi Certified Miracast™ Logo are trademarks of WiFi Alliance  AllShare™ Cast is Media function of Samsung Galaxy series.  Trademarks and brand names are the properties of their respective owners. 6 Connection : Wireless AV Sender Mode for HDMI Source Step 1: Use HDMI cable to connect the HDMI IN of WTR-1000 Transmitter to a Source device (Satellite receiver, CATV STB, BD player, PS3, XBox...) , if you want to watch the source program on the same time , you can use another HDMI cable connected the HDMI OUT to display (HDTV). Step 2: Use HDMI cable to connect the HDMI OUT of WTR-1000 receiver to a display device (HDTV, Projector...) Step 3: Connect a DC 5V/1A power adaptor to the Power Jack (MicroUSB) of WTR-1000 Transmitter. Step 4: Connect USB Power cable (attached) the micro USB end to the power port of WTR-1000 Receiver Box and the USB A to the USB port of TV, Set Top Box or power adapter with USB A port. Step 5: Connection Finish. If you can not get image on your display device, please pairing the TX and RX first.(Press the MODE button of RX box to pairing and press the MODE button of TX box). Operation : Wireless AV Sender Mode for HDMI Source A. Insatllation 1. Make sure your input AC voltage conforms to the adaptor specifications. 2. Only use the power adaptor provided with the WTR-1000. If you use …

Text truncated - open the document above for the full version.

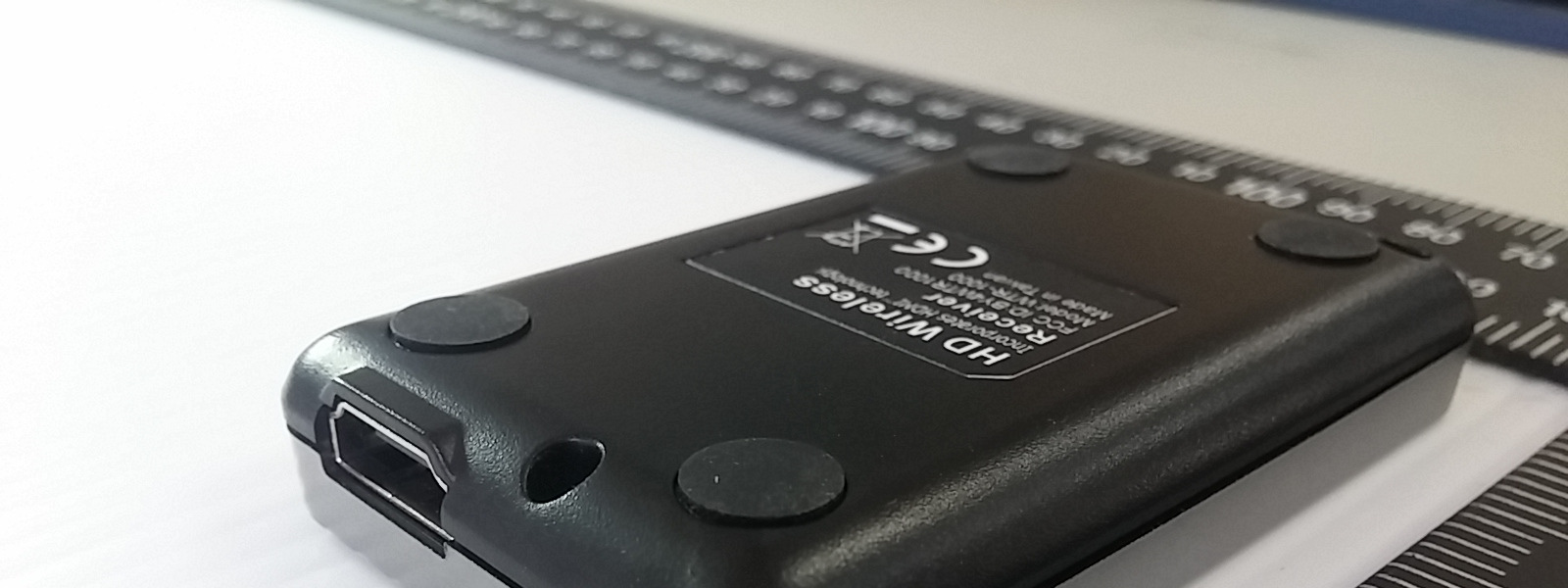

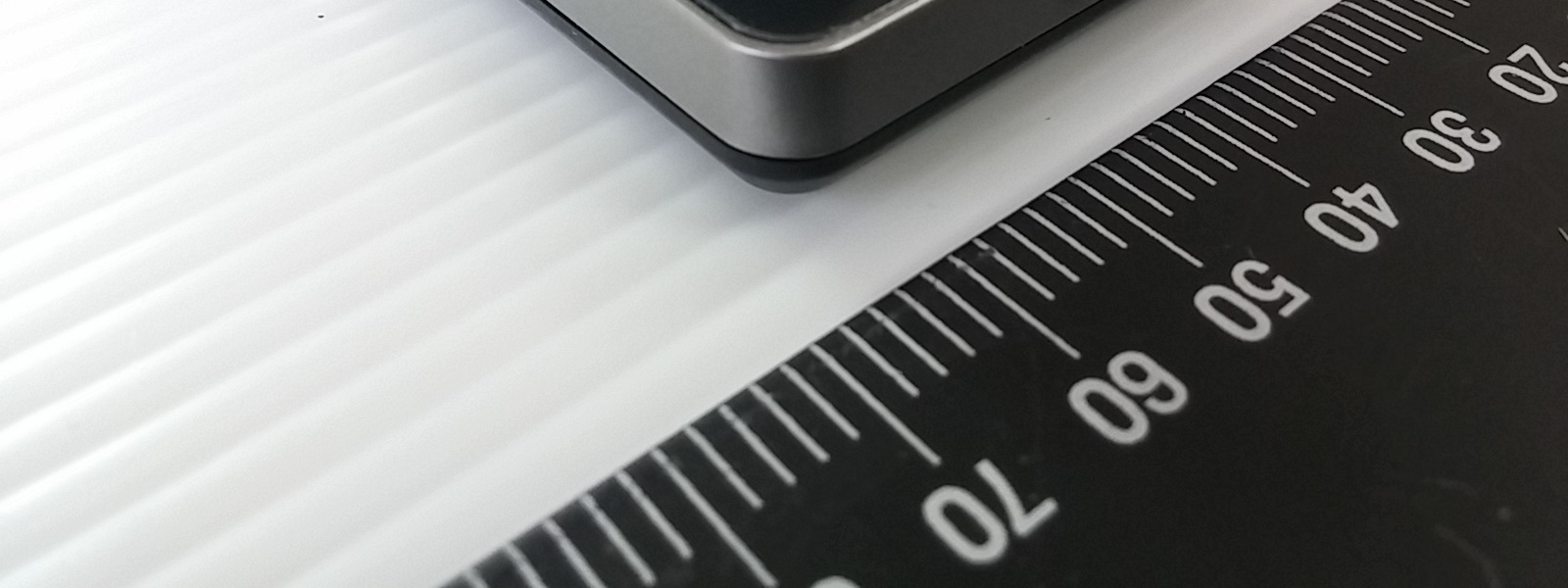

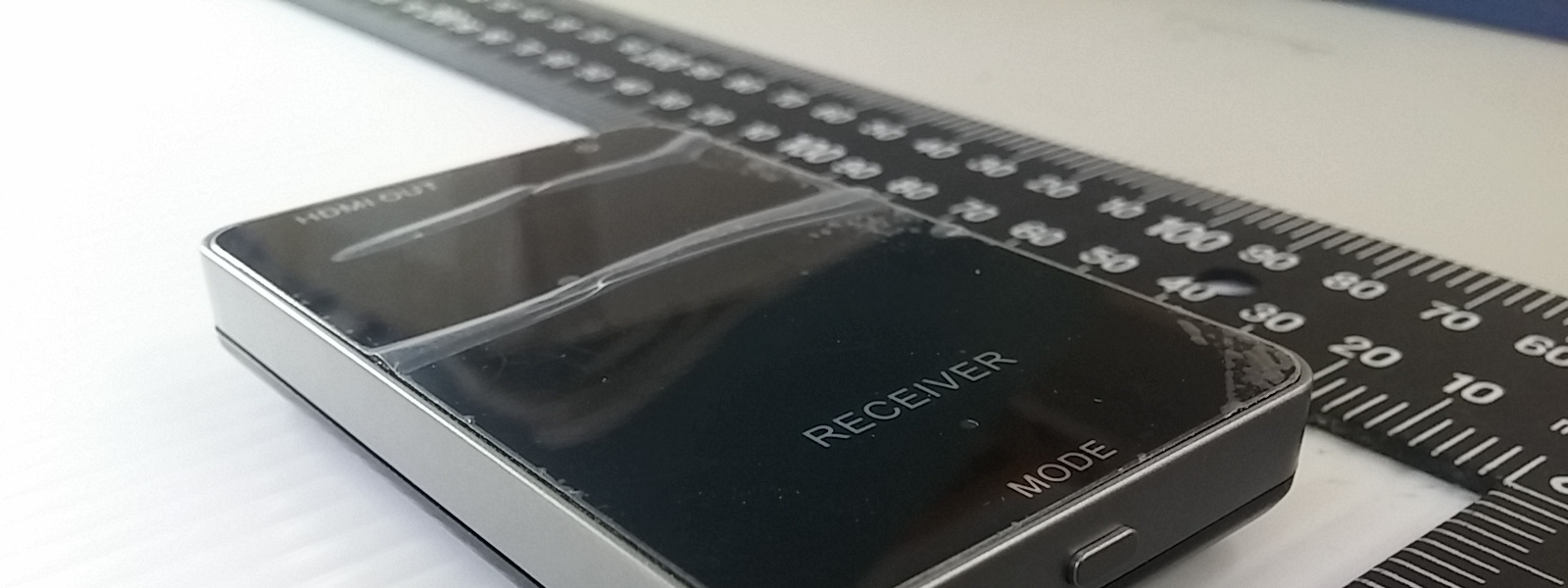

External Photos

Appendix P Photo Documentation Page 1 of 2 10052733 001; 10052734 001 Product: 1080P HD wireless sender Type Identification: WTR-1000 Appendix P Photo Documentation Page 2 of 2 10052733 001; 10052734 001 Product: 1080P HD wireless sender Type Identification: WTR-1000

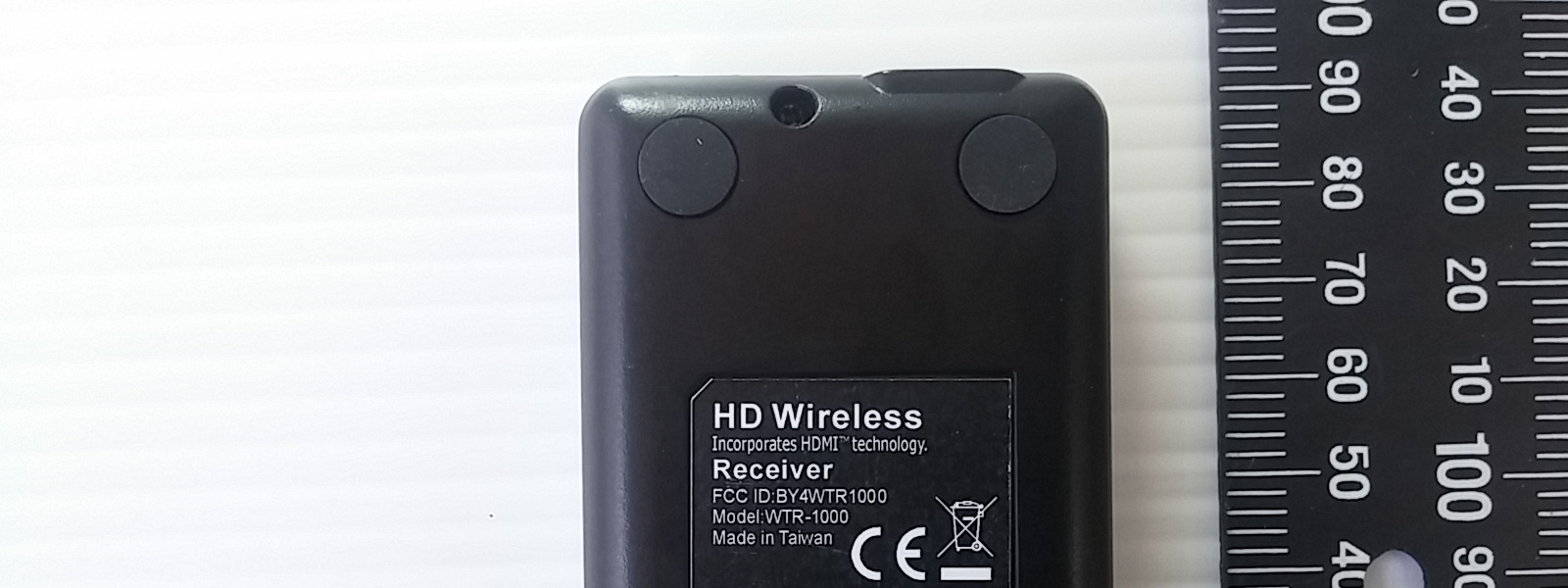

ID Label/Location Info

5mm 8mm TX RX WTR-1000 bottom label 50% 30.2 mm 28.2 mm 1 8 . 2 m m 2 0 . 2 m m 50% 30.2 mm 28.2 mm 1 8 . 2 m m 2 0 . 2 m m 2015/07/17 Q9465G/Q9466G FCC ID:BY4WTR3000 5V 1A Model:WTR-1000 Made in Taiwan HD Wireless T M Incorporates HDMItechnology. Transmitter FCC ID:BY4WTR1000 5V 1A Model:WTR-1000 Made in Taiwan HD Wireless T M Incorporates HDMItechnology. Receiver

Internal Photos

Appendix P Photo Documentation Page 1 of 2 10052733 001; 10052734 001 Product: 1080P HD wireless sender Type Identification: WTR-1000 Appendix P Photo Documentation Page 2 of 2 10052733 001; 10052734 001 Product: 1080P HD wireless sender Type Identification: WTR-1000 Printed Antenna

RF Exposure Info

Produkte Products FCC ID: BY4WTR1000 Seite 1 von 1 Page 1 of 1 1. Safety Human exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 10 D01v05 Separation distance is more than 20 cm, thus mobile device exposure limits can be applied Maximum Exposure: Power to Antenna (mW) 47 mW Power to Antenna (dBm) 16.7 dBm Antenna Gain-7 dBi Power+Ant Gain9.4 mW Distance20 cm S= 0.002 mW/cm^2 Limit FCC: 0.3-1.34 MHz (100) mW/cm 2 1.34-30 MHz (180/f2) mW/cm 2 30-300 MHz 0.2 mW/cm 2 300-1500 MHz f/1500 mW/cm 2 1500-100,000 MHz 1.0 mW/cm 2 Limit Canada: 0.02619ƒ 0.6834 8W/m 2 @ 5 GHz ---End---

Test Report

Produkte Products Prüfbericht - Nr.: Test Report No. 10052733 001 Seite 2 von 62 Page 2 of 62 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 26 DB BANDWIDTH AND 99% BANDWIDTH RESULT: Passed 5.1.3 6 DB BANDWIDTH AND 26DB BANDWDITH (5745-5850MHZ) RESULT: Passed 5.1.4 TRANSMIT OUTPUT POWER RESULT: Passed 5.1.5 POWER SPECTRAL DENSITY RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10052733 001 Seite 3 von 62 Page 3 of 62 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 7 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 RATINGS AND SYSTEM DETAILS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 11 3.5 SUBMITTED DOCUMENTS ....................................................................................... 11 4. TEST SET-UP AND OPERATION MODES ................................................................... 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 12 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 13 4.5 TEST SETUP DIAGRAM .......................................................................................... 13 5. ANTENNA PORT TEST RESULTS ............................................................................. 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 15 5.1.1 Antenna Requirement ............................................................................................... 15 5.1.2 26 dB Bandwidth and 99% Bandwidth ....................................................................... 16 5.1.3 6 dB Bandwidth and 26dB Bandwdith (5745-5850MHz) ............................................ 24 5.1.4 Transmit Output Power.............................................................................................. 36 5.1.5 Power Spectral Density ............................................................................................. 39 5.1.6 Spurious Emission ..................................................................................................... 56 5.2 MAINS EMISSIONS................................................................................................. 57 5.2.1 Mains Conducted Emissions ..................................................................................... 57 PHOTOGRAPHS OF THE TEST SET-UP ............................................................................... 58 Produkte Products Prüfbericht - Nr.: Test Report No. 10052733 001 Seite 4 von 62 Page 4 of 62 6. LIST OF TABLES ................................................................................................... 62 7. LIST OF PHOTOGRAPHS......................................................................................... 62 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation internal view (File Name: 10052733APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10052733APPENDIX D) Test Specifications The following standards were applied: Table 1: Applied Standard and Test Levels Radio FCC CFR47 Part 15 Subpart E RSS-247 Issue 1 May 2015 RSS-Gen, Issue 4, November 2014 ANSI C63.10:2013 FCC KDB-789033 FCC KDB-662911 D01 FCC KDB-644545 Produkte Products Prüfbericht - Nr.: Test Report No. 10052733 001 Seite 5 von 62 Page 5 of 62 2. Test Sites 2.1 Test Facilities TUV Rheinland Taiwan Ltd. 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC Registration No.: 365730 IC Canada Registration No.: 9465A-1 TAF Accredited NCC Test Lab. No.:0759 Produkte Products Prüfbericht - Nr.: Test Report No. 10052733 001 Seite 6 von 62 Page 6 of 62 2.2 List of Test and Measurement Instruments Table 2: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Last Calibration Next Calibration EMI Test Receiver R&S ESR7 101062 31-Aug-14 30-Aug-15 Bilog Antenna TESEQ CBL6111D 29802 4-Jul-14 3-Jul-16 Spectrum Analyzer R&S FSV 40 100921 17-Dec-14 16-Dec-15 Spectrum Analyzer Agilent N9010A MY53470241 1-Apr-15 30-Mar-16 Horn Antenna ETS-Lindgren 3117 138160 12-Jan-15 11-Jan-17 Horn Antenna (18GHz~40GHz) COM-POWER AH840 101031 30-Oct-13 29-Oct-15 Preamplifier (30MHz -1GHz) HP 8447F 2805A03335 23-Aug-14 01-Sep-15 Preamplifier (18 GHz -40 GHz)…

Text truncated - open the document above for the full version.

Test Report

Test Report No.10052733 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10052733AppendixD) Contents Spurious Emissions, Band Edges,4.5-5.2G ................................................................................................ 2 Spurious Emissions, TX Mode, 1-18G , 5150-5250MHz ........................................................................... 8 Spurious Emissions, TX Mode, 1-18G , 5470-5725MHz ......................................................................... 24 Spurious Emissions, TX Mode, 18-40G,5150-5250MHz .......................................................................... 40 Spurious Emissions, TX Mode, 18-40G ,5470-5725MHz ........................................................................ 56 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 72 Spurious Emissions, Mains, 150kHz - 30MHz ......................................................................................... 74 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges,4.5-5.2G Radiated Bandedge 11a Low Channel (Hor) 5180 Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) 5180 Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge 11a HT20 Low Channel (Hor) 5180 Spurious Emissions, Band Edge, 2.35-2.5G 5 Low Channel (Ver) 5180 Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge 11a HT40 Low Channel (Hor) 5190 Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) 5190 Spurious Emissions, TX Mode, 18-26G 8 Spurious Emissions, TX Mode, 1-18G , 5150-5250MHz Service No.: 114036742-FCC_WTR1000 Test Distance: 3m Test Standard: NCC 1-40G UNII PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/7/17 21:56:54 Applicant: Trans Test Rating: DC 5V Product: 1080P HD wireless sender Temp.(°C °C°C °C)/Hum.(%): 21(°C °C°C °C)/61% Model No.: WTR-1000 Test Engineer: Hugo Chang Test Mode: A-5180 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 10360.000 6.26 54.98 61.24 68.00 -6.76 peak 0 2 13886.000 11.15 45.42 56.57 68.00 -11.43 peak 100 23 3 15540.000 12.63 44.72 57.35 74.00 -16.65 peak 0 4 15540.000 12.63 28.66 41.29 54.00 -12.71 AVG 0 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 18-26G 9 Service No.: 114036742-FCC_WTR1000 Test Distance: 3m Test Standard: NCC 1-40G UNII PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/7/17 21:57:57 Applicant: Trans Test Rating: DC 5V Product: 1080P HD wireless sender Temp.(°C °C°C °C)/Hum.(%): 21(°C °C°C °C)/61% Model No.: WTR-1000 Test Engineer: Hugo Chang Test Mode: A-5180 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 10360.000 6.26 57.17 63.43 68.00 -4.57 peak 2 12917.000 10.85 45.09 55.94 68.00 -12.06 peak 100 215 3 15540.000 12.63 44.09 56.72 74.00 -17.28 peak 4 15540.000 12.63 27.58 40.21 54.00 -13.79 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 18-26G 10 Service No.: 114036742-FCC_WTR1000 Test Distance: 3m Test Standard: NCC 1-40G UNII PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/7/17 22:08:54 Applicant: Trans Test Rating: DC 5V Product: 1080P HD wireless sender Temp.(°C °C°C °C)/Hum.(%): 21(°C °C°C °C)/61% Model No.: WTR-1000 Test Engineer: Hugo Chang Test Mode: A-5220 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 10440.000 6.18 54.81 60.99 68.00 -7.01 peak 2 14940.000 10.98 46.02 57.00 68.00 -11.00 peak 100 309 3 15660.000 13.18 44.90 58.08 74.00 -15.92 peak 4 15660.000 13.18 27.53 40.71 54.00 -13.29 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 18-26G 11 Service No.: 114036742-FCC_WTR1000 Test Distance: 3m Test Standard: NCC 1-40G UNII PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/7/17 22:09:56 Applicant: Trans Test Rating: DC 5V Product: 1080P HD wireless sender Temp.(°C °C°C °C)/Hum.(%): 21(°C °C°C °C)/61% Model No.: WTR-1000 Test Engineer: Hugo Chang Test Mode: A-5220 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 9823.000 7.03 45.91 52.94 68.00 -15.06 peak 100 65 2 10440.000 6.18 55.94 62.12 68.00 -5.88 peak 3 15660.000 13.18 45.32 58.50 74.00 -15.50 peak 4 15660.000 13.18 26.39 39.57 54.00 -14.43 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 18-26G 12 Service No.: 114036742-FCC_WTR1000 Test Distance: 3m Test Standard: NCC 1-40G UNII PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/7/17 22:20:05 Applicant: Trans Test Rating: DC 5V Product: 1080P HD wireless sender Temp.(°C °C°C °C)/Hum.(%): 21(°C °C°C °C)/61% Model No.: WTR-1000 Test Engineer: Hugo Chang Test Mode: A-5240 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 8701.000 7.72 45.02 52.74 68.00 -15.26 peak 100 145 2 10480.000 6.13 55.81 61.94 68.00 -6.06 peak 3 15720.000 13.47 44.47 57.94 74.00 -16.06 peak 4 15720.000 13.47 27.74 41.21 54.00 -12.79 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 18-26G 13 Service No.: 114036742-FCC_WTR1000 Test Distance: 3m Test Standard: NCC 1-40G UNII PEAK Ant. Polarization: Vertical Test item: Radiation Emissio…

Text truncated - open the document above for the full version.

Test Setup Photos

Pr odu k te Prod ucts T es tR epor tN o . Se it e58v on6 2 Pa ge5 8 o f62 Ph otograp h1:Se t9upfor S pur i ousEm i ss i ons(FrontV ie w) Pr odu k te Prod ucts T es tR epor tN o . Se it e59v on6 2 Pa ge5 9 o f62 Ph otograp h2:Se t9upfor S pur i ousEm i ss i ons(BackV ie w 1 ) Ph otograp h3:Se t9upfor S pur i ousEm i ss i ons(BackV ie w 2 ) Pr odu k te Prod ucts T es tR epor tN o . Se it e 6 0v on6 2 Pa ge 60 o f62 Ph otograp h4:Se t9upforC on d uct ed t e st i ng Ph otograp h5:Se t9upforforMa i nsCon d uct ed t e st i ngBack Pr odu k te Prod ucts T es tR epor tN o . Se it e 6 1v on6 2 Pa ge 61 o f62 Ph otograp h6:Se t9upforforMa i nsCon d uct ed t e st i ngFront

Contact Information

Applicant

Grace Wang(Vice-General Manager, Intel' sales Dept.)
[email protected]886 4 763-3361Fax: 886 4 762-7018

Test Firm

TUV Rheinland Taiwan Ltd.Spring Wang
[email protected]886-2-2172-7000Fax: 886-2-2528-0018

Technical Specifications

#Rule PartsFrequency RangePower Output
215E5.75 GHz - 5.83 GHz47.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is maximum combined output power conducted. The device must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device supports 20 and 40MHz bandwidth modes.
