BY4WTR30001080P HD wireless sender

1 HDMI Wireless Incorporates HDMI ® technology Model: WTR-3000 3D, 1080P Wireless HDMI Transmission Full band IR Extending function INTRODUCTION Thank you for purchasing WTR-3000 HDMI Wireless sender. Your satisfaction is very important to us. WTR-3000 is designed to make the use of your HDTV equipment more comfortable. WTR-3000 is the ideal product for HD wireless application. Sometime you will find cable connection is not suitable, long HDMI cable is not available, or cable connection is not an option. You can use WTR-3000 for you HD wireless application. For example, Home Theater, cross room HD wireless, meeting room, or game room application. WTR-3000 is designed with IR extending function. You will find easier remote control experience with the IR extending function when you try to control your Satellite Receiver, BD player or other source player. FEATURES AND CONTENTS Features:
Support HDMI 3D format and 1080p wireless transmission.
Transmitter side with HDMI loopthrough output.
Less than 500ms low latency.
Support IR extending function.
HDCP compliant.
Room to room HD wireless transmission.
Up to 30M L.O.S long distance transmission.
Low power consumption. Contents of Package
WTR-3000 Transmitter main unit *1
WTR-3000 Receiver main unit *1
IR receiver probe *1
IR emitter probe *1
DC 5V/1A power adaptor *2 (MicroUSB type)
User’s Manual *1 2 CONNECTION ILLUSTRATION CONNECTION & OPERATION Transmitter Box TOP Front Back Receiver Box TOP Front Back 3 Connection Step 1: Use HDMI cable to connect the HDMI IN of WTR-3000 Transmitter to a Source device (Satellite receiver, CATV STB, BD player, PS3, XBox...) , if you want to watch the source program on the same time , you can use another HDMI cable connected the HDMI OUT to display (HDTV). Step 2: Use HDMI cable to connect the HDMI OUT of WTR-3000 receiver to a display device (HDTV, Projector...) Step 3: Connect the IR emitter to the WTR-3000 Transmitter. And then place the emitter probe in front of the source device’s IR receiver . Cnect the IR receiver to the WTR-3000 Receiver. And then place the receiver probe in front . (If you do not need the IR extending function, please skip step 3) Step 4: Connect a DC 5V/1A power adaptor to the Power Jack (MicroUSB) of WTR-3000 Transmitter. Step 5: Connect another DC 5V/1A power adaptor to the Power Jack (MicroUSB)of WTR-3000 Receiver. Step 6: Connection Finish. If you can not get image on your display device, please pairing the TX and RX first.(Press the MODE key of RX box and then press the MODE key of TX box). Operation A. Insatllation 1. Make sure your input AC voltage conforms to the adaptor specifications. 2. Only use the power adaptor provided with the WTR-3000. If you use your own adaptor, make sure the power output is 5V DC, 1A centre positive. 3. With direct line-of-sight, the maximum range of A/V signal transmission can reach up to about 100 feet, and this distance would be shortened by obstacles or walls placed between transmitter and receiver. (The optimum indoor range is under 30M) 4. To ensure good infrared remote control operation aim your remote control at the IR Probe of the WTR-3000 and press the buttons firmly. ( With some remote controls it may be necessary to press and hold each button for about a second). The working angle of the IR Probe is +/- 15 degrees. 5. The remote controller has to be used within the distance of ( from remote control to receiver )not less than 0.3M and no more than 5M (working angle +/- 15 degrees). 4 B. TX & RX Pairing MODE 1. First Press “MODE” key on the Receiver BOX. 2. You will see message “Connecting through Pairing ...” on screen 3. And then Press “MODE” key on the Transmitter BOX. 4. for a second, and wait for Atuo connection. C. IR Extending function 1. Make sure the IR emitter Probe have been installed properly on the Transmitter Box. 2. Make sure the IR receiver Probe have been installed properly on the Receiver Box. 3. Use the remote controller of your source device to control the source form the Receiver Box. Note: Please do not cover both WTR-3000 Transmitter and Receiver with any object. Because those object could block the air circulation. 5 TROUBLE SHOOTING 1. When there is no picture presented, please:
Make sure the direct connection from source device to sink device can work properly.
Check if all connectors are connected well; check if all cables can support the transmission speed. High Speed HDMI cables are recommended.
Unplug the power cable to restart WTR-3000. 2. When there is no sound:
Please try to adjust the volume of TV.
Check cable connection to see if it fits properly.
Check cable to see if it supports video transmission only (DVI) or it is damaged already.
HDCP may not match very well at first connection; please unplug the power cable to restart WTR-3000. 3. When there is no 3D effect, please:
Make sure 3D function of 3D TV (or 3D DLP Projector) is activated (set to AUTO or 3D ON).
Make sure 3D function of 3D source device is activated (set to AUTO or 3D ON).
Make sure power of shutter glasses is on.
Check the power of WTR-3000.
If the 3D HDTV requires an active shutter glasses for 3D viewing, please make sure the active shutter glasses can match with the 3D TV.
If the 3D HDTV requires a passive shutter glasses for 3D viewing, please make sure the passive shutter glasses can match with the 3D TV. 4. If the image is unstable, or snowing image shows on screen.
You might get interference form other wireless device or heavy power consumption house ware (ex. WiFi Router, Microwave, air conditioner...). Please keep WTR-3000 away from those sources of interference.
The wireless transmission distance may be too far or blocked by wall or other object. Please place WTR-3000 at other location where you can get good signal and video quality.
Please change the direction of Transmitter and Receiver to get better reception. 5. If the wireless connection fails.
Please make sur…

Text truncated - open the document above for the full version.

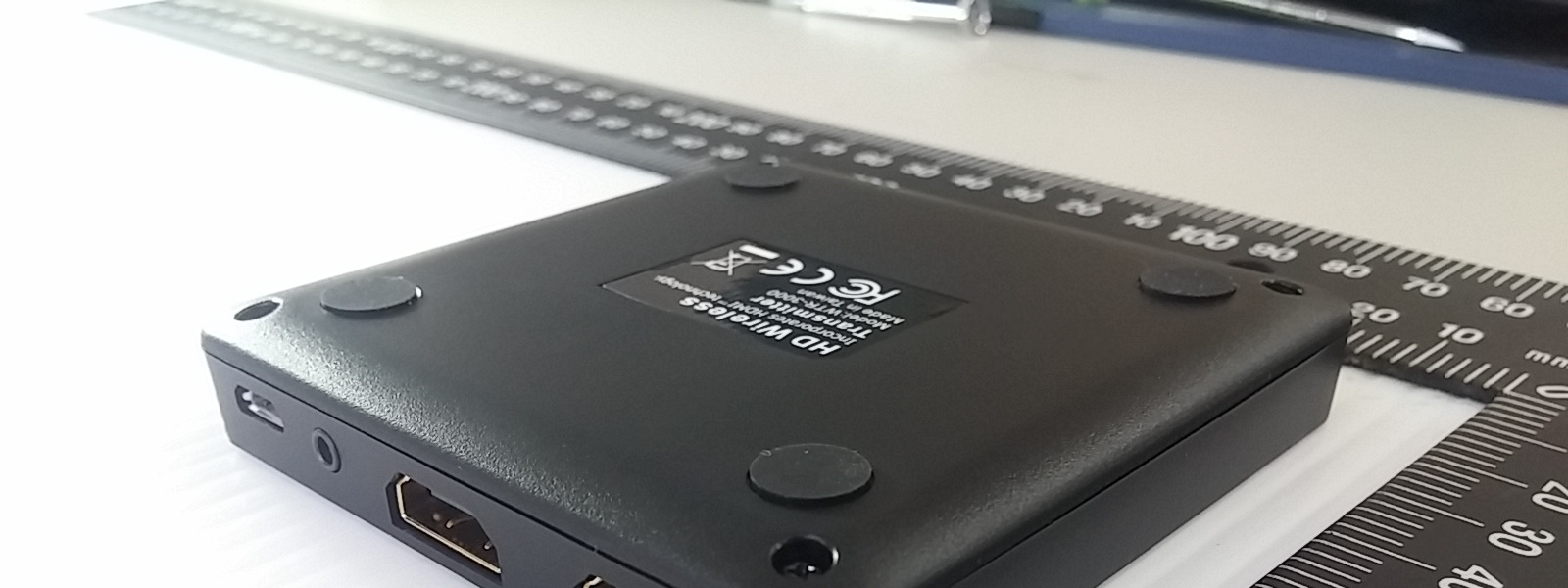

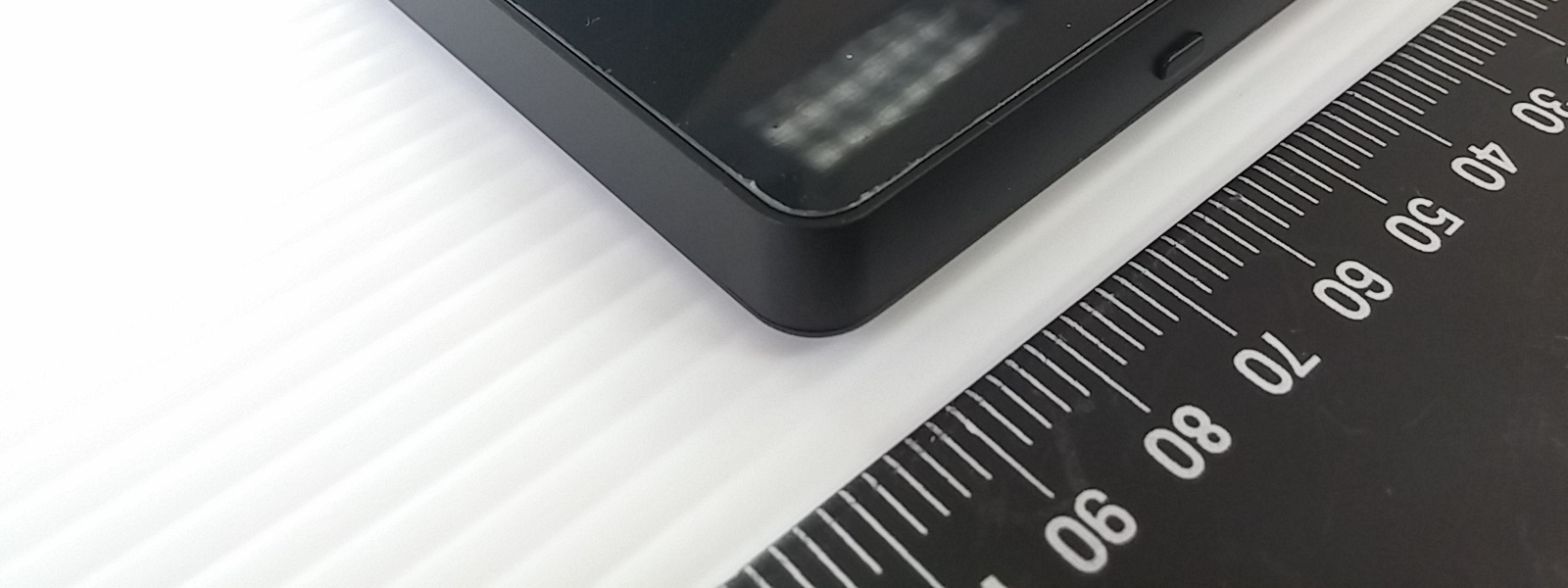

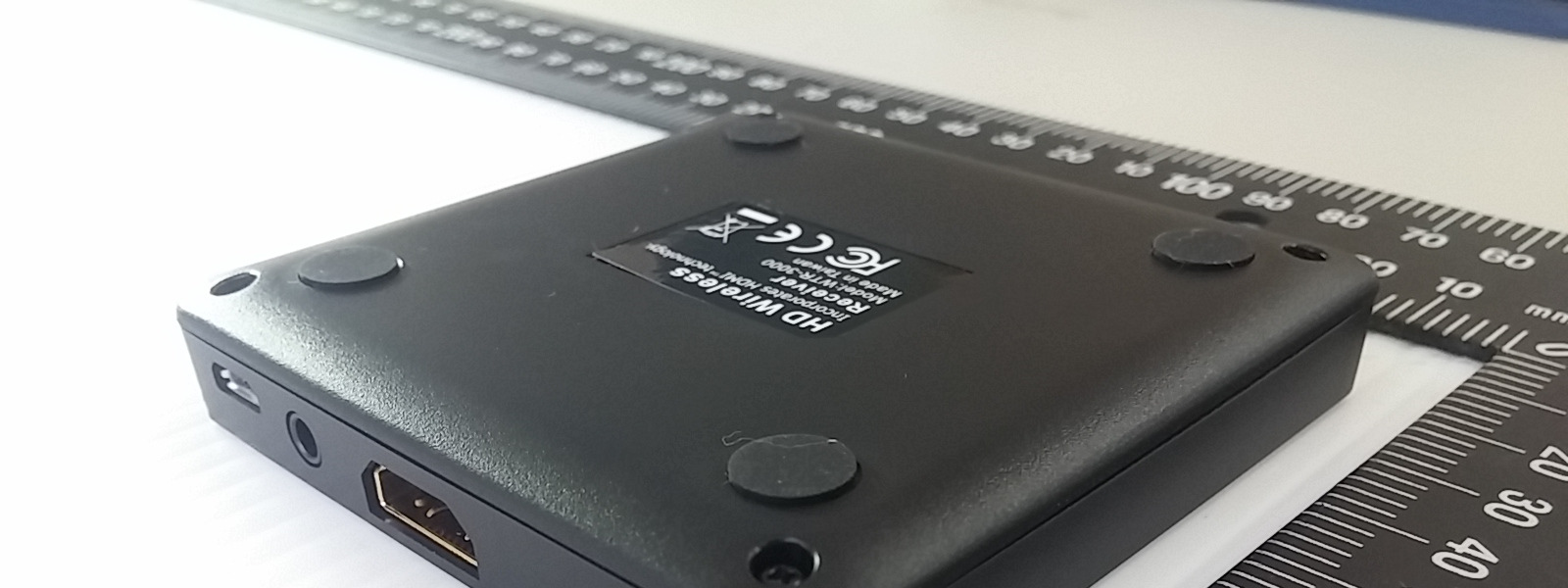

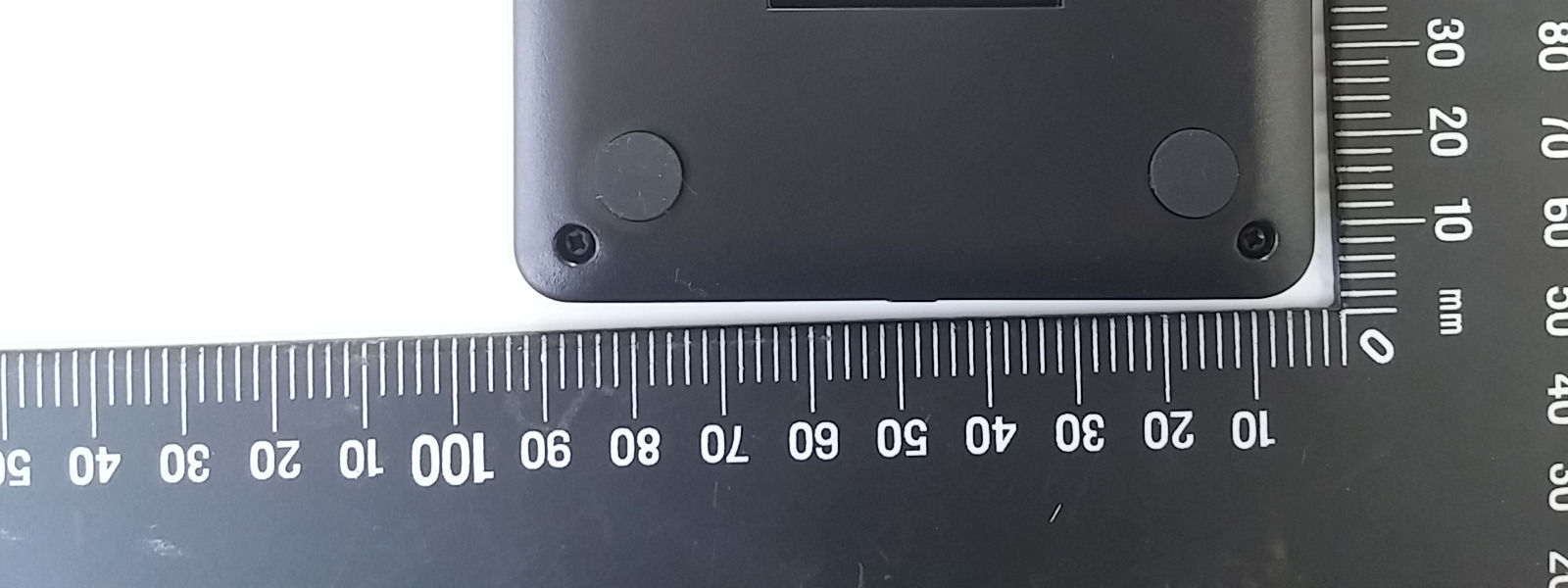

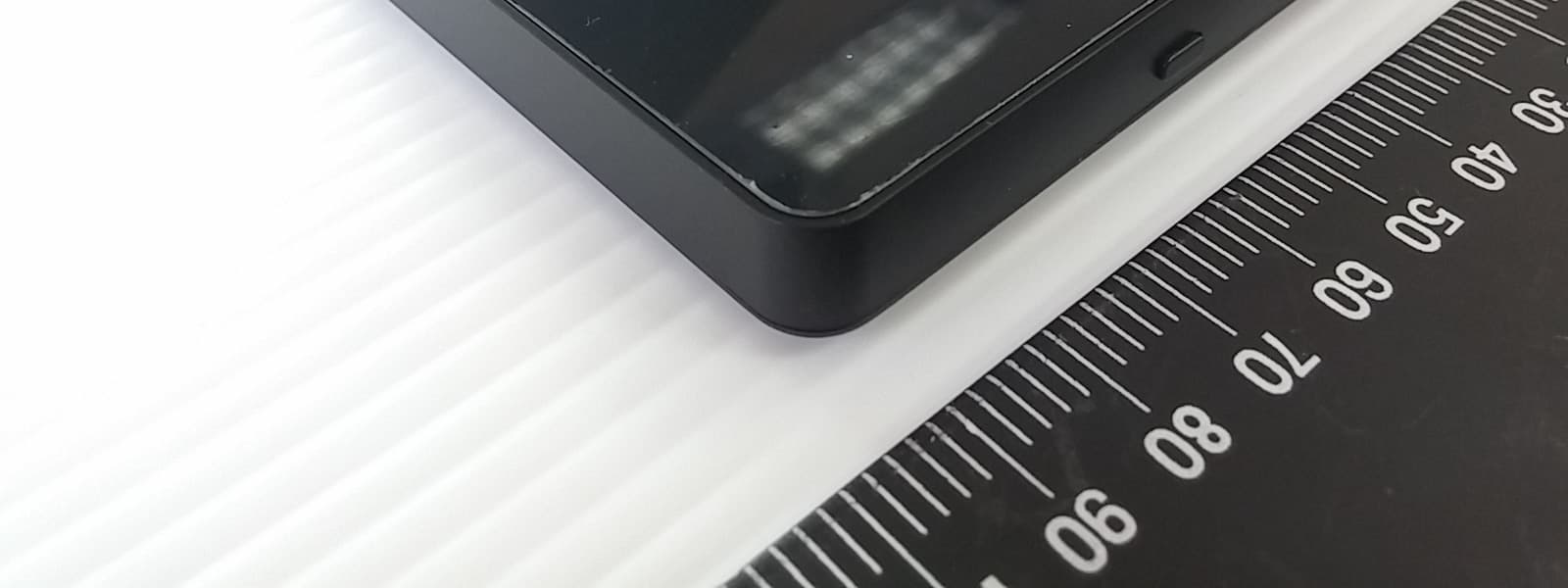

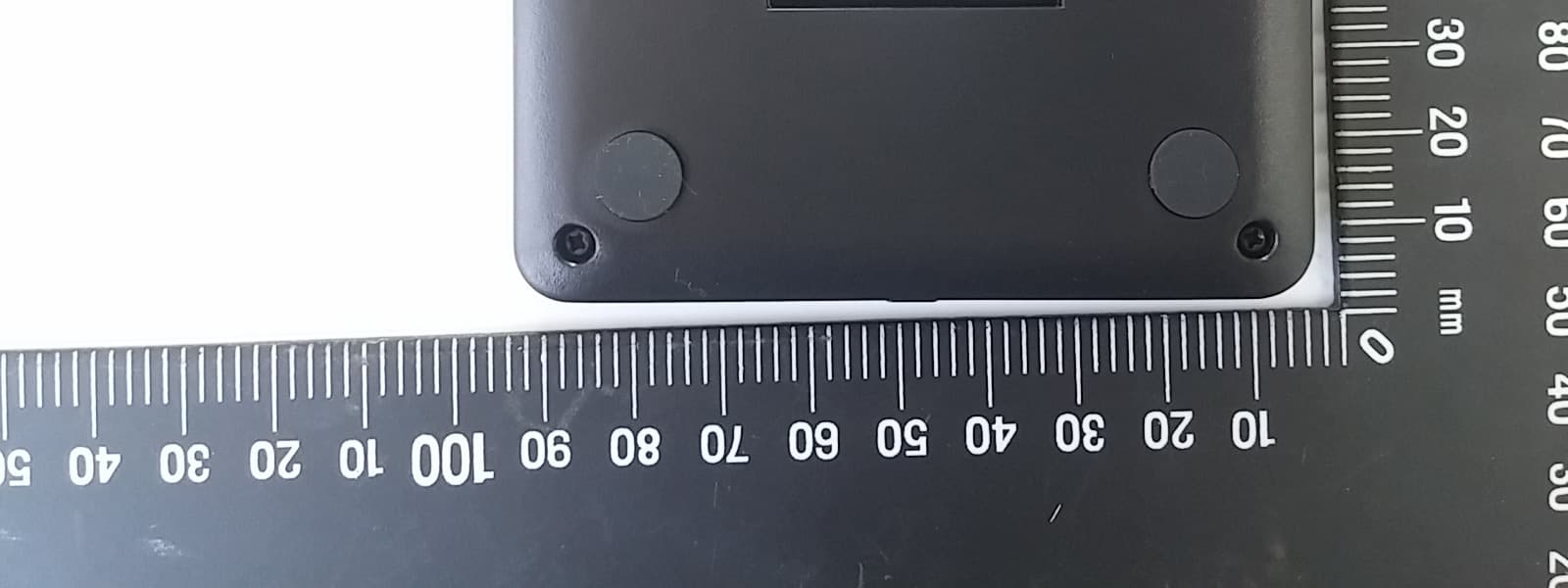

Appendix P Photo Documentation Page 1 of 3 10052149 001; 10052150 001; 10052277 001 Product: Brand Name: 1080P HD wireless sender PX Type Identification: WTR-3000 Appendix P Photo Documentation Page 2 of 3 10052149 001; 10052150 001; 10052277 001 Product: Brand Name: 1080P HD wireless sender PX Type Identification: WTR-3000 Appendix P Photo Documentation Page 3 of 3 10052149 001; 10052150 001; 10052277 001 Product: Brand Name: 1080P HD wireless sender PX Type Identification: WTR-3000 Enclosure of Receiver, differs in Digital Device portion only

Produkte Products FCC ID: BY4WTR3000 Seite 1 von 1 Page 1 of 1 1. Safety Human exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 10 D01v05 Separation distance is more than 20 cm, thus mobile device exposure limits can be applied Maximum Exposure: Power to Antenna (mW) 32 mW Power to Antenna (dBm) 15.1 dBm Antenna Gain-7 dBi Power+Ant Gain6.4 mW Distance20 cm S= 0.001 mW/cm^2 Limit FCC: 0.3-1.34 MHz (100) mW/cm 2 1.34-30 MHz (180/f2) mW/cm 2 30-300 MHz 0.2 mW/cm 2 300-1500 MHz f/1500 mW/cm 2 1500-100,000 MHz 1.0 mW/cm 2 Limit Canada: 0.02619ƒ 0.6834 8W/m 2 @ 5 GHz ---End---

Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 2 von 62 Page 2 of 62 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 26 DB BANDWIDTH AND 99% BANDWIDTH RESULT: Passed 5.1.3 6 DB BANDWIDTH AND 26DB BANDWDITH (5745-5850MHZ) RESULT: Passed 5.1.4 TRANSMIT OUTPUT POWER RESULT: Passed 5.1.5 POWER SPECTRAL DENSITY RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 3 von 62 Page 3 of 62 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 7 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 RATINGS AND SYSTEM DETAILS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 11 3.5 SUBMITTED DOCUMENTS ....................................................................................... 11 4. TEST SET-UP AND OPERATION MODES ................................................................... 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 12 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 13 4.5 TEST SETUP DIAGRAM .......................................................................................... 13 5. ANTENNA PORT TEST RESULTS ............................................................................. 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 15 5.1.1 Antenna Requirement ............................................................................................... 15 5.1.2 26 dB Bandwidth and 99% Bandwidth ....................................................................... 16 5.1.3 6 dB Bandwidth and 26dB Bandwdith (5745-5850MHz) ............................................ 24 5.1.4 Transmit Output Power.............................................................................................. 36 5.1.5 Power Spectral Density ............................................................................................. 39 5.1.6 Spurious Emission ..................................................................................................... 56 5.2 MAINS EMISSIONS................................................................................................. 57 5.2.1 Mains Conducted Emissions ..................................................................................... 57 PHOTOGRAPHS OF THE TEST SET-UP ............................................................................... 58 Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 4 von 62 Page 4 of 62 6. LIST OF TABLES ................................................................................................... 62 7. LIST OF PHOTOGRAPHS......................................................................................... 62 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation internal view (File Name: 10052149APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10052149APPENDIX D) Test Specifications The following standards were applied: Table 1: Applied Standard and Test Levels Radio FCC CFR47 Part 15 Subpart E RSS-247 Issue 1, May 2015 RSS-Gen, Issue 4, November 2014 ANSI C63.10:2013 FCC KDB-789033 FCC KDB-662911 D01 FCC KDB-644545 Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 5 von 62 Page 5 of 62 2. Test Sites 2.1 Test Facilities TUV Rheinland Taiwan Ltd. 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC Registration No.: 365730 IC Canada Registration No.: 9465A-1 TAF Accredited NCC Test Lab. No.:0759 Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 6 von 62 Page 6 of 62 2.2 List of Test and Measurement Instruments Table 2: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Last Calibration Next Calibration EMI Test Receiver R&S ESR7 101062 31-Aug-14 30-Aug-15 Bilog Antenna TESEQ CBL6111D 29802 4-Jul-14 3-Jul-16 Spectrum Analyzer R&S FSV 40 100921 17-Dec-14 16-Dec-15 Spectrum Analyzer Agilent N9010A MY53470241 1-Apr-15 30-Mar-16 Horn Antenna ETS-Lindgren 3117 138160 12-Jan-15 11-Jan-17 Horn Antenna (18GHz~40GHz) COM-POWER AH840 101031 30-Oct-13 29-Oct-15 Preamplifier (30MHz -1GHz) HP 8447F 2805A03335 23-Aug-14 22-Aug-15 Preamplifier (18 GHz -40 GHz…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 58 von 62 Page 58 of 62 Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 59 von 62 Page 59 of 62 Photograph 2: Set-up for Spurious Emissions (Back View 1) Photograph 3: Set-up for Spurious Emissions (Back View 2) Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 60 von 62 Page 60 of 62 Photograph 4: Set-up for Conducted testing Photograph 5: Set-up for for Mains Conducted testing Back Produkte Products Prüfbericht - Nr.: Test Report No. 10052149 001 Seite 61 von 62 Page 61 of 62 Photograph 6: Set-up for for Mains Conducted testing Front
