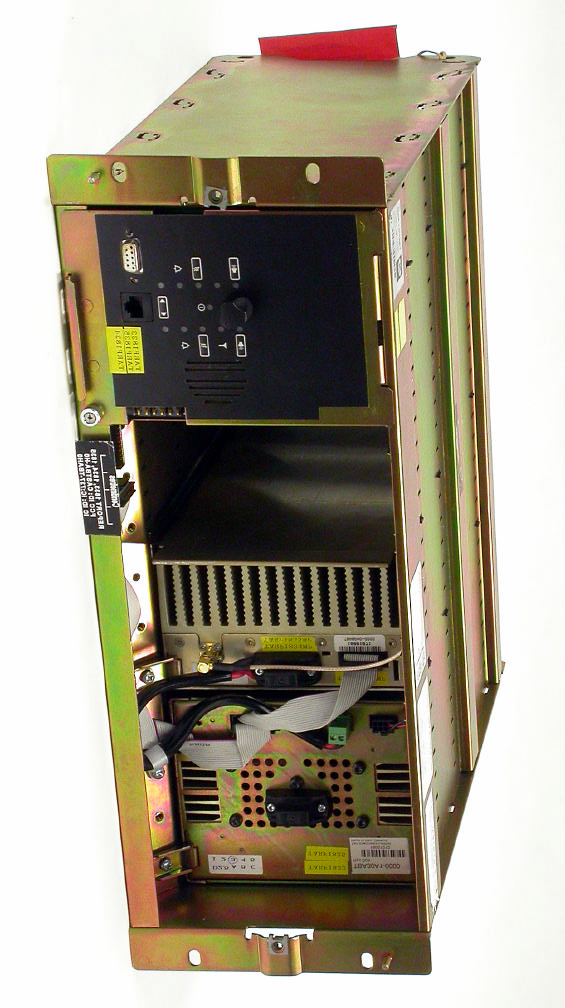

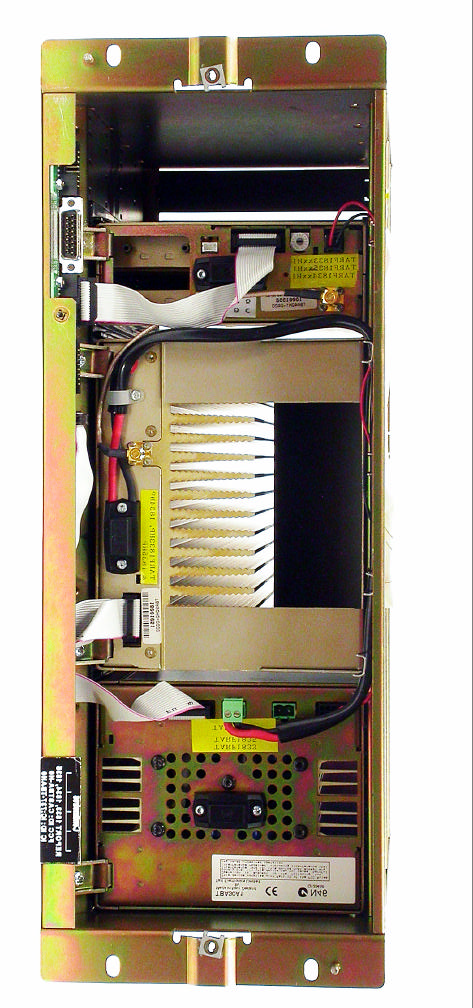

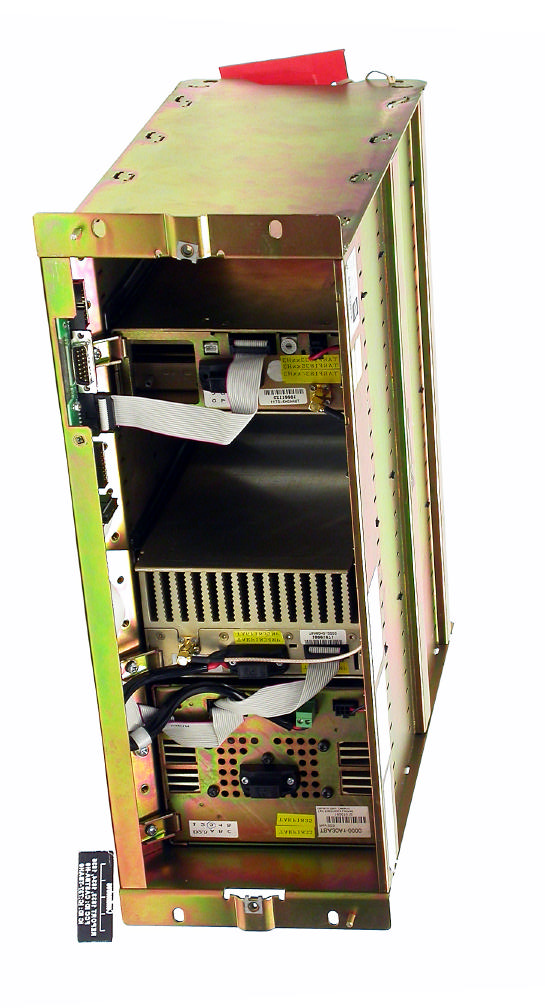

CASTBA-H0Base Station

TB8100 Installation and Operation ManualConnection55 © Tait Electronics Ltd June 2003 6Connection Once the TB8100 BSS hardware is installed, you need to connect the individual modules to each other, and to any ancillary equipment required in your system. This chapter provides information on all the inputs and outputs available on the TB8100 BSS. 6.1Overview of Inputs and Outputs This section identifies the main input and output connections for the TB8100 BSS. Figure 6.1 below identifies the connections at the front of a dual base station, and Figure 6.3 on page 57 identifies those at the rear. Figure 6.2 on page 56 identifies the connections at the front of a single 100 W base station. Figure 6.4 on page 57 identifies the connections on the control panel. Refer to the following sections in this chapter for more details on these connections. Figure 6.1Dual 5 or 50W Base Station Inputs and Outputs - Front View b 28VDC high current output for PA f 28VDC high current input cable from PMU c 28VDC low current output for reciter g RF output to PA d system control bus h 28VDC low current input from PMU e RF input from reciter i DC output (for optional reciter fan only) bcdeghfgh ddidiefd PA 1PA 2reciter 2PMU reciter 1 56ConnectionTB8100 Installation and Operation Manual © Tait Electronics Ltd June 2003 Figure 6.2Single 100W Base Station Inputs and Outputs - Front View b 28VDC high current output for PA f system control bus c 28 VDC low current output for reciter g DC output (for optional reciter fan only) d RF output to PA h 28VDC high current input cable from PMU e 28VDC low current input from PMU i RF input from reciter bcde hfgfi PAre ci te r PMU TB8100 Installation and Operation ManualConnection57 © Tait Electronics Ltd June 2003 Figure 6.3Dual 5 or 50W Base Station Inputs and Outputs - Rear View b system interface connector g auxiliary 12 VDC output c external reference frequency input h AC mains input d RF output i RF input e – VDC input j auxiliary 12 VDC input for system interface f + VDC input 1) subrack ground connector bcdfe higidjj PA 1PA 2reciter 1reciter 2PMU bc 1) Figure 6.4Control Panel Inputs and Outputs b DC outputs for fans mounted on front panel; also used for fan rotation detectors (if fitted) d RS-232 programming port c microphone connector b c d 58ConnectionTB8100 Installation and Operation Manual © Tait Electronics Ltd June 2003 6.2Power Supply Connections AC PowerThe TB8100 PMU is designed to accept a mains input of 88 to 264VAC at 45 to 65Hz. We recommend that a standard 3-wire grounded outlet is used to supply the AC power. The socket-outlet must be installed near the equipment and must be easily accessible. This outlet should be connected to an AC power supply capable of providing a maximum of 600W. The requirements of two typical AC supplies are given in the following table. Your TB8100 BSS should come supplied with a power supply cord to connect the male IEC connector on the PMU to the local AC supply. The pins of the IEC connector on the PMU are identified at right. DC PowerThe TB8100 PMU is designed to accept a DC input of 10.3 to 15.5 VDC with negative or positive ground. There is a minimum DC start-up threshold to prevent damaging a battery which has little capacity left. You must connect the DC supply from the battery to the PMU via a fuse or DC-rated circuit breaker with a rating of 60A. The DC input leads should be of a suitable gauge to ensure less than 0.2 V drop at maximum load over the required length of lead. Terminate and insulate the DC input leads so they are protected from accidentally shorting to the subrack if the PMU is removed before the leads are disconnected. Nominal SupplyCurrent Requirement Circuit Breaker/Fuse Rating 115VAC8A10A 230VAC4A6A phase neutral ground rear view Figure 6.5Recommended DC Power Connection Battery PMU Circuit Breaker or Fuse TB8100 Installation and Operation ManualConnection59 © Tait Electronics Ltd June 2003 Reciter Auxiliary DC Input The system interface PCB in the reciter has an auxiliary DC input connector. DC from the auxiliary DC output on the PMU (see “PMU Auxiliary DC Output” below) can be supplied to the +AUX_V pin on the system interface connector via this input. The pin allocations for the auxiliary DC input on the system interface PCB are given in the following table. Note that pins 1 & 3 and pins 2 & 4 on this connector are linked. Refer to “System Connections” on page 60 for the pin allocations for + AUX_V on each system interface PCB. The DC output from the PMU is 12VDC. Although this power output is isolated, the negative side of the supply is grounded on the system interface PCB to give a +V output. PMU Auxiliary DC Output The PMU can provide an auxiliary DC output when it is fitted with the optional 40 W auxiliary power supply PCB. This power supply is current limited to 3A and is available on the auxiliary DC output connector on the rear panel. DC from this output can be supplied to the +AUX_V pin on the system interface connector on the reciter via the auxiliary DC input connector on the system interface PCB (see “Reciter Auxiliary DC Input” above). The pin allocations for the auxiliary DC output on the PMU are given in the following table. Note that pins 1 to 4 and pins 5 to 8 on this connector are linked. PinDescriptionLinks 1+V input 2ground 3+V input 4ground 1 2 3 4 rear view PinDescriptionLinks 1+ V output 2+ V output 3+ V output 4+ V output 5ground 6ground 7ground 8ground 1 5 26 37 48 rear view 60ConnectionTB8100 Installation and Operation Manual © Tait Electronics Ltd June 2003 6.3RF Connections The RF input to the TB8100 BSS is via the lower BNC connector on the rear panel of the reciter. The RF output is via the N-type connector on the rear panel of the PA (refer to Figure 6.3 on page 57). We recommend that you use dual-screened coaxial cable such as RG223 for the BNC connections, and RG214 for the N-type connections. 6.4System Connections The reciter can be fitted with an optional system in…

Text truncated - open the document above for the full version.

TB8100 Installation and Operation ManualInstallation31 © Tait Electronics Ltd June 2003 4Installation This chapter describes how to install the TB8100 BSS in a standard 19 inch rack or cabinet. It also provides some general information on safety precautions and site requirements. We recommend that you read the entire chapter before beginning the installation. 4.1Personal Safety Lethal Voltages Warning!!The PMU contains voltages that may be lethal. Refer to the ratings label on the rear of the module. The TB8100 BSS must be installed so that the rear of the PMU is located in a service access area. Disconnect the mains IEC connector and wait for five minutes for the internal voltages to self-discharge before dismantling. The AC power on/off switch does not isolate the PMU from the mains. It breaks only the phase circuit, not the neutral. The PMU should be serviced only by qualified technicians. All servicing should be carried out only when the PMU is powered through a mains isolating transformer of sufficient rating. We strongly recommend that the mains power to the whole of the repair and test area is supplied via an earth leakage circuit breaker. Explosive Environments Warning!!Do not operate TB8100 BSS equipment near electrical blasting caps or in an explosive atmos- phere. Operating the equipment in these envi- ronments is a definite safety hazard. Proximity to RF Transmissions Do not operate the transmitter when someone is standing within 90 cm (3ft) of the antenna. Do not operate the transmitter unless you have checked that all RF connectors are secure. 32InstallationTB8100 Installation and Operation Manual © Tait Electronics Ltd June 2003 High Temperatures Take care when handling a PMU or PA which has been operating recently. Under extreme operating conditions (+ 60° C [+140° F] ambient air temperature) the external surfaces of the PMU and PA can reach temperatures of up to + 80°C (+176°F). 4.2Equipment Safety ESD Precautions ImportantThis equipment contains devices which are susceptible to damage from static charges. You must handle these devices carefully and according to the procedures described in the manufacturers’ data books. We recommend you purchase an antistatic bench kit from a reputable manufacturer and install and test it according to the manufacturer’s instructions. Figure 4.1 shows a typical antistatic bench set-up. You can obtain further information on antistatic precautions and the dangers of electrostatic discharge (ESD) from standards such as ESD S4.1-1997 (revised) or BS EN 100015-4 1994. Aerial Load The TB8100 BSS equipment has been designed to operate safely under a wide range of aerial loading conditions. However, we strongly recommend that the transmitter should always be operated with a suitable load to prevent damage to the transmitter output power stage. Figure 4.1Typical Antistatic Bench Set-up to building ground or mains ground via 1 M ohm series resistor conductive wrist strap dissipative rubber bench mat TB8100 Installation and Operation ManualInstallation33 © Tait Electronics Ltd June 2003 Equipment Grounding To ensure safe operation the TB8100 BSS equipment must be correctly grounded as described in these installation instructions. Installation and Servicing Personnel The TB8100 BSS should be installed and serviced only by qualified personnel. 4.3Regulatory Information Distress Frequencies The 406 to 406.1MHz frequency range is reserved worldwide for use by Distress Beacons. Do not program transmitters to operate in this frequency range. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Unauthorised Modifications Any modifications you make to this equipment which are not authorised by Tait Electronics Ltd may invalidate your compliance authority’s approval to operate the equipment. 4.4Environmental Conditions Operating Temperature Range The operating temperature range of the TB8100 BSS is – 30°C to +60°C (–22°F to + 140°F) ambient temperature. Ambient temperature is defined as the temperature of the air at the intake to the cooling fans. Humidity The humidity should not exceed 95% relative humidity through the specified operating temperature range. 34InstallationTB8100 Installation and Operation Manual © Tait Electronics Ltd June 2003 Dust and Dirt For uncontrolled environments, the level of airborne particulates must not exceed 100 μg/m 3 . 4.5Grounding and Lightning Protection Electrical Ground The TB8100 BSS modules are grounded by physical contact between the module case and the subrack. To ensure a good ground connection you must tighten each module retaining clamp securely (refer to “Final Reassembly” on page 53 for the correct torque setting). A threaded grounding connector is provided on the rear of the subrack for connection to the site ground point (refer to “Connection” on page 55 for more details). Lightning Ground It is extremely important for the security of the site and its equipment that you take adequate precautions against lightning strike. While it is outside the scope of this manual to provide comprehensive information on this subject, the following guidelines apply:
install a suitable lightning rod at the top of the tower and connect it to a secure ground point with appropriate conductors and connectors
position site buildings and equipment within the cone of protection provided by the grounded tower
protect all cables entering the site to prevent lightning energy from entering site buildings. 4.6Recommended Tools It is beyond the scope of this manual to list every tool that an installation technician should carry. However, the following tools are specifically required for installing the TB8100 BSS:
Pozidriv PZ3 screwdriver for the M6 screws used to secure the subrack to the rack or cabinet, and also for the DC input terminals on the PMU
Pozidriv PZ2 screwdriver for the M4 screws used to secure the module retaining cla…

Text truncated - open the document above for the full version.

TB8100 Installation and Operation ManualOperating Controls25 © Tait Electronics Ltd June 2003 3Operating Controls The TB8100 BSS has a number of hardware controls which are available to the user. These controls are located on the control panel, reciter and PMU. This chapter identifies and describes these controls. 3.1Control Panel The operating controls on the control panel allow some manual control of one or two base stations in a TB8100 BSS. These controls and their associated LED indicators are identified in Figure 3.1 below, and their functions are explained in the paragraphs which follow. Refer to “Connection” on page 55 for information on the connectors located on the control panel. Figure 3.1Operating Controls on the Control Panel b speaker volume f power LED c speaker button and LED g carrier button and transmit LED d receive LED h alarm LED e speaker i microphone channel button and LEDs controls for base station 1 (reciter 1) or single base station c d f g h i h g e d c b controls for base station 2 (reciter 2) 26Operating ControlsTB8100 Installation and Operation Manual © Tait Electronics Ltd June 2003 Speaker Volume Controls the volume of the speaker mounted behind the control panel. Rotate clockwise to increase the volume, and anticlockwise to decrease the volume. Speaker Button and LED The speaker button cycles the base station audio through three states. At power-on the speaker is off and the receiver audio is gated (muted). Pressing the button once turns the speaker on, but leaves the audio gated. Pressing the button a second time leaves the speaker on and ungates the audio (monitor mode). Pressing the button for a third time returns to the start of the sequence, with the speaker off and audio gated. The green speaker LED is lit when the speaker is turned on. Receive LEDThe green receive LED is lit when a valid signal is received on its associated base station. SpeakerThe control panel is fitted with a 0.5W speaker. Audio from either or both base stations can be connected to this speaker. Power LEDThe green power LED is lit when the PMU is turned on and supplying power to the TB8100 BSS. Carrier Button and Transmit LED The carrier button is a momentary press switch. When held down, it keys the transmitter while disabling the 600Ω balanced and unbalanced line, and microphone audio. The transmitted signal is unmodulated, i.e. carrier only. The red transmit LED is lit while its associated transmitter is transmitting. Alarm LEDThe red alarm LED will flash at a rate of 2 to 5 Hz when an alarm has been generated by any of the TB8100 BSS modules. It will continue to flash until the alarm is cancelled or the fault is fixed. Note that only those alarms which are enabled using the Service Kit (Configure > Alarms > Alarm Control) will cause this LED to flash. Refer to the Service Kit documentation for more information. power on speaker off, audio gated speaker on, audio gated speaker on, audio ungated press press press TB8100 Installation and Operation ManualOperating Controls27 © Tait Electronics Ltd June 2003 Microphone Channel Button and LEDs The microphone channel button selects which base station (BS) the microphone is connected to. At power-on both base stations are selected. Pressing the button once will connect the microphone audio to base station 1. Pressing the button a second time will connect the audio to base station 2. Pressing the button for a third time returns to the start of the sequence, with the microphone audio connected to both base stations. The green LED is lit when the microphone audio is connected to its associated base station. 3.2Reciter The only controls on the reciter are the rotary hex switch mounted on the front panel, and the indicator LEDs visible through a slot in the front panel. Hex SwitchThis switch is used to assign an identity number to each base station in the BSS. For example, the reciters in a dual base station system would be numbered “1” and “2”. The reciter with the lowest hex number becomes the “control” reciter. In a single base station system, the hex switch on the reciter is set to “1”. power on BS1 selected BS1 LED on BS2 selected BS2 LED on BS1 and BS2 selected BS1 and BS2 LEDs on press press press Figure 3.2Operating Controls on the Reciter b indicator LEDs c hex switch c b 28Operating ControlsTB8100 Installation and Operation Manual © Tait Electronics Ltd June 2003 Indicator LEDs These LEDs provide the following information about the state of the reciter:
steady green - the reciter is powered up

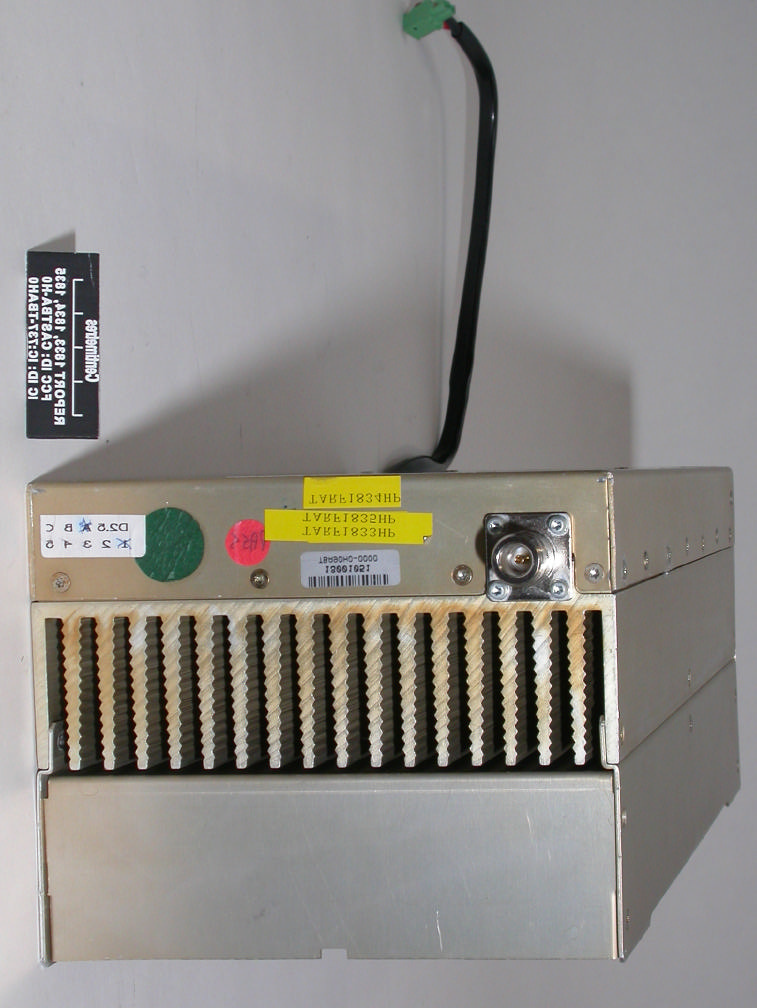

flashing red - one or more alarms have been generated; you can use the Service Kit software to find out more details about the alarms. 3.3PA The only controls on the PA are the indicator LEDs visible through a slot in the front panel. Indicator LEDsThese LEDs provide the following information about the state of the PA:
steady green - the PA is powered up
flashing green - the PA has no application firmware loaded; you can use the Service Kit software to download the firmware
flashing red - one or more alarms have been generated; you can use the Service Kit software to find out more details about the alarms. 3.4PMU The only controls on the PMU are the on/off switches on the rear panel for the AC and DC modules, and the indicator LEDs visible through a slot in the front panel. Figure 3.3Operating Controls on the PA b indicator LEDs b 5/50 W PA 100 W PA TB8100 Installation and Operation ManualOperating Controls29 © Tait Electronics Ltd June 2003 AC Module On/Off Switch This switch turns the AC input to the PMU on and off. Note that this switch breaks only the phase circuit, not the neutral. DC Module On/Off Switch This switch turns the DC output from the PMU on and off. It is recessed to prevent the DC module being accidentally switched off, thus disabling the battery back-up supply. Note that this switch disables only the control circuitry - the DC input is still connected to the power circuitry. Warning!!These switches do not totally is…

Text truncated - open the document above for the full version.

MB8100-00-00-742 June 2003 TB8100 base station Specifications Manual 2TB8100 Specifications Manual © Tait Electronics Ltd June 2003 Tait Contact Information Corporate Head Office New Zealand Tait Electronics Ltd P.O. Box 1645 Christchurch New Zealand E-mail (Marketing): [email protected] E-mail (Sales): [email protected] Technical Support Technical Support Manager Tait Electronics Ltd P.O. Box 1645 Christchurch New Zealand E-mail: [email protected] Internet http://www.taitworld.com Oceania New Zealand Tait Communications Ltd E-mail: [email protected] Australia Tait Electronics (Aust) Pty Ltd E-mail: [email protected] Tait North America Regional Head Office - Canada Tait North America Inc E-mail: [email protected] United States of America Tait North America Inc E-mail: [email protected] Latin America Tait Latin America E-mail: [email protected] Tait Europe Regional Head Office - United Kingdom Tait Mobile Radio Ltd E-mail: [email protected] Tait North Asia Regional Head Office - Hong Kong Tait Mobile Radio (Hong Kong) Ltd E-mail: [email protected] Beijing Tait Mobile Radio (Hong Kong) Ltd E-mail: [email protected] Tait South Asia Regional Head Office - Singapore Tait Electronics (Far East) Pte Ltd E-mail: [email protected] Thailand Tait Mobile Radio Ltd E-mail: [email protected] TB8100 Specifications Manual3 © Tait Electronics Ltd June 2003 Contents Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Scope of Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Enquiries and Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Updates of Manual and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Associated Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Publication Record. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1 Reciter Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Receiver RF Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Receiver Audio Section - General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Receiver Audio Section - CTCSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Receiver Audio Section - Gating Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Exciter RF Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Exciter Audio Section - Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Exciter Audio Section - Modulation Characteristics . . . . . . . . . . . . . . . . . . . . . 14 Exciter Audio Section - CTCSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 External Reference Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Compliance Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2 Power Amplifier and Transmitter Specifications . . . . . . . . . . . . . . . . . 17 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Power Amplifier RF Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Transmitter RF Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Control and Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Compliance Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 3 Power Management Unit Specifications . . . . . . . . . . . . . . . . . . . . . . . 23 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Input - AC Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Input - DC Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Output - AC and DC Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Optional 10W Standby Output - DC Module . . . . . . . . . . . . . . . . . . . . . . . . . 26 Optional 40W Auxiliary Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Compliance Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 4TB8100 Specifications Manual © Tait Electronics Ltd June 2003 Preface Scope of Manual Welcome to the TB8100 base station system Specifications Manual. This manual provides general, performance and physical specifications for the TB8100 UHF 5 W, 50 W and 100W base station systems in PDF format. You can view it online, or print it if you want a paper copy. Enquiries and Comments If you have any enquiries regarding this manual, or any comments, suggestions and notifications of errors, please contact Technical Support (refer to “Tait Contact Information” on page 2). Updates of Manual and Equipment In the interests of improving the performance, reliability or servicing of the equipment, Tait Electronics Ltd reserves the right to update the equipment or this manual or both without prior notice. Copyright All information co…

Text truncated - open the document above for the full version.

Calibration Kit User’s Manual MB8100-90-00-806 June 2003 TB8100 base station TB8100 Calibration Kit User’s ManualContents i Contents Preface ..............................................................................................................iii Enquiries and Comments ..................................................................iii Updates of Manual and Equipment ...................................................iii Copyright .........................................................................................iii Disclaimer ........................................................................................iii Typographical Conventions ..............................................................iii Associated Documentation ...............................................................iii Publication Record ..........................................................................iv About TB8100 Calibration Kit ...........................................................................5 Tour of TB8100 Calibration Kit .............................................................5 About the Toolbar ............................................................................6 About the Status Bar ..........................................................................6 Basic Tasks .........................................................................................................7 Equipment Required ..............................................................................7 Tuning Tool .....................................................................................7 Reciter Tuning Holes .............................................................................8 Holes for Tuning the Receiver VCO and Exciter VCO ....................8 Holes for Tuning the Receiver Front-End .........................................8 Configuring TB8100 Calibration Kit ......................................................9 Selecting the Communications Port ...................................................9 Connecting to the Base Station ...............................................................9 Connecting to the Reciter Outside the Subrack .............................. 10 Connecting to the Reciter/PA in the Subrack ................................. 11 Disconnecting from the Base Station/Reciter ....................................... 12 Basic Troubleshooting .......................................................................... 12 Adjusting the Frequency Setup ......................................................................13 Adjusting the Receiver Lock Band ....................................................... 13 Tuning the Receiver ............................................................................ 14 Adjusting the Exciter Lock Band .......................................................... 15 Calibrating the Reciter ....................................................................................17 Calibrating the Exciter .......................................................................... 17 Automatically Tune the Frequency Control Loop (FCL) ................. 17 Calibrating the FCL Modulation ..................................................... 17 Calibrating the VCO Modulation .................................................... 18 Calibrating the RSSI ............................................................................. 19 Audio Calibration ................................................................................. 21 Calibrating the Balanced Lines ......................................................... 21 Calibrating the Unbalanced Lines .................................................... 22 Calibrating the TCXO ......................................................................... 23 ii ContentsMB8100-90-00-806 © TEL 2003 Calibrating the Power Amplifier ................................................................... 25 Calibrating the PA Bias ........................................................................ 25 Calibrating the PA Power .................................................................... 26 Troubleshooting Tips ..................................................................... 27 Calibrating the Forward and Reverse Detector Bias Voltages ............... 27 Index .................................................................................. 29 TB8100 Calibration Kit User’s Manual Preface iii Preface Welcome to the TB8100 Calibration Kit User’s Manual. This manual provides you with information about the Tait TB8100 Calibration Kit in PDF format. You can view it online or print it if you want a paper copy. It describes how to use Version 1.0 of the Calibration Kit. Enquiries and Comments Any enquiries regarding this manual as well as any comments, suggestions and notifications of errors should be sent to [email protected], or addressed to the Support Group Manager, Tait Electronics Limited, PO Box 1645 Christchurch, New Zealand. Updates of Manual and Equipment In the interests of improving the performance, reliability or servicing of the equipment, Tait Electronics Limited reserves the right to update the equipment or this manual or both without prior notice. Copyright All information contained in this manual is the property of Tait Electronics Limited. All rights are reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Tait Electronics Limited. All trade names referenced are the service mark, trademark or registered trademark of the respective manufacturers. Disclaimer There are no warranties extended or granted by this manual. Tait Electronics Limited accepts no responsibility for damage arising from use of the information contained in the manual or of the equipment and software it describes. It is the responsibi…
