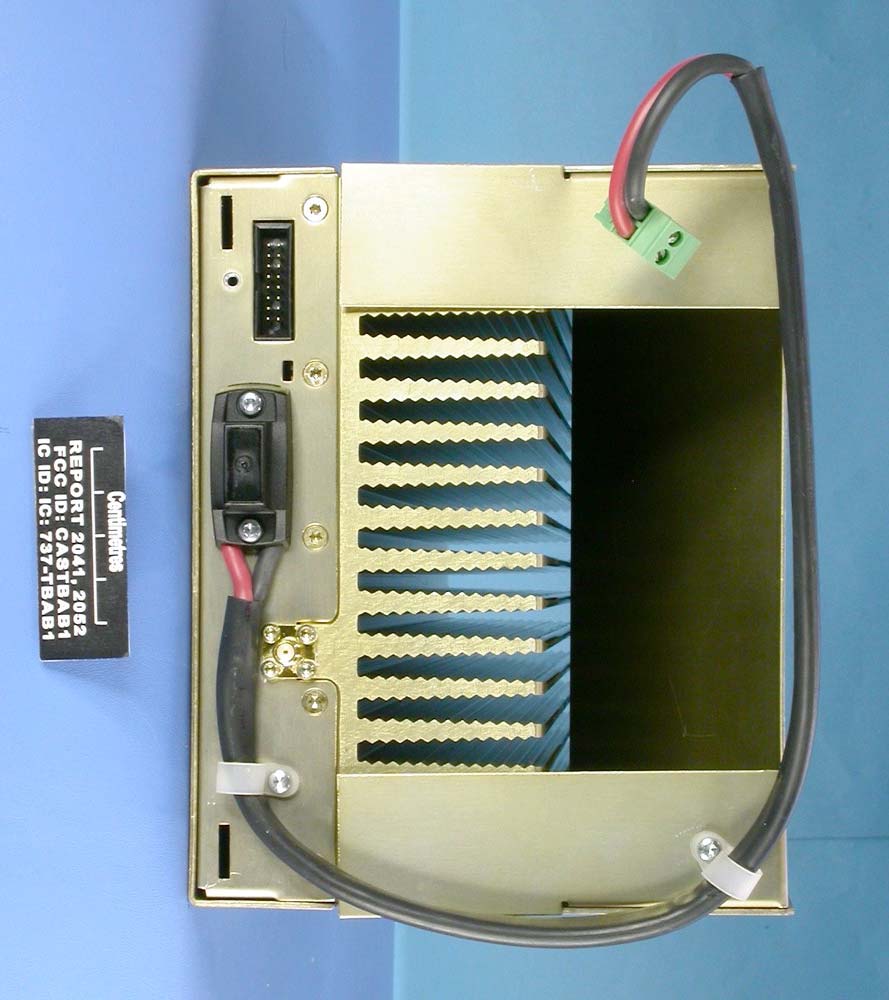

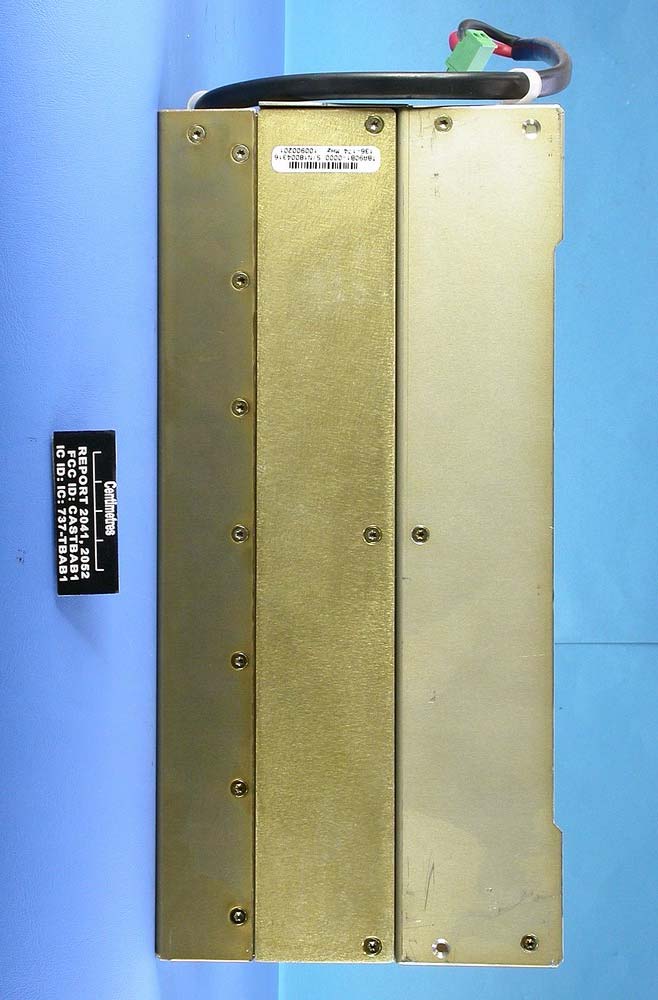

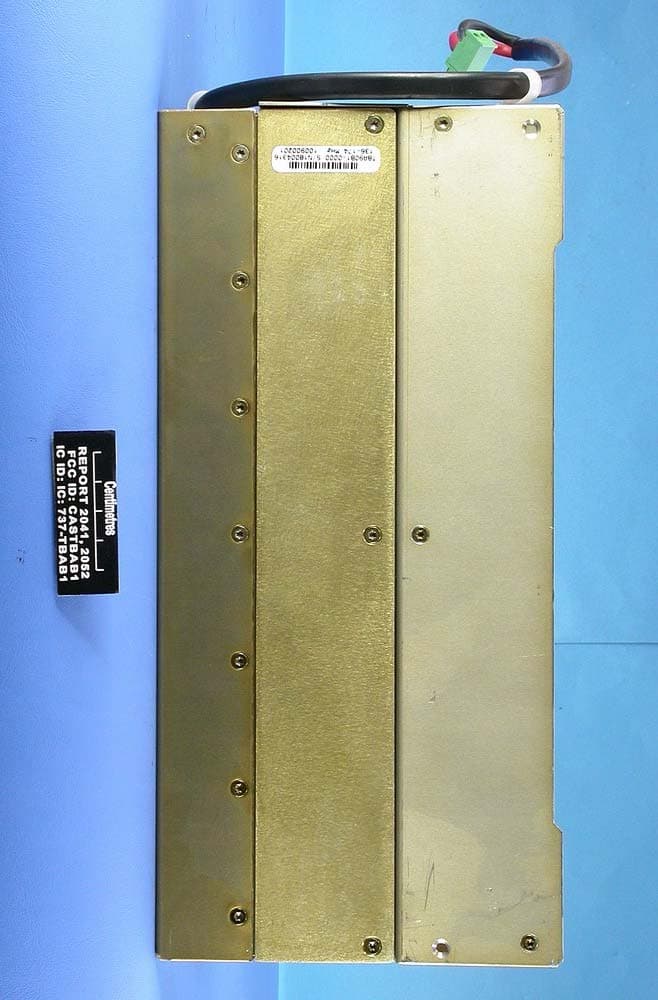

CASTBA9B1Base Station Transceiver

TB8100 Installation and Operation ManualInstallation59 © Tait Electronics Ltd March 2004 5Installation This chapter describes how to install the TB8100 BSS in a standard 19 inch rack or cabinet. It also provides some general information on safety precautions and site requirements. We recommend that you read the entire chapter before beginning the installation. 5.1Personal Safety Lethal Voltages Warning!!The PMU contains voltages that may be lethal. Refer to the ratings label on the rear of the module. The TB8100 BSS must be installed so that the rear of the PMU is located in a service access area. Disconnect the mains IEC connector and wait for five minutes for the internal voltages to self-discharge before dismantling. The AC power on/off switch does not isolate the PMU from the mains. It breaks only the phase circuit, not the neutral. The PMU should be serviced only by qualified technicians. All servicing should be carried out only when the PMU is powered through a mains isolating transformer of sufficient rating. We strongly recommend that the mains power to the whole of the repair and test area is supplied via an earth leakage circuit breaker. Explosive Environments Warning!!Do not operate TB8100 BSS equipment near electrical blasting caps or in an explosive atmos- phere. Operating the equipment in these envi- ronments is a definite safety hazard. Proximity to RF Transmissions Do not operate the transmitter when someone is standing within 90 cm (3ft) of the antenna. Do not operate the transmitter unless you have checked that all RF connectors are secure. 60InstallationTB8100 Installation and Operation Manual © Tait Electronics Ltd March 2004 High Temperatures Take care when handling a PMU or PA which has been operating recently. Under extreme operating conditions (+ 60° C [+140° F] ambient air temperature) or high duty cycles the external surfaces of the PMU and PA can reach temperatures of up to + 80°C (+176°F). 5.2Equipment Safety ESD Precautions ImportantThis equipment contains devices which are susceptible to damage from static charges. You must handle these devices carefully and according to the procedures described in the manufacturers’ data books. We recommend you purchase an antistatic bench kit from a reputable manufacturer and install and test it according to the manufacturer’s instructions. Figure 5.1 shows a typical antistatic bench set-up. You can obtain further information on antistatic precautions and the dangers of electrostatic discharge (ESD) from standards such as ANSI/ESD S20.20-1999 or BS EN 100015-4 1994. Aerial Load The TB8100 BSS equipment has been designed to operate safely under a wide range of aerial loading conditions. However, we strongly recommend that the transmitter should always be operated with a suitable load to prevent damage to the transmitter output power stage. Figure 5.1Typical Antistatic Bench Set-up common point ground (building ground or mains ground via 1 M ohm series resistor) conductive wrist strapdissipative rubber bench mat TB8100 Installation and Operation ManualInstallation61 © Tait Electronics Ltd March 2004 Equipment Grounding To ensure safe operation the TB8100 BSS equipment must be correctly grounded as described in these installation instructions. Installation and Servicing Personnel The TB8100 BSS should be installed and serviced only by qualified personnel. 5.3Regulatory Information Distress Frequencies The 406 to 406.1MHz frequency range is reserved worldwide for use by Distress Beacons. Do not program transmitters to operate in this frequency range. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Unauthorised Modifications Any modifications you make to this equipment which are not authorised by Tait Electronics Ltd may invalidate your compliance authority’s approval to operate the equipment. 5.4Environmental Conditions Operating Temperature Range The operating temperature range of the TB8100 BSS is – 30°C to +60°C (–22°F to + 140°F) ambient temperature. Ambient temperature is defined as the temperature of the air at the intake to the cooling fans. Humidity The humidity should not exceed 95% relative humidity through the specified operating temperature range. 62InstallationTB8100 Installation and Operation Manual © Tait Electronics Ltd March 2004 Dust and Dirt For uncontrolled environments, the level of airborne particulates must not exceed 100 μg/m 3 . 5.5Grounding and Lightning Protection Electrical Ground The TB8100 BSS modules are grounded by physical contact between the module case and the subrack. To ensure a good ground connection you must tighten each module retaining clamp securely (refer to “Final Reassembly” on page 81 for the correct torque setting). A threaded grounding connector is provided on the rear of the subrack for connection to the site ground point (refer to “Connection” on page 83 for more details). Lightning Ground It is extremely important for the security of the site and its equipment that you take adequate precautions against lightning strike. While it is outside the scope of this manual to provide comprehensive information on this subject, the following guidelines apply: ■install a suitable lightning rod at the top of the tower and connect it to a secure ground point with appropriate conductors and connectors ■position site buildings and equipment within the cone of protection provided by the grounded tower ■protect all cables entering the site to prevent lightning energy from entering site buildings. 5.6Recommended Tools It is beyond the scope of this manual to list every tool that an installation technician should carry. However, the following tools are specifically required for installing the TB8100 BSS: ■Pozidriv PZ3 screwdriver for the M6 screws used to secure the subrack to the rack or cabinet, and also for the DC input terminals on the PMU ■Pozidriv PZ2 screwdriver for the M4 screws …

Text truncated - open the document above for the full version.

FCC ID: CASTBA7B1 Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, (Tait Electronics Limited), hereby request confidentiality for the Block diagrams, Schematics, Parts lists, Tune up and Operational Description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Steve Crompton, Laboratory Manager, Tait Electronics Ltd.

Justification Letter – Extended Frequency Range FCC ID: CASTBA9B1 To meet the requirements of Federal Communications Commission (F.C.C.) publication, KDB634817 - Frequency Range Listings for Certification Grants, Tait Electronics Limited submits the following attestation. This Base Station Transmitter has: 1. The design capability to operate in the frequency band 150-174 MHz. 2. Complies with 47CFR Part 90.203(e) in that the equipment operator cannot directly program transmit frequencies using the normally accessible external controls. Programming this equipment is the responsibility of Tait Electronics Limited approved Service Agents In addition to the following rule parts applied for: 22 74 90 This device may be utilised in systems operated by Federal and Public Safety agencies, as indicated in the table beneath. The Grant Note ‘EF’ should be appended to the Grant of Authorisation, indicating this operation is required. B1 Freq. Range (MHz) Part 90 Part 22 Part 74 150.8-152.855 NF NF 152.855-154 NF NF 154-156.2475 NF 156.2475-157.0375 157.0375-157.1875 F 157.1875-157.450 NF 157.450-161.575 NF NF NF 161.575-161.625 NF 161.625-161.775 NF NF 161.775-162.0125 NF NF 162.0125-173.2 F NF 173.2-173.4 NF NF=Non Federal, F=Federal Des Fox Compliance Cordinator Tait Electronics Limited Christchurch 6 th November 2007

TELTEST Laboratories Tait Electronics Limited Report Number 2041 FCC ID: CASTBAB1 Page 1 of 50 REPORT NUMBER 2041June 2004 RADIO PERFORMANCE MEASUREMENTS On the TBAB VHF Base Station Transceiver FCC ID: CASTBAB1 Reciters TBA40B2-0B00 S/N: 18004424 (100W) TBA40B3-0B00 S/N: 18004412 (100W) TBA40B2-0B00 S/N: 18004425 (50W) TBA40B3-0B00 S/N: 18004419 (50W) Power Amplifiers TBA90B1-0000 S/N: 18004316 (100W) TBA80B1-0000 S/N: 18003325 (50W) Power Management Unit TBA30A1-1100 S/N: 18004273 (100W) TBA30A1-1100 S/N: 18004276 (50W) User Interface TBA2021 S/N: 18002183 (50W) TBA2020 S/N: 18004326 (100W) In accordance with FCC 47 CFR Parts 22 and 90 PREPARED BY:Marcus Ludwig___________________ Test Technician CHECKED & APPROVED BY:SA Crompton___________________ Laboratory Manager TELTEST Laboratories Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone : (64) (3) 3583399 Fax: (64) (3) 3580432 TELTEST Laboratories Tait Electronics Limited Report Number 2041 FCC ID: CASTBAB1 Page 2 of 50 REPORT ON : Type Approval Testing of the TBAB VHF Base Station Transceiver in accordance with: FCC CFR 47 Parts 22 & 90 FCC ID: CASTBAB1 PREPARED FOR : Tait Electronics Ltd PO Box 1645 558 Wairakei Rd Christchurch New Zealand DISTRIBUTION : TELTest LaboratoryMr S CromptonCopy No 1 Tait Electronics LtdMr. Des Fox Copy No 2 Tait Electronics LtdMr. Project managerCopy No 3 APPROVED : S. A. Crompton Compliance Laboratory Manager Date : All tests reported herein have been performed in accordance with the laboratory's scope of accreditation This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. Copy No: TELTEST Laboratories Tait Electronics Limited Report Number 2041 FCC ID: CASTBAB1 Page 3 of 50 TABLE OF CONTENTS DECLARATION OF CONFORMITY................................................................................................. 4 TEST RESULTS..................................................................................................................................... 5 TRANSMITTER OUTPUT POWER (CONDUCTED)....................................................................... 5 TRANSMITTER OUTPUT POWER (CONDUCTED) ...................................................................... 6 TRANSMITTER AUDIO FREQUENCY RESPONSE - PRE-EMPHASIS ....................................... 7 TRANSMITTER MODULATION LIMITING ................................................................................. 10 OCCUPIED BANDWIDTH ..............................................................................................................15 SPURIOUS EMISSIONS (CONDUCTED)....................................................................................... 24 SPURIOUS EMISSIONS (RADIATED)........................................................................................... 29 TRANSMITTER FREQUENCY STABILITY (TEMPERATURE) ................................................. 34 TRANSMITTER FREQUENCY STABILITY (VOLTAGE) ........................................................... 38 TRANSIENT FREQUENCY BEHAVIOR ....................................................................................... 39 TEST EQUIPMENT LIST .................................................................................................................. 48 APPENDIX A ....................................................................................................................................... 49 TEST SETUP DETAILS.................................................................................................................. 49 TELTEST Laboratories Tait Electronics Limited Report Number 2041 FCC ID: CASTBAB1 Page 4 of 50 DECLARATION OF CONFORMITY We, TELTEST LABORATORIES of 558 Wairakei Road, Christchurch New Zealand, declare under our sole responsibility that the product: Equipment:Base Station Transceiver Type:TBAB Product TypeProduct CodeSerial Number ReciterTBA40B2-0B0018004424 ReciterTBA40B2-0B0018004425 ReciterTBA40B3-0B0018004412 ReciterTBA40B3-0B0018004419 Power AmplifierTBA90B1-000018004316 Power AmplifierTBA80B1-000018003325 Power Management Unit TBA30A1-1100 TBA30A1-1100 18004273 18004276 User InterfaceTBA202118002183 User InterfaceTBA202018004326 Quantity: 1 To which this declaration relates is in conformity with the following standards: FCC CFR 47 Parts 22 & 90 Signature:__________________________ S. A. Crompton Compliance Laboratory Manager. Date:__________ TELTEST Laboratories Tait Electronics Limited Report Number 2041 FCC ID: CASTBAB1 Page 5 of 50 Test Results TRANSMITTER OUTPUT POWER (CONDUCTED) TEST CONDITIONS:Ambient Temperature 22.5 o C Relative Humidity 48 % Standard Voltage120 V AC SPECIFICATION:FCC 47 CFR 2.1046 GUIDE:TIA/EIA-603 2.2.1 MEASUREMENT PROCEDURE: 1. Refer Appendix A for the equipment set up. 2. The coaxial attenuator has an impedance of 50 Ohms. 3. The unmodulated output power was measured with an RF Power meter. MEASUREMENT RESULTS: Manufacturer’s Rated Output Power:Switchable: 10 W and 100 W 155.1 MHz10W nominal100W nominal POWER (W) 10.0101.3 Variation from Nominal (%) 01.3 Measurement Uncertainty (dB) +0.63 -0.68 LIMIT CLAUSE:FCC 47 CFR 90.205 Radio Type:Basestation Transceiver Frequency Band:150 MHz ~ 174 MHz (o)The output power shall not exceed by more than 20% the manufacturer’s rated output power for the particular transmitter. Equipment Used: 11,116, 61, 118 TELTEST Laboratories Tait Electronics Limited Report Number 2041 FCC ID: CASTBAB1 Page 6 of 50 TRANSMITTER OUTPUT POWER (CONDUCTED) TEST CONDITIONS:Ambient Temperature 22.5 o C Relative Humidity 51 % Standard Voltage120 V AC SPECIFICATION:FCC 47 CFR 2.1046 GUIDE:TIA/EIA-603 2.2.1 MEASUREMENT PROCEDURE: 1. Refer Appendix A for the equipment set up. 2. The coaxial attenuator has an impedance of 50 Ohms. 3. The unmodulated output power was measured with an RF Power meter. MEASUREMENT RESULTS: Manufacturer’s Rated Output Power:Switchable: 5 W and 50 W …

Text truncated - open the document above for the full version.

TELTEST Laboratories Tait Electronics Limited Report Number 2041-A FCC ID: CASTBAB1 Class II Permissive Change Page 1 of 47 REPORT NUMBER 2041-ANovember 2004 Class II Permissive Change to Report Number 2041 FCC ID: CASTBAB1 Consisting of: FUNCTIONAL DESCRIPTION PRODUCT DESIGNATION CODE SERIAL NUMBERS Reciter TBA40B2-PA00 TBA40B3-PA00 18005247 18004413 In accordance with FCC 47 CFR Parts 22, 74 and 90 PREPARED BY:Elizabeth Comery ___________________ Test Technician CHECKED & APPROVED BY:Hamish Newton___________________ Senior Technician TELTEST Laboratories Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone : (64) (3) 3583399 Fax: (64) (3) 3580432 TELTEST Laboratories Tait Electronics Limited Report Number 2041-A FCC ID: CASTBAB1 Class II Permissive Change Page 2 of 47 REPORT ON : Type Approval Testing of the: TBA40B2-PA00(Serial No 18005247) TBA40B3-PA00(Serial No 18004413) in accordance with: FCC CFR 47 Parts 22, 74 & 90 FCC ID: CASTBAB1 PREPARED FOR : Tait Electronics Ltd PO Box 1645 558 Wairakei Rd Christchurch New Zealand DISTRIBUTION : TELTest LaboratoryMr S CromptonCopy No 1 Tait Electronics LtdMr. Des Fox Copy No 2 Tait Electronics LtdMr. Eric AndreCopy No 3 APPROVED : Hamish Newton Senior Technician Date : All tests reported herein have been performed in accordance with the laboratory's scope of accreditation This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. Copy No: TELTEST Laboratories Tait Electronics Limited Report Number 2041-A FCC ID: CASTBAB1 Class II Permissive Change Page 3 of 47 TABLE OF CONTENTS DECLARATION OF CONFORMITY................................................................................................. 4 TEST CONDITIONS ............................................................................................................................. 5 NECESSARY BANDWIDTH AND EMISSION DESIGNATORS ................................................... 5 TRANSMITTER OUTPUT POWER (CONDUCTED) ...................................................................... 8 TRANSMITTER AUDIO FREQUENCY RESPONSE - PRE-EMPHASIS ....................................... 9 TRANSMITTER MODULATION LIMITING ................................................................................. 12 OCCUPIED BANDWIDTH ..............................................................................................................17 ANALOGUE VOICE ...................................................................................................................... 18 FFSK .............................................................................................................................................. 22 DIGITAL - 4 Level FSK................................................................................................................. 26 SPURIOUS EMISSIONS (CONDUCTED)....................................................................................... 30 TRANSMITTER FREQUENCY STABILITY (TEMPERATURE) ................................................. 33 TRANSIENT FREQUENCY BEHAVIOR ....................................................................................... 37 TEST EQUIPMENT USED................................................................................................................. 46 APPENDIX A ....................................................................................................................................... 47 TEST SETUP DETAILS.................................................................................................................... 47 TELTEST Laboratories Tait Electronics Limited Report Number 2041-A FCC ID: CASTBAB1 Class II Permissive Change Page 4 of 47 DECLARATION OF CONFORMITY We, TELTEST LABORATORIES of 558 Wairakei Road, Christchurch New Zealand, declare under our sole responsibility that the product: Equipment:Base Station Transceiver Type:TBAB1 Product codes:TBA40B2-PA00, TBA40B3-PA00 Serial Numbers:18005247, 18004413 Quantity:1 each To which this declaration relates is in conformity with the following standards: FCC CFR 47 Parts 22, 74 & 90 Signature:__________________________ S. A. Crompton Compliance Laboratory Manager. Date:__________ TELTEST Laboratories Tait Electronics Limited Report Number 2041-A FCC ID: CASTBAB1 Class II Permissive Change Page 5 of 47 Test Conditions Environmental All testing was performed at the following conditions. Ambient Temperature15 o C to 30 o C Relative Humidity20% to 75% Standard Test Voltage120Vac Test Frequencies TBA40B2-PA00150.1 MHz TBA40B3-PA00155.1 MHz Necessary Bandwidth and Emission Designators SPECIFICATION:FCC 47 CFR 2.202 The Necessary Bandwidth is the minimum value of the occupied bandwidth sufficient to ensure the transmission of information at the rate and with the quality required for the system employed. This is calculated using the following formula. Bn = 2M + 2DKWhere: Bn = Necessary Bandwidth M = Maximum modulation frequency For Data transmission M = B/2 Where: B = Modulation rate in Baud D = Peak deviation K = Constant For Analogue transmission this is 1 For Data transmission this is typically 1.2 1. Analogue Voice 12.5kHz Bandwidth Necessary bandwidthEmission Designator M = 3kHz11k0F3E D = 2.5kHz F3E represents a FM voice transmission Bn = 6 + 5 x 1 =11kHz 2. Analogue Voice 25kHz Bandwidth Necessary bandwidthEmission Designator M = 3kHz16k0F3E D = 5kHz F3E represents a FM voice transmission Bn = 6 + 10 x 1 =16kHz TELTEST Laboratories Tait Electronics Limited Report Number 2041-A FCC ID: CASTBAB1 Class II Permissive Change Page 6 of 47 3. Fast Frequency Shift Keying (FFSK) 12.5kHz Bandwidth Necessary bandwidthEmission Designator M = 1.8 kHz6k60F2D D = 1.5kHz (60% of peak deviation) F2D represents a FM data transmission with the use of a modulating sub carrier Bn = 3.6 + 3 x 1 = 6.6kHz 4. Fast Frequency Shift Keying (FFSK) 25kHz Bandwidth Necessary bandwidthEmission De…

Text truncated - open the document above for the full version.

TELTEST Laboratories Tait Electronics Limited Report Number 2250 TELTEST Laboratories – A Division of Tait Electronics LimitedTelephone: 64 3 358 3399, Fax: 64 3 358 0432 PO Box 1645, 558 Wairakei Road, Christchurch, New Zealand FCC ID: CASTBAB1Class II Permissive Change Page 1 of 56 REPORT NUMBER 2250July 2005 Class II Permissive Change to TARF 2041 On the TBAB1 Base Station Transceiver FCC ID: CASTBAB1 In accordance with FCC 47 CFR Parts 22 and 90 PREPARED BY:Marcus Ludwig___________________ Test Technician CHECKED & APPROVED BY:Hamish Newton___________________ Senior Technician All tests reported herein have been performed in accordance with the laboratory's scope of accreditation This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. TELTEST Laboratories Tait Electronics Limited Report Number 2250 TELTEST Laboratories – A Division of Tait Electronics LimitedTelephone: 64 3 358 3399, Fax: 64 3 358 0432 PO Box 1645, 558 Wairakei Road, Christchurch, New Zealand FCC ID: CASTBAB1Class II Permissive Change Page 2 of 56 REPORT ON : This is a Class II Permissive Change to TARF 2041 dated June 2004 and confirms performance of the Paging capability of the TBAB1 base Station Transceiver, in accordance with: FCC CFR 47 Parts 22 & 90 FCC ID: CASTBAB1 PREPARED FOR : Tait Electronics Ltd PO Box 1645 558 Wairakei Rd Christchurch New Zealand DISTRIBUTION : TELTest LaboratoryMr S CromptonCopy No 1 Tait Electronics LtdMr. Des Fox Copy No 2 Tait Electronics LtdMr. Ian MacKayCopy No 3 APPROVED : Hamish Newton Senior Technician Date : Copy No: TELTEST Laboratories Tait Electronics Limited Report Number 2250 FCC ID: CASTBAB1Class II Permissive Change Page 3 of 56 TABLE OF CONTENTS TEST CONDITIONS ............................................................................................................................. 4 NECESSARY BANDWIDTH AND EMISSION DESIGNATORS ................................................... 4 DESCRIPTION OF TEST SAMPLE ................................................................................................... 5 TEST RESULTS..................................................................................................................................... 6 OCCUPIED BANDWIDTH................................................................................................................ 6 PAGING (POCSAG) ........................................................................................................................ 7 TEST EQUIPMENT USED................................................................................................................. 55 APPENDIX A ....................................................................................................................................... 56 TEST SETUP DETAILS.................................................................................................................... 56 TELTEST Laboratories Tait Electronics Limited Report Number 2250 FCC ID: CASTBAB1Class II Permissive Change Page 4 of 56 Test Conditions All testing was performed at the following conditions. Ambient Temperature15 o C to 30 o C Relative Humidity20% to 75% Standard Test Voltage120 Vac Necessary Bandwidth and Emission Designators SPECIFICATION:FCC 47 CFR 2.202 The Necessary Bandwidth is the minimum value of the occupied bandwidth sufficient to ensure the transmission of information at the rate and with the quality required for the system employed. This is calculated using the following formula. Bn = 2M + 2DKWhere: Bn = Necessary Bandwidth M = Maximum modulation frequency For Data transmission M = B/2 Where: B = Modulation rate in Baud D = Peak deviation K = Constant For Analogue transmission this is 1 For Data transmission this is typically 1.2 1. Paging (POCSAG) 12.5kHz Bandwidth Necessary bandwidthEmission Designator 512 Baud M= 512 5K90F1D D= 2.25 kHz Bn= 512 + 4500 x 1.2 =5.9kHz F1D represents a FM data transmission without the use of a modulating sub carrier 1200 Baud M= 1200 6K60F1D D= 2.25 kHz Bn= 1200 + 4500 x 1.2 = 6.6 kHz F1D represents a FM data transmission without the use of a modulating sub carrier 2400 Baud M= 2400 7K80F1D D= 2.25 kHz Bn= 2400 + 4500 x 1.2 = 7.8 kHz F1D represents a FM data transmission without the use of a modulating sub carrier 25kHz Bandwidth Necessary bandwidthEmission Designator 512 Baud M= 512 11K3F1D D= 4.5 kHz Bn= 512 + 9000 x 1.2 = 11.3 kHz F1D represents a FM data transmission without the use of a modulating sub carrier 1200 Baud M= 1200 12K0F1D D= 4.5 kHz Bn= 1200 + 9000 x 1.2 = 12 kHz F1D represents a FM data transmission without the use of a modulating sub carrier TELTEST Laboratories Tait Electronics Limited Report Number 2250 FCC ID: CASTBAB1Class II Permissive Change Page 5 of 56 Necessary Bandwidth and Emission Designators 25kHz Bandwidth Necessary bandwidthEmission Designator 2400 Baud M= 2400 13K2F1D D= 4.5 kHz Bn= 2400 + 9000 x 1.2 = 13.2 kHz F1D represents a FM data transmission without the use of a modulating sub carrier Description of Test Sample Type Code:TBAB1 Description:Base Station Transceiver Manufacturer:Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Paging Board:APP TBA PAGING 220-02078-02 Module Details: ReciterFrequency RangeSerial Number Software Revisions TBA40B2-0T10136 – 156MHz18004636 HW: 00.02 FW: 02.05 TBA40B3-0T10148 – 174MHz18004412 HW: 00.02 FW: 02.05 Power AmplifierRange Serial Number Software Revisions TBA90B1-0000136 – 174MHz, 10 – 100 W18004316 HW: 00.00 FW: 02.05 TBA70B1-0000136 – 174MHz, 1 – 5 W18004311 HW: 00.00 FW: 02.05 Power Management Unit SubrackSerial Number Software Revisions TBA30A0-0000100 W18004653 HW: 00.03 FW: 02.05 TBA30A0-00005 W18004354 HW: 00.03 FW: 02.05 TELTEST Laboratories Tait Electronics Limited Report Number 2250 FCC ID: CASTBAB1Class II Permissive Change Page 6 of 56 Test Results OCCUPIED BANDWIDTH SPECIFICATION:FCC 47 CFR 2.1049 (c) GUID…

Text truncated - open the document above for the full version.

TELTEST Laboratories Tait Electronics Limited Report Number 2684 TELTEST Laboratories – A Division of Tait Electronics Limited Telephone: 64 3 358 3399, Fax: 64 3 358 0432 PO Box 1645, 558 Wairakei Road, Christchurch, New Zealand Page 1 of 33 Laboratory Test Report For the TBAB1 Base Station Transceiver Tested In accordance with FCC 47 CFR Parts 22, 74 and 90 Report Revision: 1 Issue Date: 27-September-2007 FCC ID: CASTBA9B1 PREPARED BY: Marcus Ludwig ___________________ Test Technician CHECKED & APPROVED BY: S A Crompton ___________________ Laboratory Manager All tests reported herein have been performed in accordance with the laboratory's scope of accreditation This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. TELTEST Laboratories Tait Electronics Limited Report Number 2684 FCC ID: CASTBA9B1 Page 2 of 33 Report Revision: 1 Issue Date: 27-September-2007 TABLE OF CONTENTS REVISION HISTORY ........................................................................................................................... 3 INTRODUCTION .................................................................................................................................. 3 REPORT PREPARED FOR ................................................................................................................. 3 STATEMENT OF COMPLIANCE...................................................................................................... 4 DESCRIPTION OF SAMPLE .............................................................................................................. 4 TEST CONDITIONS ............................................................................................................................. 4 NECESSARY BANDWIDTH AND EMISSION DESIGNATORS ................................................... 5 TEST RESULTS..................................................................................................................................... 7 SIDEBAND SPECTRUM .................................................................................................................... 7 TEST EQUIPMENT USED................................................................................................................. 32 ANNEX A.............................................................................................................................................. 33 TEST SETUP DETAILS.................................................................................................................... 33 TELTEST Laboratories Tait Electronics Limited Report Number 2684 FCC ID: CASTBA9B1 Page 3 of 33 Report Revision: 1 Issue Date: 27-September-2007 REVISION HISTORY Date Revision Comments 27-September-2007 1 Initial test report INTRODUCTION The modulation range of the Tait base station equipment type TBAB1 (FCC ID: CASTBAB1) has been extended to now include Tait Simulcast Modulation (TSM). This test report details performance of the TSM and reconfirms C4FM and Wide Pulse operation and should be read in conjunction with test reports 2041, 2041A, 2041B, 2142 and 2250. FCC ID: CASTBAB1 included 100, 50 and 5 watt power amplifiers. With the addition of TSM modulation it is necessary to seek separate grants for each power level. This report, in conjunction with test reports listed above confirms performance of the 100W version (FCC ID: CASTBA9B1) of the TBAB1 base station. FCC CFR47 Part 22, 74 & 90 REPORT PREPARED FOR Tait Electronics Ltd PO Box 1645 558 Wairakei Rd Christchurch New Zealand TELTEST Laboratories Tait Electronics Limited Report Number 2684 FCC ID: CASTBA9B1 Page 4 of 33 Report Revision: 1 Issue Date: 27-September-2007 STATEMENT OF COMPLIANCE The TBAB1 Base Station transceiver as tested in this report was found to conform to the following standards: FCC CFR 47 Parts 22, 74 & 90 DESCRIPTION OF SAMPLE Equipment: …
