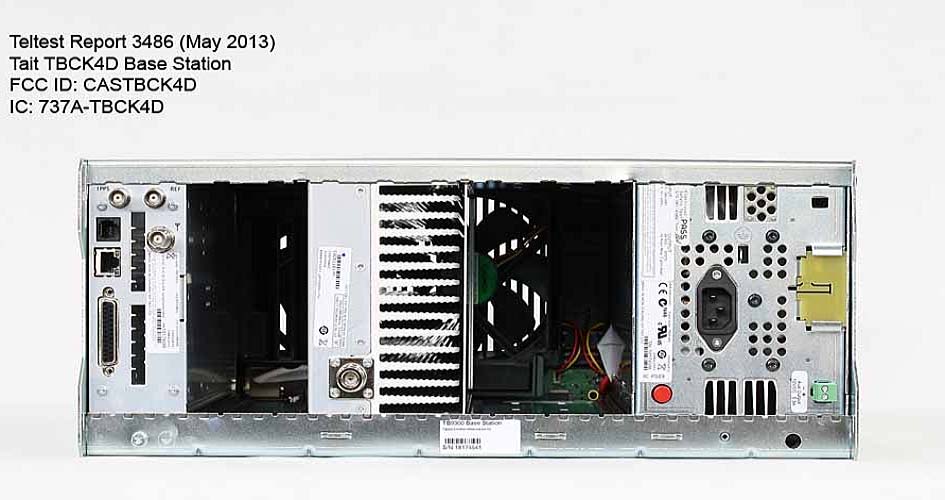

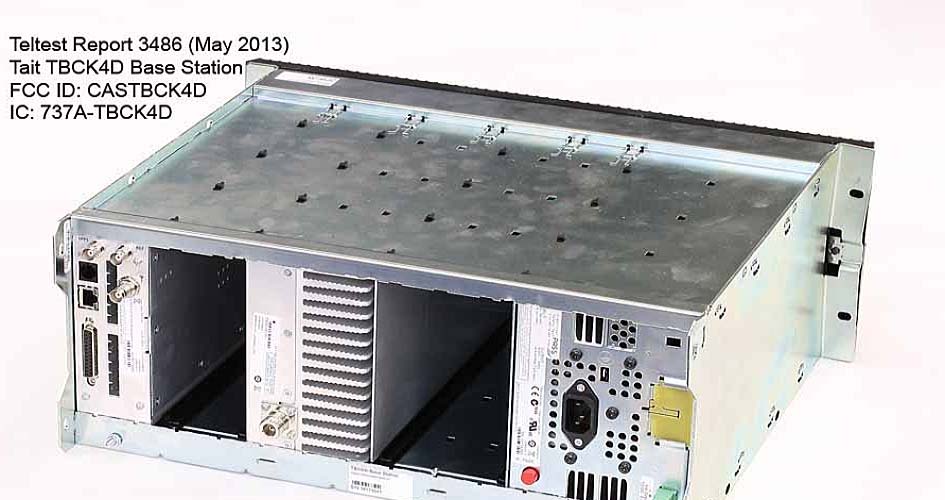

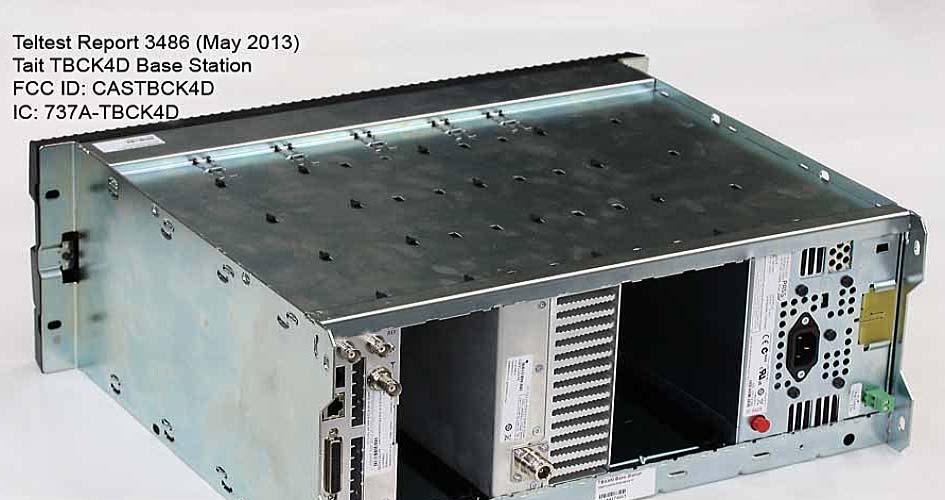

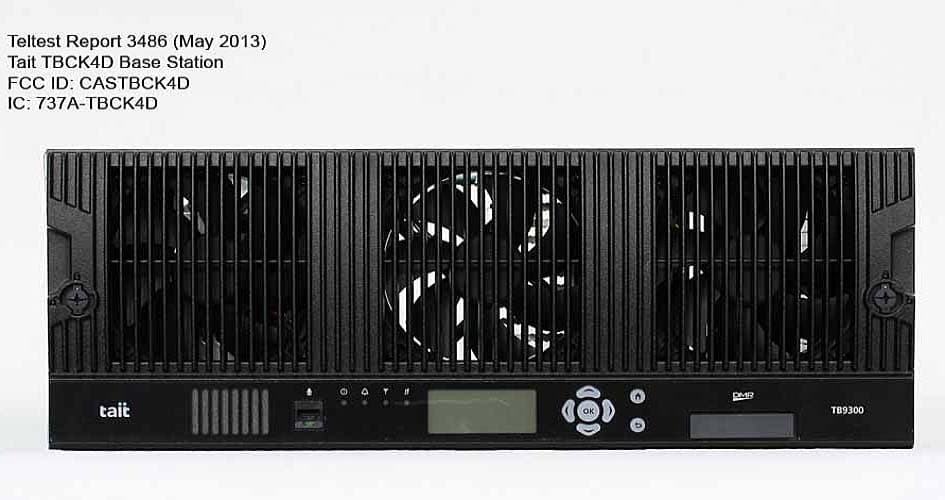

CASTBCK4DBase Station Transceiver

DRAFT 1 TB9300 Installation and Operation ManualInstallation63 © Tait Limited May 2013 5Installation This chapter provides information on the site requirements for your TB9300 equipment and also describes how to install the base station in a standard 19 inch rack or cabinet. If this is your first time installing a TB9300 base station, we recommend that you read the entire chapter before beginning the actual installation. DRAFT 1 64InstallationTB9300 Installation and Operation Manual © Tait Limited May 2013 5.1Before You Begin 5.1.1Equipment Security The security of your base station equipment is a high priority. If the site is not fully secure, the base station should at least be locked in a secure cabinet to prevent unauthorized access. 5.1.2Grounding and Lightning Protection Electrical GroundThe base station modules are grounded by physical contact between the module case and the subrack. To ensure a good ground connection you must tighten each module retaining clamp securely (refer to “Final Reassembly” on page 106 for the correct torque). A threaded grounding connector is provided on the rear of the subrack for connection to the site ground point (refer to “Connecting Up the Base Station” on page 82 for more details). Lightning GroundIt is extremely important for the security of the site and its equipment that you take adequate precautions against lightning strike. Because it is outside the scope of this manual to provide comprehensive information on this subject, we recommend that you conform to your country’s standards organization or regulatory body. 5.1.3Equipment Ventilation Always ensure there is adequate ventilation around the base station. NoticeDo not operate it in a sealed cabinet. You must keep the ambient temperature within the specified range, and we strongly rec- ommended that you ensure that the cooling airflow is not restricted. NoticeThe cooling fans are mounted on the front panel and will only operate when the panel is fitted correctly to the front of the subrack. To ensure adequate airflow through the base station, do not operate it for more than a few minutes with the front panel removed (e.g. for servicing purposes). 5.1.4Ambient Temperature Sensor The ambient temperature reading for the base station is provided by the temperature sensor located on the front panel circuit board. DRAFT 1 TB9300 Installation and Operation ManualInstallation65 © Tait Limited May 2013 5.1.5Cabinet and Rack Ventilation The cooling airflow for the base station enters through the front panel and exits at the rear of the subrack. For optimum thermal performance, the heated air that has passed through a base station must not be allowed to re- enter the air intakes on the front panel. Any space at the front of the cabinet not occupied by equipment should be covered by a blanking panel. Refer toFigure 5.1 on page 66. To allow enough cooling airflow through a cabinet-mounted base station, we recommend the following: ■an area of at least 23 in 2 (150 cm 2 ) of unrestricted ventilation slots or holes in front of the air intakes for the fans for each subrack; for example, thirty 0.25 x 3.3 in (6 x 85 mm) slots will allow the recommended airflow ■a vent in the top of the cabinet with an area of approximately 23 in 2 (150 cm 2 ) per subrack, or a similar area of ventilation per subrack at the rear of the cabinet behind each subrack ■a 2 U gap at the top of the cabinet. NoticeThe ventilation opening must be unrestricted. If the slots or holes are covered with a filter, mesh or grille, the open area must be increased to allow the same airflow as an unrestricted opening. The maximum ambient temperature entering the cabinet must not exceed + 140°F (+ 60°C). If you are installing multiple subracks in a cabinet, ensure that there will be enough cooling airflow through the cabinet after the equipment has been installed. For example, the recommended maximum number of subracks in a 38 U cabinet is five, as shown in Figure 5.1 on page 66. If the base station is installed in a rack or cabinet with other equipment with different ventilation requirements, we recommend that the base station be positioned below this equipment. Auxiliary Extractor Fans The base station does not require auxiliary extractor fans mounted in the top of the cabinet. If your cabinet is already fitted with fans, the following procedures apply: ■if there are six or more 4.75 in (12 cm) fans, each capable of extracting 94.2 ft 3 per minute (160 m 3 per hour), they must run continuously ■if there are fewer than six fans, you must remove them and ensure the vent in the top of the cabinet has an area of approximately 23 in 2 (150 cm 2 ) per subrack. If you have any other configuration, the performance of your system will depend on how closely you comply with the base station airflow requirements described above. DRAFT 1 66InstallationTB9300 Installation and Operation Manual © Tait Limited May 2013 Figure 5.1Typical cabinet ventilation requirements b ventilation slots d airflow entry c blanking panels e airflow exit path 8in (20 cm) 2U ≥7in (≥17.5cm) side viewfront view top view c c d e b DRAFT 1 TB9300 Installation and Operation ManualInstallation67 © Tait Limited May 2013 5.2Unpacking and Moving the Subrack The subrack is packed in a strong corrugated cardboard carton with top and bottom foam cushions. To prevent personal injury and damage to the equipment, we recommend that two people unpack and move the subrack. To remove the subrack from the carton, follow the procedure illustrated in Figure 5.2. CautionA subrack complete with modules can weigh up to 62 lb (28 kg), or up to 66 lb (30 kg) complete with packaging. We recommend that you have another person help you unpack and move the equipment. The TBAA03-16 carrying handles will make it easier to move the equipment once it has been unpacked. If necessary, remove the modules from the subrack before moving it (refer to “Replacing Modules” on page 95). In all cases follow safe lifting pract…

Text truncated - open the document above for the full version.

DRAFT 1 TB9300 Base Station Installation and Operation Manual MBC-00008-03 · Issue 3 · May 2013 DRAFT 1 2TB9300 Installation and Operation Manual © Tait Limited May 2013 Contact Information Tait Communications Corporate Head Office Tait Limited P.O. Box 1645 Christchurch New Zealand For the address and telephone number of regional offices, refer to our website: www.taitradio.com Copyright and Trademarks All information contained in this document is the property of Tait Limited. All rights reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Tait Limited. The word TAIT and the TAIT logo are trademarks of Tait Limited. All trade names referenced are the service mark, trademark or registered trademark of the respective manufacturers. Disclaimer There are no warranties extended or granted by this document. Tait Limited accepts no responsibility for damage arising from use of the information contained in the document or of the equipment and software it describes. It is the responsibility of the user to ensure that use of such information, equipment and software complies with the laws, rules and regulations of the applicable jurisdictions. Enquiries and Comments If you have any enquiries regarding this document, or any comments, suggestions and notifications of errors, please contact your regional Tait office. Updates of Manual and Equipment In the interests of improving the performance, reliability or servicing of the equipment, Tait Limited reserves the right to update the equipment or this document or both without prior notice. Intellectual Property Rights This product may be protected by one or more patents or designs of Tait Limited together with their international equivalents, pending patent or design applications, and registered trade marks: NZ 409837, NZ 409838, NZ 415277, NZ 415278, NZ 508806, NZ 508807, NZ 511155, NZ 516280/NZ 519742, NZ 520650/NZ537902, NZ 521450, NZ 524369, NZ 524378, NZ 524509, NZ 524537, NZ 530819, NZ 534475, NZ 534692, NZ 537434, NZ 547713, NZ 569985, NZ 577009, NZ 579051, NZ 579364, NZ 580361/NZ 601933, NZ 584534, NZ 586889, AU 2003281447, AU 2004216984, AU 2010212364, AU 11677/2008, AU 13745/2008, CN 200930004199.5, CN 1031871, CN 1070368, CN 200930004200.4, CN 200930009301.0, CN 201110141630, CN 201110253742.1, EU 000915475-0001, EU 000915475-0002, GB 2413249, US 5,745,840, US 7,649,893, US 7,758,996, US7,937,661, US 8,301,682, US 10/597339, US 29/401234, US 29/ 401235, US 61/218015, US 61/236663, US 61/323437. This product may also be made under license under one or more of the following U.S. Patents: 5,146,497, 5,148,482, 5,164,986, 5,185,795, 5,185,796, 5,271,017, 5,377,229 and 5,502,767. The AMBE+2™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. Protected by U.S. Patents 5,870,405, 5,826,222, 5,754,974, 5,701,390, 5,715,365, 5,649,050, 5,630,011, 5,581,656, 5,517,511, 5,491,772, 5,247,579, 5,226,084 and 5,195,166. Environmental Responsibilities Tait Limited is an environmentally responsible company which supports waste minimization, material recovery and restrictions in the use of hazardous materials. The European Union’s Waste Electrical and Electronic Equipment (WEEE) Directive requires that this product be disposed of separately from the general waste stream when its service life is over. For more information about how to dispose of your unwanted Tait product, visit the Tait WEEE website at www.taitradio.com/weee. Please be environmentally responsible and dispose through the original supplier, or contact Tait Limited. Tait Limited also complies with the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive in the European Union. In China, we comply with the Measures for Administration of the Pollution Control of Electronic Information Products. We will comply with environmental requirements in other markets as they are introduced. DRAFT 1 TB9300 Installation and Operation Manual3 © Tait Limited May 2013 Contents Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Scope of Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Associated Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Publication Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 1Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1.2 Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 1.3 Mechanical Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1.4 Frequency Bands and Sub-bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 1.5 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 1.6 Licenses . . . . . . …

Text truncated - open the document above for the full version.

Tait TBCK4D- Part 90R Application Review Public Safety Bands: 764-776 MHz and 794-806 MHz 1. Explanation of which Narrowband or Wideband channel segments the device is capable of supporting from those listed in 90.531(b), and 90.531(c). - For Narrowband segments: a) Is the device capable of operating on “General Use” channels listed in 90.531(b)(5) or “State”channels listed in 90.531(b)(6)? Yes, Transmit Channels 1-960, Receive Channels 961-1920 b) Is the device ONLY capable of operating on Low Power “Regional” channels listed in 90.531(b)(3) or Low Power “Itinerant” channels listed in 90.531(b)(4)? No c) Is the device capable of operating on “Nationwide” Interoperability channels listed in 90.531(b)(1)? Yes - For Wideband segments: d) Is the device capable of operating on Interoperability channels listed in 90.531(c)(1)? No 2. Statement regarding the modulation capabilities of the device: - Does the device support digital Voice only, Data only, or both [see 90.547]? Not Applicable, not a mobile or portable - Does the device support analog voice operation [see 90.535(a)]? No 3. Verify the following Interoperability Channel Operation requirements listed in 90.531 and 90.547 for Narrowband mobile, portable, or control devices only, given the information from #1. and #2. above: a) Designed for Data ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the data interoperability channels listed in 90.531(b)(1)(i). b) Designed for Voice ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the nationwide and calling only interoperability channels listed in 90.531(b)(1) and (b)(1)(ii), but do not have to operate on data only channels listed in 90.531(b)(1)(i). c) Designed for BOTH Voice and Data Operation on Nationwide, General Use or State channels - Must be capable of operating on all nationwide interoperability channels including data only and calling only channels listed in 90.531(b)(1), (b)(1)(i), and (b)(1)(ii). d) Designed for Low Power ONLY Operation on Regional/Itinerant channels – Must operate ONLY on the data/voice channels listed in 90.531(b)(3) or (b)(4). Not applicable, equipment category is base station equipment 4. Verify the following capability requirements for all Wideband devices only, given the information from #1. and #2. above: a) Designed for Data ONLY Operation on Nationwide Interoperability channels - Must operate on the wideband data interoperability channels listed in 90.531(c)(1). Not Applicable, not designed for Wideband 5. Application filing requirements for Narrowband mobile, portable or control devices only: - Voice Operation on General Use, State, or Nationwide Voice Interoperability channels: a) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. b) Attestation of voice path efficiency compliance for operation on General Use and State channels only – 90.203(m) & 90.535(d). c) Attestation of operation on Nationwide Voice Interoperability and Calling Only channels – 90.547. - For Voice Only devices, attestation to 90.547(a)(3). d) Attestation of compliance to Project 25 FDMA Common Air Interface (ANSI 102) standards for operation on Nationwide Voice Interoperability and Calling Only channels only - 90.548(a)(1). e) Frequency stability compliance for all band plans - 90.539(a) & (c). f) Transmitting power compliance for all band plans - 90.541(b) & (c). - Data Operation on General Use, State, or Nationwide Data Interoperability channels: g) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. h) Attestation of data rate efficiency compliance for General Use and State channels only - 90.535(b). i) Attestation of operation on Nationwide Data Interoperability channels listed in 90.531(b)(1)(i) only – 90.547. - For Data Only devices, attestation to 90.547(a)(2). j) Attestation of compliance to Project 25 Data Overview (ANSI 102) standards for operation on data interoperability channels listed in 90.531(b)(1)(i) only - 90.548(a)(2). k) Frequency stability compliance for all band plans - 90.539(a) & (c). l) Transmitting power compliance for all band plans - 90.541(b) & (c). - Low Power Operation (mobiles and portables only) on Regional/Itinerant channels: m) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all Low Power channel band plans - 90.543. n) Attestation of low power ONLY operation on Low Power Regional/Itinerant channels listed in 90.531(b)(3)&(b)(4) – 90.541(b)&(c). - For Low Power Only devices, attestation to 90.547(a)(1). o) Attestation of data rate efficiency compliance for (non-voice) data capable devices operating on Low Power Regional/Itinerant channels only - 90.535(b). [data efficiency applies to all (non-voice) narrowband channels] p) Frequency stability compliance for all band plans - 90.539(c). q) Transmitting power compliance for all band plans - 90.541(d). Not applicable, equipment category is base station equipment 6. Application filing requirements for Wideband mobile, portable, or control devices only: - Data Operation: a) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. b) Attestation of data rate efficiency compliance for wideband data channels listed in 90.531(c) - 90.535(c). [data efficiency applies to all (non-voice) wideband channels] c) Attestation of Data Interoperability Channel operation for wideband data interoperability channels listed in 90.531(c)(1) only. d) (future) Attestation of compliance to Wideband Data (ANSI 902) standards - for data interoperability channels listed in 90.531(c)(1) only - 90.548(??). e) Frequency stability compliance for all band plans - 90.539. f) Transmitting power compliance for all band plans - 90.541. Not applicable, not designed for Wideband 7. All devices – oth…

Text truncated - open the document above for the full version.

Tait Limited Phone: +64 3 358 0403 PO Box 1645, 558 Wairakei Road Fax: +64 3 359 4632 Burnside, Christchurch 8053 www.taitradio.com New Zealand 6 May 2013 Daniel E Crowder Elite Electronic Engineering Inc. 1516 Centre Circle, Downers Grove Illinois 60515 United States of America Dear Dan, Subject: Part 90.203 (j) (5) Certification Statement – FCC ID: CASTBCK4D Tait Limited certifies that it’s digital base station transceiver FCC ID: CASTBCK4D, meets a spectrum efficiency standard of one voice channel per 6.25 kHz of channel bandwidth. Additionally, Tait Limited certifies the equipment is capable of supporting a minimum data rate of 4800 bits per second per 6.25 kHz of channel bandwidth. Yours sincerely, Brian Emmett Standards and Compliance Engineer

Tait Limited Phone: +64 3 358 6635 PO Box 1645, 558 Wairakei Road Fax: +64 3 359 4632 Burnside, Christchurch 8053 www.taitradio.com New Zealand 5 th May 2013 Request for Confidentiality FCC ID: CASTBCK4D Pursuant to Sections 0.457 and 0.459 of the Commission’s rules, Tait Limited hereby requests that the following documents be held confidential: • Technical Description (includes Block and Level) • Operational Description • Tune-up Procedure • Schematics • Parts Lists In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Steve Crompton Compliance Laboratory Manager Tait Limited

Tait Limited Phone: +64 3 358 1026 PO Box 1645, 558 Wairakei Road Fax: +64 3 359 4632 Burnside, Christchurch 8140 www.taitradio.com New Zealand F.C.C. Justification Letter FCC ID: CASTBCK4D To meet the requirements of Federal Communications Commission (F.C.C.) publication, KDB634817 - Frequency Range Listings for Certification Grants, Tait Electronics Limited submits the following attestation. This base station transceiver has: 1. The design capability to operate in the frequency band 762-870 MHz. 2. Complies with 47CFR Part 90.203(e) in that the equipment operator cannot directly program transmit frequencies using the normally accessible external controls. Programming this equipment is the responsibility of Tait Limited approved Service Agents In addition to the following rule parts applied for: Part 90 This device may be utilised in systems operated by Non Federal and Public Safety agencies, as indicated in the table beneath. The Grant Note ‘EF’ should be appended to the Grant of Authorisation, indicating this operation is required. Table 1 – Frequency Range and Rule Parts - (47CFR Part 2.106) Freq. Range (MHz) Part 90 769-775 NF 775-799 799-805 805-806 806-809 809-824 824-851 851-854 NF 854-869 NF NF=Non Federal Agency Des Fox Compliance Coordinator Christchurch 6 th May 2013

TELTEST Laboratories Tait Communications Report Number 3486 FCC ID: CASTBAK4D Page 1 of 37 Report Revision: 1 IC : 737A-TBCK4D Issue Date: 01-May-2013 LABORATORY TEST REPORT RADIO PERFORMANCE MEASUREMENTS for the TBCK4D Base Station Transceiver Tested in accordance with: FCC 47 CFR Parts 90 RSS-119 Issue 11 RSS-Gen Issue 3 Report Revision: 1 Issue Date: 01-05-13 PREPARED BY: Robin Kidson _______________ Test Technician CHECKED & APPROVED BY: Steve Crompton _______________ Laboratory Manager All tests reported herein have been performed in accordance with the laboratory's scope of accreditation. This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager TELTEST Laboratories (A Division of Tait Communications) Telephone: 64 3 358 3399 PO Box 1645, 558 Wairakei Road, Christchurch, New Zealand. FAX: 64 3 359 4632 TELTEST Laboratories Tait Communications Report Number 3486 FCC ID: CASTBAK4D Page 2 of 37 Report Revision: 1 IC : 737A-TBCK4D Issue Date: 01-May-2013 TABLE OF CONTENTS REVISION .................................................................................................................. 3 INTRODUCTION ........................................................................................................ 4 STATEMENT OF COMPLIANCE ............................................................................... 6 MODULATION TYPES, NECESSARY BANDWIDTH & EMISSION DESIGNATORS 7 TEST RESULTS ......................................................................................................... 8 TRANSMITTER OUTPUT POWER (CONDUCTED) .............................................. 8 ADJACENT CHANNEL POWER RATIO ................................................................. 9 TRANSMITTER OCCUPIED BANDWIDTH AND SPECTRUM MASKS ............... 10 TRANSMITTER SPURIOUS EMISSIONS (CONDUCTED) .................................. 19 TRANSMITTER SPURIOUS EMISSIONS (RADIATED) ....................................... 26 TRANSMITTER FREQUENCY STABILITY - TEMPERATURE ............................ 30 TRANSMITTER FREQUENCY STABILITY - VOLTAGE ...................................... 33 TX STANDBY/ RECEIVER SPURIOUS EMISSIONS (CONDUCTED)................. 34 TEST EQUIPMENT LIST.......................................................................................... 36 ANNEX A – TEST SETUP DETAILS ........................................................................ 37 TELTEST Laboratories Tait Communications Report Number 3486 FCC ID: CASTBAK4D Page 3 of 37 Report Revision: 1 IC : 737A-TBCK4D Issue Date: 01-May-2013 REVISION Date Revision Comments 01-05-2013 1 Initial test report TELTEST Laboratories Tait Communications Report Number 3486 FCC ID: CASTBAK4D Page 4 of 37 Report Revision: 1 IC : 737A-TBCK4D Issue Date: 01-May-2013 INTRODUCTION This report covers the requirements of FCC 47 Parts 90, and RSS-119 Issue 11 & RSS-Gen Issue 3. REASON FOR REPORT The TB9300 K4 50W Base Station is a new addition to the Tait Ltd product line capable of Digital Mobile Radio (DMR) modulation. DMR supports two voice channels in each 12.5 kHz channel. Type Approval Testing of the TBCK4D, Frequency ranges: TX: 762 Æ 776 MHz, 850 Æ 870 MHz and RX: 794 Æ 824 MHz. in accordance with: FCC 47 CFR Parts 90 RSS-119 Issue 11 & RSS-Gen Issue 3 REPORT PREPARED FOR Tait Communications PO Box 1645 558 Wairakei Road Christchurch New Zealand DESCRIPTION OF SAMPLE Manufacturer Tait Limited Equipment: Base Station Transceiver Type: TBCK4D TBCK4D Base Station Transceiver consisting of: FUNCTIONAL DESCRIPTION PRODUCT DESIGNATION CODE SERIAL NUMBER (S) Reciter T01-01105-NAAA 18174286 Power Amplifier T01-01136-NAAA 18174263 Power Management Unit TBA30A0-0100 18174386 Front Panel T01-01110-CCAA 18174520 Sub Rack T01-01101-AAAA 18174501 Quantity: 1 of each TELTEST Laboratories Tait Communications Report Number 3486 FCC ID: CASTBAK4D Page 5 of 37 Report Revision: 1 IC : 737A-TBCK4D Issue Date: 01-May-2013 HARDWARE & SOFTWARE Details: FUNCTIONAL DESCRIPTION FIRMWARE VERSION HARDWARE VERSION Reciter Dmr-1.10.00.0004 00.00 Power Amplifier 0312 00.02 Power Management Unit 0314 00.03 Front Panel 1.03.00.0001 00.04 TEST CONDITIONS All testing was performed between 11 Æ 29 April 2013, and under the following conditions: Ambient temperature: 15 o C Æ 30 o C Relative Humidity: 20% Æ 75% Standard Test Voltage 120 Vac Test Frequency pair 769.06875 MHz (TX) / 799.08675 MHz (RX): An external 10 MHz Frequency Reference was used (excluding Radiated Emissions). TELTEST Laboratories Tait Communications Report Number 3486 FCC ID: CASTBAK4D Page 6 of 37 Report Revision: 1 IC : 737A-TBCK4D Issue Date: 01-May-2013 STATEMENT OF COMPLIANCE We, TELTEST LABORATORIES of 558 Wairakei Road, Christchurch, New Zealand, declare under our sole responsibility that the product: TBCK4D Base Station Transceiver to which this declaration relates, is in conformity with the following standards: FCC 47 CFR Parts 90 RSS-119 Issue 11 & RSS-Gen Issue 3 Signature: ___________________ S.A. Crompton Compliance Laboratory Manager Date: ___________________ TELTEST Laboratories Tait Communications Report Number 3486 FCC ID: CASTBAK4D Page 7 of 37 Report Revision: 1 IC : 737A-TBCK4D Issue Date: 01-May-2013 MODULATION TYPES, NECESSARY BANDWIDTH & EMISSION DESIGNATORS MODULATION TYPES: 4 Level FSK (as per ETSI TS 102 361-1) 2 Speech Channels 4800 symbols/sec 9600 bps CHANNEL SPACING: 12.5 kHz NECESSARY BANDWIDTH : The necessary bandwidth has been measured using the 99% energy rule, and in accordance with TIA/EIA 102 CAAB 2.2.5.2 and RSS-Gen 4.6.1 99% bandwidth = 7.6 kHz EMISSION DESIGNATORS: DMR Digital Voice / Data 7K60FXW DMR Digital Data 7K60FXD FXW represents FM combination of data and telephony. FXD represents FM data only TELTEST Laboratories Tait Communications Report Number 3486 FCC ID: CASTBAK4D Page 8 of 37 Report Revision: 1 IC : 737A-TBCK4D Issue Date: 01-May-2013 TEST RESULTS TRANSMITTER OUTPUT POWER (CONDUCTED) SPECIFI…
