CASTBDB1GBase Station Transceiver

TB7000/TB8000/TB9000 TN9110 P25 CG TN9111 P25 TAG Safety and Compliance Information Informations sur la conformité et consignes de sécurité Informações sobre segurança e conformidade Información sobre medidas de seguridad y conformidad 产品安全与符合性信息 MBA-00012-14 · 09/2020 2 Important: Read carefully before use. Keep for future reference. For the latest user documentation, visit http://support.taitradio.com. Important: Veuillez lire ces informations avec attention avant toute utilisation. Conservez-les à titre de référence. Pour accéder aux manuels d'utilisation les plus récents, veuillez visiter http://support.taitradio.com. Wichtig: Bitte dieses Dokoment vor der Benutzung lesen und als zukünftige Referenz aufbewaren. Die aktuelle Benutzerdokumentation finden Sie auf http://support.taitradio.com. Importante: Leia com atenção antes de usar. Guarde para referência futura. Para a documentação mais recente do usuário, por favor visite http://support.taitradio.com. Importante: Leer detenidamente antes de usar. Mantener para referencia futura. Para ver la documentación más reciente para el usuario, visite http://support.taitradio.com. 重要：使用之前应当认真阅读。保留妥当以供日后参考。 关于最新的用户文档，请访问 http://support.taitradio.com. Contact Information Tait Communications Corporate Head Office Tait International Limited P.O. Box 1645 Christchurch New Zealand For the address and telephone number of regional offices, refer to our website: www.taitradio.com Para contactarnos Oficina corporativa de Tait Communications Tait International Limited P.O. Box 1645 Christchurch Nueva Zelanda Si desea obtener una lista de direcciones y números de teléfono de las oficinas regionales, visite nuestra página web: www.taitradio.com . Coordonnées de Tait Tait Communications Siège social Tait International Limited P.O. Box 1645 Christchurch Nouvelle-Zélande Pour les adresses et numéros de téléphone des branches régionales, veuillez consulter notre site Internet: www.taitradio.com 公司总部 大吉国际有限公司 Tait International Limited 邮政信箱：1645P.O. Box 1645 基督城Christchurch 新西兰New Zealand 有关各大区域分支机构的地址和电话，请访问我们的 网站：www.taitradio.com Informação para contato Tait Communications Sede Corporativa Tait International Limited P.O. Box 1645 Christchurch Nova Zelândia Para endereço e telefone dos escritórios regionais consulte o site www.taitradio.com. Safety and Compliance Information3 English Copyright and Trademarks All information contained in this document is the property of Tait International Limited. All rights reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Tait International Limited. The word TAIT and the TAIT logo are trademarks of Tait International Limited. All trade names referenced are the service mark, trademark or registered trademark of the respective manufacturers. Disclaimer There are no warranties extended or granted by this document. Tait International Limited accepts no responsibility for damage arising from use of the information contained in the document or of the equipment and software it describes. It is the responsibility of the user to ensure that use of such information, equipment and software complies with the laws, rules and regulations of the applicable jurisdictions. Enquiries and Comments If you have any enquiries regarding this document, or any comments, suggestions and notifications of errors, please contact your regional Tait office. Updates of Manual and Equipment In the interests of improving the performance, reliability or servicing of the equipment, Tait International Limited reserves the right to update the equipment or this document or both without prior notice. Intellectual Property Rights This product may be protected by one or more patents or designs of Tait International Limited together with their international equivalents, pending patent or design applications, and registered trade marks: NZ 409837, NZ 409838, NZ 415277, NZ 415278, NZ 530819, NZ 534475, NZ 547713, NZ 577009, NZ 579051, NZ 579364, NZ 586889, NZ 610563, NZ 615954, NZ 700387, NZ 708662, NZ 710766, NZ 711325 , NZ 726313, NZ593887, AU 2015215962, AU 339127, AU 339391, AU2016259281, AU2016902579, EU 000915475-0001, EU 000915475-0002, GB 2532863, US 14/834609 Div. no 1, US 15/346518 Div.no 2, US 15/350332, US 15/ 387026 Div., US 20150085799, US 20160044572, US 20160057051, US 640974, US 640977, US 698339, US 702666, US 7758996, US 8902804, US 9107231, US 9504034, US 9559967. 4Safety and Compliance Information English TB7300 and TB9300 only: This product may also be made under license under one or more of the following patents: - US7203207, AU2004246135, CA2527142, GB2418107, HK1082608, MY134526, US8306071 - US7339917, AU2004246136, CA2526926, GB2418812, MY134217 - US7499441, AU2005262626, CA2570441, GB2430333, JP4690397, NZ551231, KR100869043, RU2351080, BRP10512052, MXPA06015241 - US 7200129, AU2005226531, CA2558551, CN1930809, GB2429378, JP4351720, BRP10508671, NZ549124, KR848483, RU2321952 TB7300, TB9100, TB9300, TB9400 and gateways only: The IMBE™ (TB9100 and gateways) and AMBE+2™ (TB7300, TB9300 and TB9400) voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. Environmental Responsibilities Tait International Limited is an environmentally responsible company which supports waste minimization, material recovery and restrictions in the use of hazardous materials. The European Union’s Waste Electrical and Electronic Equipment (WEEE) Directive requires that this product be disposed of …

Text truncated - open the document above for the full version.

TB7300 Base Station Installation and Operation Manual MBD-00001-16 · Issue 16· April 2021 2TB7300 Installation and Operation Manual © Tait International Limited April 2021 Contact Information Tait Communications Corporate Head Office Tait International Limited P.O. Box 1645 Christchurch New Zealand For the address and telephone number of regional offices, refer to our website: www.taitradio.com Copyright and Trademarks All information contained in this document is the property of Tait International Limited. All rights reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine- readable form, without prior written permission from Tait International Limited. The word TAIT and the TAIT logo are trademarks of Tait International Limited. All trade names referenced are the service mark, trademark or registered trademark of the respective manufacturers. Disclaimer There are no warranties extended or granted by this document. Tait International Limited accepts no responsibility for damage arising from use of the information contained in the document or of the equipment and software it describes. It is the responsibility of the user to ensure that use of such information, equipment and software complies with the laws, rules and regulations of the applicable jurisdictions. Enquiries and Comments If you have any enquiries regarding this document, or any comments, suggestions and notifications of errors, please contact your regional Tait office. Updates of Manual and Equipment In the interests of improving the performance, reliability or servicing of the equipment, Tait International Limited reserves the right to update the equipment or this document or both without prior notice. Intellectual Property Rights This product may also be made under license under one or more of the following patents: - US7203207, AU2004246135, CA2527142, GB2418107, HK1082608, MY134526, US8306071 - US7339917, AU2004246136, CA2526926, GB2418812, MY134217 - US7499441, AU2005262626, CA2570441, GB2430333, JP4690397, NZ551231, KR100869043, RU2351080, BRP10512052, MXPA06015241 - US 7200129, AU2005226531, CA2558551, CN1930809, GB2429378, JP4351720, BRP10508671, NZ549124, KR848483, RU2321952 Environmental Responsibilities Tait International Limited is an environmentally responsible company which supports waste minimization, material recovery and restrictions in the use of hazardous materials. The European Union’s Waste Electrical and Electronic Equipment (WEEE) Directive requires that this product be disposed of separately from the general waste stream when its service life is over. For more information about how to dispose of your unwanted Tait product, visit the Tait WEEE website at www.taitradio.com/ weee. Please be environmentally responsible and dispose through the original supplier, or contact Tait International Limited. Tait International Limited also complies with the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive in the European Union. In China, we comply with the Measures for Administration of the Pollution Control of Electronic Information Products. We will comply with environmental requirements in other markets as they are introduced. TB7300 Installation and Operation Manual3 © Tait International Limited April 2021 Contents Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Scope of Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Associated Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Publication Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 1Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.1 Software Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1.1.1 Base Station Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1.2 Frequency Bands and Sub-bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 1.3 Software Application Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 1.3.1 P25/AS-IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 1.3.2 DMR/MPT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 1.4 Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1.4.1 Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1.4.2 Feature licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1.5 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 1.5.1 Signal Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 1.5.2 Online and Offline Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 1.5.3 Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 1.5.4 Front Panel Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2General Safety and Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.1 Personal Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

TB7300 Base Station/Repeater Specifications Manual MBD-00002-16 · Issue 16 · April 2021 2TB7300 Specifications Manual © Tait International Limited April 2021 Contact Information Tait Communications Corporate Head Office Tait International Limited P.O. Box 1645 Christchurch New Zealand For the address and telephone number of regional offices, refer to our website: www.taitradio.com Copyright and Trademarks All information contained in this document is the property of Tait International Limited. All rights reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine- readable form, without prior written permission from Tait International Limited. The word TAIT and the TAIT logo are trademarks of Tait International Limited. All trade names referenced are the service mark, trademark or registered trademark of the respective manufacturers. Disclaimer There are no warranties extended or granted by this document. Tait International Limited accepts no responsibility for damage arising from use of the information contained in the document or of the equipment and software it describes. It is the responsibility of the user to ensure that use of such information, equipment and software complies with the laws, rules and regulations of the applicable jurisdictions. Enquiries and Comments If you have any enquiries regarding this document, or any comments, suggestions and notifications of errors, please contact your regional Tait office. Updates of Manual and Equipment This product may also be made under license under one or more of the following patents: - US7203207, AU2004246135, CA2527142, GB2418107, HK1082608, MY134526, US8306071 - US7339917, AU2004246136, CA2526926, GB2418812, MY134217 - US7499441, AU2005262626, CA2570441, GB2430333, JP4690397, NZ551231, KR100869043, RU2351080, BRP10512052, MXPA06015241 - US 7200129, AU2005226531, CA2558551, CN1930809, GB2429378, JP4351720, BRP10508671, NZ549124, KR848483, RU2321952 In the interests of improving the performance, reliability or servicing of the equipment, Tait International Limited reserves the right to update the equipment or this document or both without prior notice. Intellectual Property Rights This product may also be made under license under one or more of the following patents: - US7203207, AU2004246135, CA2527142, GB2418107, HK1082608, MY134526, US8306071 - US7339917, AU2004246136, CA2526926, GB2418812, MY134217 - US7499441, AU2005262626, CA2570441, GB2430333, JP4690397, NZ551231, KR100869043, RU2351080, BRP10512052, MXPA06015241 - US 7200129, AU2005226531, CA2558551, CN1930809, GB2429378, JP4351720, BRP10508671, NZ549124, KR848483, RU2321952 Environmental Responsibilities Tait International Limited is an environmentally responsible company which supports waste minimization, material recovery and restrictions in the use of hazardous materials. The European Union’s Waste Electrical and Electronic Equipment (WEEE) Directive requires that this product be disposed of separately from the general waste stream when its service life is over. For more information about how to dispose of your unwanted Tait product, visit the Tait WEEE website at www.taitradio.com/weee. Please be environmentally responsible and dispose through the original supplier, or contact Tait International Limited. Tait International Limited also complies with the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive in the European Union. In China, we comply with the Measures for Administration of the Pollution Control of Electronic Information Products. We will comply with environmental requirements in other markets as they are introduced. TB7300 Specifications ManualContents3 © Tait International Limited April 2021 Contents Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Scope of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Associated Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Publication Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1Base Station Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 1.1 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.2 Frequency Bands and Sub-bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1.3 Identifying the Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 1.4 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 1.5 Power and Current Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 1.5.113.8 VDC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 1.5.2AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Transmit . . …

Text truncated - open the document above for the full version.

Tait International Ltd Phone: +64 3 358 1026 245 Wooldridge Road Fax: +64 3 358 9299 Harewood, Christchurch 8051 www.taitradio.com New Zealand 22 nd April 2021 Request for Confidentiality FCC ID: CASTBDB1G In accordance with 47 C.F.R. Section 0.457 and 0.459, Tait Limited, hereby requests confidentiality for, Schematics, Parts List, Tune-up Procedure, and Operational Description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Brian Emmett Standards and Compliance Manager

Tait International Limited Phone: +64 3 358 1026 245 Wooldridge Road Harewood, Christchurch 8051 www.taitradio.com New Zealand 03 rd June 2021 Mr. Rick E. King Elite Electronic Engineering Inc 1516 Centre Circle Downers Grove Illinois 60515-1082 United States of America Dear Rick, Subject: TCB Services on a Transportable Base Station Transceiver (136 - 174 MHz) As per Elite Quotation EE2100134-1 please carry out a new FCC submission for our Transportable Base Station transceiver: • FCC ID: CASTBDB1G Best Regards, ______________________________ Marcos Louzada Standards and Compliance Coordinator

Page 1 of 2 22 nd April 2021 Justification Letter – Extended Frequency Range FCC ID: CASTBDB1G To meet the requirements of Federal Communications Commission (F.C.C.) publication, KDB634817 - Frequency Range Listings for Certification Grants, Tait Limited submits the following attestation. This Base Station Transmitter has: 1. The design capability to operate in the frequency band 136 - 174 MHz. 2. Complies with 47CFR Part 90.203(e) in that the equipment operator cannot directly program transmit frequencies using the normally accessible external controls. Programming this equipment is the responsibility of Tait Limited approved Service Agents In addition to the following rule parts applied for: 22 90 This device may be utilised in systems operated by Federal and Public Safety agencies, as indicated in the table beneath. The Grant Note ‘EF’ should be appended to the Grant of Authorisation, indicating this operation is required. B1 Freq. Range (MHz) Region Federal Part 138-144* 2,3 F 146-148* 1,3 148-149.9* 1, 2,3 F 150.5-150.8 F 150.05-153 1,2,3 150.8-156.4875 90 150.8-152.885 22 153-154 1,2,3 154-156.4875 1,2,3 156.5625-156.7625 1,2,3 156.8375-161.9625 1,2,3 157.1875-161.575 90 157.45-161.775 22 161.775-161.9625 90 161.9625-174 1 161.9875-162.0125 2,3 162.0375-174 2,3 162.0375-173.2* F Page 2 of 2 162.0375-173.4 90 173.4-174* F * Canada F=Federal Brian Emmett Standards and Compliance Manager Tait International LTD 245 Wooldridge Rd. Christchurch – 8051 New Zealand

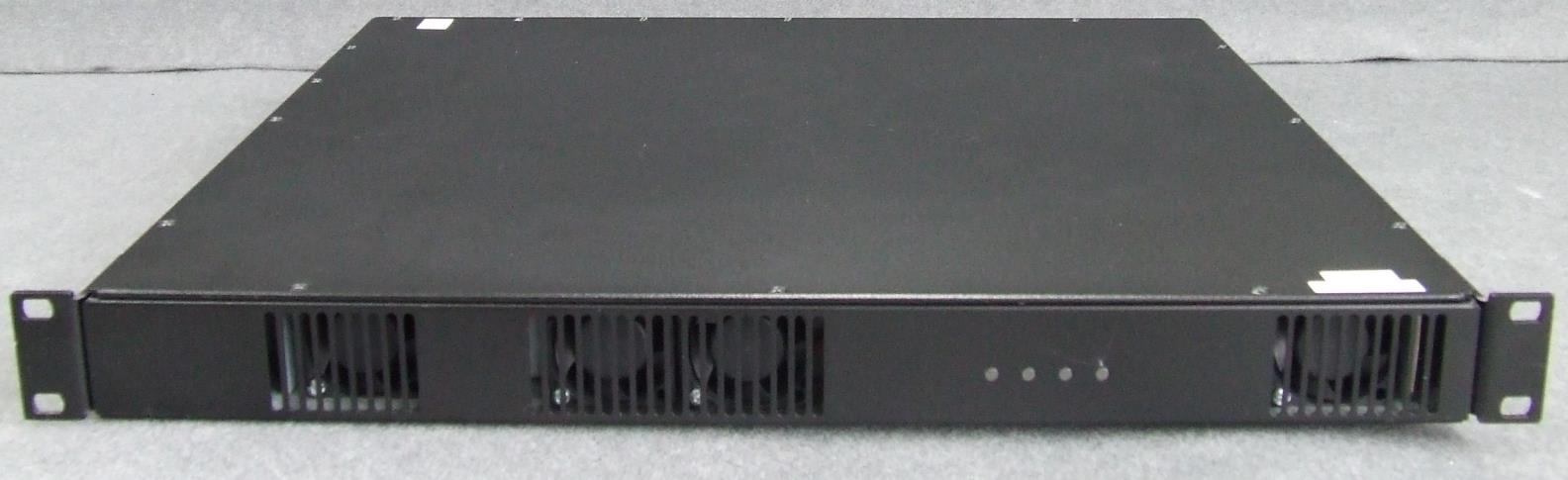

Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 1 of 2 Tait International Limited External Photographs Exhibit (April 2021) Product: TB7310- B1B0-0000-A000-10 Type code: TBDB1G FCC ID: CASTBDB1G IC: 737A-TBDB1G Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 2 of 2 Photograph 01: System – Front view Photograph 02: System – Rear view

Photograph 02: Label Location

Tait International Limited 245 Wooldridge Road, Christchurch 8051 Christchurch, New Zealand +64 3 358 3399, www.taitradio.com Page 1 of 2 Tait International Limited Compliance Label Photograph Exhibit (April 2021) Product: TB7310-B1B0-0000-A000-10 Type code: TBDB1G FCC ID: CASTBDB1G ISED ID: 737A-TBDB1G Tait International Limited 245 Wooldridge Road, Christchurch 8051 Christchurch, New Zealand +64 3 358 3399, www.taitradio.com Page 2 of 2 Photograph 01: Product ID label

Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 1 of 17 Tait International Limited Internal Photographs Exhibit (April 2021) Product: TB7310- B1B0-0000-A000-10 Type code: TBDB1G FCC ID: CASTBDB1G IC: 737A-TBDB1G Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 2 of 17 Photograph 01: Internal view Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 3 of 17 Photograph 02: Internal view – Labelled Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 4 of 17 Photograph 03: Front Interface PCB - Top Photograph 04: Front interface PCB – Bottom Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 5 of 17 Photograph 05: AC Power Supply PCB - Top Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 6 of 17 Photograph 06: AC Power Supply PCB - Bottom Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 7 of 17 Photograph 07: Supply Interface PCB - Top Photograph 08: Supply Interface PCB - Bottom Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 8 of 17 Photograph 09: Power Amplifier PCB – Top Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 9 of 17 Photograph 10: Power Amplifier PCB – Top, cans off Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 10 of 17 Photograph 11: Power Amplifier PCB – Bottom Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 11 of 17 Photograph 12: Power Amplifier PCB – Bottom, cans off Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 12 of 17 Photograph 13: Reciter Control Board (RCB) – Top Photograph 14: Reciter Control Board (RCB) – Top (can off) Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 13 of 17 Photograph 15: RCB Smarc Module – Top Photograph 16: RCB Smarc Module – Bottom Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 14 of 17 Photograph 17: Reciter Control Board (RCB) – Bottom Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 15 of 17 Photograph 18: Receiver Board (RXB) – Top Photograph 19: Receiver Board (RXB) – Top (cans off) Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 16 of 17 Photograph 20: Receiver Board (RXB) – Bottom Tait International Limited 245 Wooldridge Road, Christchurch 8051 New Zealand +64 3 358 3399, www.taitradio.com Page 17 of 17 Photograph 21: Transmit Forward Power Board (TXF) – Top Photograph 22: Transmit Forward Power Board (TXF) – Top (cans off) Photograph 23: Transmit Forward Power Board (TXF) – Bottom

© 2021 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE MPE EVALUATION Tait International Limited Dates of Test: April 29, 2021 245 Wooldridge Road Test Report Number: MPE.20210402 Harewood Revision B Christchurch 8051 New Zealand This wireless mobile and/or portable device has been shown to be compliant for RF exposure requirements for uncontrolled environment/general exposure limits specified in 47 CFR 1.1310 & 47 CFR 2.1091 (See test report). I attest to the accuracy of the data. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Jay M. Moulton Vice President Certificate # 2387.01 Contains FCC ID: CASTBDB1G Model: TBDB1G Test Sample: Engineering Unit Same as Production Equipment Type: Wireless PTT Base Station Radio Classification: Mobile Transmitter TX Frequency Range: 136 – 174 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 150 MHz – 46.99 dBm Conducted Signal Modulation: FM, FFSK Antenna Type: Internal Application Type: Certification KDB Test Methodology: KDB 447498 D01 v06 FCC Rules: 47 CFR 1.1310 & 47 CFR 2.1091 Maximum Power Density Value: 0.12 mW/cm 2 ( FCC) Maximum E-Field Value: 21.3 V/m (FCC) Maximum H-Field Value: 0.057 A/m (FCC) Separation Distance: 650 cm for Body Report No.: MPE.20210402 © 2021 RF Exposure Lab, LLC Page 2 of 10 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ........................................................................................................................ 4 2. Characteristics of the Evaluation ........................................................................................ 4 2.1 Requirements and Methods ........................................................................................ 4 3. Data Supplied by the Applicant........................................................................................... 5 3.1 Applicant ..................................................................................................................... 5 3.2 Representative ........................................................................................................... 5 3.3 Identification of Item Evaluated ................................................................................... 5 4. Evaluation Results .............................................................................................................. 6 5. Summary ............................................................................................................................ 6 Appendix A ................................................................................................................................ 7 Appendix B ................................................................................................................................ 9 Report No.: MPE.20210402 © 2021 RF Exposure Lab, LLC Page 3 of 10 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Comment/Revision Date Original Release April 29, 2021 Revision A – Correct distance in tables in Annex B and title in item B2.2 May 4, 2021 Revision B – Correct E-Field and H-Field Calculated Values May 7, 2021 Note: The latest version supersedes all previous versions listed in the above table. The latest version shall be used. Report No.: MPE.20210402 © 2021 RF Exposure Lab, LLC Page 4 of 10 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 1. Introduction This measurement report shows compliance of the Tait International Limited Model TBDB1G Wireless PTT Base Station Radio w ith 47 CFR 1.1310 & 47 CFR 2.1091. 2. Characteristics of the Evaluation 2.1 Requirements and Methods RF exposure assessment of the Tait International Limited Model TBDB1G Wireless PTT Base Station Radio. Requirements Frequency Bands 47 CFR 1.1310 Radio Frequency (RF) Radiation Exposure Limits & 47 CFR 2.1091 Radio Frequency Radiation Exposure Evaluation: Mobile Device. 136 – 174 MHz Report No.: MPE.20210402 © 2021 RF Exposure Lab, LLC Page 5 of 10 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 3. Data Supplied by the Applicant 3.1 Applicant Name/Company: Tait International Limited Address: 245 Wooldridge Road, Harewood, Christchurch 8051 Country: New Zea…
