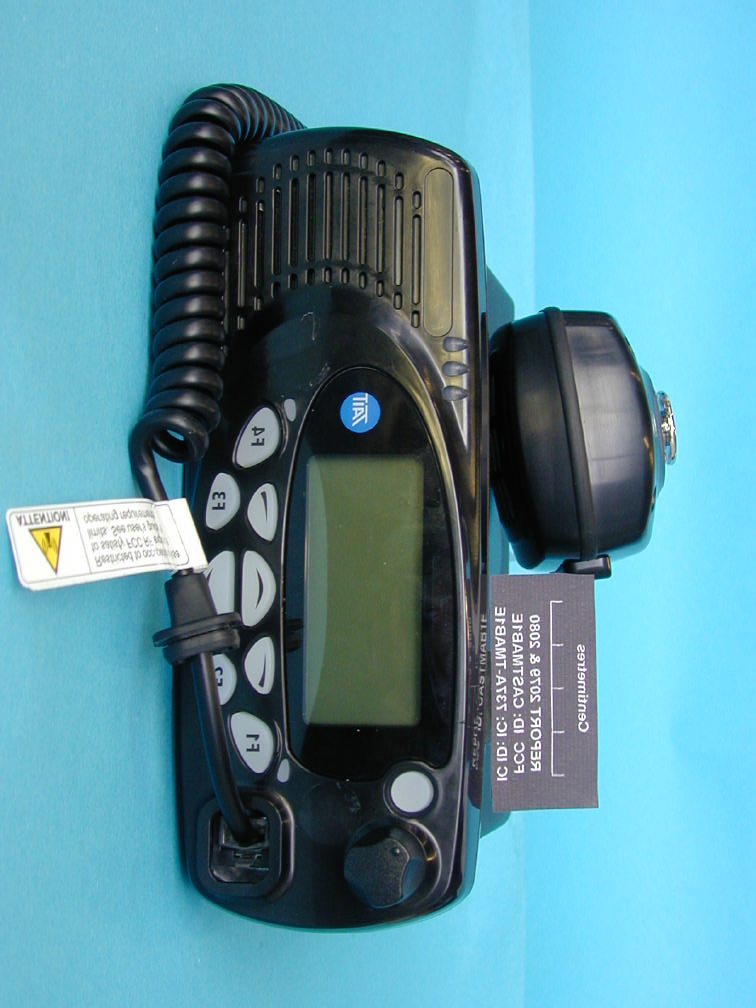

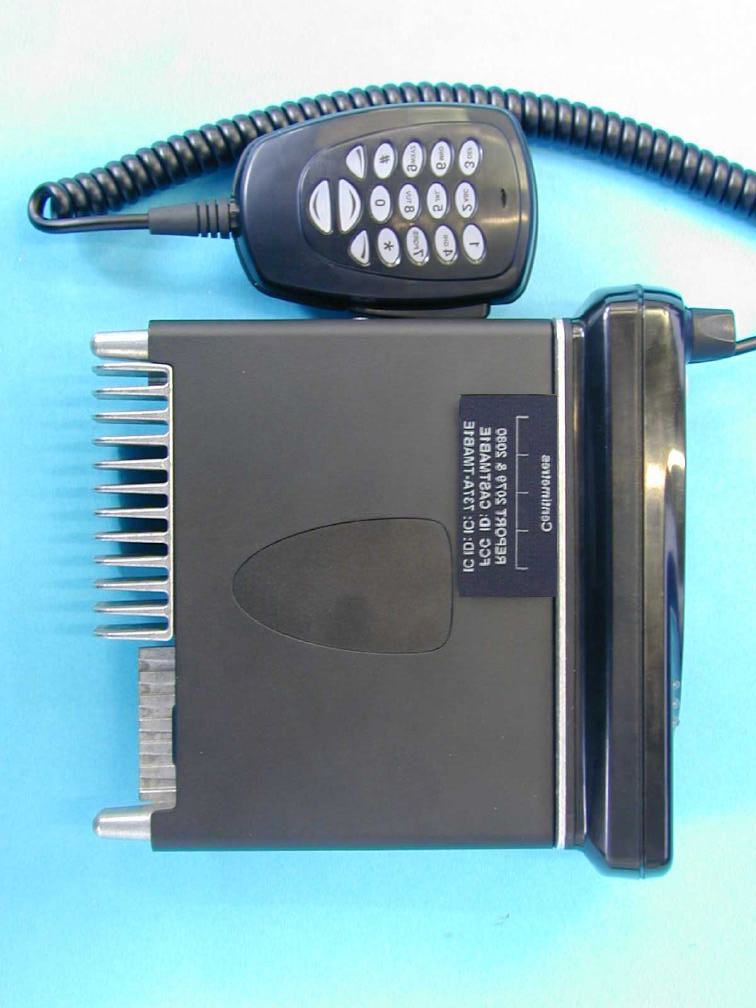

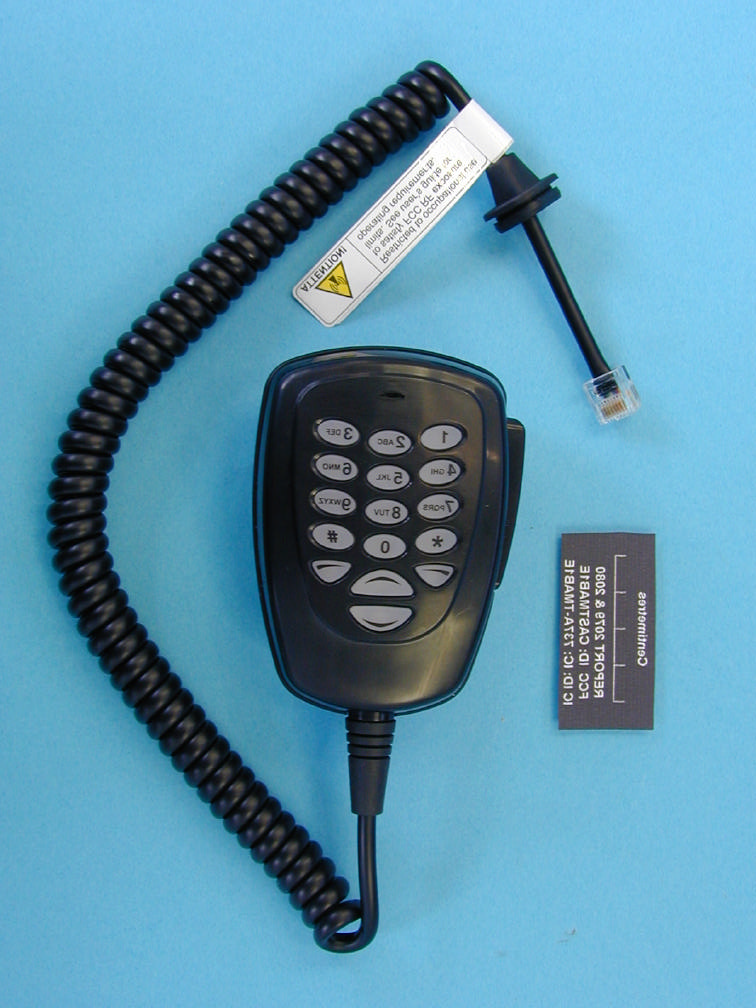

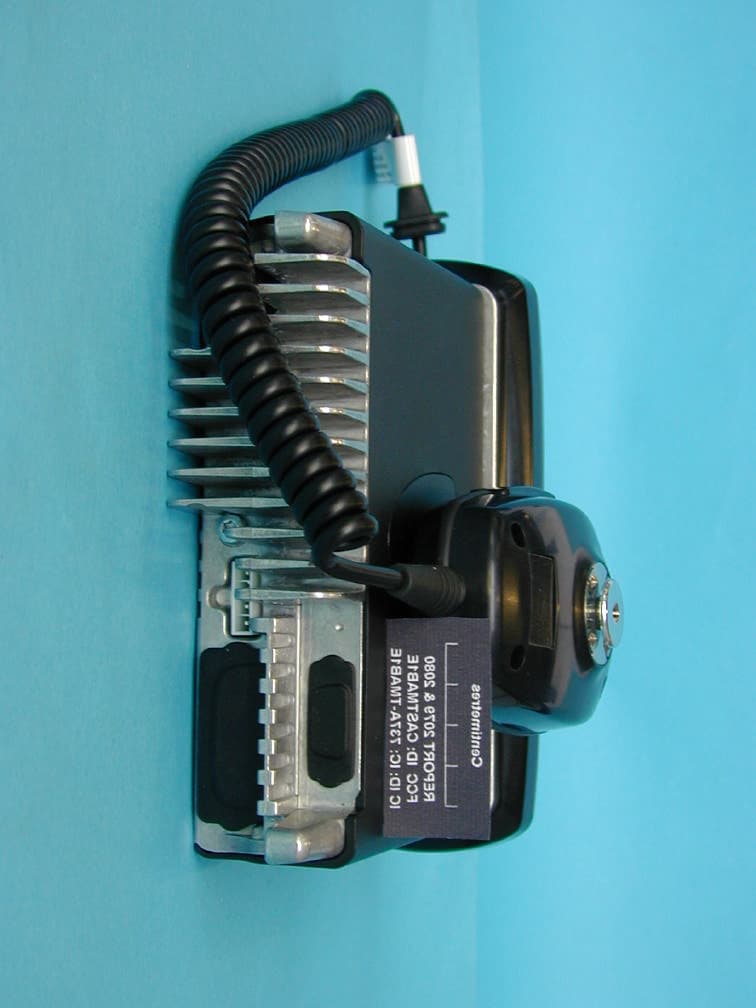

CASTMAB1EMobile Transceiver

TM9100 mobiles User’s Guide Version 0.1 July 2004 For your safety i For your safety For your safety Please read the following safety and compliance information before using your radio. Radio frequency exposure information For your own safety and to ensure you comply with the Federal Communication Commission’s (FCC) radio frequency (RF) exposure guidelines, please read the following information before using this radio. Using this radio You should use this radio only for work-related purposes (it is not authorized for any other use) and if you are fully aware of, and can exercise control over, your exposure to RF energy. To prevent exceeding FCC RF exposure limits, you must control the amount and duration of RF that you and other people are exposed to. It is also important that you:
Do not remove the RF Exposure label from the radio.
Ensure this RF exposure information accompanies the radio when it is transferred to other users.
Do not use the radio if you do not adhere to the guidelines on controlling your exposure to RF. Controlling your exposure to RF energy This radio emits radio frequency (RF) energy or radio waves primarily when calls are made. RF is a form of electromagnetic energy (as is sunlight), and there are recommended levels of maximum RF exposure. To control your exposure to RF and comply with the maximum exposure limits for occupational/controlled environments, follow these guidelines:
Do not talk (transmit) on the radio more than the rated transmit duty cycle. This is important because ii For your safety For your safety the radio radiates more energy when it is transmit- ting than when it is receiving.
While you are transmitting (talking or sending data) on the radio, you must ensure that there is always a distance of 0.9 m (35 inches) between people and the antenna. This is the minimum safe distance.
Use the radio only with Tait-approved antennas and attachments, and make only authorized modifica- tions to the antenna otherwise you could damage the radio and violate FCC regulations. For more information on what RF energy is and how to control your exposure to it, visit the FCC website at http://www.fcc.gov/oet/rfsafety/rf-faqs.html. Compliance with RF energy exposure standards This two-way radio complies with these RF energy exposure standards and guidelines:
United States Federal Communications Commis- sion, Code of Federal Regulations; 47 CFR §§ 1.1307, 1.1310, and 2.1091.
American National Standards Institute (ANSI) / Insti- tute of Electrical and Electronic Engineers (IEEE) C95.1-1992
Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk to 50% listen. Radio frequency emissions limits in the USA Part 15 of the FCC Rules imposes RF emission limits on electronic equipment to prevent interference to reception of broadcast services. For your safety iii For your safety This radio complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Unapproved modifications or changes to radio The radio is designed to satisfy the applicable compliance regulations. Do not make modifications or changes to the radio that are not expressly approved by Tait Electronics Ltd. Failure to do so could invalidate compliance requirements and void the user’s authority to operate the radio. Interference to radio communications This radio complies with Part 15 of the FCC Rules which specifies the limits for a Class B digital device. This radio generates, uses, and can radiate RF energy. This energy may cause harmful interference to radio communications if the radio is not installed and used according to the instructions in the user guide. If this radio does cause harmful interference, you should contact your radio provider for assistance. Frequency band reserved for distress beacons Frequency band 406 to 406.1 MHz is reserved for use by distress beacons. Transmissions should not be made within this frequency band. Safe radio operation Switch off the radio:
at petrol filling stations or near flammable liquids or gases
in the vicinity of explosive devices and blasting zones iv For your safety For your safety Using a handheld microphone or a radio while driving a vehicle may violate the laws and legislation that apply in your country or state. Please check the vehicle regulations in your area. Interference with electronic devices Some electronic devices may be prone to malfunction due to the lack of protection from RF energy that is present when your radio is transmitting. Examples of electronic devices that may be affected by RF energy are:
vehicular electronic systems such as fuel injection, anti-skid brakes, and cruise control
medical devices such as hearing aids and pacemak- ers
medical equipment in hospitals or health care facili- ties. Consult the manufacturer (or its representative) of the equipment to determine whether these electronic circuits will perform normally when the radio is transmitting. High temperatures The bottom surface of the radio and the heatsink fins can become hot during prolonged operation. Do not touch these parts of the radio. Radio protection Always remove the fuses from the radio power cable before charging the vehicle battery, connecting a second battery or using power from another vehicle (e.g. when “jump-starting” the vehicle). Contents v Contents Contents For your safety ................................................................ i Radio frequency exposure information ......................... i Using this radio........................................................ i Controlling your exposure to RF energy ................... i Compliance with RF energy exposure standards ...... ii Radio frequency emissions limits in the USA................ ii Unapproved modifications or changes to radio .....…
