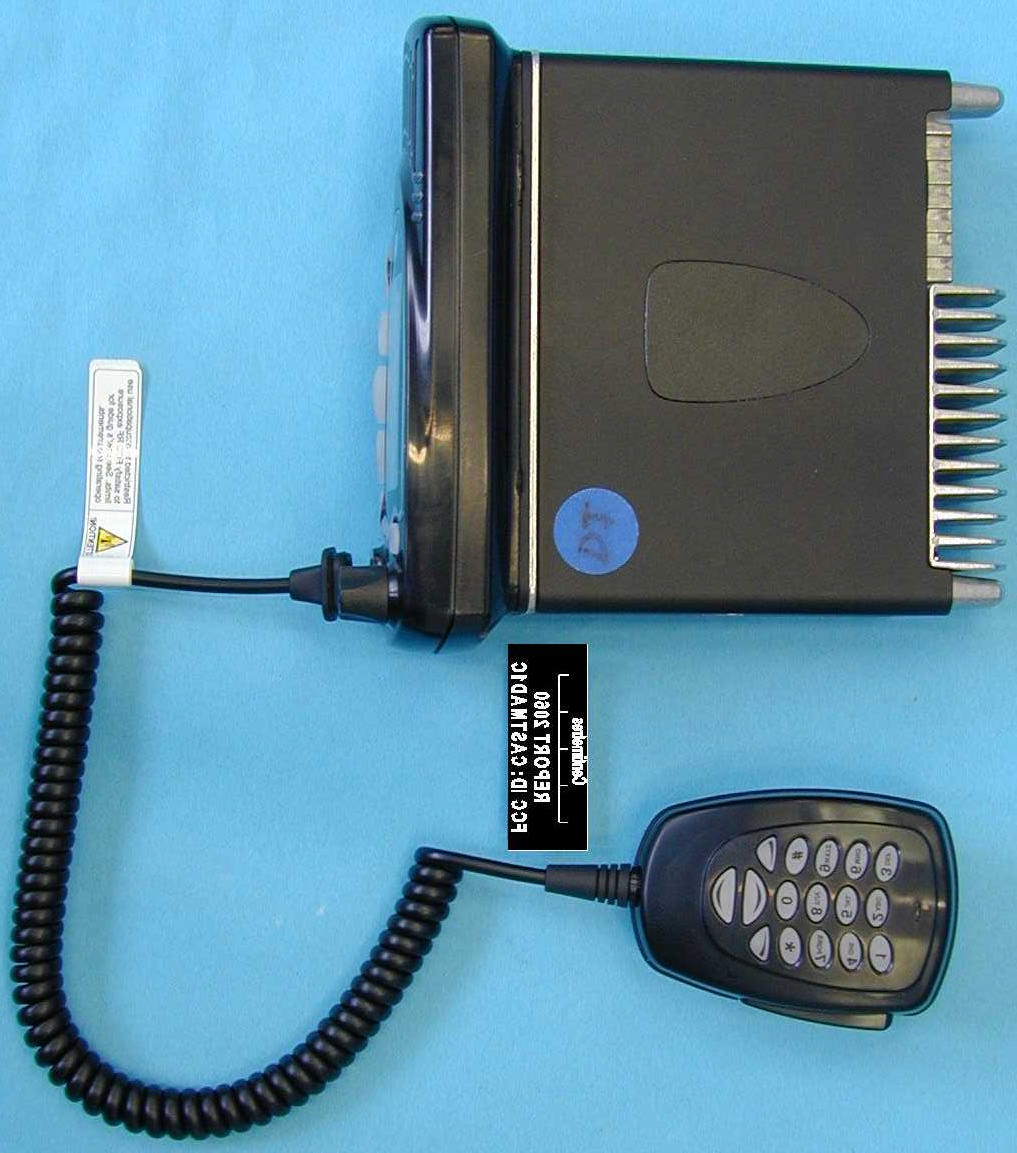

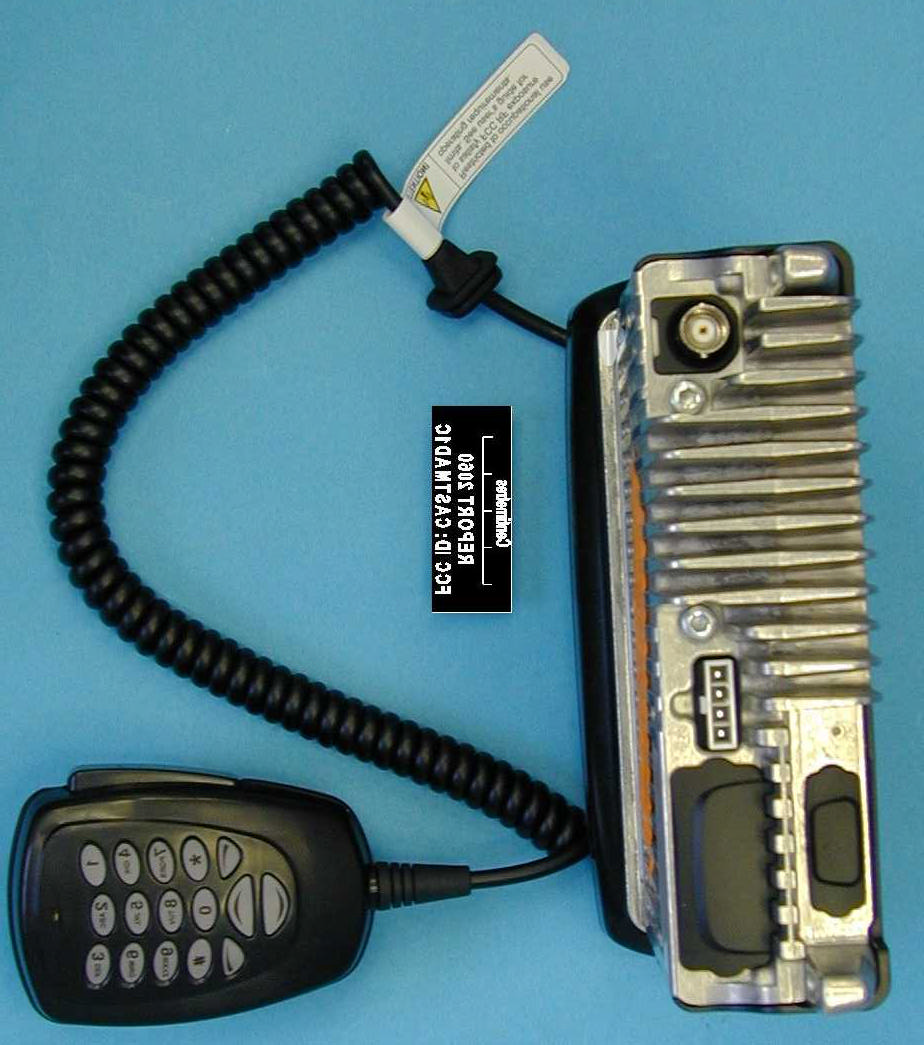

CASTMAD1CMobile Transceiver

March 2004 © Tait Electronics LtdTait general software licence agreement1 Tait general software licence agreement This legal document is an Agreement between you (the “Licensee”) and Tait Electronics Limited (“Tait”). By using any of the Software or Firmware items prior- installed in the related Tait product, included on this CD or downloaded from the Tait website, (hereinafter referred to as “the Software or Firmware”) you agree to be bound by the terms of this Agreement. If you do not agree to the terms of this Agreement, do not install and use any of the Software or Firmware. If you install and use any of the Software or Firmware that will be deemed to be acceptance of the terms of this licence agreement. The terms of this agreement shall apply subject only to any express written terms of agreement to the contrary between Tait and the Licensee. Licence TAIT GRANTS TO YOU AS LICENSEE THE NON- EXCLUSIVE RIGHT TO USE THE SOFTWARE OR FIRMWARE ON A SINGLE MACHINE PROVIDED YOU MAY ONLY: 1. COPY THE SOFTWARE OR FIRMWARE INTO ANY MACHINE READABLE OR PRINTED FORM FOR BACKUP PURPOSES IN SUPPORT OF YOUR USE OF THE PROGRAM ON THE SINGLE MACHINE (CERTAIN PROGRAMS, HOWEVER, MAY INCLUDE MECHANISMS TO LIMIT OR INHIBIT COPYING, THEY ARE MARKED “COPY PROTECTED”), PROVIDED THE COPYRIGHT NOTICE MUST BE REPRO- DUCED AND INCLUDED ON ANY SUCH COPY OF THE SOFTWARE OR FIRMWARE; AND / OR 2. MERGE IT INTO ANOTHER PROGRAM FOR YOUR USE ON THE SINGLE MACHINE (ANY PORTION OF ANY SOFTWARE OR FIRMWARE MERGED INTO ANOTHER PROGRAM WILL CONTINUE TO BE SUBJECT TO THE TERMS AND CONDITIONS OF THIS AGREEMENT). THE LICENSEE MAY NOT DUPLICATE, MODIFY, REVERSE COMPILE OR REVERSE ASSEMBLE ANY SOFTWARE OR FIRMWARE IN WHOLE OR PART. Title to Software THIS AGREEMENT DOES NOT CONSTITUTE A CONTRACT OF SALE IN RELATION TO THE SOFT- WARE OR FIRMWARE SUPPLIED TO THE LICEN- SEE. NOT WITHSTANDING THE LICENSEE MAY OWN THE MAGNETIC OR OTHER PHYSICAL MEDIA ON WHICH THE SOFTWARE OR FIRMWARE WAS ORIGINALLY SUPPLIED, OR HAS SUBSEQUENTLY BEEN RECORDED OR FIXED, IT IS A FUNDAMENTAL TERM OF THIS AGREEMENT THAT AT ALL TIMES TITLE AND OWNERSHIP OF THE SOFTWARE OR FIRMWARE, WHETHER ON THE ORIGINAL MEDIA OR OTHERWISE, SHALL REMAIN VESTED IN TAIT OR THIRD PARTIES WHO HAVE GRANTED LICENCES TO TAIT. Term and Termination THIS LICENCE SHALL BE EFFECTIVE UNTIL TERMI- NATED IN ACCORDANCE WITH THE PROVISIONS OF THIS AGREEMENT. THE LICENSEE MAY TERMINATE THIS LICENCE AT ANY TIME BY DESTROYING ALL COPIES OF THE SOFTWARE OR FIRMWARE AND ASSOCIATED WRITTEN MATERI- ALS. THIS LICENCE WILL BE TERMINATED AUTO- MATICALLY AND WITHOUT NOTICE FROM TAIT IN THE EVENT THAT THE LICENSEE FAILS TO COMPLY WITH ANY TERM OR CONDITION OF THIS AGREEMENT. THE LICENSEE AGREES TO DESTROY ALL COPIES OF THE SOFTWARE OR FIRMWARE AND ASSOCIATED WRITTEN MATERI- ALS IN THE EVENT OF SUCH TERMINATION. 2Tait general software licence agreement Limited Warranty THE SOFTWARE OR FIRMWARE IS SUPPLIED BY TAIT AND ACCEPTED BY THE LICENSEE “AS IS” WITHOUT WARRANTY OF ANY KIND EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT BEING LIMITED TO ANY IMPLIED WARRANTIES AS TO MERCHANTABIL- ITY OR FITNESS FOR ANY PARTICULAR PURPOSE. THE LICENSEE ACKNOWLEDGES THAT THE SOFT- WARE OR FIRMWARE IS USED BY IT IN BUSINESS AND ACCORDINGLY TO THE MAXIMUM EXTENT PERMITTED BY LAW NO TERMS OR WARRANTIES WHICH ARE IMPLIED BY LEGISLATION SHALL APPLY TO THIS AGREEMENT. TAIT DOES NOT WARRANT THAT THE FUNCTIONS CONTAINED IN THE SOFT- WARE OR FIRMWARE WILL MEET THE LICENSEE’S REQUIREMENTS OR THAT THE OPERATION OF THE SOFTWARE OR FIRMWARE WILL BE UNINTERRUPTED OR ERROR FREE. Exclusion of Liability TAIT’S ENTIRE LIABILITY AND THE LICENSEE’S EXCLUSIVE REMEDY SHALL BE THE FOLLOWING: 1. IN NO CIRCUMSTANCES SHALL TAIT BE UNDER ANY LIABILITY TO THE LICENSEE, OR ANY OTHER PERSON WHATSOEVER, FOR ANY DIRECT OR CONSEQUENTIAL DAMAGE ARIS- ING OUT OF OR IN CONNECTION WITH ANY USE OR INABILITY OF USING THE SOFTWARE OR FIRMWARE. 2. TAIT WARRANTS THE OPERATION OF THE SOFT- WARE OR FIRMWARE ONLY WITH THE OPERAT- ING SYSTEM FOR WHICH IT WAS DESIGNED. USE OF THE SOFTWARE OR FIRMWARE WITH AN OPERATING SYSTEM OTHER THAN THAT FOR WHICH IT WAS DESIGNED MAY NOT BE SUPPORTED BY TAIT, UNLESS OTHERWISE EXPRESSLY AGREED BY TAIT. General THE LICENSEE CONFIRMS THAT IT SHALL COMPLY WITH THE PROVISIONS OF LAW IN RELATION TO THE SOFTWARE OR FIRMWARE. Law and Jurisdiction THIS AGREEMENT SHALL BE SUBJECT TO AND CONSTRUED IN ACCORDANCE WITH NEW ZEALAND LAW AND DISPUTES BETWEEN THE PARTIES CONCERNING THE PROVISIONS HEREOF SHALL BE DETERMINED BY THE NEW ZEALAND COURTS OF LAW. PROVIDED HOWEVER TAIT MAY AT ITS ELECTION BRING PROCEEDINGS FOR BREACH OF THE TERMS HEREOF OR FOR THE ENFORCEMENT OF ANY JUDGEMENT IN RELA- TION TO A BREACH OF THE TERMS HEREOF IN ANY JURISDICTION TAIT CONSIDERS FIT FOR THE PURPOSE OF ENSURING COMPLIANCE WITH THE TERMS HEREOF OR OBTAINING RELIEF FOR BREACH OF THE TERMS HEREOF. No Dealings THE LICENSEE MAY NOT SUBLICENSE, ASSIGN OR TRANSFER THE LICENCE OR THE PROGRAM EXCEPT AS EXPRESSLY PROVIDED IN THIS AGREE- MENT. ANY ATTEMPT OTHERWISE TO SUBLICENSE, ASSIGN OR TRANSFER ANY OF THE RIGHTS, DUTIES OR OBLIGATIONS HEREUNDER IS VOID. No Other Terms THE LICENSEE ACKNOWLEDGES THAT IT HAS READ THIS AGREEMENT, UNDERSTANDS IT AND AGREES TO BE BOUND BY ITS TERMS AND CONDITIONS. THE LICENSEE FURTHER AGREES THAT SUBJECT ONLY TO ANY EXPRESS WRITTEN TERMS OF AGREEMENT TO THE CONTRARY BETWEEN TAIT AND THE LICENSEE THIS IS THE COMPLETE AND EXCLUSIVE STATEMENT OF THE AGREEMENT BETWEEN IT AND TAIT IN RELATION TO THE SOFTWARE OR FIRMWARE WHICH SUPER- SEDES ANY PROPOSAL OR PRIOR AGREEMENT, ORAL OR WRITTEN AND ANY OTHER COMMUNI- CATIONS BETWEEN THE LICENSEE AND TAIT RELATING TO THE SOFTWARE OR FIRMWARE. About this guide3 About this guide This user’s guide provides information about the TM8250 and TM8255 mobile radios and is divided into two parts.
Part A explains how the TM8255 radio operates. The TM8250 radio has a control head without user controls, so no TM8250…

Text truncated - open the document above for the full version.

TELTEST Laboratories Tait Electronics Ltd PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone: 64 – 3 – 358 1026 Fax: 64 – 3 – 358 3903 27 th September 2004 To Whom It May Concern: TMAD1C Mobile Transceiver This equipment meets the requirements of FCC Rules Part 90.203(e) and (g) as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment’s external operation controls. Yours faithfully, Garry Pringle (Compliance Laboratory Technician)

FCC ID: [CASTMAD1C] Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, (Tait Electronics Ltd.), hereby request confidentiality for the [Block diagrams, Schematics, Parts Lists, Tune up and Operational Description] presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. [Steve Crompton] [Tait Electronics Ltd.]

FCC ID: CASTMAD1CPage 1 of 9 REPORT NUMBER 2060MPEFCC ID: CASTMAD1C TELTEST Laboratories Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone : (64) (3) 3583399 Fax: (64) (3) 3580432 TEST: FCC 47 CFR 1.1310 Maximum Permissible Exposure ENVIRONMENTAL ASSESSMENT On the TMAB22-D100 Mobile Transceiver S/N: 190015645 In accordance with ANSI/IEEE Std C95.1, 1999 OET Bulletin 65 97-01 and Supplement C (Edition 01-01) DATE:August 2004 PREPARED BY:M. Ludwig__________________ Test Technician CHECKED & APPROVED BY:SA Crompton __________________ Laboratory Manager This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. FCC ID: CASTMAD1CPage 2 of 9 TABLE OF CONTENTS Page SUMMARY OF RESULTS ................................................................................................................... 3 OPERATING CONDITIONS AND EXPOSURE CONDITIONS .................................................... 4 LIMITS ................................................................................................................................................... 4 RECOMMENDED ANTENNAS .......................................................................................................... 4 MEASUREMENT GUIDANCE ...........................................................................................................4 TEST RESULTS, TRANSMITTER POWER ..................................................................................... 5 TEST RESULTS, MPE.......................................................................................................................... 5 TEST EQUIPMENT LIST .................................................................................................................... 7 INFORMATION TO BE PLACED IN MANUAL.............................................................................. 8 APPENDIX 1 TEST POSITIONS DIAGRAM.................................................................................... 9 FCC ID: CASTMAD1CPage 3 of 9 Summary of Results: Antenna GainAntenna PositionMeasurement PositionResult 2.15 dBi RoofExternal: Side COMPLIES 2.15 dBi TrunkExternal: Rear Side COMPLIES 2.15 dBi TrunkExternal: Rear Corner COMPLIES 2.15 dBi TrunkExternal: Centre rear COMPLIES 5.15 dBi RoofExternal: Side COMPLIES 5.15 dBi TrunkExternal: Rear Side COMPLIES 5.15 dBi TrunkExternal: Rear Corner COMPLIES 5.15 dBi TrunkExternal: Centre rear COMPLIES 2.15 dBi RoofInternal: Front Seat COMPLIES 2.15 dBi RoofInternal: Back Seat COMPLIES 2.15 dBi TrunkInternal: Front Seat COMPLIES 2.15 dBi TrunkInternal: Back Seat COMPLIES 5.15 dBi RoofInternal: Front Seat COMPLIES 5.15 dBi RoofInternal: Back Seat COMPLIES 5.15 dBi TrunkInternal: Front Seat COMPLIES 5.15 dBi TrunkInternal: Back Seat COMPLIES See Appendix A for details of the measurement positions. FCC ID: CASTMAD1CPage 4 of 9 Operating and Exposure conditions: Operating Conditions:Mobile transmitter using vehicle mounted antennas only Exposure conditions:Occupational/Controlled Exposure (operator). General Population/Uncontrolled (passengers and bystanders) Safe Distance: Recommended Minimum lateral safe distances from the antenna: 90 cm Limit: Occupational/Controlled Exposure: 30 - 300 MHz: 1.0 mW/cm 2 General population/Uncontrolled Exposure: 30 - 300 MHz: 0.2 mW/cm 2 Recommended Antennas: Antenna Type:Monopole (λ/4 antenna) Antenna Gain:2.15 dBi Antenna Type:Monopole (5λ/8 antenna) Antenna Gain:5.15 dBi Measurement Guidance: 2) Mobile PTT – Parts 80, 90 a) §2.1033(c)(3) requires device operating and installation instructions to be submitted during equipment certification; instructions should include the minimum separation distance and other constraints required for the device and its antenna(s) to meet MPE limits b) Per definition of a mobile device a minimum separation distance of 20 cm is required i) Antenna installation conditions should maintain the estimated minimum MPE separation distance FCC ID: CASTMAD1CPage 5 of 9 ii) A separation distance based on MPE evaluation (measurement or computer modeling) that is smaller than the estimated MPE distance may be used if it is applicable for the antenna installation conditions c) Basic RF exposure instructions are requested for devices that meet general population exposure requirements, as part of the §2.1033(c)(3) required operating instructions; RF exposure training instructions and labeling info are requested for devices that satisfy occupational exposure requirements Federal Communications Commission OET Laboratory Division March 18, 2004 Test Results: NAME OF TEST:TRANSMITTER OUTPUT POWER (CONDUCTED) TEST CONDITIONS:Ambient Temperature22.5 o C Relative Humidity59 % SPECIFICATION:FCC 47 CFR 2.1046 GUIDE:TIA/EIA-603 2.2.1 MEASUREMENT PROCEDURE: 1. The Equipment Under Test (EUT) was connected to an RF Power meter using a coaxial attenuator with an impedance of 50 Ohms. 2. The unmodulated output power was measured. MEASUREMENT RESULTS: Transmit Frequency:219.1MHz Manufacturer’s Rated Output Power25Watts Supply Voltage, motor idling, transmitting.14.06Volts Measured Output Power27.1Watts Measurement Uncertainty (dB) ± 0.5 dB Maximum Transmit Power is set in the factory to 26 watts +2 / -1 watt. This setting is not adjustable by the user. The MPE results are scaled to simulate results from a 28 watt carrier with a 50% duty cycle. NAME OF TEST:ENVIRONMENTAL ASSESSMENT SPECIFICATION:FCC 47 CFR 1.1310 Measurement Method: Field strength measurements were performed for two antenna positions on a representative vehicle (Honda Accord 2001 LXI four door sedan, dimensions 185.5 long, 71.5 wide and 57.1 inches high ). See Appendix A for details. FCC ID: CASTMAD1CPage 6 of 9 External Field strength readings were recorded at four positions 20 cms from the car body, to represent the closest position for a bystander. Measurements were taken at 20 cm intervals vertically over a height of 2 metres. Inte…

Text truncated - open the document above for the full version.

TELTEST Laboratories Tait Electronics Limited Report Number 2060 FCC ID: CASTMAD1C Page 1 of 51 REPORT NUMBER 2060August 2004 RADIO PERFORMANCE MEASUREMENTS On the TMAB22-D100 Mobile Transceiver FCC ID: CASTMAD1C SN: 19015645 In accordance with FCC 47 CFR Parts 80, 90, and 90 Subpart T PREPARED BY:Marcus Ludwig___________________ Test Technician CHECKED & APPROVED BY:Hamish Newton___________________ Senior Technician TELTEST Laboratories Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone : (64) (3) 3583399 Fax: (64) (3) 3580432 TELTEST Laboratories Tait Electronics Limited Report Number 2060 FCC ID: CASTMAD1C Page 2 of 51 REPORT ON : Type Approval Testing of the TMAB22-D100 (Serial No 19015645) in accordance with: FCC CFR 47 Parts 80,90, & 90 Subpart T FCC ID: CASTMAD1C PREPARED FOR : Tait Electronics Ltd PO Box 1645 558 Wairakei Rd Christchurch New Zealand DISTRIBUTION : TELTest LaboratoryMr S CromptonCopy No 1 Tait Electronics LtdMr. Des Fox Copy No 2 Tait Electronics LtdMr. Neil FletcherCopy No 3 APPROVED : Hamish Newton Senior Technician Date : All tests reported herein have been performed in accordance with the laboratory's scope of accreditation This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. Copy No: TELTEST Laboratories Tait Electronics Limited Report Number 2060 FCC ID: CASTMAD1C Page 3 of 51 TABLE OF CONTENTS DECLARATION OF CONFORMITY................................................................................................. 4 TEST CONDITIONS ............................................................................................................................. 5 NECESSARY BANDWIDTH AND EMISSION DESIGNATORS ................................................... 5 TEST RESULTS..................................................................................................................................... 7 TRANSMITTER OUTPUT POWER (CONDUCTED) ...................................................................... 7 TRANSMITTER AUDIO FREQUENCY RESPONSE - PRE-EMPHASIS ....................................... 8 TRANSMITTER MODULATION LIMITING ................................................................................. 11 OCCUPIED BANDWIDTH ..............................................................................................................16 SPURIOUS EMISSIONS (CONDUCTED)....................................................................................... 35 SPURIOUS EMISSIONS (RADIATED)........................................................................................... 40 TRANSMITTER FREQUENCY STABILITY (TEMPERATURE) ................................................. 45 TRANSMITTER FREQUENCY STABILITY (VOLTAGE) ........................................................... 48 TEST EQUIPMENT USED................................................................................................................. 49 APPENDIX A ....................................................................................................................................... 50 TEST SETUP DETAILS.................................................................................................................... 50 TELTEST Laboratories Tait Electronics Limited Report Number 2060 FCC ID: CASTMAD1C Page 4 of 51 DECLARATION OF CONFORMITY We, TELTEST LABORATORIES of 558 Wairakei Road, Christchurch New Zealand, declare under our sole responsibility that the product: Equipment:Mobile Transceiver Type:TMAD1C Product code:TMAB22-D100 Serial Numbers:19015645 Quantity:1 To which this declaration relates is in conformity with the following standards: FCC CFR 47 Parts 80, 90, & 90 subpart T Signature:__________________________ S. A. Crompton Compliance Laboratory Manager. Date:__________ TELTEST Laboratories Tait Electronics Limited Report Number 2060 FCC ID: CASTMAD1C Page 5 of 51 Test Conditions All testing was performed at the following conditions. Ambient Temperature15 o C to 30 o C Relative Humidity20% to 75% Standard Test Voltage13.8Vdc Necessary Bandwidth and Emission Designators SPECIFICATION:FCC 47 CFR 2.202 The Necessary Bandwidth is the minimum value of the occupied bandwidth sufficient to ensure the transmission of information at the rate and with the quality required for the system employed. This is calculated using the following formula. Bn = 2M + 2DKWhere: Bn = Necessary Bandwidth M = Maximum modulation frequency For Data transmission M = B/2 Where: B = Modulation rate in Baud D = Peak deviation K = Constant For Analogue transmission this is 1 For Data transmission this is typically 1.2 1. Analogue Voice 12.5kHz Bandwidth Necessary bandwidthEmission Designator M = 3kHz11k0F3E D = 2.5kHz F3E represents a FM voice transmission Bn = 6 + 5 x 1 =11kHz 2. Analogue Voice 25kHz Bandwidth Necessary bandwidthEmission Designator M = 3kHz16k0F3E D = 5kHz F3E represents a FM voice transmission Bn = 6 + 10 x 1 =16kHz 3. Fast Frequency Shift Keying (FFSK) 12.5kHz Bandwidth Necessary bandwidthEmission Designator M = 0.6 (Baud rate = 1200)4k80F2D D = 1.5kHz (60% of peak deviation) F2D represents a FM data transmission with the use of a modulating sub carrier Bn = 1.2 + 3 x 1.2 =4.8kHz TELTEST Laboratories Tait Electronics Limited Report Number 2060 FCC ID: CASTMAD1C Page 6 of 51 4. Fast Frequency Shift Keying (FFSK) 25kHz Bandwidth Necessary bandwidthEmission Designator M = 0.6 (Baud rate = 1200)8k40F2D D = 3kHz (60% of peak deviation) F2D represents a FM data transmission with the use of a modulating sub carrier Bn = 1.2 + 6 x 1.2 =8.4kHz 5. Tait High Speed Date (THSD) THSD uses a 4 level gaussian frequency shift keying (CP-4GFSK) modulation scheme. It can be used when transferring data between two radios. Data is transmitted at a rate of 12000bps for narrow band channels, and 19200bps for wide-band channels. Due to the difficulties in determining the value of k, the necessary bandwi…
