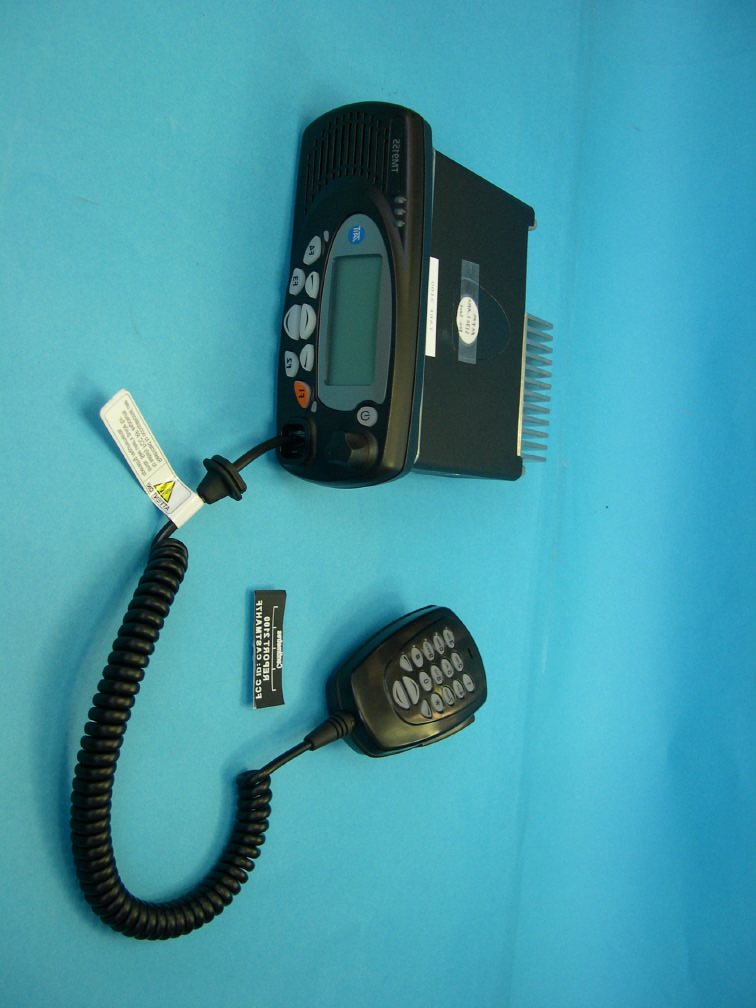

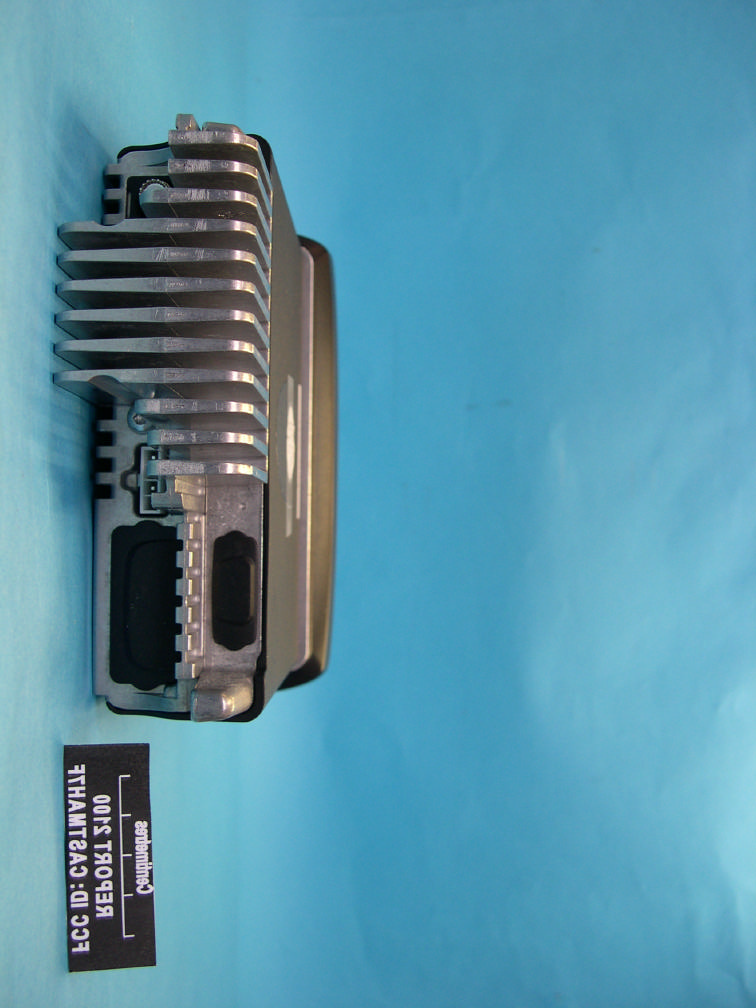

CASTMAH7FMobile Transceiver

TM9100 mobiles User’s Guide Version 0.1 July 2004 For your safety i For your safety For your safety Please read the following safety and compliance information before using your radio. Radio frequency exposure information For your own safety and to ensure you comply with the Federal Communication Commission’s (FCC) radio frequency (RF) exposure guidelines, please read the following information before using this radio. Using this radio You should use this radio only for work-related purposes (it is not authorized for any other use) and if you are fully aware of, and can exercise control over, your exposure to RF energy. To prevent exceeding FCC RF exposure limits, you must control the amount and duration of RF that you and other people are exposed to. It is also important that you:
Do not remove the RF Exposure label from the radio.
Ensure this RF exposure information accompanies the radio when it is transferred to other users.
Do not use the radio if you do not adhere to the guidelines on controlling your exposure to RF. Controlling your exposure to RF energy This radio emits radio frequency (RF) energy or radio waves primarily when calls are made. RF is a form of electromagnetic energy (as is sunlight), and there are recommended levels of maximum RF exposure. To control your exposure to RF and comply with the maximum exposure limits for occupational/controlled environments, follow these guidelines:
Do not talk (transmit) on the radio more than the rated transmit duty cycle. This is important because ii For your safety For your safety the radio radiates more energy when it is transmit- ting than when it is receiving.
While you are transmitting (talking or sending data) on the radio, you must ensure that there is always a distance of 0.9 m (35 inches) between people and the antenna. This is the minimum safe distance.
Use the radio only with Tait-approved antennas and attachments, and make only authorized modifica- tions to the antenna otherwise you could damage the radio and violate FCC regulations. For more information on what RF energy is and how to control your exposure to it, visit the FCC website at http://www.fcc.gov/oet/rfsafety/rf-faqs.html. Compliance with RF energy exposure standards This two-way radio complies with these RF energy exposure standards and guidelines:
United States Federal Communications Commis- sion, Code of Federal Regulations; 47 CFR §§ 1.1307, 1.1310, and 2.1091.
American National Standards Institute (ANSI) / Insti- tute of Electrical and Electronic Engineers (IEEE) C95.1-1992
Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk to 50% listen. Radio frequency emissions limits in the USA Part 15 of the FCC Rules imposes RF emission limits on receivers. For your safety iii For your safety This radio complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Unapproved modifications or changes to radio The radio is designed to satisfy the applicable compliance regulations. Do not make modifications or changes to the radio that are not expressly approved by Tait Electronics Ltd. Failure to do so could invalidate compliance requirements and void the user’s authority to operate the radio. Frequency band reserved for distress beacons Frequency band 406 to 406.1 MHz is reserved for use by distress beacons. Transmissions should not be made within this frequency band. Safe radio operation Switch off the radio:
at petrol filling stations or near flammable liquids or gases
in the vicinity of explosive devices and blasting zones Using a handheld microphone or a radio while driving a vehicle may violate the laws and legislation that apply in your country or state. Please check the vehicle regulations in your area. Interference with electronic devices Some electronic devices may be prone to malfunction due to the lack of protection from RF energy that is present when your radio is transmitting. Examples of electronic devices that may be affected by RF energy are: iv For your safety For your safety
vehicular electronic systems such as fuel injection, anti-skid brakes, and cruise control
medical devices such as hearing aids and pacemak- ers
medical equipment in hospitals or health care facili- ties. Consult the manufacturer (or its representative) of the equipment to determine whether these electronic circuits will perform normally when the radio is transmitting. High temperatures The bottom surface of the radio and the heatsink fins can become hot during prolonged operation. Do not touch these parts of the radio. Radio protection Always remove the fuses from the radio power cable before charging the vehicle battery, connecting a second battery or using power from another vehicle (e.g. when “jump-starting” the vehicle). Contents v Contents Contents For your safety ................................................................ i Radio frequency exposure information ......................... i Using this radio........................................................ i Controlling your exposure to RF energy ................... i Compliance with RF energy exposure standards ...... ii Radio frequency emissions limits in the USA................ ii Unapproved modifications or changes to radio .......... iii Frequency band reserved for distress beacons ............ iii Safe radio operation .................................................. iii Interference with electronic devices............................ iii High temperatures ..................................................... iv Radio protection ........................................................ iv 1About this guide .......................................... 1 Document conventions ............................................... 1 Safety symbols used in this g…

Text truncated - open the document above for the full version.

TM9100 mobiles (40 W/50 W) Installation Guide Draft 0.03 October 2004 2TM9100 (40 W/50 W) Installation Guide © Tait Electronics Ltd October 2004 Contact Information Tait Radio Communicationshttp://www.taitworld.com Corporate Head Office New Zealand Tait Electronics Ltd P.O. Box 1645 Christchurch New Zealand E-mail: [email protected] Website: http://www.taitworld.com Technical Support: E-mail: [email protected] Website: http://support.taitworld.com Tait North America Regional Head Office - United States of America Tait North America Inc E-mail: [email protected] Canada Tait North America Inc E-mail: [email protected] Tait Latin America Tait Latin America E-mail: [email protected] Tait Europe Regional Head Office - United Kingdom Ta i t M o b i l e R a d i o L t d E-mail: [email protected] Tait North Asia Regional Head Office - Hong Kong Tait Mobile Radio (Hong Kong) Ltd E-mail: [email protected] Beijing Tait Mobile Radio (Hong Kong) Ltd E-mail: [email protected] Tait South Asia Regional Head Office - Singapore Tait Electronics (Far East) Pte Ltd E-mail: [email protected] Thailand Ta i t M o b i l e R a d i o L t d E-mail: [email protected] Tait Oceania New Zealand Tait Communications Ltd E-mail: [email protected] Australia Tait Electronics (Aust) Pty Ltd E-mail: [email protected] Note: For the addresses and phone numbers of the above regional offices refer to the TaitWorld website. TM9100 (40 W/50 W) Installation Guide3 © Tait Electronics Ltd October 2004 Tait General Software Licence Agreement This legal document is an Agreement between you (the “Licensee”) and Tait Electronics Limited (“Tait”). By using any of the Software or Firmware items prior- installed in the related Tait product, included on this CD or downloaded from the Tait website, (hereinafter referred to as “the Software or Firmware”) you agree to be bound by the terms of this Agreement. If you do not agree to the terms of this Agreement, do not install and use any of the Software or Firmware. If you install and use any of the Software or Firmware that will be deemed to be acceptance of the terms of this licence agreement. The terms of this agreement shall apply subject only to any express written terms of agreement to the contrary between Tait and the Licensee. Licence TAIT GRANTS TO YOU AS LICENSEE THE NON-EXCLUSIVE RIGHT TO USE THE SOFTWARE OR FIRMWARE ON A SINGLE MACHINE PROVIDED YOU MAY ONLY: 1.COPY THE SOFTWARE OR FIRMWARE INTO ANY MACHINE READABLE OR PRINTED FORM FOR BACKUP PURPOSES IN SUPPORT OF YOUR USE OF THE PROGRAM ON THE SINGLE MACHINE (CERTAIN PROGRAMS, HOWEVER, MAY INCLUDE MECHANISMS TO LIMIT OR INHIBIT COPYING, THEY ARE MARKED “COPY PROTECTED”), PROVIDED THE COPYRIGHT NOTICE MUST BE REPRODUCED AND INCLUDED ON ANY SUCH COPY OF THE SOFTWARE OR FIRMWARE; AND / OR 2.MERGE IT INTO ANOTHER PROGRAM FOR YOUR USE ON THE SINGLE MACHINE (ANY PORTION OF ANY SOFTWARE OR FIRMWARE MERGED INTO ANOTHER PROGRAM WILL CONTINUE TO BE SUBJECT TO THE TERMS AND CONDITIONS OF THIS AGREEMENT). THE LICENSEE MAY NOT DUPLICATE, MODIFY, REVERSE COMPILE OR REVERSE ASSEMBLE ANY SOFTWARE OR FIRMWARE IN WHOLE OR PART. Title to Software THIS AGREEMENT DOES NOT CONSTITUTE A CONTRACT OF SALE IN RELATION TO THE SOFTWARE OR FIRMWARE SUPPLIED TO THE LICENSEE. NOT WITHSTANDING THE LICENSEE MAY OWN THE MAGNETIC OR OTHER PHYSICAL MEDIA ON WHICH THE SOFTWARE OR FIRMWARE WAS ORIGINALLY SUPPLIED, OR HAS SUBSEQUENTLY BEEN RECORDED OR FIXED, IT IS A FUNDAMENTAL TERM OF THIS AGREEMENT THAT AT ALL TIMES TITLE AND OWNERSHIP OF THE SOFTWARE OR FIRMWARE, WHETHER ON THE ORIGINAL MEDIA OR OTHERWISE, SHALL REMAIN VESTED IN TAIT OR THIRD PARTIES WHO HAVE GRANTED LICENCES TO TAIT. Term and Termination THIS LICENCE SHALL BE EFFECTIVE UNTIL TERMINATED IN ACCORDANCE WITH THE PROVISIONS OF THIS AGREEMENT. THE LICENSEE MAY TERMINATE THIS LICENCE AT ANY TIME BY DESTROYING ALL COPIES OF THE SOFTWARE OR FIRMWARE AND ASSOCIATED WRITTEN MATERIALS. THIS LICENCE WILL BE TERMINATED AUTOMATICALLY AND WITHOUT NOTICE FROM TAIT IN THE EVENT THAT THE LICENSEE FAILS TO COMPLY WITH ANY TERM OR CONDITION OF THIS AGREEMENT. THE LICENSEE AGREES TO DESTROY ALL COPIES OF THE SOFTWARE OR FIRMWARE AND ASSOCIATED WRITTEN MATERIALS IN THE EVENT OF SUCH TERMINATION. Limited Warranty THE SOFTWARE OR FIRMWARE IS SUPPLIED BY TAIT AND ACCEPTED BY THE LICENSEE “AS IS” WITHOUT WARRANTY OF ANY KIND EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT BEING LIMITED TO ANY IMPLIED WARRANTIES AS TO MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. THE LICENSEE ACKNOWLEDGES THAT THE SOFTWARE OR FIRMWARE IS USED BY IT IN BUSINESS AND ACCORDINGLY TO THE MAXIMUM EXTENT PERMITTED BY LAW NO TERMS OR WARRANTIES WHICH ARE IMPLIED BY LEGISLATION SHALL APPLY TO THIS AGREEMENT. TAIT DOES NOT WAR RANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE OR FIRMWARE WILL MEET THE LICENSEE’S REQUIREMENTS OR THAT THE OPERATION OF THE SOFTWARE OR FIRMWARE WILL BE UNINTERRUPTED OR ERROR FREE. Exclusion of Liability TAIT’S ENTIRE LIABILITY AND THE LICENSEE’S EXCLUSIVE REMEDY SHALL BE THE FOLLOWING: 1.IN NO CIRCUMSTANCES SHALL TAIT BE UNDER ANY LIABILITY TO THE LICENSEE, OR ANY OTHER PERSON WHATSOEVER, FOR ANY DIRECT OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH ANY USE OR INABILITY OF USING THE SOFTWARE OR FIRMWARE. 2.TAIT WARRANTS THE OPERATION OF THE SOFTWARE OR FIRMWARE ONLY WITH THE OPERATING SYSTEM FOR WHICH IT WAS DESIGNED. USE OF THE SOFTWARE OR FIRMWARE WITH AN OPERATING SYSTEM OTHER THAN THAT FOR WHICH IT WAS DESIGNED MAY NOT BE SUPPORTED BY TAIT, UNLESS OTHERWISE EXPRESSLY AGREED BY TAIT. General THE LICENSEE CONFIRMS THAT IT SHALL COMPLY WITH THE PROVISIONS OF LAW IN RELATION TO THE SOFTWARE OR FIRMWARE. 4TM9100 (40 W/50 W) Installation Guide © Tait Electronics Ltd October 2004 Law and Jurisdiction THIS AGREEMENT SHALL BE SUBJECT TO AND CONSTRUED IN ACCORDANCE WITH NEW ZEALAND LAW AND DISPUTES BETWEEN THE PARTIES CONCERNING THE PROVISIONS HEREOF SHALL BE…

Text truncated - open the document above for the full version.

TELTEST Laboratories Tait Electronics Ltd PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone: 64 – 3 – 358 1026 Fax: 64 – 3 – 358 3903 5 th October 2004 To Whom It May Concern: TMAH7F Mobile Transceiver This equipment meets the requirements of FCC Rules Part 90.203(e) and (g) as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment’s external operation controls. Yours faithfully, Garry Pringle (Compliance Laboratory Technician)

FCC ID: [CASTMAH7F] Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, (Tait Electronics Limited), hereby request confidentiality for the [Block diagrams, Schematics, Parts Lists, Tune up and Operational Description] presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. [Steve Crompton] [Tait Electronics Limited]

Tun eup Issue 1 August 2004 TM9100 mobiles Tuneup info for compliance Tuneup 2 © Tait Electronics Ltd August 2004 Contents 1 General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2 Calibration basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.1 Calibrating the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.2 Using the calibration application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Sliders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Option buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Instruction boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Radio Model toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.3 Specifications form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.4 Viewing calibration test results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.5 Viewing calibration files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 3 Calibration tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.1 AD6521 Volt Ref . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.2 TCXO/VCO Mod Dev . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.3 Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 3.4 Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 3.5 Final Gate Bias and Tx Driver Bias Limit . . . . . . . . . . . . . . . . . . . . . . . . . 24 Final Gate Bias 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Final Gate Bias 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Tx Driver Bias Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Tx Power Cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 3.6 Tx Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 4 Deviation and squelch thresholds . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 4.1 Deviation Settings tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 4.2 Squelch and Signalling Thresholds tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 4.3 Advanced tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 5 Raw data reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 5.1 Volt Ref/TCXO/VCO/VCXO tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 5.2 VCO Auto Cal Check tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 5.3 Receiver tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 5.4 Mute tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 5.5 Tx Gate Biasing tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 5.6 Power tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 5.7 Test Freqs tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3 Tuneup © Tait Electronics Ltd August 2004 6 TOPA-SV-024 Test Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 6.1 Test Equipment Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 6.2 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 TOP / TM9000 switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 TOP Mod Audio / Off / Mic Audio switch . . . . . . . . . . . . . . . . . . . . 36 Hook On / Hook Off switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Rx / Tx/PTT switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Speaker / Radio / Load switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 6.3 PCB Information (PCB IPN 220-01418-02A) . . . . . . . . . . . . . . . . . . . . . 38 Parts List (Rev. 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 PCB Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Circuit Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Tuneup General Information4 August 2004© Tait Electronics Ltd 1General Information Figure 1.1Test equipment for servicing radios RADIO BODY BLANK CONTROL HEAD POWER CONNECTOR TEST PC SERIAL PORT DB9 SOCKET RJ12 PLUG COMPUTER CONNECTOR RADIO CONNECTOR DB15 SOCKET RJ45 PLUG MICROPHONE CONNECTOR IN-LINE CONNECTOR AUXILIARY CONNECTOR BANANA PLUGS BNC PLUGTEST UNIT OSCILLOSCOPE RX AUDIO/SINAD CONNECTOR AUDIO IN HI RF COMMUNI- CATIONS TEST SET AUDIO OUT TX AUDIO CONNECTOR RADIO BODY CONTROL HEAD RF CONNECTOR BNC PLUG BNC PLUG BNC PLUG AUDIO MONITOR OUTPUT RF IN/OUT N-TYPE CONNECTOR DC POWER SUPPLY PROGRAMMING CONNECTOR RJ45 PLUG DB9 SOCKET ADAPTOR (SEE INSET FOR CONNECTION TO BLANK CONTROL HEAD) AC INPUT 5General Information Tuneup August 2004© Tait Electronics Ltd Introduction This subsection covers the setting up of the test equipment for servicing the radios, as well as related aspects: ■setting up of test equipment, including test unit ■use of test unit ■installing programming and calibration applications ■basic programming and calibration tasks ■invoking CCTM (computer-controlled test mode) ■summary tables of CCTM commands and …

Text truncated - open the document above for the full version.

FCC ID: CASTMAH7FPage 1 of 10 REPORT NUMBER 2100MPEFCC ID: CASTMAH7F TELTEST Laboratories Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone : (64) (3) 3583399 Fax: (64) (3) 3580432 TEST: FCC 47 CFR 1.1310 Maximum Permissible Exposure ENVIRONMENTAL ASSESSMENT On the TMAB34-H701 Mobile Transceiver S/N: 19020187 In accordance with ANSI/IEEE Std C95.1, 1999 OET Bulletin 65 97-01 and Supplement C (Edition 01-01) DATE:August 2004 PREPARED BY:Hamish Newton__________________ Test Technician CHECKED & APPROVED BY:SA Crompton __________________ Laboratory Manager This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. FCC ID: CASTMAH7FPage 2 of 10 TABLE OF CONTENTS Page SUMMARY OF RESULTS ................................................................................................................... 3 OPERATING CONDITIONS AND EXPOSURE CONDITIONS .................................................... 4 LIMITS ................................................................................................................................................... 4 RECOMMENDED ANTENNAS .......................................................................................................... 4 MEASUREMENT GUIDANCE ...........................................................................................................4 TEST RESULTS, TRANSMITTER POWER ..................................................................................... 5 TEST RESULTS, MPE.......................................................................................................................... 6 TEST EQUIPMENT LIST .................................................................................................................... 7 INFORMATION TO BE PLACED IN MANUAL.............................................................................. 8 APPENDIX 1 TEST POSITIONS DIAGRAM.................................................................................... 9 FCC ID: CASTMAH7FPage 3 of 10 Summary of Results: Antenna GainAntenna PositionMeasurement PositionResult 2.15 dBi RoofExternal: Side COMPLIES 5.65 dBi RoofExternal: Side COMPLIES 5.65 dBi TrunkExternal: Rear Side COMPLIES 5.65 dBi TrunkExternal: Rear Corner COMPLIES 5.65 dBi TrunkExternal: Centre rear COMPLIES 2.15 dBi RoofInternal: Front Seat COMPLIES 2.15 dBi RoofInternal: Back Seat COMPLIES 5.65 dBi RoofInternal: Front Seat COMPLIES 5.65 dBi RoofInternal: Back Seat COMPLIES 5.65 dBi TrunkInternal: Front Seat COMPLIES 5.65 dBi TrunkInternal: Back Seat COMPLIES See Appendix A for details of the measurement positions. FCC ID: CASTMAH7FPage 4 of 10 Operating and Exposure conditions: Operating Conditions:Mobile transmitter using vehicle mounted antennas only Exposure conditions:Occupational/Controlled Exposure (operator). General Population/Uncontrolled (passengers and bystanders) Safe Distance: Recommended Minimum lateral safe distance from the antenna:90 cm Limit: Occupational/Controlled Exposure: 30 - 300 MHz: 1.0 mW/cm 2 300 – 1500 MHzf/300 for test frequency of 463.725MHz = 1.55 mW/cm 2 General population/Uncontrolled Exposure: 30 - 300 MHz: 0.2 mW/cm 2 300 – 1500 MHzf/1500 for test frequency of 463.725MHz = 0.31 mW/cm 2 Recommended Antennas: Antenna Type:Monopole (λ/4 antenna) Antenna Gain:2.15 dBi Antenna Type:Monopole (Collinear antenna) Antenex AB4503C Antenna Gain:5.65 dBi Measurement Guidance: 2) Mobile PTT – Parts 80, 90 a) §2.1033(c)(3) requires device operating and installation instructions to be submitted during equipment certification; instructions should include the minimum separation distance and other constraints required for the device and its antenna(s) to meet MPE limits b) Per definition of a mobile device a minimum separation distance of 20 cm is required FCC ID: CASTMAH7FPage 5 of 10 i) Antenna installation conditions should maintain the estimated minimum MPE separation distance ii) A separation distance based on MPE evaluation (measurement or computer modeling) that is smaller than the estimated MPE distance may be used if it is applicable for the antenna installation conditions c) Basic RF exposure instructions are requested for devices that meet general population exposure requirements, as part of the §2.1033(c)(3) required operating instructions; RF exposure training instructions and labeling info are requested for devices that satisfy occupational exposure requirements Federal Communications Commission OET Laboratory Division March 18, 2004 Test Results: NAME OF TEST:TRANSMITTER OUTPUT POWER (CONDUCTED) TEST CONDITIONS:Ambient Temperature22 o C Relative Humidity35 % SPECIFICATION:FCC 47 CFR 2.1046 GUIDE:TIA/EIA-603 2.2.1 MEASUREMENT PROCEDURE: 1. The Equipment Under Test (EUT) was connected to an RF Power meter using a coaxial attenuator with an impedance of 50 Ohms. 2. The unmodulated output power was measured. MEASUREMENT RESULTS: Transmit Frequency:463.725MHz Manufacturer’s Rated Output Power40Watts Supply Voltage, motor idling, transmitting.13.21Volts Measured Output Power43.53Watts Measurement Uncertainty (dB) ± 0.5 dB Maximum Transmit Power is set in the factory to 41.6 watts +2 / -1 watt. This setting is not adjustable by the user. The MPE results are scaled to simulate results from a 43.6 watt carrier with a 50% duty cycle. FCC ID: CASTMAH7FPage 6 of 10 NAME OF TEST:ENVIRONMENTAL ASSESSMENT SPECIFICATION:FCC 47 CFR 1.1310 Measurement Method: Field strength measurements were performed for two antenna positions on a representative vehicle (Honda Accord 2001 LXI four door sedan, dimensions 185.5 long, 71.5 wide and 57.1 inches high ). See Appendix A for details. External Field strength readings were recorded at four positions 20 cms from the car body, to represent the closest position for a bystander. Measurements were taken at 20 cm intervals vertically over a height of 2 metres. Internal field strength readings were recorded in the …

Text truncated - open the document above for the full version.

TELTEST Laboratories Tait Electronics Limited Report Number 2100 FCC ID: CASTMAH7F Page 1 of 48 REPORT NUMBER 2100SEPTEMBER 2004 RADIO PERFORMANCE MEASUREMENTS On the TMAB34-H701 Mobile Transceiver FCC ID: CASTMAH7F SN: 19020187 In accordance with FCC 47 CFR Parts 22 and 90 PREPARED BY:Marcus Ludwig___________________ Test Technician CHECKED & APPROVED BY:Hamish Newton___________________ Senior Technician TELTEST Laboratories Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone : (64) (3) 3583399 Fax: (64) (3) 3580432 TELTEST Laboratories Tait Electronics Limited Report Number 2100 FCC ID: CASTMAH7F Page 2 of 48 REPORT ON : Type Approval Testing of the TMAB34-H701 (Serial No 19020187) in accordance with: FCC CFR 47 Parts 22 & 90 FCC ID: CASTMAH7F PREPARED FOR : Tait Electronics Ltd PO Box 1645 558 Wairakei Rd Christchurch New Zealand DISTRIBUTION : TELTest LaboratoryMr S CromptonCopy No 1 Tait Electronics LtdMr. Des Fox Copy No 2 Tait Electronics LtdMr. Dereck FiddesCopy No 3 APPROVED : Hamish Newton Senior Technician Date : All tests reported herein have been performed in accordance with the laboratory's scope of accreditation This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. Copy No: TELTEST Laboratories Tait Electronics Limited Report Number 2100 FCC ID: CASTMAH7F Page 3 of 48 TABLE OF CONTENTS DECLARATION OF CONFORMITY................................................................................................. 4 TEST CONDITIONS ............................................................................................................................. 5 NECESSARY BANDWIDTH AND EMISSION DESIGNATORS ................................................... 5 TEST RESULTS..................................................................................................................................... 9 TRANSMITTER OUTPUT POWER (CONDUCTED) ...................................................................... 9 TRANSMITTER AUDIO FREQUENCY RESPONSE - PRE-EMPHASIS ..................................... 10 OCCUPIED BANDWIDTH ..............................................................................................................15 ANALOGUE VOICE ...................................................................................................................... 16 FFSK .............................................................................................................................................. 20 THSD .............................................................................................................................................. 24 DIGITAL - 4 Level FSK................................................................................................................. 28 SPURIOUS EMISSIONS (CONDUCTED)....................................................................................... 32 SPURIOUS EMISSIONS (RADIATED)........................................................................................... 35 TRANSMITTER FREQUENCY STABILITY (TEMPERATURE) ................................................. 38 TRANSMITTER FREQUENCY STABILITY (V OLTAGE)............................................................... 40 TRANSIENT FREQUENCY BEHAVIOR ....................................................................................... 41 TEST EQUIPMENT USED................................................................................................................. 46 APPENDIX A ....................................................................................................................................... 47 TEST SETUP DETAILS.................................................................................................................... 47 TELTEST Laboratories Tait Electronics Limited Report Number 2100 FCC ID: CASTMAH7F Page 4 of 48 DECLARATION OF CONFORMITY We, TELTEST LABORATORIES of 558 Wairakei Road, Christchurch New Zealand, declare under our sole responsibility that the product: Equipment:Mobile Transceiver Type:TMAH7F Product code:TMAB34-H701 Serial Numbers:19018543 Quantity:1 To which this declaration relates is in conformity with the following standards: FCC CFR 47 Parts 22 & 90 Signature:__________________________ S. A. Crompton Compliance Laboratory Manager. Date:__________ TELTEST Laboratories Tait Electronics Limited Report Number 2100 FCC ID: CASTMAH7F Page 5 of 48 Test Conditions All testing was performed at the following conditions. Ambient Temperature15 o C to 30 o C Relative Humidity20% to 75% Standard Test Voltage13.8Vdc Necessary B…
