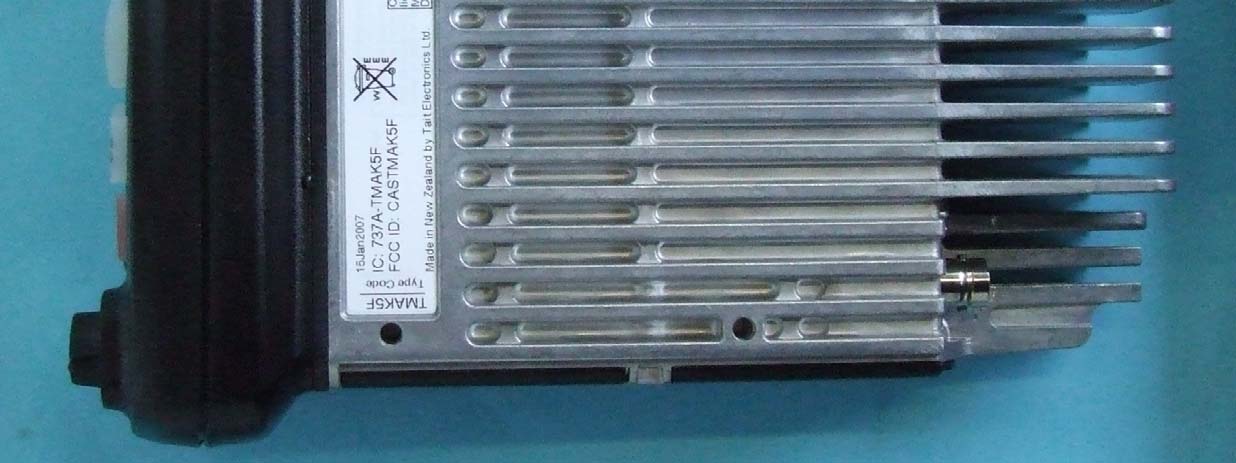

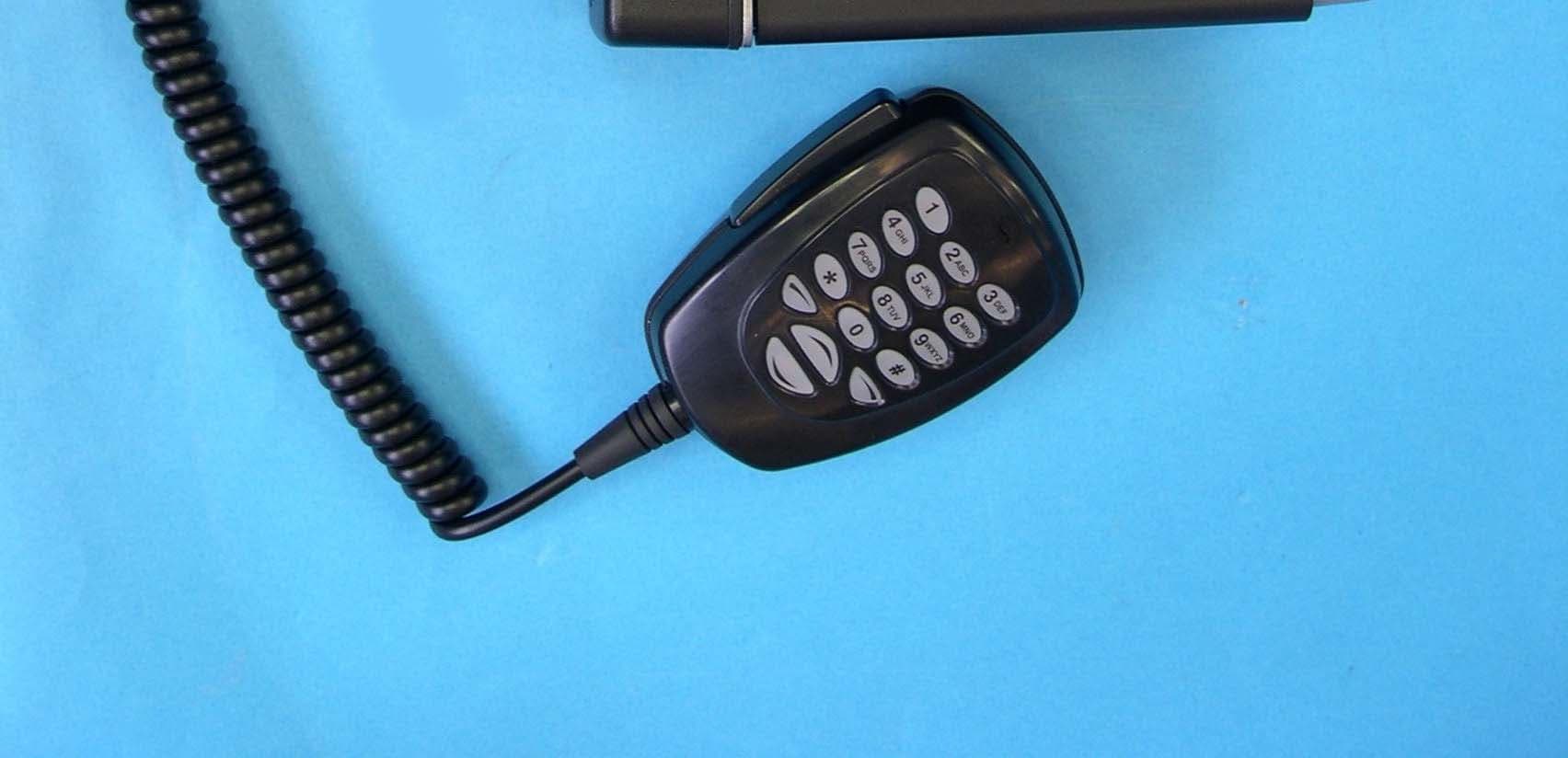

CASTMAK5FMobile Transceiver

TM9100 mobiles Safety and Compliance Information MMA-00009-06 April 2007 2Safety and compliance information Copyright and trademarks All information contained in this manual is the property of Tait Electronics Limited. All rights reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Tait Electronics Limited. The word TAIT and the TAIT logo are trademarks of Tait Electronics Limited. All trade names referenced are the service mark, trademark or registered trademark of the respective manufacturers. Intellectual property rights This product may be protected by one or more patents of Tait Electronics Limited together with their international equivalents, pending patent applications and registered trade marks: NZ338097, NZ508054, NZ508340, NZ508806, NZ508807, NZ509242, NZ509640, NZ509959, NZ510496, NZ511155, NZ511421, NZ516280/519742, NZ519118, NZ519344, NZ520650/537902, NZ522236, NZ524369, NZ524378, NZ524509, NZ524537, NZ524630, NZ530819, NZ534475, NZ534692, NZ535471, NZ536945, NZ537434, NZ546295, NZ547713, NZ521450, AU2003281447, AU2002235062, AU2004216984, AU2005207405, CA2439018, CA2554213, EU 03784706.8, EU02701829.0, EU 04714053.8, EU 05704655.9, GB23865476, GB2386010, GB2413249, GB0516092.4, US11,232716, US10/597339, US10/520827, US10/468740, US5,745,840, US10/547653, US10/546696, US10/547964, US10/523952, US11/572700. This product may also be made under license under one or more of the following U.S. Patents: 4,590,473 4,636,791 4,716,407 4,972,460 5,146,497 5,148,482 5,164,986 5,185,795 5,185,796 5,271,017 5,377,229 5,502,767. The IMBE™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is Safety and compliance information3 explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. Protected by U.S. Patents 5,870,405 5,826,222 5,754,974 5,701,390 5,715,365 5,649,050 5,630,011 5,581,656 5,517,511 5,491,772 5,247,579 5,226,084 and 5,195,166. To our European customers Tait Electronics Limited is an environmentally responsible company which supports waste minimization and material recovery. The European Union’s Waste Electrical and Electronic Equipment Directive requires that this product be disposed of separately from the general waste stream when its service life is over. Please be environmentally responsible and dispose through the original supplier, your local municipal waste “separate collection” service, or contact Tait Electronics Limited. 4Safety and compliance information About this booklet This booklet contains important safety and compliance information. For information about the way your radio operates, contact your radio provider. Before using your radio, please read the following important safety and compliance information. Radio frequency exposure information For your own safety and to ensure you comply with the Federal Communication Commission’s (FCC) radio frequency (RF) exposure guidelines, please read the following information before using this radio. Using this radio You should use this radio only for work-related purposes (it is not authorized for any other use) and if you are fully aware of, and can exercise control over, your exposure to RF energy. To prevent exceeding FCC RF exposure limits, you must control the amount and duration of RF that you and other people are exposed to. It is also important that you: QDo not remove the RF Exposure label from the radio. Safety and compliance information5 QEnsure this RF exposure information accom- panies the radio when it is transferred to other users. QDo not use the radio if you do not adhere to the guidelines on controlling your exposure to RF. Controlling your exposure to RF energy This radio emits radio frequency (RF) energy or radio waves primarily when calls are made. RF is a form of electromagnetic energy (as is sunlight), and there are recommended levels of maximum RF exposure. To control your exposure to RF and comply with the maximum exposure limits for occupational/controlled environments, follow these guidelines: QDo not talk (transmit) on the radio more than the rated transmit duty cycle. This is impor- tant because the radio radiates more energy when it is transmitting than when it is receiving. QWhile you are transmitting (talking or sending data) on the radio, you must ensure that there is always a distance of 35 inches (0.9m) between people and the antenna. This is the minimum safe distance. For 110W mobiles, the minimum safe distance is 44 inches (1.1m). 6Safety and compliance information QUse the radio only with Tait-approved anten- nas and attachments, and make only autho- rized modifications to the antenna otherwise you could damage the radio and violate FCC regulations. For more information on what RF energy is and how to control your exposure to it, visit the FCC website at http://www.fcc.gov/oet/rfsafety/rf-faqs.html. Compliance with RF energy exposure standards This two-way radio complies with these RF energy exposure standards and guidelines: QUnited States Federal Communications Com- mission, Code of Federal Regulations; 47 CFR §§ 1.1307, 1.1310, and 2.1091. QAmerican National Standards Institute (ANSI) / Institute of Electrical and Electronic Engi- neers (IEEE) C95.1-1992 QInstitute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50 % talk to 50 % listen. Safety and compliance information7 Radio frequency emissions limits…

Text truncated - open the document above for the full version.

TM9100 mobiles (40 W/50 W) Installation Guide Draft 0.03 October 2004 2TM9100 (40 W/50 W) Installation Guide © Tait Electronics Ltd October 2004 Contact Information Tait Radio Communicationshttp://www.taitworld.com Corporate Head Office New Zealand Tait Electronics Ltd P.O. Box 1645 Christchurch New Zealand E-mail: [email protected] Website: http://www.taitworld.com Technical Support: E-mail: [email protected] Website: http://support.taitworld.com Tait North America Regional Head Office - United States of America Tait North America Inc E-mail: [email protected] Canada Tait North America Inc E-mail: [email protected] Tait Latin America Tait Latin America E-mail: [email protected] Tait Europe Regional Head Office - United Kingdom Ta i t M o b i l e R a d i o L t d E-mail: [email protected] Tait North Asia Regional Head Office - Hong Kong Tait Mobile Radio (Hong Kong) Ltd E-mail: [email protected] Beijing Tait Mobile Radio (Hong Kong) Ltd E-mail: [email protected] Tait South Asia Regional Head Office - Singapore Tait Electronics (Far East) Pte Ltd E-mail: [email protected] Thailand Ta i t M o b i l e R a d i o L t d E-mail: [email protected] Tait Oceania New Zealand Tait Communications Ltd E-mail: [email protected] Australia Tait Electronics (Aust) Pty Ltd E-mail: [email protected] Note: For the addresses and phone numbers of the above regional offices refer to the TaitWorld website. TM9100 (40 W/50 W) Installation Guide3 © Tait Electronics Ltd October 2004 Tait General Software Licence Agreement This legal document is an Agreement between you (the “Licensee”) and Tait Electronics Limited (“Tait”). By using any of the Software or Firmware items prior- installed in the related Tait product, included on this CD or downloaded from the Tait website, (hereinafter referred to as “the Software or Firmware”) you agree to be bound by the terms of this Agreement. If you do not agree to the terms of this Agreement, do not install and use any of the Software or Firmware. If you install and use any of the Software or Firmware that will be deemed to be acceptance of the terms of this licence agreement. The terms of this agreement shall apply subject only to any express written terms of agreement to the contrary between Tait and the Licensee. Licence TAIT GRANTS TO YOU AS LICENSEE THE NON-EXCLUSIVE RIGHT TO USE THE SOFTWARE OR FIRMWARE ON A SINGLE MACHINE PROVIDED YOU MAY ONLY: 1.COPY THE SOFTWARE OR FIRMWARE INTO ANY MACHINE READABLE OR PRINTED FORM FOR BACKUP PURPOSES IN SUPPORT OF YOUR USE OF THE PROGRAM ON THE SINGLE MACHINE (CERTAIN PROGRAMS, HOWEVER, MAY INCLUDE MECHANISMS TO LIMIT OR INHIBIT COPYING, THEY ARE MARKED “COPY PROTECTED”), PROVIDED THE COPYRIGHT NOTICE MUST BE REPRODUCED AND INCLUDED ON ANY SUCH COPY OF THE SOFTWARE OR FIRMWARE; AND / OR 2.MERGE IT INTO ANOTHER PROGRAM FOR YOUR USE ON THE SINGLE MACHINE (ANY PORTION OF ANY SOFTWARE OR FIRMWARE MERGED INTO ANOTHER PROGRAM WILL CONTINUE TO BE SUBJECT TO THE TERMS AND CONDITIONS OF THIS AGREEMENT). THE LICENSEE MAY NOT DUPLICATE, MODIFY, REVERSE COMPILE OR REVERSE ASSEMBLE ANY SOFTWARE OR FIRMWARE IN WHOLE OR PART. Title to Software THIS AGREEMENT DOES NOT CONSTITUTE A CONTRACT OF SALE IN RELATION TO THE SOFTWARE OR FIRMWARE SUPPLIED TO THE LICENSEE. NOT WITHSTANDING THE LICENSEE MAY OWN THE MAGNETIC OR OTHER PHYSICAL MEDIA ON WHICH THE SOFTWARE OR FIRMWARE WAS ORIGINALLY SUPPLIED, OR HAS SUBSEQUENTLY BEEN RECORDED OR FIXED, IT IS A FUNDAMENTAL TERM OF THIS AGREEMENT THAT AT ALL TIMES TITLE AND OWNERSHIP OF THE SOFTWARE OR FIRMWARE, WHETHER ON THE ORIGINAL MEDIA OR OTHERWISE, SHALL REMAIN VESTED IN TAIT OR THIRD PARTIES WHO HAVE GRANTED LICENCES TO TAIT. Term and Termination THIS LICENCE SHALL BE EFFECTIVE UNTIL TERMINATED IN ACCORDANCE WITH THE PROVISIONS OF THIS AGREEMENT. THE LICENSEE MAY TERMINATE THIS LICENCE AT ANY TIME BY DESTROYING ALL COPIES OF THE SOFTWARE OR FIRMWARE AND ASSOCIATED WRITTEN MATERIALS. THIS LICENCE WILL BE TERMINATED AUTOMATICALLY AND WITHOUT NOTICE FROM TAIT IN THE EVENT THAT THE LICENSEE FAILS TO COMPLY WITH ANY TERM OR CONDITION OF THIS AGREEMENT. THE LICENSEE AGREES TO DESTROY ALL COPIES OF THE SOFTWARE OR FIRMWARE AND ASSOCIATED WRITTEN MATERIALS IN THE EVENT OF SUCH TERMINATION. Limited Warranty THE SOFTWARE OR FIRMWARE IS SUPPLIED BY TAIT AND ACCEPTED BY THE LICENSEE “AS IS” WITHOUT WARRANTY OF ANY KIND EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT BEING LIMITED TO ANY IMPLIED WARRANTIES AS TO MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. THE LICENSEE ACKNOWLEDGES THAT THE SOFTWARE OR FIRMWARE IS USED BY IT IN BUSINESS AND ACCORDINGLY TO THE MAXIMUM EXTENT PERMITTED BY LAW NO TERMS OR WARRANTIES WHICH ARE IMPLIED BY LEGISLATION SHALL APPLY TO THIS AGREEMENT. TAIT DOES NOT WAR RANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE OR FIRMWARE WILL MEET THE LICENSEE’S REQUIREMENTS OR THAT THE OPERATION OF THE SOFTWARE OR FIRMWARE WILL BE UNINTERRUPTED OR ERROR FREE. Exclusion of Liability TAIT’S ENTIRE LIABILITY AND THE LICENSEE’S EXCLUSIVE REMEDY SHALL BE THE FOLLOWING: 1.IN NO CIRCUMSTANCES SHALL TAIT BE UNDER ANY LIABILITY TO THE LICENSEE, OR ANY OTHER PERSON WHATSOEVER, FOR ANY DIRECT OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH ANY USE OR INABILITY OF USING THE SOFTWARE OR FIRMWARE. 2.TAIT WARRANTS THE OPERATION OF THE SOFTWARE OR FIRMWARE ONLY WITH THE OPERATING SYSTEM FOR WHICH IT WAS DESIGNED. USE OF THE SOFTWARE OR FIRMWARE WITH AN OPERATING SYSTEM OTHER THAN THAT FOR WHICH IT WAS DESIGNED MAY NOT BE SUPPORTED BY TAIT, UNLESS OTHERWISE EXPRESSLY AGREED BY TAIT. General THE LICENSEE CONFIRMS THAT IT SHALL COMPLY WITH THE PROVISIONS OF LAW IN RELATION TO THE SOFTWARE OR FIRMWARE. 4TM9100 (40 W/50 W) Installation Guide © Tait Electronics Ltd October 2004 Law and Jurisdiction THIS AGREEMENT SHALL BE SUBJECT TO AND CONSTRUED IN ACCORDANCE WITH NEW ZEALAND LAW AND DISPUTES BETWEEN THE PARTIES CONCERNING THE PROVISIONS HEREOF SHALL BE…

Text truncated - open the document above for the full version.

TM9100 mobiles User’s Guide Version 0.1 July 2004 For your safety i For your safety For your safety Please read the following safety and compliance information before using your radio. Radio frequency exposure information For your own safety and to ensure you comply with the Federal Communication Commission’s (FCC) radio frequency (RF) exposure guidelines, please read the following information before using this radio. Using this radio You should use this radio only for work-related purposes (it is not authorized for any other use) and if you are fully aware of, and can exercise control over, your exposure to RF energy. To prevent exceeding FCC RF exposure limits, you must control the amount and duration of RF that you and other people are exposed to. It is also important that you:
Do not remove the RF Exposure label from the radio.
Ensure this RF exposure information accompanies the radio when it is transferred to other users.
Do not use the radio if you do not adhere to the guidelines on controlling your exposure to RF. Controlling your exposure to RF energy This radio emits radio frequency (RF) energy or radio waves primarily when calls are made. RF is a form of electromagnetic energy (as is sunlight), and there are recommended levels of maximum RF exposure. To control your exposure to RF and comply with the maximum exposure limits for occupational/controlled environments, follow these guidelines:
Do not talk (transmit) on the radio more than the rated transmit duty cycle. This is important because ii For your safety For your safety the radio radiates more energy when it is transmit- ting than when it is receiving.
While you are transmitting (talking or sending data) on the radio, you must ensure that there is always a distance of 0.9 m (35 inches) between people and the antenna. This is the minimum safe distance.
Use the radio only with Tait-approved antennas and attachments, and make only authorized modifica- tions to the antenna otherwise you could damage the radio and violate FCC regulations. For more information on what RF energy is and how to control your exposure to it, visit the FCC website at http://www.fcc.gov/oet/rfsafety/rf-faqs.html. Compliance with RF energy exposure standards This two-way radio complies with these RF energy exposure standards and guidelines:
United States Federal Communications Commis- sion, Code of Federal Regulations; 47 CFR §§ 1.1307, 1.1310, and 2.1091.
American National Standards Institute (ANSI) / Insti- tute of Electrical and Electronic Engineers (IEEE) C95.1-1992
Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk to 50% listen. Radio frequency emissions limits in the USA Part 15 of the FCC Rules imposes RF emission limits on electronic equipment to prevent interference to reception of broadcast services. For your safety iii For your safety This radio complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Unapproved modifications or changes to radio The radio is designed to satisfy the applicable compliance regulations. Do not make modifications or changes to the radio that are not expressly approved by Tait Electronics Ltd. Failure to do so could invalidate compliance requirements and void the user’s authority to operate the radio. Interference to radio communications This radio complies with Part 15 of the FCC Rules which specifies the limits for a Class B digital device. This radio generates, uses, and can radiate RF energy. This energy may cause harmful interference to radio communications if the radio is not installed and used according to the instructions in the user guide. If this radio does cause harmful interference, you should contact your radio provider for assistance. Frequency band reserved for distress beacons Frequency band 406 to 406.1 MHz is reserved for use by distress beacons. Transmissions should not be made within this frequency band. Safe radio operation Switch off the radio:
at petrol filling stations or near flammable liquids or gases
in the vicinity of explosive devices and blasting zones iv For your safety For your safety Using a handheld microphone or a radio while driving a vehicle may violate the laws and legislation that apply in your country or state. Please check the vehicle regulations in your area. Interference with electronic devices Some electronic devices may be prone to malfunction due to the lack of protection from RF energy that is present when your radio is transmitting. Examples of electronic devices that may be affected by RF energy are:
vehicular electronic systems such as fuel injection, anti-skid brakes, and cruise control
medical devices such as hearing aids and pacemak- ers
medical equipment in hospitals or health care facili- ties. Consult the manufacturer (or its representative) of the equipment to determine whether these electronic circuits will perform normally when the radio is transmitting. High temperatures The bottom surface of the radio and the heatsink fins can become hot during prolonged operation. Do not touch these parts of the radio. Radio protection Always remove the fuses from the radio power cable before charging the vehicle battery, connecting a second battery or using power from another vehicle (e.g. when “jump-starting” the vehicle). Contents v Contents Contents For your safety ................................................................ i Radio frequency exposure information ......................... i Using this radio........................................................ i Controlling your exposure to RF energy ................... i Compliance with RF energy exposure standards ...... ii Radio frequency emissions limits in the USA................ ii Unapproved modifications or changes to radio .....…

Text truncated - open the document above for the full version.

Tait TMAK5F Part 90R Application Review Public Safety Bands: 764-776 MHz and 794-806 MHz 1. Explanation of which Narrowband or Wideband channel segments the device is capable of supporting from those listed in 90.531(b), and 90.531(c). - For Narrowband segments: a) Is the device capable of operating on “General Use” channels listed in 90.531(b)(5) or “State” channels listed in 90.531(b)(6)? TMAK5F is capable of transmitting on all channels (1 thru 1920) as listed in 90.531(b). This covers ‘General Use’, ‘State’ and ‘Nationwide’ channels. b) Is the device ONLY capable of operating on Low Power “Regional” channels listed in 90.531(b)(3) or Low Power “Itinerant” channels listed in 90.531(b)(4)? TMAK5F is not a ‘low power only’ device, but when configured for FCC operation will only operate below 2W on the ‘Low Power Regional’ channels listed in 90.531(b)(3) or ‘Low Power Itinerant’ channels listed in 90.531(b)(4) c) Is the device capable of operating on “Nationwide” Interoperability channels listed in 90.531(b)(1)? TMAK5F is capable of transmitting on all channels (1 thru 1920) as listed in 90.531(b). This covers ‘Nationwide’ channels. - For Wideband segments: d) Is the device capable of operating on Interoperability channels listed in 90.531(c)(1)? TMAK5F is not a wideband device and not suitable for operation on ‘Interopererability’ channels listed in 90.531(c)(1) 2. Statement regarding the modulation capabilities of the device: - Does the device support digital Voice only, Data only, or both [see 90.547]? The TMAK5F supports both digital voice and digital data in accordance with 90.547 - Does the device support analog voice operation [see 90.535(a)]? The TMAK5F supports analogue voice in accordance with 90.535 (a) 3. Verify the following Interoperability Channel Operation requirements listed in 90.531 and 90.547 for Narrowband mobile, portable, or control devices only, given the information from #1. and #2. above: a) Designed for Data ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the data interoperability channels listed in 90.531(b)(1)(i). Not applicable. The TMAK5F supports both digital voice and digital data b) Designed for Voice ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the nationwide and calling only interoperability channels listed in 90.531(b)(1) and (b)(1)(ii), but do not have to operate on data only channels listed in 90.531(b)(1)(i). Not applicable. The TMAK5F supports both digital voice and digital data c) Designed for BOTH Voice and Data Operation on Nationwide, General Use or State channels - Must be capable of operating on all nationwide interoperability channels including data only and calling only channels listed in 90.531(b)(1), (b)(1)(i), and (b)(1)(ii). TMAK5F is capable of operating on all channels (1 thru 1920) as listed in 90.531(b). This covers ‘General Use’, ‘State’ and ‘Nationwide’ channels. d) Designed for Low Power ONLY Operation on Regional/Itinerant channels – Must operate ONLY on the data/voice channels listed in 90.531(b)(3) or (b)(4). TMAK5F is not a ‘low power only’ device, but when configured for FCC operation will only operate below 2W on the ‘Low Power Regional’ channels listed in 90.531(b)(3) or ‘Low Power Itinerant’ channels listed in 90.531(b)(4). There is also a statement in the user guide indicating that regional/itinerant channels should be set as low power. 4. Verify the following capability requirements for all Wideband devices only, given the information from #1. and #2. above: a) Designed for Data ONLY Operation on Nationwide Interoperability channels - Must operate on the wideband data interoperability channels listed in 90.531(c)(1). Not Applicable. TMAK5F is not a wideband device 5. Application filing requirements for Narrowband mobile, portable or control devices only: - Voice Operation on General Use, State, or Nationwide Voice Interoperability channels: a) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Complies with ACP requirements. Refer to test report 2559 b) Attestation of voice path efficiency compliance for operation on General Use and State channels only – 90.203(m) & 90.535(d). Currently one voice channel in 12.5 kHz. Would require half rate vocoder to achieve one voice channel in 6.25 kHz c) Attestation of operation on Nationwide Voice Interoperability and Calling Only channels – 90.547. TMAK5F is capable of transmitting on all channels (1 thru 1920) as listed in 90.531(b). This covers Nationwide ‘Interoperability’, and ‘Calling’ channels. - For Voice Only devices, attestation to 90.547(a)(3). Not applicable. The TMAK5F supports both digital voice and digital data d) Attestation of compliance to Project 25 FDMA Common Air Interface (ANSI 102) standards for operation on Nationwide Voice Interoperability and Calling Only channels only - 90.548(a)(1). The TMAK5F complies with ANSI/TIA/EIA–102 standards e) Frequency stability compliance for all band plans - 90.539(a) & (c). Complies with frequency stability requirements. Refer to test report 2559 f) Transmitting power compliance for all band plans - 90.541(b) & (c). Complies with power requirements. Refer to test report 2291 - Data Operation on General Use, State, or Nationwide Data Interoperability channels: g) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Complies with ACP requirements. Refer to test report 2559 h) Attestation of data rate efficiency compliance for General Use and State channels only - 90.535(b). Complies – 4.8 kbps for 6.25 kHz bandwidth. i) Attestation of operation on Nationwide Data Interoperability channels listed in 90.531(b)(1)(i) only – 90.547. TMAK5F is capable of transmitting on all channels (1 thru 1920) as listed in 90.531(b). This covers Nationwide ‘Interoperability’ channels. - For Data Only devices, a…

Text truncated - open the document above for the full version.

EEE-Q25895TCB 5/4/2007 FCC ID: CASTMAK5F Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, (Tait Electronics Limited), hereby request confidentiality for the Block diagrams, Schematics, Parts lists, Tune up and Operational Description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Steve Crompton, Laboratory Manager, Tait Electronics Ltd.

FCC ID: CASTMAK5F Page 1 of 11 REPORT NUMBER 2602 FCC ID: CASTMAK5F TELTEST Laboratories Tait Electronics Limited PO Box 1645 558 Wairakei Road Christchurch New Zealand Phone : (64) (3) 3583399 Fax: (64) (3) 3580432 TEST: FCC 47 CFR 1.1310 Maximum Permissible Exposure ENVIRONMENTAL ASSESSMENT On the TMAB34-K500 Mobile Transceiver S/N: 19226280 In accordance with ANSI/IEEE Std C95.1, 1999 OET Bulletin 65 97-01 and Supplement C (Edition 01-01) DATE: 4 April 2007 PREPARED BY: Robin Kidson __________________ Test Technician CHECKED & APPROVED BY: SA Crompton __________________ Laboratory Manager This document must not be reproduced except in full, without the written permission of the Compliance Laboratory Manager. FCC ID: CASTMAK5F Page 2 of 11 TABLE OF CONTENTS Page SUMMARY OF RESULTS ................................................................................................................... 3 OPERATING CONDITIONS AND EXPOSURE CONDITIONS .................................................... 4 LIMITS ................................................................................................................................................... 4 RECOMMENDED ANTENNAS .......................................................................................................... 4 MEASUREMENT GUIDANCE ...........................................................................................................5 TEST RESULTS, TRANSMITTER POWER ..................................................................................... 5 TEST RESULTS, MPE .................................................................................................................. 6 TEST EQUIPMENT LIST .................................................................................................................... 9 INFORMATION TO BE PLACED IN MANUAL............................................................................ 10 APPENDIX 1 TEST POSITIONS DIAGRAM.................................................................. 11 FCC ID: CASTMAK5F Page 3 of 11 Summary of Results: 762.0125 MHz: Antenna Gain Antenna Position Measurement Position Result 2.15 dBi Roof External: Side COMPLIES 2.15 dBi Trunk External: Rear Side COMPLIES 2.15 dBi Trunk External: Rear Corner COMPLIES 2.15 dBi Trunk External: Centre rear COMPLIES 5.65 dBi Roof External: Side COMPLIES 5.65 dBi Trunk External: Rear Side COMPLIES 5.65 dBi Trunk External: Rear Corner COMPLIES 5.65 dBi Trunk External: Centre rear COMPLIES 2.15 dBi Roof Internal: Front Seat COMPLIES 2.15 dBi Roof Internal: Back Seat COMPLIES 2.15 dBi Trunk Internal: Front Seat COMPLIES 2.15 dBi Trunk Internal: Back Seat COMPLIES 5.65 dBi Roof Internal: Front Seat COMPLIES 5.65 dBi Roof Internal: Back Seat COMPLIES 5.65 dBi Trunk Internal: Front Seat COMPLIES 5.65 dBi Trunk Internal: Back Seat COMPLIES 806.0125 MHz: Antenna Gain Antenna Position Measurement Position Result 2.15 dBi Roof External: Side COMPLIES 2.15 dBi Trunk External: Rear Side COMPLIES 2.15 dBi Trunk External: Rear Corner COMPLIES 2.15 dBi Trunk External: Centre rear COMPLIES 5.65 dBi Roof External: Side COMPLIES 5.65 dBi Trunk External: Rear Side COMPLIES 5.65 dBi Trunk External: Rear Corner COMPLIES 5.65 dBi Trunk External: Centre rear COMPLIES 2.15 dBi Roof Internal: Front Seat COMPLIES 2.15 dBi Roof Internal: Back Seat COMPLIES 2.15 dBi Trunk Internal: Front Seat COMPLIES 2.15 dBi Trunk Internal: Back Seat COMPLIES 5.65 dBi Roof Internal: Front Seat COMPLIES 5.65 dBi Roof Internal: Back Seat COMPLIES 5.65 dBi Trunk Internal: Front Seat COMPLIES 5.65 dBi Trunk Internal: Back Seat COMPLIES See Appendix A for details of the measurement positions. FCC ID: CASTMAK5F Page 4 of 11 Operating and Exposure conditions: Operating Conditions: Mobile transmitter using vehicle mounted antennas only Exposure conditions: Occupational/Controlled Exposure (operator). General Population/Uncontrolled (passengers and bystanders) Safe Distance: Recommended Minimum lateral safe distance from the antenna: 90 cm Limit: Occupational/Controlled Exposure: 30 - 300 MHz: 1.0 mW/cm 2 300 – 1500 MHz f/300 mW/cm 2 for test frequency of 762.0125MHz = 2.54 mW/cm 2 for test frequency of 806.0125MHz = 2.69 mW/cm 2 General population/Uncontrolled Exposure: 30 - 300 MHz: 0.2 mW/cm 2 300 – 1500 MHz f/1500 mW/cm 2 for test frequency of 762.0125MHz = 0.508 mW/cm 2 for test frequency of 806.0125MHz = 0.537 mW/cm 2 Recommended Antennas: Antenna Type: Monopole (λ/4 antenna) Antenna Gain: 2.15 dBi Antenna Type: Monopole (Collinear antenna) Antenna Gain: 5.65 dBi FCC ID: CASTMAK5F Page 5 of 11 Measurement Guidance: 2) Mobile PTT – Parts 80, 90 a) §2.1033(c)(3) requires device operating and installation instructions to be submitted during equipment certification; instructions should include the minimum separation distance and other constraints required for the device and its antenna(s) to meet MPE limits b) Per definition of a mobile device a minimum separation distance of 20 cm is required i) Antenna installation conditions should maintain the estimated minimum MPE separation distance ii) A separation distance based on MPE evaluation (measurement or computer modeling) that is smaller than the estimated MPE distanc…

Text truncated - open the document above for the full version.
