CB2-BLUE13MBluetooth handsfree device to be installed in cars

The device under test is manufactured by the grantee (Johnson Controls Interiors L.L.C.) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end- user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case with this product, the grantee must notify the OEM to notify the end-user. Johnson Controls Interiors L.L.C. will supply the following information to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product: INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information must be included in the end product user’s manual to ensure continued FCC regulatory compliance. ************************************************************************ Modification statement Johnson Controls Interiors has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. Interference statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Wireless notice: This product emits radio frequency energy, but the radiated output power of this device is far below the FCC frequency exposure limits. This equipment complies with FCC RF radiation exposure limits forth for an uncontrolled environment. Nevertheless, the device should be used in such a manner that the potential for human contact with the antenna during normal operation is minimized. This product integrates an AR5550 CDMA modem (FCC ID: N7NAR5550, IC: 2417C-AR5550. The AR5550 modem is granted with a modular approval for mobile applications. Integration has been done meeting the following conditions: 1. At least 20cm separation distance between the antenna and any person body is maintained at all times. 2. To comply with FCC/IC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile only exposure condition does not exceed 4.25dBi for CDMA 800 band and 6.1dBi for CDMA PCS band. 3. The AR5550 antenna is not co-located with any other antennas. ************************************************************************ It is preferred that the following ID numbers be included in the manual if the device label is not readily accessible to the end user. ************************************************************************ FCC ID: CB2-BLUE13M ************************************************************************ The following information should be provided to the end user, regardless of placement of the device (portable vs. installed in vehicle), by citation in the manual. Please note that co-location is generally considered to be when 2 transmitters radiating elements are < 20 cm apart from each other. ************************************************************************ The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Johnson Controls Interiors L.L.C. Address : 915 East 32nd Street City: Holland, MI 49423 Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: CB2-BLUE13M Reference number: CB2-BLUE13M Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify FCC in the event information regarding the product or the product is made available to the public. Planned Release Date STC: May 12, 2012 (notes 2, 3, 4, 5) Date: Nov. 14, 2011 Name and signature of applicant: p.a. Christopher Plank Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

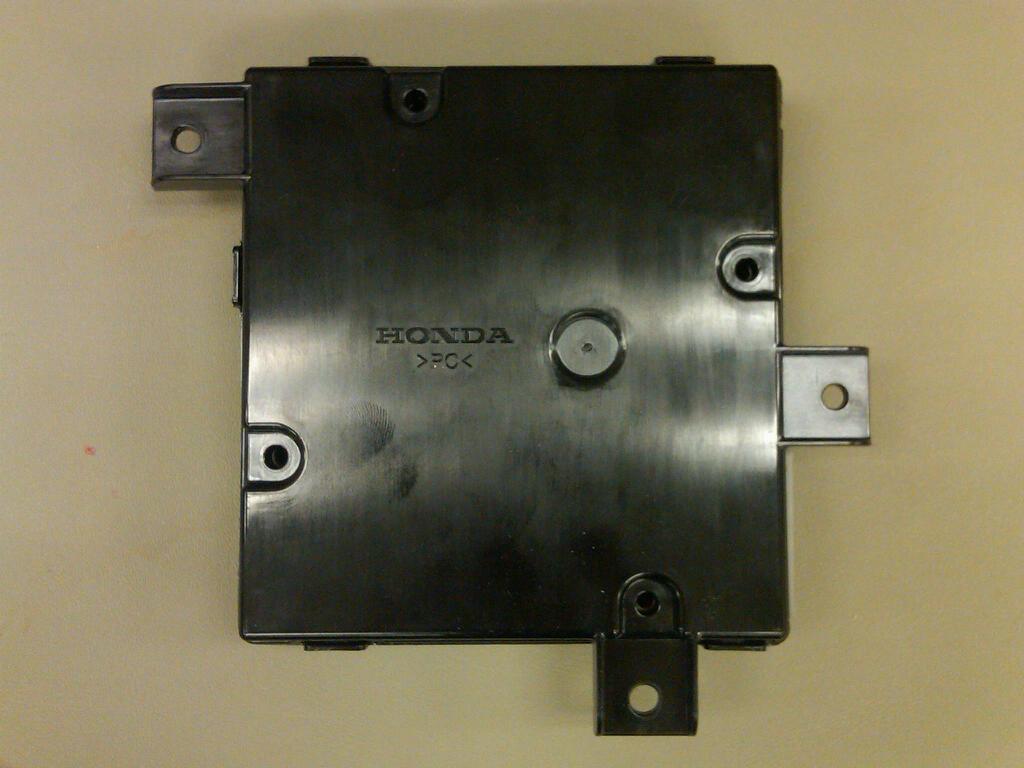

External Photographs Top Side Module View Bottom Side Module View Product Label

Internal Photographs PCBA Top View CDMA Module Sierra Wireless FCC ID: N7NAR5550 PIFA Antenna PCBA Bottom View FITA Top Side

Telefication BV Edisonstraat 12A Zevenaar 6902 PK The Netherlands RF exposure analysis for the equipment CB2-BLUE13M (FCC ID: CB2-BLUE13M) The output power of the device is extremely low (1,06 mW conducted, 0,45 mW eirp) and far below the 60/f(GHz) mW (60/2.45 mW = 24.48 mW) threshold. For that reason the equipment is categorically excluded from routine environmental evaluation for RF exposure and it is deemed to comply with FCC limits for exposure to electromagnetic fields. This product integrates an AR5550 CDMA modem (FCC ID: N7NAR5550, IC: 2417C-AR5550. The AR5550 modem is granted with a modular approval for mobile applications. Integration has been done meeting the following conditions: 1. At least 20cm separation distance between the antenna and any person body is maintained at all times. 2. To comply with FCC/IC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile only exposure condition does not exceed 4.25dBi for CDMA 800 band and 6.1dBi for CDMA PCS band. 3. The AR5550 antenna is not co-located with any other antennas. Product configuration is as follows: Model CB2-BLUE13M FCC ID: CB2-BLUE13M Sierra Wireless CDMA module Model: AR5550 FCC ID: N7NAR5550 IC ID: 2417C-AR5550 Embedded Bluetooth antenna Antenna to person distance > 20 cm Antenna to person distance > 20 cm Antenna to antenna distance > 20 External CDMA antenna

ReportNº(NIE):34877RRF.001Page1of9320111114 FCCLISTED,REGISTRATION NUMBER:905266  ICLISTEDREGISTRATIONNUMBER IC4621A1  AT4wireless,S.A. ParqueTecnológicodeAndalucía, c/SeveroOchoanº2 29590Campanillas/Málaga/España Tel.952619100Fax952619113 MÁLAGA,C.I.F.A29507456 RegistroMercantildeMálaga,Tomo1169, Libro82,Folio133,HojaMA3729  TESTREPORT REFERENCESTANDARD: USAFCCPart15.247,15.109 CANADARSS210,RSSGen RadioFrequencyDevices.Operationwithinthebands902928MHz,24002483.5MHz,and57255850 MHz. LicenceExemptRadioApparatus(AllFrequencyBands):CategoryIEquipment. GeneralRequirementsandInformationfortheCertificationofRadioApparatus. NIE........................................................ : 34877RRF.001 Approvedby (name/position&signature) ............... : A.Llamas/RFLab.Manager  ..........................................................  Elaborationdate.................................... :20111114 Identificationofitemtested................ : Bluetoothhandsfreedevice Brandname........................................... :JohnsonControlInteriors Modeland/ortypereference................. :CB2BLUE13M Serialnumber........................................ :2274133J0000670A/2274133J00005V0A Otheridentificationoftheproduct........ :FCCID:CB2BLUE13M Features ................................................. :BluetoothDeviceJohnsonControlsInteriorsCB2BLUE13MisaBluetooth 2.1+EDRhandsfree,withCDMAphonemodule(FCCID:N7NAR5550IC ID:2417CAR5550)embedded,tobeintegratedincarswhichallowstoplace andreceivephonecallsusingvoicecommands,withouthandlingthecell phone Description ............................................ :Bluetoothhandsfreedevice Applicant............................................. : JohnsonControlsInteriorsL.L.C. Address.................................................. : 915East32ndStreet,Holland,MI49423USA CIF/NIF/Passport...................................:  Contactperson: Christopher.Plank Telephone/Fax..................................... :+16163946194/+16163946100 email:................................................... :[email protected] Testsamplessupplier ......................... : Sameasapplicant Manufacturer...................................... : Sameasapplicant ReportNº(NIE):34877RRF.001Page2of9320111114 Testmethodrequested........................: SeeStandard Standard ................................................:USAFCCPart15.247100110Edition:Operationwithinthebands902 928MHz,24002483.5MHz,and57255850MHz. USAFCCPart15.109100110Edition:Receiverradiatedemission. CANADARSS210Issue8(December2010). CANADARSSGenIssue3(December2010). FCCpart15.247andFilingandMeasurementGuidelinesforFrequency HoppingSpreadSpectrumSystemDA00705ReleasedMarch30,2000. ANSIC63.102009:AmericanNationalStandardforTestingUnlicensed WirelessDevices. Testprocedure.......................................:PERF010:Medidasradioeléctricasaequiposderadiodeespectro ensanchadoenlabandade2,4GHz. Nonstandardizedtestmethod...............:N/A Usedinstrumentation.............................:  ConductedMeasurements  LastCal.date Cal.duedate 1. Spectrum analyser Agilent PSA E4440A 2010/022012/02 2. BluetoothtestsetAnritsuMT8852AN.A.N.A. 3. DCpowersupplyR&SNGPE40/402008/112011/11  RadiatedMeasurements  LastCal.date Cal.duedate 1. SemianechoicAbsorberLinedChamber IR11.BS N.A.N.A. 2. ControlChamberIR12.BCN.A.N.A. 3. Hybrid Bilog antenna Sunol Sciences CorporationJB6 2011/052014/05 4. AntennamastEM1072NMTN.A.N.A. 5. RotatingtableEM10844.ONN.A.N.A. 6. DoubleridgeGuideHornantenna118 GHzHP11966E 2011/052014/03 7. Doubleridge Guide Horn antenna 18 40GHzAgilent119665J 2011/092014/09 8. EMITestReceiverR&SESIB262011/112013/11 9. RFpreamplifierMiteqJS412002600 305A. 2010/072012/07 10. MultiDeviceControllerEMCO2090N.A.N.A. 11. SpectrumAnalyzerAgilentE4440A2010/022012/02 12. RF preamplifier Miteq AFS5 040013001510P6. 2010/072012/07 13. RFpreamplifierSchaffnerCPA9231.2011/062013/06 14. BluetoothtestsetAnritsuMT8852A.N.A.N.A.  ReporttemplateNo..............................: FDT08_12 IMPORTANT:Nopartsofthisreportmaybereproducedorquotedoutofcontext,inanyformorbyanymeans,exceptinfull,withouttheprevious writtenpermissionofAT4wireless,S.A.  ReportNº(NIE):34877RRF.001Page3of9320111114    INDEX  Competencesandguarantees ................................................................................................................4 Generalconditions ................................................................................................................................4 Uncertainty............................................................................................................................................4 Usageofsamples...................................................................................................................................5 Testingperiod .......................................................................................................................................5 Environmentalconditions.....................................................................................................................6 Summary ...............................................................................................................................................7 Remarksandcomments ......................................................…

Text truncated - open the document above for the full version.

Report Nº(NIE): 34877RRF.001 Page 1 of 7 2011-11-14 APPENDIX B: Photographs Report Nº(NIE): 34877RRF.001 Page 2 of 7 2011-11-14 EQUIPMENT FOR RADIATED MEASUREMENTS Report Nº(NIE): 34877RRF.001 Page 3 of 7 2011-11-14 EQUIPMENT FOR CONDUCTED MEASUREMENTS Report Nº(NIE): 34877RRF.001 Page 4 of 7 2011-11-14 GENERAL SET-UP FOR RADIATED MEASUREMENTS Report Nº(NIE): 34877RRF.001 Page 5 of 7 2011-11-14 TEST SET-UP FOR RADIATED MEASUREMENTS BELOW 1 GHz Report Nº(NIE): 34877RRF.001 Page 6 of 7 2011-11-14 TEST SET-UP FOR RADIATED MEASUREMENTES ABOVE 1GHz Report Nº(NIE): 34877RRF.001 Page 7 of 7 2011-11-14 TEST SET-UP FOR CONDUCTED MEASUREMENTES
