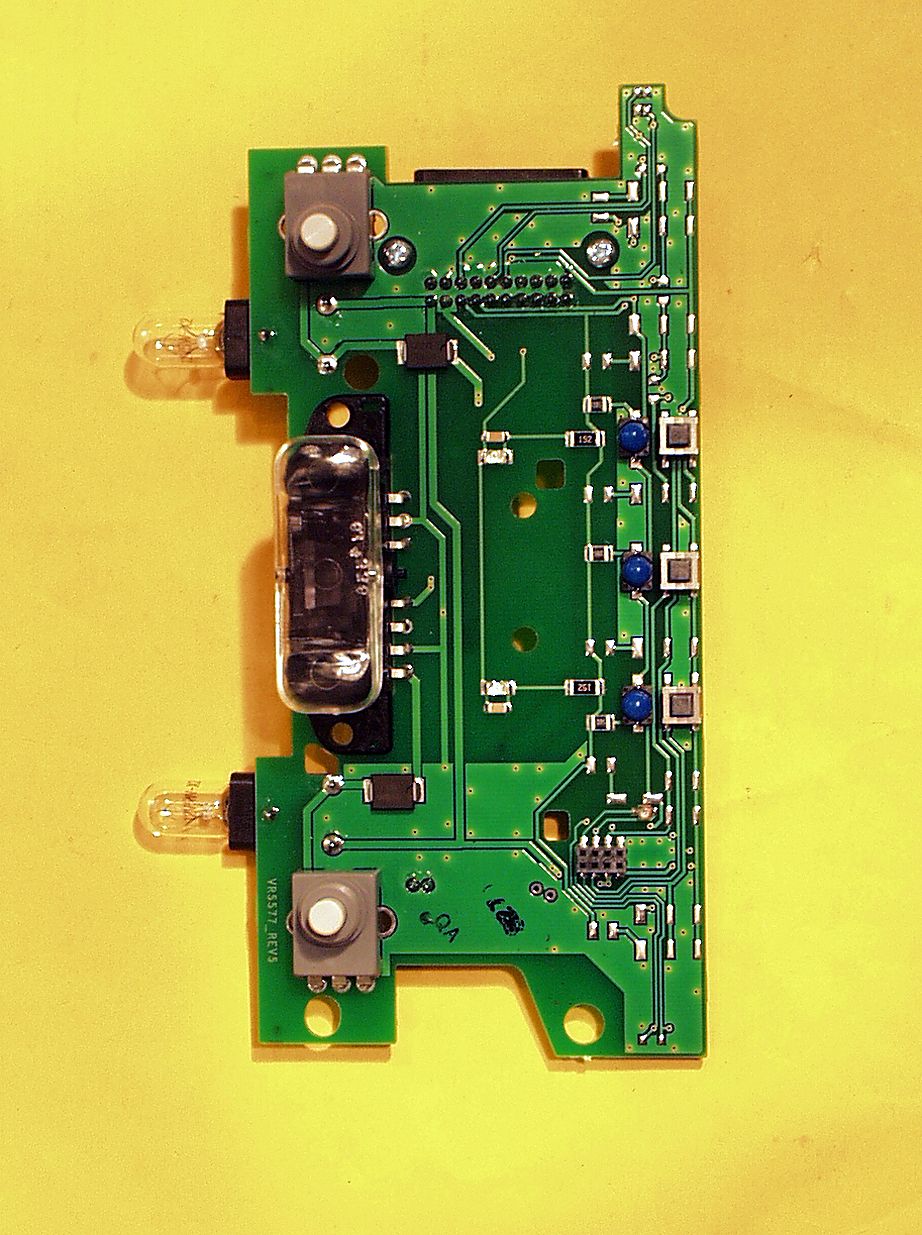

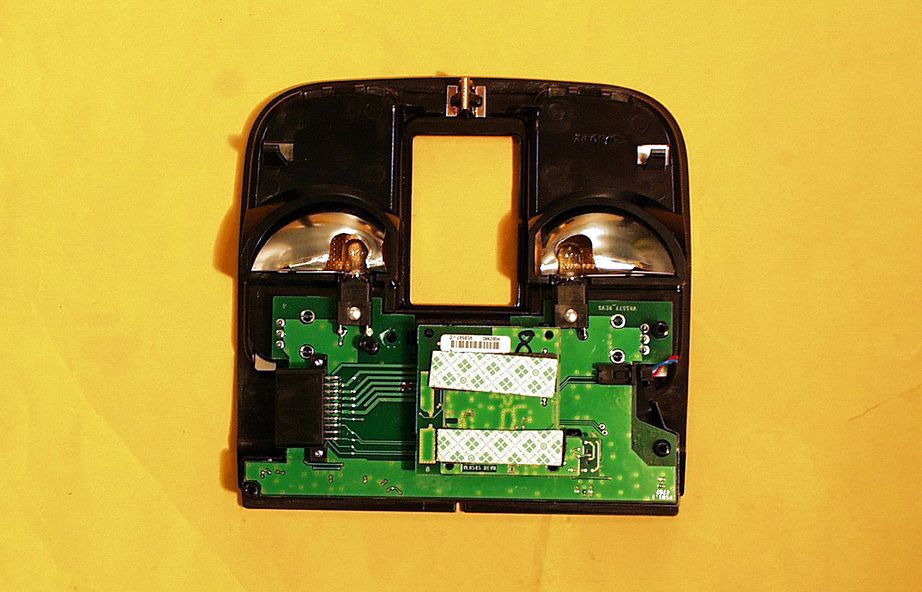

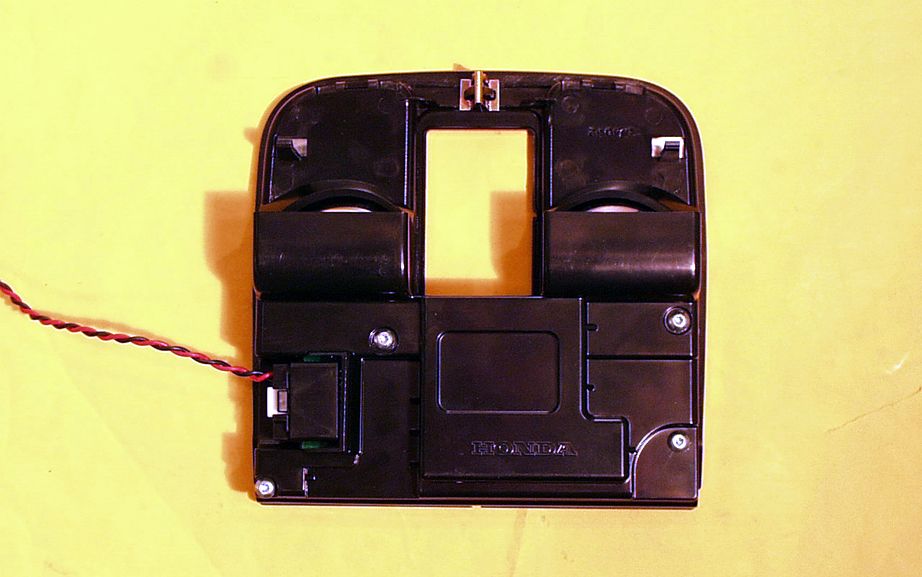

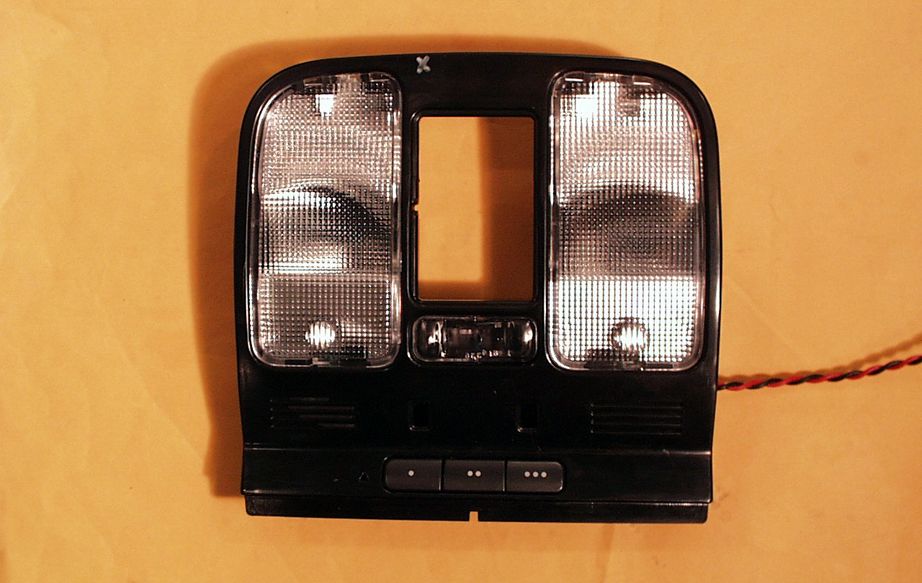

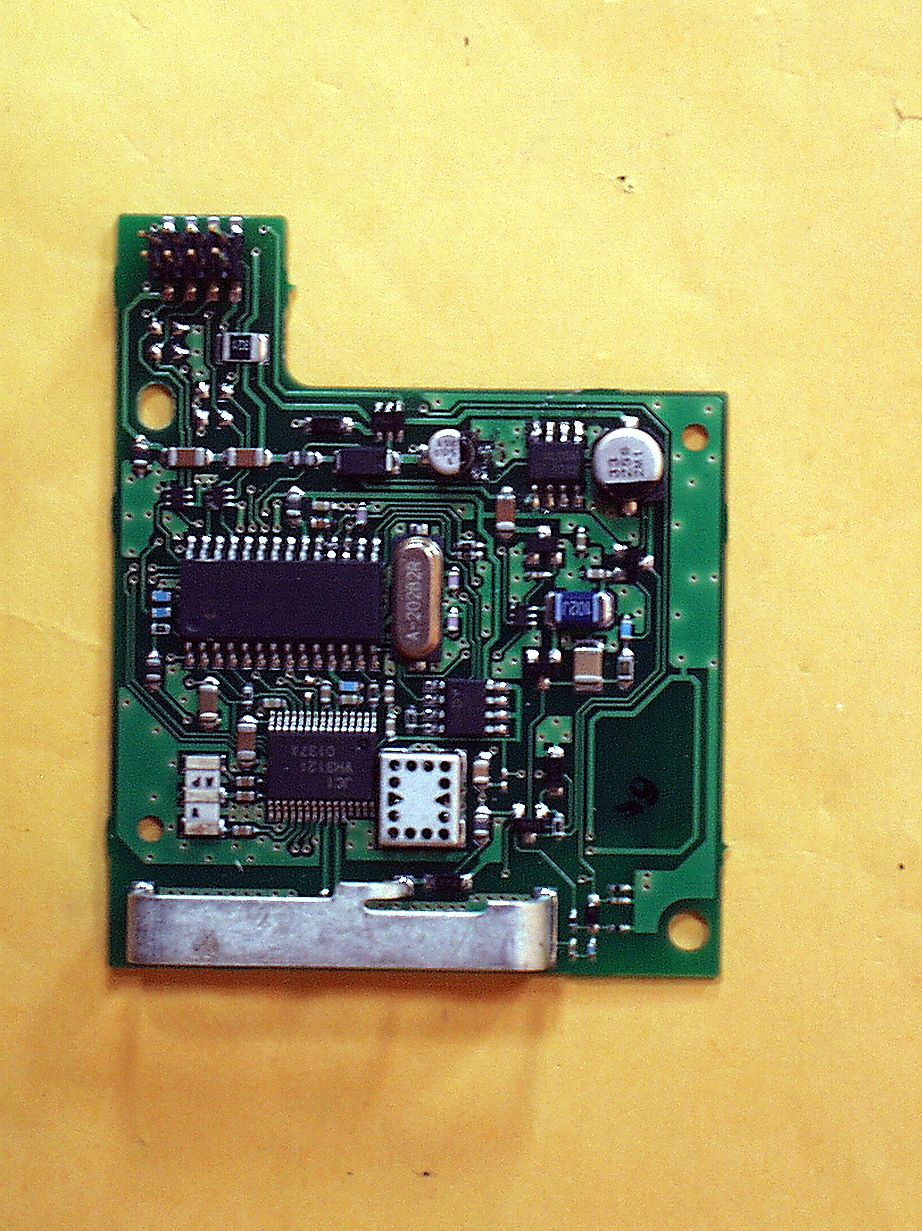

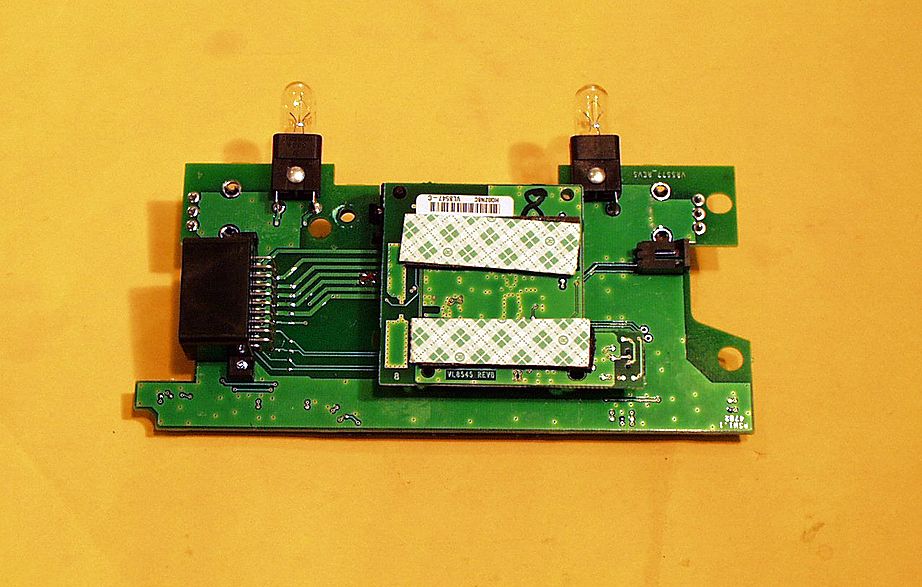

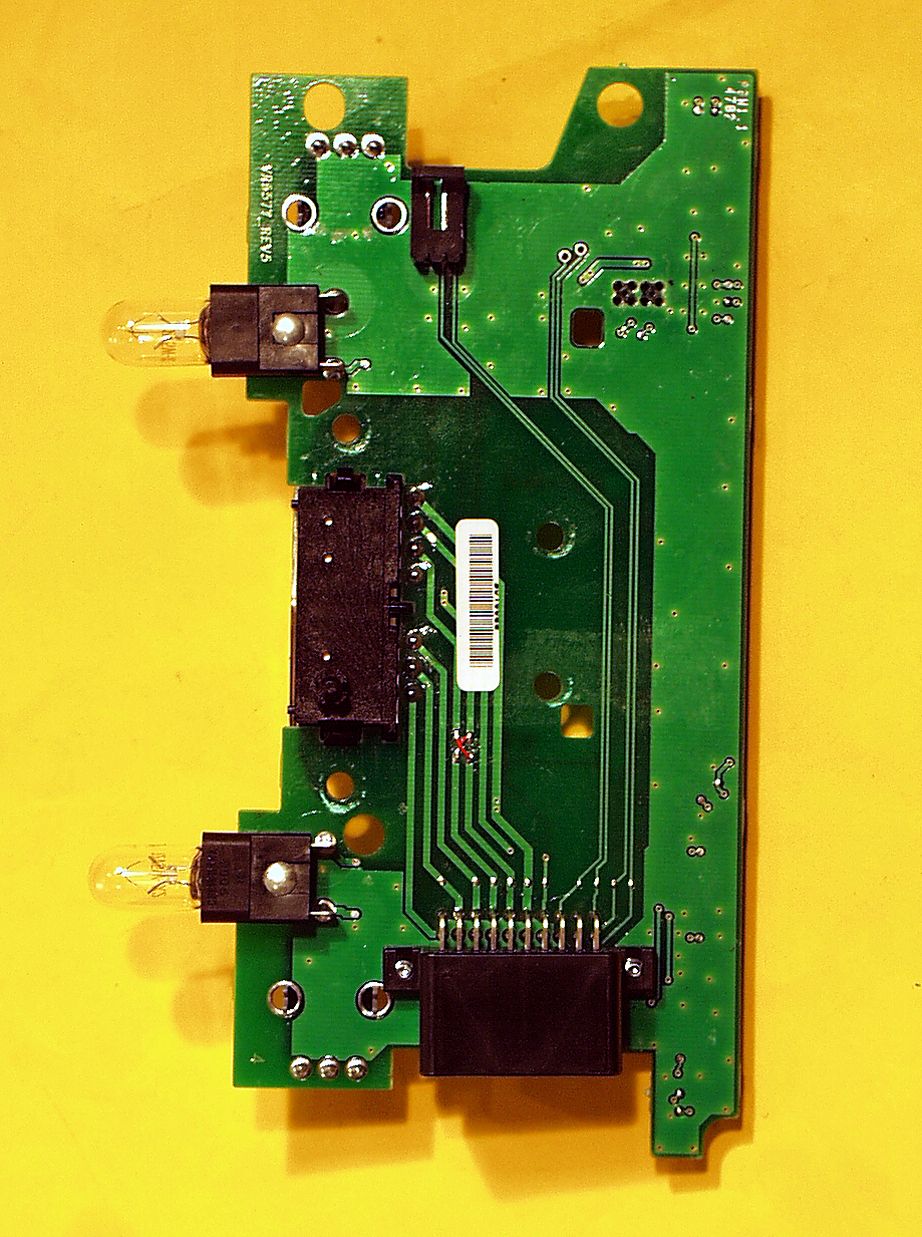

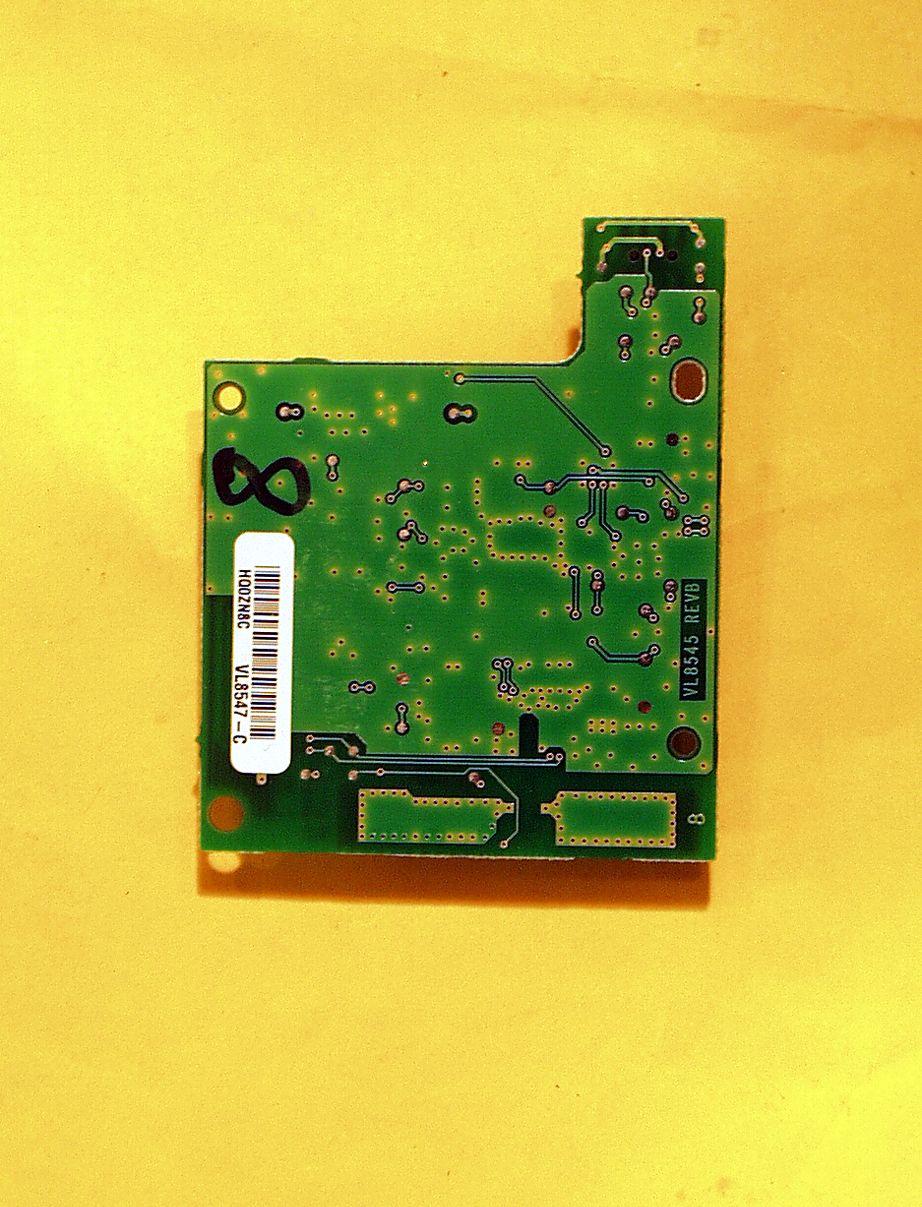

CB2ACTLHL3Universal Garage Door Opener

The Owners Manual for the Homelink® series Universal Garage Door Opener is reproduced here. HomeLink ® Universal Transceiver Suggested Owner’s Manual Text March 2002 HomeLink ® Universal Transceiver The HomeLink ® Universal Transceiver in your vehicle provides a convenient way to replace up to three hand- held transmitters with a single built-in component. This innovative feature will learn the radio frequency codes of most current transmitters used to activate devices such as garage doors, entry door locks, estate gates, security systems, and home or office lighting. For additional information on HomeLink and/or HomeLink compatible products, call 1-800-355-3515 or refer to the HomeLink web site at www.homelink.jci.com. Precautions When programming the HomeLink Universal Transceiver to a garage door opener or entry gate, make sure that people and objects are out of the way to prevent potential harm or damage. Do not use the HomeLink Universal Transceiver with any garage door opener that lacks the safety stop and reverse feature as required by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982.) A garage door opener which cannot detect an object, signaling the door to stop and reverse, does not meet current federal safety standards. Using a garage door opener without these features increases risk of serious injury or death. For more information, call 1-800-355-3515 or on the internet at www.homelink.jci.com. Retain the original transmitter for future programming procedures (i.e., new vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed HomeLink Universal Transceiver buttons be erased for security purposes (follow step 1 in the “Programming” portion of this text). Programming Note: For best results, replace the battery in the hand-held transmitter with a new battery before programming. If your garage door opener receiver (located in the garage) is equipped with an antenna, make sure the antenna is completely uncoiled and hangs straight down. 1. Press and hold the two outside buttons - releasing only when the indicator light begins to flash after 20 seconds. (This procedure erases the factory set default codes and does not have to be followed to program additional hand-held transmitters.) 2. Hold the end of the hand-held transmitter of the device you wish to train approximately one to three inches away from the HomeLink surface - keeping the indicator light in view. (For placement questions, please contact HomeLink at 1-800-355-3515 or on the internet at www.homelink.jci.com.) 3. Using both hands, simultaneously push the hand-held transmitter button and the desired HomeLink button. Do not release the buttons until step 4 has been completed. Note: Some entry gates and garage door openers may require you to replace this programming step (#3) with the procedures noted in the “Canadian Programming / Gate Programming” section. 4. The HomeLink indicator light will flash, first slowly and then rapidly. When the indicator light flashes rapidly, release both buttons. (The rapid flashing light indicates successful programming of the new frequency signal.) If, after 20 seconds, the indicator light does not flash rapidly, release both the HomeLink and the hand-held transmitter buttons and repeat steps two through four. However, position the hand-held transmitter at a different length and/or angle until the indicator light begins to flash rapidly. Release both buttons after the indicator light flashes rapidly. Refer to “Rolling Code Programming” and/or “Canadian Programming/Gate Programming” for additional procedures if necessary. To activate the garage door or other programmed device upon successfully completing the steps above, press and hold the HomeLink button - releasing when the device begins to activate. To program the remaining two buttons, follow steps 2 through 4. If you do not successfully program the HomeLink Universal Transceiver to learn the signal of the hand-held transmitter, refer to “Rolling Code Programming” within this text or call toll-free for customer assistance at 1-800- 355-3515 or on the internet at www.homelink.jci.com. Canadian Programming / Gate Programming Canadian frequency laws, and the technology of some entry gates, require you to “cycle” (press and re-press the hand-held transmitter button every two seconds) during programming. Continue to press and hold the desired HomeLink button (note steps 3 through 5 in the “Programming” portion of this text) while you “cycle” your hand-held transmitter until the frequency signal has been learned. The indicator light will flash slowly and then rapidly upon successful training. Note: When programming a garage door opener or gate, it is advised to unplug the device during the “cycling” process to prevent possible motor burn-up Operating the HomeLink ® Universal Transceiver To operate, simply press the programmed HomeLink button. Activation will now occur for the trained product (garage door, security system, entry door lock, estate gate, or home or office lighting). For convenience, the hand- held transmitter of the device may also be used at any time. Rolling Code Programming Rolling code garage door openers (or other rolling code devices) which are “code protected” and manufactured after 1996, may be determined by the following: A. Reference the garage door opener owner’s manual for verification. B. The hand-held transmitter appears to program the HomeLink Universal Transceiver but HomeLink does not activate the garage door. C. Press and hold the trained HomeLink button. The garage door opener has the rolling code feature if the HomeLink indicator light flashes rapidly and then turns solid after 2 seconds. To train a garage door opener with the rolling code feature, follow these instructions after completing the “Programming” portion of this text (the aid of a second person may make the following training procedures quicker and easier.) 1. Lo…

Text truncated - open the document above for the full version.

AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325215.DOC Cover / Confidentiality Request Letter: Page 1 of 2 NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer Federal Communications Commission Equipment Approval Services, P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention : Authorization & Evaluation Division Re: Application for Certification of Johnson Controls Transmitter under 47CFR 15.231. FCC ID: CB2ACTLHL3 Gentlemen: On behalf of the applicant, Johnson Controls Interiors, LLC, please find attached the submittal materials for certification of the JCI Universal Garage Door Opener, Model CB2ACTHL3 This model, a part of their Homelink® III series, is capable of learning the current garage door transmit frequencies from 288MHz through 420MHz except in the forbidden frequency regions. The complete List of the Exhibits in this submittal package appears on Page 2 of this cover letter. Johnson Controls Interiors has invested considerable resources into developing this Homelink® series. Having sections of Exhibit B, listed below, available to ‘competition’ would negate the advantage achieved in developing this product. Since their Homelink® series transmitters will be a major product line for Johnson Controls Interiors, not protecting the details of the design will result in a financial hardship for the company. Pursuant to 47CRF 0.459, Johnson Controls Interiors requests that these listed exhibits be held confidential. Circuit Block Diagrams page 2 of Exhibit B Theory/Description of Operation, page 3 of Exhibit B Schematics page 4 & 5 of Exhibit B The Federal Communications Commission will be notified, in writing, of any changes in the software/programming of the device that could affect the device’s RF characteristics. Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Ted Chaffee, Technical Lab Manager Narte Certified Engineer, #EMC-002025-NE tel/fax: 616. 424.7014 email: [email protected], or [email protected] Test report #0200587F FCC 15.231 for CB2ACTHL3 FCC ID: CB2ACTLHL3 Tested January 20, 2003 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325215.DOC Cover / Confidentiality Request Letter: Page 2 of 2 Table of Contents Cover Letter / Table of Contents Total Pages 2 EXHIBIT A: ID Label / Location [2.925,2.926,2.1033(b2,7),15.19(a3)] EXA_Label.pdf Total Pages 2 EXHIBIT B: Description of Product [2.1033(b6)] Total Pages 1 Circuit Block Diagram [2.1033(b5)] Total Pages 1 Description of Operation [2.1033(b4)] Total Pages 1 Schematic [2.1033(b5)] EXB_SWPCBSchem.pdf EXB_HL3PCBSchem.pdf Total Pages 2 EXHIBIT C: Product photos Total Pages 8 Exterior views [2.1033(b7)] Two photos EXC_Housingtop.jpg EXC_Housingbtm.jpg : Interior & Printed Circuit Boards [2.1033(b7)] Six photos EXC_HousingIn.jpg EXC_PCBs.jpg EXC_HL3PCBtop.jpg, EXC_HL3PCBbtm.jpg EXC_LightPCBtop.jpg, EXC_LightPCBbtm.jpg, , EXHIBIT D: User’s Manual EXD_OEMUserManual.doc Total Pages 4 EXHIBIT E: Setup photos [2.1033(b8)] Four photos Total Pages 4 EXE_pretest.jpg, EXE_side.jpg, EXE_end.jpg, EXE_flat.jpg Report of Measurements [2.1033(b6)] Total Pages 27 Table of Contents Page 2 Manufacturer/Applicant [2.1033(b1)] Page 4 Measurement/Test Facility & Equipment Page 4 Configuration/Setup [2.1033(b8)] Page 5 Test Standards / Methods Used [2.1033(b6)] Page 7 Test Methodology [2.1033(b6)] Page 7 Test Data [2.1033(b6)] Summary of Results Page 6 Level vs Supply Voltage [15.31(e)] Page 13 Occupied Bandwidth Page 14 Radiated Field Strength [15.231(b)] Page 16 Misc. EXHIBIT: Parts List/Tune-up Information [2.1033(b5] Total Pages 1 RF Exposure Information [2.1093(c)] Total Pages 1

Test report #0200587F FCC 15.231 for CB2ACTHL3 FCC ID: CB2ACTLHL3 Tested January 20, 2003 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325217.DOC Exhibit F: Page 1 of 2 EXHIBIT A: EQUIPMENT LABEL [2.925, 2.926, 2.1033(B2,7), 15.19(A3)] LABEL EXAMPLE Refer to picture file “EXA_Label.pdf” The FCC Identifier assigned to the EUT is FCC ID: CB2ACTLHL3. This number will be imprinted on the 0.75”x1.5” high temperature polyester white label. The label will be placed on the exterior of the CB2ACTHL3 housing using an acrylic adhesive that will permanently affix the label. Because of the small size of the device and because the installation is inside a portion of the automobile, the following statements will appear in the user’s manual. Refer to Exhibit D for the entire text of the user’s manual. “This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and IC rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.” LABEL LOCATION This photo illustrates the label location.

G

Test report #0200587F FCC 15.231 for CB2ACTHL3 FCC ID: CB2ACTLHL3 Tested January 20, 2003 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325248.DOC Misc. EXHIBIT: Page 1 of 2 MISC. EXHIBIT: TUNING INFORMATION [2.1033(B5)] Tuning: (Programming) The user programs the CB2ACTHL3 as outlined in the Users Manual, Exhibit D. A summary is provided here. 1. Pressing the two outside buttons until the indicator LED begins to flash resets the memory. 2. Holding the hand-held transmitter to be copied near the CB2ACTHL3 and simultaneously activating the hand-held transmitter and one of the user buttons until the indicator LED flashed rapidly trains the unit to duplicate the hand-held transmitter. The information is stored in the non-volatile memory of the CB2ACTHL3. During usage, when the “trained” button is pressed, the CB2ACTHL3 recalls the stored information. 1. The Voltage Controlled Oscillator (VCO) is set on the desired RF carrier frequency. 2. The antenna is coarse tuned by sweeping twice around the expected tuning point. 3. The antenna is fine tuned with 9 pulses of approximately 210 uS with 11 mS off. 4. The VCO is then modulated with the appropriate garage door opener bit code from the non- volatile memory.

Test report #0200587F FCC 15.231 for CB2ACTHL3 FCC ID: CB2ACTLHL3 Tested January 20, 2003 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325249.DOC Misc. EXHIBIT: Page 2 of 2 MISC. EXHIBIT: RF EXPOSURE INFORMATION [2.1093(C)] The manufacturer and applicant: JOHNSON CONTROLS INTERIORS, LLC. One Prince Center Holland, Michigan 49423 Product: Homelink® Universal Garage Door Opener Model: CB2ACTHL3 Applicable Rules: 47CFR Part 15.231 Pursuant to 47CFR Part 1.1307(b), 47CFR Part 2.1091(c), and 47CFR Part 2.1093(c) this transmitting device, compliant to 47CFR Part 15.231, is categorically excluded from evaluation regarding the Maximum Permissible Exposure of RF energy.

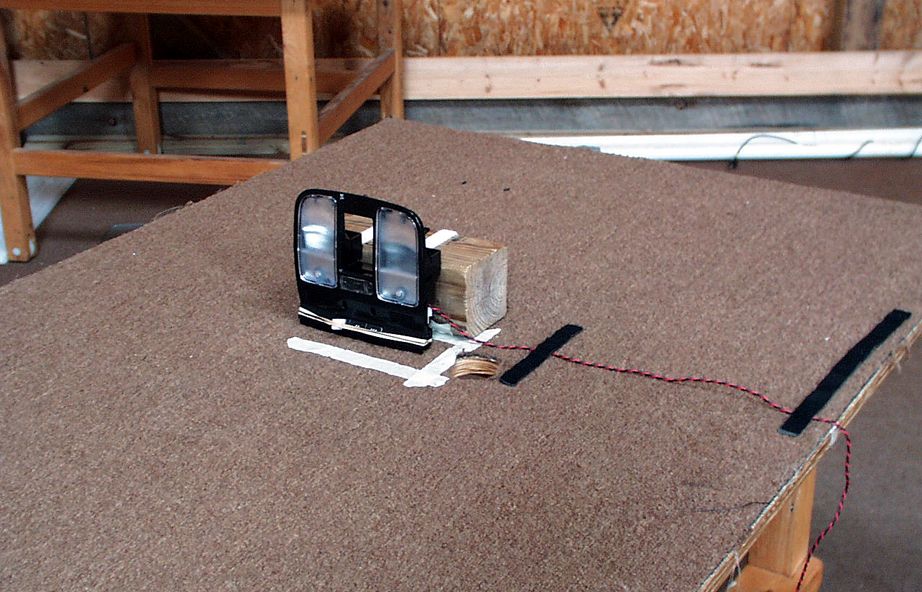

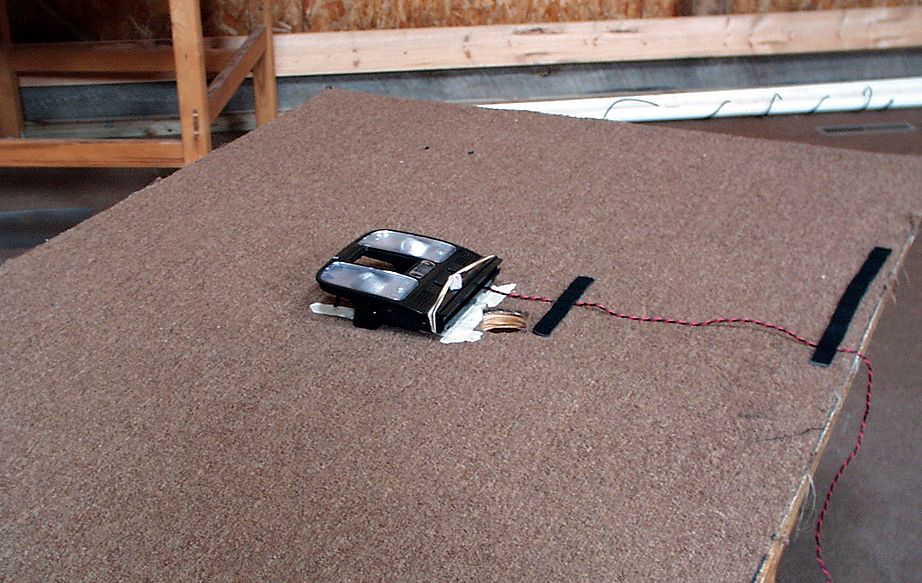

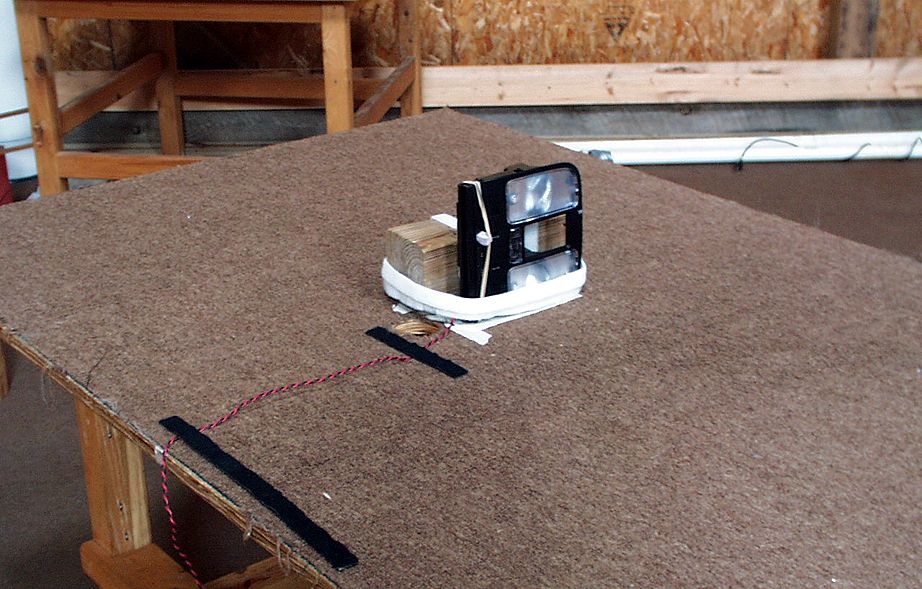

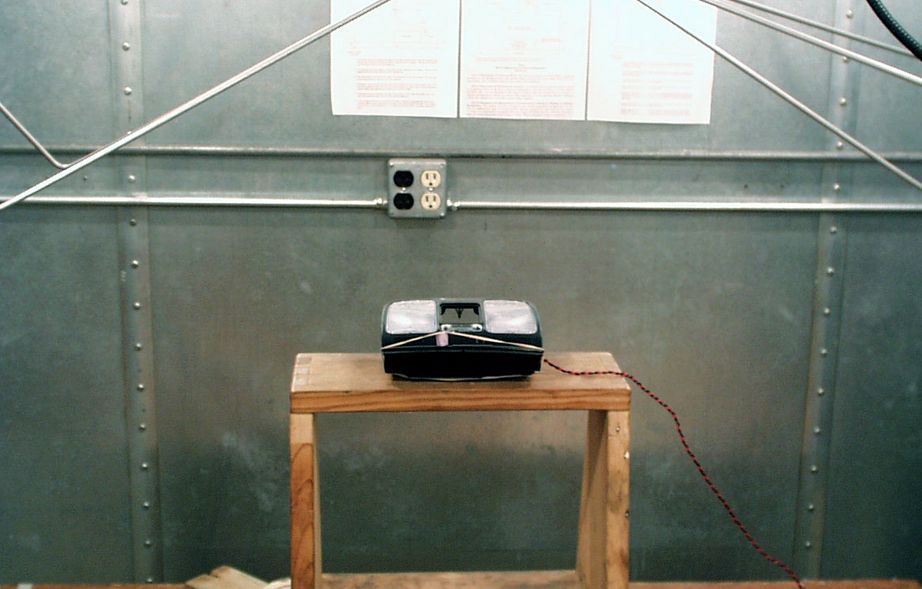

Test report #0200587F FCC 15.231 for ACTLHL3 FCC ID: CB2ACTLHL3 Tested January 20, 2003 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325247.DOC EXHIBIT E: Page 1 of 27 EXHIBIT E: REPORT OF MEASUREMENTS [2.1033(B6)] Test Report for FCC ID: CB2ACTLHL3 FCC Part 2.1031, Part 15 Subpart C(15.231) Report #0200587F Issued 01/23/03 TRANSMITTER MODEL ACTLHL3 OF H OMELINK® III SERIES Prepared for: Mr. Jeremy Bos Johnson Controls Interiors, LLC One Prince Center Holland, MI 49423 Test Date(s): September 3,4,5,6, 2002, January 7,8,20, 2003 data recorded by witnessed by Ted Chaffee, NCE Bolay Elgersma This report prepared by: Ted Chaffee, NCE Technical Manager/Test Engineer, AHD Test report #0200587F FCC 15.231 for ACTLHL3 FCC ID: CB2ACTLHL3 Tested January 20, 2003 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325247.DOC EXHIBIT E: Page 2 of 27 TABLE OF CONTENTS EXHIBIT E: Report of Measurements [2.1033(b6)] .....................................................................................1 TABLE OF CONTENTS.........................................................................................................................2 Statements Concerning this Report.......................................................................................................3 Manufacturer/Applicant [2.1033(b1)] ....................................................................................................4 Measurement/Test Site Facility & Equipment........................................................................................4 Test Site [2.948, 2.1033(b6)] ......................................................................................................4 Measurement Equipment Used [2.947(d), 15.31(b)] ....................................................................4 Tested Configuration /Setup: [2.1033(b8)] ............................................................................................5 Support Equipment & Cabling .......................................................................................................5 Setup Diagram ...............................................................................................................................5 Summary of Results: .............................................................................................................................6 Changes made to achieve compliance..........................................................................................7 Standards Applied to Test: [2.1033(b6)]................................................................................................7 Test Methodology: [2.1033(b6)].............................................................................................................7 FORMULAS AND SAMPLE CALCULATIONS: .............................................................................9 Test Data [2.1033(b6)].........................................................................................................................11 Modulation Characteristics ..........................................................................................................11 Relative Emission Level vs. Supply Voltage [15.31(e)] ...............................................................13 Occupied Bandwidth [15.231(c)]..................................................................................................14 Restricted Bands: [15.205]..........................................................................................................15 Radiated Field Strength Measurements: [15.231(b), 15.205] ....................................................16 Radiated Field Strength Measurements ......................................................................................18 Test report #0200587F FCC 15.231 for ACTLHL3 FCC ID: CB2ACTLHL3 Tested January 20, 2003 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325247.DOC EXHIBIT E: Page 3 of 27 Statements Concerning this Report NVLAP Accreditation: NVLAP Lab Code 200129-0 The scope of AHD accreditation is the conducted emissions, radiated emissions test methods of: IEC/CISPR 22: Limits and methods measurement of radio disturbance characteristics of information technology equipment. FCC Method – 47 CFT Part 15 – Digital Devices. AS/NZS 3548: Electromagnetic Interference – Limits and Methods of Measurement of Information Technology Equipment. IEC61000-4-2 and Amend.1: ElectroStatic Discharge Immunity Test Data: This test report contains data covered by the NVLAP accreditation. Subcontracted Testing: This report does not contain data produced under subcontract. Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty: Following the guidelines of NAMAS publication NIS81 and NIST Technical Note 1297, the Measurement Uncertainty at a 95% confidence level is determined to be: ± 1.4 dB Test report #0200587F FCC 15.231 for ACTLHL3 FCC ID: CB2ACTLHL3 Tested January 20, 2003 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 325247.DOC EXHIBIT E: Page 4 of 27 Manufacturer/Applicant [2.1033(b1)] The manufacturer and applicant: JOHNSON CONTROLS INTERIORS, LLC. One…

Text truncated - open the document above for the full version.
