CB2ANHL3Universal Garage Door Opener

Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490454 Exhibit N: Page 1 of 4 EXHIBIT N: U SER ’ S M ANUAL The proposed Owners Manual for the Homelink® series Universal Garage Door Opener is reproduced here. HomeLink ® Universal Transceiver Suggested Owner’s Manual Text October, 1999 HomeLink ® Universal Transceiver The HomeLink ® Universal Transceiver in your vehicle provides a convenient way to replace up to three hand- held transmitters with a single built-in component. This innovative feature will learn the radio frequency codes of most current transmitters used to activate devices such as garage doors, entry door locks, estate gates, security systems, and home or office lighting. For additional information on HomeLink and/or HomeLink compatible products, call 1-800-355-3515 or refer to the HomeLink web site at www.home link.jci.com . Precautions When programming the HomeLink Universal Transceiver to a garage door opener or entry gate, make sure that people and objects are out of the way to prevent potential harm or damage. Do not use the HomeLink Universal Transceiver with any garage door opener that lacks the safety stop and reverse feature as required by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982.) A garage door opener which cannot detect an object, signaling the door to stop and reverse, does not meet current federal safety standards. Using a garage door opener without these features increases risk of serious injury or death. For more information, call 1-800-355-3515 or on the internet at www.homelink.jci.com. Retain the original transmitter for future programming procedures (i.e., new vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed HomeLink Universal Transceiver buttons be erased for security purposes (follow step 1 in the “Programming” portion of this text). Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490454 Exhibit N: Page 2 of 4 Programming Note : For best results, replace the battery in the hand-held transmitter with a new battery before programming. If your garage door opener receiver (located in the garage) is equipped with an antenna, make sure the antenna is completely uncoiled and hangs straight down. 1. Press and hold the two outside buttons - releasing only when the indicator light begins to flash after 20 seconds . (This procedure erases the factory set default codes and does not have to be followed to program additional hand-held transmitters.) 2. Hold the end of the hand-held transmitter of the device you wish to train approximately one to three inches away from the HomeLink surface - keeping the indicator light in view. (For placement questions, please contact HomeLink at 1-800-355-3515 or on the internet at www.home link.jci.com. ) 3. Using both hands, simultaneously push the hand-held transmitter button and the desired HomeLink button. Do not re le ase the buttons until ste p 4 has be e n comple te d. Note: Some entry gates and garage door openers may require you to replace this programming step (#3) with the procedures noted in the “Canadian Programming / Gate Programming” section. 4. The HomeLink indicator light will flash, first slowly and then rapidly. When the indicator light flashes rapidly, release both buttons. (The rapid flashing light indicates successful programming of the new frequency signal.) If, after 20 seconds, the indicator light does not flash rapidly, release both the HomeLink and the hand-held transmitter buttons and repeat steps tw o through four. However, position the hand-held transmitter at a different length and/or angle until the indicator light begins to flash rapidly. Release both buttons after the indicator light flashes rapidly. Refer to “Rolling Code Programming” and/or “Canadian Programming/Gate Programming” for additional procedures if necessary. To activate the garage door or other programmed device upon successfully completing the steps above, press and hold the HomeLink button - releasing when the device begins to activate. To program the remaining tw o buttons, follow steps 2 through 4. If you do not successfully program the HomeLink Universal Transceiver to learn the signal of the hand-held transmitter, refer to “Rolling Code Programming” within this text or call toll-free for customer assistance at 1-800- 355-3515 or on the internet at www.home link.jci.com. Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490454 Exhibit N: Page 3 of 4 Canadian Programming / Gate Programming Canadian frequency law s, and the technology of some entry gates, require you to “cycle” (press and re-press the hand- held transmitter button every tw o seconds) during programming. Continue to press and hold the desired HomeLink button (note steps 3 through 5 in the “Programming” portion of this text) w hile you “cycle” your hand-held transmitter until the frequency signal has been learned. The indicator light w ill flash slowly and then rapidly upon successful training. Note: When programming a garage door opener or gate, it is advised to unplug the device during the “cycling” process to prevent possible motor burn-up Operating the HomeLink ® Universal Transceiver To operate, simply press the programmed HomeLink button. Activation will now occur for the trained product (garage door, security system, entry door lock, estate gate, or home or office lighting). For convenience, the hand-held transmitter of the device may also be used at any time. Rolling Code Programming Rolling code garage door openers (or other rolling code devices) which are “code protected” and manufactured after 1996, may be determined by the following: A.Reference the garage door opener owner’s manua…

Text truncated - open the document above for the full version.

AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490175 Exhibit A: Page 1 of 2 NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer Federal communications CommissionFebruary 28, 2000 Equipment Approval Services, P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization & Evaluation Division Re: Application for Certification of Johnson Controls Transmitter under 47CFR 15.231. FCC ID: CB2ANHL3 Gentlemen: On behalf of the applicant, Johnson Controls Interiors, LLC, please find attached the submittal materials for certification of the JCI Universal Garage Door Opener, Model VB5416 This generation of their Homelink® series is capable of learning the current garage door transmit frequencies from 288MHz through 420MHz with pulse modulation duty cycles from 30 through 80 percent. Pursuant to 47CRF 0.459, Johnson Controls Interiors requests that these listed exhibits be held confidential. Exhibit GTheory/Description of Operation, Exhibit H:Circuit Block Diagrams Exhibit I:Schematics Exhibit J:Bill of Material, Parts List Johnson Controls Interiors has invested considerable resources into developing this Homelink® III series. Having the listed exhibits available to ‘competition’ would negate the advantage achieved in developing this product. Since their Homelink® III series transmitters will be a major product line for Johnson Controls Interiors, not protecting the details of the design will result in a financial hardship for the company. The complete List of the Exhibits in this submittal package appears on Page 2 of this cover letter. Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Ted Chaffee, Technical Lab Manager Narte Certified Engineer, #EMC-002025-NE tel/fax: 616. 424.7014 email: [email protected], or [email protected] Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490175 Exhibit A: Page 2 of 2 Table of Contents Form 731, form 159 with payment EXHIBIT A: Cover Letter / Table of ContentsTotal Pages 2 EXHIBIT B: Statements of Attestation [2.911(d)]Total Pages 3 Attesting to Accuracy of DataExhibit B, File “EXB_p1DataAttst.jpg” Public Notice 22504 Exhibit B, File “EXB_p1DataAttst.jpg” Power of Attorney Exhibit B, File “EXB_p2PowrOAttrny.jpg” AHD AccreditationExhibit B, File “EXB_p3NV:APCert.jpg” EXHIBIT C: Description of Product [2.1033(b6)] Total Pages 1 EXHIBIT D: Product photos - exterior [2.1033(b7)] Three photosTotal Pages 2 EXHIBIT E: Product photos - Printed Circuit Board [2.1033(b7)] Two photosTotal Pages 2 EXHIBIT F: ID Label / Location [2.925,2.926,2.1033(b2,7),15.19(a3)] Total Pages 2 EXHIBIT G: Description of Operation [2.1033(b4)] Total Pages 1 EXHIBIT H: Circuit Block Diagram [2.1033(b5)] Total Pages 1 EXHIBIT I:Schematics [2.1033(b5)] Total Pages 2 Transmit PCB schematicExhibit I, File “EXI_TrnsSchematic.pdf Switch/Button board PCB schematicExhibit I, File “EXI_SwBSchematic.pdf EXHIBIT J: Parts List/Tune-up Information [2.1033(b5] Total Pages 3 Transmit PCB Parts List Exhibit J, File “EXJ_TrnsParts.pdf” Switch/Button board PCB Parts List Exhibit J, File “EXJ_SwBParts.pdf” EXHIBIT K: Report of Measurements [2.1033(b6)] Total Pages 31 Detailed Table of ContentsExhibit K, Page 2 Manufacturer/Applicant [2.1033(b1)Exhibit K, Page 4 Measurement/Test Facility & EquipmentExhibit K, Page 4 Configuration/Setup [2.1033(b8)]Exhibit K, Page 5 Summary of ResultsExhibit K, Page 6 Test Standards / Methods Used [2.1033(b6)] Exhibit K, Page 7 Test Methodology [2.1033(b6)Exhibit K, Page 7 Test Data [2.1033(b6)Exhibit K, Page 10 Level vs Supply Voltage [15.31(e)]Exhibit K, Page 12 Occupied BandwidthExhibit K, Page 13 Radiated Field Strength [15.231(b)] Exhibit K, Page 15 EXHIBIT L: Setup photos [2.1033(b8)] Six photosTotal Pages 6 EXHIBIT M: RF Exposure Information [2.1093(c)]Total Pages 1 EXHIBIT N: User’s Manual Total Pages 4

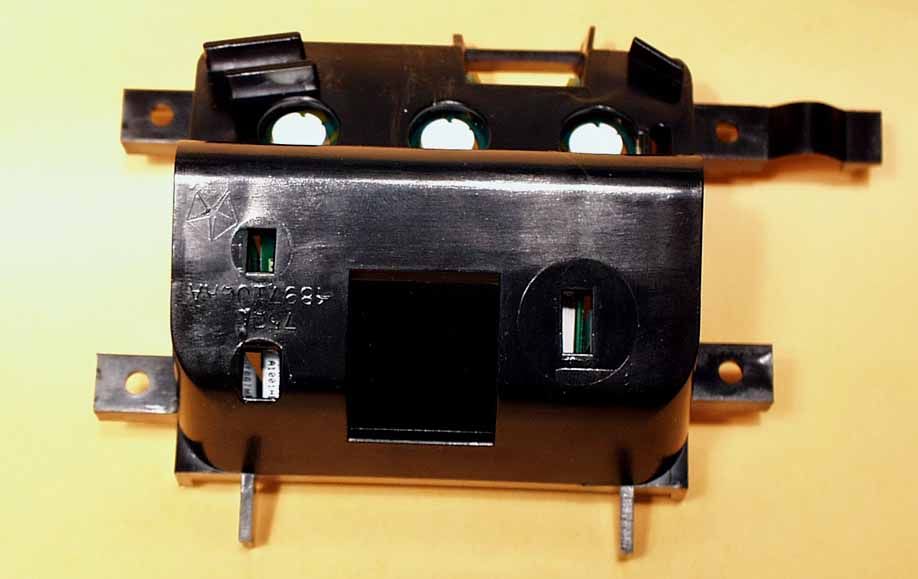

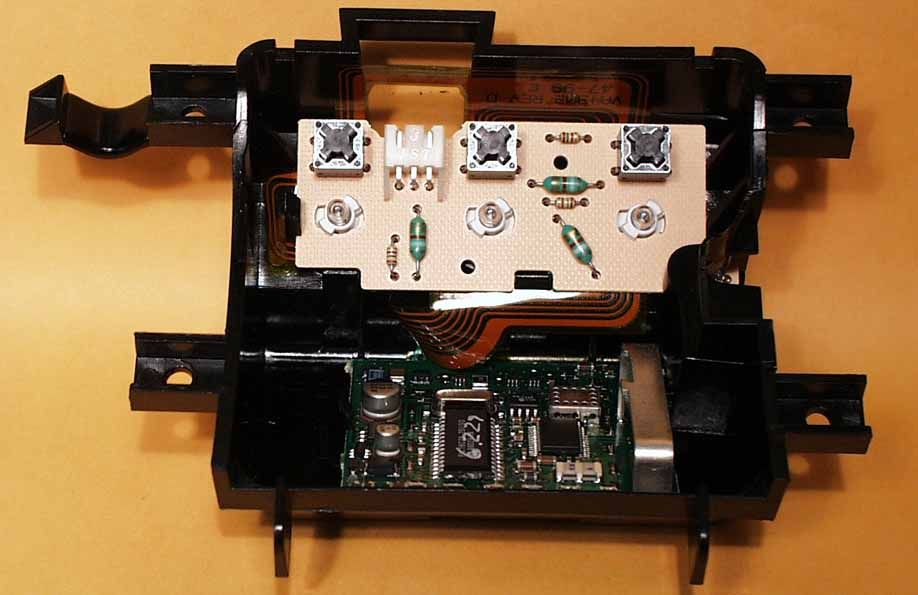

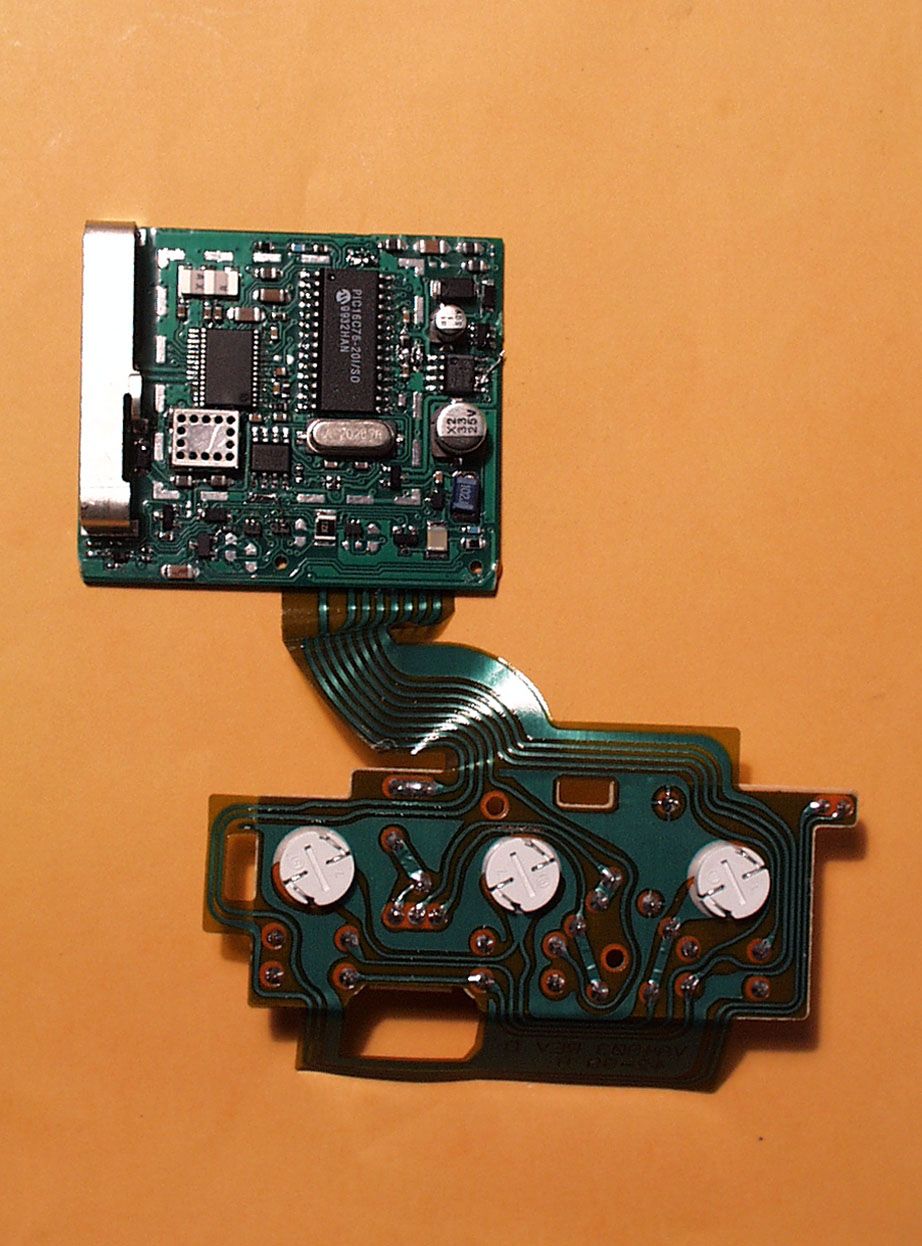

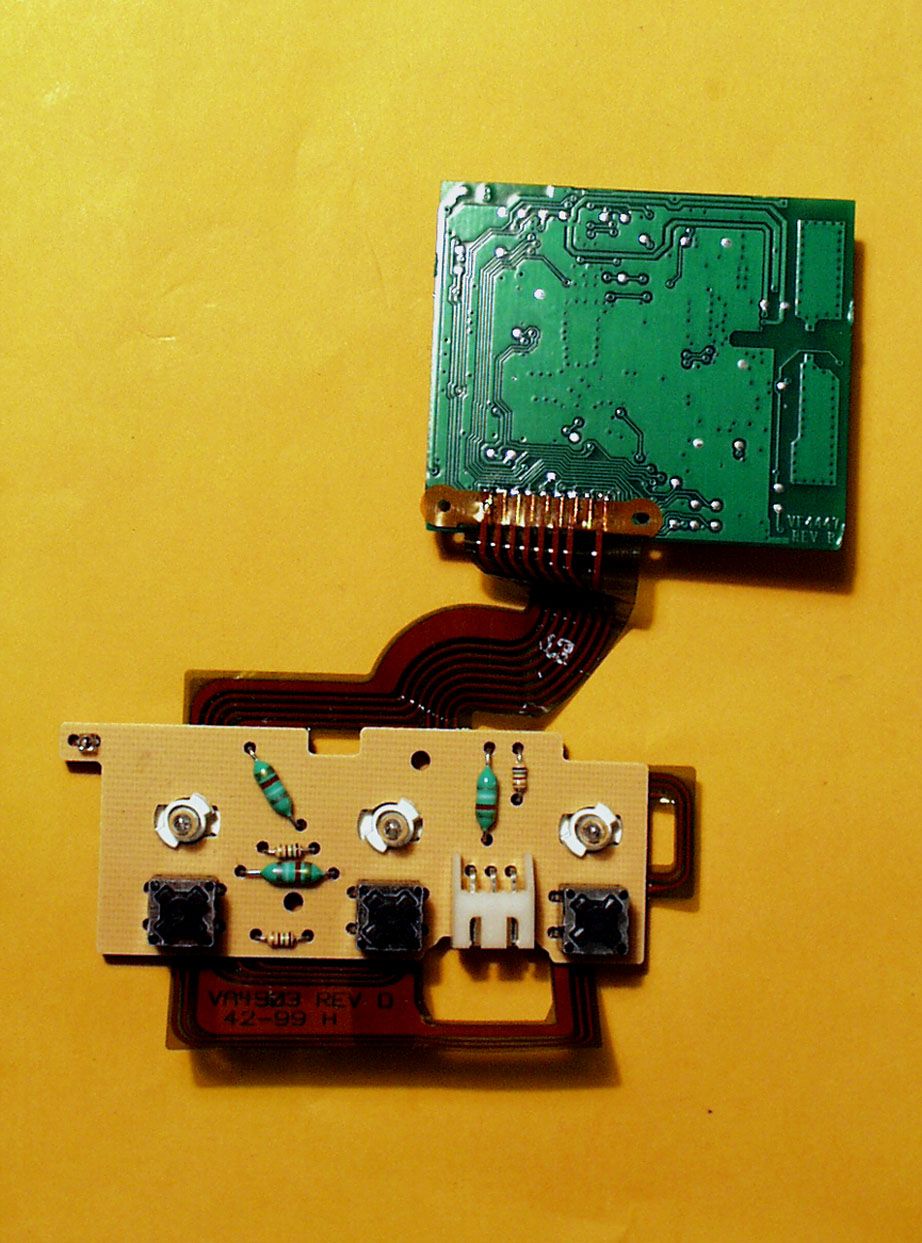

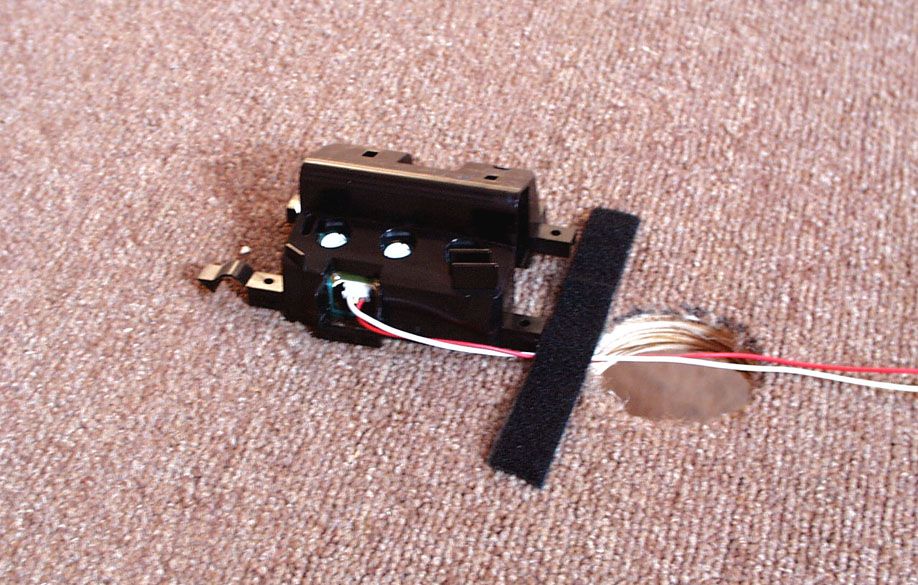

Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490182 Exhibit C: Page 1 of 1 EXHIBIT C: D ESCRIPTION OF P RODUCT [2.1033(b6)] The Johnson Controls Interiors Homelink® ANHL3 Universal Garage Door Opener is a low- power transceiver OEM device that is installed into an overhead console of the automobile. The installation is provided by trained technicians during the course of the manufacturer of the automobile. It is powered by the 12volt system of the automobile. This Universal Garage Door Opener has the capability to: 1. Learn the frequency and bit code format of the user’s existing garage door remote control devices and 2. Reproduce and transmit the frequency and bit code format to remotely operate the user’s garage door. The unit is designed for the periodic operation of a control signal which activates typically a garage door. The unit is only operational when the user depresses the control button. It becomes inactive after release of the control button. This three-button Homelink® unit replaces up to three hand-held transmitters. In addition to the typical operation of the garage door, the unit will learn the radio frequency codes of other transmitter types to activate entry door locks, estate gates, security systems, and home or office lighting. The antenna system is an integral part of the unit. It cannot be altered nor replaced by the user. Service of this system is only available from the Automobile Manufacturer’s Dealerships and Johnson Controls Interiors, LLC.

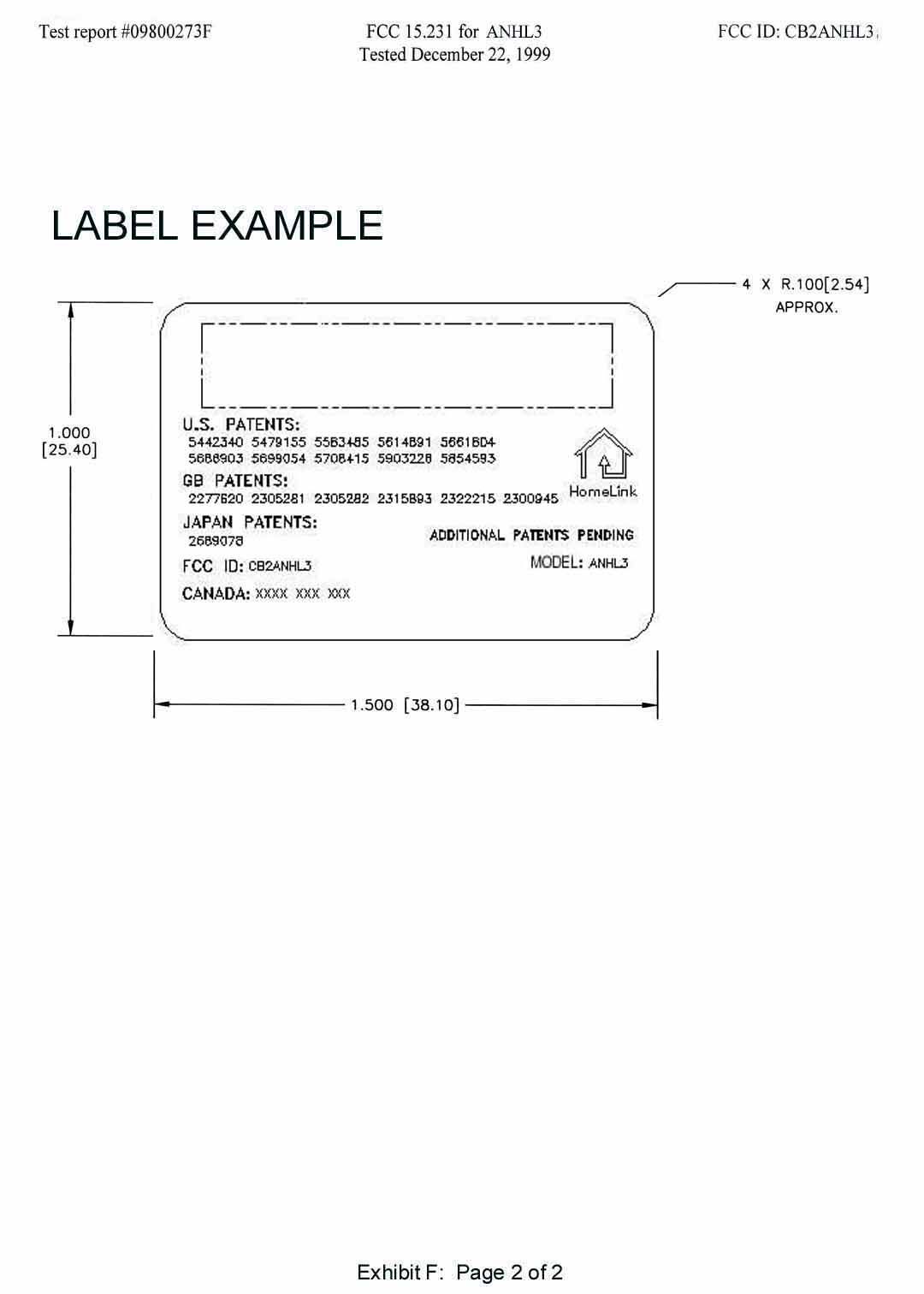

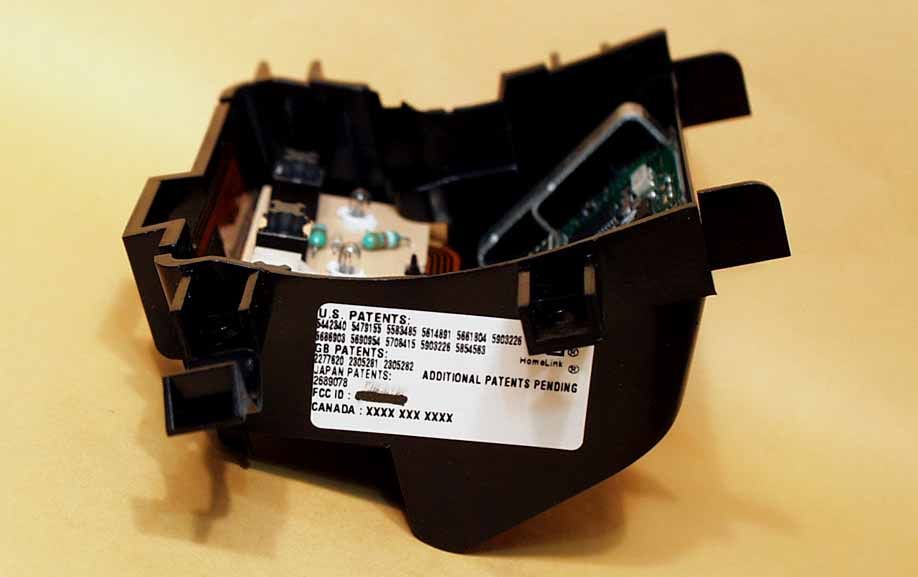

Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490188 Exhibit F: Page 1 of 2 EXHIBIT F: E QUIPMENT L ABEL [2.925, 2.926, 2.1033( B 2,7), 15.19( A 3)] LABEL EXAMPLE Refer to picture file “EXF_label1.jpg” The FCC Identifier assigned to the ANHL3 is FCC ID: CB2ANHL3. This number will be imprinted on the 1.0”x1.5” high temperature polyester matte white label. The label will be placed on the exterior of the ANHL3 housing using an acrylic adhesive that will permanently affix the label. Because of the small size of the device and because the installation is inside a portion of the automobile, the following statements will appear in the user’s manual. Refer to Exhibit N for the entire text of the user’s manual. “This device complies with Part 15 of the FCC rules and with RSS-210 of the Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and Industry Canada rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.” Refer to Exhibit D for the exterior view of the housing showing the label location.

Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490453 Exhibit M: Page 1 of 1 EXHIBIT M: RF E XPOSURE I NFORMATION [2.1093( C )] The manufacturer and applicant: JOHNSON CONTROLS INTERIORS, LLC. One Prince Center Holland, Michigan 49423 Product: Homelink® Universal Garage Door Opener Model: ANHL3 Applicable Rules: 47CFR Part 15.231 Pursuant to 47CFR Part 1.1307(b), 47CFR Part 2.1091(c), and 47CFR Part 2.1093(c) this transmitting device, compliant to 47CFR Part 15.231, is categorically excluded from evaluation regarding the Maximum Permissible Exposure of RF energy.

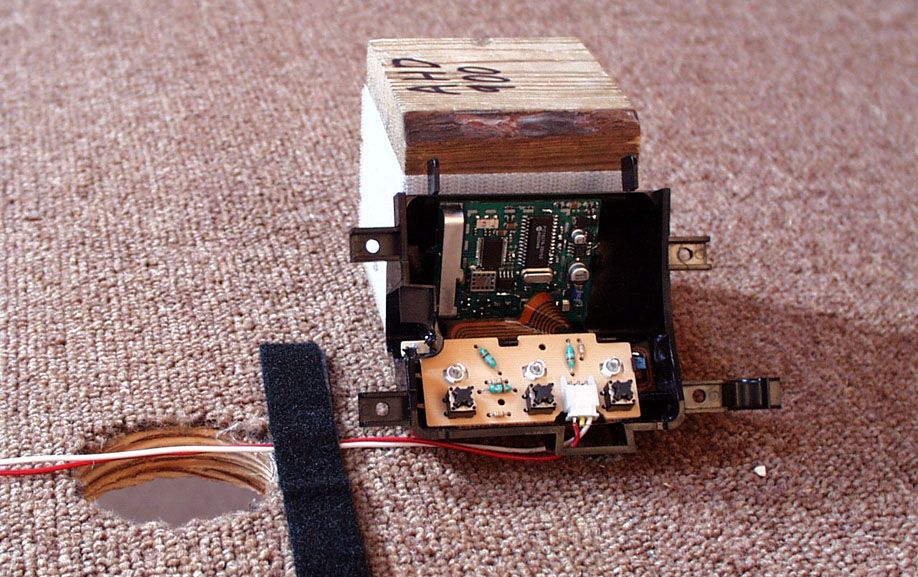

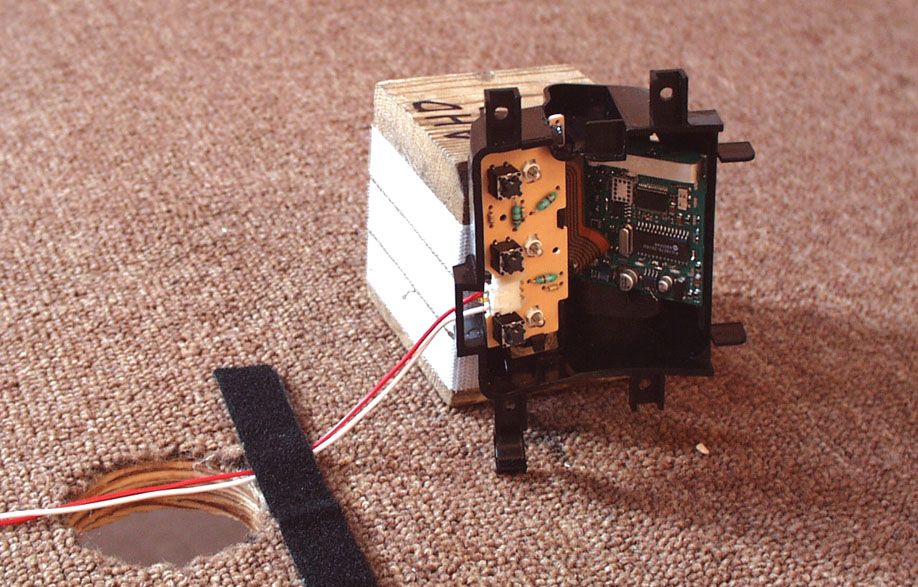

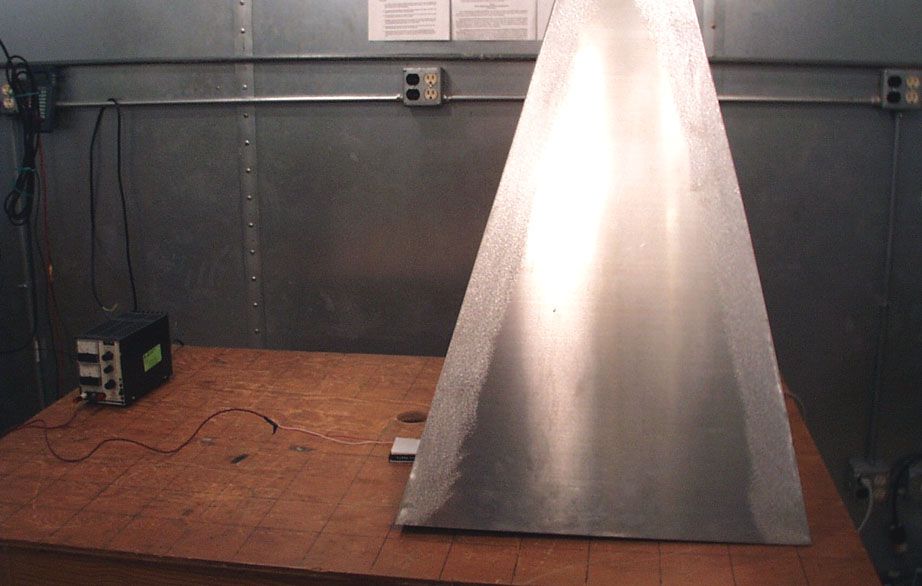

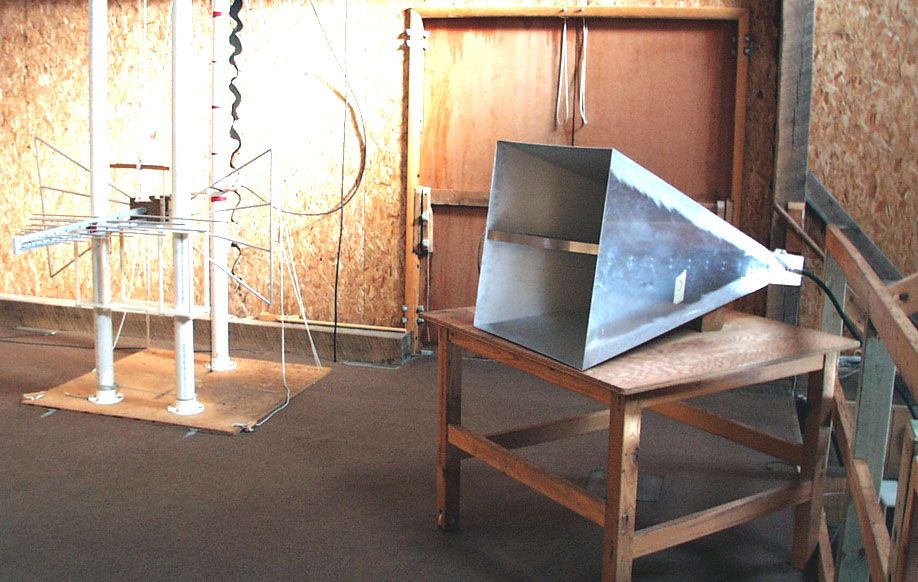

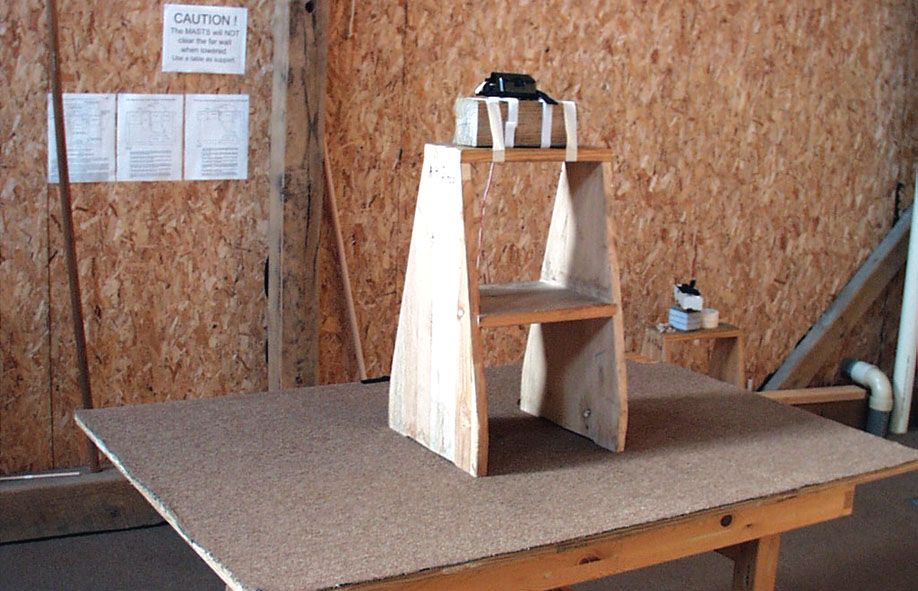

A H D EMC Laboratory 92723 M-152, Dowagiac, MI 49047 USA Phone: (616) 424-7014 www.ahde.com AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490225 Exhibit K: Page 1 of 31 EXHIBIT K: R EPORT OF M EASUREMENTS [2.1033( B 6)] Test Report for FCC ID: CB2ANHL3 FCC Part 2.1031, Part 15 Subpart C(15.231) Report #09900273F Issued 2/28/00 T RANSMITTER M ODEL ANHL3 OF H OMELINK ® III SERIES Prepared for:Mr. Tom McDade Johnson Controls Interiors, LLC One Prince Center Holland, MI 49423 Test Date(s): February 15, 2000 data recorded bywitnessed by Gordon Helm, PEDavid Blaker Ted Chaffee, NCECraig Harder This report prepared by: Ted Chaffee, NCE Technical Manager/Test Engineer, AHD Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490225 Exhibit K: Page 2 of 31 TABLE OF CONTENTS EXHIBIT K: Report of Measurements [2.1033(b6)]............................................................................. 1 TABLE OF CONTENTS ...............................................................................................................2 Statements Concerning this Report............................................................................................... 3 Manufacturer/Applicant [2.1033(b1)]............................................................................................ 4 Measurement/Test Site Facility & Equipment................................................................................. 4 Test Site [2.948, 2.1033(b6)]............................................................................................. 4 Measurement Equipment Used [2.947(d), 15.31(b)]............................................................... 4 Tested Configuration /Setup: [2.1033(b8)]..................................................................................... 5 Support Equipment & Cabling................................................................................................ 5 Setup Diagram..................................................................................................................... 5 Summary of Results: ................................................................................................................... 6 Changes made to achieve compliance................................................................................... 7 Standards Applied to Test: [2.1033(b6)]....................................................................................... 7 Test Methodology: [2.1033(b6)]................................................................................................... 7 Test Data [2.1033(b6)]...............................................................................................................10 Modulation Characteristics...................................................................................................10 Relative Emission Level vs. Supply Voltage [15.31(e)]............................................................12 Occupied Bandwidth [15.231(c)]..........................................................................................13 Restricted Bands: [15.205]..................................................................................................14 Radiated Field Strength Measurements: [15.231(b), 15.205] .................................................15 Field Strength Measurements of Fundamental : [15.231(b)]............................................17 Field Strength Measurements of Harmonics: [15.231(b), 15.205]....................................18 Calculation of Field Strength of Tuning Pulses: [15.231(b)], 15.31(c)]...............................21 APPENDIX: Tune Pulses - Data Details..................................................................................26 Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490225 Exhibit K: Page 3 of 31 Statements Concerning this Report Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty: Following the guidelines of NAMAS publication NIS81 and NIST Technical Note 1297, the Measurement Uncertainty at a 95% confidence level is determined to be: ± 3.6 dB Test report #09900273FFCC 15.231 for ANHL3FCC ID: CB2ANHL3 Tested February 15, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701490225 Exhibit K: Page 4 of 31 Manufacturer/Applicant [2.1033(b1)] The manufacturer and applicant: JOHNSON CONTROLS INTERIORS, LLC. One Prince Center Holland, Michigan 49423 Measurement/Test Site Facility & Equipment Test Site [2.948, 2.1033(b6)] The AHD test facility is centered on 9 acres of rural property near Sister Lakes, Michigan. The mailing address is 92723 M-152, Dowagiac, Michigan 49047. This test facility is NVLAP accredited (LabCode 200129-0). It has been fully described in a report filed with the FCC and Industry Canada. The report filed with the FCC is, dated November 5, 1996, was accepted by the FCC in a letter dated January 15, 1997, (31040/SIT 1300F2). The report filed with Industry Canada, dated August 11, 1998, was accepted via a letter dated …

Text truncated - open the document above for the full version.
