CB2BLUEC07Bluetooth Transmitter

Johnson Controls Interiors L.L.C.
Bluetooth Transmitter - FCC ID CB2BLUEC07 - Johnson Controls Interiors L.L.C.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jun 12, 2006
Application Purpose
Original Equipment
Date of Application
Jun 12, 2006
Equipment Note
Bluetooth Transmitter
Frequency Range
2402.00000000 - 2480.00000000
Company
Johnson Controls Interiors L.L.C.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

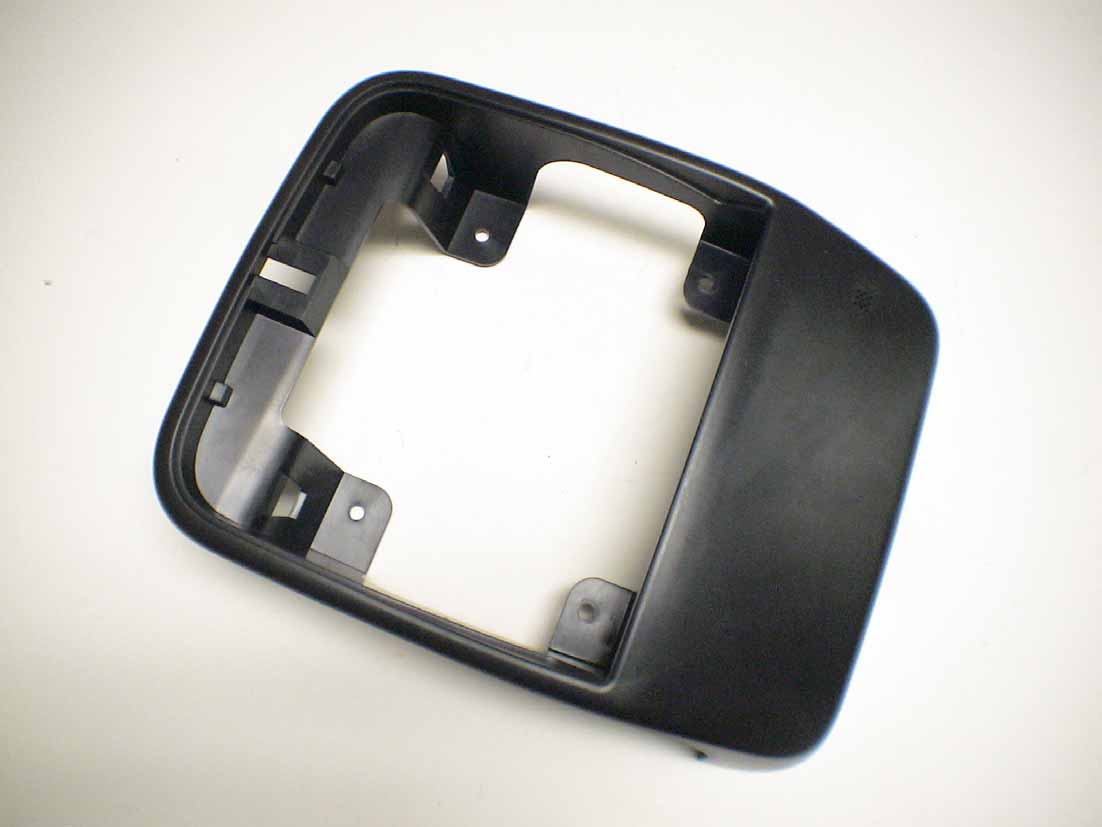

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Re: Certification for JCI Bluetooth Transmitter Model(s): CB2BLUEC07 FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. If this device is to be used as a portable device, separate from the vehicle, the following information will be included: The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Attestation Statements

Re: Certification for JCI Bluetooth Transmitter Model(s): CB2BLUEC07 FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for JCI Bluetooth Transmitter Model(s): CB2BLUEC07 FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, JCI Bluetooth requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) JCI Bluetooth has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan June 8, 2006 Re: Certification for JCI Bluetooth Transmitter Model(s): CB2BLUEC07 FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for JCI Bluetooth Transmitter Model(s): CB2BLUEC07 FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Johnson Controls Interiors L.L.C. One Prince Center Holland, MI 49423 Jeremy Bos Tel: (616) 394-6076 Fax: (616) 394-6100 It will be manufactured by: Jabil Circuits, Inc 1700 Atlantic Blvd. Auburn Hills, MI 48326 Jeremy Bos Tel: (616) 394-6076 Fax: (616) 394-6100 Canadian Contact: Johnson Controls Lakeshore Plant 477 Jutras Dr. South Tecumseh, ON N8N 5C4 Jim Komar, [email protected] (519) 727-2341 (519) 727-4750 American TCB 6731 Whittier Ave. McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this ____1___________day of ____July_______, 2004___. By: ____ ______________________ __Jeremy P. Bos___ (Signature) (Print name) Title: ____________Lead EMC Test Engineer______________ email: [email protected]________ On behalf of: ___Johnson Controls Interiors, L.L.C._______ (Company Name) Telephone: _____616-394-6076________ Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepa to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with ___( applicant name and address)___. Dated this _____1_______day of ____July____, 2004___. Agency Agreement Expiration Date: (Typically 8-12 months) By: _____ _____ _____Jeremy P. Bos______ (Signature) (Print name) Title: ______Lead EMC Test Engineer________ On behalf of: ____Johnson Controls Interior, LLC______ (Company Name) Telephone: ____616-394-6076_______________

Block Diagram

Mic Bias and InterfaceAnalog I nput BluetoothIC Switching hysteretic 3.3Vwith high voltage switchPower Supply MEMORY BUS JTAG WDOG RESET GPIO OSC AN[0:3] USB I 2 S SCIF0 SCIF1 AC97 SCIF2 CAN 2.0 SPI RENESAS SH 7760 SDRAM 16MB or 32MB FLASH 32MB ENET/ JTAG I/F CONN. ADDRESS BUS DATA BUS XTAL 16.666 MHz SPI Communications ENET/ JTAG ASSY (off board) BCM2035 Bluetooth BB Honda BCAN Communications AC97 Codec IC AC-LINK MIC IN Mono Differential Audio Analog Output MIC DIAG / AN0 LINE OUT L STRG WHL SW AN2AN1AN3 Battery Detect Digital Input Steering Switch Switches Analog I nput Watchdog Supervisor IC LINE OUT - LINE OUT + 12V Unregulated Rvrs Protect BATTERY(+) GND Ignition Protected Digital Input IGNITION PWR HOLD IGN SENSE POWER ENABLE BLUECONNECT MY2007 MDX BLOCK DIAGRAM VOOGT,J. 7-OCT- 2005 BCAN Wakeup Digital Input Current Loop Navi Communications 19.2kbps Current Loop Head Unit Communications 19.2kbps Bluetooth RF MIC Bias MIC Interface MIC IN Project Specific Power Switch Battery Power Supply VDD 3D: 3.3V 1.5V Linear Discrete Power Supply 5V 78L05 Linear IC Power Supply Battery Transient Protection Power Supply PWR OFF Mute Analog Output 1.05Mbps ANT. Total: 5 blocksRe-used C2 PartsTotal: 3 blocksNew C2 Parts createdTotal: 13 blocks Microprocessor SDRAM Flash TelematicsIC Icon Digital Output

Cover Letter(s)

June 8, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 Model(s): CB2BLUEC07 Please find enclosed application materials for certification of JCI Bluetooth CB2BLUEC07 Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Cover Letter(s)

June 8, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for JCI Bluetooth Transmitter Model(s): CB2BLUEC07 FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 Please find enclosed application materials for certification of JCI Bluetooth CB2BLUEC07 Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist June 8, 2006 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for JCI Bluetooth Transmitter Model(s): CB2BLUEC07 FCC ID: CB2BLUEC07 IC: 279B- BLUEC07 Please find enclosed application materials for certification of JCI Bluetooth CB2BLUEC07 Transmitter. We tested the device and found it to comply with RSS- GEN/102/210. The product is identified by: IC: 279B- BLUEC07 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Operational Description

BlueConnect Theory of Operation The BlueConnect module is a hands-free interface to Bluetooth enabled devices. A voice recognition engine allows the user to control the system throughout a variety of functions. Interaction with the voice recognizer is accomplished via a microphone mounted in a manufacturer-chosen location. Further user interface (switches and voice recognizer) details are specific to the manufacturer’s preference. The primary processor of the system runs the voice recognizer as well as general function manager. The general function manager calls other functions as necessary based upon feedback from the vehicle bus, the user (via voice recognition and/or the button interface), or Bluetooth and the connected Bluetooth device(s). Memory, composed of separate RAM and FLASH, allow for reprogramming and upgrades of the system as new features are developed. The memory is also used for voice recognition libraries and other Bluetooth devices that have been paired to the system. Other user-specific features and configurations are saved here as well. A Bluetooth link to paired devices is used for the audio gateway through the system. By using the Bluetooth protocol, the module is able to connect to several different devices and route the audio out to the vehicle radio. The interface to the vehicle radio is configurable for single-ended audio, differential audio, or stereo versions of either configuration.

RF Exposure Info

RF Exposure Statement Requirement: According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. SAR Testing: This is a portable/mobile device and the peak conducted EIRP is 2.29 mW (see below). The output power is lower than Po = 60/f (GHz) mW = 24.19 mW for d<2.5 cm (general population category). Thus, a SAR measurement is not necessary. Health Hazard: It has been determined that the DUT output power is less than 10 mW (10 dBm), and given the low gain of the PCB antenna (~1 dBi), no health hazard exists beyond the physical dimensions of the DUT. The following table summarizes the power density at a distance of 20 cm from the device as calculated from FCC OET Bulletin 65. Table 6.3 Potential Health Hazard Radiation Level Ant. Ant.Gain (dBi) Po (mW) EIRP (mW) S (mW/cm 2 ) PCB 1 1.82 2.29 0.000456 The following equations were used in calculating the operating distance (R). 10 )( 10)()( dBGain mWPomWEIRP⋅= and 2 2 )(4 )( )/( cmR mWEIRP cmmWS ⋅Π⋅ =, R = 20 cm

Test Report

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-300 Page 1 of 16 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Johnson Controls Bluetooth Module Model: CB2BLUEC07 Report No. 415031-300 June 8, 2006 Copyright © 2006 For: Johnson Controls Interiors L.L.C. One Prince Center Holland, MI 49423 Contact: Jeremy Bos Tel: (616) 394-6076 Fax: (616) 394-6100 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Joseph D. Brunett Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, Part 15.247, and with Industry Canada (IC) Regulations, RSS-210 (A8.1) and RSS-GEN, were performed on Johnson Controls model CB2BLUEC07 frequency hopping spread spectrum (FHSS) transmitter. The DUT is subject to the Rules and Regulations as a transmitter. In testing competed on March 28, 2006, the radiated emissions in restricted bands were met by 4.9 dB. The AC line conducted emissions tests do not apply, since the device is powered from a 12 VDC system. The DUT is exempt as a digital device since it is used in a transportation vehicle. All other testing indicates that the Johnson Controls model CB2BLUEC07 meets the limitations set forth by the FCC and IC for a 2.4 GHz FHSS transmitter. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-300 Page 2 of 16 Introduction Johnson Controls model CB2BLUEC07 was tested for compliance with FCC Regulations, Part 15, Subpart C, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 1. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Peak Power Meter Pacific Instruments 1018B Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn X S/A, Model SGH-2.6 C-Band Std. Gain Horn X University of Michigan, NRL design XN-Band Std. Gain Horn X University of Michigan, NRL design X-Band Std. Gain Horn X S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) X Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) X FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) X FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) X Avantek, AFT-12665 Amplifier (6-16 GHz) X Trek Amplifier (16-26 GHz) X Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-300 Page 3 of 16 2. Configuration and Identification of Device Under Test The DUT is a frequency hopping spread spectrum (FHSS) transmitter operating in 2400 - 2483.5 MHz band. The DUT is 5 x 1 x 3.5 inches and connects to a peripheral laptop computer via a serial interface for testing purposes. The system has been designed to operate with 79 channels spaced 1 MHz apart, between 2402 MHz and 2480 MHz. The DUT has only one antenna built into the PCB. The DUT was designed and manufactured by Johnson Controls Interiors L.L.C., One Prince Center, Holland, MI 49423. It is identified as: Johnson Controls Bluetooth Module Model(s): CB2BLUEC07 FCC ID: CB2BLUEC07 IC: 279B-BLUEC07 Peripheral Equipment: Laptop Computer: Dell Inspiron SN: USD344011D Model: 8000 In addition to a standard unit, a modified unit was provided by the manufacturer which had the internal antenna disabled and a SMA connector attached for conducted antenna measurement purposes. 2.1 EMI Relevant Modifications No modifications were made to the DUT by this laboratory during testing. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-300 Page 4 of 16 3. Emission Limits 3.1 Radiated Emission Limits Since the DUT is a spread spectrum device (15.247, 2.4 GHz), the radiated emissions are subject to emissions in restricted bands (15.205). The applicable frequencies, through ten harmonics, are given below in Table 4.1. Emissio…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Rick Markiewicz(Electronics Engineering Manager)
[email protected]6163946542Fax: 6163946449

Technical Contact

University of MichiganValdis Liepa
[email protected]734-483-4211

1301 Beal Ave. · Ann Arbor, Michigan · United States

Test Firm

University of MichiganValdis Liepa
[email protected]734-647-1792Fax: 734-647-2106

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.80 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
