CB2HONDAHL3Garage Door Opener

AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014102334 Exhibit A: Page 1 of 2 NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer Federal communications CommissionMay 22, 2000 Equipment Approval Services, P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization & Evaluation Division Re: Application for Certification of Johnson Controls Transmitter under 47CFR 15.231. FCC ID: CB2HONDAHL3 Gentlemen: On behalf of the applicant, Johnson Controls Interiors, LLC, please find attached the submittal materials for certification of the JCI Universal Garage Door Opener, Model CB2HONDAHL3 This generation of their Homelink® series is capable of learning the current garage door transmit frequencies from 288MHz through 420MHz with pulse modulation duty cycles from 30 through 80 percent. Pursuant to 47CRF 0.459, Johnson Controls Interiors requests that these listed exhibits be held confidential. Exhibit GTheory/Description of Operation, Exhibit H:Circuit Block Diagrams Exhibit I:Schematics Exhibit J:Bill of Material, Parts List Johnson Controls Interiors has invested considerable resources into developing this Homelink® series. Having the listed exhibits available to ‘competition’ would negate the advantage achieved in developing this product. Since their Homelink® Iseries transmitters will be a major product line for Johnson Controls Interiors, not protecting the details of the design will result in a financial hardship for the company. The complete List of the Exhibits in this submittal package appears on Page 2 of this cover letter. Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Ted Chaffee, Technical Lab Manager Narte Certified Engineer, #EMC-002025-NE tel/fax: 616. 424.7014 email: [email protected], or [email protected] Test report #20000309FFCC 15.231 for CB2HONDAHL3FCC ID: CB2HONDAHL3 Tested April 27, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014102334 Exhibit A: Page 2 of 2 Table of Contents Form 731, form 159 with payment EXHIBIT A: Cover Letter / Table of ContentsTotal Pages 2 EXHIBIT B: Statements of Attestation [2.911(d)]Total Pages 3 Attesting to Accuracy of DataExhibit B, File “EXB_p1DataAttst.jpg” Public Notice 22504 Exhibit B, File “EXB_p1DataAttst.jpg” Power of Attorney Exhibit B, File “EXB_p2PowrOAttrny.jpg” AHD AccreditationExhibit B, File “EXB_p3NVLAPCert.jpg” EXHIBIT C: Description of Product [2.1033(b6)] Total Pages 1 EXHIBIT D: Product photos - exterior [2.1033(b7)] Three photosTotal Pages 2 EXHIBIT E: Product photos - Printed Circuit Board [2.1033(b7)] Two photosTotal Pages 2 EXHIBIT F: ID Label / Location [2.925,2.926,2.1033(b2,7),15.19(a3)] Total Pages 2 EXHIBIT G: Description of Operation [2.1033(b4)] Total Pages 1 EXHIBIT H: Circuit Block Diagram [2.1033(b5)] Total Pages 1 EXHIBIT I:Schematics [2.1033(b5)] Exhibit I, File “EXI_Schem.pdfTotal Pages 1 EXHIBIT J: Parts List/Tune-up Information [2.1033(b5] Total Pages 2 Parts List Exhibit J, File “EXJ_Parts.pdf” EXHIBIT K: Report of Measurements [2.1033(b6)] Total Pages 31 Detailed Table of ContentsExhibit K, Page 2 Manufacturer/Applicant [2.1033(b1)Exhibit K, Page 4 Measurement/Test Facility & EquipmentExhibit K, Page 4 Configuration/Setup [2.1033(b8)]Exhibit K, Page 5 Summary of ResultsExhibit K, Page 6 Test Standards / Methods Used [2.1033(b6)] Exhibit K, Page 7 Test Methodology [2.1033(b6)Exhibit K, Page 7 Test Data [2.1033(b6)Exhibit K, Page 10 Level vs Supply Voltage [15.31(e)]Exhibit K, Page 12 Occupied BandwidthExhibit K, Page 13 Radiated Field Strength [15.231(b)] Exhibit K, Page 15 EXHIBIT L: Setup photos [2.1033(b8)] Four photosTotal Pages 2 EXHIBIT M: RF Exposure Information [2.1093(c)]Total Pages 1 EXHIBIT N: User’s Manual Total Pages 4

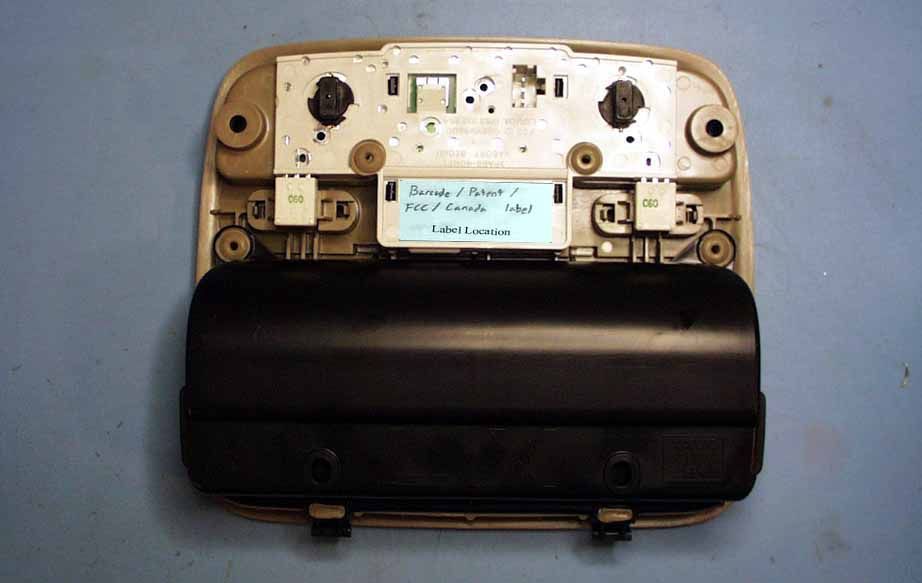

Test report #20000309FFCC 15.231 for CB2HONDAHL3FCC ID: CB2HONDAHL3 Tested April 27, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014102344 Exhibit F: Page 1 of 2 EXHIBIT F: E QUIPMENT L ABEL [2.925, 2.926, 2.1033( B 2,7), 15.19( A 3)] LABEL EXAMPLE Refer to picture file “EXF_Label.pdf” The FCC Identifier assigned to the EUT is FCC ID: CB2HONDAHL3. This number will be imprinted on the 1.0”x1.5” high temperature polyester matte white label. The label will be placed on the exterior of the CB2HONDAHL3 housing using an acrylic adhesive that will permanently affix the label. LABEL LOCATION EXAMPLE Refer to picture file “EXD_extbtmLabel.jpg” Because of the small size of the device and because the installation is inside a portion of the automobile, the following statements will appear in the user’s manual. Refer to Exhibit N for the entire text of the user’s manual. “This device complies with Part 15 of the FCC rules and with RSS-210 of the Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and Industry Canada rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.”

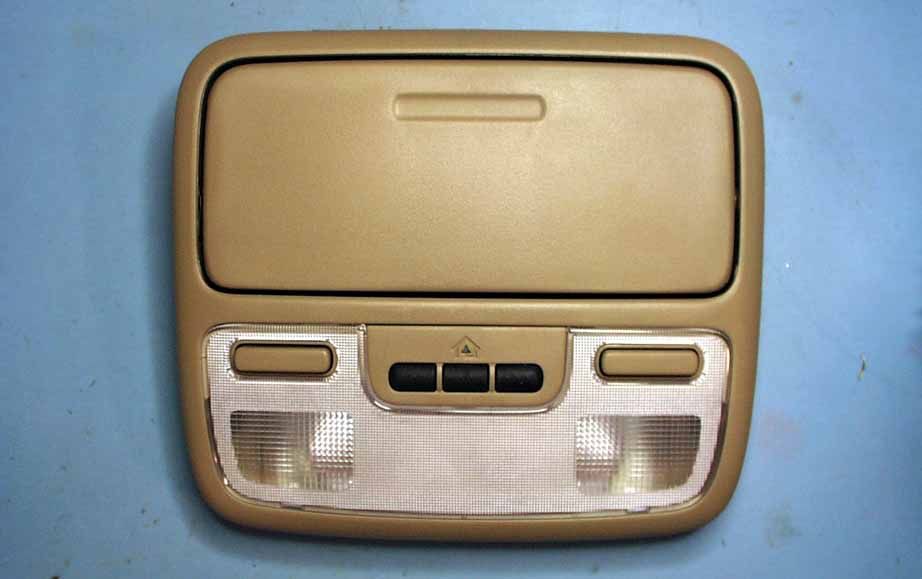

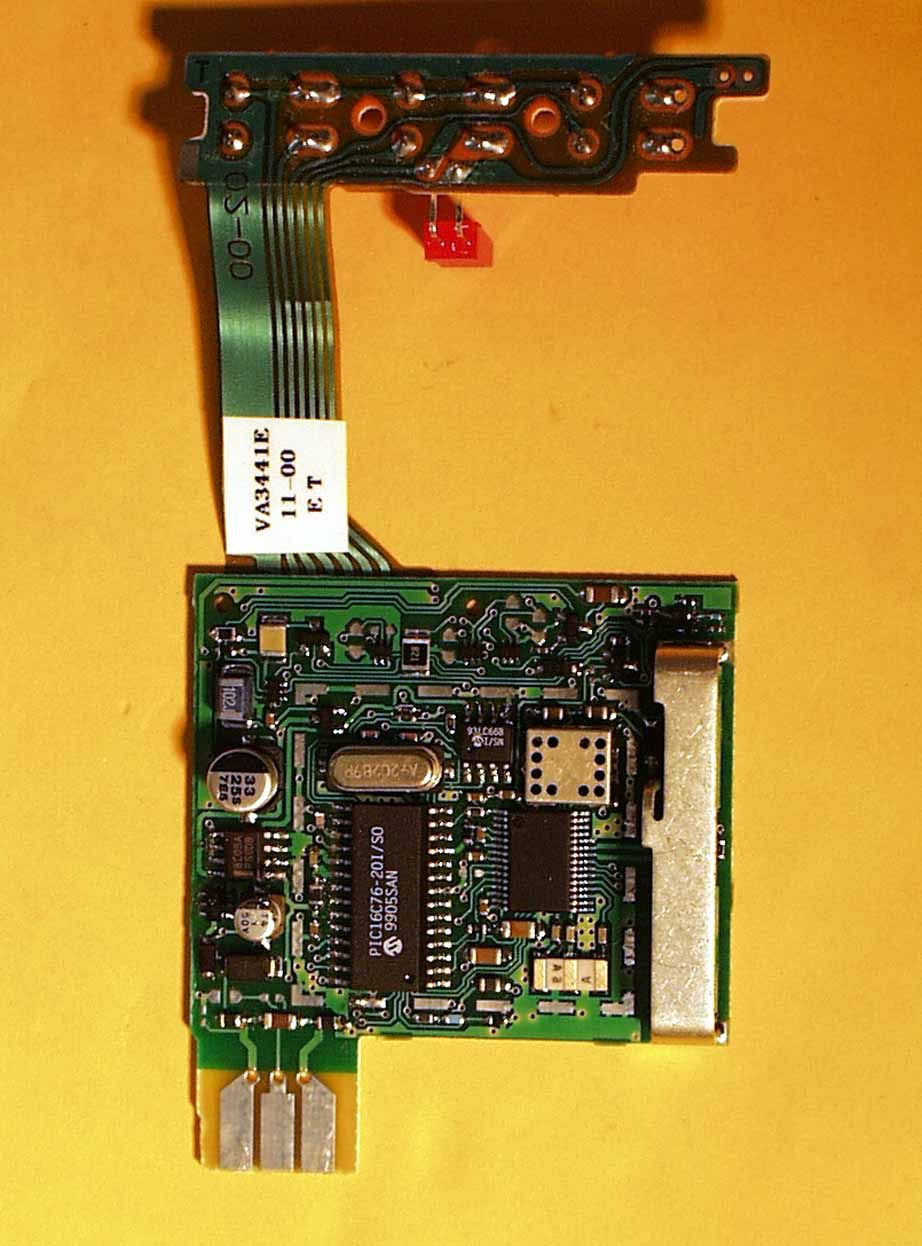

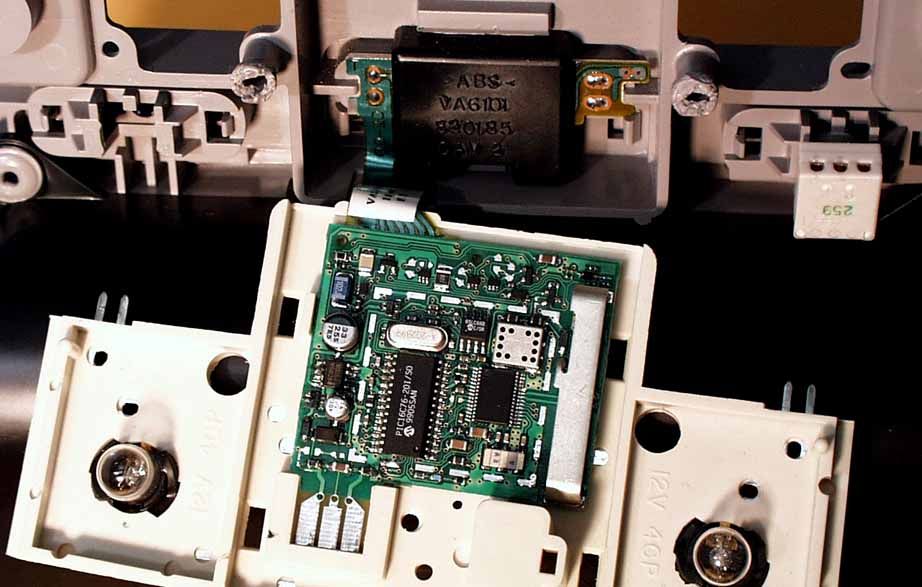

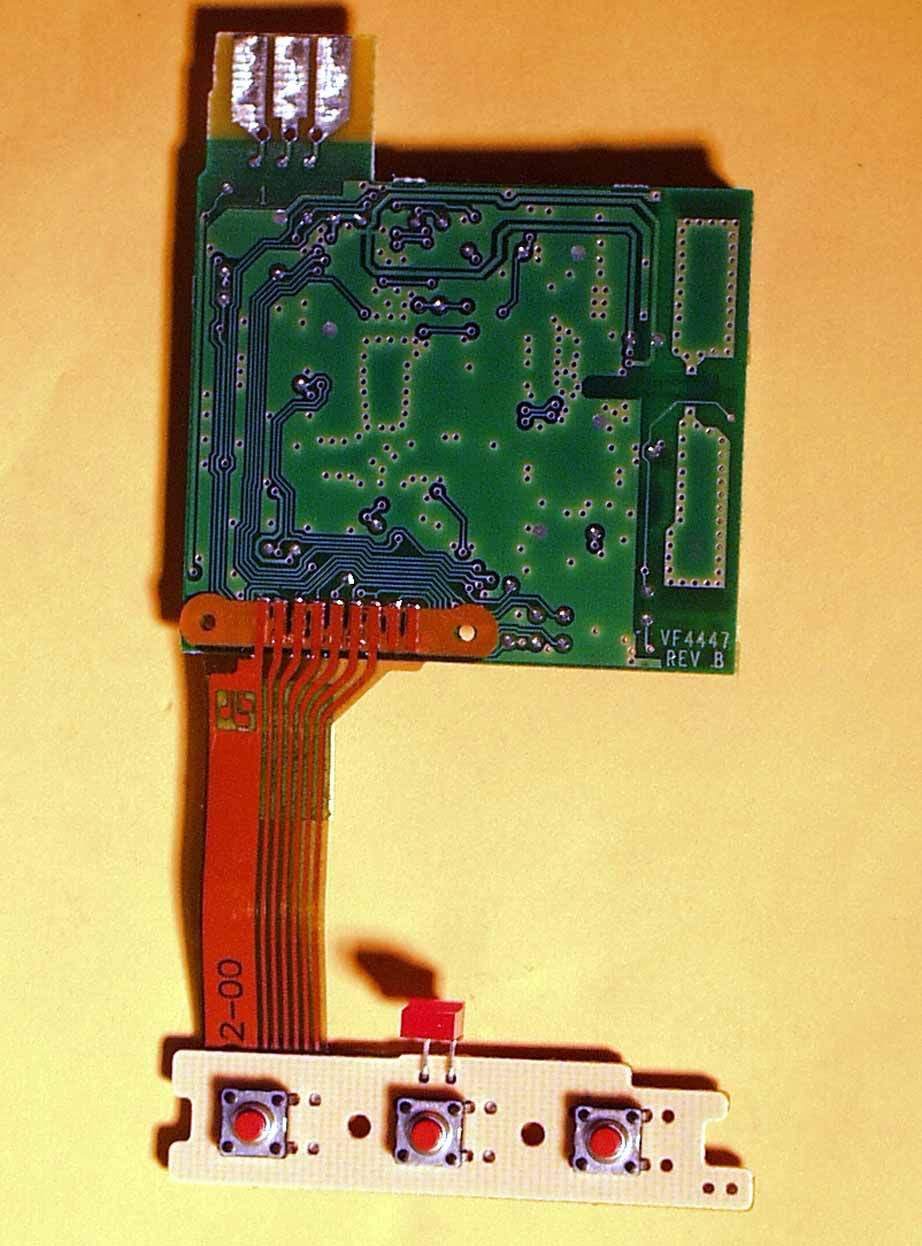

Test report #20000309FFCC 15.231 for CB2HONDAHL3FCC ID: CB2HONDAHL3 Tested April 27, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014102338 Exhibit C: Page 1 of 1 EXHIBIT C: D ESCRIPTION OF P RODUCT [2.1033(b6)] The Johnson Controls Interiors Homelink® CB2HONDAHL3 Universal Garage Door Opener is a low-power transceiver OEM device that is installed into an overhead console of the automobile. The installation is provided by trained technicians during the course of the manufacturer of the automobile. It is powered by the 12volt system of the automobile. This Universal Garage Door Opener has the capability to: 1. Learn the frequency and bit code format of the user’s existing garage door remote control devices and 2. Reproduce and transmit the frequency and bit code format to remotely operate the user’s garage door. The unit is designed for the periodic operation of a control signal which activates typically a garage door. This overhead (OH) version of Homelink  allows a single design of main board to suit different vehicles. A lap solder joint on the main printed circuit board (PCB) permanently joins with a flexible cable to a PCB containing three user push buttons and light emitting diode (LED). The unit is only operational when the user depresses one of the three control buttons. The unit becomes inactive after release of the control button. This three-button Homelink® unit replaces up to three hand-held transmitters. In addition to the typical operation of the garage door, the unit will learn the radio frequency codes of other transmitter types to activate entry door locks, estate gates, security systems, and home or office lighting. The antenna system is an integral part of the unit. It cannot be altered nor replaced by the user. Service of this system is only available from the Automobile Manufacturer’s Dealerships and Johnson Controls Interiors, LLC.

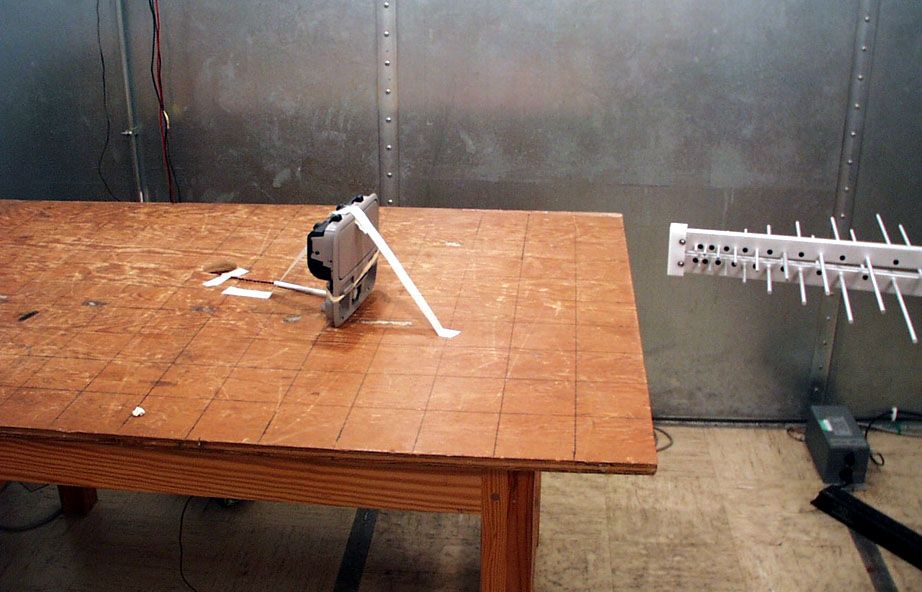

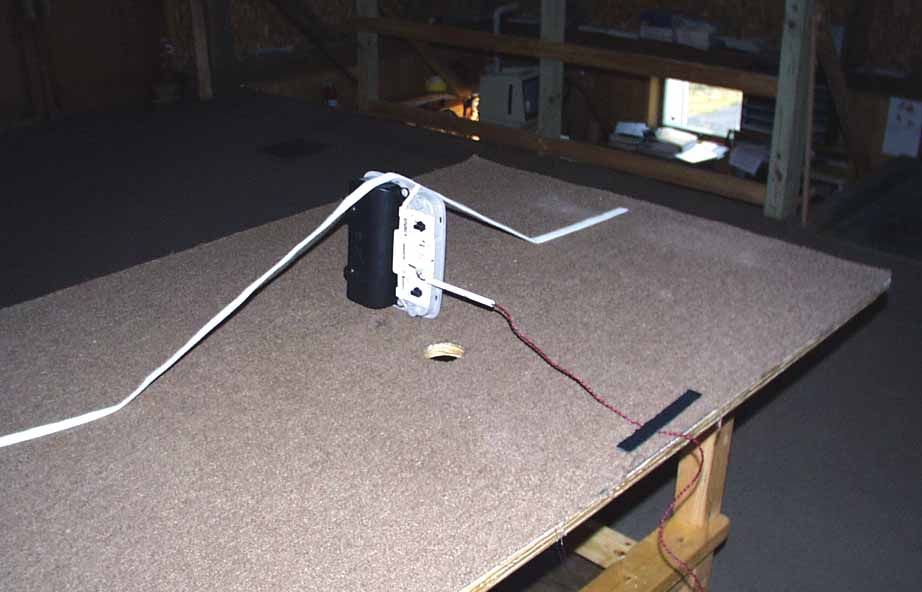

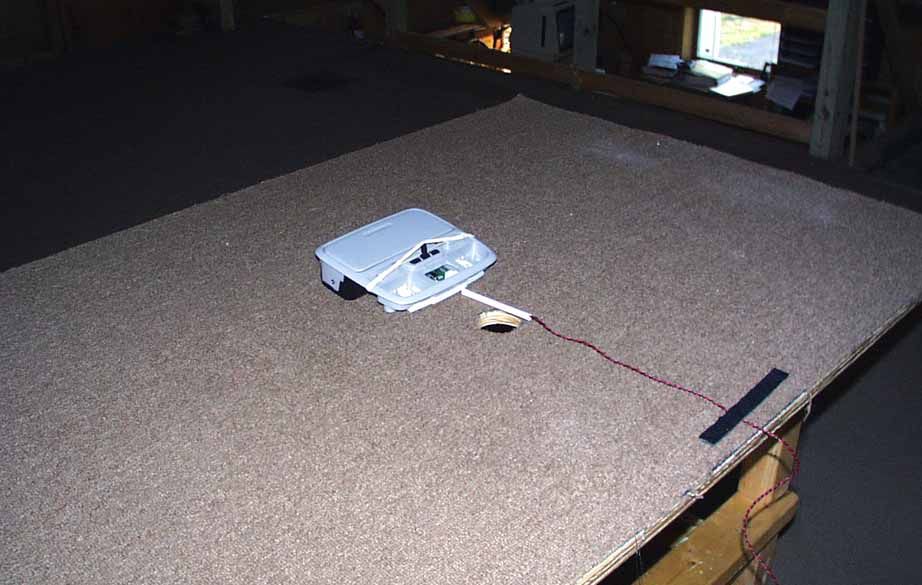

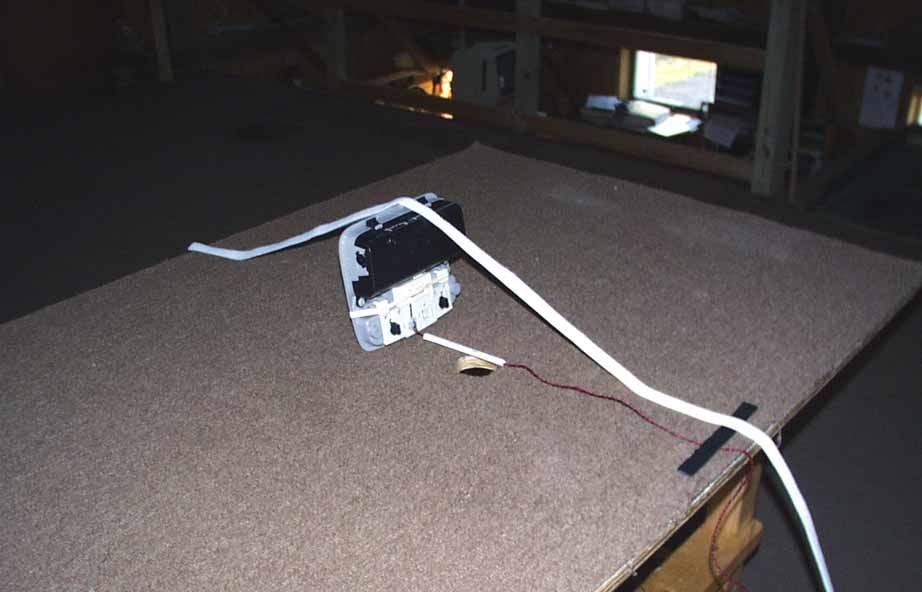

A H D EMC Laboratory 92723 M-152, Dowagiac, MI 49047 USA Phone: (616) 424-7014 www.ahde.com AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014102351 Exhibit K: Page 1 of 31 EXHIBIT K: R EPORT OF M EASUREMENTS [2.1033( B 6)] Test Report for FCC ID: CB2HONDAHL3 FCC Part 2.1031, Part 15 Subpart C(15.231) Report #20000309F Issued 5/08/00 T RANSMITTER M ODEL CB2HONDAHL3 OF H OMELINK ® III SERIES Prepared for:Mr. Art Vonderwell Johnson Controls Interiors, LLC One Prince Center Holland, MI 49423 Test Date(s): April 11 thru April 27, 2000 data recorded bywitnessed by Ted Chaffee, NCETony Kalacanic Test Engineer, AHD This report prepared by: Ted Chaffee, NCE Technical Manager/Test Engineer, AHD Test report #20000309FFCC 15.231 for CB2HONDAHL3FCC ID: CB2HONDAHL3 Tested April 27, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014102351 Exhibit K: Page 2 of 31 TABLE OF CONTENTS EXHIBIT K: Report of Measurements [2.1033(b6)]............................................................................. 1 TABLE OF CONTENTS ...............................................................................................................2 Statements Concerning this Report............................................................................................... 3 Manufacturer/Applicant [2.1033(b1)]............................................................................................ 4 Measurement/Test Site Facility & Equipment................................................................................. 4 Test Site [2.948, 2.1033(b6)]............................................................................................. 4 Measurement Equipment Used [2.947(d), 15.31(b)]............................................................... 4 Tested Configuration /Setup: [2.1033(b8)]..................................................................................... 5 Support Equipment & Cabling................................................................................................ 5 Setup Diagram..................................................................................................................... 5 Summary of Results: ................................................................................................................... 6 Changes made to achieve compliance................................................................................... 7 Standards Applied to Test: [2.1033(b6)]....................................................................................... 7 Test Methodology: [2.1033(b6)]................................................................................................... 7 Test Data [2.1033(b6)]...............................................................................................................10 Modulation Characteristics...................................................................................................10 Relative Emission Level vs. Supply Voltage [15.31(e)]............................................................12 Occupied Bandwidth [15.231(c)]..........................................................................................13 Restricted Bands: [15.205]..................................................................................................14 Radiated Field Strength Measurements: [15.231(b), 15.205] .................................................15 Field Strength Measurements of Fundamental : [15.231(b)]............................................17 Field Strength Measurements of Harmonics: [15.231(b), 15.205]....................................18 Calculation of Field Strength of Tuning Pulses: [15.231(b)], 15.31(c)]...............................21 APPENDIX: Tune Pulses - Data Details..................................................................................26 Test report #20000309FFCC 15.231 for CB2HONDAHL3FCC ID: CB2HONDAHL3 Tested April 27, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014102351 Exhibit K: Page 3 of 31 Statements Concerning this Report Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty: Following the guidelines of NAMAS publication NIS81 and NIST Technical Note 1297, the Measurement Uncertainty at a 95% confidence level is determined to be: ± 3.6 dB Test report #20000309FFCC 15.231 for CB2HONDAHL3FCC ID: CB2HONDAHL3 Tested April 27, 2000 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014102351 Exhibit K: Page 4 of 31 Manufacturer/Applicant [2.1033(b1)] The manufacturer and applicant: JOHNSON CONTROLS INTERIORS, LLC. One Prince Center Holland, Michigan 49423 Measurement/Test Site Facility & Equipment Test Site [2.948, 2.1033(b6)] The AHD test facility is centered on 9 acres of rural property near Sister Lakes, Michigan. The mailing address is 92723 M-152, Dowagiac, Michigan 49047. This test facility is NVLAP accredited (LabCode 200129-0). It has been fully described in a report filed with the FCC and Industry Canada. The report filed with the FCC is, dated November 5, 1996, was accepted by the FCC in a letter dated January 15, 1997, (31040/SIT 1300F2). The report filed with Industry Canada, dated August 11,…
