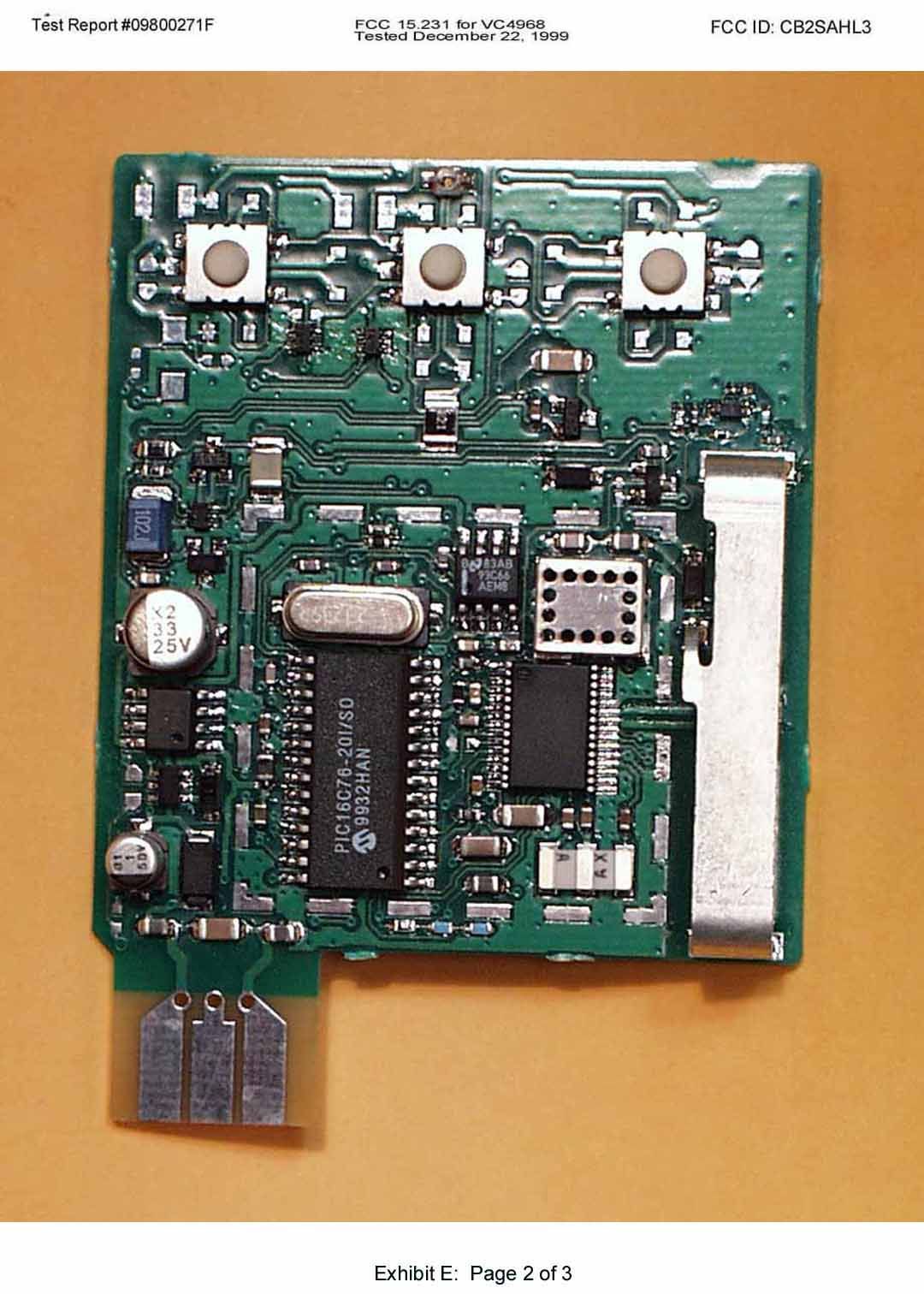

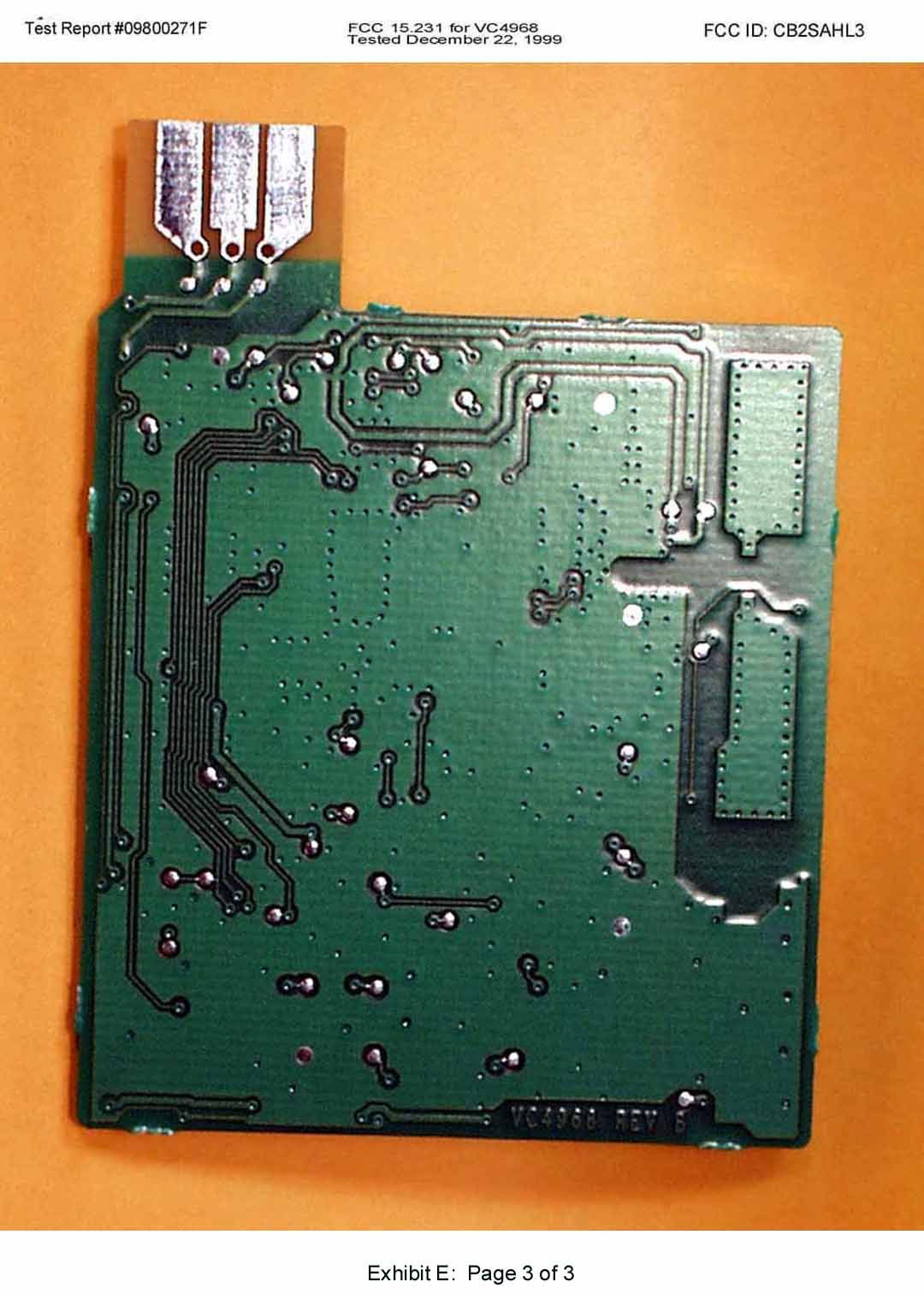

A H D EMC Laboratory 92723 M-152, Dowagiac, MI 49047 USA Phone: (616) 424-7014 www.ahde.com AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483252 Exhibit K: Page 1 of 31 EXHIBIT K: REPORT OF MEASUREMENTS [2.1033(B6)] Test Report for FCC ID: CB2SAHL3 FCC Part 2.1031, Part 15 Subpart C(15.231) Report #09800271F Issued 1/14/00 TRANSMITTER MODEL VC4698 OF HOMELINK® III SERIES Prepared for:Mr. David Blaker Johnson Controls Interiors, LLC One Prince Center Holland, MI 49423 Test Date(s): December 5-22, 1999 data recorded bywitnessed by Ted Chaffee, NCEDavid Blaker Test Engineer, AHDCraig Harder This report prepared by: Ted Chaffee, NCE Technical Manager/Test Engineer, AHD Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483252 Exhibit K: Page 2 of 31 TABLE OF CONTENTS EXHIBIT K: Report of Measurements [2.1033(b6)]..................................................................................... 1 TABLE OF CONTENTS ........................................................................................................................ 2 Statements Concerning this Report ...................................................................................................... 3 Manufacturer/Applicant [2.1033(b1)] .................................................................................................... 4 Measurement/Test Site Facility & Equipment ....................................................................................... 4 Test Site [2.948, 2.1033(b6)] ...................................................................................................... 4 Measurement Equipment Used [2.947(d), 15.31(b)] .................................................................... 4 Tested Configuration /Setup: [2.1033(b8)] ............................................................................................ 5 Support Equipment & Cabling ....................................................................................................... 5 Setup Diagram............................................................................................................................... 5 Summary of Results: ............................................................................................................................. 6 Changes made to achieve compliance ......................................................................................... 7 Standards Applied to Test: [2.1033(b6)]................................................................................................ 7 Test Methodology: [2.1033(b6)] ............................................................................................................ 7 Test Data [2.1033(b6)] ..........................................................................Error! Bookmark not defined. Modulation Characteristics ............................................................Error! Bookmark not defined. Relative Emission Level vs. Supply Voltage [15.31(e)] .................Error! Bookmark not defined. Occupied BandWidth [15.231(c)] ..................................................Error! Bookmark not defined. Restricted Bands: [15.205] ............................................................Error! Bookmark not defined. Radiated Field Strength Measurements: [15.231(b), 15.205] ......Error! Bookmark not defined. Field Strength Measurements of Fundamental : [15.231(b)] .Error! Bookmark not defined. Field Strength Measurements of Harmonics: [15.231(b), 15.205]Error! Bookmark not defined. Calculation of Field Strength of Tuning Pulses: [15.231(b)], 15.31(c)]Error! Bookmark not defined. APPENDIX: Tune Pulses - Data Details ..........................................Error! Bookmark not defined. Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483252 Exhibit K: Page 3 of 31 Statements Concerning this Report Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty:Following the guidelines of NAMAS publication NIS81 and NIST Technical Note 1297, the Measurement Uncertainty at a 95% confidence level is determined to be:±3.6 dB Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483252 Exhibit K: Page 4 of 31 Manufacturer/Applicant [2.1033(b1)] The manufacturer and applicant: JOHNSON CONTROLS INTERIORS, LLC. One Prince Center Holland, Michigan 49423 Measurement/Test Site Facility & Equipment Test Site [2.948, 2.1033(b6)] The AHD test facility is centered on 9 acres of rural property near Sister Lakes, Michigan. The mailing address is 92723 M-152, Dowagiac, Michigan 49047. This test facility is NVLAP accredited (LabCode 200129-0). It has been fully described in a report filed with the FCC and Industry Canada. The report filed with the FCC is, dated November 5, 1996, was accepted by the FCC in a letter dated January 15, 1997, (31040/SIT 1300F2). The report filed with Industry Canada, dated August 11, 1998, was accepted via a letter dated Sep…

Text truncated - open the document above for the full version.

Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483267 Exhibit K: Page 10 of 31 Test Data [2.1033(b6)] Modulation Characteristics Typical encoding at 310MHz: Consisting of pulses of differing duty cycles. 310MHz, 500Hz Modulation, 30% duty cycle Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483267 Exhibit K: Page 11 of 31 310MHz, 500Hz Modulation, 50% duty cycle 310MHz, 500Hz Modulation, 80% duty cycle Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483267 Exhibit K: Page 12 of 31 Relative Emission Level vs. Supply Voltage [15.31(e)] The relative emission level as the supply voltage varied is presented in the charts below. TX OUTPUT vs. Voltage LEVEL DUT= VC4968, 310MHz, 80%duty cycle Volt InTX OutPut Pk dBuV/m 6no-op 762.5 862.1 962.0 1061.8 1161.7 1261.8 1361.8 1462.1 1562.1 1662.2 1762.1 1862.0 OUTPUT FIELD STRENGTH vs INPUT VOLTAGE [Tuned to 310MHz; Modulated at 500Hz, 80% Duty Cycle] 55 56 57 58 59 60 61 62 63 64 65 6789101112131415161718 Volts dBuV/m Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483267 Exhibit K: Page 13 of 31 Occupied Bandwidth [15.231(c)] The maximum allowed 20dB bandwidth is determined pursuant to 15.23(c). For fundamental signals between 70MHz and 900MHz the bandwidth allowed is 0.25% of the fundamental. Formula 2:Allowed bandwidth = [ Fundamental ] x [ .0025 ] Fundamental (MHz) Duty CycleMeasured 20dB Bandwidth LIMIT Fundamental * .0025 28830%455 KHz720 KHz “50%470 KHz720 KHz “80%495 KHz720 KHz 31030%475 KHz775 KHz “50%455 KHz775 KHz “80%455 KHz775 KHz 39030%495 KHz975 KHz “50%495 KHz975 KHz “80%495 KHz975 KHz 41830%505 KHz1045 KHz “50%495 KHz1045 KHz “80%480 KHz1045 KHz This chart shows a typical measured bandwidth signal. Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483267 Exhibit K: Page 14 of 31 Restricted Bands: [15.205] The following frequency bands are restricted. Only spurious emissions are permitted at levels limited by 15.209: MHzMHzMHzGHz 0.090-0.110 0.490-0.510 2.1735-2.1905 4.125-4.128 4.17725-4.17775 4.20725-4.20775 6.215-6.218 6.26775-6.26825 6.31175-6.31225 8.291-8.294 8.362-8.366 8.37625-8.38675 8.41425-8.41475 12.29-12.293 12.51975-12.52025 12.57675-12.57725 13.36-13.41 16.42-16.423 16.69475-16.69525 16.80425-16.80475 25.5-25.67 37.5-38.25 73-74.6 74.8-75.2 108-121.94 123-138 149.9-150.05 156.52475-156.52525 156.7-156.9 162.0125-167.17 167.72-173.2 240-285 322-335.4 399.9-410 608-614 960-1240 1300-1427 1435-1626.5 1645.5-1646.5 1660-1710 1718.8-1722.2 2200-2300 2310-2390 2483.5-2500 2655-2900 3260-3267 3332-3339 3345.8-3358 3600-4400 4.5-5.25 5.35-5.46 7.25-7.75 8.025-8.5 9.0-9.2 9.3-9.5 10.6-12.7 13.25-13.4 14.47-14.5 15.35-16.2 17.7-21.4 22.01-23.12 23.6-24.0 31.2-31.8 36.43-36.5 Above 38.6 LIMIT @ 3meter: [15.209(a)] 30-88MHz100uV/m40dBuV/m 88-216MHz150uV/m43.5dBuV/m 216-960MHz200uV/m46dBuV/m above 960MHz500uV/m54dBuV/m Verification of no capability to tune within the Restricted Bands. The unit is designed capable of tuning from 285MHz to 420MHz. These frequencies include the restricted areas of 322-325.4MHz, 399.9-410MHz, and is near the restricted area of 240- 285MHz. The restricted bands are locked out by the Homelink® III firmware. An exercise which attempted to train the units into the restricted bands demonstrated how well the firmware functioned. The unit could not be trained any closer to the restricted band area than 1MHz outside the restricted bands edges. The spurious emissions observed in the restricted bands did not exceed the allowed limits for the restricted bands.

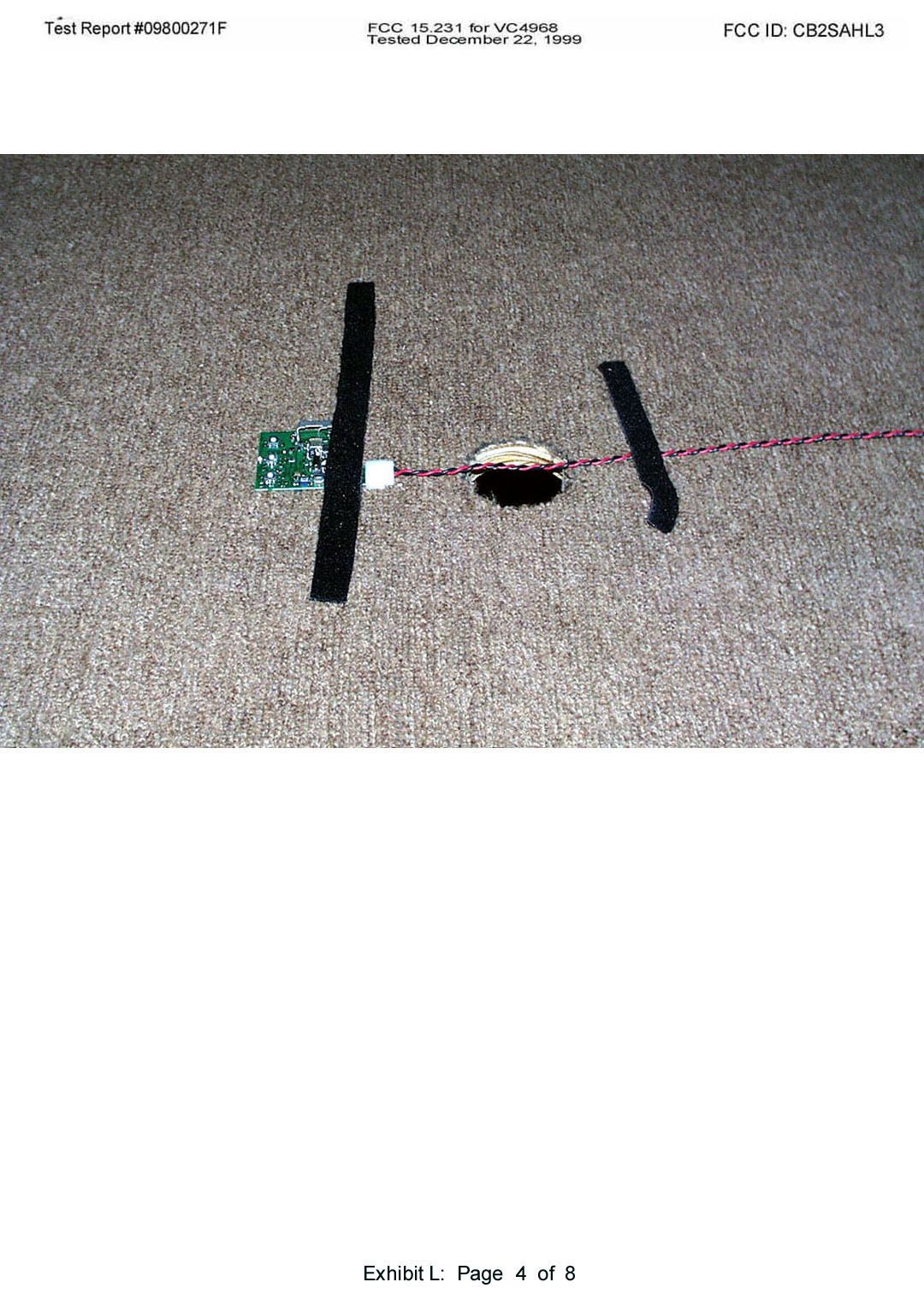

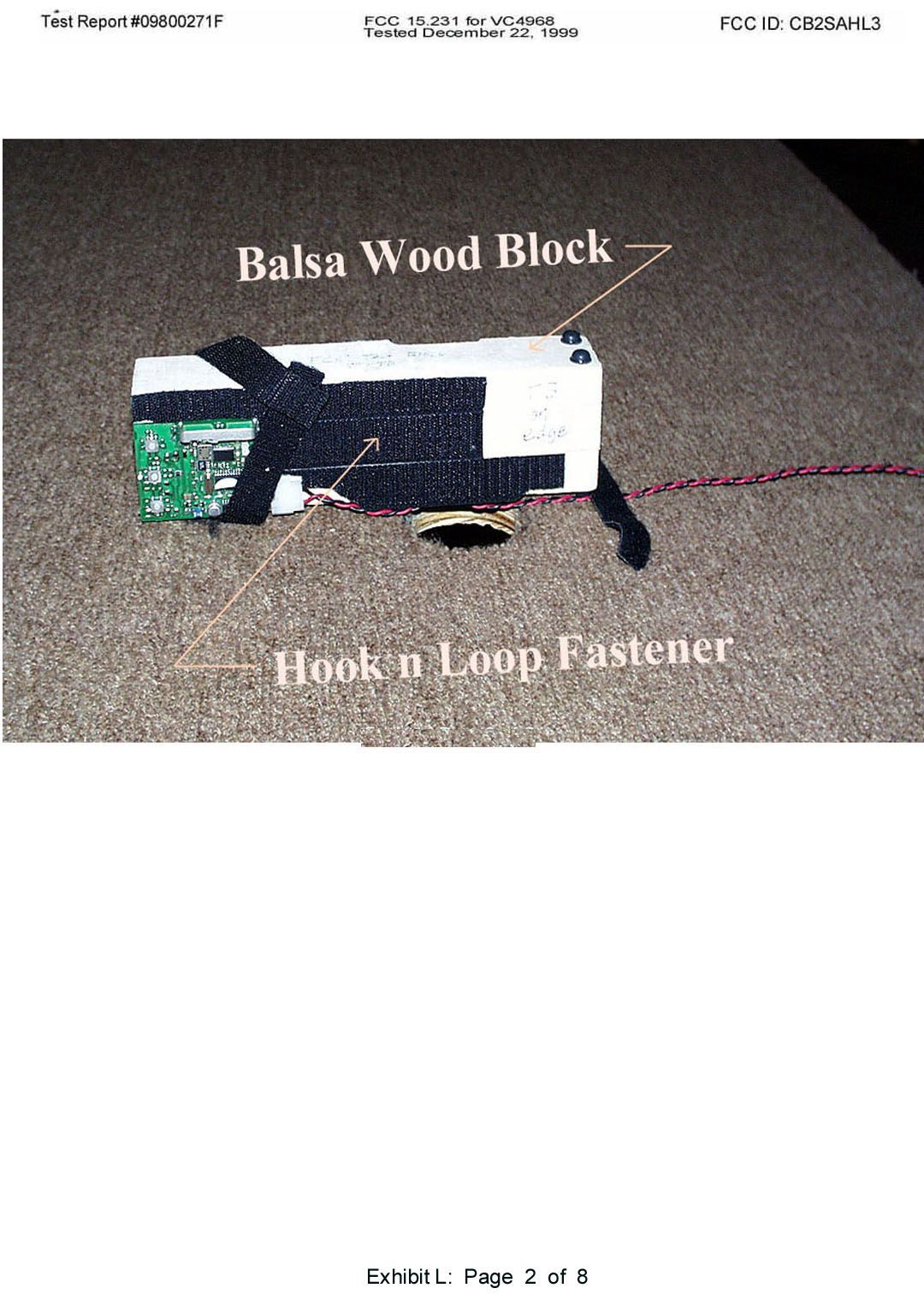

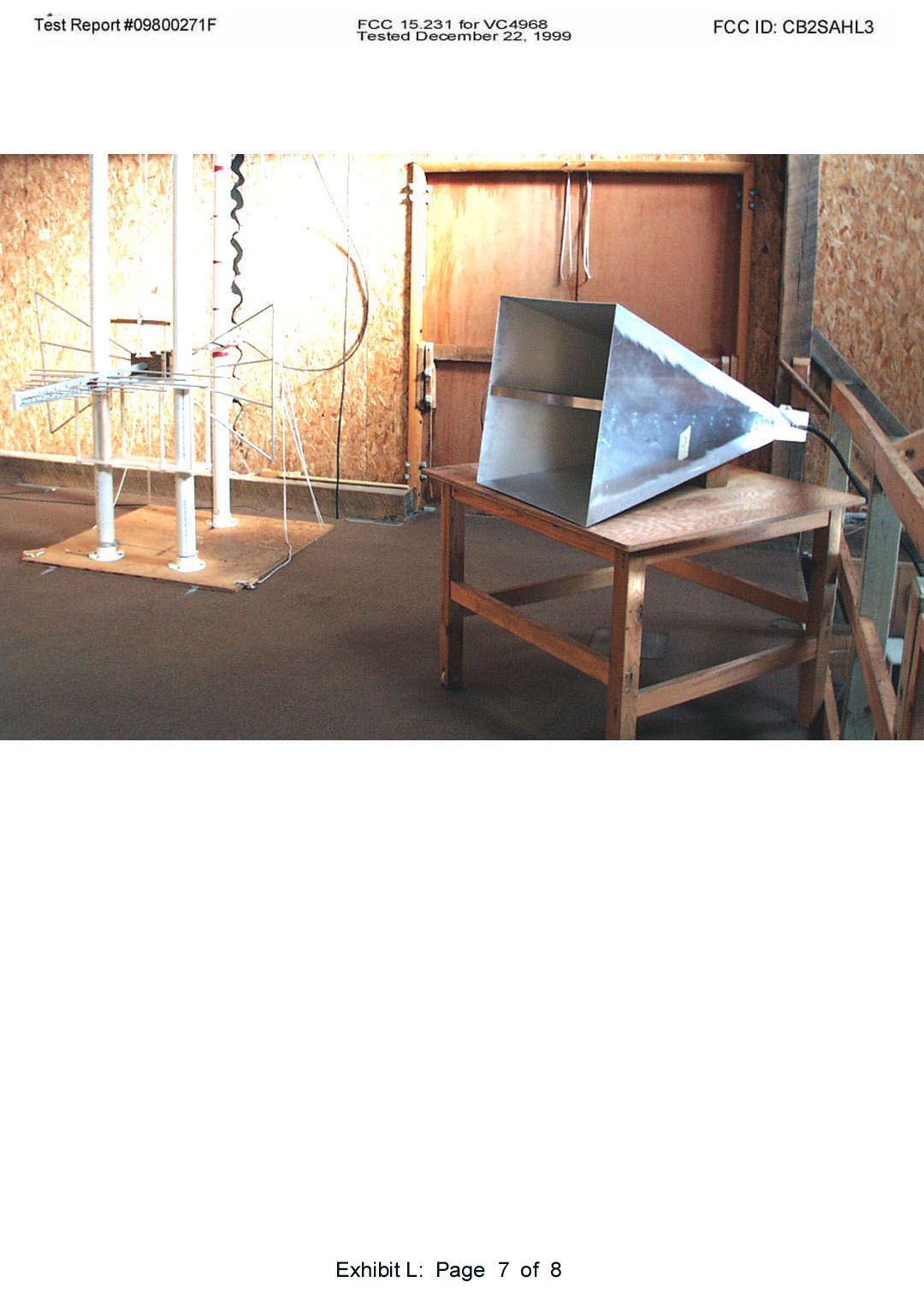

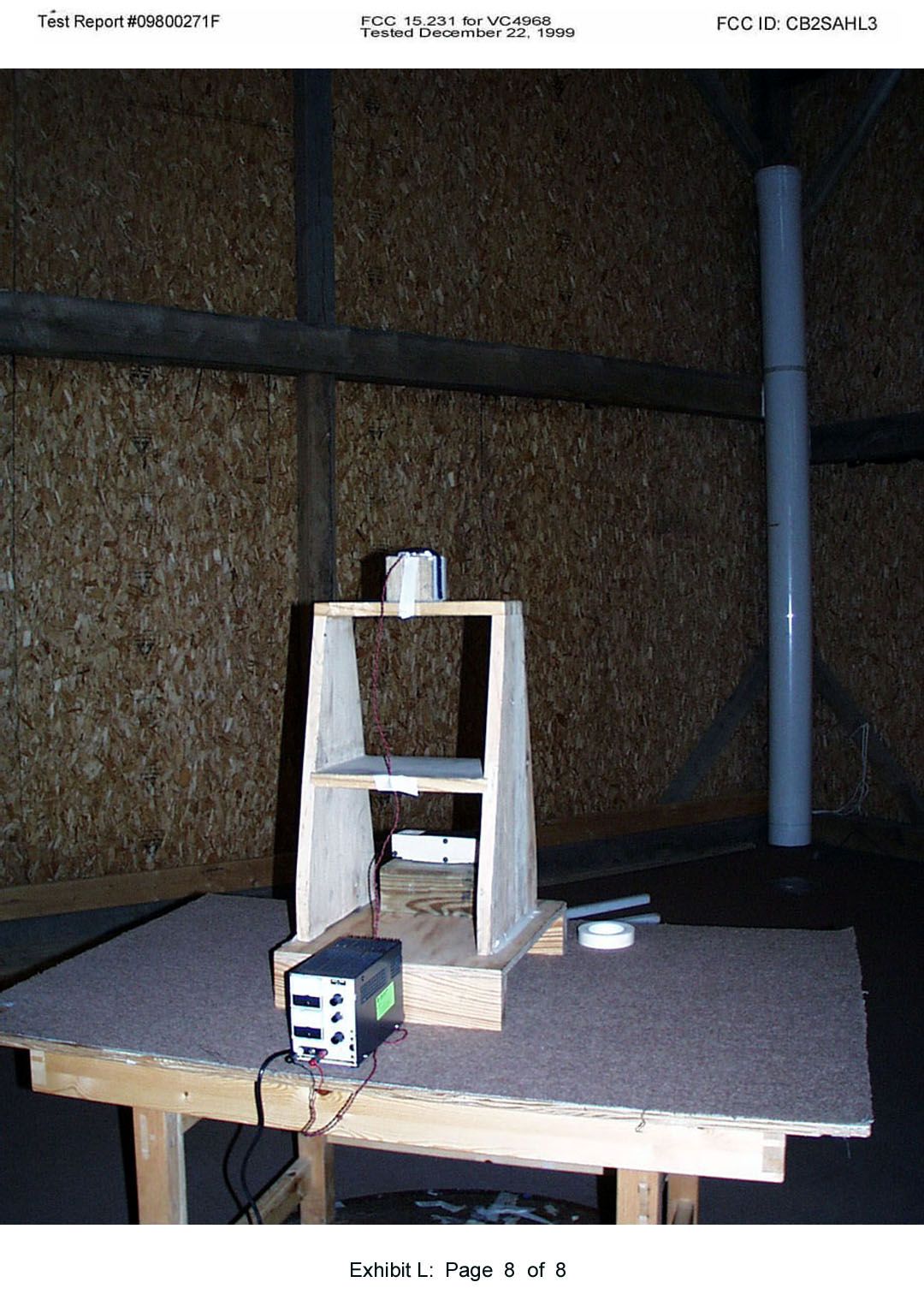

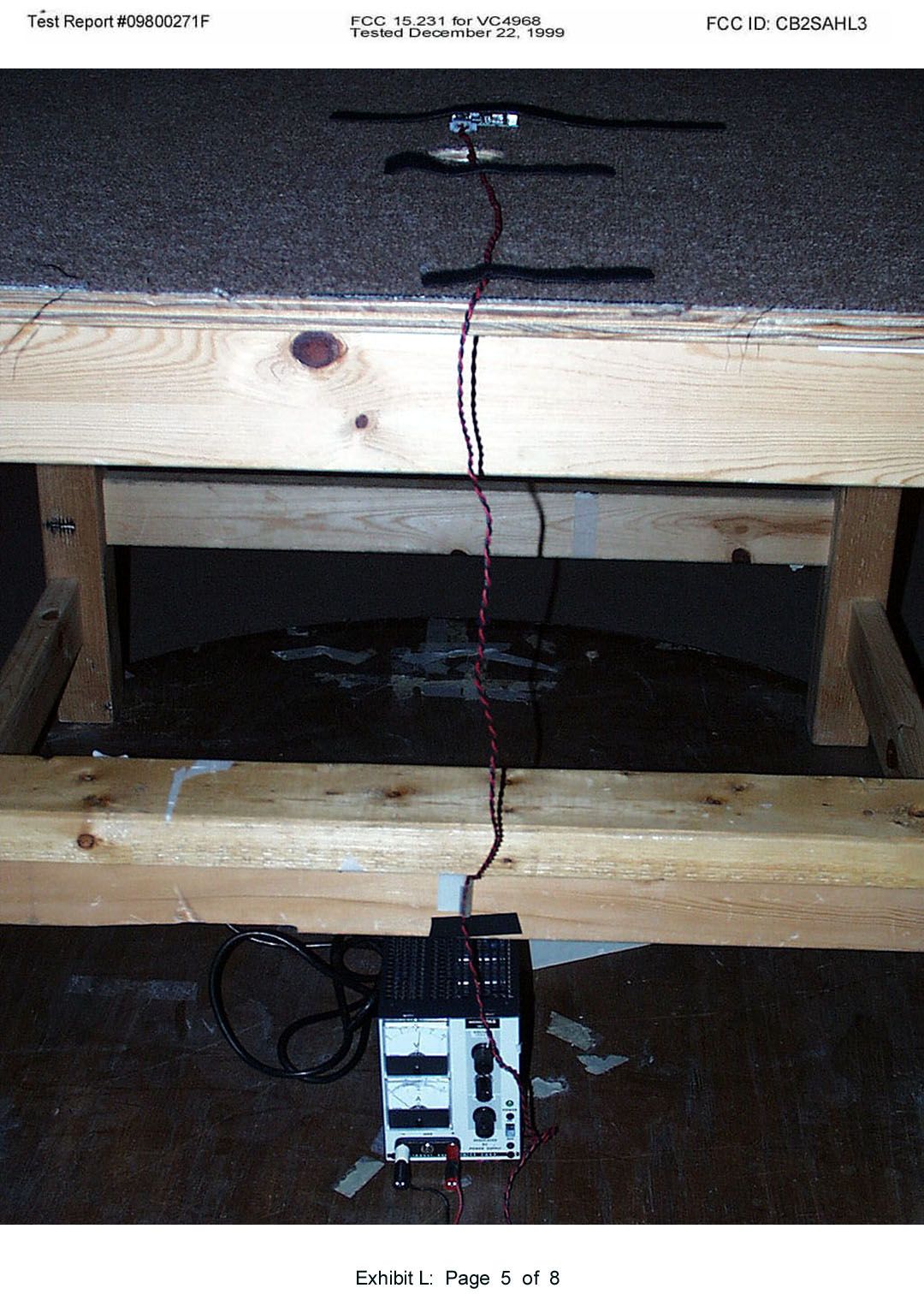

Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483269 Exhibit K: Page 21 of 31 Calculation of Field Strength of Tuning Pulses: [15.231(b)], 15.31(c)] The tuning pulses are generated each time the VC4968 is activated. The tuning pulse sequence is: During the first 100mSec of activation two pulses of a ‘coarse’ tune. During the second 100mSec of activation are nine pulses of a ‘fine’ tune. At approximately 200mSec after activation the encoded transmission begins. The signal levels of the tuning pulses were maximized by maximizing the signal levels of the pulse modulated transmission. The antenna height and turntable azimuth for maximum emission levels were adjusted while measuring the field strength of the pulse modulated transmissions. A typical tuning pulse sequence is presented in this figure below. To determine level of the tuning pulses for comparison to the limits, the following procedure was used. MEASUREMENT PROCEDURE: 1.The EUT was trained to each of the three test frequencies at 30% duty cycle of the 500Hz modulating pulse. 2.The HP8456A EMI Receiver was adjusted to a fundamental frequency and set at 0Hz span, with 1MHz IF Bandwidth. 3.The trigger level was adjusted to capture the pulses of interest. 4.The EUT was activated and a single trace recorded on the Receiver in order to capture the tuning pulses. 5.The captured trace was digitally stored. The stored data points (400 data points for a full screen trace) were then used in calculations to determine the levels of the pulses. Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483269 Exhibit K: Page 22 of 31 CALCULATION OF THE FIELD STRENGTH OF THE TUNING PULSES.[ 15.35(c) ] Pursuant to 47 CFR 15.35(c), the field strength is determined by averaging over ONE complete pulse train up to 100mSec, including blanking intervals. 1.First was determined the number of data points captured which represented 100mSec span of time. There are 400 data points stored for one complete trace. The scan rate of the HP8546A receiver was set to capture the tuning pulses. This rate was either 200mSec or 250mSec sweep speed. Therefore: Number of data points per 100mSec = 400 / 2 = 200 data points. or = 400 / 2.5 = 160 data points. 2.The AVERAGE field strength level within the 100mSec is then determined by dividing SUM of the levels (uV/m) of all data points by the number of data points. Formula 3: Average Field Intensity 200 Avg. F.I. = (1/200) * (Level n )uV/m n=1 or 160 Avg. F.I. = (1/160) * (Level n )uV/m n=1 The charts that follow are the reproduction of the coarse tune pulse traces using number of data points representing 100mSec sweep time from the screen display of the HP8546A EMI receiver. Coarse Tune Pulses, 288MHz fundam ental Linear Scale 0.00 5000.00 10000.00 15000.00 20000.00 25000.00 100.0110.0120.0130.0140.0150.0160.0170.0180.0190.0200.0 mSec Peak uV/m Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483269 Exhibit K: Page 23 of 31 Coarse Tune Pulses, 310MHz fundam ental Linear Scale 0.00 5000.00 10000.00 15000.00 20000.00 25000.00 100.0110.0120.0130.0140.0150.0160.0170.0180.0190.0200.0 mSec Peak uV/m Coarse Tune Pulses, 418MHz fundam ental Linear Scale 0.00 5000.00 10000.00 15000.00 20000.00 25000.00 100110120130140150160170180190200 mSec Peak uV/m Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483269 Exhibit K: Page 24 of 31 Fine Tune Pulses, 288MHz fundam ental Linear Scale 0.00 5000.00 10000.00 15000.00 20000.00 25000.00 90.0100.0110.0120.0130.0140.0150.0160.0170.0180.0190.0 mSec Peak uV/m Fine Tune Pulses, 310MHz fundam ental Linear Scale 0.00 5000.00 10000.00 15000.00 20000.00 25000.00 65758595105115125135145155165 mSec Peak uV/m Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483269 Exhibit K: Page 25 of 31 Fine Tune Pulses, 418MHz fundam ental Linear Scale 0.00 5000.00 10000.00 15000.00 20000.00 25000.00 95105115125135145155165175185195 mSec Peak uV/m The raw data used in calculating the average field intensity of the tuning pulses are presented in the Appendix of this test report. COARSE TUNE PULSES, Calculated average over 100mSec TX Freq. SUM of the levels of all data points in 100mSec span Number of Data points in 100mSec span Average SUM/N LIMITMARGIN (MHz)(uV/m)N(uV/m)(uV/m)(dB) 288341,70820017084917 9.2 310420,041420021025833 8.9 418800,078200400010333 8.2 FINE TUNE PULSES, Calculated average over 100mSec TX Freq. SUM of the levels of all data points in 100mSec span Number of Data points in 100mSec span Average SUM/N LIMITMARGIN (MHz)(uV/m)N(uV/m)(uV/m)(dB) 288130,6042006534917 17.5 310142,2522007115833 18.3 418210,380160131510333 17.9

Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483270 APPENDIX Exhibit K: Page 26 of 31 APPENDIX: Tune Pulses - Data Details COARSE TUNE Pulse; Fundamental Frequency = 288MHz mSec Level uV/mmSec Level uV/mmSec Level uV/mmSec Level uV/m 100.551.11125.550.41150.551.11175.51713.96 101.051.70126.056.56151.053.95176.01710.02 101.554.58126.52167.70151.547.59176.51706.08 102.048.70127.03780.07152.049.09177.053.27 102.557.94127.57055.05152.53303.70177.557.94 103.066.30128.013396.77153.04027.17178.051.23 103.550.12128.517478.33153.55223.96178.554.26 104.052.54129.017159.32154.07236.02179.047.21 104.550.70129.510814.34154.511415.63179.554.58 105.052.00130.07709.03155.017559.01180.049.49 105.551.23130.56316.84155.517478.33180.559.84 106.053.52131.05584.70156.013474.11181.051.88 106.553.09131.55058.25156.59332.54181.552.12 107.053.70132.04726.07157.06846.99182.046.56 107.555.78132.54430.98157.55407.54182.558.68 108.047.92133.04236.43158.04466.84183.052.12 108.551.46133.54092.61158.53832.66183.551.23 109.052.97134.03981.07159.03372.87184.057.48 109.548.31134.53926.45159.53033.89184.554.14 110.050.00135.03810.66160.02792.54185.053.39 110.556.43135.53741.11160.52594.18185.548.53 111.050.00136.03681.29161.02460.37186.053.95 111.552.12136.53622.43161.52344.23186.553.83 112.052.54137.03585.09162.02228.44187.053.83 112.548.31137.53564.51162.52128.14187.550.12 113.055.14138.03535.90163.02072.53188.049.20 113.553.52138.53507.52163.52030.02188.549.89 114.052.42139.03471.36164.01965.62189.058.28 114.559.16139.551.46164.51940.89189.553.95 115.049.72140.055.27165.01890.17190.047.59 115.553.83140.549.49165.51866.38190.551.70 116.048.14141.056.23166.01845.02191.061.31 116.552.12141.551.46166.51826.00191.548.03 117.050.41142.050.70167.01811.34192.057.81 117.548.53142.552.00167.51792.67192.554.39 118.049.60143.047.70168.01774.19193.046.18 118.553.09143.545.81168.51755.90193.545.08 119.049.20144.057.94169.01751.86194.047.59 119.552.54144.553.09169.51764.01194.553.70 120.049.49145.053.83170.01737.80195.050.29 120.558.88145.550.12170.51733.80195.547.70 121.055.78146.050.82171.01723.85196.048.92 121.547.92146.549.20171.51737.80196.549.09 122.058.08147.054.58172.01719.89197.052.42 122.548.03147.552.54172.51733.80197.559.84 123.055.53148.055.98173.01710.02198.048.81 123.552.12148.554.26173.51713.96198.551.46 124.050.82149.046.45174.01706.08199.056.69 124.550.00149.559.98174.51727.83199.558.08 125.051.88150.048.81175.01710.02200.054.58 Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483270 APPENDIX Exhibit K: Page 27 of 31 COARSE TUNE Pulse; Fundamental Frequency = 310MHz mSec Level uV/mmSec Level uV/mmSec Level uV/mmSec Level uV/m 100.554.76125.57762.47150.515488.17175.551.76 101.050.52126.06918.31151.014354.89176.053.77 101.557.21126.56309.57151.511694.99176.561.09 102.054.33127.05861.38152.09311.08177.057.54 102.553.77127.55559.04152.57516.23177.552.48 103.054.76128.05327.21153.06412.10178.054.33 103.554.20128.55116.82153.55591.14178.551.11 104.057.08129.04943.11154.05017.65179.064.79 104.560.33129.54797.33154.54597.27179.551.76 105.053.46130.04693.53155.04246.20180.048.98 105.558.48130.54581.42155.54004.05180.552.60 106.064.79131.04508.17156.03775.72181.056.75 106.557.21131.54425.88156.53626.60181.550.82 107.065.16132.04370.19157.03503.48182.054.08 107.556.95132.54270.71157.53361.24182.552.18 108.053.21133.04370.19158.03280.95183.064.27 108.552.60133.54270.71158.53195.21183.563.97 109.057.68134.04226.69159.03118.89184.050.70 109.551.23134.559.57159.53076.10184.557.21 110.060.46135.050.82160.03013.01185.054.76 110.550.18135.552.36160.52995.71185.551.76 111.052.60136.054.95161.02937.65186.051.52 111.557.41136.549.09161.52920.79186.554.64 112.056.04137.048.19162.02897.34187.051.23 112.559.84137.550.82162.52874.09187.548.98 113.064.27138.050.18163.02867.48188.062.95 113.560.12138.551.52163.52851.02188.561.09 114.061.09139.049.60164.02828.13189.051.64 114.551.76139.556.95164.52811.90189.561.59 115.058.14140.049.77165.02798.98190.054.51 115.556.04140.557.41165.52811.90190.554.51 116.055.46141.052.18166.02782.92191.061.94 116.560.33141.553.03166.52782.92191.551.35 117.054.76142.063.10167.02792.54192.053.89 117.558.34142.549.60167.52792.54192.554.20 118.062.95143.052.18168.02782.92193.051.35 118.560.33143.554.33168.52770.13193.551.23 119.061.09144.053.64169.02760.58194.057.54 119.561.31144.555.08169.52776.51194.560.95 120.058.95145.062.45170.02760.58195.055.59 120.554.95145.560.33170.52754.23195.553.03 121.02561.53146.055.91171.02754.23196.056.62 121.54092.61146.549.09171.52760.58196.556.75 122.06501.30147.053.33172.052.78197.060.12 122.510256.52147.53859.22172.550.52197.550.18 123.014740.09148.04808.39173.060.95198.060.12 123.515613.49148.56039.49173.561.59198.555.59 124.014588.14149.08035.26174.056.49199.057.41 124.511324.00149.511389.38174.558.48199.554.76 125.09162.20150.015170.50175.054.64200.060.95 Test report #09800271FFCC 15.231 for VC4968FCC ID: CB2SAHL3 Tested December 22, 1999 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-701483270 APPENDIX Exhibit K: Page 28 of 31 COARSE TUNE Pulse; Fundamental Frequency = 418MHz mSec Level uV/mmSec Level uV/mmSec Level uV/mmSec Level uV/m 100.572.03125.513243.42150.58250.87175.576.47 101.083.18126.013106.90151.07673.61176.076.82 101.583.56126.513031.67151.57244.36176.5101.04 102.076.21127.012897.34152.06862.78177.098.97 102.573.20127.512823.31152.56606.93177.579.07 103.076.82128.012720.38153.06397.35178.086.70 103.588.31128.512764.39153.56230.17178.585.02 104.089.95129.012661.93154.06116.46179.086.40 104.574.82129.512560.30154.55984.12179.592.36 105.082.51130.070.96155.05936.08180.085.31 105.583.18130.568.16155.55780.96180.581.19 106.090.26131.069.42156.05714.79181.076.03 106.580.54131.573.62156.55668.92181.580.08 107.078.80132.066.22157.05610.48182.082.04 107.585.31132.568.16157.5555…
