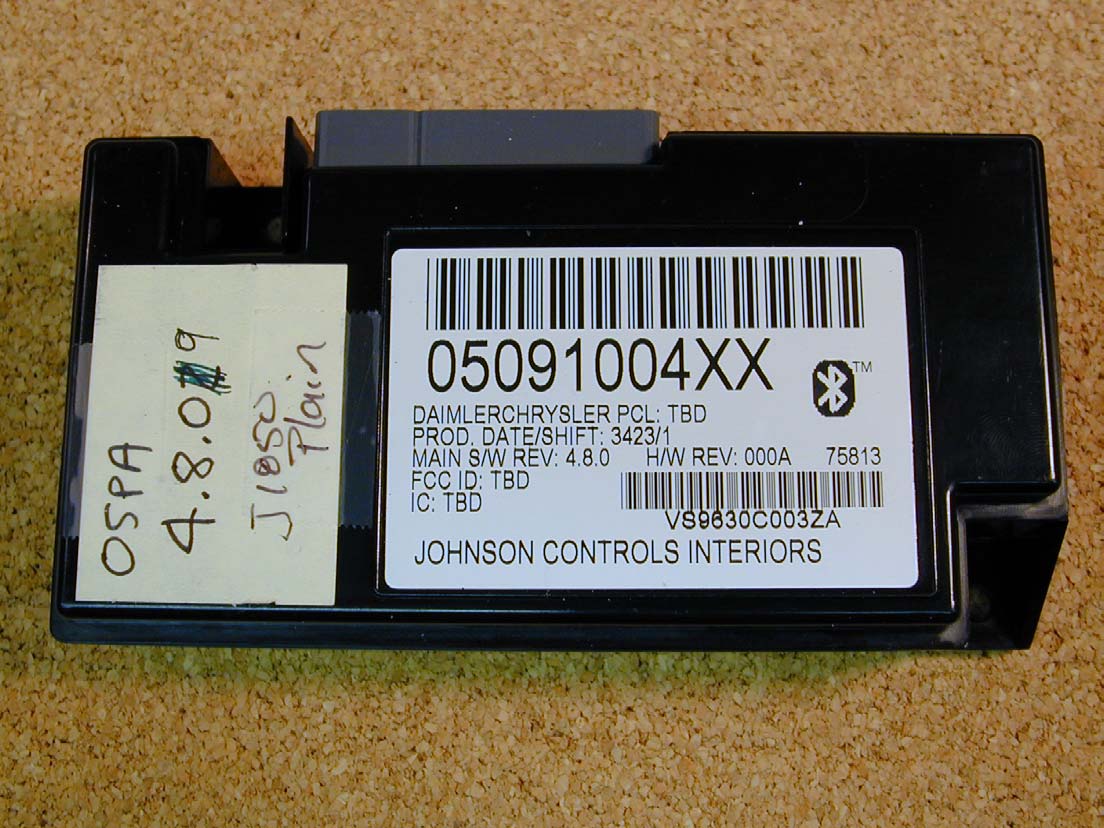

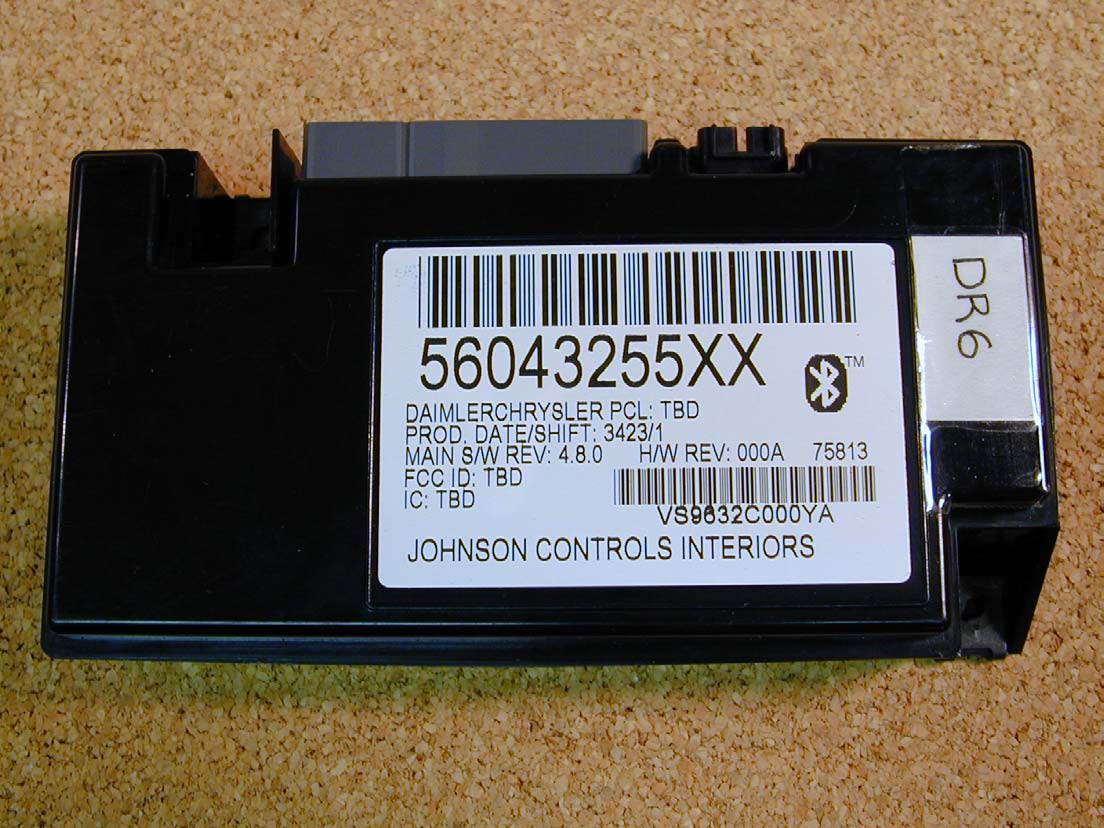

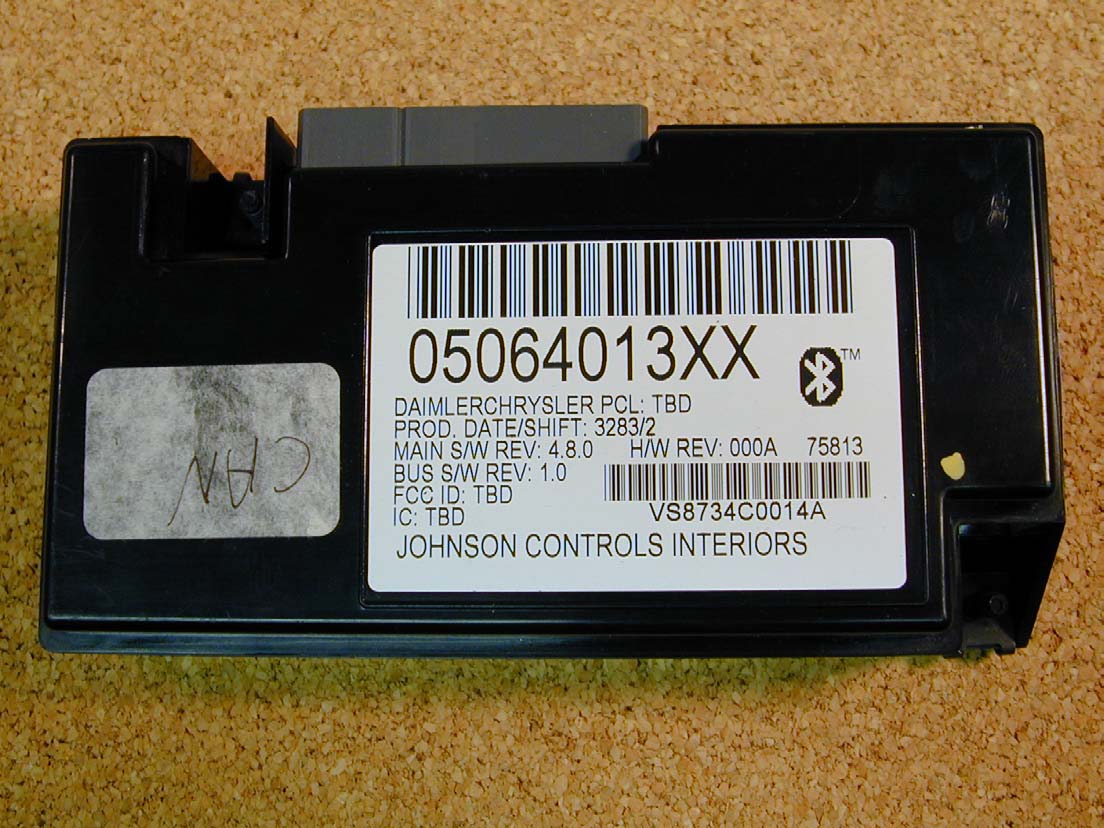

CB2UCON2Automotive Bluetooth Hands-Free Interface

Re: Certification for JCI CB2UCON2 Transmitter Model: CB2UCON2 FCC ID: CB2UCON2 IC: 279B-UCON2 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: CB2UCON2 IC: 279B-UCON2 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

MEMORY BUS JTAG WDOG RESET GPIO OSC AN[0:3] USB I 2 S SCIF0 SCIF1 AC97 SCIF2 CAN 2.0 SPI RENESAS SH7760 SDRAM 32MB 2x128Mb FLASH 32MB 1x256Mb ENET/ JTAG I/F CONN. ADDRESS BUS DATA BUS XTAL 16.666 MHz DEBUG COM PORT 115. 2kbps ENET/ JTAG ASSY AZ32A MCU 93.75kbps BCM2035 Bluetooth BB/RF 1.05Mbps J1850 LINK CAN 2.0 XCVR J1850 IDR ANT. AC97 CODEC A C - L I N K MIC IN AUDIO MUX A/D MUX AN0 L/R CH OUT PHONE/VR SW SPARE A/D MIC(-) A/D MIC2 A/D MIC1 A/D DIF OUT(+) A/D DIF OUT(-) A/D RIGHT CH A/D LEFT CH A/D AN2 AN1 AN3 DIGITAL SWITCH INPUT REVERSE LOCKOUT LOW SIDE DRIVER HSD MIRROR POWER PWM INPUT RESET SuperVisor MIC1 IN MIC2 IN L/R CH IN L/R CH OUT VAA: 12V Unregulated VBB: 12V Unregulated Rvrs Protect POWER FET SWITCH VEE: 12V Unregulated Rvrs Protect (AUDIO) VCC: 5V Regulated Linear VDD 3D: 3.3V Regulated SMPS VHH: 1.5V Regulated SMPS VGG: 1.8V Regulated LDO VDD: 1.8V / 3.3V Selectable BATTERY(+) BATTERY(-) IGNITION / POWER HOLD IGNITION PWR HOLD BUS WAKEUP IGN SENSE POWER ENABLE ,&(/$1'0<38//$+($'%/2&.',$*5$0 EV7 / DV BUILD REIER,J. 7-JULY-2003 VFF: 12V Unregulated Rvrs Protect

Re: Certification for JCI CB2UCON2 Transmitter Model: CB2UCON2 FCC ID: CB2UCON2 IC: 279B-UCON2 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for JCI CB2UCON2 Transmitter Model: CB2UCON2 FCC ID: CB2UCON2 IC: 279B-UCON2 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, JCI requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) JCI has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan March 23, 2004 Re: Certification for JCI CB2UCON2 Transmitter Model: CB2UCON2 FCC ID: CB2UCON2 IC: 279B-UCON2 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for JCI CB2UCON2 Transmitter Model: CB2UCON2 FCC ID: CB2UCON2 IC: 279B-UCON2 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Johnson Controls Interiors L.L.C. One Prince Center Holland, MI 49423 Jeremy Bos Tel: (616) 394-6076 Fax: (616) 394-6100 It will be manufactured by: Johnson Controls Interiors L.L.C. One Prince Center Holland, MI 49423 Jeremy Bos Tel: (616) 394-6076 Fax: (616) 394-6100 Canadian Contact: Johnson Controls Lakeshore Plant 477 Jutras Dr. South Tecumseh, ON N8N 5C4 Jim Komar [email protected] Tel: (519) 727-2341 Fax: (51() 727-4750

RE: Johnson Controls Interiors L.L.C. FCC ID: CB2UCONN2 The following is in response to comments made on the above application. 1) The test report states that the DUT antenna was rotated about all possible ways and the maximum emissions recorded. Please note that spurious emissions are not always radiated strictly by the antenna. Many times they may radiate off the device/chassis. Was the device itself also rotates sufficiently to ensure worse case emissions were determined. Note that ANSI C63.4 mentions rotating at 22.5 degree rotations when a turntable is not present. The antenna is part of the DUT PCB, and thus both were rotated together. See internal photographs. 2) FYI......Please note that it is acceptable for Bluetooth to be > 20 dB for peak to average emissions (sections 6.5). However, because of the nature of the transmissions, it is considered a pulsed emissions that should be calculated not measured. Additionally, even if average measurements were applicable, the VBW must be >= 1/Ton time, or > 335 Hz in this case. Please adjust this section of the report as necessary. Please note that the Duty Cycle presented in the report was based on your measurements. However Bluetooth has different packet lengths that may be used in modes with longer packets. The theory of operation for Bluetooth states that their may be 1, 3, or 5 slots used per transmit depending on the mode of operation. For a DH1 packet the TX is on 0.625 us per 49 mS per channel, while for a DH5 packet the TX is on 0.625 * 5 per 247 ms per channel. These duty cycles equal the following: 20 log (.625/49) = 37.9 dB or 20 log (3.125/100) = -30 dB. All are greater than the 20 dB difference between the peak and average limits. In a previous filing we were asked to provide measured verification that the DUT duty factor is greater than 20 dB below the peak emission, even though the Bluetooth protocol in its design has a duty factor greater than 20 dB.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 30, 2004 RE: Johnson Controls Interiors L.L.C. FCC ID: CB2UCON2 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The test report states that the DUT antenna was rotated about all possible ways and the maximum emissions recorded. Please note that spurious emissions are not always radiated strictly by the antenna. Many times they may radiate off the device/chassis. Was the device itself also rotates sufficiently to ensure worse case emissions were determined. Note that ANSI C63.4 mentions rotating at 22.5 degree rotations when a turntable is not present. 2) FYI......Please note that it is acceptable for Bluetooth to be > 20 dB for peak to average emissions (sections 6.5). However, because of the nature of the transmissions, it is considered a pulsed emissions that should be calculated not measured. Additionally, even if average measurements were applicable, the VBW must be >= 1/Ton time, or > 335 Hz in this case. Please adjust this section of the report as necessary. Please note that the Duty Cycle presented in the report was based on your measurements. However Bluetooth has different packet lengths that may be used in modes with longer packets. The theory of operation for Bluetooth states that their may be 1, 3, or 5 slots used per transmit depending on the mode of operation. For a DH1 packet the TX is on 0.625 us per 49 mS per channel, while for a DH5 packet the TX is on 0.625 * 5 per 247 ms per channel. These duty cycles equal the following: 20 log (.625/49) = 37.9 dB or 20 log (3.125/100) = -30 dB. All are greater than the 20 dB difference between the peak and average limits. Timothy R. Johnson Examining Engineer Direct Phone: 404-414-8071 mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

BLUETOOTH APPROVALS The following exhibit indicates the FCC Spread Spectrum requirements in Section 15.247 for devices meeting the Bluetooth Specifications in the 2.4 GHz band as of February 2001 operating in the USA. The purpose of this exhibit is to help expedite the approval process for Bluetooth devices. This exhibit provides items that vary for each device and also provides a list of items that are common to Bluetooth devices that explains the remaining requirements. The list of common items can be submitted for each application for equipment authorization. This exhibit only specifies requirements in Section 15.247, requirements in other rule Sections for intentional radiators such as in Section 15.203 or 15.207 must be also be addressed. For each individual device, the following items, 1-7 will vary from one device to another and must be submitted. 1) The occupied bandwidth in Section 15.247(a)(1)(ii). 2) Conducted output power specified in Section 15.247(b)(1). 3) EIRP limit in Section 15.247(b)(3). 4) RF safety requirement in Section 15.247(b)(4) 5) Spurious emission limits in Section 15.247©. 6) Processing gain and requirements for Hybrids in Section 15.247(f) in the acquisition mode. 7) Power spectral density requirement in Section 15.247(f) in the acquisition mode. For all devices, the following items, 1-12, are common to all Bluetooth devices and will not vary from one device to another. This list can be copied into the filing. 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason, the RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: The maximum frequency of the device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification must not be supported by the device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronization with other units, only the offsets are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions, the Bluetooth system has the following behavior: The first connection between the two devices is established, a hopping sequence is generated. For transmitting the wanted data, the complete hopping sequence is not used and the connection ends. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth, synchronization and repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection, one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multi-slot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing is according to the packet type of the connection. Also, the slave of the connection uses these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency …

Text truncated - open the document above for the full version.

BlueConnect Theory of Operation The BlueConnect module is a hands-free interface to Bluetooth enabled devices. By connecting to the vehicle bus and radio, the user is able to interact with a fully vehicle integrated system from the OEM. A voice recognition engine allows the user to control the system throughout a variety of functions. Interaction with the voice recognizer is accomplished via a microphone mounted in a manufacturer-chosen location. Further user interface (switches and voice recognizer) details are specific to the manufacturer’s preference. The primary processor of the system runs the voice recognizer as well as general function manager. The general function manager calls other functions as necessary based upon feedback from the vehicle bus, the user (via voice recognition and/or the button interface), or Bluetooth and the connected Bluetooth device(s). Memory, composed of separate RAM and FLASH, allow for reprogramming and upgrades of the system as new features are developed. The memory is also used for voice recognition libraries and other Bluetooth devices that have been paired to the system. Other user-specific features and configurations are saved here as well. A Bluetooth link to paired devices is used for the audio gateway through the system. By using the Bluetooth protocol, the module is able to connect to several different devices and route the audio out to the vehicle radio. The interface to the vehicle radio is configurable for single-ended audio, differential audio, or stereo versions of either configuration.

Potential Health Hazard EM Radiation Level It has been determined that the DUT output power is less than 10 mW (10 dBm), and given the low gain of the PCB antenna (~1 dBi) , no health hazard exists beyond the physical dimensions of the DUT. The following table summarizes the minimum operating distance for this device as calculated from FCC OET Bulletin 65. Table 6.3 Potential Health Hazard Radiation Level Ant. Ant.Gain (dB) Po (mW) EIRP (mW) R (cm) S(mW/cm 2 ) @ 20cm PCB 1 2.78 3.50 0.53 0.0007 The following equations were used in calculating the operating distance (R). 10 )( 10)()( dBGain mWPomWEIRP⋅= and )/(4 )( 2 cmmWS mWEIRP R ⋅Π⋅ = , S = 1mW/cm 2

1 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Johnson Controls Model: CB2UCON2 Report No. 203 March 22, 2004 Copyright © 2004 For: Johnson Controls Interiors L.L.C. One Prince Center Holland, MI 49423 Contact: Jeremy Bos Tel: (616) 394-6076 Fax: (616) 394-6100 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Joseph D. Brunett Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, Part 15.247, and with Industry Canada (IC) Regulations, RSS-210, Part 6.2.2, were performed on Johnson Controls model CB2UCON2 frequency hopping spread spectrum (FHSS) transmitter. The DUT is subject to the Rules and Regulations as a transmitter. In testing competed on March 11, 2004, the radiated emissions in restricted bands were met by 12.1 dB. The AC line conducted emissions tests do not apply, since the device is powered from a 12 VDC system. The DUT is exempt as a digital device since it is used in a transportation vehicle. All other testing indicates that the Johnson Controls model CB2UCON2 meets the limitations set forth by the FCC and IC for a 2.4 GHz FHSS transmitter. 2 1. Introduction Johnson Controls model CB2UCON2 was tested for compliance with FCC Regulations, Part 15, Subpart C, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Peak Power Meter Pacific Instruments 1018B Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn X S/A, Model SGH-2.6 C-Band Std. Gain Horn X University of Michigan, NRL design XN-Band Std. Gain Horn X University of Michigan, NRL design X-Band Std. Gain Horn X S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) X Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) X FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) X FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) X Avantek, AFT-12665 Amplifier (6-16 GHz) X Trek Amplifier (16-26 GHz) X Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B 3 3. Configuration and Identification of Device Under Test The DUT is a frequency hopping spread spectrum (FHSS) transmitter operating in 2400 - 2483.5 MHz band. The DUT is 5 x 1.5 x 3.5 inches, and connects to a peripheral laptop computer via a serial interface card for testing purposes. The system has been designed to operate with 79 channels spaced 1 MHz apart, between 2402 MHz and 2480 MHz. The DUT has only one antenna built into the PCB. Three parts have been tested. All contain identical RF sections and differ only in the communications bus (CAN, J1850 General, J1850 Differential). The DUT was designed and manufactured by Johnson Controls Interiors L.L.C., One Prince Center, Holland, MI 49423. It is identified as: Johnson Controls Bluetooth Module Model: CB2UCON2 SN: D2C00GDA, BZC00APA, FZC0023A FCC ID: CB2UCON2 IC: 279B-UCON2 Peripheral Equipment: Laptop Computer Toshiba Satellite SN: X3058741H Model: A10-S1291 PN: PSA10U-0ZH6M3 Serial/USB Adaptor SN: Proto1 In addition to a standard unit, a modified unit was provided by the manufacturer which had the internal antenna disabled and a SMA connector attached for conducted antenna measurement purposes. 3.1 EMI Relevant Modifications No modifications were made to the DUT by this laboratory during testing. 4 4. Emission Limits 4.1 Radiated Emission Limits Since the DUT is a spread spectrum device (15.247, 2.4 GHz), the radiated emissions are subject to emissions in restricted bands (15.205). The applicable frequencies, through ten harmonics, are given below in Table 4.1. Emission limits from digital circuitry are specified in Table 4.2. Table 4.1 Radiated Emission Limits (FCC:15.205; IC:RSS-210, 6.3) - Transmitter Fundamental Spurious* Frequency Ave. E lim (3m) Ave. E lim (3m) (MHz) (μV/m) dB (μV/m) (μV/m) dB (μV/m) 24…
