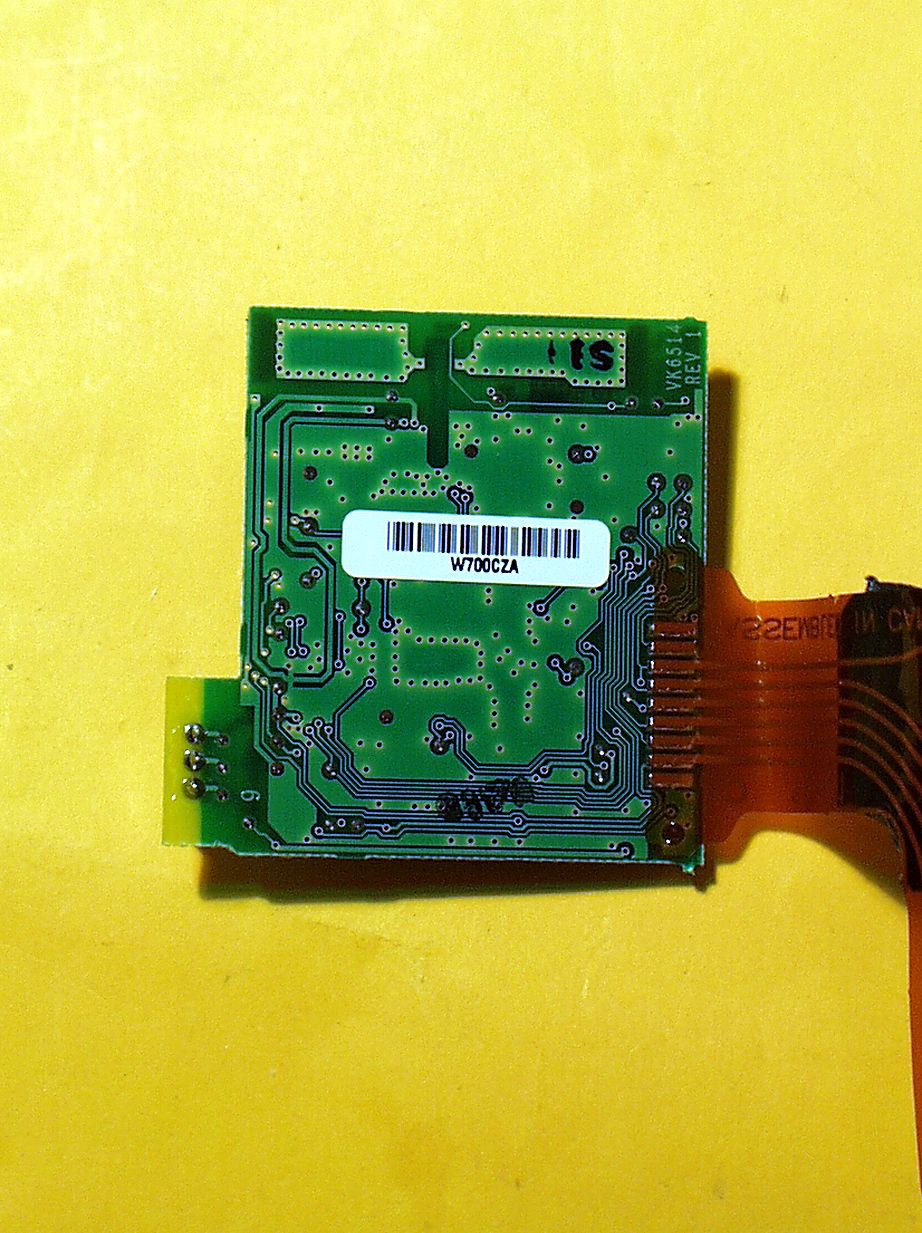

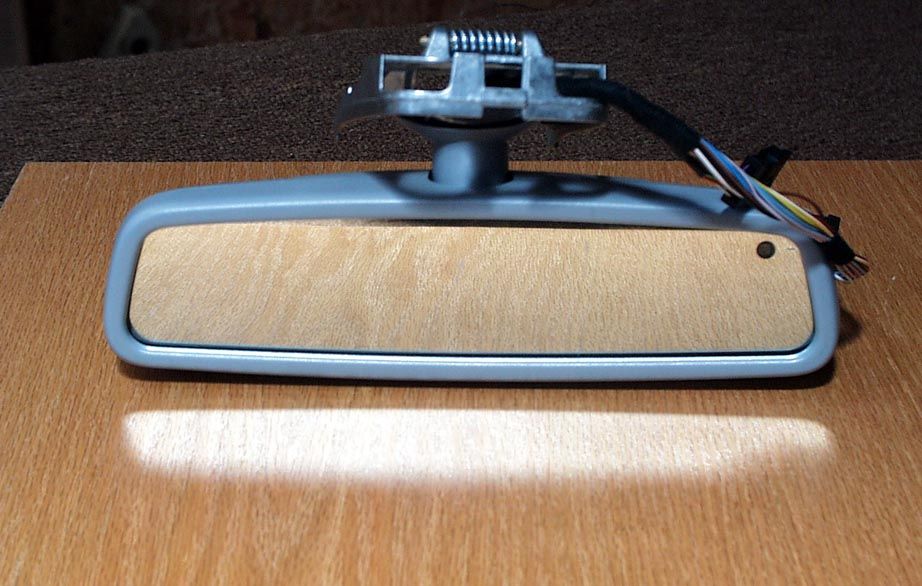

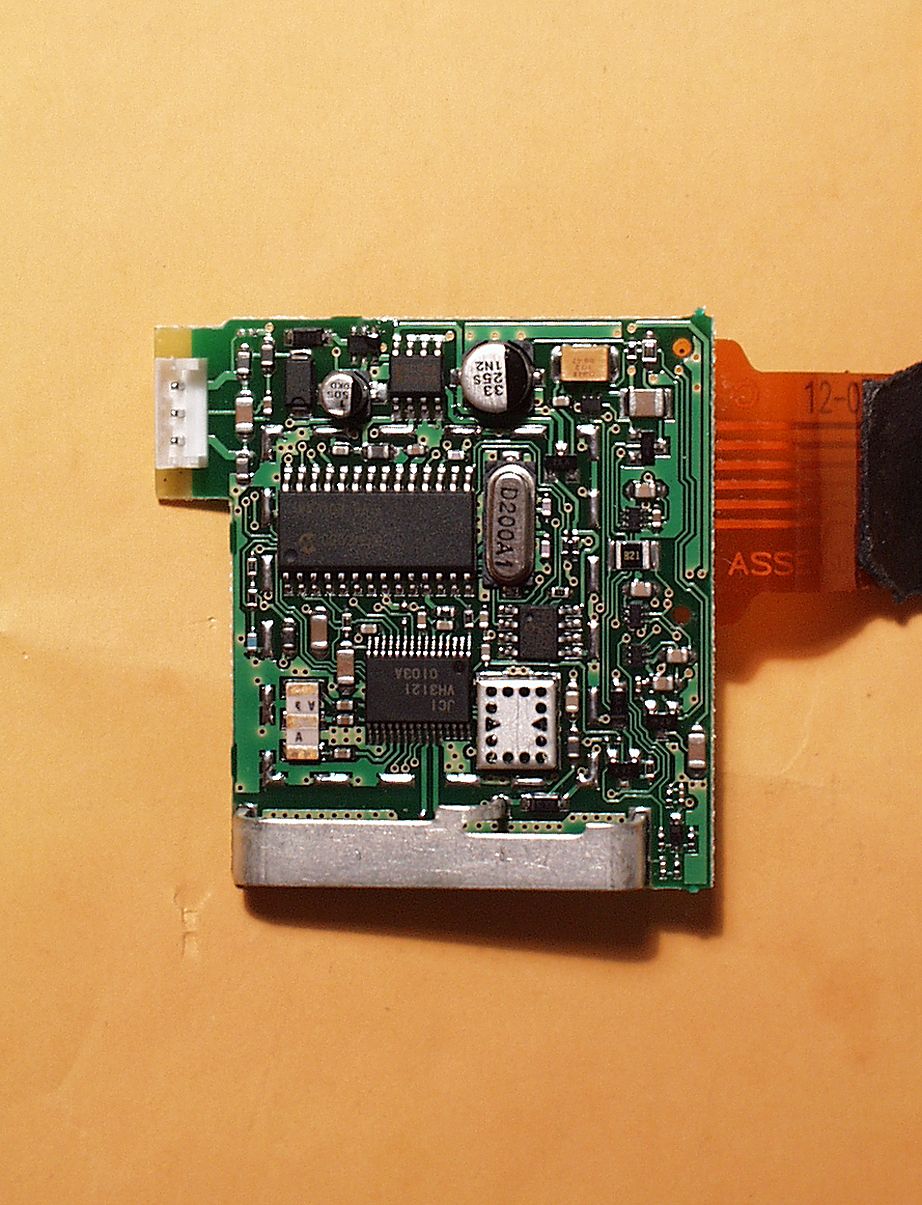

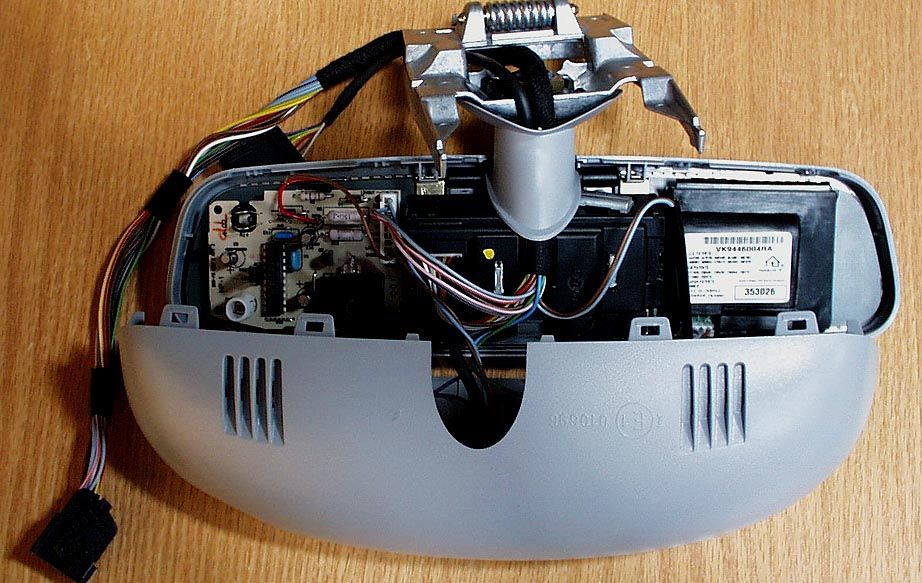

CB2W211HL3Universal Garage Door Opener

AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014245299 Cover / Confidentiality Request Letter: Page 1 of 2 NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer ELITE Electronic EngineeringMay 15, 2002 TCB Services 1516 Centre Circle Downers Grove, IL 60515-1082 Re: Application for Certification of Johnson Controls Transmitter under 47CFR 15.231. FCC ID: CB2W211HL3 Gentlemen: On behalf of the applicant, Johnson Controls Interiors, LLC, please find attached the submittal materials for certification of the JCI Universal Garage Door Opener, Model CB2W211HL3 This model, a part of their Homelink® III series, is capable of learning the current garage door transmit frequencies from 288MHz through 420MHz except in the forbidden frequency regions. The complete List of the Exhibits in this submittal package appears on Page 2 of this cover letter. Johnson Controls Interiors has invested considerable resources into developing this Homelink® series. Having the listed exhibits available to ‘competition’ would negate the advantage achieved in developing this product. Since their Homelink® series transmitters will be a major product line for Johnson Controls Interiors, not protecting the details of the design will result in a financial hardship for the company. Pursuant to 47CRF 0.459, Johnson Controls Interiors requests that these listed exhibits be held confidential. Circuit Block Diagrams page 2 of Exhibit B Theory/Description of Operation, page 3 of Exhibit B Schematics page 5 of Exhibit B Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Ted Chaffee, Technical Lab Manager Narte Certified Engineer, #EMC-002025-NE tel/fax: 616. 424.7014 email: [email protected], or [email protected] Test report #0100437FFCC 15.231 for CB2W211HL3FCC ID: CB2W211HL3 Tested July 6, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014245299 Cover / Confidentiality Request Letter: Page 2 of 2 Table of Contents Cover Letter / Table of ContentsTotal Pages 2 EXHIBIT A: ID Label / Location [2.925,2.926,2.1033(b2,7),15.19(a3)] Total Pages 2 EXHIBIT B: Description of Product [2.1033(b6)] Total Pages 1 Circuit Block Diagram [2.1033(b5)] Total Pages 1 Description of Operation [2.1033(b4)] Total Pages 1 Schematics [2.1033(b5)] Transmitter PCB schematicEXB_Schematic.docTotal Pages 1 EXHIBIT C: Product photos Total Pages 10 Exterior views [2.1033(b7)] Three photos EXC_Mirrorfrnt.jpg, EXC_Mirrorrear.jpg, EXC_Mirrorbtm.jpg, :Interior & Printed Circuit Boards [2.1033(b7)] Seven photos EXC_InMirror.jpg, EXC_HL3PCBtop.jpg, EXC_HL3PCBbtm.jpg, EXC_EUTin.jpg, EXC_EUTbtm.jpg, EXC_EUTtop.jpg EXHIBIT D: User’s Manual EXD_OEMUserManual.docTotal Pages 4 EXHIBIT E: Setup photos [2.1033(b8)] Four photosTotal Pages 5 EXE_pretest.jpg, EXE_side.jpg, EXE_end.jpg, EXE_flat.jpg Report of Measurements [2.1033(b6)] Total Pages 27 Table of ContentsPage 2 Manufacturer/Applicant [2.1033(b1)]Page 4 Measurement/Test Facility & EquipmentPage 4 Configuration/Setup [2.1033(b8)]Page 5 Test Standards / Methods Used [2.1033(b6)] Page 7 Test Methodology [2.1033(b6)]Page 7 Test Data [2.1033(b6)] Summary of ResultsPage 6 Level vs Supply Voltage [15.31(e)]Page 13 Occupied BandwidthPage 14 Radiated Field Strength [15.231(b)] Page 16 Misc. EXHIBIT: Parts List/Tune-up Information [2.1033(b5] Total Pages 1 RF Exposure Information [2.1093(c)]Total Pages 1

Test report #0100437FFCC 15.231 for CB2W211HL3FCC ID: CB2W211HL3 Tested july 6, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014245291 Exhibit A: Page 1 of 2 EXHIBIT A: E QUIPMENT L ABEL [2.925, 2.926, 2.1033( B 2,7), 15.19( A 3)] LABEL EXAMPLE For the label print, page 2 of this exhibit, Refer to picture file “EXA_LabelPrint.doc” The FCC Identifier assigned to the EUT is FCC ID: CB2W211HL3. This number will be imprinted on the 1.0”x1.5” high temperature polyester matte white label. Because of the small size of the device and because the installation is inside a portion of the automobile, the following statements will appear in the user’s manual. Refer to Exhibit D for the entire text of the user’s manual. “This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and IC rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.” LABEL LOCATION The label will be permanently affixed to the cover of the plastic housing of the transmit PCB.

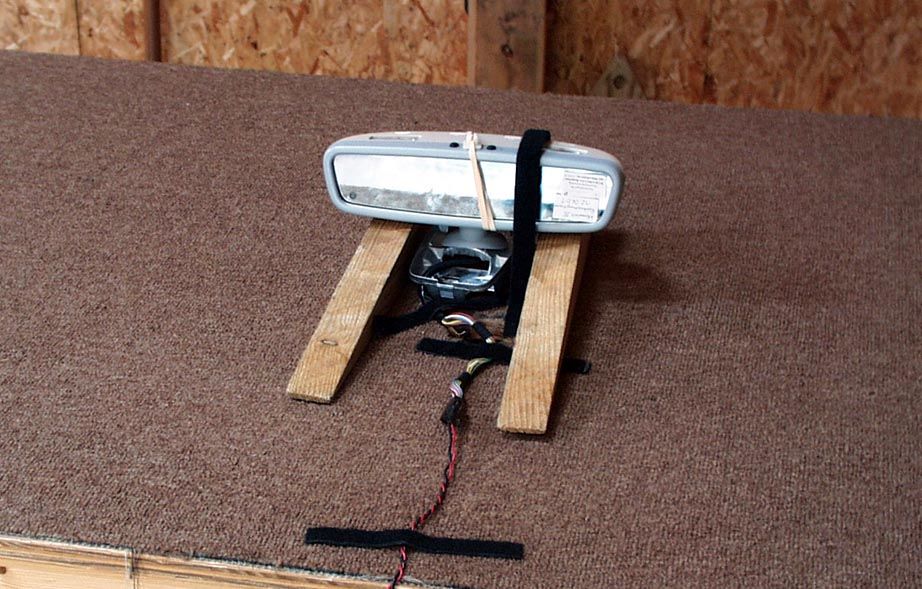

Test report #0100410FFCC 15.231 for CB2W211HL3FCC ID: CB2W211HL3 Tested July 6, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014245298 EXHIBIT E: Page 1 of 27 EXHIBIT E: R EPORT OF M EASUREMENTS [2.1033( B 6)] Test Report for FCC ID: CB2W211HL3 FCC Part 2.1031, Part 15 Subpart C(15.231) Report #0100437F Issued 05/15/02 T RANSMITTER M ODEL CB2W211HL3 OF H OMELINK ® III SERIES Prepared for:Mr. Craig Harder Johnson Controls Interiors, LLC One Prince Center Holland, MI 49423 Test Date(s): July 2,5,6, 2001 data recorded bywitnessed by Ted Chaffee, NCECraig Harder Test Engineer, AHD This report prepared by: Ted Chaffee, NCE Technical Manager/Test Engineer, AHD Test report #0100437FFCC 15.231 for CB2W211HL3FCC ID: CB2W211HL3 Tested July 6, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014245298 EXHIBIT E: Page 2 of 27 TABLE OF CONTENTS EXHIBIT E: Report of Measurements [2.1033(b6)]............................................................................. 1 TABLE OF CONTENTS............................................................................................................... 2 Statements Concerning this Report............................................................................................... 3 Manufacturer/Applicant [2.1033(b1)]............................................................................................ 4 Measurement/Test Site Facility & Equipment................................................................................. 4 Test Site [2.948, 2.1033(b6)]............................................................................................. 4 Measurement Equipment Used [2.947(d), 15.31(b)]............................................................... 4 Tested Configuration /Setup: [2.1033(b8)]..................................................................................... 5 Support Equipment & Cabling................................................................................................ 5 Setup Diagram..................................................................................................................... 5 Summary of Results:................................................................................................................... 6 Changes made to achieve compliance................................................................................... 7 Standards Applied to Test: [2.1033(b6)]....................................................................................... 7 Test Methodology: [2.1033(b6)]................................................................................................... 7 FORMULAS AND SAMPLE CALCULATIONS:........................................................................ 9 Test Data [2.1033(b6)]...............................................................................................................11 Modulation Characteristics...................................................................................................11 Relative Emission Level vs. Supply Voltage [15.31(e)]............................................................13 Occupied Bandwidth [15.231(c)]..........................................................................................14 Restricted Bands: [15.205]..................................................................................................15 Radiated Field Strength Measurements: [15.231(b), 15.205].................................................16 Radiated Field Strength Measurements................................................................................18 Test report #0100437FFCC 15.231 for CB2W211HL3FCC ID: CB2W211HL3 Tested July 6, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014245298 EXHIBIT E: Page 3 of 27 Statements Concerning this Report NVLAP Accreditation: NVLAP Lab Code 200129-0 The scope of AHD accreditation is the conducted emissions, radiated emissions test methods of: IEC/CISPR 22: Limits and methods measurement of radio disturbance characteristics of information technology equipment. FCC Method – 47 CFT Part 15 – Digital Devices. AS/NZS 3548: Electromagnetic Interference – Limits and Methods of Measurement of Information Technology Equipment. IEC61000-4-2 and Amend.1: ElectroStatic Discharge Immunity Subcontracted Testing: This report does not contain data produced under subcontract. Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty: Following the guidelines of NAMAS publication NIS81 and NIST Technical Note 1297, the Measurement Uncertainty at a 95% confidence level is determined to be: ± 1.4 dB Test report #0100437FFCC 15.231 for CB2W211HL3FCC ID: CB2W211HL3 Tested July 6, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014245298 EXHIBIT E: Page 4 of 27 Manufacturer/Applicant [2.1033(b1)] The manufacturer and applicant: JOHNSON CONTROLS INTERIORS, LLC. One Prince Center Holland, Michigan 49423 Measurement/Test Site Facility & Equipment Test Site [2.948, 2.1033(b6)] The AHD test facility is centered on 9 acres of rural property near Sister Lakes, Michigan. The mailing address is 92723 M-152, Dowagiac, Michigan 49047. This test …
