CB2WLHL4Iniversal Garage Door Opener Transceiver

HomeLink ® Wireless Control System NOTE: Some vehicles may require the ignition to be turned on or to the second (or “accessory”) position for programming and/or operation of HomeLink. It is also recommended that a new battery be replaced in the hand held transmitter of the device being programmed to HomeLink for quicker training and accurate transmission of the radio frequency. Please make sure that people and objects are out of the way of the moving door or gate when programming to prevent potential harm or damage. HomeLink® Programming 1. For first time programming, press and hold the two outer HomeLink buttons releasing only when the HomeLink indicator light begins to flash after 20 seconds. (Do not perform this step when programming the additional HomeLink buttons) 2. Position the hand-held transmitter 1-3 inches away from the HomeLink surface (located on your visor, overhead console or mirror) keeping the HomeLink indicator light in view. 3. Using both hands, simultaneously press and hold both the desired HomeLink button and hand held transmitter button. DO NOT release until the HomeLink indicator light flashes slowly and then rapidly. When the indicator light flashes rapidly, both buttons may be released. (The rapid flashing indicates successful programming) *Note: Some gate operators and garage door openers may require you to replace step #3 with the “cycling” procedure noted in the “Gate Operator & Canadian Programming” section. 4. Press and hold the programmed HomeLink button and observe the indicator light.  If the indicator light is solid/continuous, programming is complete and your device should activate when the HomeLink button is pressed and released.  If the indicator light blinks rapidly for 2 seconds and then turns a solid/continuous light, proceed with the following programming instructions for a rolling code device. A second person may make the following steps quicker & easier. 5. At the garage door opener receiver (motorhead unit) in the garage, locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit). If there is difficulty locating the training button reference the garage door opener’s manual, visit our website www.homelink.com or contact us at 1-800-355- 3515. 6. Press and release the “learn” or “smart” button (the name and color of the button may vary by manufacturer). NOTE: Once the button is pressed, there are 30 seconds in which to initiate the next step. 7. Return to the vehicle and firmly press and hold the programmed HomeLink button for two seconds and release. Repeat the “press/hold/release” sequence up to 3 times to complete the training process. HomeLink should now activate your rolling code equipped device. **To program additional HomeLink buttons, begin with “programming” step two. Once programmed, the HomeLink Wireless Control System or the original hand-held transmitter may be used to activate the device (e.g. garage door, entry lock, gate, etc.). In the event that there are still programming difficulties, please contact HomeLink at 1- 800-355-3515 or visit our website at www.homelink.com. Precautions! Do not use the HomeLink® Wireless Control System with any garage door opener that lacks the safety stop and reverse feature as required by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982). A garage door opener that cannot detect an object, signaling the door to stop and reverse, does not meet current federal safety standards. Using a garage door opener without these features increases risk of serious injury or death. For more information, call 1-800-355- 3515 or visit our website at www.homelink.com . Retain the original hand-held transmitter for future programming procedures (i.e., new vehicle purchase). It is also suggested that upon sale of the vehicle, the programmed HomeLink Wireless Control System buttons be erased for security purposes (follow step 1 in the “Programming” portion of this text). For convenience, the hand-held transmitter of the device may also be used at any time. Gate Operator Programming & Canadian Programming If programming a garage door opener or gate, it is advised to unplug the device during the “cycling’ process to prevent possible motor burn-up. During programming, your hand-held transmitter may automatically stop transmitting. Continue to press and hold the desired HomeLink button (note steps 2-4 in the “Programming” portion on this text) while you press and re-press (“cycle”) your hand- held transmitter every two seconds until the frequency signal has been learned. The indicator light will flash slowly and then rapidly after several seconds upon successful training. If necessary, follow steps 5-7 to complete the training for a rolling code device. Reprogramming a Single HomeLink® Button To program a device to HomeLink using a HomeLink button previously trained, follow these steps: 1. Press and hold the desired pre-programmed HomeLink button for at least 20 seconds (no longer than 30 seconds) until the indicator light begins to flash. Without releasing the HomeLink button, position the hand-held transmitter 1-3 inches away from the HomeLink surface keeping the HomeLink indicator light in view. 2. Using both hands, simultaneously press and hold both the desired HomeLink button and hand held transmitter button (or press and “cycle”- as described in “Gate & Canadian Programming”). DO NOT release until the HomeLink indicator light flashes slowly and then rapidly. When the indicator light flashes rapidly, both buttons may be released. (The rapid flashing indicates successful programming) The previous device has now been erased and the new device can be activated by pushing the HomeLink button that has just been programmed. However, it may be necessary to follow steps 5-7 of the “Programming” section to complete the rolling code training. This procedure will not affect any other programmed HomeLink buttons. Erasing Progra…

Text truncated - open the document above for the full version.

Johnson Controls LLC Electronics Laboratory 915 East 32 nd Street, Holland MI 49423 Tel 616-394-6194 Fax 616-394-6100 FCC ID: CB2WLHL4 External Photographs. External Photograph 1: External View, Front Surface of Device. External Photograph 2: External View, Back Surface of the Device.

FCC ID: CB2WLHL4. Photograph depicting location of FCC ID Label.

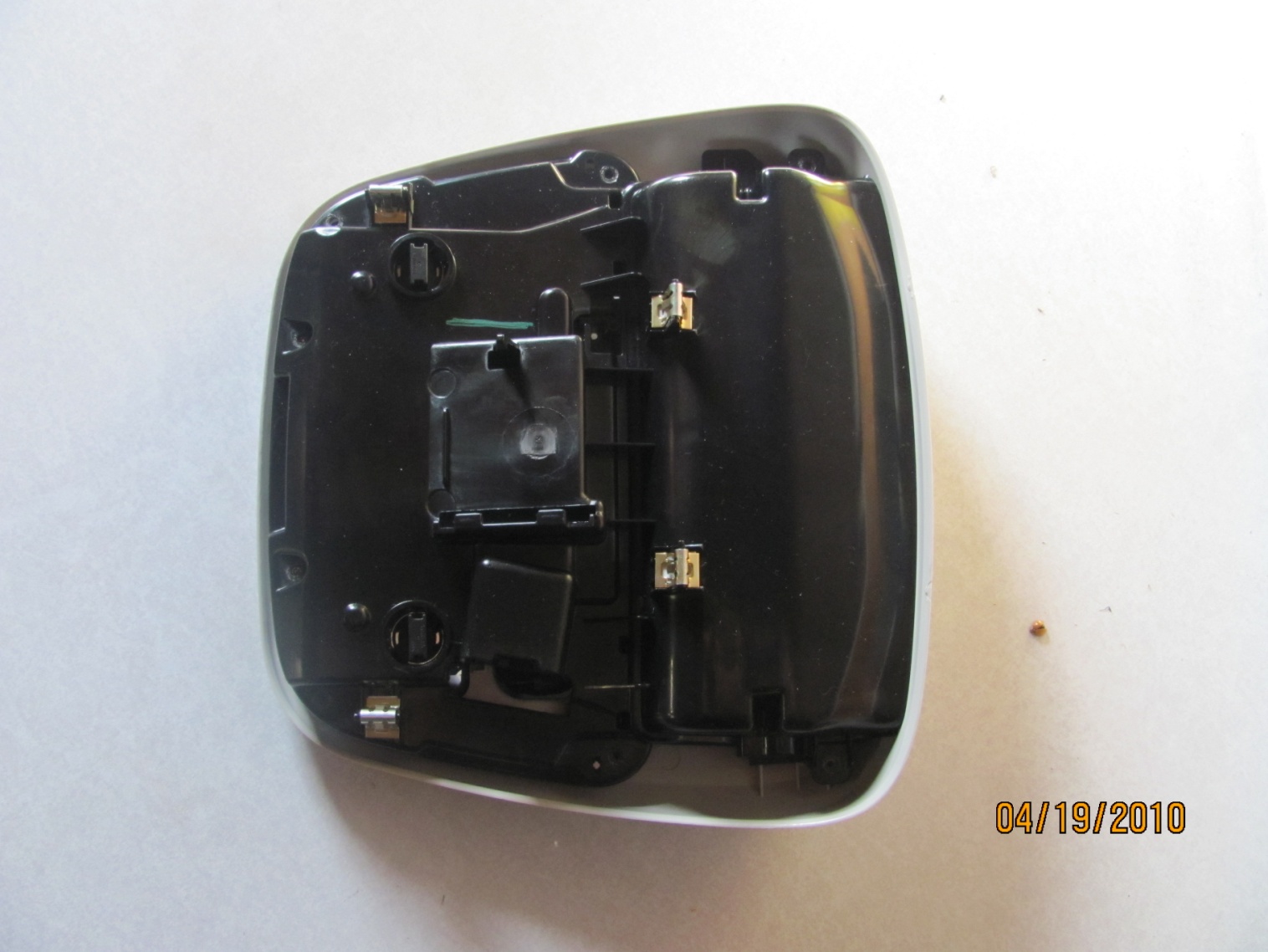

Johnson Controls LLC Electronics Laboratory 915 East 32 nd Street, Holland MI 49423 Tel 616-394-6194 Fax 616-394-6100 FCC ID: CB2WLHL4 Internal Photographs. Internal Photograph 1: Rear cover removed, showing location of circuit board. Internal Photograph 2: PCB removed from front housing. Johnson Controls LLC Electronics Laboratory 915 East 32 nd Street, Holland MI 49423 Tel 616-394-6194 Fax 616-394-6100 Internal Photograph 3: Disassembled view, front side of components. Internal Photograph 4: Front Surface of circuit board. Johnson Controls LLC Electronics Laboratory 915 East 32 nd Street, Holland MI 49423 Tel 616-394-6194 Fax 616-394-6100 Internal Photograph 5: Reverse Surface of printed circuit board. Internal Photograph 6: Detail view of RF portion of circuit board with the antenna on the right side of photograph. Johnson Controls LLC Electronics Laboratory 915 East 32 nd Street, Holland MI 49423 Tel 616-394-6194 Fax 616-394-6100 Internal Photograph 7: Detail view of RF circuit with shield removed.

Programming the Homelink © IV (Tuning Information) To clear memory: 1. Press the two outside buttons until the indicator LED flashes. This indicates the memory values have been cleared. 2. Holding the hand-held transmitter to be copied 3-12 inches from the Homelink © IV and simultaneously, activate the hand-held transmitter and one of the Homelink © IV buttons until the indicator LED flashes rapidly. The frequency and bit pattern information are now stored in the Homelink © IV non-volatile memory (NVM). At this point the Homelink © IV can be used as a substitute from for the Original transmitter. When a Homelink © IV button is pressed three things happen: 1. A Voltage Controlled Oscillator (VCO) is set to desired RF carrier frequency (recalled from the NVM). 2. The antenna is fine tuned by sweeping around the stored tuning point with a series of fine pulses of approximately 300 uS in duration with 9.6 mS off. 4. The VCO signal is then modulated with the appropriate garage door opener bit code from the NVM.

Johnson Controls Interiors, LLC. Page 1 of 37 Model: WLHL4 Technical Report to the FCC and Industry Canada Regarding Johnson Controls Interiors, L.L.C. Homelink© IV Model: WLHL4 FCC ID: CB2WLHL4 IC: 279B- WLHL4 Emission Designator : 178KL1D 04/27/2010 A report concerning approval for Johnson Controls Homelink® model WLHL4 Please issue grant immediately upon review. Measurements Made by: Measurements Reviewed by: Bolay Elgersma Christopher Plank RF Test Site Technician Test Engineer Johnson Controls Interiors, LLC. Johnson Controls Interiors, LLC Report and Application Prepared by: Report Submitted by: Bolay Elgersma Christopher Plank RF Test Site Technician Test / EMC Engineer Johnson Controls Interiors, LLC. Johnson Controls Interiors, LLC. Johnson Controls Interiors, LLC. Page 2 of 37 Model: WLHL4 1. General Information 1.1. Product Description: The Johnson Controls Interiors HomeLink® HL4 Universal Garage Door Opener is a low-power transceiver OEM device that is installed into an overhead area of the automobile. The installation is provided by trained technicians during the course of the manufacture of the automobile. It is powered by the 12 Volt system of the automobile. This Universal Garage Door Opener has the capability to 1. Learn the frequency and bit code format of the user’s existing garage door remote control devices and 2. Reproduce and transmit the frequency and bit code format to remotely operate the user’s garage door. The unit is designed for the periodic operation of a control signal, which typically activates a garage door opener receiver. The unit is supplied to the automobile manufacturer without harness. For testing purposes a typical assembly and 2-conductor cable harness were used to power to the unit. The unit is only operational when the user depresses the control button. It becomes inactive after release of the control button. The three-button HomeLink® unit replaces up to three hand-held transmitters. In addition to the typical operation of the garage door, the unit will learn the radio frequency codes of other transmitter types to activate entry door locks, estate gates, security systems, and home or office lighting. The antenna system is an integral part of the unit. It cannot be altered nor replaced by the user. Service of this system is only available from the Automobile Manufacturer’s Dealerships and Johnson Controls Interiors, LLC. 1.2. Related Grants None. 1.3. Test Methodology Radiated Emissions testing was performed according to ANSI C63.4-2003. The power source for this product is a 12V automotive vehicle battery, thus conducted emissions measurements are not required. The unit is supplied to the automobile manufacturer without harness. For testing purposes a 2-conductor cable harness was used to interface to the unit. Johnson Controls Interiors, LLC. Page 3 of 37 Model: WLHL4 1.4. Test Facility The Open Area Test Site where these measurements were taken, is located on the grounds of Johnson Controls Automotive Interiors System’s Edgar D. Prince Technical Campus, in the city of Holland, county of Ottawa, state of Michigan, United States of America. The site is a fully enclosed 10m weather-protected OATS. All structure materials above the conducting ground-plane are non-metallic and consist of wood, laminated lumber, fiberglass, glue, plastic, or fiberglass reinforced plastic. The site contains a 15-foot diameter turntable capable of supporting large cars and light trucks under test. Tabletop testing was conducted on a smaller 3m turntable described in the site recertification report. The test site has been fully described in a reports filled with the FCC and Industry Canada. The report filed with the FCC is dated January 6, 2009, was accepted by the FCC in a letter dated January 08, 2009. The report filled with Industry Canada, dated January 6, 2009, was accepted via a letter dated June 18, 2009 . Our OATS is registered with the IC under file number IC# 279B-1. 1.5. Accreditation The Johnson Controls, Inc. - Electronics Validation Lab is accredited to ISO 17025 by the American Association for Laboratory Accreditation (A2LA). Our laboratory scope and accreditation certificate (# 1425.02) are available from their web site www.a2la.org . Our scope of accreditation covers ANSI C63.4 Radiated Emissions at 3m, FCC 47 CFR Part 15, and IC RSS-210. 2. Product Labeling The FCC Identifier assigned is FCC ID: CB2WLHL4. The Industry Canada certification number is 279B-WLHL4. These identifiers will be labeled on the product housing. The label will be placed on the exterior of the HL4 housing using an acrylic adhesive that will permanently affix the label. Because of the small size of the device and because the installation is inside a portion of the automobile, the following statements will appear in the user’s manual. Refer to attachment “Users Manual.pdf” for the entire text of the user’s manual. “This device complies with Part 15 of the FCC rules and with RSS-210 of the Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and Industry Canada rules. Changes or modifications not expressly approved by the party responsible for the compliance could void the user’s authority to operate the device.” 2.1. Label Drawing and Location on Product. The label drawing is included in the “FCC ID Label Artwork.pdf” attachment. A diagram showing the location of the label on the assembly is included in the “Label_Location.pdf” attachment. Johnson Controls Interiors, LLC. Page 4 of 37 Model: WLHL4 3. Test Configuration Radiated Emission measurements presented in the report were made in accordance with ANSI C63.4 Figure 9(c). The EUT was placed on a 1 x 1.5m non-metallic table elevated 80cm above a conducting ground plane. The …

Text truncated - open the document above for the full version.

Johnson Controls Interiors L.L.C. Electronics Test Laboratory 915 East 32 nd Street, Holland MI 49423. Tel: 616-394-6194, Fax: 616-394-6100 Re: ATCB08978, FCC ID: CB2WLHL4 & IC 279B-WLHL4 Certification Application. Noise floor levels from 1860 MHz to 4330 MHz

Johnson Controls LLC Electronics Laboratory 915 East 32 nd Street, Holland MI 49423 Tel 616-394-6194 Fax 616-394-6100 FCC ID: CB2WLHL4 Test Setup Photographs Test Setup Photograph 1: Device under test on a1 x 1.5 meter non metallic table elevated 80 cm above a conducting ground plane. The harness providing power and ground runs to the long edge of the table and connects to a variable power supply underneath. Test Setup Photograph 2: Device tested on its side. The button was depressed for constant transmit using a block and elastic band. Johnson Controls LLC Electronics Laboratory 915 East 32 nd Street, Holland MI 49423 Tel 616-394-6194 Fax 616-394-6100 Test Setup Photograph 3: Device Tested lying flat. The button was depressed for constant transmit using a block and elastic band. Test Setup Photograph 4: Device tested standing on end. The button was depressed for constant transmit using a block and elastic band.
