CCT-CBV76-14Mattel Bluetooth Low Energy Module

MATTEL, INC. Mattel BLE Module Use Guide IPN: 1100153650 Bruce Cordier Version 1.2 Version: 1.2 Mattel BLE Module Use Guide May 27, 2014 Page 1 of 22 Contents Section Page 1. Introduction .............................................................................................................................................................. 2 2. Module Block Diagram .............................................................................................................................................. 2 3. Module Schematic and PCB layout ........................................................................................................................... 2 4. Altium Library containing Schematic Footprint for module, and PCB footprint for Module ................................... 3 5. Datasheet and programming guides for the CC2541 ............................................................................................... 3 6. Module Pin list and pin description .......................................................................................................................... 3 7. Module Schematic Symbol ....................................................................................................................................... 4 8. Module PCB pad Connections (Pink area shows keepout zone) ............................................................................. 5 9. Bluetooth Low Energy Channels Spectrum............................................................................................................... 6 10. Flash Memory Size of CC2541 ................................................................................................................................. 6 11. Operating Conditions .............................................................................................................................................. 6 12. Bluetooth Protocols and Profiles Supported by Module ........................................................................................ 7 13. Designing End Products for use with Module Trace Antenna ................................................................................ 7 14. External Antenna Connection ................................................................................................................................. 9 15. Smart Device Compatibility .................................................................................................................................. 10 16. Software ................................................................................................................................................................ 10 17. Using Module Test Firmware on Module and ModuleTest App on an iOS Device .............................................. 14 18. Programming the Mattel BLE Module .................................................................................................................. 14 19. Development Tools ............................................................................................................................................... 15 20. Using the CC2541 SPI interface ............................................................................................................................. 16 21. Module Manufacturer .......................................................................................................................................... 16 22. Manufacturing products with the Mattel BLE Module ......................................................................................... 17 23. BT SIG qualification information ........................................................................................................................... 17 24. FCC, Industry Canada, Bluetooth.SIG Test Reports .............................................................................................. 18 25. BQE information (for further RF testing) .............................................................................................................. 18 26. Texas Instruments Engineering Support ............................................................................................................... 18 27. Breakout PCB (Experimenter’s Board) .................................................................................................................. 19 28. FCC/Industry Canada Statement (to be placed on End Products) ........................................................................ 20 29. Revisions ............................................................................................................................................................... 21 Version: 1.2 Mattel BLE Module Use Guide May 27, 2014 Page 2 of 22 Mattel BLE Module Use Guide Front View Rear View 1. Introduction The Mattel Bluetooth Low energy (BLE) Module is a daughterboard that can be added to Mattel end products to allow Bluetooth Low Energy (also called Bluetooth Smart) connectivity to other Bluetooth Smart or Bluetooth Smart Ready devices. This document, along with the accompanying files are meant to be used as a Quick Start Guide for developing with the module, and for manufacturing products with the module. The module is based on Texas Instruments CC2541 IC, which contains an 8051‐core microprocessor, and the necessary RF circuitry to enable Bluetooth Low Energy communications. Each Mattel BLE Module has a unique MAC Address programmed into it during module manufacture. This unique address can be used to identify unique end products, and also as part of software security schemes to control access to end products. NOTE: The Mattel BLE Module with the existing PCB antenna, and Texas Instruments BLE software stack are (will be) approved “as is” by the Bluetooth.sig. This also includes the exact components that are on the module. Any change to any of these items (Components, component manufacturers, output …

Text truncated - open the document above for the full version.

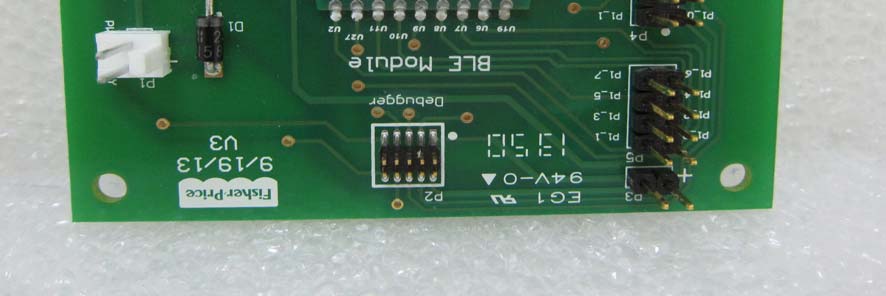

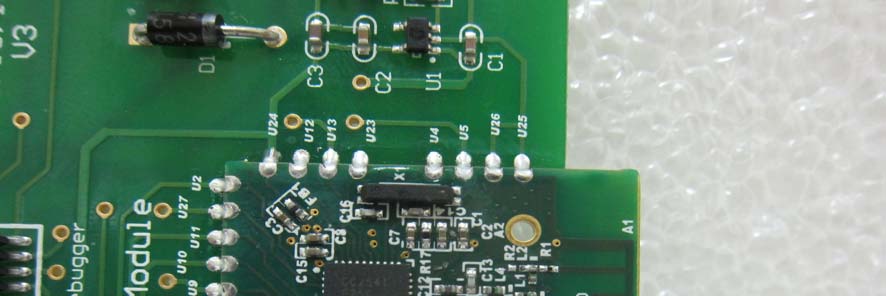

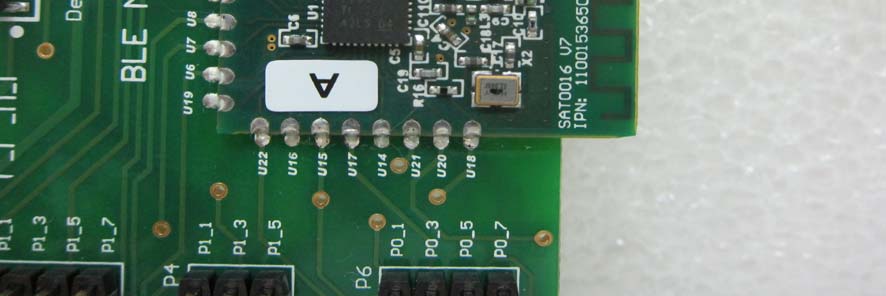

FCC ID: CCT-CBV76-14 International Standards Laboratory Report Number: ISL-14LR101FCDTS EUT 1 EUT 2 Test Kit FCC ID: CCT-CBV76-14 International Standards Laboratory Report Number: ISL-14LR101FCDTS EUT 3 ~ End of Report ~

-1 of 1- FCC ID: CCT-CBV76-14 IC: 4390A-CBV76 International Standards Laboratory Report Number: ISL-14LR101FCDTS Report Number: ISL-14LR101ICDTS Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. FCC SAR test exclusion: The Max Peak output power of BT(BLE) is -1.89 dBm (0.000657 W), According to FCC SAR test exclusion and IC Exemption from Routine Evaluation Limits, The SAR measurement is not necessary. According to KDB 447498 D01 V5, Appendix A: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm, the thresholds power level is 10mW (10dBm) at 5 mm. The 1-g and 10-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distance <= 50mm are determined by IC Exemption from Routine Evaluation Limits – SAR Evaluation: RSS 102 Issue 4 SAR evaluation is required if the separation distance between the user and the radiating element of the device is less than or equal to 20 cm, except when the device operates as follows: above 2.2 GHz and up to 3 GHz inclusively, and with output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) that is less than or equal to 20 mW for general public use and 100 mW for controlled use; The device is in compliance with Specific Absorption Rate (SAR) for general population /uncontrolled exposure limits (1.6 W/kg) specified in FCC 47 CFR part 2 (2.1093), RSS-102 Issue4:2010 and ANSI/IEEE C95.1-1999, and had been tested in accordance with the measurement methods and procedures specified in IEEE1528: 2013 and FCC OET Bulletin 65 Supplement C (Edition 01-01).

Page: 1 of 44 TEST REPORT of FCC Part 15 Subpart C Limited Modular Approval New Application; Class I PC; Class II PC Product : Mattel Bluetooth Low Energy Module Brand: N/A Model: 1100153650 Model Difference: N/A FCC ID: CCT-CBV76-14 FCC Rule Part: §15.247, Cat: DTS Applicant: Fisher-Price, Inc. Address: 636 Girard Avenue, East Aurora, NY 14052 U.S.A. Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-14LR101FCDTS Issue Date : 2014/05/09 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 44- FCC ID: CCT-CBV76-14 International Standards Laboratory Report Number: ISL-14LR101FCDTS VERIFICATION OF COMPLIANCE Applicant: Fisher-Price, Inc. Product Description: Mattel Bluetooth Low Energy Module Brand Name: N/A Model No.: 1100153650 Model Difference: N/A FCC ID: CCT-CBV76-14 Date of test: 2014/04/14 ~ 2014/04/28 Date of EUT Received: 2014/04/14 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2014/05/09 Jason Chao / Engineer Prepared By: Date: 2014/05/09 Elisa Chen / Specialist Approved By: Date: 2014/05/09 Vincent Su / Technical Manager -3 of 44- FCC ID: CCT-CBV76-14 International Standards Laboratory Report Number: ISL-14LR101FCDTS Version Version No. Date Description 00 2014/05/09 Initial creation of document -4 of 44- FCC ID: CCT-CBV76-14 International Standards Laboratory Report Number: ISL-14LR101FCDTS Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 CONDUCTED EMISSION TEST........................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK /AVERAGE OUTPUT POWER MEASUREMENT................................................. 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ................................................................................................................... 17 7 6dB Bandwidth & 99% Bandwidth .................…

Text truncated - open the document above for the full version.

FCC ID: CCT-CBV76-14 International Standards Laboratory Report Number: ISL-14LR101FCDTS APPENDIX 1 PHOTOGRAPHS OF SET UP FCC ID: CCT-CBV76-14 International Standards Laboratory Report Number: ISL-14LR101FCDTS Radiated Emission Set up Photo FCC ID: CCT-CBV76-14 International Standards Laboratory Report Number: ISL-14LR101FCDTS Conducted Emission Set up Photo
