CCTT4256T-10Digital Video Monitor (Baby Unit)

Fisher-Price Inc.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jul 22, 2010
Application Purpose: Original Equipment
Date of Application: Jul 22, 2010
Equipment Note: Digital Video Monitor (Baby Unit)
Frequency Range: 2409.00000000 - 2473.00000000
Company: Fisher-Price Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

T4256 T4256 www.fi sher-price.comwww.fi sher-price.com 2 Important! To prevent electric shock, do not immerse in water; wipe clean with damp cloth. DANGER To prevent strangulation with power cord, never place transmitter (camera) within reach of child. WARNING This product cannot replace responsible adult supervision. CAUTION 3 • Fully charge the camera and parent unit (each with a battery pack installed) for four hours before fi rst-time use. • For proper setup and use, please read these instructions. • Please keep this instruction sheet for future reference, as it contains important information. • Camera operates on AC current (use enclosed docking station) or 6V NiMH rechargeable battery pack (included). Parent unit operates on AC current (use enclosed AC adaptor/charger) or 3.6V NiMH rechargeable battery pack (included). • Adult assembly is required to install the wall mount. Tools needed for assembly: electric drill, ¼" drill bit, hammer and Phillips screwdriver (tools not included). • This product is not intended to be used as a medical monitor and its use should not replace adult supervision. • Test sound/video reception of parent unit before fi rst-time use and whenever you change location of the camera. • Adults Note: Periodically examine this product for damage to the cord, housing or other parts that may result in the risk of fi re, electric shock or injury. If the product is damaged, do not use it. • Never use extension cords with the AC adaptor/charger or docking station power cord. • Never use camera or parent unit near water (i.e. bathtub, sink, wet basement, etc.). • Always use the camera and parent unit where there is adequate ventilation. To prevent overheating, keep away from heat sources such as radiators, heat registers, direct sunlight, fi re, stoves, amplifi ers, fi re, excessive heat or other appliances that produce heat. • Fisher-Price ® does not recommend the use of two monitors in one house. • Always remember that you are using public airwaves when using your monitor. Conversations, even from rooms near the camera, may broadcast to other nursery monitors, radios, cordless telephones or scanners outside your home. To protect the privacy of your home, always turn off the camera when not in use. • Do not connect to more than the recommended number of power supplies. • The AC adaptor/charger and docking station are not toys. • Disconnect the AC adaptor/charger from the parent unit and the docking station power cord from the wall outlet before cleaning. • If this product begins to operate erratically, you may need to reset the electronics. Press the camera power button OFF and press again to turn back ON; press the parent unit power button OFF and press again to turn power back ON. • Carrier Frequency: 2.4 Ghz • Product features and decoration may vary from photographs. Important! 4 Features Parent Unit Side ViewBack View 10 45 11 3 12 6 7 8 9 4 5 1 Power Button and L.E.D. – Press to turn parent unit power ON or OFF. The power button lights when parent unit power is ON. 2 On-Screen Menu Bar – Displays the parent unit battery indicator and nap timer. Flip to vertical view to see the battery indicators for both the parent unit and camera, nap timer, clock and range. 3 2.4" Video Screen 4 Sound Lights – Let's you "see" baby's sounds. 5 Internal Antenna – For best reception, do not block the internal antenna. 6 Volume/Menu Navigation Buttons – Press the up or down button to adjust the volume on the parent unit. Press the up or down button when the settings menu is on the screen to scroll through menu choices. 7 Display Button – Press to turn the video screen ON or OFF. 8 Nap Timer Button – Press the button to start the nap timer; press again to stop the nap timer; press the button a third time to reset the nap timer 9 Settings Button - Press to open the settings menu and adjust the brightness, contrast, clock and sound activation settings. 10 DC Input Jack – Insert the AC adaptor/charger pin to use AC power/charge the parent unit battery. 11 Clip – Place the parent unit in the clip. Fasten the clip to your clothes to stay in touch with baby around your house and yard. Features 6 16 13 16 14 15 Camera Features 7 Features 12 Camera Lens 13 Power Button and L.E.D. – Press to turn camera power ON or OFF. The power button lights when camera power is ON. 14 Microphone 15 Night Vision L.E.D.s 16 Docking Station – Use to charge the camera battery. 8 Fasteners Shown Actual Size Wall Mount Parts Wall Mount Bracket Cord Wrap Wall Anchor – 4 #8 x 2" Screw – 4 9 Charging the Battery (Inside the Camera) IMPORTANT! Fully charge the camera (with battery pack inside) for four hours before fi rst-time use. • Fit the camera into the docking station. • Plug the docking station power cord into a standard wall outlet. Notes: If power fl ow to the wall outlet is controlled by a switch, make sure the switch is “ON”. Use the docking station power cord only in a wall outlet. Do not plug the docking station power cord into a ceiling outlet. To connect to a supply that is not in the United States, use an adaptor (not included and sold separately) with the proper confi guration for the power outlet. 10 Charging the Battery (Inside the Parent unit) • Use only the included AC adaptor/charger! Do not use any other adaptor/charger. • Fit the AC adaptor/charger pin into the DC input jack on the parent unit. • Plug the AC adaptor/charger into a standard wall outlet. Notes: If power fl ow to the wall outlet is controlled by a switch, make sure the switch is “ON”. Use the AC adaptor/charger only in a wall outlet. Do not plug the AC adaptor/charger into a ceiling outlet. To connect to a supply that is not in the United States, use an adaptor (not included and sold separately) with the proper confi guration for the power outlet. • If you are monitoring baby while charging the battery pack, you will see the charging icon on the video screen. IMPORTANT! Fully charge the parent unit (with battery pack inside) f…

Text truncated - open the document above for the full version.

External Photos

SPORTON International Inc. PAGE NUMBER : A1 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 08, 2010 FAX : 886-2-2696-2255

ID Label/Location Info

2.4 GHz N102 Z83 2.4 GHz FCC ID CCTT4256R-10 2.4 GHz FCC ID CCTT4256T-10 2.4 GHz FCC ID CCTT4256T-10 UNITEC TOOLING (H.K.) LTD. PROJECT No. PROJECT NAME PART NAME APPR. CHECK DWN CADFILE UNIT SCALE SHRINKAGE MAT'L DATEDATEDATE CUS MOLD No. OWN MOLD No. VER. T4256 QTY. ENG DATE 07-April-10 N102 Z83 N102 Z83 N102 Z83 2 2 1 T4256/V4336/V4337/V4338 2009 MATTEL,INC. CHINA c c T4256/V4336/V4337/V4338 2009 MATTEL,INC. CHINA c T4256/V4336/V4337/V4338 2009 MATTEL,INC. CHINA c T4256/V4336/V4337/V4338 2009 MATTEL,INC. CHINA c 3.6V DC NiMH _ + 3.6V DC NiMH _ + 1 FCC ID CCTT4256R-10

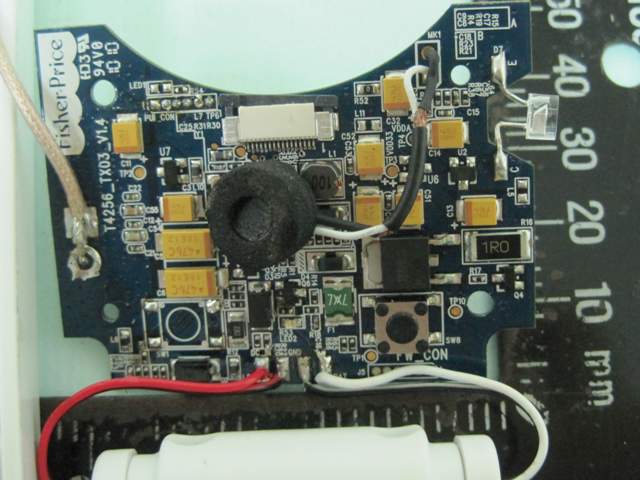

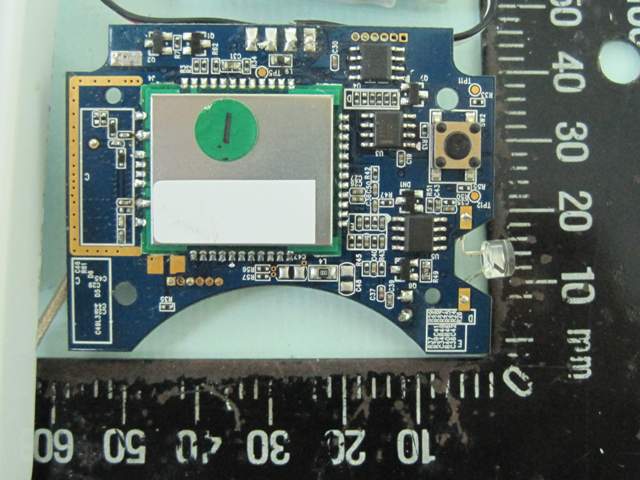

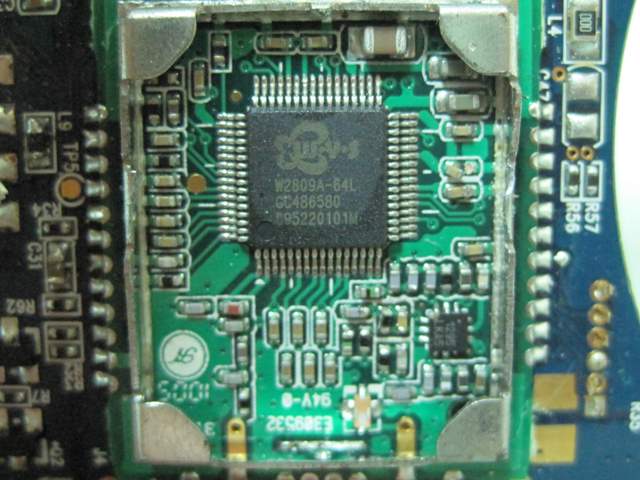

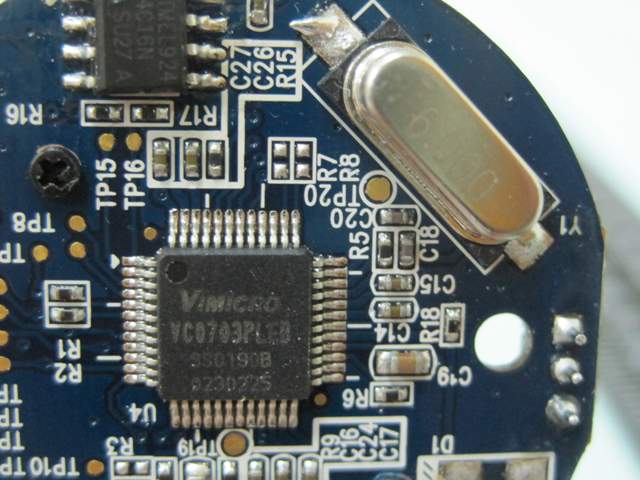

Internal Photos

RF Exposure Info

Report No.: FR032316 FCC ID: CCTT4256T-10 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR032316 FCC ID: CCTT4256T-10 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR032316 FCC ID: CCTT4256T-10 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power: 17.51 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.5 2.2387 17.5100 56.3638 0.025116 1 Complies

Test Report

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Fisher-Price, Inc. Applicant Address 636 Girard Ave., East Aurora, New York, 14052 FCC ID CCTT4256T-10 Manufacturer’s company Wynnewood Toys Industrial (Shenzhen) Co., Ltd. Manufacturer Address Guan Guang Road, Fuanlan Baoan District, Shenzhen, China Product Name Digital Video monitor (Baby unit) Brand Name Fisher-Price, Inc. Model Name T4256 (transmitter) Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 (2007/10/08) Test Freq. Range 2409 ~ 2473MHz Received Date Mar. 23, 2010 Final Test Date Jul. 05, 2010 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C (2007/10/08) and FCC Public Notice DA00-705. The test equipment used to perform the test is calibrated and traceable to NML/ROC. ILAC MRA Report No.: FR032316 Report Format Version: 01 Page No. : i of ii FCC ID: CCTT4256T-10 Issued Date : Jul. 09, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................13 4.3. Hopping Channel Separation Measurement ...................................................................................................................................15 4.4. Number of Hopping Frequency Measurement.................................................................................................................................20 4.5. Dwell Time Measurement..................................................................................................................................................................22 4.6. Radiated Emissions Measurement ....................................................................................................................................................27 4.7. Band Edge Emissions Measurement .................................................................................................................................................36 4.8. Antenna Requirements .....................................................................................................................................................................40 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 41 6. TEST LOCATION.............................................................................................................................................. 42 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 43 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A11 APPENDIX B. TEST PHOTOS.............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: FR032316 FCC ID: CCTT4256T-10 Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR032316 FCC ID: CCTT4256T-10 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR032316 FCC ID: CCTT4256T-10 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR032316 FCC ID: CCTT4256T-10 Page No. : 4 of 5 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR032316 FCC ID: CCTT4256T-10 Page No. : 5 of 5 Above 1GHz FRONT VIEW REAR VIEW

Contact Information

Applicant

Jerry Miller(Quality Staff Engineer)

[email protected]716-687-3835Fax: 716-687-3599

Technical Contact

Intertek Testing Services Hong Kong LtdMelvin Nip

[email protected]852-21738888

Flat D 5/F Garment Centre · Kowloon · Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong LtdMelvin Nip

[email protected]852-21738888

Test Firm

Sporton International IncKathy Lin

[email protected]886-2-26962468Fax: 886-2-26962255

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.47 GHz	56.40 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
