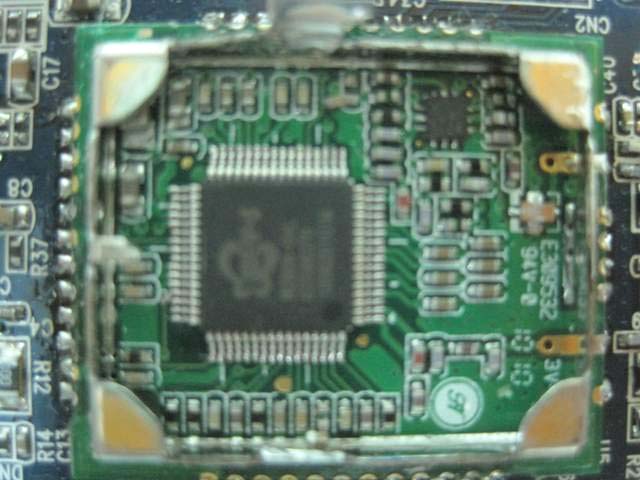

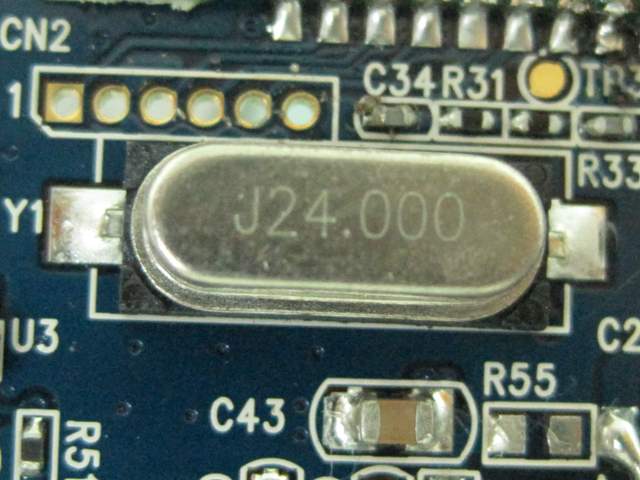

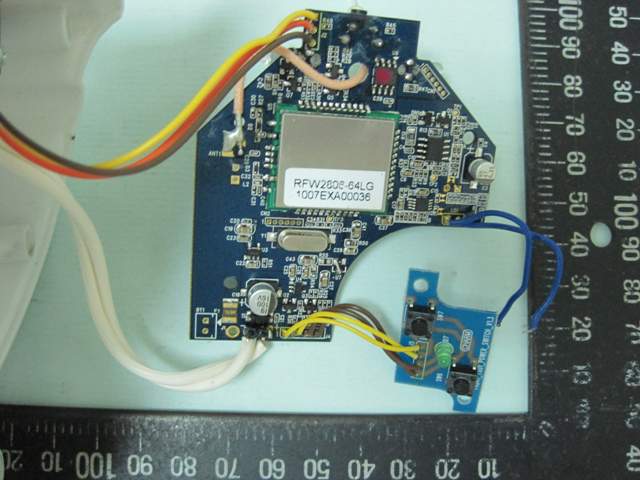

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255

2.4 GHz T48 41/T4 842 2009 MATTE L,INC . CHINA c FCC ID CCTT48 41T-10 IC:439 0A- T4841 10 2.4 GHz T48 41/T4 842 2009 MATTE L,INC . CHINA c FCC ID CCTT48 41T-10 IC: 4390A -T4 84110 UNITEC TOOLING (H.K.) LTD. PROJECT No. PROJECT NAME PART NA ME APPR. CHECK DWN CADFILE UNIT SCALE SHRINKAG E MAT'L DATEDATEDATE CUS MOL D N o. OWN MOLD No. VER. T4841 QTY. ENG DATE 26/Mar-10 2.4 GHz T48 41/T4 842 2009 MATTE L,INC . CHINA c 2.4 GHz T4841/T 4842 2009 MATTE L,IN C. CHINA FCC ID CCTT4841R- 10 IC: 4390A -T48 4110 c FCC ID CCTT4841R-10 IC: 4390A-T484110 N102 Z8 3 N102 Z8 3 N102 Z8 3 N102 Z8 3 N102 Z8 3 3.6V DC NiMH 3.6 V DC NiM H + _ + _ V68 87/V68 89/V6 890 V68 87/V68 89/V6 890 V68 87/V68 89/V6 890 V68 87/V68 89/V6 890

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 07, 2010 FAX : 886-2-2696-2255

Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power: 17.16 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.50 2.2387 17.1600 51.9996 0.023171 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Fisher-Price, Inc. Applicant Address 636 Girard Ave., East Aurora, New York, 14052 FCC ID CCTT4841T-10 Manufacturer’s company Wynnewood Toys Industrial (Shenzhen) Co., Ltd. Manufacturer Address Guan Guang Road, Fuanlan Baoan District, Shenzhen, China Product Name Digital Audio Monitor (Baby unit) Brand Name Fisher-Price, Inc. Model Name T4841, T4842 (Baby unit) Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 (2007/10/08) Test Freq. Range 2402 ~ 2476MHz Received Date Mar. 23, 2010 Final Test Date May 28, 2010 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C (2007/10/08) and FCC Public Notice DA00-705. The test equipment used to perform the test is calibrated and traceable to NML/ROC. ILAC MRA Report No.: FR032320 Report Format Version: 01 Page No. : i of ii FCC ID: CCTT4841T-10 Issued Date : May 28, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................10 4.2. Duty Factor Measurement ................................................................................................................................................................14 4.3. Maximum Peak Output Power Measurement ...................................................................................................................................15 4.4. Hopping Channel Separation Measurement ...................................................................................................................................17 4.5. Number of Hopping Frequency Measurement.................................................................................................................................22 4.6. Dwell Time Measurement..................................................................................................................................................................24 4.7. Radiated Emissions Measurement ....................................................................................................................................................29 4.8. Band Edge Emissions Measurement .................................................................................................................................................38 4.9. Antenna Requirements .....................................................................................................................................................................42 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 43 6. TEST LOCATION.............................................................................................................................................. 44 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 45 APPENDIX A. PHOTOGR…

Text truncated - open the document above for the full version.

Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 3 of 6 SIDE VIEW Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 4 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 5 of 6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR032320 FCC ID: CCTT4841T-10 Page No. : 6 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
