CCT71573Child Locator

Cover of Instruction Brochure Middle of Instruction Brochure Battery Description Back of Instruction Brochure

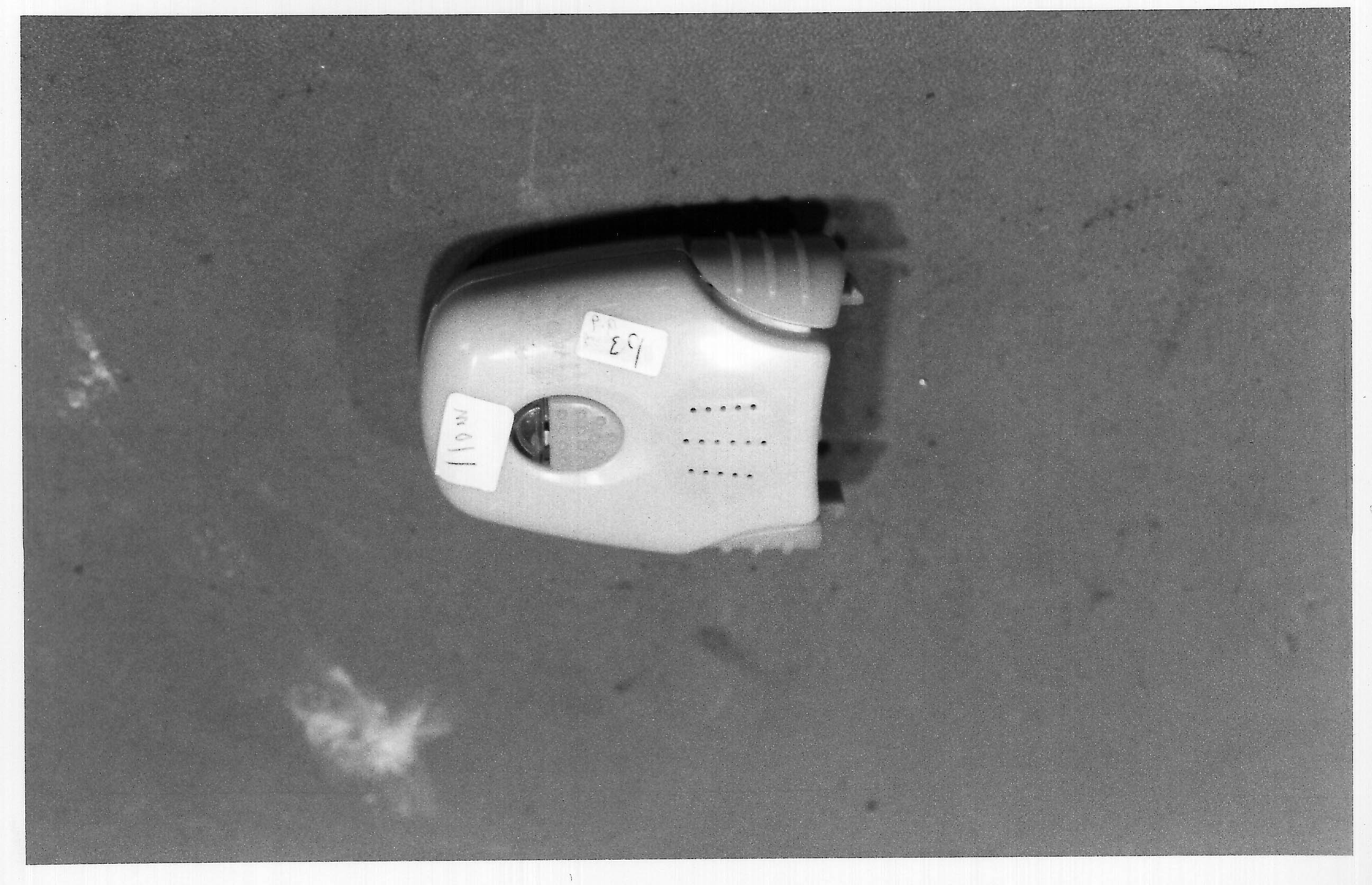

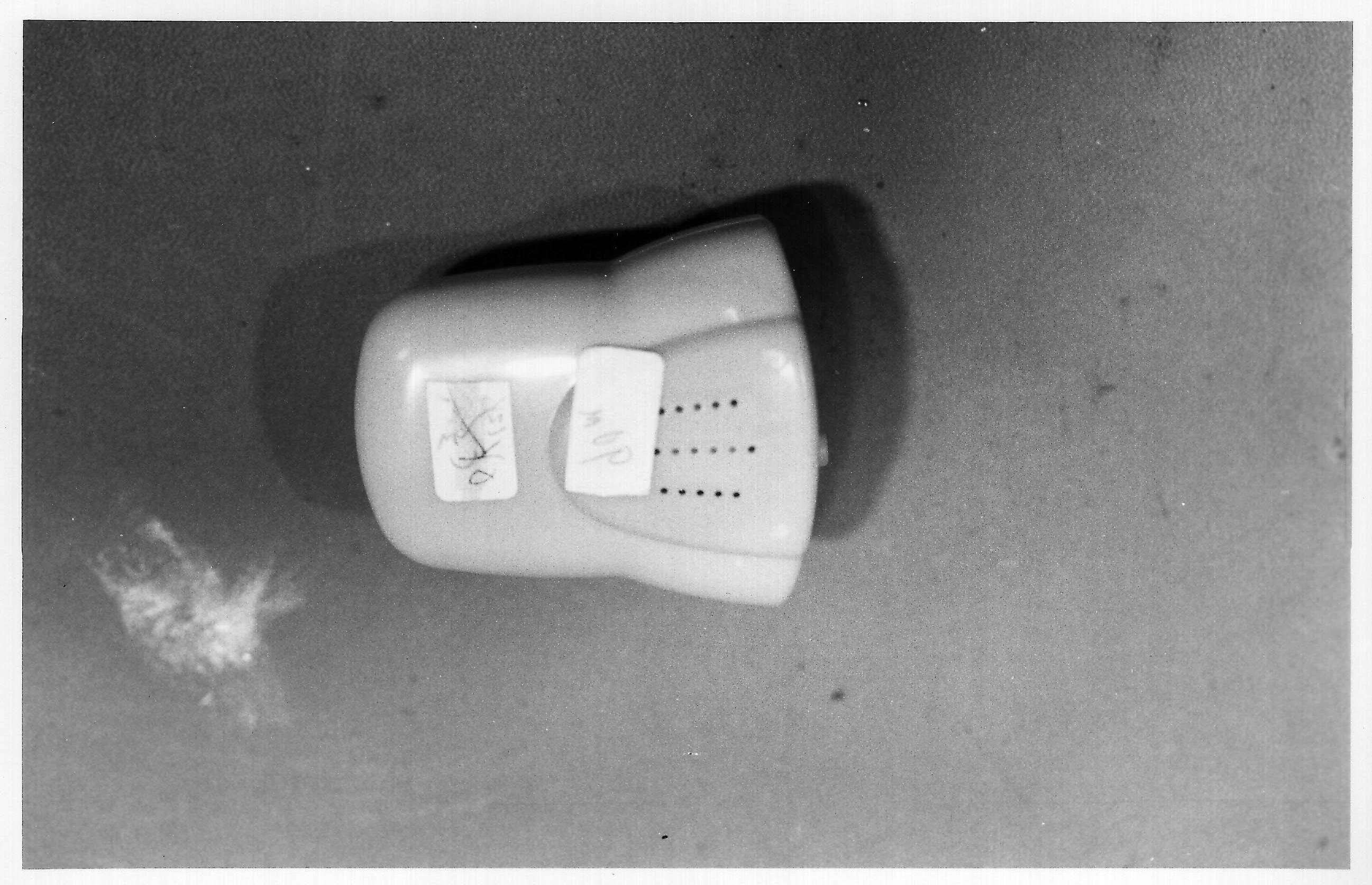

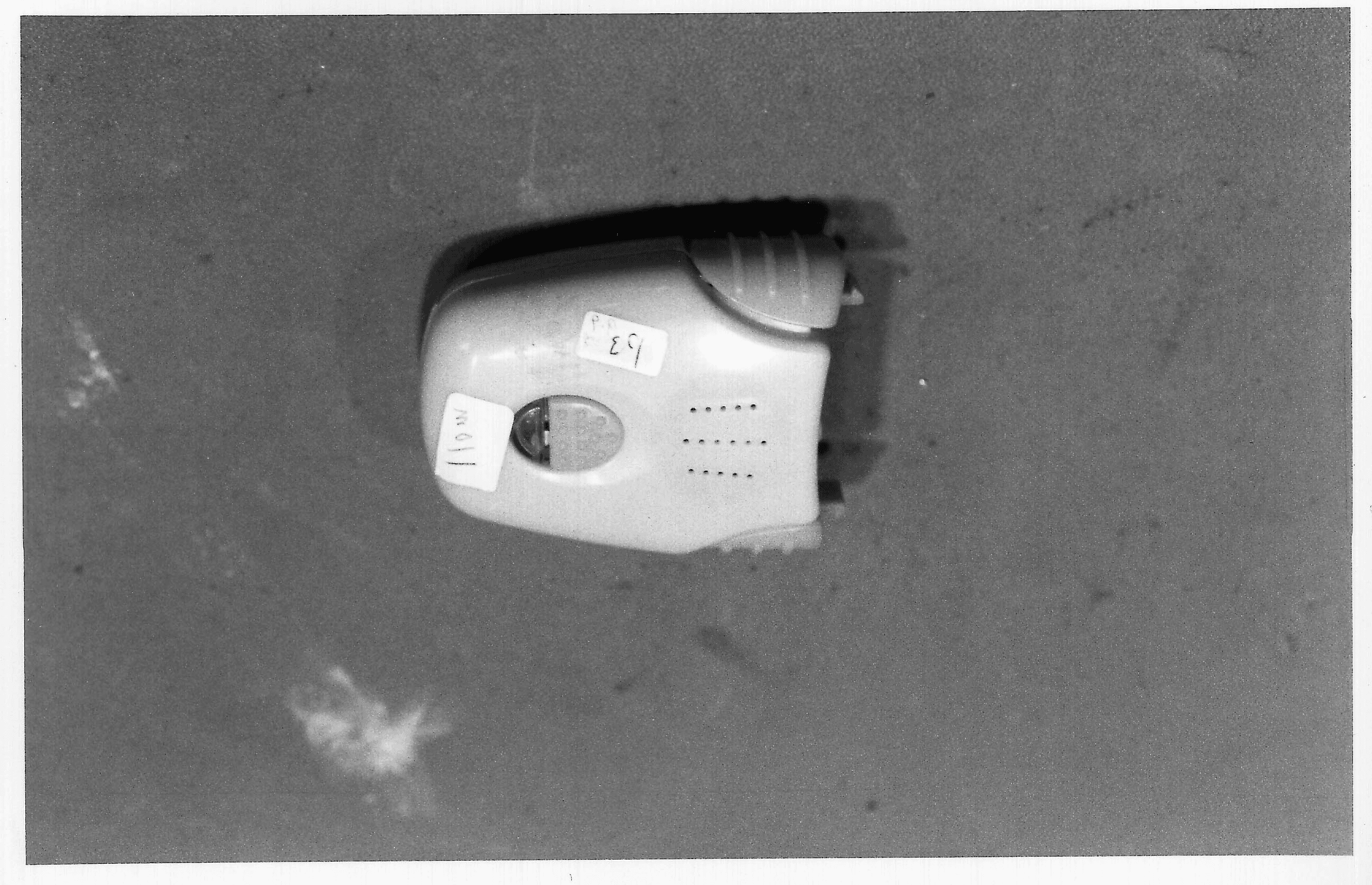

Front View of the Parent Device Rear View of the Parent Device Front View of Child Device Rear View of Child Device

Identification Label, Parent Unit Identification Label, Child Unit

Internal View of the Battery Compartments Parent and Child Devices, Partially Disassembled Component Side of PWBs (Audio PWB to the Right of Each Main PWB) Foil Side of PWBs (Audio PWB to the Left of Each Main PWB)

CD&T FCC ID: N2K-2540HH A. DEVICE UNDER TEST The device is a low power data transceiver operating under the provisions of Part 15.249 of the FCC rules. The transmit and receive frequencies are the same, operating in simplex mode at 916.5MHz. nominal. The modulation mode is on/off keying at rates up to 14400 baud. The receiver section is a TRF type using sequentially tuned amplifier stages that are clocked at a nominal 245kHz. No signals relating to the receiver clock frequency were detectable as radiated emissions. B. MEASUREMENT PROCEDURE: RADIATED EMISSIONS Transmitter field strength measurements were conducted according to the procedures set forth in ANSI C63.4 (1992). The device under test was placed on a rotating turntable 0.8 meters high, centered at 3 meters distant from the measurement antenna. The device was placed in the center of the turntable and tested in the two logical positions as shown in the photographs. This device contains an internal mercury tilt switch that limits operation to normal handheld positions. This is done to increase battery life. The device is powered from an in integral 7.2V NiCad battery and is internally regulated at 5V. The test was conducted with the battery at full charge. Several spare batteries were on hand for the test but the first battery was checked periodically and never dropped below 85% capacity. The device maintains regulation down to 72% battery capacity. For the purposes of testing, the device was locked in a constant transmit pattern generated by a special test routine programmed into the internal micro-controller. The field strength measurements were taken using an HP8596E spectrum analyzer, EMCO 3121C dipole set, an EMCO 3115 double ridge guide horn.and an Avantek UJ210 preamp The device was scanned from 30MHz. to 9.2GHz. and all emissions were noted. In this case the only emissions detected were those harmonically related to the fundamental transmit frequency. At each detected frequency of emission, the device was measured by rotating the turntable and adjusting the antenna height over a range of 1 to 4 meters to obtain the maximum output level. This procedure was performed with both horizontal and vertical antenna polarizations with the device in the positions described above. The peak reading for each frequency was recorded in the second column on the data sheet. The readings for the 5 th ,6 th and 7 th , harmonics were obtained by reducing the distance from the measurement antenna to 1 meter and entering a -9.5dB distance correction factor into the final calculation for those measurements. Harmonics above the 7 th were not detectable. The calculations for this device were made without factoring in a duty cycle correction factor. Although the transmission mode is on/off keying and yields a correction factor of approximately -8dB., all emissions were sufficiently below the applicable limits to ignore the offset.

A A B B C C D D E E 44 33 22 11 All caps 603 unless specified All resistors 603 unless specified TRACES FROM TXOUT TO RX-IN ARE 50 OHM WHICH IS 17MILS WIDE ON 9 MIL DIST TO PLANE ALSO THRU U9. Programming contacts under SMT U5 TO PROGRAMMER (PARENT ONLY) (CHILD ONLY) (CHILD ONLY) (PARENT ONLY) LOADING DIFFERENCES: (PARENT ONLY) R16,D1,S3:(PARENT ONLY) J3,J5: CLIPS(CHILD ONLY) 71573-6609 71573-6619A F-P Locator, PARENT/CHILD BOARD SCHEMATIC Fisher-Price B 12Friday, October 23, 1998 Title SizeDocument NumberRev Date:Sheetof TX RX RX VCCD VCC VCC OSC OSC vcc VCC PIN12 VCCD PIN11 PIN2 TX PIN17 W7L900A W7L900B ANTENNA PIN18 VCC VCCD VCC VCCD VCCD vraw GND PLL_EN PLL_EN GND POWER U5 pic16c62x 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 RA2AN2VREF RA3AN3 RA4T0CKI MCLR* VSS RBOINT RB1 RB2 RB3 RB4 RB5 RB6 RB7 VDD OS2CLOCKOUT OS1CLKIN RA0AN0 RA1AN1 Y3 14.160156mhz Y2 14.327344,MHZ C20 1000p C21 47p R16 100R R19 2.7k R41 0R R28RNL R12 2.2k C9 100p C8 .01u C5 .01u C4 .01u C3 .01u C2 .01u C1 .01u U6 PX400 3 2 1 3 2 1 R15 100k C12 22p C10 CNL R11 100R L1 8.2u C6 10p R3 RNL R1 10 C7 .01u C1110p R8 8.2k R6 10 C15 100p R24 100k R4 100k L7 FERRITE BEAD R31 4.7k +C27 10u,6.3V C31 .01u R33 160k C38 .01u R36 10R C33 .01u D1 LINKED R7 100R R5100R C16 100p C30 100p L8 10n U16 TIE2 12 U17 TIE2 12 C37 0 ohm jumper-0603 R39 51k C42 .01u R37 10 C40 .1u R38 10 R40 10 C41 .01u C43 100p U20 TK11330TR 6 5 43 2 1 VIN GND VOUTBP GND CT C32 .1u vddCONTACT 1 mclrCONTACT 1 rb7CONTACT 1 gnd CONTACT 1 rb6CONTACT 1 R23 100k +C26 10u, 6.3V C13 22p R2 2.2k U3 RFMD2905 1 2 3 4 5 6 7 8 9 10 11 12 131415161718192021222324 25 26 27 28 29 30 31 32 33 34 35 36 373839404142434445464748 RX ENABLE TX ENABLE TX OUT GND2 RX IN GND1 LNA OUT GND2 MIX IN GND5 MIX OUT+ MIX OUT - IF1 IN+IF1 IN - BYPASS1BYPASS2 IF1 OUT IF2 INGND6 BYPASS3BYPASS4BYPASS5 MUTE RSSI FM OUT DATA OUT DEMOD IN IF3 OUT VCC 6 RESNTR+ RESNTR- VCC2 GND4 MOD IN DIV CNTL MOD CTL OSC SELREF OSC2OSC COMREF OSC1LOOP FILTLOCK DET-LOCK DET-VCC 1PRESCL OUTVCC3LVL CTLPLL ENABL U15 TIE2 12 U14 TIE2 12 U21VARACTOR_DUAL 1 3 2 U1 10.7-FIL,180KHZ 13 2 U2 10.7-FIL,180KHZ 13 2 C17 .1u U9 KFF6140A 12 3 S1S2 G U22 A5209 2 3 1 VDD OUT VSS R45 30k R46 2k R42 100k R43 510k R47 4.7k R48 4.7k R44 RNL J1 POWER 1 J2 GROUND 1 J6 AUDIO 1 J4 AUDIO_EN 1 J3 CHILD_CONTACT1 1 J9 ANTENNA 1 J8 TEST_RSSI 1 J7 TEST_THRESHOLD 1 Q3 2N3904 Q4 2N3904 C44 .01u C45 .1u J10 PWR_OFF 1 R49 0R C34 100p J5 CHILD_CONTACT2 1 S3 ALERT TXCONTACT 1 RXCONTACT 1 OSC CONTACT 1 C46 1p PLL_EN CONTACT 1 A A B B C C D D E E 44 33 22 11 {Doc}{RevCode} {Title} A 11Friday, October 23, 1998 Title SizeDocument NumberRev Date:Sheet of A A B B C C D D E E 44 33 22 11 GND WIRE 71573-6629 71573-6639A LOCATOR AUDIO Fisher-Price B 22Friday, October 23, 1998 Title SizeDocument NumberRev Date:Sheetof R7 10K,5% C5 0.1UF C6 0.1UF +C7 100UF,10V +C8 10UF,10V C9 0.01UF R9 4.7,5% R10 4.7,5% NOT_BEEP WIRETO-20AWG 1 GND WIRETO-20AWG 1 VCC WIRETO-20AWG 1 + - - + U2 KA2209 7 6 5 8 1 3 4 2 + + - - OUT1 OUT2 gnd VCC SPKR+ WIRETO-20AWG 1 SPKR- WIRETO-20AWG 1 Q1 mmbt3904dict R11 1K,5% Q2 MMBT4403DICT R13 510,5% R12 10K,5% R14 2K,5% AUDIO WIRETO-20AWG 1 Q3 mmbt3904dict S1 SW 6mm_NO_momentary PWR_OFF WIRETO-20AWG 1 R15 220K,5% R16 220K,5%

11-7 11 TRANSCEIVERS Preliminary

                   RF Micro Devices, Inc. 7625 Thorndike Road Greensboro, NC 27409, USA Tel (910) 664 1233 Fax (910) 664 0454 http://www.rfmd.com
        Si BJTGaAs MESFETGaAs HBT Si Bi-CMOS
1718 26 12 11 9 Linear RSSI 24 7 5 Gain Control 47 3 313034 Prescaler 128/129 or 64/65 Phase Detector & Charge Pump 41403938 35 36 Lock Detector 4243 Ref Select 37 1413 DATA OUT RSSI DIV CTRL MOD CTRL OSC SEL 23 MUTE IF2 IN IF1 OUT 21 IF2 BP+ 20 VREF IF 22 IF2 BP- 16 IF1 BP- 15 IF1 BP+ IF1 IN- IF1 IN+ MIX OUT- MIX OUT+ MIX IN LNA OUT RX IN TX OUT LVL ADJRESNTR+MOD INVREF PLOCK DETLOOP FLTOSC B1OSC B2OSC E 45 PRESCL OUT 28 IF2 OUT 27 DEMOD IN RESNTR- 25 FM OUT RF2905
    • Wireless Meter Reading • Keyless Entry Systems • 433/868/ 915MHz ISM Band Systems • Wireless Data Transceiver • Wireless Security Systems • Battery Powered Portable Devices The RF2905 is a monolithic integrated circuit intended for use as a low cost FM transceiver. The device is provided in 48-lead plastic LQFP packaging and is designed to provide a fully functional FM transceiver. The chip is intended for linear (AM, FM) or digital (ASK, FSK, OOK) applications in the North American 915 MHz ISM band and European 433MHz and 868MHz ISM bands. The integrated VCO, dual modulus/dual divide (128/129 or 64/ 65) prescaler, and reference oscillator require only the addition of an external crystal to provide a complete phase-locked oscillator. • Fully Monolithic Integrated Transceiver • 2.7 V to 5.0 V Supply Voltage • Narrow Band and Wide Band FM/FSK • 300MHz to 1000MHz Frequency Range • 10dB Cascaded Noise Figure • 10mW Output Power at 433MHz RF2905433/868/915 MHz FM/FSK/ASK/OOK Transceiver RF2905 PCBA-L Fully Assembled Evaluation Board (433 MHz) RF2905 PCBA-M Fully Assembled Evaluation Board (868 MHz) RF2905 PCBA-H Fully Assembled Evaluation Board (915 MHz)

Rev B1 971107 .362 .346 .280 .272 7°MAX 0°MIN .007 .011 .007 .362 .346 .280 .272 .057 .053 .006 .002 .020 .031 .021MAX    !"#$ Preliminary 11-8 RF2905 Rev B1 971107 11 TRANSCEIVERS Absolute Maximum Ratings ParameterRatingsUnit Supply Voltage-0.5 to +5.5V DC Control Voltages-0.5 to +5.0V DC Input RF Level+10dBm Output Load VSWR50:1 Operating Ambient Temperature-40 to +85°C Storage Temperature-40 to +150°C Parameter Specification UnitCondition Min.Typ.Max. Overall T=25 °C, V CC = 3.6 V, Freq =433 MHz RF Frequency Range300 to 1000MHz VCO and PLL Section VCO Frequency Range300 to 1000MHz Prescaler divide ratio64/65 or 128/129 Prescaler Output Impedance50 Ω PLL Lock Time10msThe PLL lock time is set externally by the bandwidth of the loop filter PLL Phase Noise-80dBc/HzFreq= 915 MHz, 10 kHz Offset -100dBc/HzFreq=915MHz, 100kHz Offset Reference FrequencyTBD17MHz Crystal R S 50100 Ω Charge Pump Current-40+40 μ A Transmit Section Max Modulation Frequency2MHz Min Modulation FrequencySet by loop filter bandwidth Maximum Power Level+7+10dBmFreq= 433 MHz +3dBmFreq= 915 MHz Power Control Range12dB Power Control Sensitivity10dB/V Max FM Deviation200kHzInstanteneous frequency deviation is inversely proportional with the modulation voltage Antenna Port Impedance50 Ω TX ENABL=“1” Antenna Port ImpedanceTBD Ω TX ENABL=“0” Antenna Port VSWR1.5:1TX Mode Modulation Input Impedance4 κΩ Harmonics-23dBc SpuriousdBcCompliant to Part 15.249 and I-ETS 300 220 Overall Receive Section Frequency Range300 to 1000MHz Cascaded Voltage Gain35dBFreq= 433 MHz 23dBFreq= 915 MHz Cascaded Noise Figure10dB Cascaded Input IP 3 -31dBmFreq=433MHz -26dBmFreq=915MHz RX Sensitivity-101dBmIF BW =150 kHz, Freq = 433 MHz, S/N = 8dB LO Leakage-70dBm RSSI DC Output Range0.5 to 2.5VR LOAD =51k Ω RSSI Sensitivity25mV/dB RSSI Dynamic Range7080dB Caution! ESD sensitive device. RF Micro Devices believes the furnished information is correct and accurate at the time of this printing. However, RF Micro Devices reserves the right to make changes to its products without notice. RF Micro Devices does not assume responsibility for the use of the described product(s). Preliminary 11-9 RF2905 Rev B1 971107 11 TRANSCEIVERS LNA Voltage Gain23dB433 MHz 16dB915 MHz Noise Figure4.8dB433 MHz 5.5dB915 MHz Input IP 3 -27dBm433 MHz -20dBm915 MHz Input P 1dB -37dBm433 MHz -30dBm915 MHz Antenna Port Impedance50 Ω RX ENABL=“1” TBD Ω RX ENABL=“0” Antenna Port VSWR1.5:1Freq = 433 MHz, RX Mode Output ImpedanceOpen Collector Ω 433MHz Open Collector Ω 915MHz Mixer Single-ended configuration Conversion Voltage Gain8dB433 MHz 7dB915MHz Noise Figure (SSB)TBDdB433MHz 17dB915 MHz Input IP 3 -21dBm433 MHz -17dBm915 MHz Input P 1dB -31dBm433 MHz -28dBm915 MHz Maximum Output VoltageV PP Balanced First IF Section IF Frequency Range0.110.725MHz Voltage Gain40dBIF= 10.7 MHz Noise Figure13dB Input IP 3 TBDmV PP IF1 Input Impedance330 Ω IF1 Output Impedance330 Ω Second IF Section IF Frequency Range0.110.725MHz Voltage Gain60dBIF= 10.7 MHz IF2 Input Impedance330 Ω IF2 Output Impedance1 κΩ At IF2 OUT- pin Demod Input Impedance10 κΩ FM Output Impedance500 Ω Data Output Impedance>1 ΜΩ FM Output Bandwidth2MHz Data Output Bandwidth2MHz Data Output Level0.3V CC -0.3VZ LOAD =1 M Ω || 3 pF; Output voltage is pro- portional with the instantaneous frequency deviation. FM Output DC Level2.6VZ LOAD >10k Ω FM Output AC Level200mV PP Z LOAD >10k Ω Preliminary 11-10 RF2905 Rev B1 971107 11 TRANSCEIVERS Power Down Control Logical Controls “ON”2.0VVoltage supplied to the input Logical Controls “OFF”1.0VVoltage supplied to the input Control Input Impedance25k Ω Turn On Time4msReference Crystal =7.075 MHz Turn Off Time4msDependent upon reference crystal. Higher RX to TX and TX to RX Time4msfrequencies reduce turn on/off times Power Supply Voltage3.6VSpecifications 2.7 to 5.0VOperating limits Current Consumption25mATX Mode, LVL ADJ = 3.6 V 10mATX Mode, LVL ADJ = 0 V 9mARX Mode 1 μ APower Down Mode 8mAPLL Only Mode Preliminary 11-11 …

Text truncated - open the document above for the full version.

TEST REPORT October 23, 1998 3:14 pmFPT 9810 0601 Page 1 of 24 Disclaimers: This report is the confidential property of the client. For the protection of our clients and our- selves, extracts from this test report cannot be produced without prior written approval from Criterion Technol- ogy. Reproduction of the complete report can be performed at the client’s discretion. The client is aware that Criterion Technology has performed testing in accordance with the applicable stan- dard(s). Test data is accurate within ANSI uncertainty parameters for Emissions testing, unless a specific level of accuracy has been defined in writing prior to testing, by Criterion Technology and the client. Criterion Technology reports apply only to the specific Equipment Under Test (EUT) sample(s) tested under the test conditions described in this report. If the manufacturer intends to use this report as a document demon- strating compliance of this model, additional models of this product must have electrical and mechanical char- acteristics identical to the device tested for this report. Criterion Technology shall have no liability for any deductions, inferences, or generalizations drawn by the client or others from Criterion Technology issued reports. Total liability is limited to the amount invoiced for the testing of this EUT and the contents of this report are not warranted. Compliance with the appropriate governmental standards is the responsibility of the manufacturer. Any questions regarding this report should be directed to: Laboratory Director Criterion Technology P.O. Box 387 1350 County Road 16 Rollinsville, Colorado 80474 Phone: 1-303-682-6600 Fax:1-303-682-6672 email: [email protected] NVLAP Notes: The NVLAP Logo on the front cover of this report applies only to the 47 CFR part 15 and CISPR 22:1993 data contained herein. This report contains data which are not covered by the NVLAP accreditation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Criterion Technology has been accredited by the following groups: NVLAP, VCCI, BCIQ and NMi (EU Com- petent Body Accreditation) All Criterion Technology instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 9001, ISO Guide 25, ANSI/NCSL Z450-I-1994 and are traceable to national standards. Accredited Since 1993 TEST REPORT October 23, 1998 3:14 pmFPT 9810 0601 Page 2 of 24 Section 1 Executive Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Section 2 Emissions Test Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Part 2.1 FCC Part 15 Subpart B - Conducted Emissions . . . . . . . . . . . . . . . . . . . . . . . . . 7 Part 2.2FCC Part 15 Subpart B –Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Part 2.3 FCC Part 15 Subpart C –Intentional Radiated Fields. . . . . . . . . . . . . . . . . . . . . . 9 Section 3 Test Setup Photographs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Part 3.1 Radiated Emissions Setup - Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Part 3.2 Radiated Emissions Setup - Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Section 4 ORIGINAL TEST DATA / PLOTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Part 4.1 Radiated Emissions - Plot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Part 4.2 Radiated Emissions - Tabular Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4.3 Pulse Characteristics of the Locator Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Section 5 Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5.1 EUT Description and Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5.2 EUT Diagram as Tested . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 TEST REPORT October 23, 1998 3:14 pmFPT 9810 0601 Page 3 of 24 Section 1Executive Summary The test article was in compliance with all the test standards listed below. FCC Part 15 Subpart AGeneral FCC Part 15 Subpart BConducted & Radiated Emissions FCC Part 15 Subpart CIntentional Radiators All test methods were performed in accordance with the standards listed above. TEST REPORT October 23, 1998 3:14 pmFPT 9810 0601 Page 4 of 24 TEST REPORT October 23, 1998 3:14 pmFPT 9810 0601 Page 5 of 24 Section 2Emissions Test Standards The emissions tests were performed according to following standards: FCC Part 15, Subpart B[ ] Class A[X] Class B FCC Part 15, Subpart C, Paragraph 15.209 Part 2.1 FCC Part 15 Subpart B - Conducted Emissions Measurement of conducted emissions was not performed as the EUT was battery operated. Part 2.2 FCC Part 15 Subpart B –Radiated Emissions Measurement or radiated emissions (electric field) in the frequency range of 30 MHz-1000 MHz were tested in a horizontal and vertical polarization as indicated below: Environmental conditions in the lab: Date(s) of Test:mm/dd/yy 10/6-8/98 and 10/15/98 Temperature:79 ° F Rel. Humidity 18% Test Voltagenone (Battery operation) Te s t l o c a t i o n : [X]Criterion Technology Open Area Test Site [X] Pre-Scan In Semi-Anechoic Chamber [ ]Not applicable Test distance (antenna - EUT): [ ]1 meter[ ]Preliminary Measurement[ ]Final Measurement [X]3 meters[X]Preliminary Measurement[X]Final Measurement [ ] 10 meters[ ]Preliminary Measurement[ ]Final Measurement [ ]30 meters[ ]Preliminary Measurement[ ]Final Measurement [ ]Not applicable Test instruments:Calibration Due Date [X]Hewlett Packard Spectrum Analyzer, Model 8566B12/17/98 [ ]Hewlett Packard Quasi Peak Adapter, Model 85650A12/17/98 [ ]Hewlett Packard Tracking Generator, Model 85645A12/17/98 [ ] Ro…

Text truncated - open the document above for the full version.

Radiated Emission Test, Front View Radiated Emission Test, Rear View
