CCT71924T

Car Seat Dashboard with Remote Control Model Number 71924 WARNING Please save these instructions for future reference. Batteries must be installed by an adult. Requires one 9 volt (6LR61) and three “AA” (LR6) alkaline batteries (not included). Tool required for battery installation: Phillips Screwdriver (not included). To prevent strangulation, never place product in a crib or playpen where baby could become entangled. NEVER add strings or ties to the product. Battery Compartment Dashboard Cover Battery Installation Battery Tips Hint:We recommend the use of alkaline batteries for longer battery life. 9V (6LR61) 1.5V X 3 “AA” (LR6) SHOWN ACTUAL SIZE SHOWN ACTUAL SIZE Battery Compartment Remote Control Dashboard • Turn the dashboard face down. Open the fasteners on the cover to locate the battery compartment on the dashboard. • Loosen the screws in the battery compartment door with a Phillips screwdriver. Remove the battery compartment door. • Insert three “AA” (LR6) alkaline batteries as indicated inside the battery compartment. • Replace the battery compartment door and tighten the screws with a Phillips screwdriver. Do not over-tighten. Remote Control • Loosen the screws in the battery compartment door with a Phillips screwdriver. Remove the battery compartment door. • Snap the contacts of a 9V (6LR61) alkaline battery to the contacts inside the battery compartment. • Replace the battery compartment door and tighten the screws with a Phillips screwdriver. Do not over-tighten. 2 Set-Up • Slide the power/volume control switch on to low volume . • Press the horn on the dashboard to activate the system. The lights will twinkle. The system will be on for approximately two hours. • Press the horn again to hear a soothing lullaby or entertaining song. Adjust the volume to a comfortable listening level for your child by either: - keeping the switch on low volume . - sliding the switch to high volume . Hint: Although the system is on, unless the toy is playing music or sound effects and lights are twinkling, only a very small amount of power is being used from the batteries. • Re-fasten the fasteners on the cover. Press horn to activate system. Power/ Volume Control Switch • Do not mix old and new batteries. • Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). • Remove the batteries during long periods of non-use. Always remove exhausted batteries from the toy and remote. Battery leakage and corrosion can damage this toy. Dispose of batteries safely. • Never short circuit the battery terminals. • Non-rechargeable batteries are not to be recharged. • Only batteries of the same or equivalent type as recommended in the Battery Installation instructions are to be used. • If removable rechargeable batteries are used, they are only to be charged under adult supervision. • Rechargeable batteries are to be removed from the toy before they are charged. • If you use a battery charger, it should be examined regularly for damage to the cord, plug, enclosure and other parts. Do not use a damaged battery charger until it has been properly repaired. Attaching the Dashboard to a Car Seat IMPORTANT! This product is designed to attach to most car seats. If, after attaching this product to your car seat you find that you cannot properly tighten your car seat’s restraint system (as described in the car seat manufacturer’s instructions), DO NOT use this product on the car seat. • Position the dashboard upright with the horn facing baby. • Fasten the clips on the underside of the dashboard to the car seat bolster fabric, as shown. Clip Car Seat Bolster Fabric Dashboard Horn Car Seat with Bolster Before attaching the dashboard to your car seat’s restraint system, check to be sure the car seat restraint system is securing your child properly. Check all restraint system belts (shoulder, lap, crotch, etc.) by pulling on them. The straps should not pull more than one inch (two fingers) away from your child. • Position the dashboard so that the horn is upright and facing away from baby. • Wrap the dashboard straps around the crotch strap (of the car seat restraint system) and fasten. Horn Dashboard Car Seat Restraint System Car Seat with 3-Point or 5-Point Restraint 3 Adult Use with Remote Control • Press the horn on the dashboard to activate the system. The lights will twinkle. • Press the remote control button once for soothing lullabies and a light display. Music and lights plays for approximately three minutes. • To pause lullabies, press the remote control control button again. • To switch to entertaining songs, press the remote control button a third time. A musical selection and light display plays for approximately three minutes. • To pause songs, press the remote control button again. • To replay lullabies, press the remote control button again. Hint: Each time the remote control button is pressed, the toy will cycle between lullabies - pause - songs - pause, etc. Attaching the Remote Control To a Vehicle Visor • Attach the remote control clip to the top of the vehicle visor, as shown. Hint: The remote control does not need to be in direct line with dashboard. Visor Remote Control 4 Child Use with Dashboard Only • Press the horn on the dashboard to activate the system. The lights will twinkle. • When your child presses the horn, you’ll hear a sound effect. Then, your child will enjoy one soothing lullaby or entertaining song along with twinkling lights and a sound effect. Care Back View Front View Curved Edge • Once cleaned and dried, unfasten the fasteners on the underside of the cover. • Position the plastic unit so that the curved edge is toward the curved edge of the cover. • Fit the plastic unit into the cover. Re-fasten the cover fasteners closed. • Turn the dashboard upright. Fit the four lenses on the plastic unit through the four holes in the cover. Back View • Remove the plastic unit before washing the fabric dashboard cover. - Unfasten the fastene…

Text truncated - open the document above for the full version.

April 4, 2000 Federal Communications Commission P.O. Box 35315 Pittsburgh, PA SUBJECT: Classification of Fisher-Price Product #71924, Remote Control Dashboard (345 MHz). Dear Sirs, This letter is to inform you that the Fisher-Price Remote Control Dashboard #71924 submitted for license is not considered to be a child’s toy. Fisher-Price will market and sell product #71924 as an appliance to be operated by adults only. Specifically, the product fits well into the group of products described in 47 CFR 15.231 and its operation is similar to that of a garage door opener system. If you have any questions concerning the regulatory classification of product 71924, please feel free to contact me at 716 687 3984. Sincerely, Robert J. Coughlin Manager, Testing and Regulatory Affairs

71924 RC DASH TRANSMITTER BLOCK DIAGRAM (71924TxrevAblock) 4 /4/00 LC OSCILLATOR D1 R11 R9 BT1 9.0V Q3 R2 71924TXrevAblock A 71924 RC DASH TRANSMITTER BLOCK DIAGRAM (PER 71924TxrevF.SCH) B 11 Tuesday, April 04, 2000 FISHER-PRICE 636 GIRARD AVE. EAST AURORA, N.Y. 14052 TitleSize Document Number Rev Date: Sheet of R8 4 BIT CONTROLLER(U1) R1 TRANSISTOR (Q1) SW1 DATA Q2 PCB TRACE ANTENNA

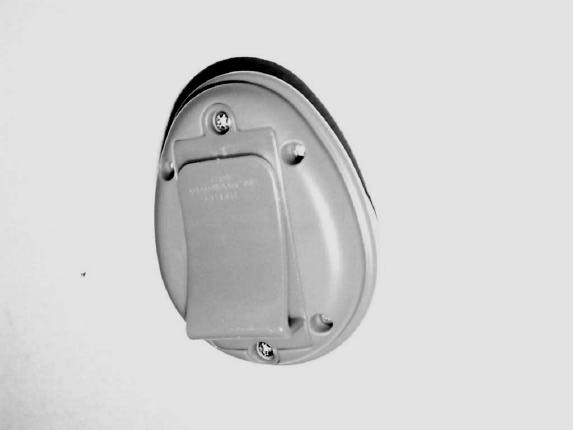

External Photograph of Fisher-Price Model RC Dash Transmitter, Front External Photograph of Fisher-Price Model RC Dash Transmitter, Rear

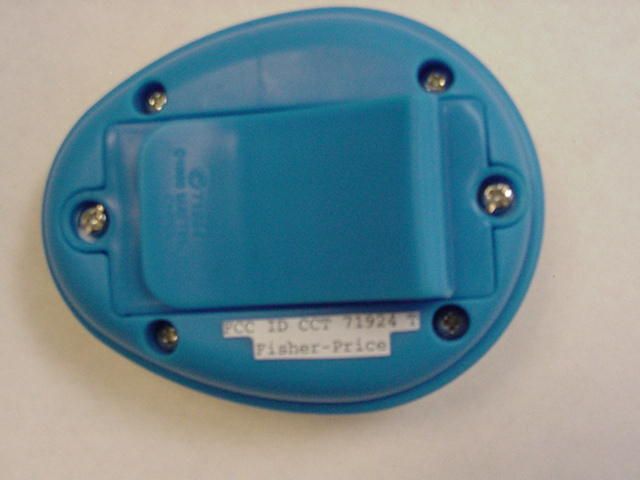

TOLERANCES - UNLESS OTHERWISE SPECIFIED - 3 PLACE DIMS ± .010 2 PLACE DIMS ± .020 FRACTION DIMS ± 1/32 ANGLES ± 2° DWN DATE SCALE DWG NO.CHG TITLE LET CHANGE BY DATE APPD *NOTE: REFER TO PART PRINT FOR DIMENSIONS Full MOLD MASTER (RAISE .015) 71924-M 3/24/00 ALAN MRUK 71924 RC Dash Location: Transmitter FCC ID CCT 71924 T Fisher-Price

Inside Enclosure Photograph of Fisher-Price Model RC Dash Transmitter Battery Compartment Photograph of Fisher-Price Model RC Dash Transmitter Printed Wiring Board (Component Side) Photograph of Fisher-Price Model RC Dash Transmitter Printed Wiring Board (Rear Side) Photograph of Fisher-Price Model RC Dash Transmitter

FISHER-PRICE 71924 RC DASH TRANSMITTER DESCRIPTION OF OPERATION Transmitter Operation: The transmitter is a parent operated intermittent duty transmission designed to accompany the associated receiver. Principally the product is designed as an infant car seat soothing toy, allowing the parent’s transmitter to remotely activate and change modes on the child’s receiver unit. The RF portion of the Transmitter consists of a simple transistor LC transmit oscillator defined by components: Q1, C5, C6, L1, C3, C4, C10, R7, C9, R4, R6. A trace leading from the resonant inductor (L1) forms the PCB antenna. The transmit frequency is trimmed by a variable capacitor (C4) and is set to 345MHz. To activate the transmitter the user depresses SW1 (Transmit) Switch. This biases Q2 turning on power to both the micro-controller (U1) and the LC transmit oscillator. The controller then turns on Q3, which in turns enables Q2 supplying system power independent of the SW1 state for the entire data transmission period of 120mS. This guarantees that a single complete data stream is transmitted regardless of the length of time SW1 is depressed. The controller outputs the data stream to the transmit oscillator and upon completion turns off Q3 thereby turning off power to the system. Should SW1 continue to remain closed (transmit state) the data stream will terminate after one complete transmission period, thereby automatically disabling the RF transmission. The transmit oscillator is ON/OFF modulated by the micro- controller data stream which gates the RF carrier by turning on the base bias to the transistor (Q1). System power is supplied by a replaceable 9.0V battery. U1 is voltage regulated by R2, D1. Resistors R1, R8 reduce the Q of the battery leads thus minimizing the unintentional radiation from these leads. JPM, SE

4/6/00 FISHER-PRICE 71924 RC DASH TRANSMITTER SCHEMATIC W2 J2 R810 Q1ne94433 * Q3 2N3904 * J3 CONT XMIT R910k R3910k BT19.0V Added: Q2,Q3,R12,R9,R10,R11C3 From 4pF To 8pF 3) Dashed or Dotted-Lined boxes indicates OFF-BOARD component(s). C7 1000pF R7330 NOTES: Q2,Q3 FOR TRANSMIT SIGNAL INDEPENDENCE OF SW1 CLOSURE TIME.C38pF W1 J1 R13TBD R620k R10 from 10k to 100k (same as 71924TxrevB.sch) + C8 1000pF SW1 TRANSMIT * C9 10pF C4 CERAMIC (High Stability) 5) JP1 For Continuous Transmit Function Testing Only. - Denotes wire terminal on PCB. Moved P2.0 to Cathode D1 R1110k 4). * Designates Capacitor as NPO. R2470 PCB FR-4 / G10 71924TxrevF .SCH F 71924 RC DASH TRANSMITTER - FINAL RELEASE FISHER-PRICE 636 GIRARD AVE. EAST AURORA, N.Y. 14052 dwn by: B 11 Monday, March 27, 2000 TitleSize Document Number Rev Date: Sheet of * C64pF R1, R8 From 51 To 10 R4 10k Q2 JE8550D U1 EM56001 3 14 4 1513 56789101112 vddoscVOTESTVSS P3.3 P3.2P3.1P3.0P2.3P2.2P2.1P2.0 R3 From 1M to 910k * CHANGES: R510k C54pF - * C10 15pF C10 From 4pF To 15pF R110 R3 , R13 set so that Pulse Stream Timing= (Preamble=40mS) , (Data=40mS / 5mS bit widthsalternating 0/1) , (Postamble=40mS /10mS data bit widths alternating 0/1) On P3.0.Q1 = ne94433SW1 Low Resistance Tactile Switch C4 1-3pF 1) Resistors in OHMS, Capacitors in FARADS: unless otherwise noted. C9 From 4pF To 10pF * C20.1uF R10100k R12100k ADDED R13 (TBD) fine master clock adjustment if necessary. 2) * C1 0.1uF D1 4.8v 13 D1 = 4.8VCRIITCAL COMPONENTS: L1 6.8nH

TEST REPORT April 21, 2000 4:19 pmFCP 100032401 TX Page 1 of 26 CONFIDENTIAL AND PROPRIETARY QUALIFICATION TEST REPORT EMISSIONS -FCC Part 15 Test Report Number: FPT100032401 TX Date of Issue: 21 April 2000 Model No: RC Dash Transmitter Date of Test Article Receipt: 28 March 2000 Type of product: FCC Part 15.231 Manufacturer: Fisher-Price Address: 636 Girard Avenue East Aurora, N.Y. 14052 Test Results:[X] Complies[ ] Does Not Comply ____Michael E. Mussler ______________Lab Director ____Michael E. Mussler______________Compliance Engineer Accredited Since 1993 1350 County Road 16 P.O. Box 387 Rollinsville, CO 80474 (303) 258-0100 ph. (303) 258-0775 fax www.criteriontech.com C O R P . TEST REPORT April 21, 2000 4:19 pmFCP 100032401 TX Page 2 of 26 CONFIDENTIAL AND PROPRIETARY Disclaimers: This report is the confidential property of the client. For the protection of our clients and ourselves, extracts from this test report cannot be produced without prior written approval from Criterion Technology. Reproduction of the complete report can be performed at the client’s discretion. The client is aware that Criterion Technology has performed testing in accordance with the applicable standard(s). Test data is accurate within ANSI parameters for Emissions testing, unless a specific level of accuracy has been defined in writing prior to testing, by Criterion Technology and the client. Criterion Technology reports apply only to the specific Equipment Under Test (EUT) sample(s) tested under the test con- ditions described in this report. If the manufacturer intends to use this report as a document demonstrating compliance of this model, additional models of this product must have electrical and mechanical characteristics identical to the device tested for this report. Criterion Technology shall have no liability for any deductions, inferences, or generalizations drawn by the client or others from Criterion Technology issued reports. Total liability is limited to the amount invoiced for the testing of this EUT and the contents of this report are not war- ranted. Compliance with the appropriate governmental standards is the responsibility of the manufacturer. Any questions regarding this report should be directed to: Laboratory Director Criterion Technology P.O. Box 387 1350 County Road 16 Rollinsville, Colorado 80474 Phone: 1-303-682-6600 Fax:1-303-682-6672 email: [email protected] Criterion Technology has been accredited by the following groups: NVLAP, VCCI, BSMI, NMi (EU Competent Body Accreditation) and Industry Canada. The National Institute for Standards and Technology (NIST) has designated Crite- rion Technology a Conformity Assessment Body (CAB) for Taiwan (BSMI # SL2-IN-E-007R). All Criterion Technology instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 9001, ISO Guide 25, ANSI/NCSL Z540-I-1994 and are traceable to national standards. TEST REPORT April 21, 2000 4:19 pmFCP 100032401 TX Page 3 of 26 CONFIDENTIAL AND PROPRIETARY Table of Contents Section 1Executive Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Section 2Emissions Test Standards . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Part 2.1FCC Part 15 Subpart C –Intentional Radiated Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Section 3Test Setup Photographs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Section 4Original Test Data / Plots . . . . . . . . . . . . . . . . . . . . . . . . . 13 Part 4.1Radiated Emissions Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Part 4.2Radiated Emissions Plot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Part 4.3Transmitter Timing Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Part 4.4Average Level Calculation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Part 4.5Transmitter Occupied Bandwidth Plot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Section 5Equipment Calibration Informaton. . . . . . . . . . . . . . . . . . 21 Section 6Product Information Form . . . . . . . . . . . . . . . . . . . . . . . . 23 Part 6.1EUT Description and Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Part 6.2EUT Diagram as Tested . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 TEST REPORT April 21, 2000 4:19 pmFCP 100032401 TX Page 4 of 26 CONFIDENTIAL AND PROPRIETARY TEST REPORT April 21, 2000 4:19 pmFCP 100032401 TX Page 5 of 26 CONFIDENTIAL AND PROPRIETARY Section 1Executive Summary The test article was in compliance with all the test standards listed below. FCC Part 15 Subpart A FCC Part 15 Subpart CIntentional Radiators The transmitter was modified to meet the emissions requirement at the second harmonic by changing the Q1 bias series resistance to 10 K ohms and the shunt resistance to 12 K ohms. Test results reflect this change. All test methods were performed in accordance with the standards listed above. TEST REPORT April 21, 2000 4:19 pmFCP 100032401 TX Page 6 of 26 CONFIDENTIAL AND PROPRIETARY TEST REPORT April 21, 2000 4:19 pmFCP 100032401 TX Page 7 of 26 CONFIDENTIAL AND PROPRIETARY Section 2Emissions Test Standards The emissions tests were performed according to following standards: FCC Part 15, Subpart C TEST REPORT April 21, 2000 4:19 pmFCP 100032401 TX Page 8 of 26 CONFIDENTIAL AND PROPRIETARY Part 2.1 FCC Part 15 Subpart C –Intentional Radiated Fields Measurement of radiated emissions (electric field) in the frequency range of 30 MHz-1000 MHz were tested in a horizontal and …

Text truncated - open the document above for the full version.

TEST REPORT May 5, 2000 5:27 pmFCP 100032401 TX Page 1 of 26 CONFIDENTIAL AND PROPRIETARY QUALIFICATION TEST REPORT EMISSIONS -FCC Part 15 Test Report Number: FPT100032401 TX Date of Issue: 21 April 2000 Model No: RC Dash Transmitter Date of Test Article Receipt: 28 March 2000 Type of product: FCC Part 15.231 Manufacturer: Fisher-Price Address: 636 Girard Avenue East Aurora, N.Y. 14052 Test Results:[X] Complies[ ] Does Not Comply ____Michael E. Mussler ______________Lab Director ____Michael E. Mussler______________Compliance Engineer Accredited Since 1993 1350 County Road 16 P.O. Box 387 Rollinsville, CO 80474 (303) 258-0100 ph. (303) 258-0775 fax www.criteriontech.com C O R P . TEST REPORT May 5, 2000 5:27 pmFCP 100032401 TX Page 2 of 26 CONFIDENTIAL AND PROPRIETARY Disclaimers: This report is the confidential property of the client. For the protection of our clients and ourselves, extracts from this test report cannot be produced without prior written approval from Criterion Technology. Reproduction of the complete report can be performed at the client’s discretion. The client is aware that Criterion Technology has performed testing in accordance with the applicable standard(s). Test data is accurate within ANSI parameters for Emissions testing, unless a specific level of accuracy has been defined in writing prior to testing, by Criterion Technology and the client. Criterion Technology reports apply only to the specific Equipment Under Test (EUT) sample(s) tested under the test con- ditions described in this report. If the manufacturer intends to use this report as a document demonstrating compliance of this model, additional models of this product must have electrical and mechanical characteristics identical to the device tested for this report. Criterion Technology shall have no liability for any deductions, inferences, or generalizations drawn by the client or others from Criterion Technology issued reports. Total liability is limited to the amount invoiced for the testing of this EUT and the contents of this report are not war- ranted. Compliance with the appropriate governmental standards is the responsibility of the manufacturer. Any questions regarding this report should be directed to: Laboratory Director Criterion Technology P.O. Box 387 1350 County Road 16 Rollinsville, Colorado 80474 Phone: 1-303-682-6600 Fax:1-303-682-6672 email: [email protected] Criterion Technology has been accredited by the following groups: NVLAP, VCCI, BSMI, NMi (EU Competent Body Accreditation) and Industry Canada. The National Institute for Standards and Technology (NIST) has designated Crite- rion Technology a Conformity Assessment Body (CAB) for Taiwan (BSMI # SL2-IN-E-007R). All Criterion Technology instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 9001, ISO Guide 25, ANSI/NCSL Z540-I-1994 and are traceable to national standards. TEST REPORT May 5, 2000 5:27 pmFCP 100032401 TX Page 3 of 26 CONFIDENTIAL AND PROPRIETARY Table of Contents Section 1Executive Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Section 2Emissions Test Standards . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Part 2.1FCC Part 15 Subpart C –Intentional Radiated Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Section 3Test Setup Photographs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Section 4Original Test Data / Plots . . . . . . . . . . . . . . . . . . . . . . . . . 13 Part 4.1Radiated Emissions Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Part 4.2Radiated Emissions Plot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Part 4.3Transmitter Timing Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Part 4.4Average Level Calculation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Part 4.5Transmitter Occupied Bandwidth Plot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Section 5Equipment Calibration Informaton. . . . . . . . . . . . . . . . . . 21 Section 6Product Information Form . . . . . . . . . . . . . . . . . . . . . . . . 23 Part 6.1EUT Description and Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Part 6.2EUT Diagram as Tested . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 TEST REPORT May 5, 2000 5:27 pmFCP 100032401 TX Page 4 of 26 CONFIDENTIAL AND PROPRIETARY TEST REPORT May 5, 2000 5:27 pmFCP 100032401 TX Page 5 of 26 CONFIDENTIAL AND PROPRIETARY Section 1Executive Summary The test article was in compliance with all the test standards listed below. FCC Part 15 Subpart A FCC Part 15 Subpart CIntentional Radiators All test methods were performed in accordance with the standards listed above. TEST REPORT May 5, 2000 5:27 pmFCP 100032401 TX Page 6 of 26 CONFIDENTIAL AND PROPRIETARY TEST REPORT May 5, 2000 5:27 pmFCP 100032401 TX Page 7 of 26 CONFIDENTIAL AND PROPRIETARY Section 2Emissions Test Standards The emissions tests were performed according to following standards: FCC Part 15, Subpart C TEST REPORT May 5, 2000 5:27 pmFCP 100032401 TX Page 8 of 26 CONFIDENTIAL AND PROPRIETARY Part 2.1 FCC Part 15 Subpart C –Intentional Radiated Fields Measurement of radiated emissions (electric field) in the frequency range of 30 MHz-1000 MHz were tested in a horizontal and vertical polarization as indicated below: Environmental conditions of the lab: Date of Test: 28 March 2000 Temperature: 72°F Rel. Humidity: 22% Test Voltage: Battery Powered, 9 volts DC Test location: [X]Criterion Technology Open Area Tes…

Text truncated - open the document above for the full version.

TEST REPORT April 22, 2000 12:50 amFCP 100032401 TX Page 9 of 26 CONFIDENTIAL AND PROPRIETARY Section 3Test Setup Photographs TEST REPORT April 22, 2000 12:50 amFCP 100032401 TX Page 10 of 26 CONFIDENTIAL AND PROPRIETARY TEST REPORT April 22, 2000 12:50 amFCP 100032401 TX Page 11 of 26 CONFIDENTIAL AND PROPRIETARY
