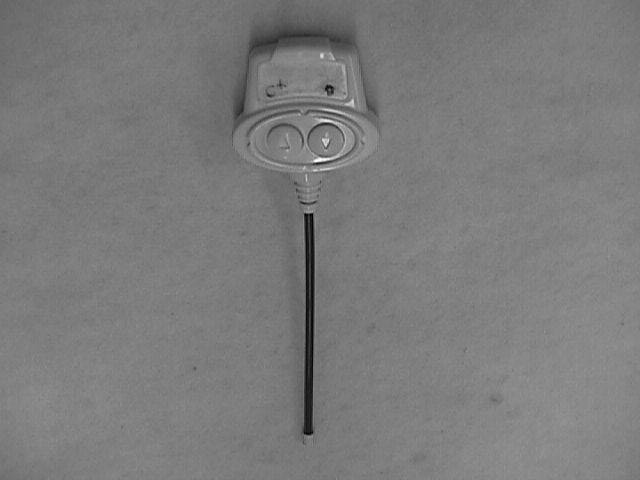

CCT77149TToy Remote Control

One Year Limited Warranty Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2000 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Questions? We’d like to hear from you! Call Fisher-Price ® Consumer Affairs, toll-free at 1-800-432-KIDS, 8 AM - 6 PM EST Monday through Friday. Hearing-impaired consumers using TTY/TDD equipment, please call 1-800-382-7470. Or, write to: Fisher-Price ® Consumer Affairs, 636 Girard Avenue, East Aurora, New York 14052. CANADA, Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2. Questions? 1-800-567-7724. GREAT BRITAIN, Mattel U.K., Ltd., Helpline: 01628 500303. AUSTRALIA, Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond, Victoria 3121 Australia. ConsumerAdvisory Service 1-800-800-812 (valid only in Australia). Printed in China 77149pr-0920 Slithering Jake ™ the RC Snake ® Model Number 77149 Fisher-Price, Inc. 636 Girard Avenue, East Aurora, New York 14052 warrants to the original owner that the Slithering Jake ™ the RC Snake ® is free from all defects in material and workmanship when used under normal conditions for a period of one (1) year from date of purchase. Should the product fail to perform properly, we will repair or replace it at our option, free of charge. Purchaser is responsible for shipping the product to Fisher-Price Consumer Affairs at the address indicated above and for all associated freight and insurance cost. Fisher-Price will bear the cost of shipping the repaired or replaced items to you. This warranty is void if the owner repairs or modifies the product. This warranty excludes any liability other than that expressly stated above, including, but not limited to, any incidental or consequential damages. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. • Please keep these instructions for future reference. • Requires four “C” (LR14) batteries for the RC snake and one 9 volt (6LR61) alkaline battery for the remote (Batteries not included). • Adult assembly required for battery installation. • Tool needed for battery installation: Phillips screwdriver (not included). • Meets requirements of Council Directives - 99/5/EC, 89/336/EEC, 88/378/EEC • Suitable for use in all EC member states Rough Comp! For Approval Only 1 Assembly •Insert and "snap" the breakaway tail into the RC snake's body. • Hint:The RC snake’s breakaway tail may detach from the body during play. If this happens, simply insert and “snap” the breakaway tail into the body. Battery Tips • Do not mix old and new batteries. • Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). • Remove the batteries during long periods of non-use. Always remove exhausted batteries from the toy. Battery leakage and corrosion can damage this toy. Dispose of battery(ies) safely. • Never short circuit the battery terminals. • Non-rechargeable batteries are not to be recharged. • Only batteries of the same or equivalent type as recommended in the "Battery Installation/Replacement" instructions are to be used. • If removable rechargeable batteries are used, they are only to be charged under adult supervision. • Rechargeable batteries are to be removed from the toy before they are charged. • If you use a battery charger, it should be examined regularly for damage to the cord, plug, enclosure and other parts. Do not use a damaged battery charger until it has been properly repaired. Body Breakaway Tail 1.5Vx 4 “C” (LR14) Shown Actual Size 9V (6LR61) Shown Actual Size Remote RC Snake Battery Installation •Hint:The 9 volt (6LR61) battery in the remote has a longer life than the "C" batteries in the RC snake. You may need to change the "C" batteries more often than the 9 volt battery. • When you notice that the RC snake does not respond to the remote, try replacing the batteries in the RC snake before replacing the batteries in the remote. •When the RC snake stops working or works erratically, it's time for an adult to replace the batteries! • Locate the battery compartment on the bottom of the remote and bottom of the RC snake. • Loosen the screw in each battery compartment door with a Phillips screwdriver. Lift to remove each door. (The screw will remain in each door.) • Snap the battery into the battery contacts, as shown. Insert the batteries into the battery compartment. • Replace each battery compartment door and tighten each screw with a Phillips screwdriver. Do not over-tighten. Battery Compartment Door Battery Compartment Door 2 34 Using the Remote Let's Go CAUTION To prevent entanglement, keep hair away from wheels. •FORWARD:Press and hold the right button on the remote. •REVERSE:Press and hold the left button on the remote. On/Off Button • Press the on/off button to turn the RC snake on or off. Note:The button will light up when power is on. To move backward: • Point the remote at the RC snake, press and hold the reverse button. • Slithering Jake ™ strikes, coils back into a circle and turns. Watch his tongue as he strikes! To change directions: • Point the remote at the RC snake and press the reverse button. Slithering Jake™ coils back into a circle and turns. • When Slithering Jake™ is facing the direction you want to go, press and hold the forward button on the remote. To move Forward: • Point the remote at the RC snake, press and hold the forward button. • As Slithering Jake ™ slithers forward, his tongue moves in and his eyes light up! Forward Reverse Play Safely! Do not operate RC snake in the street. 6 Care 5 • The RC snake works best on smooth, hard surfaces. We do not recommend use on grass, loose dirt or wet surfaces. For best performance make sure the transmitter and the receiver are in direct line of sight, free o…

Text truncated - open the document above for the full version.

+ EMC EM56001 SW3 9.0VBATT_1 ANT Q1A27.145 MHz 2 9 C8 Q3 AModulator 29 C14 SW1 77149.opj A Transmitter Block Diagram 77149 Jake the SnakeA 11 Monday, March 27, 2000 TitleSize Document Number Rev Date: Sheet of T1 Transmitter Block Diagram 77149 Jake the Snake FWD R10 RF Osc Pulse Code Generator C6 L1 X1 REV Q2A RF Driver 2 9 SW2 T2

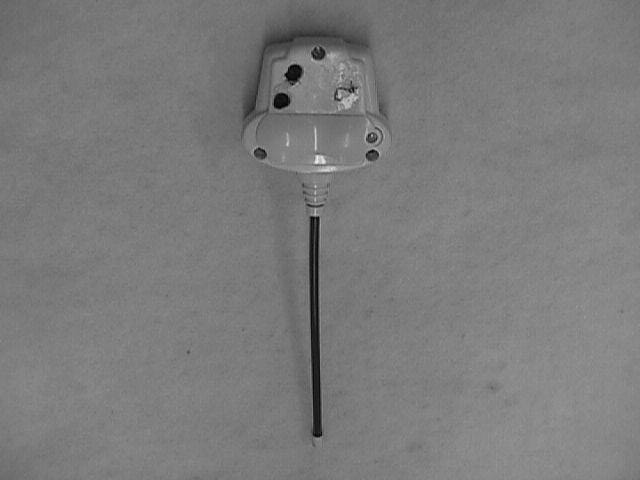

TOLERANCES - UNLESS OTHERWISE SPECIFIED - 3 PLACE DIMS ± .010 2 PLACE DIMS ± .020 FRACTION DIMS ± 1/32 ANGLES ± 2° DWN DATE SCALE DWG NO.CHG TITLE LET CHANGE BY DATE APPD *NOTE: REFER TO PART PRINT FOR DIMENSIONS FULL MOLD MASTER (RAISE .015) 77149-D 3/29/00 KELLY SIMONE 77149 ©1999 MATTEL, INC. 77149 RC Cobra Location: Transmitter, Rear FCC ID CCT 77149 T CANADA 210 FISHER-PRICE MADE IN CHINA ! LGA 0125

Fisher-Price 77149 “Jake the Snake” Transmitter Circuit Description: The 77149 transmitter is an amplitude modulated, pulse code system operating at a carrier frequency of 27.145 MHz. U40 is an EMC EM56001 microcontroller that is programmed to create the pulse code used to modulate the 27.145 MHz signal. The 2 input switches Forward and Reverse, are read by the microcontroller to determine what pulse code to output. The pulse code is fed to the base of the modulation transistor Q3 by R10. Modulation depth is controlled by R7. Q1, R5, C2, X1, R8, C4, C5, and T1 form a fundamental-mode 27.145 MHz RF oscillator. RF energy from the secondary of transformer T1 is coupled to the driver stage Q2. The output driver is comprised of R6, C6, Q2, C7, R7, T2. A modulated RF carrier is coupled to the antenna by matching network C8 and L1. The transmitter is powered up only during control commands by a 9 Volt battery. C9 is for supply filtering. Pressing either of the 2 switches also enables power to the microprocessor through Q40 and a 3.9V regulator made up of R43, C40 and D40. The processor then turns on Q41 through R40, which keeps Q40 on until all input switches are released and an “end command” pulse code has been sent.

Parts for 77149 Jake the Snake Transmitter Ref Schematic 7149T, Parts List Rev C, 1/04/00 QtyDescription 1PCB, XPC, 1.6mm, 2.5 x 2.5 in. est., SS 11Resistor, Carbon Film, 5% 1/4 Watt 1Transistor, NPN, general purpose, 9014B/C 1Transistor, PNP, high power, 8550C/D 1Transistor, 2SA1015 2Transistor, 2SC1815 1Diode, 1N5228B, 3.9V Zener 1Inductor, Conformal Coated, 5.6uH, 10% 2RF Transformer 318 coil 1Crystal, 27.145 MHz 4Capacitor, Y5V Ceramic, 10nF, 20%, 50v 1Capacitor, SL Ceramic, 75pF, 10%, 50v 1Capacitor, SL Ceramic, 22pF, 10%, 50v 1Capacitor, SL Ceramic, 33pF, 10%, 50v 2Capacitor, SL Ceramic, 56pF, 10%, 50v 1Capacitor, SL Ceramic, 68pF, 10%, 50v 2Metal contacts (forward/reverse) 1Contact, 9V Battery and wires 2Other wires, AWG 26 1Antenna coil 4.8mm OD, 180mm length, plus tub and cap 1IC, Voice, EMC EM22603

R710 C10470pF, NPO R44 1.2M C710nF R102.2k R4210K C1468pF, NPOFORWARD T2 5 12 4 3 Fisher-Price 636 Girard Ave. East Aurora, NY 14052 SW2 SW DPST 1 3 2 4 L1 5.6uH X1 27.145 MHz D40 1N5228B3.9V REVERSE Revisions: C856pF, NPO BATTERY9V CELL R4510k W1ANT Critical Components: C910nFR43130 7149T.sch - Jake the Snake Transmitter - Final Release A 11 Monday, March 27, 2000 TitleSize Document Number Rev Date: Sheet of C533pF, NPO Notes: C4010nF T1 5 12 4 3 Q40JE8550D 2 13 2) -Denotes wire terminal on PCBA, Indicating Off-Board Component(s) A1 ANTENNA 1 R547k C2120pF, NPO R6150k 9VBATT+ (RED) C6 22pF NPO U40 EM56001 10 7 15 12 3 8119 654 1413 OSC P2.0P3.1 VO P3.0 VSS VDD TEST P2.1P2.2P2.3P3.2P3.3 C410nF R8330 Q32SC1815 Q22SC1815 Q41 JE9014 2 13 R4010K Q12SA1015 1)Resistors in OHMS, Capacitors in FARADS: unless otherwise noted. SW1 SW DPST 1 3 2 4 GNDBATT- (BLK) R412.2K

Test Report Number R-8535-1 FCC ID: CCT77149T APPLICANT Fisher Price, Inc. 636 Girard Avenue East Aurora, NY 14052 MANUFACTURER Wah Shing Electronics Co. Ltd. 9 th Floor, Lea Hin Industrial Building 41-43 Wong Chuk Hang Road Aberdeen, Hong Kong TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.227 TEST PROCEDURE: ANSI C63.4:1992 TEST SAMP LE DESCRIP TION BRANDNAME: Fisher Price MODEL: 77149 TYPE: Pulse RF Modulated Remote Control POWER REQUIREMENTS: 9 VDC via 9 VDC Battery FREQUENCY OF OPERATION: 27.145 MHz TESTS P ERFORMED Para. 15.227(a), Radiated Emissions, Fundamental Para. 15.209 Radiated Emissions, Spurious Case Para. 15.227(b), Occupied Bandwidth Duty Cycle Measurement Test Report Number R-8535-1 FCC ID: CCT77149T REPORT OF MEASUREMENTS Applicant: Fisher Price, Inc. Device:Pulse RF Modulated Remote Control FCC ID: CCT77149T Power Requirements: 9 VDC via 9 VDC Battery Applicable Rule Section:Part 15, Subpart C, Section 15.227 TEST RESULTS 15.227 (a) -The field strength of any emission within the band of 26.96 MHz to 27.28 MHz did not exceed 10,000 μV/M at 3 meters, average. The provisions of section 15.35 for limiting peak emissions was applied. 15.227 (b) -The field strength of any emissions outside the band did not exceed the general radiated emissions limits of section 15.209. All signals within 20dB of the specified limit are reported herein. DUTY CYCLE DETERMINATION The spectrum analyzer was set to a 0 Hz span with a sweep time of 100 mSec at the fundamental transmitter frequency. The worst case duty cycle during any 100 mSec period was then measured. The information below is a calculation of duty cycle based on the measured values obtained: Pulse Width= 3.15 mSec (Narrow), 4.35 mSec (Wide) Pulses in 100 mSec= 9 (Narrow), 10 (Wide) Duty Cycle = (9 x 3.15 mSec) + (10 x 4.35 mSec) = 71.85 mSec = 71.85% Test Report Number R-8535-1 FCC ID: CCT77149T Duty Cycle Correction Factor= 20 log (0.7185) = -2.9 dB Test Report Number R-8535-1 FCC ID: CCT77149T Report of Measurements Occupied Bandwidth Please refer to separate electronic file named Occbw.pdf Test Report Number R-8535-1 FCC ID: CCT77149T Report of Measurements Duty Cycle Measurement Please refer to separate electronic file named Duty Cycle.pdf Test Report Number R-8535-1 FCC ID: CCT77149T Report of Measurements Radiated Emissions Data, Paras. 15.227 & 15.209 Please refer to separate electronic files named RE fund.pdf and RE spur.pdf Test Report Number R-8535-1 FCC ID: CCT77149T EQUIPMENT LISTS FCC 15.227 Radiated Emissions, Fundamental, 27.145MHz ENTypeManufacturerDescription.Model No.Cal Date Due Date 012Loop Antenna, ActiveEMCO9 kHz - 30 MHz650210/04/199910/04/2000 067Open Area Test SiteRetlif3 MeterRNY10/15/199710/15/2000 141Spectrum AnalyzerHewlett Packard100 Hz - 40 GHz8566B03/20/200009/20/2000 141BQuasi-Peak AdaptorHewlett Packard100 Hz - 1 GHz85650A03/20/200009/20/2000 FCC15/C Radiated Emissions Spurious, 27MHz to 1GHz ENTypeManufacturerDescription.Model No.Cal Date Due Date 012Loop Antenna, ActiveEMCO9 kHz - 30 MHz650210/04/199910/04/2000 067Open Area Test SiteRetlif3 MeterRNY10/15/199710/15/2000 127BBiconical AntennaElectro-Metrics20 MHz - 200 MHzBIA-2509/23/199909/23/2000 133Broadband Pre-AmplifierElectro-Metrics10 kHz - 1 GHz, 26dBBPA-100006/22/199906/22/2000 141Spectrum AnalyzerHewlett Packard100 Hz - 40 GHz8566B03/20/200009/20/2000 141AGraphics PlotterHewlett PackardN/A7470A03/08/200003/08/2001 141BQuasi-Peak AdaptorHewlett Packard100 Hz - 1 GHz85650A03/20/200009/20/2000 206B6.0 dB AttenuatorTexscan0 - 1.0 GHzFP-50 - 6 dB06/22/199906/22/2000 443Log Periodic AntennaElectro-Metrics200 MHz - 1000 MHzLPA-2501/17/200001/17/2001

Retlif Testing Laboratories R Data Sheet of 2 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental Emissions Customer: Fisher Price, Inc. Job No. R-8535-1 Test Sample: RF Remote Control Paragraph: 15.227 Model No.: 77149T FCC ID: CCT77149T Operating Mode: Continuously Transmitting a 27.145 MHz Signal Technician: Peter Lananna Date: May 17, 2000 Notes: Test Distance: 3 Meters Detector: Peak, Unless otherwise specified Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Peak Limit MHz (V/H)/Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 27.145 H/1.0 X 73.2 8.8 82.0 12589.3 100000 27.145 H/1.0 Y 65.5 8.8 74.3 5188.0 100000 27.145 H/1.0 Z 61.3 8.8 70.1 3198.9 100000 27.145 V/1.0 X 71.0 8.8 79.8 9772.4 100000 27.145 V/1.0 Y 60.5 8.8 69.3 2917.4 100000 27.145 V/1.0 Z 56.4 8.8 65.2 1819.7 100000 Retlif Job Number R-8535-1 Retlif Testing Laboratories R Data Sheet of 2 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental Emissions Customer: Fisher Price, Inc. Job No. R-8535-1 Test Sample: RF Remote Control Paragraph: 15.227 Model No.: 77149T FCC ID: CCT77149T Operating Mode: Continuously Transmitting a 27.145 MHz Signal Technician: Peter Lananna Date: May 17, 2000 Notes: Test Distance: 3 Meters Duty Cycle: 71.85 % Detector: Peak, unless otherwise specified Duty Cycle Correction: - 2.9 dB Test Freq. Antenna Pol./Height EUT Orientation Peak Reading Correction Factor Corrected Reading Converted Reading Avg. Limit MHz (V/H)-Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 27.145 H/1.0 X 82.0 -2.9 79.1 9015.7 10000 27.145 H/1.0 Y 74.3 -2.9 71.4 3715.4 10000 27.145 H/1.0 Z 70.1 -2.9 67.2 2290.9 10000 27.145 V/1.0 X 79.8 -2.9 76.9 6998.4 10000 27.145 V/1.0 Y 69.3 -2.9 66.4 2089.3 10000 27.145 V/1.0 Z 65.2 -2.9 62.3 1303.2 10000 Retlif Job Number R-8535-1

Retlif Testing Laboratories R Retlif Job Number R-8535-1 Data Sheet 1 of 1 Test Method: FCC Part 15/C Spurious Radiated Emissions, 27 MHz to 1 GHz, Paragraph 15.209(a) Customer: Fisher Price, Inc. Job No. R-8535-1 Test Sample: RF Remote Control S/N: B1 Model No.: 77149T FCC ID: CCT77149T Operating Mode: Continuously Transmitting at 27.145MHz. Technician: Peter Lananna Date: May 17, 2000 Notes: Test Distance: 3 Meters Temp: 14C Humidity:41 Detector: Peak. Test Freq. Antenna Position EUT Orientation Meter Readings Correction Factor Corrected Reading Converted Reading LIMIT MHz (V/H) / Meters Degrees dBuV dB dBuV/m uV/m uV/m 30.00 100 | | 54.29 V/1.5 180 44.5 -8.5 36.0 63.1 | | | 81.435 H/1.0 180 35.3 -13.7 21.6 12.0 | | | 88.00 100 88.00 150 | | 108.58 H/1.0 180 39.6 -7.4 32.2 40.7 | | | 135.725 V/1.0 180 28.0 -7.2 20.8 11.0* | | | 162.87 V/1.0 180 27.0 -4.3 22.7 13.6* | | | 190.015 V/1.0 180 28.0 -1.8 26.2 20.4* | | | 216.00 150 216.00 200 | | 217.16 V/1.0 180 27.0 -7.3 19.7 9.7* | | | 244.305 V/1.0 180 27.0 -6.8 20.2 10.2* | | | 271.45 V/1.0 180 27.0 -5.3 21.7 12.2* | | | 960.00 200 960.00 500 l | 1000.0 500 The EUT was scanned from 27 MHz to 1 GHz The emissions observed from the EUT do not exceed the specified limits. Emissions not recorded were more than 10dB under the specified limit * Denotes minimum system sensitivity.
