CCTB1474-04900MHz Long Range Monitor

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

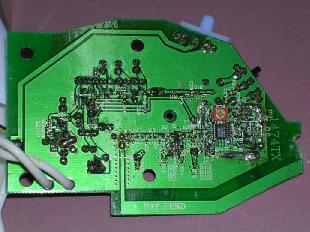

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: CCTB1474-04 Circuit Description The 906MHz and 906.6MHz LCR oscillator drives the base of Q1 the final/buffer amplifier.. The output of Q1 has the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 120 Volt.

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-25 TEST REPORT Page 1 of 17 No. : HM150723 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Fisher Price Inc. 636 Girard Ave East Aurora, N.Y. USA, 14052 Description of Samples: Model name: Dual 900MHz Long Range Monitor / 900MHz Long Range Monitor Model no.: G4594/B1474 Brand name: Fisher-Price FCC ID: CCTB1474-04 Date Samples Received: 2004-04-15 Date Tested: 2004-04-30 to 2004-05-28 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMC for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-25 TEST REPORT Page 2 of 17 No. : HM150723 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Sample Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 1.8 Additional Information of EUT Page 6 of 17 2.0 Technical Details 2.1 Investigations Requested Page 7 of 17 2.2 Test Standards and Results Summary Page 7 of 17 3.0 Test Results 3.1 Emission Page 8-14 of 17 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-25 TEST REPORT Page 3 of 17 No. : HM150723 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 15 of 17 Appendix B Photographs Page 16-17 of 17 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-25 TEST REPORT Page 4 of 17 No. : HM150723 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Fisher Price Inc. 636 Girard Ave East Aurora, N.Y. USA, 14052 HKSTC Code Number for Applicant EXE001 Manufacturer Excel Engineering (HK) Co., Ltd. Unit 1101, 11/F., Lippo Sun Plaza, 28 Canton Road, Tsimshatsui, Kowloon, Hong Kong 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-25 TEST REPORT Page 5 of 17 No. : HM150723 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Product: Dual 900MHz Long Range Monitor / 900MHz Long Range Monitor Manufacturer: Excel Engineering (HK) Co., Ltd. Brand Name: Fisher-Price Model Number: G4594/B1474 Input Voltage: 6.5Vd.c. with adaptor The AC/DC Adapter used for the tests was provided by the applicant with the following details: Model: PA-0605-DUA, Input: 120Va.c. 50Hz 7W, Output: 6Vd.c. 50mA 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Fisher Price Inc., 900MHz Baby Monitor. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed, Modulation by LCR. 1.4 Date of Order 2004-04-15 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2004-04-30 to 2004-05-28 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-25 TEST REPORT Page 6 of 17 No. : HM150723 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-25 TEST REPORT Page 7 of 17 No. : HM150723 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.or…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
