CCTC4778Rescue Heros Walkie Talkie

w w w . r e s c u e h e r o e s . c o m Model Number: C4778 Please keep this instruction sheet for future reference, as it contains important information. Requires two 9V (6LR61) alkalinebatteries (Not included.) Adult assembly required for battery installation. Tool needed for battery installation: Phillips screwdriver (not included). Walkie-Talkies Batteries may leak fluids that can cause a chemical burn injury or ruin your toy. To avoid battery leakage: •Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). •Insert batteries as indicated inside the battery compartment. •Remove batteries during long periods of non-use. Always remove exhausted batteries from the toy. Dispose of batteries safely. Do not dispose of batteries in a fire. The batteries may explode or leak. •Never short-circuit the battery terminals. •Use only batteries of the same or equivalent type, as recommended. •Do not charge non-rechargeable batteries. •Remove rechargeable batteries from the toy before charging. •If removable, rechargeable batteries are used, they are only to be charged under adult supervision. BATTERY INSTALLATION • Locate the battery compartment on the back of each walkie-talkie. • Loosen the screw in the battery compartment door with a Phillips screw- driver. Remove the battery compartment door. • Insert one 9V (6LR61) alkalinebattery into each walkie-talkie. • Replace the battery compartment door and tighten the screw with a Phillips screwdriver. Do not over-tighten. Hints: -We recommend using alkalinebatteries for longer life. - When sound becomes faint or walkie-talkie does not work, it’s time for an adult to replace the batteries! Battery Compartment Door Back View Shown Actual Size 9V (6LR61) 2 BATTERY SAFETY INFORMATION LET’S TALK ACTION! 3 • Slide the power switch on top of each walkie-talkie to theposition to turn it on or to theposition to turn it off. • Turn the mission dial to choose one of six different missions. • Press and hold the top (mission) talk button to transmit a message from Billy Blazes™ or Rocky Canyon™ about the chosen mission to the other walkie-talkie. • Press and hold the bottom (normal) talk button to use like a regular walkie- talkie and transmit your own messages. Speak directly into the microphone below the mission dial. Mission Dial Mission Talk Button On/Off Switch Normal Talk Button • To clean, wipe all parts with a damp cloth. Never immerse the walkie-talkie. • Keep water, sand and dirt off of this toy. • Do not drop this toy on a hard surface. • This product contains no consumer replaceable parts. Do not take this toy apart. CARE TROUBLE SHOOTING 4 Interference from car engines, powerlines, fluorescent lights, electric motors or dimmer switches. Battery power is low Unit does not transmit well through hills, trees, buildings or crowds of people. Battery power is low. Change your location or point the antenna in different directions. Replace the exhausted battery with a new 9V battery (see page 2). Use walkie-talkie at a higher location or in a more open and flat area. Replace the exhausted battery with a new 9V battery (see page 2). PROBLEMCAUSESOLUTION Excessive Static Walkie-Talkie does not work Range of Walkie-Talkie is decreased FCC NOTE (UNITED STATES ONLY) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult the dealer or an experienced radio/TV technician for help. Note: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate this equipment. Rescue Heroes™ Walkie-Talkies Model Number: C4778 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Consumer Relations Department 636 Girard Avenue East Aurora, New York 14052 These walkie-talkies operate on 27.145MHz radio frequency. • Meets requirements of Council Directives - 99/5/EC, 89/336/EEC, 88/378/EEC • Suitable for use in all EC member states. 5 CONSUMER INFORMATION Questions? We'd like to hear from you! Call Fisher-Price® Consumer Relations, toll-free at 1-800-432-5437, 8 AM - 6 PM EST Monday through Friday. Hearing-impaired consumers using TTY/TDD equipment, please call 1-800-382-7470. Or, write to: Fisher-Price® Consumer Relations 636 Girard Avenue East Aurora, New York 14052 For other countries, outside the United States: CANADA Questions? 1-800-567-7724.Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2. GREAT BRITAIN Mattel UK Ltd, Vanwall Business Park, Maidenhead SL6 4UB. Helpline: 01628 500302. AUSTRALIA Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond, Victoria 3121 Australia. Consumer Advisory Service 1300 135 312. NEW ZEALAND 16-18 William Pickering Drive, Albany 1331, Auckland. ASIA Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Fisher-Price, Inc., a subsidiary of Mattel, I…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA 1 TSUEN SHING ELECTRONICS LTD 1 BLK-C4778-01@A @A Size: Model No.: Rev.: Sheet of A4 RESCUSE HERE WALKIE TALKIE Drawing No.: CHK.:APP.: C4778 ENG-015-B NOTE: NAME:REV:DATE:NAME:REV:DATE:NAME:REV:DATE:NAME:REV:DATE:NAME:REV:DATE:NAME:REV:DATE: 11 BLK-C4778-01@A @A Title Size: Model No.: Rev.: Sheet of A4 RESCUSE HERE WALKIE TALKIE DWG.: Drawing No.: CHK.:APP.: C4778 ENG-015-B ANT RX TX RX TX RX AMP Q4 SP 8 Ω /0.25W X1 27.145MHZ TX MOD OSC （） RX DET Q3 RX TX RX TX RXTX AF AMP (Q1,Q2) SOUND SW2 [email protected] 方框图

Fisher Price 636 Girard Avenue East Aurora, NY, 14052 January 7, 2004 FCC ID: CCTC4778 To Whom It May Concern: We request under 47CFR0.459 that materials submitted to the Telecommunications Certification Body be withheld from public inspection. Specifically, Fisher-Price requests that the following materials be withheld from public inspection under 47CFR0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list Therefore, in accordance with 47CFR0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. James P. Meade Sr. Electrical Product Engineer Fisher Price

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

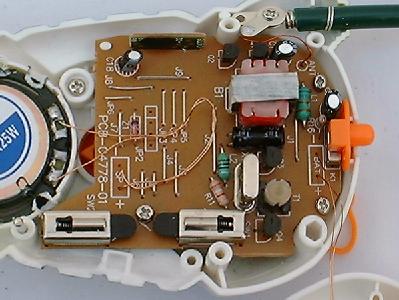

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: CCTC4778 Circuit Description The 27.145MHz crystal oscillator drives the base of Q4 the final/buffer amplifier. The modulation provided by Mic. The output of Q4 has the matching network consisting of L1 and C13 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 13.5cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

Date: 2004-02-10 TEST REPORT Page 1 of 17 No.: HM112609 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.: HM112609 Equipment Under Test [EUT]: Rescue Heroes Walkie Talkie Model Number: C4778 Applicant: Fisher Price Inc. FCC ID : CCTC4778 Date: 2004-02-10 TEST REPORT Page 2 of 17 No.: HM112609 CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 Conclusion Page 4 of 17 1.0 General Details 1.1 Test Laboratory Page 5 of 17 1.2 Applicant Details Page 5 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 6 of 17 Description of EUT operation 1.4 Date of Order Page 6 of 17 1.5 Submitted Sample Page 6 of 17 1.6 Test Duration Page 6 of 17 1.7 Country of Origin Page 6 of 17 1.8 Additional Information of EUT Page 7 of 17 2.0 Technical Details 2.1 Investigations Requested Page 8 of 17 2.2 Test Standards and Results Summary Page 8 of 17 3.0 Test Results 3.1 Emission Page 9-12 of 17 3.2 Bandwidth Measurement Page 13-14 of 17 Date: 2004-02-10 TEST REPORT Page 3 of 17 No.: HM112609 Appendix A List of Measurement Equipment Page 15 of 17 Appendix B Photographs Page 16-17 of 17 Date: 2004-02-10 TEST REPORT Page 4 of 17 No.: HM112609 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verified by Ivan Toa K C Lee for Chief Executive Date: 2004-02-10 TEST REPORT Page 5 of 17 No.: HM112609 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant FISHER PRICE INC. 636 Girard Ave, East Aurora, NY USA 14052 HKSTC Code Number for Applicant EXE001 Manufacturer Excel Engfineering (HK) Co., Ltd. Unit 1101, 11 th fl. Lippo Sun Plaza, 28 Canton Road, Tsim Sha Tsui, Hong Kong. Date: 2004-02-10 TEST REPORT Page 6 of 17 No.: HM112609 1.3 Equipment Under Test [EUT] Description of Sample Product: Rescue Heroes Walkie Talkie Manufacturer: Excel Engfineering (HK) Co., Ltd. Brand Name: FISHER-PRICE Model Number: C4778 Input Voltage: 9Vd.c (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an Fisher Price Inc., Rescue Heroes Walkie Talkie. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic. and tape is frequency modulation. 1.4 Date of Order 2004-01-15 1.5 Submitted Sample(s): 1 Sample per model 1.6 Test Duration 2004-01-29 1.7 Country of Origin China Date: 2004-02-10 TEST REPORT Page 7 of 17 No.: HM112609 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2004-02-10 TEST REPORT Page 8 of 17 No.: HM112609 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2000 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2000 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2000 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2000 Class B Note: N/A - Not Applicable Date: 2004-02-10 TEST REPORT Page 9 of 17 No.: HM112609 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.227 Test Method: ANSI C63.4: 2000 Test Date: 2004-01-29 Mode of Operation: On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2004-02-10 TEST REPORT Page 10 of 17 No.: HM112609 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.227]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m] [μV/m] 26.96-27.28 100,000 10,000 Results: FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdBμV/mμV/m 27.1528.321.950.2323.6100,000Vertical μ V/mdB μ V/m Field Strength dB μ V/m Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdBμV/mμV/m *27.14528.121.950.0316.210,000Vertical μ V/mdB μ V/m Field Strength dB μ V/m Field Strength of Fundamental Emissions Average Measured Level @3m Field Strength Remarks: According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. For effective averaging, the bandwidth of the video filter must be smaller than the resolution bandwidth. The higher the ratio of…

Text truncated - open the document above for the full version.

1 Marianne Bosley From: Marianne Bosley Sent: Monday, February 16, 2004 1:07 PM To: 'alice_wong' Cc: Shari Meyers Subject: RE: New application apply FCC Cert. (ID: CCTC4778) Hi Alice, I have forwarded for technical review. However, there are a couple of things. 1. Confidentiality Letter - It does not have the FCC ID on it. Please revise and resend. 2. 15.19 Statement - I realize it appears in the manual. You will need to also send a separate request that the FCC allow this to be placed in the manual and forwhat reasons. Normally they insist on this being on the label if the device is larger than the palm. This looks pretty small, so please just send a statement to me. Thanks. Marianne -----Original Message----- From: alice_wong [mailto:[email protected]] Sent: Monday, February 16, 2004 4:36 AM To: MET - Marianne Cc: EED - Kitty Subject: New application apply FCC Cert. (ID: CCTC4778) Hi Marianne, Please see attached file for new application apply FCC Cert. FCC ID: CCTC4778 Thanks Best Regards Alice

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
