CCTJ1315-0549MHz Baby Monitor

www.fisher-price.com J1316 2 • For proper setup and use, please read these instructions. • Please keep this instruction sheet for future reference, as it contains important information. • Transmitter operates on AC current. • Receivers operate on AC current (use enclosed AC adaptors) or six “AAA” (LR03) alkaline batteries (batteries not included). • Adult assembly is required to install batteries (if used). • Tool needed for battery installation: Phillips screwdriver (not included). • This product is not intended to be used as a medical monitor and its use should not replace adult supervision. • Test sound reception of receiver(s) before first-time use and whenever you change location of transmitter. • To prevent entanglement: - Never place transmitter in a crib or playpen. Keep transmitter and receiver(s) out of baby’s reach. - Never use extension cords with the AC adaptors. • Never use transmitter or receiver(s) near water (ie.: bathtub, sink, laundry tub or wet basement, etc.). • Always use transmitter and receiver(s) where there is adequate ventilation. To prevent overheating, keep transmitter and receiver(s) away from heat sources such as radiators, heat registers, direct sunlight, stoves, amplifiers, or other appliances which produce heat. • Fisher-Price does not recommend the use of two monitors in one house. • Always remember that you are using public airwaves when using your monitor. Conversations, even from rooms near transmitter, may broadcast to other nursery monitors, radios, cordless telephones, or scanners outside your home. To protect privacy of your home, always turn transmitter off when not in use. • Product features and decoration may vary from photos. To prevent strangulation with power cord, never place transmitter within reach of child. Pour prévenir tout risque d’étranglement avec le cordon d’alimentation, ne jamais placer l’émetteur à la portée de l’enfant. Para evitar accidentes con el cable eléctrico, no poner el transmisor al alcance del niño Important! • Important ! • ¡Importante! WARNING AVERTISSEMENT ADVERTENCIA CAUTION MISE EN GARDE PRECAUCIÓN This product cannot replace responsible adult supervision. Ce produit ne peut remplacer la supervision du bébé par un adulte. Este producto no está diseñado para reemplazar la supervisión responsable de un adulto. 3 Important! • Important ! • ¡Importante! • Pour installer et utiliser correctement ce produit, lire les instructions. • Conserver cette feuille d’instructions car elle contient des renseignements importants. • L’émetteur fonctionne sur le courant alternatif. • Le récepteur fonctionne sur le courant alternatif (utiliser les adaptateurs c.a. fournis) ou avec six piles alcalines AAA (LR03) (non fournies). • La pile doit être installée par un adulte (si elle est utilisée). • Outil requis pour l’installation des piles : tournevis cruciforme (non fourni). • Ce produit n’est pas conçu pour être utilisé comme moniteur médical et ne peut remplacer la supervision de l’enfant par un adulte. • Vérifier la réception des sons par le récepteur (ou les récepteurs) avant le premier emploi et chaque fois que le transmetteur est déplacé. • Pour prévenir tout risque d'enchevêtrement : - Ne jamais mettre l’émetteur dans un lit ou un parc. Garder le transmetteur et le(s) récepteur(s) hors de portée de l’enfant. - Ne jamais utiliser de rallonge avec les adaptateurs c.a. • Ne jamais utiliser le transmetteur ou le(s) récepteur(s) à proximité d’eau (par exemple près d’une baignoire, d’un lavabo, d’une cuve à lessive ou dans un sous-sol où il pourrait y avoir de l’eau). • Toujours utiliser le transmetteur et le(s) récepteur(s) dans un endroit bien aéré. Pour éviter la surchauffe, garder le transmetteur et le(s) récepteur(s) loin des sources de chaleur comme les radiateurs, les registres de chaleur, les rayons directs du soleil, les cuisinières, les amplificateurs et les autres appareils qui produisent de la chaleur. • Fisher-Price déconseille l’utilisation de deux moniteurs dans une même maison. • Toujours se rappeler que le moniteur fonctionne sur des ondes publiques. Des conversations, même tenues dans des pièces adjacentes à celle où se trouve l’émetteur, peuvent être transmises par d’autres moniteurs, des radios, des télé - phones sans fil, ou des scanners utilisés hors de la maison. Pour protéger son intimité, toujours éteindre un moniteur qui n’est pas utilisé. • Les caractéristiques du produit et les décorations peuvent varier par rapport à la photographie • Para una preparación y uso adecuados, leer estas instrucciones. • Guardar estas instrucciones para futura referencia, ya que contienen información importante. • El transmisor funciona a base de corriente alterna. • El receptor funciona a base de corriente alterna (usar los adaptores de corriente alterna incluidos) o con seis pilas alcalinas tipo 6 x “AAA” (LR03) x 1,5V (no incluidas). LEA LAS INSTRUCCIONES ANTES DE USAR ESTE PRODUCTO. • Requiere montaje por un adulto para instalar las pilas (si se usa; no incluida). • Herramienta necesaria para instalar las pilas: destornillador de cruz (no incluido). • Este producto no está diseñado para usarse como un monitor médico, y su uso no debe reemplazar la supervisión de un adulto. • Probar la recepción del sonido de los receptores antes de usarlos por primera vez y cada vez que se cambie de ubicación el transmisor. • Para evitar accidentes con cables eléctricos: - No poner el transmisor en la cuna o corralito. Mantener el transmisor y receptores fuera del alcance del bebé. - No usar extensiones para cables eléctricos con los adaptadores de corriente alterna. • No usar el transmisor ni los receptores cerca de agua (p. ej., en la bañera, lavabo, fregadero o sótano mojado, etc). • Usar el transmisor y receptores donde haya buena venti - lación. Para evitar sobrecalentamiento, mantener el trans - misor y receptores lejos de fuentes de calor, tales como radiadores, registradoras de calor, contacto directo solar, hornos, amplificadore…

Text truncated - open the document above for the full version.

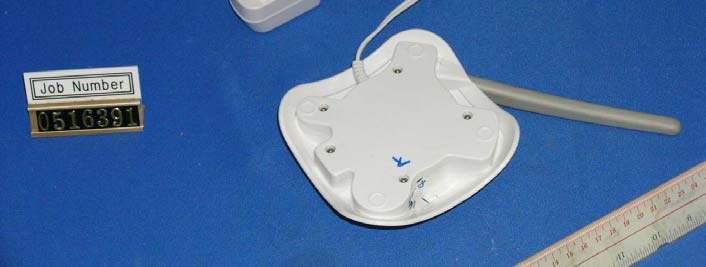

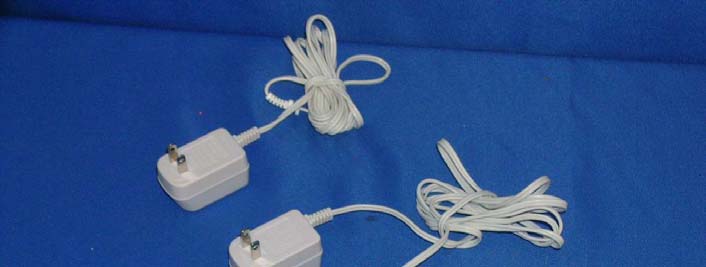

INTERTEK TESTING SERVICES External Photos FCC ID: CCTJ1315-05 external photos - 1 of 1 External Photo - Front External Photo - Rear

Size : 50x22mm This device complies with part 15 of the FCC Rules.O p eration is sub j ect to the followin g two Conditions : (1) this device may not cause Harmful interferenceAnd (2) this device must accept any interferencereceived, including interference that may causeundesired operation. FCC ID CCTJ1315-05 CANADA 210

INTERTEK TESTING SERVICES Internal photos FCC ID: CCTJ1315-05 internal photos - 1 of 3 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: CCTJ1315-05 internal photos - 2 of 3 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: CCTJ1315-05 internal photos - 3 of 3 Internal Photo - 5

FCC ID : CCTJ1315-05 Circuit Description The 16.610 x 3 to 49.830MHz or 16.625 x 3 to 49.875MHz crystal oscillation drivers the base of Q1 the final/buffer amplifier. The modulation provided by Mic. The output of Q1 has the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 15.5cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 120V a.c. – 6Vd.c. adaptor.

SHEET DATE DESIGN DRAWING_No. TITLE EXCEL J1315/1316 TX Y.SUZUKI 1 1 Z1 Z2 49MHz BABY MONITOR TX CH-A: 49.830 MHzCH-B: 49.875 MHz POWER NIGHT LIGHT NIGHT LIGHT AC120V 100mA 05,SEP,'05 (49.8MHz) (49.8MHz) (49.8MHz) (49.8MHz) DC 6V DC 5.5V CH JT1 TP1 C1 27P C2 10P C4 15P C17 10u D2 SDS7000 R12 82K C18 1u C19 1u R13 5.6K JT2 R15 2.2K C20 10u R16 5.6K R14 68K R11 1M C15 1u D4 05AZ6.2Y R17 750 Z3 1 S3 C13 1u S2 R18 330 R24 270 C3 27P L2 D3 GREEN Q2 HE8050C C14 104 D5 RL5004SOD C16 150P L1 1.2u C22 47u/10V T1FT1302 C6 100P UJ C7 100P UJ R19 0 S1 AB X216.625MHz R2 330 R4 5.1K R5 5.1K R21 0 R22 0 R23 0 IC1TA7137 9 8 7 6 5 4 3 2 1 C12 1u C5 15P D1 SDV708D R6 82K C8 103 C9 103 C10 104 C11 562 R8 10K X116.610MHz T2 FT1282 R7 10K R9 NON R10 10K C21 2200u/6.3V R1 2.4K R3 160K L3 1u Q1 2SC2714

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Fisher Price Inc. Application For Certification (FCC ID: CCTJ1315-05) 49MHz Transmitter 0516391 TL/ Ann Choy September 13, 2005 INTERTEK TESTING SERVICES FCC ID: CCTJ1315-05 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: CCTJ1315-05 ii MEASUREMENT/TECHNICAL REPORT Fisher Price Inc. - MODEL: J1315 J1316 FCC ID: CCTJ1315-05 September 13, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-04 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: CCTJ1315-05 iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 3.4 Conducted Emission Configuration Photograph .................................................14 3.5 Conducted Emission Data.......................................................................................15 4.0 Equipment Photographs .....................................................................................17 5.0 Product Labelling ................................................................................................19 6.0 Technical Specifications ....................................................................................21 7.0 Instruction Manual ..............................................................................................23 8.0 Miscellaneous Information.................................................................................25 8.1 Bandedge Plot....................................................................................................26 8.2 Discussion of Pulse Desensitization ...................................................................27 8.3 Calculation of Average Factor ............................................................................28 8.4 Emissions Test Procedures................................................................................29 INTERTEK TESTING SERVICES FCC ID: CCTJ1315-05 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission config photos.pdf Test Setup Photo Conducted Emission config photos.pdf Test Report Conducted Emission Test Result conduct.pdf Test Report Bandedge Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: CCTJ1315-05 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: CCTJ1315-05 2 1.0 General Description 1.1 Produ…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: CCTJ1315-05 emission - 1 of 1 Plot B1A Plot B1B

Report No.: Adaptor Model No: 0516391 PA-0610-DUA TX mode Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:0516391 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: Adaptor Model No: 0516391 PA-0610-DUA TX mode Ctrl No.: N/A Tested By:Hong, Report No.:0516391 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ----------- Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV no Results Frequency AV Level AV Limit MHz dBuV dBuV 16.61000 36.2 50.0 * limit exceeded

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID : CCTJ1315-05 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID : CCTJ1315-05 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID : CCTJ1315-05 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
