CCTT4837-1049MHz Transmitter - Baby Unit

23 T4837 www.fi sher-price.com IMPORTANT! To prevent strangulation with power cord, never place transmitter within reach of child. WARNING To prevent electric shock, do not immerse in water; wipe clean with damp cloth. DANGER This product cannot replace responsible adult supervision. CAUTION • For proper setup and use, please read these instructions. • Please keep this instruction sheet for future reference, as it contains important information. • Transmitter operates on AC current (use enclosed AC adaptor). • Receiver operates on AC current (use enclosed AC adaptors) or DC current (three “AAA” LR03 alkaline batteries, not included). • Adult assembly is required. • Tool needed for receiver battery installation: Phillips screwdriver (not included). • This product is not intended to be used as a medical monitor and its use should not replace adult supervision. • Test sound reception of receiver before fi rst-time use and whenever you change location of the transmitter. • To prevent entanglement: - Never place transmitter in a crib or playpen. Keep transmitter and receiver out of baby’s reach. - Never use extension cords with the AC adaptors. • Adults Note: Periodically examine the AC adaptors for damage to the cord, housing or other parts that may result in the risk of fi re, electric shock or injury. If an AC adaptor is damaged, do not use it. • Never use transmitter or receiver near water (i.e. bathtub, sink, wet basement, etc.). • Always use the transmitter and receiver where there is adequate ventilation. To prevent overheating, keep the transmitter and receiver away from heat sources such as radiators, heat registers, direct sunlight, stoves, amplifi ers, or other appliances which produce heat. • Do not connect the transmitter or the receiver (if AC adaptor is used) to more than the recommended number of power supplies. • The AC adaptor is not a toy. • Disconnect the AC adaptor from the receiver before cleaning. • Fisher-Price ® does not recommend the use of two monitors in one house. • Always remember that you are using public airwaves when using your monitor. Conversations, even from rooms near your transmitter, may broadcast to other nursery monitors, radios, cordless telephones or scanners outside your home. To protect the privacy of your home, always turn off the transmitter when not in use. • Carrier Frequency - 49.8 MHz • Product features and decoration may vary from photos. Consumer Information Fisher Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2010 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. PRINTED IN CHINA/IMPRIMÉ EN CHINET4837pr-0920 CONSUMER ASSISTA NCE AYUDA AL CONSUMIDOR SERVICE À LA CLIENTÈLE 1-800-432-5437 (US & Canada) Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Hearing-impaired consumers/Clientes con problemas auditivos/ Pour les malentendants : 1-800-382-7470. En México: 59-05-51-00 Ext. 5205 ó 01-800-463-59-89 5678 Features Power Button Nightlight – press to turn on a soft glow. Channel Switch Microphone Power/Volume Dial Power L.E.D. Sound Lights (on front and back of receiver) – watch the light to see baby’s sounds. Range Indicator – lights when power is on and receiver is in range of the transmitter. Flashing light indicates the receiver is out of range. Low Battery Indicator – fl ashing light indicates batteries need to be replaced or use the AC adaptor. Channel Switch Speaker Night Light Timer Switch - use timer to automatically shut off the night light after 30 minutes. Clip (backside of receiver) - Fasten to your clothes to stay in touch with baby around the house or yard. 1 2 3 4 5 6 7 8 9 10 11 12 13 Assembly • Fit each antenna into the socket in the receiver and the transmitter. Turn the antennas to secure in place. IMPORTANT! This product is designed to operate properly with the antennas provided. To reduce the chance of potential radio interference to other users, assemble and use only the antennas provided. Antenna Antenna Antenna Antenna • Locate the battery compartment door on the back of the receiver. • Loosen the screw in the battery compartment door with a Phillips screwdriver. Remove the battery compartment door. • Insert three “AAA” (LR03) alkaline batteries into the battery compartment. Hint: We recommend using alkaline batteries for longer battery life. • Replace the battery compartment door. Tighten the screw with a Phillips screwdriver. Do not over-tighten. Receiver Battery Installation (Optional) 1,5V x 3 “AAA” (LR03) Features Back View Receiver Transmitter 1 3 4 9 10 2 12 11 13 8 7 6 5 9101112 • Set the transmitter channel switch to the same channel as the receiver(s). • Place the transmitter in the same room with child. Point the microphone towards the crib or play area. • Unwrap and fully extend the AC adaptor for best transmission. Insert the AC adaptor pin into the DC input jack on the transmitter and plug the power cord into a standard wall outlet. Use the power cord only in a wall outlet. Do not plug into a ceiling outlet. • Press the transmitter power button to turn the power ON (the button lights up). • Press the night light button for a soft, glowing light. (Press again to turn off the night light.) • Slide the night light timer switch to turn the timer on. When the timer is on the night light will automatically shut off after 30 minutes. Setup Channel Switch Night Light Timer Switch (Back Side of Transmitter) Night Light Timer Switch (Back Side of Transmitter) Power Button Power Button Channel Switch Channel Switch Night Light Button Night Light Button Test transmitter and receiver reception each time you change location of use. • Place the transmitter in the room where you intend to use it. • Press the transmitter power button to turn the power ON (the button lights up). • Set the transmitter channel switch to the same channel as the receiver. Turn on a radio. Testing Sound Reception Power Button Power Button • Place the receiver in the room …

Text truncated - open the document above for the full version.

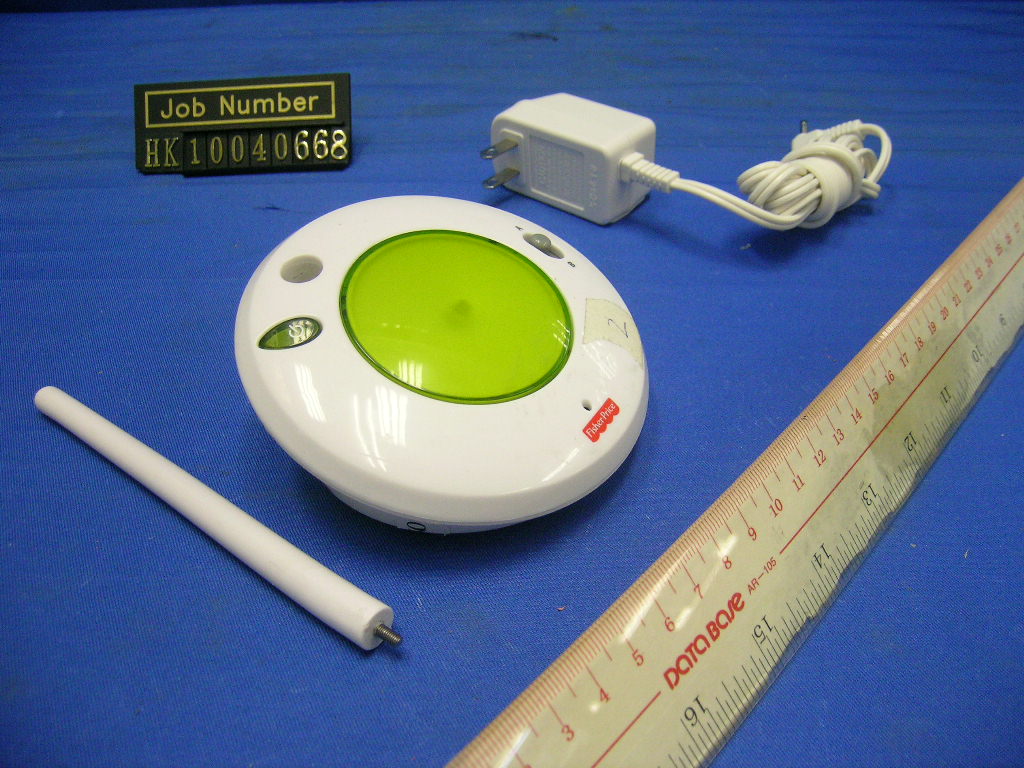

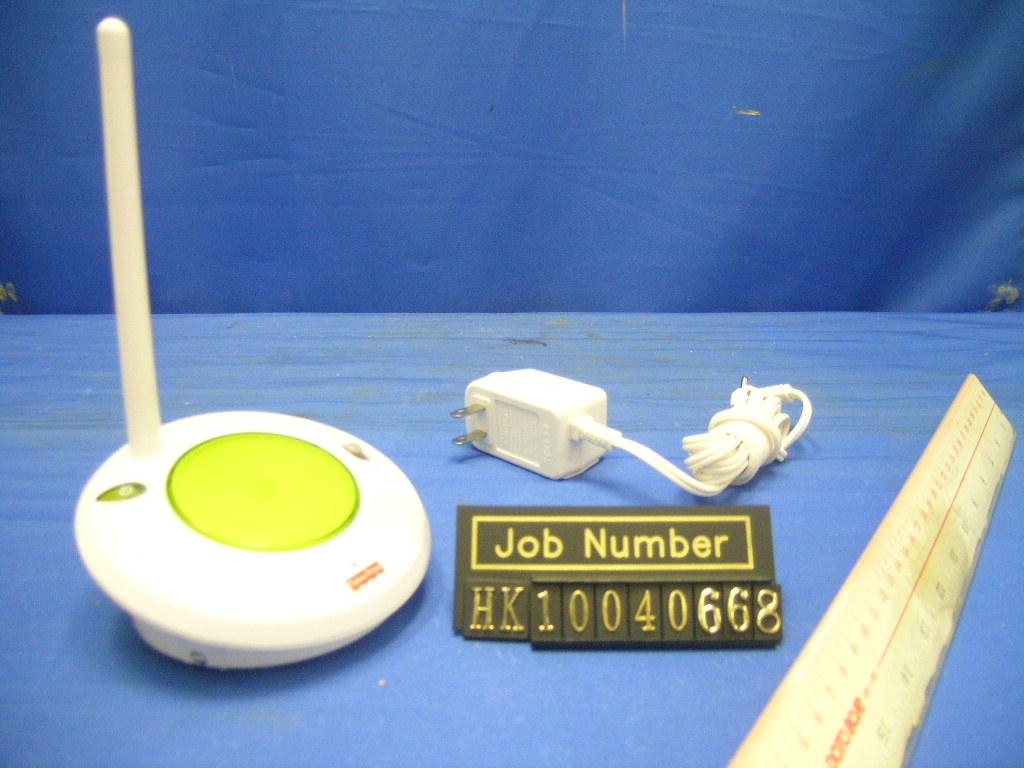

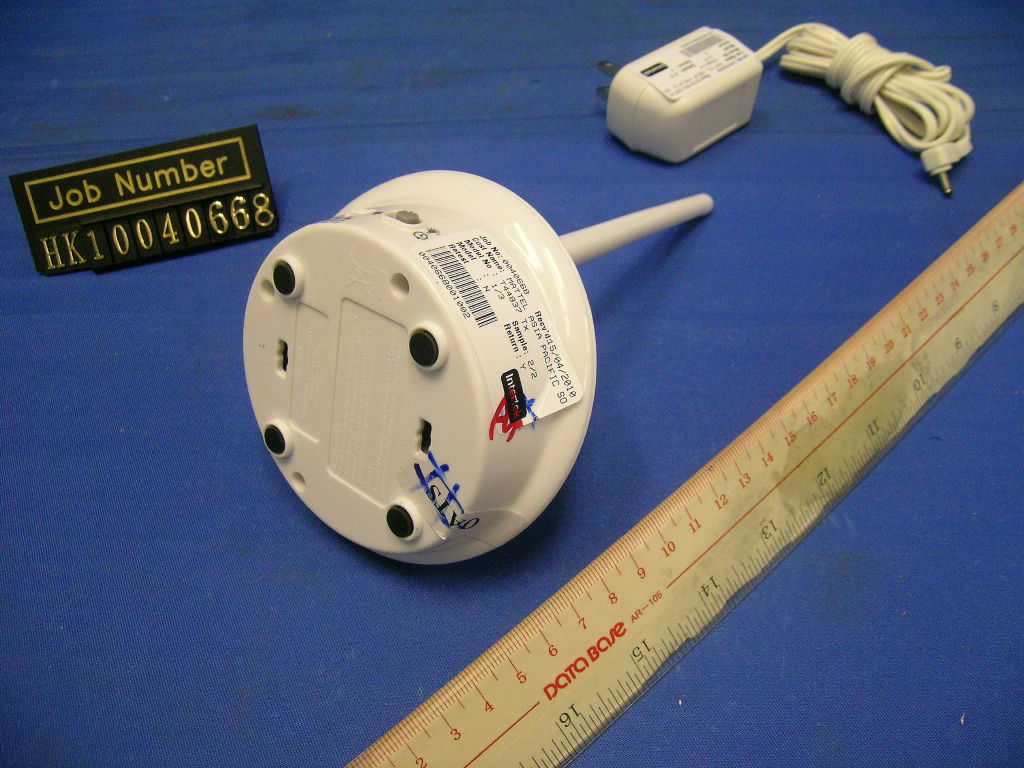

INTERTEK TESTING SERVICES External Photos FCC ID: CCTT4837-10 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: CCTT4837-10 external photos - 2 of 2

FCC ID: CCTT4837-10 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CANADA 310 This class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. T4837 TX Legal Insert Rev.A Size: 36.8 x 12.2mm Date: Jan. 12, 2010 T4837 TX FCC Insert Rev.A Size: 50.8 x 22mm Date: Dec. 24, 2009 T4837 RX Legal Insert Rev.A Size: 45 x 14mm Date: Jan. 12, 2010 T4837 RX FCC Insert Rev.A Size: 45 x 8.5mm Date: Dec. 24, 2009 1.5mm 47mm 1.5mm 1.5mm 1.5mm 1.29mm 1.12mm 1.12mm 1.12mm 1.12mm T4837 / T4838 FISHER-PRICE, INC. A SUBSIDIARY OF © 2009 MATTEL, INC. EAST AURORA, NY 14052 CHINA T4837 / T4838 FISHER-PRICE, INC. A SUBSIDIARY OF © 2009 MATTEL, INC. EAST AURORA, NY 14052 CHINA T4837 / T4838 FISHER-PRICE, INC. A SUBSIDIARY OF © 2009 MATTEL, INC. EAST AURORA, NY 14052 CHINA FCC ID: CCTT4837-10 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CANADA 310 This class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. 1.29mm 1.12mm 1.12mm 1.12mm 1.12mm 1.29mm 1.12mm 1.12mm 12.2mm 8.5mm 12.2mm 8.5mm CANADA 310 T4837 / T4838 FISHER-PRICE T4837 / T4838 FISHER-PRICE, INC. A SUBSIDIARY OF © 2009 MATTEL, INC. EAST AURORA, NY 14052 CHINA CANADA 310 T4837 / T4838 FISHER-PRICE 6.60 x 4.77mm

INTERTEK TESTING SERVICES Internal photos FCC ID: CCTT4837-10 internal photos - 1 of 4 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: CCTT4837-10 internal photos - 2 of 4 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: CCTT4837-10 internal photos - 3 of 4 Internal Photo – 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal photos FCC ID: CCTT4837-10 internal photos - 4 of 4 Internal Photo - 7

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: CCTT4837-10 be - 1 of 1 Baby unit, Lowest channel Baby unit, Highest channel

Report no.: HK10040668-1 Tx Mode with Light OFF AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 22.APR.2010 19:38:52 Report no.: HK10040668-1 Tx Mode with Light OFF AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average16.611 MHz 35.99 L1 gnd -14.00 Date: 22.APR.2010 19:38:45

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK10040668-1 Application for Original Grant of 47 CFR Part 15 Certification Category II Equipment of RSS-310 Issue 2 49MHz Transmitter - Baby Unit FCC ID: CCTT4837-10 Prepared and Checked by: Approved by: Koo Wai Ip Nip Ming Fung, Melvin Engineer Supervisor May 10, 2010 INTERTEK TESTING SERVICES Test Report Number: HK10040668-1 Page 1 of 16 FCC ID: CCTT4837-10 GENERAL INFORMATION Applicant Name: Fisher-Price, Inc. Applicant Address: 636 Girard Ave., East Aurora, New York, 14052, USA. FCC Specification Standard: FCC Part 15: 2008 FCC ID: CCTT4837-10 FCC Model(s): T4837, T4838 IC Specification Standard: RSS-Gen Issue 2, June 2007 RSS-310 Issue 2, June 2007 IC Model(s): T4837, T4838 Type of EUT: Transmitter Description of EUT: 49MHz Transmitter - Baby Unit Serial Number: N/A Sample Receipt Date: April 15, 2010 Date of Test: April 22-23, 2010 Report Date: May 10, 2010 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK10040668-1 Page 2 of 16 FCC ID: CCTT4837-10 Table of Contents 1.0 Summary of Test Results........................................................................................ 3 2.0 General Description................................................................................................. 5 2.1 Product Description ................................................................................................. 5 2.2 Related Submittal Grants......................................................................................... 5 2.3 Test Methodology.................................................................................................... 5 2.4 Test Facility............................................................................................................. 5 3.0 System Test Configuration...................................................................................... 7 3.1 Justification ............................................................................................................. 7 3.2 EUT Exercising Software......................................................................................... 8 3.3 Details of EUT and Description of Accessories........................................................ 9 3.4 Measurement Uncertainty ....................................................................................... 9 3.5 Equipment Modification ........................................................................................... 9 4.0 Test Results............................................................................................................ 11 4.1 Field Strength Calculation...................................................................................... 11 4.2 Radiated Emissions............................................................................................... 12 4.2.1 Radiated Emission Configuration Photograph ..................................................... 12 4.2.2 Radiated Emission Data ..................................................................................... 12 4.2.3 Transmitter Duty Cycle Calculation ..................................................................... 12 4.3 Radiated Emission on the Bandedge..................................................................... 14 4.4 AC Power Line Conducted Emission ..................................................................... 15 4.4.1 AC Power Line Conducted Emission Configuration Photograph.......................... 15 4.4.2 AC Power Line Conducted Emission Data .......................................................... 15 5.0 Equipment List...................................................................................................... 16 Appendix – Exhibits for Application of Certification INTERTEK TESTING SERVICES Test Report Number: HK10040668-1 Page 3 of 16 FCC ID: CCTT4837-10 1.0 Summary of Test Results Test Items FCC Part 15 Section RSS-210/ RSS-Gen # / RSS-310^ Section Results Details see section Antenna Requirement 15.203 7.1.4 # Pass 2.1 Radiated Emission Radiated Emission on the Bandedge 15.235(a) 15.235(b) 3.9^ Pass Pass 4.2 4.3 Radiated Emission in Restricted Bands 15.205 2.2 Pass 4.2 AC Power Line Conducted Emission 15.207 7.2.2 # Pass 4.4 Note: Pursuant to FCC Part 15 Section 15.215(c), the 20dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over expected variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Test Report Number: HK10040668-1 Page 4 of 16 FCC ID: CCTT4837-10 EXHIBIT 2 GENERAL DESCRIPTION INTERTEK TESTING SERVICES Test Report Number: HK10040668-1 Page 5 of 16 FCC ID: CCTT4837-10 2.0 General Description 2.1 Product Description The Equipment Under Test (EUT) is a 49MHz Transmitter – Baby Unit of Precious Planet Soothing Lights Monitor. It operates at 49.830MHz and 49.875MHz. The EUT is powered by a 120VAC to 6VDC 100mA AC adaptor. The antenna used in baby unit is unique coupling, and the test sample is a prototype. The Model(s): T4838 is the same as the Model: T4837 in electrical designs including software & firmware, PCB layout and construction design/physical design/enclosure. The only differences between these models are model number and number of parent units and package configuration to be sold for marketing purpose. The circuit description is attached in the Appendix and saved with filename: descri.pdf. 2.2 Related Submittal Grants This is an application of certification of the transmitter. The associated receiver was tested and approved following DoC procedure. Separate DoC …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: CCTT4837-10 config photos (radiated emission – baby unit) - 1 of 1 Radiated Emission – Baby Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: CCTT4837-10 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: CCTT4837-10 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
