CEXCOPA Wireless Radio Commander Unit for Digital Cameras to Control Remote Flashes

1 Introduction The Co - Pilot can control the exposure of three Remote Groups ( R1, R2, and R3 ) or two Remote Groups ( R1, R2 ) and a local Qflash T5d - R. A Remote Group can consist of : Quantum Trio and / or Qflash T5d - R with an FW8R or FW7Q receiver and / or A ny non Quantum flash that can be triggered by a sync signal , with an FW8R or FW7Q . Any number of remotes may be combined in a Remote Group, for the same mode / exposure. To separately set exposures of remote flashes, set the m , to different Remote Groups. Qflash ® Co - Pilot QF91 Shoe Mount Wireless Radio Commander for Qflash 5d - R and TRIO Operating Instructions CHAN OFF ON AF Ratio / Manual Power setting control for Remote R1 , R2, R3 MAN – TTL Mode switch for Remote R1 , R2, R3 Channel select switch 0 - 7 USB connector ACCY connector for Qflash T5d - R ON / OFF switch AF – Auto Focus light is ON R1 R2 R3 / LOCAL M TTL M TTL M TTL 2.2 Using a Qflash T5d - R with an FW8R or FW7Q receiver as a remote Press the mode button, on the Qflash t5d - R, then use the up or down buttons to select Wireless Remote Group 1 or Wireless Remote Group 2 . The Qflash T5d - R may display a message that it ne e ds a signal from the Local flash to activate this mode. The message will disappear when you set up the Co - Pilot Set the channel on the FW8R or FW7Q. There are eight channels available, 0 through 7. NOTE: Set all zones to ON. 2.3 Using a Non Quantum flash as a remote Connect a flash unit to a FW8 or FW10w receiver. S et the channel on the re ceiver, to the same channel set on Co - Pilot. Use the ZONE switches to select the remote group. Zone 1 ON = Remote Group R1, Zone 2 ON = Remote Group R2, Zone 3 ON = Remote Group R3. NOTE : When using a non Quantum flash the Co - Pilot will provide a sync signal to fire the flash, but will not control the exposure. The MAN - TTL mode switch for this Group must be set to M . 3 .2 Local Qflash T5d - R connected When a Qflash T5d - R is connected to the Co - Pilot ACCY connector, Group R3 becomes the Local ratio control Remotes will operate in Groups R1, R2 only . RATIO / MANUAL POWER SETTINGS – this control adjusts the ratio of the local Qflash T5d - R, when the Qflash is in QTTL mode. Ratio settings can be set from - 2 7 to +2. MODE switch – this control is disabled when a Qflash T5d - R is connected to the Co - Pilot. The MODE button on the local Qflash T5d - R overrides the mode setting. 2 Setting up the Remote Groups A remote Group can consist of Quantum Trio set to Remote Group R1, R2, R3 Qflash T5d - R set to Wireless Group R1, R2 . When used with an FW8R or FW7Q receiver. Any non Quantum flash that can be triggered by an external sync signal from an FW8R or FW10w. Note: All channels must be set to the same channel number. 2.1 Using a Quantum Trio as a remote Press the mode button, on the Trio, use the left or right arrow buttons to select Wireless Remote Group . Press one of the soft keys to choose R1, R2, or R3. Press the RADIO softkey to set the channel. There are eight channels available, 0 through 7. NOTE: There is no need to set the ZO NES when using Wireless Remote Groups with the Trio . 3 Co - Pilot setup The Co - Pilot can control the exposure of three Remote Groups ( R1, R2, and R3 ) or two Remote Groups ( R1, R2 ) and a local Qflash T5d - R. A Remote Group can consist of a Quantum Trio, Qflash T5d - R with an FW8R or FW7Q receiver, or any non Quantum flash that can be triggered by a sync sig nal. The Co - Pilot will fire a non Quantum flash but not control it’s exposure. 3 .1 No Local Qflash T5d - R connected Each Remote Group has two controls. R1, R2, and R3 (when no Qflash T5d - R is connected to the ACCY connector) RATIO / MANUAL POWER SETTINGS – this control adjusts the exposure of the Remote Group. Ratio settings can be set from - 2 7 to +2. Manu a l power settings can be set from 1/16 - to 1/1. This control also has an OFF position. When set in the OFF position the flash in the Remote Group will not fire. MODE switch – this control sets the mode of the Remote Group to M (manual) or TTL. If the Remote Group is a Quantum Trio or Qflash T5d - R Note : When using a non Quantum flash as a Remote Group set the MODE switch to M. MODE SET R EMOTE G ROUP R 1 A UTO F 5.6 7 3.6 – 32 FT ISO 200 FIRE OPT SAVE RADIO + - R1 R2 R3 / LOCAL M TTL M TTL M TTL R1 R2 R3 / LOCAL M TTL M TTL M TTL WIRELESS GROUP R1 TO ACTIVATE CONTROL FROM LOCAL QFLASH TURN LOCAL QFLASH OFF THEN ON Industry Canada Statement This Class B digital apparatus complies with Canadian ICES - 003. Cet appareil numerique de la classe B est conforme a la norme NMB - 003 du Canada. This device complies with Industry Canada license - exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada exempt de licence Rss standard(s). Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne peut causer d'interferences, et (2) cet appareil doit accepter toute interference, y compris des interferences qui peuvent provoquer un fonctionnement indesirable du peripherique. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for t he general population: consult Safety Code 6, obtainable from Health Canada’s website www.hc - sc.gc.ca/rpb. Conformite aux normes FCC Cet equipement a ete teste et trouve conforme aux limites pour un dispositif numerique de classe B, conformement a la Partie 15 des reglements de la FCC. Ces limites sont con cues pour fournir une protection raisonnable contre les interferences nuisibles dans une installation residentielle. Cet equipement genere, utilise et peut emettre des frequences radio et, s'il n'est pas installe et utilize conformement ment aux instruc…

Text truncated - open the document above for the full version.

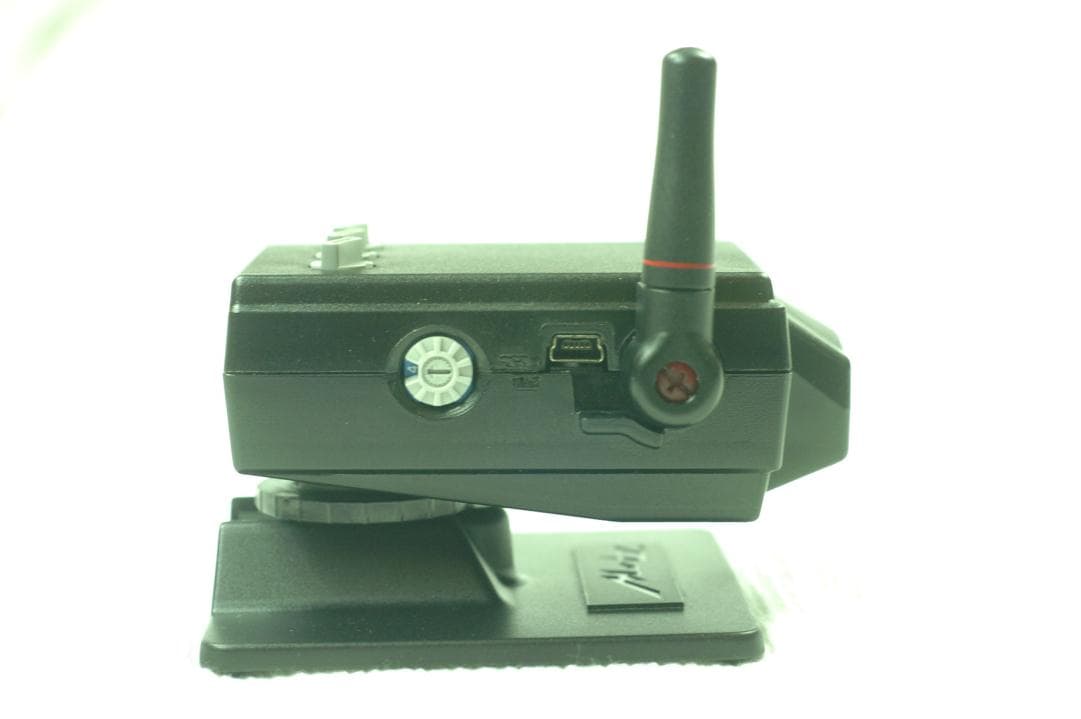

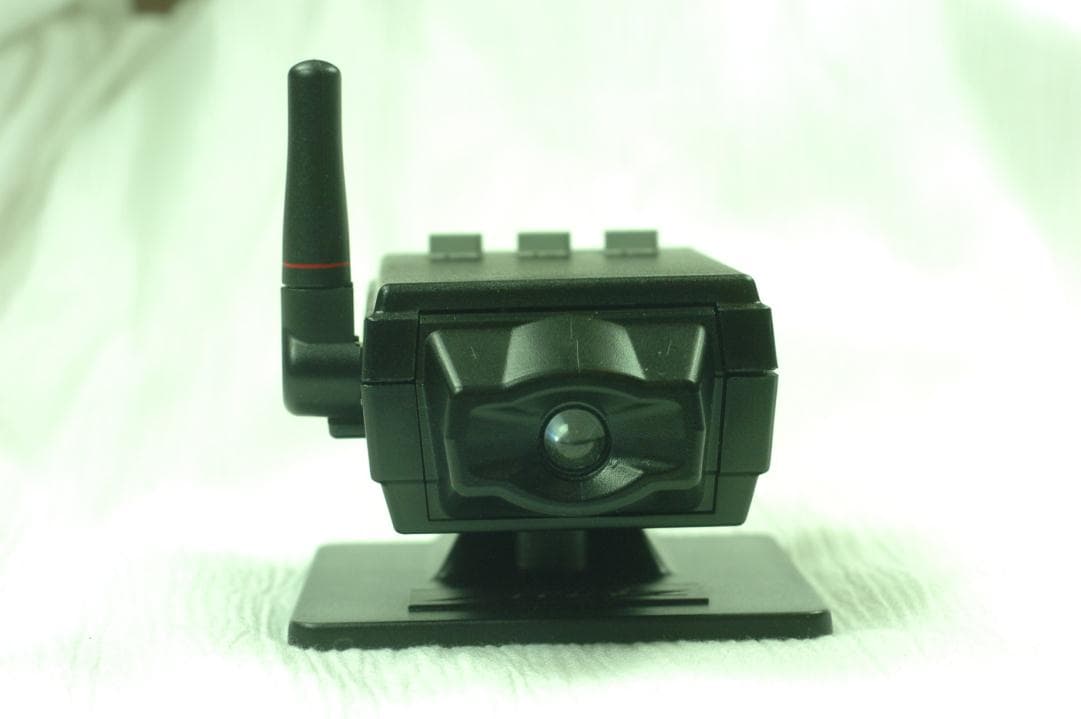

Page 1 of 2 External Photos: Quantum Instruments Inc. FCC ID: CEXCOP IC: 3707A-COP Bottom View Back View Page 2 of 2 Front View Right Side View

Page 1 of 4 Internal Photos: Quantum Instruments Inc FCC ID: CEXCOP IC: 3707A-COP Page 2 of 4 Lamp PCB Back Lamp PCB Front Page 3 of 4 Main PCB Back Main PCB Front Page 4 of 4 TTL PCB Back TTL PCB Front

p1220012_FCC Part 15.231_Rev 2.0 Page 1 of 14 Test Report Prepared for: Quantum Instruments, Inc Model: Qflash Co-Pilot QF91 Description: A Wireless Radio Commander Unit for Digital Cameras to Control Remote Flashes To FCC Part 15.231 Date of Issue: March 2, 2012 On the behalf of the applicant: Quantum Instruments, Inc. 10 Commerce Drive Hauppauge, NY 11788 Attention of: Richard Shaper, President Ph: (631) 656-7400 E-mail: [email protected] Prepared by Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1220012 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p1220012_FCC Part 15.231_Rev 2.0 Page 2 of 14 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 March 2, 2012 Greg Corbin Original Document 2.0 March 29, 2012 Greg Corbin Added Limit calculations, revised Occupied BW data p1220012_FCC Part 15.231_Rev 2.0 Page 3 of 14 Table of Contents Description Page Standard Test Conditions Engineering Practices ............................................................................................................. 6 Test Results Summary ...................................................................................................................................................... 8 Fundamental Field Strength .............................................................................................................................................. 9 Radiated Spurious Emissions ......................................................................................................................................... 10 Occupied Bandwidth ....................................................................................................................................................... 12 Test Equipment Utilized .................................................................................................................................................. 14 p1220012_FCC Part 15.231_Rev 2.0 Page 4 of 14 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A p1220012_FCC Part 15.231_Rev 2.0 Page 5 of 14 The applicant has been cautioned as to the following 15.21: Information to User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a): Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator the responsible part may employ other methods of ensuring that the special accessories are provided to the consumer, without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p1220012_FCC Part 15.231_Rev 2.0 Page 6 of 14 Standard Test Conditions Engineering Practices Environmental Conditions Temperature (Deg C) Humidity (%) Pressure (mbar) 22.1 – 25.1 18.8 – 26.2 972.7 – 974.1 EUT Description Model: Qflash Co-Pilot QF91 Description: A Wireless Radio Commander Unit for Digital Cameras to Control Remote Flashes Firmware: N/A Software: N/A S/N: EMI test sample #2 Additional Information: The EUT is a transmitter only. The EUT transmits a ASK (Amplitude Shift Keying) modulated signal to remote flash units. EUT Operation during Tests The EUT was configured to operate with the transmitter on in a continuous mode for test purposes only. The EUT can be configured to operate on its own or with a flash attached via a control cable. The EUT was tested in both configurations with the worst case results reported in the test report. p1220012_FCC Part 15.231_Rev 2.0 Page 7 of 14 Accessories: Qty Desc Mfg Model S/N 1 Camera Canon T90 1144424 1 Flash Unit Quantum T5d-R QG6129 1 Flash Power Pack Quantum Turbo SC S009 1 Lightstand (Tripod) Giottos LC 210 N/A Cables: Qty Desc Length (M) Shielding Y/N Shielded Hood Y/N Ferrite Y/N 1 Mutli-pin control cable – from transmitter to flash 0.5 N N N 1 Mutli-pin control cable – from flash to flash power pack 1 N N N Modifications: None 15.203: Antenna Requirement: X The antenna is permanently atta…

Text truncated - open the document above for the full version.

Page 1 of 3 Test Setup Photos: Quantum Instruments Inc FCC ID: CEXCOP IC: 3707A-COP RF Test below 1 GHz RF Test below 1 GHz Page 2 of 3 RF Test above 1 GHz RF Test above 1 GHz Page 3 of 3
