  3. CFD5GRUDB3

CFD5GRUDB35G Dual Band RRH

Fujitsu Network Communications, Inc.
5G Dual Band RRH - FCC ID CFD5GRUDB3 - Fujitsu Network Communications, Inc.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Jul 01, 2021
Application Purpose
Original Equipment
Date of Application
Jul 01, 2021
Equipment Note
5G Dual Band RRH
Frequency Range
1995.00000000 - 2020.00000000
Company
Fujitsu Network Communications, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

β†—
β†—
β†—

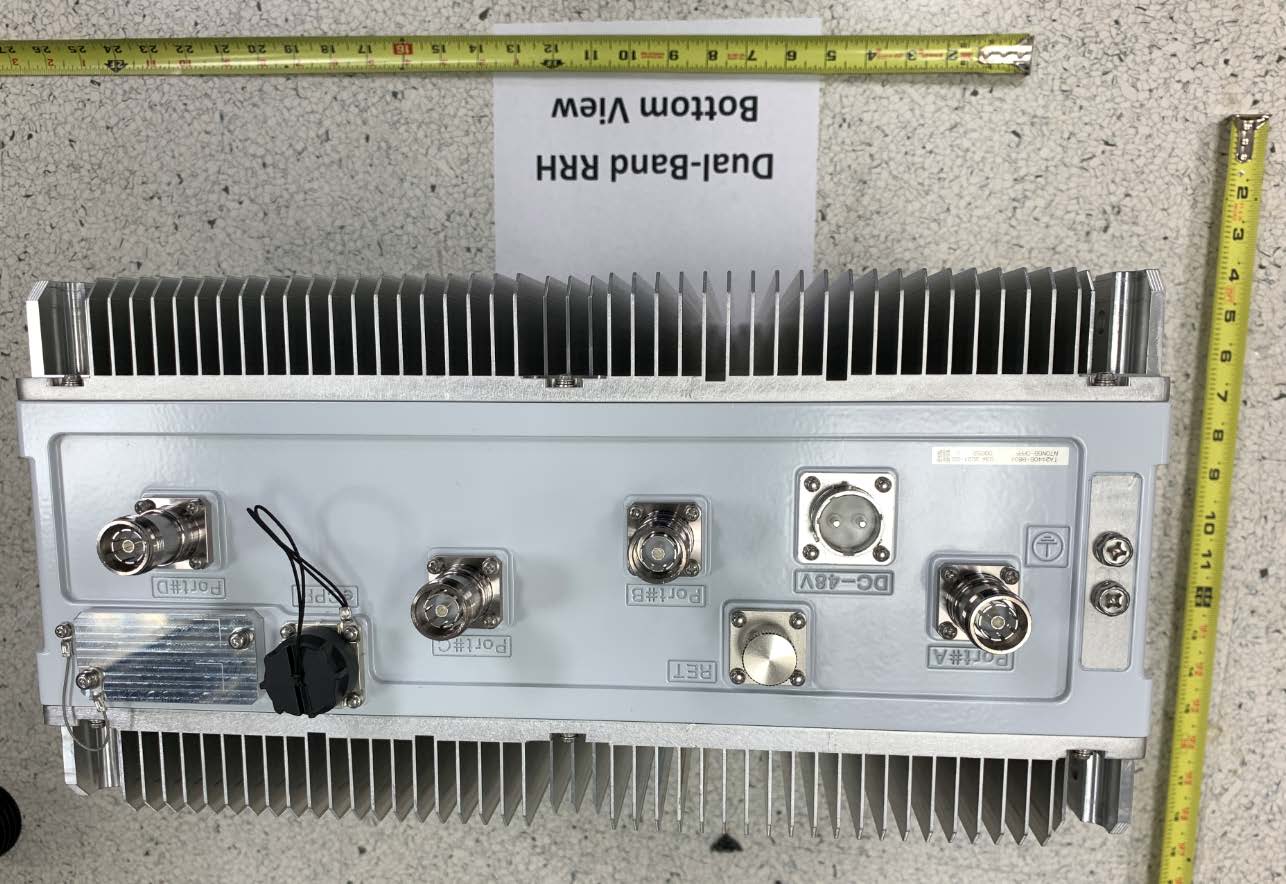

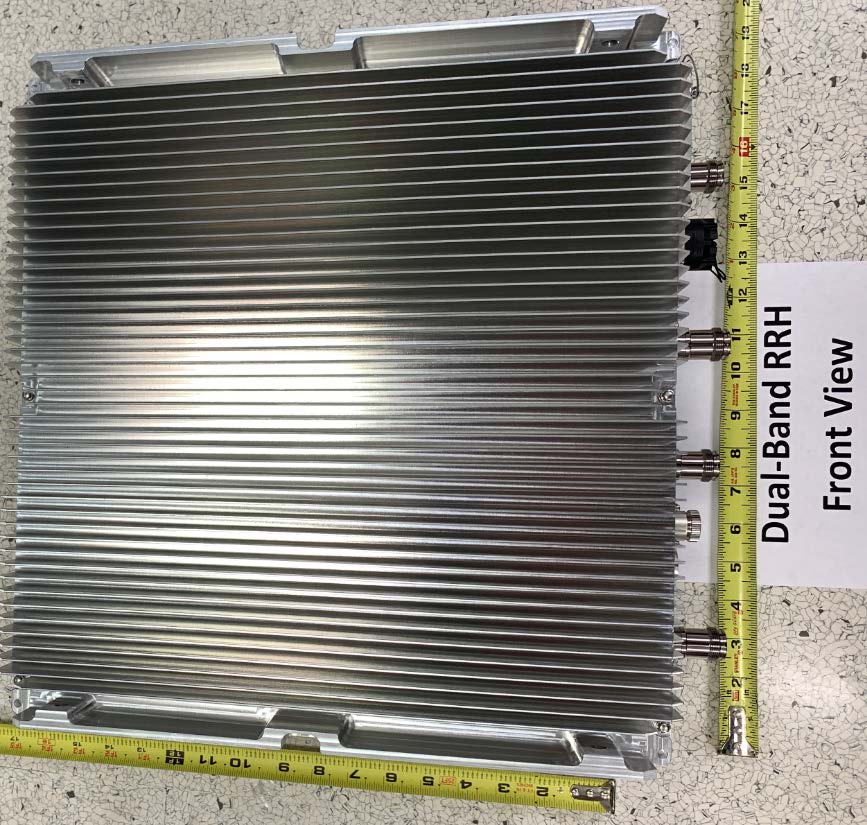

External Photos

β†—

ID Label/Location Info

β†—

Operational Description

β†—

RF Exposure Info

β†—

Test Report

β†—
β†—
β†—
β†—
β†—

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

FUJITSU NETWORK COMMUNICATIONS, INC. 2801 Telecom Parkway, Richardson, Texas 75082-3515 Telephone: (972) 690-6000 (800) 777-FAST (U.S.) June 18, 2021 Nemko North America Inc. Attn: Director of Certification 303 River Road Ottawa, Ontario, Canada K1V 1H2 Authority to Act as Agent FCC On behalf of Fujitsu Network Communications, Inc., I appoint Chip Fleury of Nemko USA, Inc. at 2210 Faraday Ave., Carlsbad, CA 92008 to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Β§ 862 because of a conviction for possession or distribut ion of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides Radius Networks, Inc., 1228 31st St. SW, Suite 2, Washington D.C. 20007. Dated this __16 Day of __June , 2021 Signed: Print Name: Corey M. Dayton ___________ Tit le: Principal Compliance Engineer

Cover Letter(s)

FUJITSU NETWORK COMMUNICATIONS, INC. 2801 Telecom Parkway, Richardson, Texas 75082-3515 Telephone: (972) 690-6000 (800) 777-FAST (U.S.) June 16, 2021 Attention: Application Examiner RE: Request for Confidentiality Applicant: Fujitsu Network Communications, Inc. FCC ID: CFD5GRUDB3 To Whom It May Concern: Permanent Confidentiality Request is hereby submitted by Fujitsu Network Communications, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: β€’ Schematics β€’ Block diagram β€’ Bill of Materials β€’ Internal Photographs - This product is not accessible to the end user because the enclosure is fastened together with special line-head (LH) security screws that cannot be removed/unfastened without a special security tool. Short-term Confidentiality Request is hereby submitted by Fujitsu Network Communications, Inc. to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 180 days from the date of Authorization: β€’ User Manual These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 17th Day of June 2021 By: Corey M. Dayton Signature Printed Title: Principal Compliance Engineer

Cover Letter(s)

Nemko San Diego Nemko USA Inc. (West Coast Operations), 2210 Faraday Ave. Suite 150, Carlsbad, CA 92008, USA TEL +1 760 444 3500 FAX +1 760 444 3005 nemko.com June 28, 2021 Nemko North America Inc. Attn: Director of Certification 303 River Road Ottawa, Ontario, Canada K1V 1H2 Use of combined radio reports for brand new certification (CFD5GRUDB3) per FCC Inquiry 153015 and FCC response. Also follows KDB 484586 D01 Clause 3 for reuse of data Background: The DB 5G RU already has FCC approval (CFD5GRUDB), however, due to a recent change, the power output for the LTE n66 band has been increased from 40W to 60W and an OBW addition of 25MHz for LTE n70 has been added. Therefore, Fujitsu needs a brand-new FCC ID and Limited Testing based on the FCC response on 05/14/2021: From FCC: For the new filing, all test reports are required. For the n66 band at 60W you must perform a complete retest. For the n70 band at 40W portion you must do testing for the 25 MHz BW. For the n70 band you may include the test data for 5 MHz BW, 10 MHz BW, and 20 MHz BW from the previously certified product. The test report must clearly document what data is reused and the original FCC ID. Report’s submittal and use of each report for this certification: Nemko Report. – As per the test plan and based on the FCC guidance Nemko did full testing on Band n66 and limited testing (only 25MHZ BW) for Band n70 and this is reported in Nemko radio report 443812-TRFWL (FCC Part 27). Test results for Band n70 for all the other BW (5MHZ/10MHZ and 20MHz) will be leveraged from Intertek reports since the product is identical and all testing is representative. Intertek Report(s). – As described above the only usable/valid data for this new certification will be from Band n70 with 5MHz BW, 10MHz BW & 20 MHz BW from the following reports: REPORT NUMBER 104509072LEX-004 (1 Of 6) REPORT NUMBER 104509072LEX-004 (2 Of 6) REPORT NUMBER 104509072LEX-004 (3 Of 6) REPORT NUMBER 104509072LEX-004 (4 Of 6) REPORT NUMBER 104509072LEX-004 (5 Of 6) REPORT NUMBER 104509072LEX-004 (6 Of 6) -------------------------------------------------------------- Juan M. Gonzalez / Nemko USA Business Development Manager EMC/WL

ID Label/Location Info

Copyright 2020 FUJITSU LIMITED DB RU Label & Location 0 Label Layout 1 Copyright 2020 FUJITSU LIMITED FNC Label (38x10mm) Warning/UL/FCC Label RU Right Side View RU Left Side View Back of RU Back of RU Product Label 2 Copyright 2020 FUJITSU LIMITED Product Label INTERNAL USE ONLYINTERNAL USE ONLY Copyright 2005-2007 FUJITSU LIMITED 3

Operational Description

Fujitsu Dual-Band RU Operation Description The Radio Unit (RU) is one of the components to configure the 5G RAN mobile communication system. The RU is controlled by the BBU and operating together with the BBU. Most of the operation and maintenance works are performed from the maintenance center through the BBU in the network. During normal operation, the RU requires no intrusive maintenance work by maintenance personnel. The RU is designed to be replaced as a whole unit with a spare RU when it is identified as faulty. The RU has the following features: β€’ Two mid-band frequencies - Bands n66 and n70 β€’ Four antenna ports that are shared across the frequency bands β€’ One 10Gbps eCPRI optical port for communication to the BBU/Distributed Unit β€’ One Remote Electrical Tilt (RET) port β€’ One DC power port for connection to -48vDC power source 1.15 MHz is not currently supported

RF Exposure Info

www.nemko.com ARFWL (FCC MPE Exemption)).docx; Date: May, 2021 Assessment report 443812-2TRFWL Date of issue: June 28, 2021 Applicant: Fujitsu Network Communications Product: Dual Band RU for North America Model DB 5G RU FCC ID: CFD5GRUDB3 Type of assessment: MPE Exemption Report Specifications:  FCC 47 CFR Part 1 Subpart I, Β§Β§1.1307, 1.1310  FCC 47 CFR Part 2 Subpart J, Β§2.1091  KDB 447498 D01 General RF Exposure Guidance v06 Choose Scandinavian trust Report reference ID: 443812-2TRFWL Page 2 of 5 Lab and test locations Company name Nemko USA, Inc. Address 1110 Faraday Ave, Suite 150 City Carlsbad State California Postal code 92008 Country USA Telephone +1 760 444 3500 Website www.nemko.com Prepared by Martha Espinoza, Wireless Test Engineer Reviewed by Chip Fleury, Wireless & Certification Supervisor Review date June 29, 2021 Reviewer signature Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko USA’s ISO/IEC 17025 accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government Copyright notification Nemko USA Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party because of decisions made or actions based on this report. Β© Nemko USA Inc. Report reference ID: 443812-2TRFWL Page 3 of 5 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Evaluation summary ........................................................................................................................................................................... 4 1.1 MPE exemption for stand-alone transmission .................................................................................................................................................................... 4 Section 1 Evaluation summary Report reference ID: 443812-2TRFWL Page 4 of 5 Evaluation summary 1.1 MPE exemption for stand-alone transmission 1.1.1 References, definition, and limits FCC Β§2.1091(c) (1) Mobile devices that operate in the Commercial Mobile Radio Services pursuant to part 20 of this chapter; the Cellular Radiotelephone Service pursuant to part 22 of this chapter; the Personal Communications Services pursuant to part 24 of this chapter; the Satellite Communications Services pursuant to part 25 of this chapter; the Miscellaneous Wireless Communications Services pursuant to part 27 of this chapter; the Upper Microwave Flexible Use Service pursuant to part 30 of this chapter; the Maritime Services (ship earth station devices only) pursuant to part 80 of this chapter; the Specialized Mobile Radio Service, and the 3650 MHz Wireless Broadband Service pursuant to part 90 of this chapter; the 76-81 GHz Band Radar Service pursuant to part 95 of this chapter; and the Citizens Broadband Radio Service pursuant to part 96 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if: (i) They operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or (ii) They operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. (2) Unlicensed personal communications service devices, unlicensed millimeter-wave devices, and unlicensed NII devices authorized under Β§Β§15.255(f), 15.257(g), 15.319(i), and 15.407(f) of this chapter are also subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if their ERP is 3 watts or more or if they meet the definition of a portable device as specified in Β§2.1093(b) requiring evaluation under the provisions of that section. (3) All other mobile and unlicensed transmitting devices are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, except as specified in Β§Β§1.1307(c) and 1.1307(d) of this chapter. 1.1.2 EUT technical information Operational frequency 2112.5 – 2197.5 MHz - 5 MHz bandwidth 2115 - 2195 MHz – 10 MHz bandwidth 2120 - 2190 MHz – 20 MHz bandwidth 2007.5 MHz – 25 MHz bandwidth Antenna type The EUT is professionally installed Antenna gain Unknown (Depends of final client) Number of antennas 4 Maximum transmitter conducted power 48.81 dBm (76032.62 mW) – 5 MHz bandwidth 48.80 dBm (75857.75 mW) – 10 MHz bandwidth 48.69 dBm (73960.52 mW) – 20 MHz bandwidth 46.81 dBm (47973.34 mW) – 25 MHz bandwidth Maximum EIRP (Power across four ports) 54.81 dBm (302691.3 mW) – 5 MHz bandwidth 54.80 dBm (301995.1 mW) – 10 MHz bandwidth 54.69 dBm (294442.1 mW) – 20 MHz bandwidth 52.81 dBm (190985.3 mW) – 25 MHz bandwidth Section 1 Evaluation summary Report reference ID: 443812-2TRFWL Page 5 of 5 1.1.3 MPE exemption calculations - based on worst case power output from worst case port Fundamental transmit (prediction) frequency: 2155 MHz Maximum measured conducted peak output power: 48.81 dBm Cable and/or jumper loss: 0 dB Maximum peak power at antenna input terminal: 48.81 dBm Tx On time: 1.000 ms Tx period time: 1.000 ms Average factor: 100 % Maximum calculated average power at antenna input terminal: 76032.628 mW Single Antenna gain (typical): 20.4 dBi Number of antennae: 4 Total system gain: 26.42…

Text truncated - open the document above for the full version.

Test Report

Intertek 731 Enterprise Drive Lexington, KY 40510 Tel 859 226 1000 Fax 859 226 1040 www.intertek.com Fujitsu Network Communications TEST REPORT SCOPE OF WORK EMC TESTING – DUAL BAND RU FOR NORTH AMERICA REPORT NUMBER 104509072LEX-004 ISSUE DATE 3/15/2021 PAGES 34 DOCUMENT CONTROL NUMBER Non-Specific EMC Report Shell Rev. December 2017 Β© 2017 INTERTEK This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services NA, Inc. EMC TEST REPORT (FULL COMPLIANCE) Report Number: 104509072LEX-004 Project Number: G104509072 Report Issue Date: 3/15/2021 Product Tested: Model Number: Dual Band RU for North America DB 5G RU Standards: Title 47 CFR Part 27 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Dr. Lexington, KY 40510 USA Fujitsu Network Communications 2801 Telcom Pkwy Richardson, TX 75082 USA Report prepared by Report reviewed by Bryan Taylor, Team Leader Brian Lackey, Staff Engineer Evaluation For: Fujitsu Network Communications Product: Dual Band RU for North America EMC Test Report Date: 3/15/2021 Non-Specific EMC Report Shell Rev. December 2017 Page 3 of 34 Report Number: 104509072LEX-004 Table of Contents 1 Introduction and Conclusion ........................................................................................................................... 4 2 Test Summary for Band n66 (2110 - 2200MHz) ............................................................................................... 4 3 Test Summary for Band n70 (1995 - 2020MHz) ............................................................................................... 5 4 Client Information .......................................................................................................................................... 6 5 Description of Equipment under Test and Variant Models .............................................................................. 6 6 System Setup and Method ............................................................................................................................. 8 7 Measurement Procedures and Determination of Worst Case Modes ........................................................... 12 8 Occupied Bandwidth Data ............................................................................................................................ 13 9 Output Power and Peak / Average Ratio Data ............................................................................................. 15 10 Frequency Stability Data .......................................................................................................................... 19 11 Worst Case Conducted Spurious Emission Data ........................................................................................ 21 12 Worst Case Conducted Band Edge Emission Data ..................................................................................... 25 13 Worst Case Radiated Spurious Emissions Data ......................................................................................... 27 14 ANNEX A: Occupied Bandwidth Plots ........................................................................................................ 29 15 ANNEX B: Output Power Plots .................................................................................................................. 30 16 ANNEX C: Conducted Spurious Emission Plots ........................................................................................... 31 17 ANNEX D: Conducted Band Edge Plots ...................................................................................................... 32 18 ANNEX E: Radiated Spurious Emission Plots ............................................................................................. 33 19 Revision History ........................................................................................................................................ 34 Evaluation For: Fujitsu Network Communications Product: Dual Band RU for North America EMC Test Report Date: 3/15/2021 Non-Specific EMC Report Shell Rev. December 2017 Page 4 of 34 Report Number: 104509072LEX-004 1 Introduction and Conclusion The tests indicated below were performed on the product described in section 5 The remaining test sections are the verbatim text from the actual data sheets used during the investigation. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. 2 Test Summary for Band n66 (2110 - 2200MHz) FCC Rule Test Method Test Description Measured Value Limit Results 27.5(h)(j) ANSI C63.26: 2015 Section 5.1 Frequency Ranges 20MHz BW Setting 2120 – 2190MHz 10MHz BW Setting 2115 – 2195MHz 5MHz BW Setting 2112.2 – 2197.5MHz 2110 – 2200MHz Pass 2.1033(c)(4) --- Modulation Type QPSK, 16QAM, 64QAM, and 256QAM Digital Pass 27.50(d)(2)(ii) AN…

Text truncated - open the document above for the full version.

Test Report

Band 66, 20MHz Bandwidth Setting, QPSK Modulation, Port A 26dB Low Channel 99% Low Channel 26dB Mid Channel 99% Mid Channel 26dB High Channel 99% High Channel A 2.12944 GHz Offset 44.5 dB 2.12944 GHz LVL 2.12944 GHz 2.12944 GHz 2.12944 GHz 2.12944 GHz 2.12944 GHz 2.12944 GHz 2.12944 GHz 2.12944 GHz 2.12944 GHz 2.12944 GHz Att 30 dB 2.12944 GHz * 2.12944 GHz Ref 60 dBm 2.12944 GHz Center2.12 GHz 2.12944 GHz Span40 MHz 2.12944 GHz 4 MHz/ 2.12944 GHz SWT 5 ms 2.12944 GHz 1 PK 2.12944 GHz MAXH 2.12944 GHz * 2.12944 GHz * 2.12944 GHz RBW 100 kHz 2.12944 GHzVBW 300 kHz 2.12944 GHz -40 -30 -20 -10 0 10 20 30 40 50 60 2.12944 GHz 1 Marker 1 [T1 ] 34.57 dBm 2.129440000 GHz ndB [T1] 26.00 dB BW 19.680000000 MHz T1 Temp 1 [T1 ndB] 6.09 dBm 2.110160000 GHz T2 Temp 2 [T1 ndB] 9.93 dBm 2.129840000 GHz MARKER 1 2.12944 GHz Date: 9.FEB.2021 15:33:33 A 2.11136 GHz Offset 44.5 dB 2.11136 GHz LVL 2.11136 GHz 2.11136 GHz 2.11136 GHz 2.11136 GHz 2.11136 GHz 2.11136 GHz 2.11136 GHz 2.11136 GHz 2.11136 GHz 2.11136 GHz Att 30 dB 2.11136 GHz * 2.11136 GHz Ref 60 dBm 2.11136 GHz Center2.12 GHz 2.11136 GHz Span40 MHz 2.11136 GHz 4 MHz/ 2.11136 GHz * 2.11136 GHz * 2.11136 GHz RBW 100 kHz 2.11136 GHzVBW 300 kHz 2.11136 GHz SWT 5 ms 2.11136 GHz 1 PK 2.11136 GHz MAXH 2.11136 GHz -40 -30 -20 -10 0 10 20 30 40 50 60 2.11136 GHz 1 Marker 1 [T1 ] 35.80 dBm 2.111360000 GHz OBW 18.960000000 MHz T1 Temp 1 [T1 OBW] 32.62 dBm 2.110560000 GHz T2 Temp 2 [T1 OBW] 32.71 dBm 2.129520000 GHz MARKER 1 2.11136 GHz Date: 9.FEB.2021 15:32:53 A 2.14972 GHz Offset 44.5 dB 2.14972 GHz LVL 2.14972 GHz 2.14972 GHz 2.14972 GHz 2.14972 GHz 2.14972 GHz 2.14972 GHz 2.14972 GHz 2.14972 GHz 2.14972 GHz 2.14972 GHz * 2.14972 GHz * 2.14972 GHz RBW 100 kHz 2.14972 GHzVBW 300 kHz 2.14972 GHz SWT 5 ms 2.14972 GHz 1 PK 2.14972 GHz MAXH 2.14972 GHz Att 30 dB 2.14972 GHz * 2.14972 GHz Ref 60 dBm 2.14972 GHz Center2.155 GHz 2.14972 GHz Span40 MHz 2.14972 GHz 4 MHz/ 2.14972 GHz -40 -30 -20 -10 0 10 20 30 40 50 60 2.14972 GHz 1 Marker 1 [T1 ] 35.80 dBm 2.149720000 GHz ndB [T1] 26.00 dB BW 19.680000000 MHz T1 Temp 1 [T1 ndB] 9.45 dBm 2.145160000 GHz T2 Temp 2 [T1 ndB] 14.19 dBm 2.164840000 GHz MARKER 1 2.14972 GHz Date: 9.FEB.2021 15:54:31 A 2.16068 GHz Offset 44.5 dB 2.16068 GHz LVL 2.16068 GHz 2.16068 GHz 2.16068 GHz 2.16068 GHz 2.16068 GHz 2.16068 GHz 2.16068 GHz 2.16068 GHz 2.16068 GHz 2.16068 GHz 1 PK 2.16068 GHz MAXH 2.16068 GHz Att 30 dB 2.16068 GHz * 2.16068 GHz Ref 60 dBm 2.16068 GHz Center2.155 GHz 2.16068 GHz Span40 MHz 2.16068 GHz 4 MHz/ 2.16068 GHz * 2.16068 GHz * 2.16068 GHz RBW 100 kHz 2.16068 GHzVBW 300 kHz 2.16068 GHz SWT 5 ms 2.16068 GHz -40 -30 -20 -10 0 10 20 30 40 50 60 2.16068 GHz 1 Marker 1 [T1 ] 35.02 dBm 2.160680000 GHz OBW 18.960000000 MHz T1 Temp 1 [T1 OBW] 33.35 dBm 2.145560000 GHz T2 Temp 2 [T1 OBW] 34.02 dBm 2.164520000 GHz MARKER 1 2.16068 GHz Date: 9.FEB.2021 15:55:14 A 2.18728 GHz Offset 44.5 dB 2.18728 GHz LVL 2.18728 GHz 2.18728 GHz 2.18728 GHz 2.18728 GHz 2.18728 GHz 2.18728 GHz 2.18728 GHz 2.18728 GHz 2.18728 GHz 2.18728 GHz Att 30 dB 2.18728 GHz * 2.18728 GHz Ref 60 dBm 2.18728 GHz Center2.19 GHz 2.18728 GHz Span40 MHz 2.18728 GHz 4 MHz/ 2.18728 GHz SWT 5 ms 2.18728 GHz * 2.18728 GHz * 2.18728 GHz RBW 100 kHz 2.18728 GHzVBW 300 kHz 2.18728 GHz 1 PK 2.18728 GHz MAXH 2.18728 GHz -40 -30 -20 -10 0 10 20 30 40 50 60 2.18728 GHz 1 Marker 1 [T1 ] 34.85 dBm 2.187280000 GHz ndB [T1] 26.00 dB BW 19.680000000 MHz T1 Temp 1 [T1 ndB] 9.41 dBm 2.180160000 GHz T2 Temp 2 [T1 ndB] 13.00 dBm 2.199840000 GHz MARKER 1 2.18728 GHz Date: 9.FEB.2021 16:02:10 A 2.188 GHz Offset 44.5 dB 2.188 GHz LVL 2.188 GHz 2.188 GHz 2.188 GHz 2.188 GHz 2.188 GHz 2.188 GHz 2.188 GHz 2.188 GHz 2.188 GHz 2.188 GHz Att 30 dB 2.188 GHz * 2.188 GHz Ref 60 dBm 2.188 GHz Center2.19 GHz 2.188 GHz Span40 MHz 2.188 GHz 4 MHz/ 2.188 GHz 1 PK 2.188 GHz MAXH 2.188 GHz * 2.188 GHz * 2.188 GHz RBW 100 kHz 2.188 GHzVBW 300 kHz 2.188 GHz SWT 5 ms 2.188 GHz -40 -30 -20 -10 0 10 20 30 40 50 60 2.188 GHz 1 Marker 1 [T1 ] 35.13 dBm 2.188000000 GHz OBW 18.880000000 MHz T1 Temp 1 [T1 OBW] 34.76 dBm 2.180560000 GHz T2 Temp 2 [T1 OBW] 33.68 dBm 2.199440000 GHz MARKER 1 2.188 GHz Date: 9.FEB.2021 16:02:57 Band 66, 10MHz Bandwidth Setting, QPSK Modulation, Port A 26dB Low Channel 99% Low Channel 26dB Mid Channel 99% Mid Channel 26dB High Channel 99% High Channel A 2.1192 GHz Offset 44.5 dB 2.1192 GHz LVL 2.1192 GHz 2.1192 GHz 2.1192 GHz 2.1192 GHz 2.1192 GHz 2.1192 GHz 2.1192 GHz 2.1192 GHz 2.1192 GHz 2.1192 GHz Att 30 dB 2.1192 GHz * 2.1192 GHz Ref 60 dBm 2.1192 GHz Center2.115 GHz 2.1192 GHz Span20 MHz 2.1192 GHz 2 MHz/ 2.1192 GHz SWT 2.5 ms 2.1192 GHz 1 PK 2.1192 GHz MAXH 2.1192 GHz * 2.1192 GHz * 2.1192 GHz RBW 100 kHz 2.1192 GHzVBW 300 kHz 2.1192 GHz -40 -30 -20 -10 0 10 20 30 40 50 60 2.1192 GHz 1 Marker 1 [T1 ] 38.06 dBm 2.119200000 GHz ndB [T1] 26.00 dB BW 9.800000000 MHz T1 Temp 1 [T1 ndB] 12.50 dBm 2.110120000 GHz T2 Temp 2 [T1 ndB] 13.99 dBm 2.119920000 GHz MARKER 1 2.1192 GHz Date: 9.FEB.2021 16:45:25 A 2.11776 GHz Offset 44.5 dB 2.11776 GHz LVL 2.11776 GHz 2.11776 GHz 2.11776 GHz 2.11776 GHz 2.11776 GHz 2.11776 GHz 2.11776 GHz 2.11776 GHz 2.11776 GHz 2.11776 GHz Att 30 dB 2.11776 GHz * 2.11776 GHz Ref 60 dBm 2.11776 GHz Center2.115 GHz 2.11776 GHz Span20 MHz 2.11776 GHz 2 MHz/ 2.11776 GHz * 2.11776 GHz * 2.11776 GHz RBW 100 kHz 2.11776 GHzVBW 300 kHz 2.11776 GHz SWT 2.5 ms 2.11776 GHz 1 PK 2.11776 GHz MAXH 2.11776 GHz -40 -30 -20 -10 0 10 20 30 40 50 60 2.11776 GHz 1 Marker 1 [T1 ] 37.76 dBm 2.117760000 GHz OBW 9.320000000 MHz T1 Temp 1 [T1 OBW] 35.62 dBm 2.110360000 GHz T2 Temp 2 [T1 OBW] 35.57 dBm 2.119680000 GHz MARKER 1 2.11776 GHz Date: 9.FEB.2021 16:44:49 A 2.15384 GHz Offset 44.5 dB 2.15384 GHz LVL 2.15384 GHz 2.15384 GHz 2.15384 GHz 2.15384 GHz 2.15384 GHz 2.15384 GHz 2.15384 GHz 2.15384 GHz 2.15384 GHz 2.15384 GHz Att 30 dB 2.15384 GHz * 2.15384 GHz Ref 60 dBm 2.15384 GHz Center2.155 GHz 2.15384 GHz Span20 MHz 2.15384 GHz 2 MHz/ 2.15384 GHz * 2.15384 GHz * 2.15384…

Text truncated - open the document above for the full version.

Test Report

Output Power: Band 66, QPSK, 20MHz, Low Channel, Port A Output Power: Band 66, QPSK, 20MHz, Mid Channel, Port A Output Power: Band 66, QPSK, 20MHz, High Channel, Port A Current Scan 10 % 3.50 dB 1 % 6.54 dB 0.1% 7.78 dB 0.01 % 8.35 dB 0.001 % 8.76 dB 0.0001 % 9.11 dB Pav 45.77 dBm Ppk 54.49 dBm Pk/Av 9.31 dB All Scans 10 Pav 45.77 dBm Ppk 54.49 dBm Pk/Av 9.31 dB Current Scan 10 % 3.71 dB 1 % 6.42 dB 0.1% 7.44 dB 0.01 % 7.62 dB 0.001 % 7.86 dB 0.0001 % 7.96 dB Pav 45.57 dBm Ppk 54.28 dBm Pk/Av 8.12 dB All Scans 961 Pav 45.57 dBm Ppk 54.09 dBm Pk/Av 10.34 dB Current Scan 10 % 3.57 dB 1 % 6.47 dB 0.1% 7.48 dB 0.01 % 7.82 dB 0.001 % 8.13 dB 0.0001 % 8.35 dB Pav 45.98 dBm Ppk 53.89 dBm Pk/Av 8.85 dB All Scans 28829 Pav 45.11 dBm Ppk 57.69 dBm Pk/Av 12.58 dB Output Power: Band 66, QPSK, 10MHz, Low Channel, Port A Output Power: Band 66, QPSK, 10MHz, Mid Channel, Port A Output Power: Band 66, QPSK, 10MHz, High Channel, Port A Current Scan 10 % 3.55 dB 1 % 6.74 dB 0.1% 8.44 dB 0.01 % 9.17 dB 0.001 % 9.54 dB 0.0001 % 9.59 dB Pav 45.13 dBm Ppk 53.78 dBm Pk/Av 9.75 dB All Scans 27799 Pav 44.49 dBm Ppk 58.49 dBm Pk/Av 14.00 dB Current Scan 10 % 3.62 dB 1 % 6.59 dB 0.1% 8.56 dB 0.01 % 9.31 dB 0.001 % 9.57 dB 0.0001 % 9.77 dB Pav 45.72 dBm Ppk 55.79 dBm Pk/Av 10.07 dB All Scans 27918 Pav 44.49 dBm Ppk 58.49 dBm Pk/Av 14.00 dB Current Scan 10 % 3.68 dB 1 % 6.65 dB 0.1% 8.36 dB 0.01 % 9.14 dB 0.001 % 9.36 dB 0.0001 % 9.30 dB Pav 45.49 dBm Ppk 54.99 dBm Pk/Av 9.50 dB All Scans 28131 Pav 44.50 dBm Ppk 58.49 dBm Pk/Av 13.99 dB Output Power: Band 66, QPSK, 5MHz, Low Channel, Port A Output Power: Band 66, QPSK, 5MHz, Mid Channel, Port A Output Power: Band 66, QPSK, 5MHz, High Channel, Port A Current Scan 10 % 3.55 dB 1 % 6.57 dB 0.1% 8.43 dB 0.01 % 9.09 dB 0.001 % 9.16 dB 0.0001 % 9.27 dB Pav 45.82 dBm Ppk 54.88 dBm Pk/Av 9.46 dB All Scans 28324 Pav 44.50 dBm Ppk 58.49 dBm Pk/Av 13.99 dB Current Scan 10 % 3.60 dB 1 % 6.58 dB 0.1% 8.44 dB 0.01 % 9.10 dB 0.001 % 9.18 dB 0.0001 % 9.16 dB Pav 46.01 dBm Ppk 55.19 dBm Pk/Av 9.36 dB All Scans 28467 Pav 44.50 dBm Ppk 58.49 dBm Pk/Av 13.99 dB Current Scan 10 % 3.64 dB 1 % 6.62 dB 0.1% 8.46 dB 0.01 % 9.13 dB 0.001 % 9.21 dB 0.0001 % 9.18 dB Pav 46.11 dBm Ppk 55.09 dBm Pk/Av 9.28 dB All Scans 28640 Pav 44.51 dBm Ppk 58.49 dBm Pk/Av 13.98 dB Output Power: Band 66, 16QAM, 20MHz, Low Channel, Port A Output Power: Band 66, 16QAM, 20MHz, Mid Channel, Port A Output Power: Band 66, 16QAM, 20MHz, High Channel, Port A Current Scan 10 % 3.66 dB 1 % 6.54 dB 0.1% 7.52 dB 0.01 % 7.83 dB 0.001 % 8.04 dB 0.0001 % 8.24 dB Pav 45.51 dBm Ppk 53.88 dBm Pk/Av 8.39 dB All Scans 6642 Pav 47.19 dBm Ppk 57.59 dBm Pk/Av 10.40 dB Current Scan 10 % 3.52 dB 1 % 6.42 dB 0.1% 7.79 dB 0.01 % 8.45 dB 0.001 % 9.09 dB 0.0001 % 9.23 dB Pav 45.27 dBm Ppk 54.79 dBm Pk/Av 9.52 dB All Scans 7463 Pav 47.11 dBm Ppk 58.09 dBm Pk/Av 10.98 dB Current Scan 10 % 3.63 dB 1 % 6.53 dB 0.1% 7.50 dB 0.01 % 7.88 dB 0.001 % 8.27 dB 0.0001 % 8.29 dB Pav 45.42 dBm Ppk 55.88 dBm Pk/Av 8.48 dB All Scans 7644 Pav 47.10 dBm Ppk 58.09 dBm Pk/Av 10.99 dB Output Power: Band 66, 16QAM, 10MHz, Low Channel, Port A Output Power: Band 66, 16QAM, 10MHz, Mid Channel, Port A Output Power: Band 66, 16QAM, 10MHz, High Channel, Port A Current Scan 10 % 3.69 dB 1 % 6.54 dB 0.1% 8.38 dB 0.01 % 9.27 dB 0.001 % 9.62 dB 0.0001 % 9.65 dB Pav 44.65 dBm Ppk 53.28 dBm Pk/Av 9.83 dB All Scans 269 Pav 37.53 dBm Ppk 55.99 dBm Pk/Av 18.46 dB Current Scan 10 % 3.55 dB 1 % 6.71 dB 0.1% 8.44 dB 0.01 % 9.42 dB 0.001 % 9.68 dB 0.0001 % 9.96 dB Pav 45.85 dBm Ppk 55.09 dBm Pk/Av 10.24 dB All Scans 563 Pav 43.60 dBm Ppk 57.79 dBm Pk/Av 14.19 dB Current Scan 10 % 3.54 dB 1 % 6.47 dB 0.1% 7.35 dB 0.01 % 7.60 dB 0.001 % 7.55 dB 0.0001 % 7.66 dB Pav 44.63 dBm Ppk 53.38 dBm Pk/Av 7.74 dB All Scans 804 Pav 44.19 dBm Ppk 57.79 dBm Pk/Av 13.59 dB Output Power: Band 66, 16QAM, 5MHz, Low Channel, Port A Output Power: Band 66, 16QAM, 5MHz, Mid Channel, Port A Output Power: Band 66, 16QAM, 5MHz, High Channel, Port A Current Scan 10 % 3.58 dB 1 % 6.65 dB 0.1% 8.21 dB 0.01 % 9.04 dB 0.001 % 9.22 dB 0.0001 % 9.30 dB Pav 45.89 dBm Ppk 54.98 dBm Pk/Av 9.49 dB All Scans 1072 Pav 43.97 dBm Ppk 57.79 dBm Pk/Av 13.82 dB Current Scan 10 % 3.56 dB 1 % 6.58 dB 0.1% 8.32 dB 0.01 % 9.10 dB 0.001 % 9.17 dB 0.0001 % 9.15 dB Pav 46.01 dBm Ppk 55.19 dBm Pk/Av 9.24 dB All Scans 1202 Pav 43.99 dBm Ppk 57.79 dBm Pk/Av 13.80 dB Current Scan 10 % 3.63 dB 1 % 6.62 dB 0.1% 8.21 dB 0.01 % 8.97 dB 0.001 % 9.44 dB 0.0001 % 9.46 dB Pav 45.93 dBm Ppk 55.78 dBm Pk/Av 10.06 dB All Scans 1318 Pav 44.12 dBm Ppk 57.79 dBm Pk/Av 13.67 dB Output Power: Band 66, 64QAM, 20MHz, Low Channel, Port A Output Power: Band 66, 64QAM, 20MHz, Mid Channel, Port A Output Power: Band 66, 64QAM, 20MHz, High Channel, Port A Current Scan 10 % 3.50 dB 1 % 6.58 dB 0.1% 7.56 dB 0.01 % 7.87 dB 0.001 % 8.10 dB 0.0001 % 8.12 dB Pav 45.57 dBm Ppk 53.98 dBm Pk/Av 8.41 dB All Scans 21911 Pav 44.62 dBm Ppk 58.19 dBm Pk/Av 13.57 dB Curren…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Corey Dayton(Principal Compliance Engineer)
[email protected]845-401-6961Fax: 972-479-2647

Test Firm

Nemko USA, Inc. - San Diego EMC DivisionJan Blomgren
[email protected]760-444-3500

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
7272.00 GHz - 2.02 GHz190.99 W23M8F9W1.5 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is conducted RMS. The antenna(s) used on this equipment must be installed to provide a separation distance of at least 16.3m from all persons. This device must be professionally installed. Installers must be provided with specific information required to satisfy RF exposure compliance for installations. This device has 5 MHz, 10 MHz, 20 MHz bandwidth modes for LTE Band n66 and LTE Band n70, as well as 25 MHz bandwidth mode for LTE Band n70.
