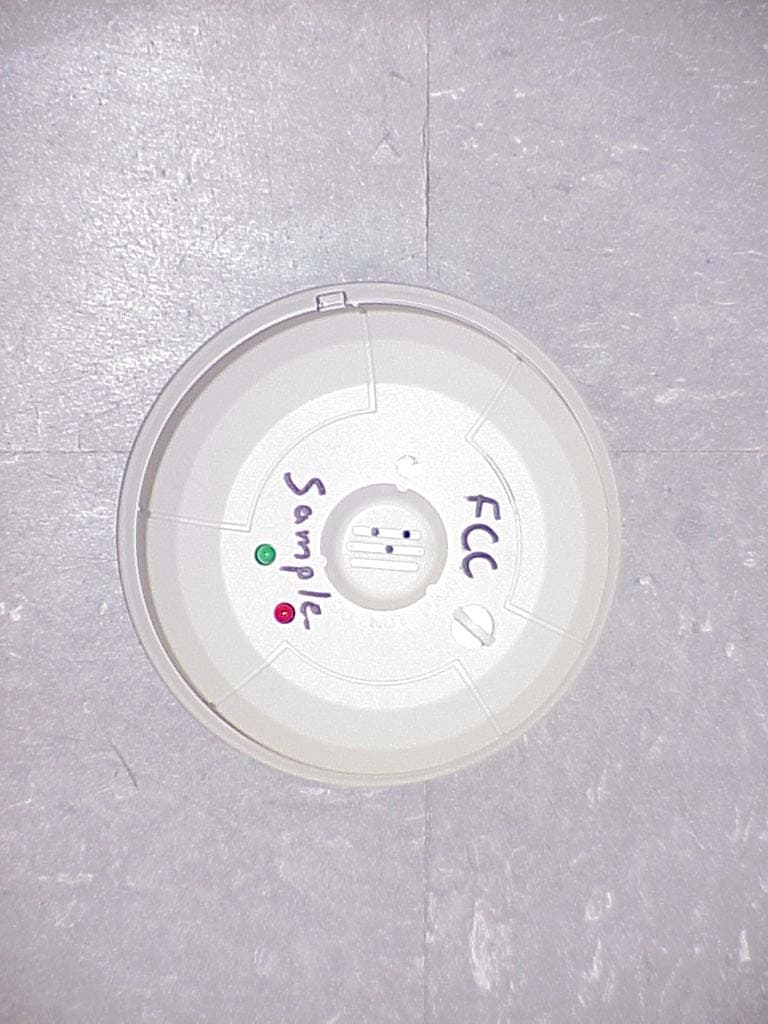

CFS8DL5800COCO Detector Alarm

5800CO Carbon Monoxide Detector with Built-in Wireless Transmitter INSTALLATION AND SETUP GUIDE GENERAL INFORMATION The 5800CO is a 3V battery powered wireless Carbon Monoxide (CO) detector intended for use with wireless alarm systems that support 5800 series devices. Refer to control/communicator installation instructions for compatibility. The detector consists of an electrochemical carbon monoxide sensor assembly coupled to a wireless transmitter. The transmitter can send alarm, trouble, tamper, and battery condition messages to the system’s receiver. Refer to the wireless system’s instructions for the maximum number of transmitters that can be supported. NOTICE: This manual should be left with the owner/user of this equipment. IMPORTANT: This detector must be tested and maintained regularly following NFPA 72 requirements. WARNING: This product is intended for use in ordinary indoor locations of dwelling units, including homes, residential buildings, hotels, schools, dormitories, and day care centers. It is not intended for use in industrial factories or commercial parking garages. Detector Description • Listed to UL standard 2075 (pending) • Supervised • Local sounder • Dual LED’s • Test/Hush button • Surface mount to wall or ceiling • Optional drywall anchors included The 5800CO contains a piezoelectric horn which generates the ANSI S3.41 temporal 4 pattern in an alarm condition (see note below Table 1 for temporal 4 pattern). In alarm, a message is also sent to the wireless control panel and the detector’s zone number is displayed at the console. The alarm message is transmitted every 4 seconds until the carbon monoxide condition has cleared and the detector has reset. During an alarm condition, pressing the detector’s test button will silence the piezoelectric horn for 5 minutes. Once the detector has reset, a RESTORE message is transmitted to the control panel and the transmitter’s zone number can be cleared from the panel. The mounting base installation is simplified by the incorporation of features compatible with drywall fasteners or other methods that provide a method for securing the detector in place. During initial power-up, the red and green LEDs will blink together once every 10 seconds up to four times. It takess about 30 seconds for the detector’s CO sensor to stabilize (see Table 1). After power-up has completed and the detector is functioning normally within its listed sensitivity range, the green LED blinks once every 10 seconds. The LED indication must not be used in place of the tests specified under TESTING THE DETECTOR. In a trouble condition, the red LED will blink once every 10 seconds (refer to Table 1). If the detector senses a low battery condition, the red LED blinks once every 45 seconds. Two LEDs and a sounder on the detector provide local visual and audible indication of the detector’s status as listed in Table 1. Table 1: Detector LED Modes Green LED Red LED Sounder Normal (standby) Blinks every 10 seconds Off Off Alarm/Test Off Blinks every 1 second Temporal 4 Pattern † Low Battery Off Blinks every 45 seconds Chirp every 45 sec after LED blinks for 7 days Communication Fail Off Blinks every 5 seconds Off Trouble Off Blinks every 5 seconds One chirp every 45 seconds Detector End-of- Life Off Blinks every 10 seconds Off Power Up Blinks every 10 secs †† (w/red LED) Blinks every 10 secs †† (w/green LED) Off † Temp 4 pattern is repeated pattern of four short beeps followed by a five second pause. When the detector has been in alarm for 30 minutes, the alarm signal will be given once every minute. If ambient conditions return to normal, the detector will self-restore out of alarm and into Normal (standby) mode. †† Red and green LEDs blink a total of four times, once every 10 seconds. Hush feature: If required, the audible alarm can be silenced for 5 minutes by pushing the button marked “Test/Hush”. The red alarm light will continue to flash in temp-4 pattern. If carbon monoxide is still present after the 5 minute hush period, the audible alarm will sound. The hush feature will not operate at levels above 350 ppm (parts per million) carbon monoxide. Trouble feature: When the sensor supervision is in a trouble condition, the detector will send a trouble signal to the panel. Trouble conditions include an open circuit, sensor removal (tamper), and sensor end of life. End of Life Timer feature: When the detector has reached the end of its life, the trouble contact will open. This indicates that the CO sensor inside the detector has passed the end of its life and must be replaced. This detector’s lifespan is approximately six years from the date of manufacture. Refer to Detector Replacement section Low Battery Detection: The 5800CO is powered by a single 3- volt CR123A or DL123A Lithium battery (included). The detector checks for a low battery at least every 65 minutes. If a low battery is detected, the transmitter sends a low battery message to the control panel, which beeps and displays the detector’s zone number. In addition, the red LED of the detector will blink every 45 seconds and the test button will be disabled. This condition will exist for a minimum of 7 days, and then the detector’s horn will “chirp” about every 45 seconds. Pressing the test button during this time will silence the chirps for 12 hours. The battery should be replaced BEFORE the chirps begin. Be sure to replace the battery with a fresh one. – 2 – BATTERY INSTALLATION AND REPLACEMENT To replace the battery: 1. Remove the detector from its mounting base by twisting the detector counterclockwise. Remove the battery, and dispose properly. 2. To ensure proper power-down sequence, wait a minimum of 20 seconds before installing new battery. 3. Install a new 3-volt CR123A Lithium battery in the battery compartment. Follow the polarity diagram inside the compartment. 4. Reinstall the detector onto the mounting base by turning the detector clockwise. 5. Test the detector as described in the TESTI…

Text truncated - open the document above for the full version.

EXHIBIT 2-2 5800CO BLOCK DIAGRAM CFS8DL5800CO / 573F-5800CO

EXHIBIT 8A LABEL LOCATION CFS8DL5800CO / 573F-5800C0 3.0" 2.0"



       !
"

#!$







#
 # !

 %

#  "!
#
 $
#
#      !
"$


  "
#"
 $ $




 "
 !$

 % $

 # $%  !$
 $
 & $ !"!   '($%
#
$

'($%

# % " $

#


  $ #!  &
%

!  )%



EXHIBIT 1 FUNCTIONAL DESCRIPTION CFS8DL5800CO / 573F-5800CO SECTION 2.1033(b) SECTION 2.1033(b) (2a). For Part 15 a brief description of the circuit functions of the device. The 5800CO is a battery powered CO detector & alarm transmitter and is part of a wireless-alarm system. It is used in conjunction with a receiver (5881) to indicate a possible CO event to the alarm system. The messages are standard alarm messages transmitted at 345Mhz +/-82Khz using on-off keyed AM modulation. The 5800CO sends a regular supervision or check-in message, no more often than once per hour.

EXHIBIT 2-1 CIRCUIT DESCRIPTION CFS8DL5800CO / 573F-5800CO OF THE 5800CO for SECTION 2.1033(b) SECTION 2.1033(b) (2a). For Part 15 a statement describing how the device operates. The SAW resonator YL1 is the FDE for the colpitts oscillator, Q2 etc., Which is switched on by Q1. The oscillators output drives the PA Q3 etc., which is on-off keyed (AM) via the modulator Q4 & Q5 etc., The RF energy is coupled out the ANT via the tuning and coupling of C13, C18, l4,C15 etc. Oscillator Switching and the modulation signal come from the ASIC controller JP1.

EXHIBIT 3-1 TIMING / DUTY CYCLE CALCULATION CFS8DL5800CO /573F-5800CO Section 15.255(b) Section 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. The exact method of calculating the average field strength shall be submitted with any application for certification. 5800CO Duty Cycle Calculation Message protocol, timing and duty cycle calculation: The data output is phase-encoded Manchester that has inherent 50% duty cycle and consists of 64 bits per word sent at a nominal data rate of 3.7 kb/s (3.2kb/s min to 4.2kb/s max). Therefore the duty cycle is calculation is as follows: The word format consists of 64 bits, The duration of each bit is 312.5 uSec max. The duty cycle over a 100 mSec measuring period is calculated as follows: Duty cycle = Actual RF transmission ON time / 100 mSec Actual transmission ON time = 64 bits X 50% X 312.5 uSec = 10 mSec Therefore duty cycle = 10 / 100 mSec = .10 = 10%, and peak to average field strength is 20 db. Total on-air time for a supervision transmission is: 64 X 312.5 uSec + (5 X 150 mSec) = 0.77 seconds The group of six transmissions is repeated twice, with the second group delayed from the first by a max time of 2 seconds. The worst case on-air time is 1.54 + 2 = 3.54 seconds Summary: - Duty cycle = 10% On airtime = 3.54 seconds

EXHIBIT 3-2 TIMING DIAGRAM CFS8DL5800CO / 573F-5800CO Section 15.255(b) Section 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. The exact method of calculating the average field strength shall be submitted with any application for certification. SEE THE NEXT PAGE
