CFS8DL5800PIR-RESPIR Security Sensor

FCC AND IC NOTICES FROM THE USERS MANUAL:

ATCB008630 REPLY LETTER January 15, 2010 RE: Honeywell International Inc. FCC ID: CFS8DL5800PIR-RES IC: 573F-5800IRRES ATCB008630 Tim, You Wrote: 1) Block diagram cites 344.95MHz. 731 form/IC form/test report cites 344.94 MHz. Please clarify/correct. I Reply: Corrected to 344.94 MHz ( That was a typo ); Please see EXHIBIT 2-2-A You Wrote: 2) IC confidentiality letter appears unusual given FCC confidentiality letter. Schematics, user’s manual, and test photos appear to be missing from the IC confidentiality letter. I Reply: Please see revised IC Confidentiality letter; IC CONF-A. You Wrote: 3) Information regarding Supervisory transmissions, how often, etc. has not been provided to show compliance to 15.231(a)(3). Please add to operational description information. I Reply: Our supervisory transmissions occur once every 66.1 minutes. The total on-air time for a supervision transmission is: 64 X 312.5 uSec + (5 X 150 mSec) = 0.77 seconds So there is one 0.77 second transmission once every 66.1 minutes You Wrote: 4) Operational description information regarding tamper feature should also be included (timing into, period, etc.) I Reply: A Tamper is a standard alarm message as described in EXHIBIT 3-1, just like "window opened", "movement" or "door opened" but "Tamper" means someone or something is trying to disable the alarm system. Tampers are normally sent when someone tries to disable a sensor by opening the cover ( say to remove the battery ), or pry it off its mounting plate, etc. You Wrote: 5) Please confirm if this is a transmitter or transceiver. If a transceiver, receiver emission should be provide for IC as well. This may also affect 731 equipment codes used. I Reply: This is a Transmitter only - DSC is the correct 731 equipment code.; Please see revised 731-A.

EXHIBIT 4-1 CFS8DL5800PIR-RES / 573F-5800PIRRES EXTERNAL PHOTOS TOP PLASTIC: BOTTOM PLASTIC:

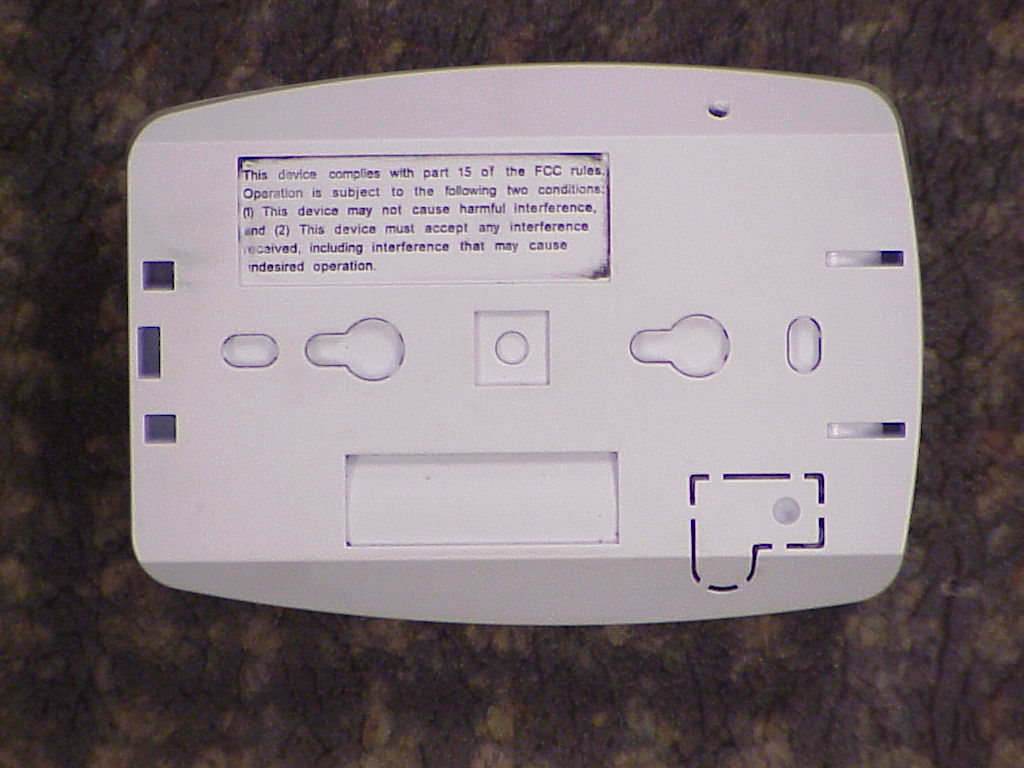

EXHIBIT 8 LABEL CFS8DL5800PIR-RES / 573F-5800PIRRES THIS IS THE TEXT JUST ABOVE THE BATTERY: THIS IS THE EXACT LOCATION JUST ABOVE THE BATTERY: THIS IS THE FCC / IC PART 15 NOTICE ON THE BOTTOM PLASTIC:

BOTTOM OF PCB:

OBW = 342. 68 KHz

EXHIBIT 5-1 CFS8DL5800PIR-RES / 573F-5800PIRRES Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV K JAN 10 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC IDCFS8DL5800PIR-RES Date : 01/14/2010 Tested by : Approved by : K. Eskildsen Test Sample (model) : 344.94 MHz 5800PIR-RES Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 7 Notes: (1) Fo = 344.94 MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682 344.94h78.712.315.3565765.810.0%6576.67292 689.88h31.873.220.02568.210.0%56.8729 1034.82h31.954.424.851148.210.0%114.8500 1379.76h24.67*4.925.93595.710.0%59.6500 1724.70h24.35*5.526.96692.610.0%69.3729 2069.64h24.35*6.431.361275.010.0%127.5729 2414.58h23.50*6.932.151341.210.0%134.1729 2759.52h 23.50 * 7.4 32.371457.110.0%145.7500 3104.46h23.50*7.932.731608.810.0%160.9729 3449.40h23.50*9.233.001927.510.0%192.8729 NOTE: * = NOISE FLOOR LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5800PIR-RES / 573F-5800PIRRES Section 15.231 and ANSI C63.4 This is a list of all test equipment used. Test Equipment list for Honeywell OATS: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/14/08 10/14/09 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 07/10/09 07/10/10 PLEASE SEE PAGE 2- 3 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PICTURE OF THE TEST SETUP CFS8DL5800PIR-RES / 573F-5800PIRRES SECTION 2.1093 (c) SECTION 2.1093 (c) Photo of the test setup shall be provided. HONEYWELL’S OATS MEASUREMENT FACILITY AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747 PICTURES OF THE CFS8DL5800PIR -RES / 573F-5800PIRRES UNDER TEST SENSE ANTENNA HORZ, UUT HORZ SENSE ANTENNA HORZ, UUT VERT SENSE ANTENNA HORZ, UUT OBLQ SENSE ANTENNA VERT, UUT HORZ SENSE ANTENNA VERT, UUT VERT SENSE ANTENNA VERT, UUT OBLQ
