CFS8DL5800PIR1PIR Detector

5800PIR - Installation Instructions / Instructions de montage / Instrucciones de Instalación PRELIMINARY DRAFT 8/25/09 TOP OPEN / OUVERTURE / ABRIR LOCATION / EMPLACEMENT / UBICACIÓN 1 2 MOUNT / MONTAGE / MONTAJE 5 ENROLL THE SENSOR, CONDUCT GO / NO GO TEST, AND PERFORM WALK TEST / ENRÔLEZ LE DÉTECTEUR, EXÉCUTEZ UN TEST " TOUT OU RIEN " ET FAITES UN TEST PAR DÉPLACEMENT / REGISTRE EL SENSOR, REALICE UNA PRUEBA PASA/NO PASA Y UN RECORRIDO DE PRUEBA 4 #6 x 1-1/4 (3.5 mm x 32 mm) DETECTION PATTERNS / MODÈLE DE DÉTECTION / PATRONES DE DETECCIÓN B ACCESSORIES / ACCESSOIRES / ACCESORIOS C Lens Masking / Masquage de L'Objectif / Enmascaramiento del Lente - Rear Tamper Breakaway Tab; Must be mounted to a stud, solid wood, or with a robust wall anchor. - Languette antisabotage arrière indiquant le démontage de l'unité; DOIT être installée sur un montant de cloison, une surface de bois solide ou à l'aide d'un ancrage de gypse robuste. - Lengüeta de seguridad trasera; DEBE montarse en un travesaño, madera sólida o con un soporte para pared resistente. LENS / OBJECTIF / LENTE MASK / MASQUE / ENMASCARAMIENTO 1 2 CONNECT THE BATTERY / METTRE LES PILES EN PLACE / CONEXIÓN DE LAS BATERIAS 3 Panasonic CR123A / Duracell DL123A / Honeywell 466 Tamper See page 2 for more information / Pour plus d'information, consultez la page 2 / Consulte la página 2 para obtener más información A LOOK DOWN MIRROR INSTALLATION / INSTALLATION DU MIROIR À VUE SOUS LE DÉTECTEUR / INSTALACIÓN DEL ESPEJO DE VISTA ZONA 0 11 10 6 14 13 12 9 5 4 Look Down Basses Angulo Lower Courtes Cercana Long Longues Largo Alcance Intermediate Intermediaires Intermedia 35' / 11m Wide Angle Animal Immune Lens / Lentille à grand angle insensible aux animaux / Lente gran angular con tolerancia a animales (P/N 5-532-719-01) Top View / Vue de Dessus / Vista Superior 0 7' 2m 20' 6m 27' 8m 35' 11m 0 7' 2m 20' 6m 13' 4m 13' 4m 7' 2m 20' 6m 13' 4m 1 2 3 4 5 10 9 8 7 6 11 12 13 14 15 16 17 18 19 20 Side View / Vue de Côté / Vista Lateral 0 7' 2m 20' 6m 27' 8m 35' 11m 13' 4m 7'6" (2.3m) 0 18-20 12-17 1-11 8 2 1 3 1 2 17 15 16 Observe correct polarity. Veuillez observer la polarité. Observe la polaridad correcta. Satisfactory / Satisfaisant / Satisfactorio No / Non / No 7 - Use only left OR right side corner mounting holes. - Utilisez uniquement les trous de montage qui se trouvent dans le coin gauche OU droit. - Utilice agujeros de montaje, únicamente derechos o izquierdos. (2.1 - 2.7 m) 7 - 9 ft * (2.3 - 2.4 m) 7.5 - 8 ft *High Sensitivity / Loop 2 ONLY. *Haute sensibilité / Boucle 2 SEULEMENT. *SÓLO Alta sensibilidad/Bucle 2. SMB-10 1 (P/N 0-000-110-01) Swivel Mount Bracket Support de montage pivotant Soporte Giratorio SMB-10C 1 (P/N 0-000-111-01) Swivel Mount Ceiling Bracket Support pivotant pour montage au plafond Soporte Giratorio de Cielo SMB-10T 1 (P/N 0-000-155-01) Swivel Mount Bracket w/Tamper Support de montage avec antisobatage Soporte Giratorio con autoprotección IS2500-HSLK 1 35’ x 40’ (11 m x 12 m) High Security Lens Kit Kit d’objectif haute sécurité Kit de lentes de alta seguridad IS2500-PALK 2 35’ x 40’ (11 m x 12 m) Pet Alley Lens Kit Kit d’objectif avec couloir pour animaux familiers Conjunto de Lentes de corredor para mascotas (Pet Alley) 1 Not verified by ETL. Mounting Height: Hauteur de montage: Altura de la instalación: 1 7 – 9 ft (2.1 m – 2.7 m) 2 4 ft (1.2 m) SPECIFICATIONS SPÉCIFICATIONS ESPICIFICACIONES Power: Battery* (included). Alimentation : Pile* (incluse). Alimentación: Batería* (incluida). 1 x 3 V , Lithium / Litio CR123A / DL 123A / 466 Battery Life, years (typical): Durée de vie de la pile, en années (typique) : Duración de las baterías, años (típica): 4 Operating Temperature: (for indoor use environment) Température de fonctionnement : Temperatura de funcionamiento: (para uso bajo techo) 14° to 131° F (-10° to 55° C) Relative Humidity, no condensation: Humidité relative, pas de condensation : Humedad relativa, sin condensación: 95% max. Detectable Walk Rate: Vitesse de marche détectable : Velocidad de recorrido detectable: 0.7 – 7ft/Sec. (0.2 – 2.0m/Sec.) Temperature Compensation: Compensations en Température : Compensación de temperatura: Advanced Dual Slope A doble pente Inclinación dual avanzada * Battery Caution: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212° F (100° C), or incinerate. Dispose of used batteries promptly. Keep away from children. * Attention de batterie : Risque d'incendie, d'explosion et de brûlures. Ne rechargez pas, démonter, chauffer au-dessus de 212° F (100° C), ou incinérer. Débarrassez-vous des batteries utilisées promptement. Gardez à partir des enfants. * Precauciones con respecto a las baterías: Riesgo de FUEGO, explosión y quemaduras. No recargar, desarmar, calentar por encima de 100° C (212° F), o incinerar. Descarte pronto las baterías usadas Manténgalas 5800PIR - Installation Instructions / Instructions de montage / Instrucciones de Instalación PRELIMINARY DRAFT 8/25/09 - Page 2 - ENGLISH FRANÇAIS ESPAÑOL ENROLL THE SENSOR Enroll the sensor in the control panel prior to its usage in the system. Refer to the control panel instructions for programming details. Program the sensor as an “RF” type (supervised RF) device. Sensor loops: Loop 1 Low Sensitivity (Pulse count 2) Up to 80 lb. (36 kg) Animal Immunity Loop 2 High Sensitivity (Pulse count 1) No Animal Immunity Loop 3 * [± 3° F (1.5°C)] Low Temperature Alarm Fault = < 45° F (7° C)* for > 10-30 min. Restore = > 48° F (9° C)* for > 10-30 min. Note: Program each desired loop as a separate zone with the appropriate zone type response. To enroll: connect the battery and wait for power up to end (see LED Indications table). When prompted for the serial number, activate the sensor (wave a hand in front of the lens) to enroll default loop 1 (low sensitivity). For loop 2 and/or loop 3, program an appropriate zone and enroll using the tamper switch. Change the loop number at the keypad. NOTE: In normal mode, the…

Text truncated - open the document above for the full version.

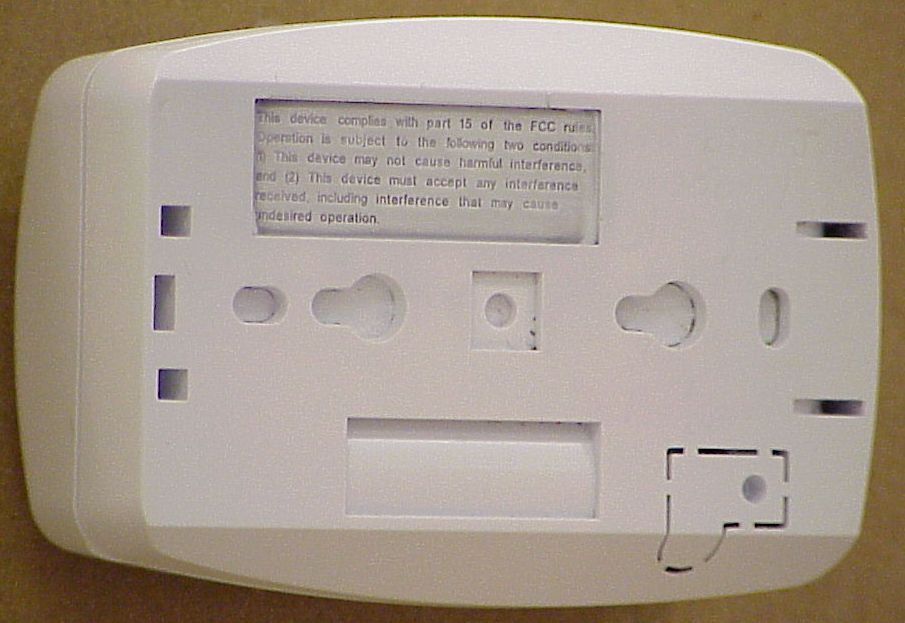

EXHIBIT 4-1 EXTERNAL PHOTOS CFS8DL5800PIR1 / 573F-5800PIR1 TOP PLASTIC: BOTTOM PLASTIC:

EXHIBIT 8 LABEL INFORMATION CFS8DL5800PIR1 / 573F-5800PIR1 The 5800PIR1 is sold with optional Commercial optic lens. In both cases the IC ID & IC Model No. remain the same. The circuit board is identical in circuitry and function, and they are identified thusly on the label: This is the exact location of the FCC ID, IC ID, and IC Model No. on the inner plastic: EXHIBIT 8 LABEL INFORMATION (CONT.) CFS8DL5800PIR1 / 573F-5800PIR1 SECTION 2.1033 (c) and Part 15.21 SECTION 2.1033 (c) Label and label location - A photo showing the identification label clearly (you must be able to see the name and FCC ID number), and the location on the device. In lieu of a photo for this, you may submit a engineer’s drawing. Part 15.21 Statement - for all intentional and unintentional radiators is also printed on the label. All devices shall bear the following statement in a conspicuous location on the device: “ This device complies with Part 15 of the FCC Rules and RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “ EXACT LOCATION OF LABEL ON THE BOTTOM PLASTIC:

EXHIBIT 4-2 INTERNAL PHOTOS CFS8DL5800PIR1 / 573F-5800PIR1 PCB IN PLASTIC: TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DL5800PIR1 / 573F-5800PIR1 Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6". HONEYWELL SECURITY & CUSTOM ELECTRONICSREV K FEB 10 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC ID:CFS8DL5800PIR1 Date : 06/04/2010 Tested by : G. BARBATO Approved by : K. Eskildsen Test Sample (model) : 344.94 MHz 5800PIR1 Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 7 Notes: (1) Fo = 345MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682 729 344.94H77.002.315.3554013.210.0%5401.37292 689.88H29.893.220.02452.410.0%45.2729 1034.82H31.604.424.851102.810.0%110.3500 1379.76H21.674.925.93421.710.0%42.2500 1724.70H22.895.526.96585.510.0%58.5729 2069.64H20.086.431.36779.810.0%78.0729 2414.58H25.216.932.151633.110.0%163.3729 2759.52 H 21.017.4 32.371094.010.0%109.4500 3104.46H22.867.932.731494.510.0%149.5729 3449.40H22.259.233.001669.210.0%166.9729 4000 LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682 hv 15.3514.37 20.0219.66 24.8525.22 25.9326.35 26.9627.49 31.3631.34 32.1531.81 32.3731.56 32.7332.34 33.0033.09 EXHIBIT 5-4 OCCUPIED BANDWIDTH CFS8DL5800PIR1 / 573F-5800PIR1 5800PIR OBW = 332.7 KHz EXHIBIT 5-5 CFS8DL5800PIR1 / 573F-5800PIR1 RECEIVER EMISSIONS Honeywell Radiated Emissions Prescan - 2.6 meters Horizontal and vertical 10.00M100.00M1.00G Frequency MHz 0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 Amplitude dBμV Control #: engineering11:32:01 AM, Monday, June 07, 2010 C:\Tile4\Honeywell profiles\GREGS STUFF\5800PIR1.TIL Operator: greg Control # - engineering Product type: - 5800pir1 Model number - 5800pir1 Sample number - Additional Equipment - EN 55022 Class B Horizontal peak Horiz quasi-peak Vertical peak Vert quasi-peak EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5800PIR1 / 573F-5800PIR1 Section 15.231 and ANSI C63.4 This is a list of all test equipment used. Test Equipment list for Honeywell OATS: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/12/09 10/12/10 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 07/10/09 07/10/10 PLEASE SE E PAGE 2-6 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected] I . : l:,irli r::::t::i.:,44i.,,i .: i:. illlil.,. lssue Date: 1011212009 Performed Bv: GENERAL CALIBRA-NON. INC. 2 MARS COURT MONTVILLE, NJ 07045 Equipmentlnformation ii '" ,:: Job No.: 018675 Manufacturer: R&S Description: SPECTRUM ANALYZER Deoartment: ALARMNET Temp./RH: 22 Ct45% Cal. Interval: 12 MONTHS CalDate:10t12t2009 Calibration Notes Company GENERALCALIBRATION 1031 GENERALCALIBRATION 434 GENERALCALIBRATION 650 GENERALCALIBRATION 774 GENERALCALIBRATION 967 General Calibration, Inc. 2 Mars Court, Boonton, New Jersey 07005 Phone (973) 299-2950 Fax (973) 299-0595 Asset Tag No.: MqdqlNumber: SerialNumber: Inspected By: Job Title: Calibration Result: Cal. Due Date: Certificate #: 15395MR Purchase Order: 5105648 Work Order #: MR309 Gustomer #: 001464 Location of Calibration: HONEYWELL SECURTTY (001464) 2 CORPOMTE CENTER DRIVE MELVILLE, NY 11747 10506 FSEA2O DE23427 MR::I METROLOGIST PASS 10t12t2010 Cal. Duo Date 02t02t2010 09t18t2010 12t08t2009 07 t13t2010 09t15t2010 Condition: Found In Tolerance and Lett In Tolerance Proceduro #GGP: R&S F$EA20 Standards Used To Calibrate Equipment | , ,,,' , ;,-',, r.D. SYNTHESIZED …

Text truncated - open the document above for the full version.

EXHIBIT 5-2 TEST SETUP PHOTOS CFS8DL5800PIR1 / 573F-5800PIR1 UUT VERT , SENSE HORZ: UUT HORZ , SENSE HORZ: UUT OBLQ , SENSE HORZ: UUT VERT , SENSE VERT: UUT HORZ , SENSE VERT: UUT OBLQ , SENSE VERT: PICTURE OF THE HONEYWELL OATS AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747
