CFS8DL5802APSecurity Alarm Transmitter

N7131-3V1 2/08 Rev. A ADEMCO 5802AP SUPERVISED MINIATURE TRANSMITTER INSTALLATION AND SETUP GUIDE The ADEMCO 5802AP is a wireless button transmitter that may be worn on a belt or around the neck (both belt and necklace are included). Pressing the button on the transmitter sends a signal to the control receiver. The 5802AP is designed for use in wireless systems that support 5800AP series devices. The transmitter is “supervised,” i.e., every 70-90 minutes, it automatically sends a check-in message to the control that includes battery status information. BATTERY REPLACEMENT The 5802AP is powered by a long-life lithium battery that should be replaced when a low battery is indicated by the control unit. NOTE: Although the 5802AP is water-resistant, please do not submerge. PROGRAMMING The 5802AP has a unique serial number permanently assigned during manufacture, which must be enrolled in the system during installation. The 5802AP can be programmed as “supervised” or “unsupervised,” but should be programmed as “unsupervised” if it will be removed from the premises. See the control unit’s installation instructions for further details regarding programming. SPECIFICATIONS Transmission Frequency: 315MHz Unit Dimensions: 61mm x 38mm x 12.7mm LED: Lights when unit transmits.









Back of 5802AP Remove battery cover Slide battery under pin Battery 3V LITHIUM RENATA CR2032 5802AP-001-V0 Battery: Duracell DL2032, Panasonic CR2032, Renata CR2032, Varta CR2032 or Maxell CR2032. Battery access is via a quarter-turn of slot in case back. Note battery polarity: +V UP! REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL WITH WITCH THIS DEVICE IS USED FOR WARRANTY INFORMATION, AND FOR DETAILS REGARDING THE LIMITATIONS OF THE ENTIRE ALARM SYSTEM. FCC / IC STATEMENT This device complies with Part 15 of the FCC Rules, and RSS210 of IC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. The user shall not make any changes or modifications to the equipment unless authorized by the installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. ÊN7131-3V1gŠ 2 Corporate Center Drive, Suite 100 P.O. Box 9040 Melville, NY 11747 N7131-3V1 2/08 Rev. A

EXHIBIT 2-2 BLOCK DIAGRAM CFS8DL5802AP / 573F-5802AP

APPLICATION FOR EQUIPMENT AUTHORIZATION AmericanTCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Ph: (703) 847-4700 FAX: (703) 847-6888 [email protected] SECTION I - ALL ITEMS IN THIS SECTION MUST BE COMPLETED 1. Applicant’s complete, legal business name HONEYWELL INTERNATIONAL INC. 2. Applicant’s mailing address (Line 1) 2 CORPORATE CENTER DRIVE FRN Number 0004071130 Applicant’s mailing address (Line 2) (if required) Engineer: City MELVILLE Examiner: State or Country (if foreign address) ZIP/Postal Code 3. FCC ID: (b) Equipment Product Code NEW YORK 11747 (a) Grantee Code (14 characters maximum) C F S 8DL5802AP 4. Name, Title and Mail Stop, if any, of person at the applicant’s address to receive grant, or for contact: (See instructions) Greg Barbato 5. (a) Telephone No. (Area/Country/City Code, No. and Ext.) (b) FAX No. (Area/Country/City Code and No.) 516-577-5863 516-577-3542 (c) Internet e-mail address: [email protected] SECTION II – CONTACT INFORMATION 1.(a) Instead of Applicant, original Grant shall be mailed to: Firm Name, Number, street, City, State/Country, ZIP/Postal Code (b) Name, Title and Mail Stop, if any, of person at above address to receive Grant: 2.(a) Technical contact: (b) Telephone No. (Area/Country/City code, No. and Ext.) Firm Name, Honeywell International Inc. 516-577-5800 Contact person, Ken Addy Number, street, 2 CORPORATE CENTER DRIVE City, MELVILLE (c) FAX No. (Area/Country/City code, and No.) State/Country NY. / USA 516-577-3542 ZIP/Postal code 11747 (d) Internet e-mail address: [email protected] (e) Non-Technical contact: (f) Telephone No. (Area/Country/City code, No. and Ext.) Firm Name, Honeywell International Inc. 516-577-5800 Contact person, Ken Addy Number, street, 2 CORPORATE CENTER DRIVE City, MELVILLE (g) FAX No. (Area/Country/City code, and No.) State/Country NY. / USA 516-577-3542 ZIP/Postal code 11747 (h) Internet e-mail address: [email protected] APPLICATION FOR EQUIPMENT AUTHORIZATION AmericanTCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Ph: (703) 847-4700 FAX: (703) 847-6888 [email protected] . SECTION III –EQUIPMENT AUTHORIZATION SUMMARY 1. Confidentiality Does this application include a request for confidentiality for a portion(s) of the data contained in this application pursuant to 47 CFR 0.459 of the Commission's Rules? † Yes [X] No 2. Defer Does the applicant desire ATCB to defer grant of this application pursuant to 47 CFR 0.457(d)(1)(ii)? (See instructions) NOT APPLICABLE 3. Type of equipment authorization requested: [X] Certification 4.(a) Equipment Code and description: (b) Equipment will be operated under FCC Rule Part(s): D S C PART 15.231 ( Security Transmitter ) 5. Application is for (Check one box only) [X] 1. Original equipment † 2. Change in identification of presently authorized equipment † 3. Class II permissive change or modified of presently authorized equipment Original FCC ID Grant date 6. Equipment Specifications: (a) Frequency range in MHz (b) Rated RF power output in watts (c) Frequency tolerance %, Hz, ppm (d) Emission designator (See 47 CFR §2.201 and § 2.202) (e) Microprocessor model number 315 0.0001 80,000 Hz 100KK1 N / A 7. Is the equipment in this application: (a) a composite device subject to more than one type of equipment authorization? † Yes [X] No (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? † Yes [X] No 8. (a) Additional type of equipment authorization required: † Certification † Notification (b) The related application checked in item 7.(a) (Check one box only) † has been filed at the same time as this application under the FCC ID listed below † has been granted under the FCC ID below † is in the process of being filed under the FCC ID listed below † is pending with with the FCC or a TCB under the FCC ID listed below FCC ID 9.(a) Name of test firm on file with the FCC, if different from applicant or contact person: (b) Mailing address,: (c) Telephone No. (Area/Country/City code, No. and Ext.) Number, street, City, State/Country (d) FAX No. (Area/Country/City code, and No.) ZIP/Postal code (e) Internet e-mail address: APPLICATION FOR EQUIPMENT AUTHORIZATION AmericanTCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Ph: (703) 847-4700 FAX: (703) 847-6888 [email protected] . SECTION IV - Read each certification carefully before answering and signing this application. WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND/OR IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). 1. SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. Does the applicant or authorized agent so certify? [X] Yes † No 2.(a) APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by ATCB as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will contin…

Text truncated - open the document above for the full version.

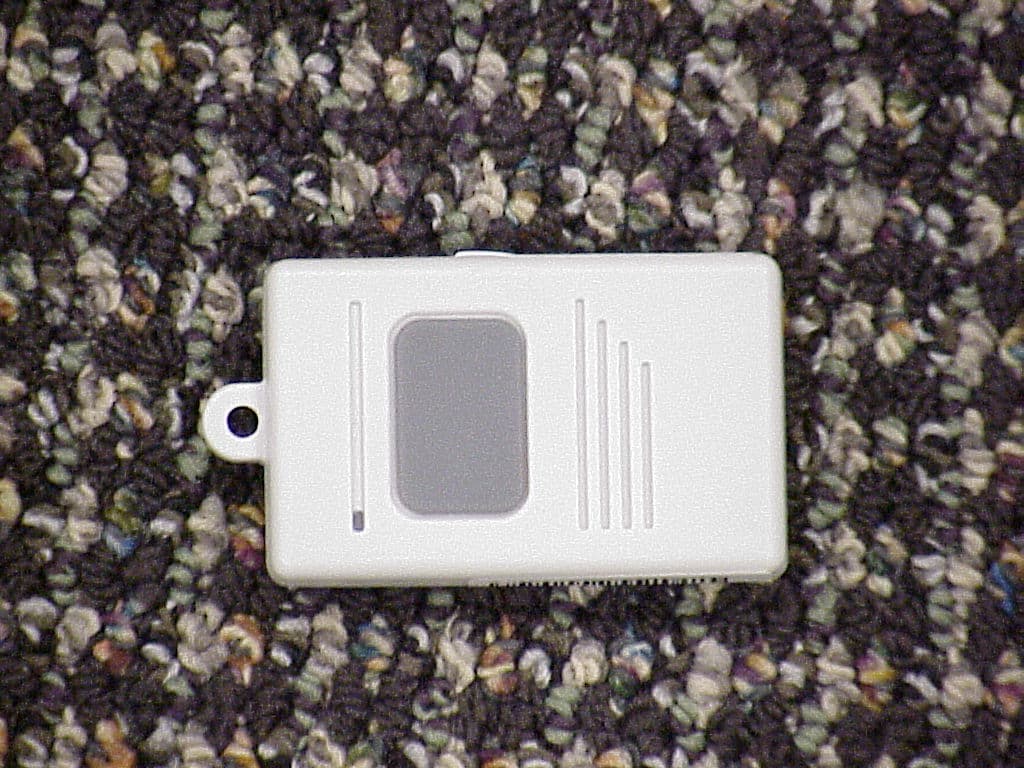

EXHIBIT 4-1 EXTERNAL PHOTOS CFS8DL5802AP / 573F-5802AP

EXHIBIT 4-2 EXTERNAL PHOTOS CFS8DL5802AP / 573F-5802AP

EXHIBIT 8 LABEL INFORMATION CFS8DL5802AP / 573F-5802AP SECTION 2.1033 (c) and Part 15.21 SECTION 2.1033 (c) Label and label location - A photo showing the identification label clearly (you must be able to see the name and FCC ID number), and the location on the device. In lieu of a photo for this, you may submit a engineer’s drawing. Part 15.21 & RSS 210 Statement - for all intentional and unintentional radiators is also printed on the label. All devices shall bear the following statement in a conspicuous location on the device: “ This device complies with Part 15 of the FCC Rules and RSS 210 of Industry Canada . Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “ NOTE: DUE TO THE PHYSICALLY SMALL SIZE OF THE 5802AP THE ABOVE STATEMENT HAS BEEN PLACED IN THE USERS MANUAL IN ACCORDANCE WITH Part 15.21(a)(5): “ When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device.” The Label shall also display the IC ID and the IC Model Number. ENGINEERS DRAWING OF LABEL:

EXHIBIT 4-3 INTERNAL PICTURES CFS8DL5802AP / 573F-5802AP

EXHIBIT 4-4 INTERNAL PICTURES CFS8DL5802AP / 573F-5802AP

EXHIBIT 4-5 INTERNAL PICTURES CFS8DL5802AP / 573F-5802AP

EXHIBIT 1 FUNCTIONAL DESCRIPTION CFS8DL5802AP / 573F-5802AP SECTION 2.1033(b) SECTION 2.1033(b) (2a). For Part 15 a brief description of the circuit functions of the device. The 5802AP transmitter pendant is worn around the neck and sends panic signals to the a alarm panel via a 5881AP receiver, signaling an emergency condition. It is identical in function and operation to our previously certified 5802 & 5802-1 with the exception of the operating frequency which is 315 MHz, rather than 345 MHz.

EXHIBIT 2-1 CIRCUIT DESCRIPTION CFS8DL5802AP / 573F-5802AP SECTION 2.1033(b) SECTION 2.1033(b) (2a). For Part 15 a statement describing how the device operates. The transmitters oscillator is turned on by TX Switch Q1. The SAW resonator colpitts oscillator, Q2 etc., drives THE PA Q3 etc., which is on-off keyed (AM) via the modulator Q4 & Q5 etc., The RF energy is coupled out the ANT. via the tuning and coupling of L1, C3, C4, etc., The FDE is the 315 MHz SAW Resonator XL1. All control signals (Osc on/off , Mod. ) come from the message encoding ASIC micro U1.

EXHIBIT 3-1 TIMING / DUTY CYCLE CALCULATION CFS8DL5802AP Section 15.255(b) Section 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. The exact method of calculating the average field strength shall be submitted with any application for certification. 5802AP Duty Cycle Calculation Message protocol, timing and duty cycle calculation: The data output is phase-encoded Manchester that has inherent 50% duty cycle and consists of 64 bits per word sent at a nominal data rate of 3.7 kb/s (3.2kb/s min to 4.2kb/s max). Therefore the duty cycle is calculation is as follows: The word format consists of 64 bits, The duration of each bit is 312.5 uSec max. The duty cycle over a 100 mSec measuring period is calculated as follows: Duty cycle = Actual RF transmission ON time / 100 mSec Actual transmission ON time = 64 bits X 50% X 312.5 uSec = 10 mSec Therefore duty cycle = 10 / 100 mSec = .10 = 10%, and peak to average field strength is 20 db. Total on-air time for a supervision transmission is: 64 X 312.5 uSec + (5 X 150 mSec) = 0.77 seconds The group of five transmissions is repeated twice, with the second group delayed from the first by a max time of 2 seconds. The worst case on-air time is 1.54 + 2 = 3.54 seconds Summary: - Duty cycle = 10% On airtime = 3.54 seconds

EXHIBIT 3-2 TIMING DIAGRAM CFS8DL5802AP / 573F-5802AP Section 15.255(b) Section 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. The exact method of calculating the average field strength shall be submitted with any application for certification. ONE MESSAGE: GROUP OF FIVE MESSAGES:

EXHIBIT 5-1 CFS8DL5802AP / 573F-5802AP Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation with the EUT positioned on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height was re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. See "Exhibit 6" for list of test equipment (C63.4 section 10.1.4) Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 100kHz, (This is in accordance with the minimum RBW allowed by C63.4, which requires RBW greater than 5% of the FCC required occupied bandwidth spec of 0.25% of center frequency). For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. RADIATED EMISSIONS are recorded in "EXHIBIT 5-3" . OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV B SEPT 07 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC ID # THIS IS THE GWP TEST BOARD Date : 02/08/08 Tested by :Azadeh S Approved by :K.Addy Test Sample (model) : 5802AP Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 7 Notes: (1) Fo = 315MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 CABLE "A"+"B" 03/12/2007 BICONILOG S/N:00029390 604.2 315H58.592.513.705489.110.0%548.96042.0 630H41.093.518.601443.810.0%144.4604.2 945H38.094.621.801676.910.0%167.7604.2 1260H41.595.325.003931.010.0%393.1500.0 1575H30.296.127.101494.510.0%149.5604.2 1890H28.796.629.101676.910.0%167.7604.2 2205H20.197.430.90840.410.0%84.0500.0 2520 H 23.797.8 32.501601.410.0%160.1604.2 2835H20.208.832.601202.310.0%120.2500.0 3150H18.309.132.601000.010.0%100.0604.2 4000 CABLE "A"+"B" 03/12/2007 BICONILOG S/N:00029390

EXHIBIT 5-4 OCCUPIED BANDWIDTH CFS8DL5802AP / 573F-5802AP OCCUPIED BANDWIDTH OF THE 5802AP 563.13 KHz

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5802AP / 573F-5802AP Section 15.231 and ANSI C63.4 This is a list of all test equipment used. Test Equipment list for Honeywell OATS: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer TEKTRONIX 2784 10/16/07 10/16/08 Antenna (‘Biconilog’) ETS Lindgren 3149 03/12/07 03/12/08 If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Addy) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP CFS8DL5802AP / 573F-5802AP SENSE: VERT, UUT: HORZ SENSE: VERT, UUT: VERT SENSE: VERT, UUT: OBLQ SENSE: HORZ, UUT: HORZ SENSE: HORZ, UUT:VERT SENSE: HORZ, UUT: OBLQ HONEYWELL’S 3 METER OATS ( FCC No: 152762 & IC No:573F-1 ) 2 Corporate Center Drive, Melville, NY 11747
