CFS8DL5804E-1Wireless Key Transmitter

N7674-6V3 9/08 Rev. A ADEMCO 5804E ADEMCO 5804EADEMCO 5804E ADEMCO 5804E WIRELESS KEY TRANSMITTER WIRELESS KEY TRANSMITTERWIRELESS KEY TRANSMITTER WIRELESS KEY TRANSMITTER INSTALLATION AND SETUP GUIDE GENERAL INFORMATION The ADEMCO 5804E is a compact, 4-button portable wireless transmitter intended for use only with wireless alarm systems that support 5800 Series receivers. Each button on the transmitter may be programmed for any zone response, but is typically used for arming and disarming. This device supports the High-Security mode, which sends rolling-code encrypted messaging to the RF receiver. Important Note: This device must be used with a 5881EN or a 6128RF (UL version) receiver. The 5804E is powered by two replaceable lithium batteries designed to provide up to 4 years of life. For battery installation, see Replacing the Batteries. PROGRAMMING Each 5804E is assigned a unique serial number during manufacture. Each button on the unit also has a distinct "loop" number (refer to Figure 1) that you must program into the control panel during installation. Assign each button to an individual zone and designate the Input Type as "BR" (Button Type RF). When you are prompted for the serial number, either press and release twice the button you are programming, or enter it manually through the keypad. For complete details on how to program the 5804E transmitter's serial number at the control panel, see the control unit's installation instructions. Note: Buttons on this transmitter must be pressed for at least 1/2 second to activate the transmitter. This feature minimizes the possibility of accidental transmissions. ACTIVATING HIGH-SECURITY MODE If Programming 5804E in the Control 1. Program the button in the control. 2. After programming is complete, exit programming mode and wait 60 seconds. 3. Put the system in Go/No Go mode. 4. Press all 4 buttons on the 5804E at the same time until the panel beeps. 5. To sync the device in High Security Mode, press any button ONCE, until the panel beeps indicating receipt. NOTE: If no beep is heard, exit Go/No Go mode, and repeat this procedure from Step 3. 6. Exit Go/No Go mode (user code + 1 (OFF)). LOOP 4 LOOP 1 LOOP 2 ON OFF 5804E-001-V0 LOOP 3 Figure 1: 5804E showing button designations PROGRAMMING THE 5804E LOCALLY IN AN RF KEYPAD (E.G., 6150RF) Hold all 4 buttons down while enrolling the serial number in the RF keypad. USING TWO RECEIVERS IN HIGH- SECURITY MODE Enroll the 5804E into the receivers one at a time, by disconnecting Receiver #2, enrolling as described in “Activating High Security Mode” (above). Then, disconnect Receiver #1, reconnect Receiver #2, and repeat the enrollment procedure. This process ensures proper High Security operation with both receivers. APPLYING COLORED ADHESIVE LABELS AND BUTTONS The 5804E is supplied with colored buttons (red and blue) and colored adhesive identification labels (blue, red, gray, and green). Each label has a specified command function and symbol printed on it, as well as an adhesive back for easy pasting. To paste a label on a button, slowly peel off a label with a selected function and paste it on the button of the transmitter. If you decide later to re- enroll a button, the label can be easily removed or a new label pasted over the existing one. Additional colored buttons (red and blue) are also provided which can be used with or without the labels. The buttons can be inserted only in the areas provided for them (see Figure 3). To insert the colored buttons, do the following: 1. Holding the transmitter with the buttons face down, remove the case back by using the blade of a small screwdriver to pry it open (see Figure 2). 2. Carefully remove the PC board by its rubber casing, making sure the board does not come out of the casing. Do not bend the exposed battery tabs on the PC board. 3. Replace the desired buttons, either red or blue, in each button's designated opening (see Figure 3). 4. When finished, replace the PC board, making sure the button tabs on the board face the four buttons, and snap the case front and back together. After inserting the new buttons, we recommend you check the 5804E for proper operation. 5804E-002-V0 Figure 2: Battery tabs shown Blue Red 5804E-003-V0 Figure 3: 5804E shown open, buttons facing down REPLACING THE BATTERIES 1. Remove case back by using the blade of a small screwdriver to pry it open. 2. Remove old batteries. 3. Place batteries in case back locations (see diagram above). + POS END MUST FACE DOWN. 4. To close, snap case front and back together. Important Note: Do not remove Printed Circuit Board. SPECIFICATIONS Unit Dimensions: 2.25” W x 1.50”H x 0.5” D 57mm W x 38mm H x 12.7mm D Battery: Maxell CR2025, Duracell DL 2025, or Varta CR2025 For the latest warranty information, go to: http://www.security.honeywell.com/hsc/resources/wa/index.html And refer to the installation instructions for the receiver/control with which this device is used. FEDERAL COMMUNICATIONS COMMISSION STATEMENTS: The user shall not make any changes or modifications to the equipment unless authorized by the installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. FCC NOTICE This device complies with Part 15 of FCC Rules, and RSS 210 of IC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d'interferences nuisibles. (2) Cet appareil doit accepter toute interference reçue y compris les interferences causant une reception indesirable. .ÊN7674-6V3UŠ Honeywell International Inc. 2 Corporate Center Drive, Suite 100, P.O. Box 9040, Melville, NY 11747 Copyri…

Text truncated - open the document above for the full version.

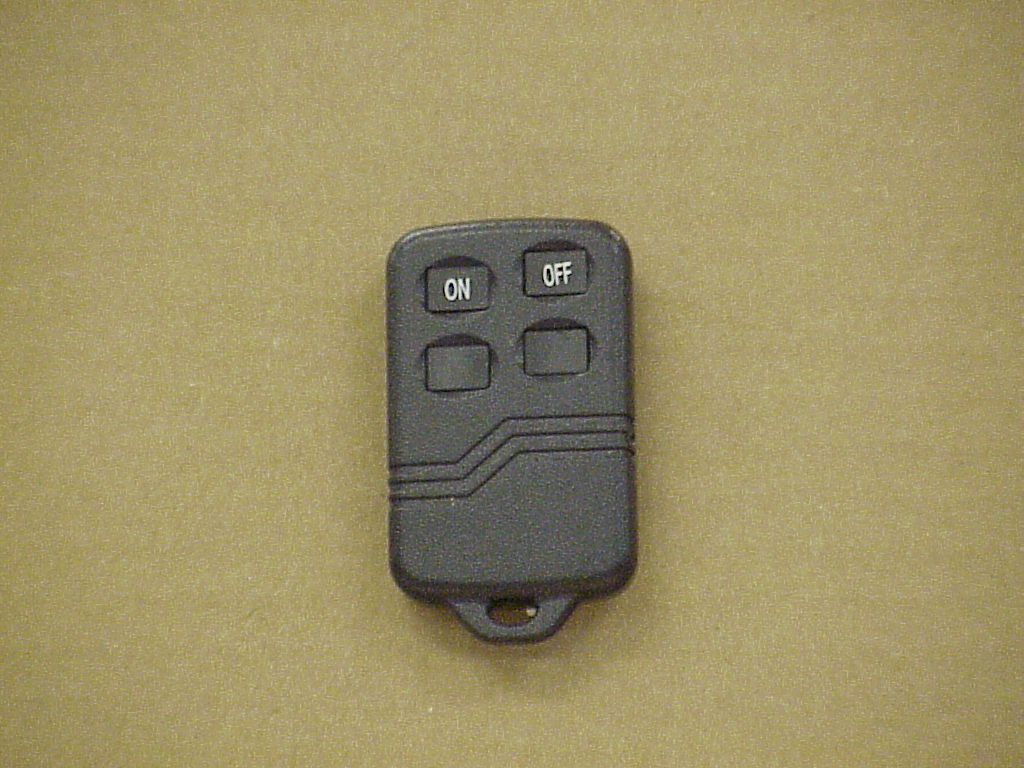

EXHIBIT 4-1 EXTERNAL PICTURES CFS8DL5804E-1 / 573F-5804E1 TOP PLASTIC: BOTTOM PLASTIC:

EXHIBIT 8 LABEL INFORMATION CFS8DL5804E-1 / 573F-5804E1 SECTION 2.1033 (c) and Part 15.21 SECTION 2.1033 (c) Label and label location - A photo showing the identification label clearly (you must be able to see the name and FCC ID number), and the location on the device. In lieu of a photo for this, you may submit a engineer’s drawing. ENGINEERS DRAWING: EXACT PHYSICAL LOCATION ON THE UNIT: Part 15.21 Statement - for all intentional and unintentional radiators is also printed on the label. All devices shall bear the following statement in a conspicuous location on the device: “ This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “ NOTE: This information has been placed in the II due to the small physical size of the Key-Fob.

EXHIBIT 4-2 INTERNAL PICTURES CFS8DL5804E-1 / 573F-5804E1 PCB IN PLASTIC: TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DL5804E-1 / 573F-5804E1 Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV K JAN 10 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC IDCFS8DL5804E-1 Date : 02/08/2010Tested by : G. BarbatoApproved by : K. Eskildsen Test Sample (model) : 344.94 MHz 5804E-1 Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 7 Notes: (1) Fo = 344.94 MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682 729 344.94v70.762.314.3723523.414.3%3363.87292 689.88v38.893.219.661223.214.3%174.9729 1034.82v27.614.425.22726.914.3%104.0500 1379.76v21.22*4.926.35420.214.3%60.1500 1724.70v22.31*5.527.49582.114.3%83.2729 2069.64v24.14*6.431.341241.714.3%177.6729 2414.58v21.67*6.931.811044.714.3%149.4729 2759.52 v 20.70 * 7.4 31.56961.614.3%137.5500 3104.46v20.98*7.932.341150.814.3%164.6729 3449.40v20.78*9.233.091424.014.3%203.6729 4000 NOTE: * = NOISE FLOOR LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682

EXHIBIT 5-4 OCCUPIED BANDWIDTH CFS8DL5804E-1 / 573F-5804E1 MAXIMUM OCCUPIED BANDWIDTH = 862.35 KHz 5804E-1 OCCUPIED BANDWIDTH: 324.7 KHz

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5804E-1 / 573F-5804E1 Section 15.231 and ANSI C63.4 This is a list of all test equipment used. Test Equipment list for Honeywell OATS: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/12/09 10/12/10 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 07/10/09 07/10/10 PLEASE SEE PAGE 2- 4 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PICTURES OF TEST SET UP CFS8DL5804E-1 / 573F-5804E1 SENSE: HORIZ, UUT: VERT SENSE HORZ, UUT: HORZ SENSE: HORZ, UUT: OBLQUE SENSE: VERT, UUT: VERT SENSE VERT, UUT: HORZ SENSE: VERT, UUT: OBLQUE HONEYWELL’S 3 METER OATS 2 Corporate Center Drive, Melville, NY 11747
