CFS8DL58111One Zone Door / Window Transmitter

EXHIBIT 4-1 CFS8DL58111 / 573F-58111 EXTERNAL PHOTOS TOP PLASTIC: BOTTOM PLASTIC:

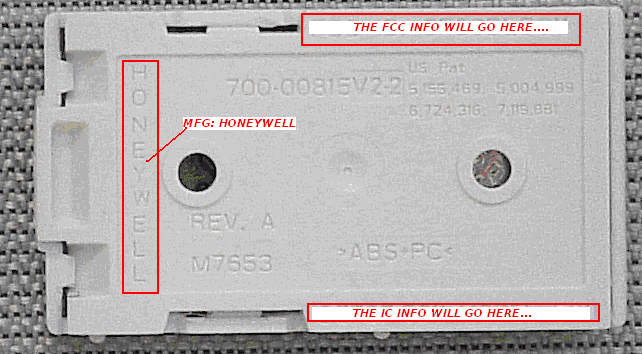

EXHIBIT 8 CFS8DL58111 / 573F-58111 LABEL INFORMATION ENGINEERS DRAWING OF THE LABEL: PICTURE OF BACK PLASTIC SHOWING ACTUAL LOCATION OF LABEL:

EXHIBIT 4-2 CFS8DL58111 / 573F-58111 INTERNAL PHOTOS PCB IN PLASTIC: TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DL58111 / 573F-58111 Report of Measurements Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2004. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at a height of 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". IF REQUIRED RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". IF REQUIRED LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV 2011D 2 Corporate Center Drive Melville, NY 11747 EXHIBIT 5-3FCC ID:CFS8DL58111 Date :7-Sep 2011Tested by:Approved by K. Eskildsen 58111 Notes: (1)Fo:344.94 (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz): Sense Antenna Polarity (V/H): THE ORENTATION OF THE UUT Meter Reading (dB uV): Cable/Amp Factor (dB): Antenna Factor (dB/m): Conv. Reading (uV/M): Duty Cycle (%): Corr. Reading (uV/M): Limit @ 3M (uV/M): HV 344.94HH62.492.314.929,670.5 10.0%967.17289.2 689.88HH41.573.220.121,755.5 10.0%175.5729 1034.82HH16.664.422.89157.610.0%15.8500 1379.76HH15.794.925.71209.010.0%20.9500 1724.70HH15.935.528.58316.510.0%31.6729 2069.64HH16.356.432.39571.710.0%57.2729 2414.58HH16.196.930.49477.610.0%47.8729 2759.52 HH 15.697.4 32.33590.410.0%59.0500 3104.46HH15.737.932.63650.110.0%65.0729 3449.40HH16.109.231.94727.410.0%72.7729 4000 LAST CAL 05 FEB 11 CABLE C LAST CAL 17-MAY-11 BICONILOG S/N:00029390 G. Barbato Test Sample (model): Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Test method: ANSI C63.4 - 2004

EXHIBIT 5-4 CFS8DL58111 / 573F-58111 5811-1 OCCUPIED BANDWIDTH: 184.37 KHz

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL58111 / 573F-58111 Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Honeywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/10 10/19 /11 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 09/09/10 09 /09/11 PLEASE SEE PAGE 2-7 FOR TEST EQUIPMENT TRACEABILITY If you need any additional informatio n from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]
