CFS8DL58112Door / Window Transmitter

ADEMCO 5811 One Zone Door/Window Transmitter Installation Instructions Model 5811 is a single zone Door/Window Transmitter, compatible with alarm systems that support 5800 series wireless devices. 5811 has a unique serial number permanently assigned during manufacture, which must be entered into the control panel upon installation. Refer to the panel’s installation instructions for programming details. NOTE: During programming of the control unit, 5811 transmitters should be treated as “RF” (i.e. supervised RF) Type. MOUNTING Choose a mounting location for 5811 where the device is stationary and the magnet is mounted to the moving part of the door or window. To verify adequate signal strength conduct Go/No Go tests (see control’s instructions) on 5811 before mounting permanently. 1. Install Battery by inserting one edge under one of the two plastic battery retainer clips, then pressing down firmly to snap it beneath both clips; see diagram. 2. Mount 5811 using double-faced tape (supplied) by affixing it to the back of the unit and mounting the unit in place. Use screws (optional) if desired; see diagram. Mount the magnet (supplied) near the alignment marks on the case (see Diagram). 3. Engage the case tabs (see diagram), then rotate the housing to close. Engage latch with firm pressure to close and lock. BATTERY REMOVAL 1. Open housing by inserting a flat blade screwdriver into latch and twisting gently. 2. Remove old battery cell using a small flat screwdriver blade, as shown in the diagram. 5811-005-V1 BATTERY (+ SIDE UP) REED SWITCH PRESS DOWN FIRMLY TO SNAP BATTERY UNDER BOTH CLIPS MAGNET ALIGNMENT MARKS INSERT BATTERY EDGE UNDER ONE CLIP A B BATTERY RETAINER CLIPS 5811-003-V2 REED LATCH R O T A T E T O C L O S E MAGNET MOUNTING HOLES MAX GAP 3/4" CASE TABS SCREWDRIVER (NO) 5811-006-V1 SCREWDRIVER (CORRECT) SCREWDRIVER (NO) PLACE TIP OF FLAT SCREW DRIVER BETWEEN EDGE OF BATTERY AND PLASTIC CASE AS SHOWN. POSITIONING SCREWDRIVER AT ANY OTHER CORNER MAY CAUSE DAMAGE TO DEVICE. CAREFULLY PRY UP WHILE TWISTING TO REMOVE BATTERY. A B X X FEDERAL COMMUNICATIONS COMMISSION STATEMENT: The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. FCC / IC STATEMENT: This device complies with Part 15 of the FCC Rules, and RSS 210 of Industry Canada (IC). Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit accepter toute interference reçue y compris les interferences causant une reception indésirable. SPECIFICATIONS Dimensions 2-1/8” (55mm) x 1-3/16” (30mm) x 1/4” (7mm) Operating Conditions 23° F (-5° C) to 120° F (50° C). Relative Humidity 95%, (non-condensing) Replacement Battery CR2032 Renata/Panasonic/Sener. WARRANTY INFORMATION For the latest warranty information, please visit: www.honeywell.com/security/hsc/resources/ wa REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL WITH WHICH THIS DEVICE IS USED FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM. Ê800-03928V1dŠ 800-03928V1 8/11 Rev. C 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 Copyright © 2011 Honeywell International Inc.

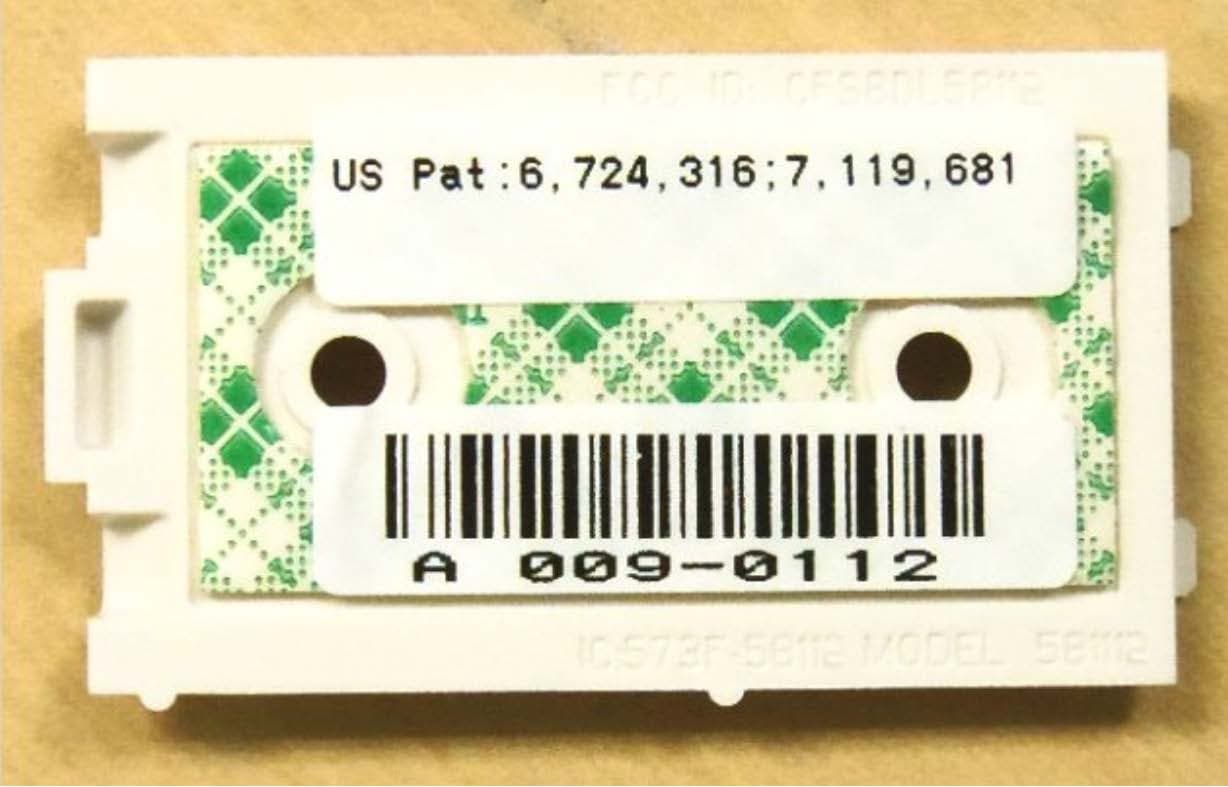

EXHIBIT 4-1A CFS8DL58112 / 573F-58112 58112 EXTERNAL PHOTOS TOP PLASTIC BOTTOM PLASTIC Page 1 of 1

EXHIBIT 8A CFS8DL58112 / 573F-58112 LABEL INFORMATION EXACT LOCATION OF THE LABEL: FCC / IC INFORMATION WILL BE EMBOSSED IN THE PLASTIC CASE BACK AS SHOWN. BE '58112' RATHER THAN '58111' IN ALL THREE INSTANCES. MECHANICAL DRAWING OF THE LABEL: See next page Page 1 of 2 NUMBER DRAWING TITLE DIMENSIONS ARE IN MILLIMETERS COMPUTER FILE NAME SHEET 1 OF 1 THIS DRAWING CONTAINS PROPRIETARY INFORMATION AND SHALL NOT BE USED OR REPRODUCED WITHOUT WRITTEN AUTHORIZATION FROM HONEYWELL SECURITY ENGINEERING. DCBA 1 2 3 4 1 2 3 4 DCBA MELVILLE, NY 11747 2 CORPORATE CENTER DR ()TYP0.70 ()2.80 GWDMI 2.5
#.13 WAS 2.5+0/-.13; 1.5
#.25 WAS 1.50
#.13; 7.1 WAS 6.6; 2.8 WAS 2.4; 53.0 WAS 52.67; 0.7X45
$ WAS 0.6X45
$; 11.4 WAS 11.0; 20.7 WAS 20.4; 44.8 WAS 44.3; 5.4 WAS 5.0; 20.4 WAS 20.0; 50.90 WAS 50.52; 7.2 WAS 6.8; 17.2 WAS 16.8; ADD 3.18; UPDATE NOTES TO LATEST GLOBAL SPECS. ASH WHITE HSPC0W94588B WAS ASH WHITE HSPC00002502 C7/9/13 CADMI UPDATE FCC NUMBERS: FCC ID CFS8DL58112 WAS CFS8DL58111; IC NUMBER 573F-58112 WAS 573F-58111; IC MODEL 58112 WAS 58111; UPDATE TABLE; V1A12/29/14 CADMIC4:UPDATE MOLED IN PATENT NUMBERS: REMOVE 5,155,469 AND 5,004,999; ADD 7,120,795 V1B2/21/15 PART REV MATERIAL COLOR PER 000-00296 700-03614V1-1BHSPR0HR1008B>ABS+PC< C C C C C C C C C C C C C C C C V1A V1A V1B SECTION E-E 12.20 (x2)1.00 R1.00 (x2)0.60 1.20 14.16 21.84 10
$ 1.5 4.4 9.0 1.5 1.5 (X2)270
$ Ra(x2)0.70 2.30 2.70 ()0.40 24.0022.0 (2X)14
$ (2X)47
$ 10.09 3.80 1.00 13.00 23.00 0.80 7.8 3.4 1.5 13.00 23.00 2.00 43.5 0.70 1.50 R TYP0.7 Rb TYP0.4 (x2)6.5 30.00 27.5 1.00 0 -0.13 x 45
$TYP0.5 2x 3.50 2x 120
$ 2x 2.80 2x 1.37 2x 45
$ 2x 0.40 +0.13 0 115.0
$ 2x 1.30 +0.13 0 60
$ 4.2 4.9 0.40 +0.13 0 1.00 0 -0.13 1.9 +0.3 0 0.70 0 -0.13 2x 82
$ 2x 0.40 x 45
$0.3 2.50 45
$ 17.21 0 -0.13 x 45
$TYP.0.7 0.70 4.50 (X2)0.5 R (X2)0.3 2X 1.57 7.2 17.2 50.90 5.4 20.4 44.8 20.7 11.4 53.0 X45
$ TYP.0.7 2.8 7.1 3.18 26.50 BOTTOM, WINDOW/DOOR SENSOR 5811 700-03614V1 700-03614V1-XX CHKDRREVISION RECORDREVDATE BPGWRELEASE FOR PRODUCTION, REPLACES 700-00815V3B2/7/13 THIRD ANGLE PROJECTION 2/7/13 DATE G WILSON DRAWN BY .X=
# .XX=
# .X .XX 180mm & OVER .X=
# .XX=
# .X .XX 4:1 100-179.99mmSCALE .X=
# .XX=
# .25 .13
#1/2
$ 0-99.99mmANGULAR TOLERANCES (UNLESS OTHERWISE SPECIFIED) PART NUMBER MATERIAL PER 000-00296 RECYCLE LOGO 700-03614V1BHSPR00VH0850ASH WHITE HSPC0W94588B>ABS-FR(17)< ASH WHITE HSPC0W94639B 700-03614V1-2BHSPR0HR1008BOXFORD BROWN HSPC00B3507B>ABS+PC< NOTES: UNLESS OTHERWISE STATED 1. MATERIAL: SEE TABLE, PER 000-00296. REGRIND 10% PER VOLUME MAXIMUM. 2. COLOR: SEE TABLE PER 000-00296. COLOR CLASSIFICATION 1 PER 000-00297. PRE-COLORED PLASTIC RESIN FROM THE PLASTIC MANUFACTURER IS REQUIRED. 3. TEXTURE ALL EXTERNAL SURFACES PER MOLD TECH 11001. REF (KOREAN STANDARD SA101), (CHINESE STANDARD YS9280) 4. A 1.6 MICRO METER OR BETTER FINISH ON ALL INTERNAL SURFACES. 5. MOLD CLASS 3 PER 000-00292 6. WHERE PART SIZE ALLOWS, GENERIC PART NUMBER, MOLD NUMBER "MXXXX", CAVITY NUMBER (FOR MULTICAVITY TOOLS ONLY), RECYCLE LOGO, INTERCHANGEABLE MONTH/YEAR INDICATOR LOCATED AS SHOWN ON AN ADJUSTABLE REVISION WHEEL WHERE POSSIBLE. 7. ALL OTHER MOLDED IN TEXT AND LOGOS NOT PREVIOUSLY MENTIONED TO BE RECESSED 0.25MM-0.38MM ON AN INTERCHANGEABLE INSERT. 8. MAXIMUM ALLOWABLE WARPAGE SHALL NOT EXCEED 0.04MM PER CM 9. DRAWING SHALL BE USED IN CONJUNCTION WITH THE PRO/ENGINEER 3-D MODEL OF THE APPROPRIATE REVISION.DIMENSIONS SHOWN ARE TO AID QC INSPECTION. GEOMETRY SHALL BE DERIVED FROM PRO/E FILE. UNDIMENSIONED FEATURES SHALL NOT DEVIATE FROM THE PRO/E FILE MORE THAN +/-0.13 MM UNLESS OTHERWISE STATED ON THE DRAWING. ALL DRAWING DIMENSIONS TO BE CHECKED BY THE APPROPRIATE HONEYWELL INSPECTION GROUP INDICATED ON THE PO FOR TOOL APPROVAL. FIRST SHOT SAMPLES MUST BE APPROVED IN BOTH PRIMARY AND SECONDARY RESINS. ALL BALLOONED "INSPECTION" DIMENSIONS TO BE CHECKED BY HONEYWELL INCOMING INSPECTION DEPARTMENT. PART TO BE INSPECTED TO COSMETIC INSPECTION CLASSIFICATION 1 PER 000-00293 LATEST REV. 10.SEE 000-00295 LATEST REV. FOR ADDITIONAL STANDARD PART AND SHIPPING REQUIREMENTS. 11.PART VOLUME: 2.85 cc, PART WIEGHT: 2.95 grams. DELETED PARTIAL RIB TO CLEAR AREA SECTION C-C 1.6 HIGH TEXT RECESSED 0.4 DP 1.6 HIGH TEXT RECESSED 0.4 DP PART NUMBER SEE TABLE RECYCLE LOGO SEE TABLE SECTION B-B SCALE 2.000 SECTION A-A

EXHIBIT 4-2 CFS8DL58112 / 573F-58112 58112 INTERNAL PHOTOS PCB IN PLASTIC: TOP OF PCB: Page 1 of 2 EXHIBIT 4-2 CFS8DL58112 / 573F-58112 58112 INTERNAL PHOTOS CONT. BOTTOM OF PCB: Page 2 of 2

EXHIBIT 6 CFS8DL581112 / 573F-581112 T EST EQUIPMENT USED Part 15.231, ANSI C63.4, RSS 210 T his is a list of all test equipment used. Note: Calibration Certificates are on following pages. Te st Equipment list for Honeywell OATS EQUIPMENT: MANUFACTURER: MODEL: CAL DATE: CAL DUE DATE: Spectrum Analyzer Rohde & Schwarz FSU3 5/9/2013 5/9/2014 Spectrum Analyzer Rohde & Schwarz FSU26 5/9/2013 5/9/2014 Antenna (“Biconilog”) ETS (EMCO) Lindgren 3149 7/8/13 7/8/14 If you need any additional information from Honeywell, please contact: A ndrew Roussin, Engineer (Acting for Mark Schmidt) Phone (Direct): 516-577-5935 Email: [email protected] Page 1 of 4 Issue Date: 5/13lztl3 Description: ': . .l- t' SPECTRUM ANALYZER 2 Mars Court, Boonton, New Jersey 07005 Phone (973)299-2950 Fax (973) 299-0595 6i,1,,,' '.; 1.. Certificate #z 1034723 Work Order #: RH509 Customer #: 001464 ,,riiffi$' liffii'ti. ';$ '',;1,l,;;ii;'iiii'tffi;;ili:lil GENERAL CALIBRATION" INC. 2 MARS COURT BOONTON. NJ O7OO5 'iW Job No.: 06r,6ts Manufacturer: R&S liil ,:*'f.;,ffi,ffi1jii HONEYWELL SECURTry (001,164) 2 CORPORATE CENTER DRTVE ii,:,,,,,:,i.iu-\dt$.1..*4l;lliil! MELVILLE.NY 11747 .l i.Ll'.."'',= h;4p}:lffil..::::,',,,,;li;i1i Asset Tag_No1 Modgl Num-be,_r: iou iiii", ..'", : ,' l' ' . '': :r::i:i: '.'i' - l l:::,:il irrrrilii. t.rt i Department: remp.[t!: 22.0C1s3.0%1 Cal Interval: 12 MO,NTHS Cal Date: 0510912013 'linnn .# g=i Calibration Notes: Condition: Found In Tolerance and Left In Tolerance iiiillli ffiiffi il ', ", ::, ,,,;,iiiil'llr= G-E\TERAL CA-LTBRAIION 33s. . GENERAL CALIBRATION -q'9 FREQUENCY COTINTER GENERAL CALIBRATION 974 POWER METER C ali -b1pti oq_Re-su ltl lisu L ': .i:,i.;i'#i',. 1,"',,, .',,,, ,:,5 tnto .,,.::-' 11493 psug 100029 RHI il/ETROLOGIST PASSED 05109120t4 36144001:J ust77e?42'.8 25r64040!3 5 1oo2:L 2709429063 .C'qlirp ##ft 08/02t20t4 07t06/21013 ."9s12y2013 06t!812013 06t04t20t3 ftis is to c€.tiry that G€neral CalibEtion,Inc. is A2LA accrexlited and that its calibration system is in compliance wjih ISO/IEC 17025-2005, ANSI NCSL 2540-1, ANSI NCSL Z540-3,andIso9001:2l.c8'Thetestlimitsstatedinthereportco[espondtotheMaIufactuercalibmtionandpubIishedsp€ciIicationsoftheequipmen!atthepointsted' calibrationofstandards;ref€r€ncestandardsandint€rmediatestandardsinthiscalibmtionhavebeencheckedandcalibmtedagainsttheabove\aorkingstandard(s)which traceable to the National Institute ofstandards and T€chnolory. Any accredited calibmtion under our A2LA scope of accreditation is denoted with A2LA accrcdited symbol on th€ calibmtion certificate. Ifthe certificate includes any unacdedited itsms calibrated, they are clearly marked as unzLccredit€d caliblEtion. ijest Uncetainti€s rcpr€s€rt expanded uncerteinties expressed at apFoximately the 95% confidence level using a coverago factor ofk=2. The r€sults documented in this certificate relate only to th€ it€n(s) calibrared or test€d. Approved By ,:4r' " "11),',-,a/A . ;j.,':-' ..:2....t. -.. General Calibration, Inc. - Q. A. Manager i :...:::t!ttea-;1:]::.,i: i;#lii$- This certificate shall not be reDio(reFioduced, except in full, without the Mitten notification of ceneral Calibration, Inc lssue Date: 5ll3l20l3 GENERAL CALIBRATION. INC. 2MARS COURT General Calibration, Inc. 2 Mars Court, Boonton, New Jersey 07005 Phone (97 3) 299 -2950 F ax (97 3) 299-0595 Certificate #: 1034725 WorkOrder#: RH509 Customer#: 001464 $ffi HONEYWELL SECURTTY (001464) 2 CORPORATE CENTER DRIVE MEL\IILLE.NY I1747 BOONTON.NJ 07005 Job No.: wl7 Asset Tas No.: n4% "![gn3-fpcJuL91; Description: R&S SPECTRLIMANALYNR \4qSsl"Ny-rn!-"-r," SerialNumber: 100303 RHl FSU26 ,?qlg:!p.*1: Inspected By: Ten-p,AIIi C-p-!,fnJerv{1 Cal Date: 22.0 C I 53.0% 12 MONTHS Job Title: METROLOGIST Calibration Result: PASSED 05t09t2013 GENERAL CALIBRATION 335 SYNTHESIZED SWEEPER. 5OGTZ 3614400157 GENERALCALIBRATION 676 LEVEL GENERATOR 2516404043 9t{9?/-?9"'1" 05t2U2013 GENERAL CALIBRATION 856FREQUENCY COTINTER 51002-5 06t28t2013 GENERAL CALIBRATION 874POWERSENSOR 3318A1597 r t0n8t2013 GENERALCALIBRATION 974 POWERMETER 2709A29063 06t04t2013 This is to certi$/ that General Calibration, Inc. is A2LA accredited and that its calibration system is in compliance with ISO/IEC17025-2005, ANSI NCSLZS4O-|, ANSI NCSL 2540-3, and ISO 9001 :2008. The test limits stated in the repoqt conespond to the Manufacturer calibration and published specifications of the equipment, at the points tested. Calibrationofstandards;referencestandardsandintermediatestandardsinthiscalibrationhavebeencheckedandcalibratedagainsttheaboveworkingstandard traceable to the National Institute of Standards and Technology. Any accredited calibration under our A2LA scope of accreditation is denoted with 42LA accredited symbol on the calibration certificate. Ifthe certificate includes any unaccredited items calibrated, they are clearly marked as unaccredited calibration. Best Uncertainties represent expanded.uncertainties expressed at approximately the 95% confidence level using a coverage factor ofk=2. The results documented in this certificate relate only to the jtem(s) calibrated or tested. Approved By ".d14.- .,-. "x1 ;i:z;,',n--.:....*' General Calibration, Inc. - Q. A. Manager

EXHIBIT 5-4 CFS8DL58112/ 573F-58112 SHORT RANGE RADIO (SRR) OCCUPIED BANDWIDTH CFR47 §15.231(c): Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. The bandwidth of the emission shall be no wider than 0.25% of the center frequency for devices operating above 70 MHz and below 900 MHz. For devices operating above 900 MHz, the emission shall be no wider than 0.5% of the center frequency. Bandwidth is determined at the points 20 dB down from the modulated carrier. RSS-210A1.1.3 Bandwidth of Momentary Signals For the purpose of Section A1.1, the 99% bandwidth shall be no wider than 0.25% of the centre frequency for devices operating between 70 MHz and 900 MHz. For devices operating above 900 MHz, the emission shall be no wider than 0.5% of the centre frequency. RBW =30 KHz VBW = 100 KHz OBW = 344.7909 KHz Occupied Bandwidth Limit @ 344.94 MHz (CFR47 §15.231(c) / RSS-210A1.1.3) 862.35 KHz Page 1 of 1

EXHIBIT 5-3-2 CFS8DL58112 / 573F-58112 RADIATED EMISSIONS HARMONICS/SPURIOUS WITH DUTY FACTOR APPLIED As stated in Exhibit 3 (MESSAGE TIMING AND DUTY CYCLE), the duty factor is 10%. This means a -20 dB factor can be applied to convert radiated peak emission level (as measured in EXHIBIT 5-3-1) to radiated average emission level. The table below shows this - it is the table from page 7 of EXHIBIT 5-3-1, with three columns added as follows: Duty Factor (dB) Average Emission Level (dBuV/m) Average Limit (dBuV/m) Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Duty Factor (dB) Average Emission Level (dBuV/m) Peak Limit (dBuV/ m) Aver- age Limit (dBuV/ m) Margin (dB) Pass/ Fail 344.900 Peak V 65.3 16.8 82.1 10% 62.1 97.3 77.3 -15.2 Pass 689.800 Peak H 65.2 -3.1 62.1 10% 42.1 77.3 57.3 -15.2 Pass 1034.700 Peak V 54.7 1.8 56.5 10% 36.5 74.0 54.0 -17.5 Pass 1379.600 Peak V 48.2 6.0 54.2 10% 34.2 74.0 54.0 -19.8 Pass 1724.500 Peak V 52.3 7.9 60.2 10% 40.2 77.3 57.3 -17.1 Pass 2069.400 Peak V 61.6 -30.7 30.9 10% 10.9 77.3 57.3 -46.4 Pass 2414.300 Peak H 59.2 -29.4 29.8 10% 9.8 77.3 57.3 -47.5 Pass 2759.200 Peak H 46.4 -28.1 18.3 10% -1.7 74.0 54.0 -55.7 Pass 3104.100 Peak V 49.9 -28.3 21.6 10% 1.6 77.3 57.3 -55.7 Pass 3449.000 Peak H 49.2 -28.2 21.0 10% 1.0 77.3 57.3 -56.3 Pass Page 1 of 1

Engineering Solutions & Electromagnetic Compatibility Services Intentional Radiated Emissions Test Report - FCC Part 15.231 & RSS-210 Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: Honeywell International Tel: 516-577-5863 2 Corporate Center Drive Melville, NY 11747 Contact: Andrew Roussin FCC ID/ IC CFS8DL58112/ 573F-58112 Test Report Date February 16, 2015 Platform N/A RTL Work Order Number 2015008 Model # 5811V2 RTL Quote Number QRTL15-008A American National Standard Institute ANSI C63.4-2009: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz American National Standard Institute ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices FCC Classification DXX – Part 15 Low Power Communication Device Transmitter FCC Rule Part(s) 15.231 Periodic operation in the band 40.66–40.70 MHz and above 70 MHz. IC Rule Part RSS-210 Issue 8 License-exempt Radio Apparatus (All Frequency Bands): Category I Equipment I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15, IC RSS-210 and, ANSI C63.4. Signature: Date: February 16, 2015 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories and Honeywell International. The test results relate only to the item(s) tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANAB. Refer to certificate and scope of accreditation AT-1445. 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com Rhein Tech Laboratories, Inc. Client: Honeywell International 360 Herndon Parkway Model #: 5811V2 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: CFS8DL58112/573F-58112 http://www.rheintech.com Report #: 2015008 Table of Contents 1 General Information ............................................................................................................................... 3 1.1 Scope ................................................................................................................................................ 3 1.2 Description of EUT ............................................................................................................................ 3 1.3 Test Facility ....................................................................................................................................... 3 1.4 Modifications ..................................................................................................................................... 3 2 Test Information ..................................................................................................................................... 4 2.1 Description of Test Modes ................................................................................................................ 4 2.2 EUT Disposition ................................................................................................................................ 4 2.3 Test Result Summary ........................................................................................................................ 4 2.4 Related Submittal(s)/Grant(s) ........................................................................................................... 5 2.5 Test System Details .......................................................................................................................... 5 2.6 Configuration of Tested System ........................................................................................................ 5 3 Radiated Emissions – FCC 15.209; IC RSS-210 .................................................................................. 6 3.1 Limits of Radiated Emissions Measurement ..................................................................................... 6 3.2 Radiated Emissions Measurement Test Procedure ......................................................................... 6 3.3 Radiated Emissions Test Results ..................................................................................................... 7 3.3.1 Radiated Emissions Harmonics/Spurious ................................................................................. 7 4 Conclusion ............................................................................................................................................. 7 Table Index Table 2-1: Frequencies Tested .............................................................................................................. 4 Table 2-2: Test Result Summary – FCC Part 15, Subpart C (Section 15.231) ...................................... 4 Table 2-3: Equipment Under Test .......................................................................................................... 5 Table 3-1: Radiated Emissions Test Equipment .................................................................................... 6 Table 3-2: Radiated Emissions Harmonics/Spurious ............................................................................. 7 Appendix Index Appendix A: Test Photographs .................................................................................................................. 8 Photograph Index Photograph 1: Radiated Emissions – Front View ..................................................................................... 8 Page 2 of 8…

Text truncated - open the document above for the full version.

EXHIBIT 5-2B CFS8DL58112/ 573F-58112 PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP Section 2.1093(c) Photo of the test setup shall be provided. CONFIGURATION OF A TESTED SYSTEM Page 1 of 2 EXHIBIT 5-2B CFS8DL58112/ 573F-58112 PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP CONT. RADIATED EMISSIONS - FRONT VIEW Page 2 of 2
