K5503V1 11/03 Rev B 5815 '225:,1'2:75$160,77(5 INSTALLATION INSTRUCTIONS 5815-01-V0 LOCKING TA B RELEASE WINDOW COVER PRY-OFF SLOT MOUNTING PLATE HOLES (2) OBSERVE POLARITY LOCKING TAB WIRES MOUNTING PLATE CASE COVER RETAINING HOOKS (3) POST (2) WIRE BREAKOUT (2) Figure 1. Mounting Plate and Case GENERAL INFORMATION The 5815 is a two-zone Door/Window Transmitter that has its own unique serial number. The control unit is required to "enroll" the serial number prior to its usage in the alarm system. Refer to the control unit's installation instructions for further details. Note: During programming of the control unit, 5815 transmitters should be treated as "RF" (i.e., supervised RF) Type ( mandatory for UL installations ). The 5815 provides two input loops (zones): the first for a wired closed-circuit contact loop, and the second for its built-in reed switch (used in conjunction with a magnet, as described below). One or both inputs may be used. For UL installations, a contact may not be more than 3 feet from the transmitter. The 5815 includes a built-in cover tamper, which is activated when the cover is removed. MOUNTING For proper orientation of the unit in relation to the mounting plate, loop wiring, and/or magnet, read all of this section before installing the unit. The description that follows assumes that the unit will be mounted as shown in the diagrams, with the magnet (if used) located in one of the positions shown in Figure 2. The unit may, however, be installed in any direction, as long as the relationship of the unit to its mounting plate and (if used) magnet is maintained. Although the unit can be mounted directly to a surface, we recommend that the mounting plate be used, for ease in removing the unit for servicing should it become necessary. Before mounting the transmitter permanently, conduct Go/No Go tests (see control's instructions) to verify adequate signal strength and reorient or relocate the transmitter if necessary. 1. Remove the transmitter's top cover by inserting the flat blade of a small screwdriver into the pry-off slot at one end of the unit (see Fig. 1 for location), and slightly twisting the blade until the cover disengages. 5815-002-V0 LOOP TERMINALS (LOOP 1) LITHIUM BATTERY CR1-335 (3V) COVER RETAINING HOOKS (3) ANNTENNA + + COVER PRY-OFF SLOT WIRE ENTRY HOLE TAMPER SWITCH IC CRYSTAL REED SWITCH (LOOP 2) REED SWITCH (LOOP 2) (ALTERNATE POSITION FOR MAGNET)* *MAGNET (OBTAIN SEPARATELY) + _ * MAGNET MUST BE WITHIN 1/2" OF REED SWITCH Figure 2. 5815 (shown without cover) 2. Disengage the attached mounting plate from the case by inserting the blade of a small screwdriver into the locking tab release window (see Figure 1) and pressing it against the locking tab (also shown in Figure 1), while sliding the mounting plate upward along the case back until free. 3. Install the mounting plate, with its two case- holding posts pointing up (in this example), in the location selected as described in the control panel's installation instructions. Use the flat-head screws supplied. Note: If a wired contact loop is to be used, with concealed wiring, the wire exit hole in the wall must be located under the wire entry hole in the case as shown in Figure 2, and no more than 1/4" in diameter. 4. If a wired contact loop is to be used, feed concealed wiring through the slot in the case back, but do not connect to the terminal block yet. For surface wiring entry, two thin "breakout" areas are provided in the case wall (see Figure 1). 5. Attach the case back to the mounting plate by sliding the keyhole slots in the case back down onto the mounting plate's case holding posts. The locking tab will click as the case back locks in place. 6. If a reed switch is to be used, mount a No. 5899 Magnet (obtained separately) adjacent to the reed switch, or adjacent to the top of the case (see Figure 2). In either case, the magnet must be mounted within one-half inch of the reed switch. LOOP WIRING CONNECTIONS (If used) With the battery still not inserted, connect the contact loop wires to the unit's loop terminals (see Figure 2). Caution: Make sure that the bared sections of the loop wires do not short to the reed switch or antenna. The contact loop must use closed-circuit devices. The loop response time is a nominal 100mSec. NOTE: If the contact loop is not to be used, no connection is needed across the loop terminals. PRELIMINARY 11/14/03 tp BATTERY INSTALLATION/REPLACEMENT 1. Remove the transmitter's cover (if it is not already off) as described in MOUNTING Step 1. 2. Observe correct polarity and insert the battery provided into the battery holder (see Fig. 2). Take care not to bend the antenna. NOTE: Replace battery only with : Panasonic CR123A, Duracell DL123A, Sanyo CR123A, Varta CR123A, or ADEMCO 466. 3. To replace the cover, engage the hooks along one edge and snap shut. SPECIFICATIONS Dimensions: 1-1/2"W x 3"H x 7/8"D (38mm x 76mm x 22mm) Battery: 3V Lithium (see Note in step 2 of BATTERY INSTALLATION/REPLACEMENT) BATTERY CAUTION : Risk of fire, explosion, and burns. Do not recharge, disas- semble, heat above 212°F (100°C), or in- cinerate. Dispose of used batteries promptly. Keep away from children. TO THE INSTALLER Regular maintenance and inspection (at least annually) by the installer and frequent testing by the user are vital to continuous satisfactory operation of any alarm system. The installer should assume the responsibility of developing and offering a regular maintenance program to the user, as well as acquainting the user with the proper operation and limitations of the alarm system and its component parts. Recommendations must be included for a specific program of frequent testing (at least weekly) to insure the system's operation at all times. REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL WITH WHICH THIS DEVICE IS USED, FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM. LIMITED WARRANTY Honeywell International Inc., acting through its ADEMCO…

Text truncated - open the document above for the full version.

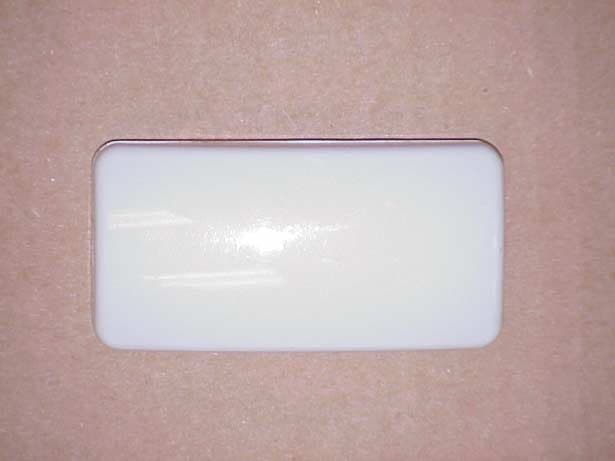

Untitled Dear Ms Green, In reply to your FAX of 1-13-2004 concerning CFS8DL5815 - EA821136 That references Correspondence Reference Number: 26049, Please find uploaded the following exhibits: EXHIBIT 4-1 top of plastic EXHIBIT 4-2 bottom of plastic EXHIBIT 4-3 PCB in plastic EXHIBIT 4-4 top of PCB EXHIBIT 4-5bottom of PCB EXHIBIT 7-1 Users Manual FORM 159 The 159 form for EA821136 - CFS8DL5815 Regards, Greg Barbato for Ken Addy (516) 921-670 4 Ext 6920 Fax: (516) 92 1-7182 Page 1

(14) STREET ADDRESSLINE NO. 1 (3) TOTALAMOUNT PAID(U.S. Dollars and cents) READ INSTRUCTIONS CAREFULLY BEFORE PROCEEDING (1) LOCKBOX # SPECIAL USE FCC USE ONLY FEDERAL COMMUNICATIONSCOMMISSION REMITTANCE ADVICE SECTION A - PAYER INFORMATION (9) DAYTIME TELEPHONENUMBER (include area code)(10) COUNTRY CODE (if not in U.S.A.) (2) PAYER NAME (if paying by credit card,enter name exactly as itappears onyour card) (4) STREET ADDRESS LINE N O . 1 (5) STREET ADDRESSLINE NO. 2 (7) STATE (8) ZIP CODE (6) CITY (11) PAYER (FRN)(12) PAYER(TIN) (19) DAYTIME TELEPHONENUMBER (include area code) (20) COUNTRY CODE (if not in U.S.A.) (13) APPLICANTNAME (15) STREET ADDRESSLINE NO. 2 (17) STATE (18) ZIP CODE(16)CITY (21) APPLICANT(FRN) (22) APPLICANT (TIN) (27A)TOTAL FEE(26A) FEE DUE FOR (PTC) (23A)CALL SIGN/OTHER ID(24A) PAYMENT TYPE CODE(25A)QUANTITY (28A) FCC CODE 1(29A) FCC CODE 2 (27B) TOTAL FEE(26B) FEE DUE FOR (PTC) (23B) CALL SIGN/OTHER ID(24B) PAYMENT TYPE CODE(25B)QUANTITY (28B) FCC CODE 1 (29B) FCC CODE 2 (30) CERTIFICATIONSTATEMENT I, _______Kenneth L. Addy_________________________, certify under penalty of perjury that the foregoing a n d supporting information is true a n d correct to the best of my knowledge, information a n d belief. SIGNATURE ______Kenneth L. Addy ____________________ DATE 11/25/2003________ (31) MASTERCARD/VISA ACCOUNTNUMBER:EXPIRATION DATE: MASTERCARD VISA I hereby authorize the FCC to charge my VISA or MASTERCARD forthe service(s)/authorization herein described. SIGNATURE_____________________________________________________DATE_______________________ FCC USE ONLY FCC USE ONLY SEE PUBLICBURDEN ONREVERSEFCC FORM 159FEBRUARY2000(REVISED) FCC REGISTRATIONNUMBER (FRN) AND TAXIDENTIFICATIONNUMBER (TIN) REQUIRED IF PAYER NAME AND THE APPLICANT NAME ARE DIFFERENT, COMPLETE SECTION B IF MORE THAN ONE APPLICANT, USE CONTINUATION SHEETS(FORM 159-C) FCC REGISTRATIONNUMBER (FRN) AND TAXIDENTIFICATIONNUMBER (TIN) REQUIRED COMPLETE SECTION C FOR EACH SERVICE, IF MORE BOXES ARE NEEDED, USE CONTINUATION SHEET SECTION D - CERTIFICATION SECTION E - CREDIT CARD PAYMENT INFORMATION Approved by OMB 3060-0589 Page No __ of __ (14) STREET ADDRESSLINE NO. 1 358315 1 1 Alarm Device Manufacturing Company $1040.00 A Division of Pittway Corporation 165 Eileen Way Syosset NY11791 516 - 9216704 x 6640 US 0004071130 135616408 Alarm Device Manufacturing Company A Division of Pittway Corporation 165 Eileen Way Syosset NY 11791 516-921-6704 0004071130 135616408 EGC 1 $1040.00 CFS8D5815 13EA821136 $1040.00

EXHIBIT 1-1 CFS8DL5815 Functional Description. The 5815 is a batt ery powered portable tra nsmitter and is part of a wireless alarm system. It is used in conjunction with a receiver (5881) as a remote sensor to indicate a window or door opening event to the alarm system. These messages are transmitted at 345Mhz +/-82Khz using on-off keyed AM modulation. The 5815 sends a regular supervision or check-in message, no more often Than once per hour. It also sends messages initiated by the condition of the loop (open or closed).

EXHIBIT 6-1 CFS8DL5815 Test Equipment list 1. Antenna: RGA-60 S/N: 3127 Cal. on: 04/30/03 Cal. due: 04/30/04 2. Antenna: Log Periodic S/N: 447 Cal. on: 04/30/03 Cal. due: 04/30/04 3. Spectrum Analyzer R3131 S/N: J006152 Cal. on: 04/21/03 Cal. due: 04/21/04
