CFS8DL5815XTTwo Zone Door/Window Transmitter

K5503V2 4/08 Rev. A ADEMCO 5815 DOOR/WINDOW TRANSMITTER INSTALLATION INSTRUCTIONS 5815-01-V0 LOCKING TA B RELEASE WINDOW COVER PRY-OFF SLOT MOUNTING PLATE HOLES (2) OBSERVE POLARITY LOCKING TAB WIRES MOUNTING PLATE CASE COVER RETAINING HOOKS (3) POST (2) WIRE BREAKOUT (2) Figure 1. Mounting Plate and Case GENERAL INFORMATION The Honeywell Ademco 5815 is a two-zone Door/Window Transmitter that has its own unique serial number. The control unit is required to "enroll" the serial number prior to its usage in the alarm system. Refer to the control unit's installation instructions for further details. Note: During programming of the control unit, 5815 transmitters should be treated as "RF" (i.e., supervised RF) Type ( mandatory for UL installations). The 5815 provides two input loops (zones): the first for a wired closed-circuit contact loop, and the second for its built-in reed switch (used in conjunction with a magnet, as described below). One or both inputs may be used. For UL installations, a contact may not be more than 3 feet from the transmitter. The 5815 includes a built-in cover tamper, which is activated when the cover is removed. MOUNTING For proper orientation of the unit in relation to the mounting plate, loop wiring, and/or magnet, read all of this section before installing the unit. The description that follows assumes that the unit will be mounted as shown in the diagrams, with the magnet (if used) located in one of the positions shown in Figure 2. The unit may, however, be installed in any direction, as long as the relationship of the unit to its mounting plate and (if used) magnet is maintained. Although the unit can be mounted directly to a surface, we recommend that the mounting plate be used, for ease in removing the unit for servicing should it become necessary. Before mounting the transmitter permanently, conduct Go/No Go tests (see control's instructions) to verify adequate signal strength and reorient or relocate the transmitter if necessary. 1. Remove the transmitter's top cover by inserting the flat blade of a small screwdriver into the pry-off slot at one end of the unit (see Fig. 1 for location), and slightly twisting the blade until the cover disengages. IMPORTANT: DO NOT REMOVE the circuit board from the back case plastic. 5815-002-V0 LOOP TERMINALS (LOOP 1) LITHIUM BATTERY CR1-335 (3V) COVER RETAINING HOOKS (3) ANNTENNA + + COVER PRY-OFF SLOT WIRE ENTRY HOLE TAMPER SWITCH IC CRYSTAL REED SWITCH (LOOP 2) REED SWITCH (LOOP 2) (ALTERNATE POSITION FOR MAGNET)* *MAGNET (OBTAIN SEPARATELY) + _ * MAGNET MUST BE WITHIN 1/2" OF REED SWITCH Figure 2. 5815 (shown without cover) 2. Disengage the attached mounting plate from the case by inserting the blade of a small screwdriver into the locking tab release window (see Figure 1) and pressing it against the locking tab (also shown in Figure 1), while sliding the mounting plate upward along the case back until free. 3. Install the mounting plate, with its two case- holding posts pointing up (in this example), in the location selected as described in the control panel's installation instructions. Use the flat-head screws supplied. Note: If a wired contact loop is to be used, with concealed wiring, the wire exit hole in the wall must be located under the wire entry hole in the case as shown in Figure 2, and no more than 1/4" in diameter. 4. If a wired contact loop is to be used, feed concealed wiring through the slot in the case back, but do not connect to the terminal block yet. For surface wiring entry, two thin "breakout" areas are provided in the case wall (see Figure 1). 5. Attach the case back to the mounting plate by sliding the keyhole slots in the case back down onto the mounting plate's case holding posts. The locking tab will click as the case back locks in place. 6. If a reed switch is to be used, mount a No. 5899 Magnet (obtained separately) adjacent to the reed switch, or adjacent to the top of the case (see Figure 2). In either case, the magnet must be mounted within one-half inch of the reed switch. LOOP WIRING CONNECTIONS (If used) With the battery still not inserted, connect the contact loop wires to the unit's loop terminals (see Figure 2). Caution: Make sure that the bared sections of the loop wires do not short to the reed switch or antenna. The contact loop must use closed-circuit devices. The loop response time is a nominal 100mSec. NOTE: If the contact loop is not to be used, no connection is needed across the loop terminals. BATTERY INSTALLATION/REPLACEMENT 1. Remove the transmitter's cover (if it is not already off) as described in MOUNTING Step 1. 2. Observe correct polarity and insert the battery provided into the battery holder (see Fig. 2). Take care not to bend the antenna. NOTE: Replace battery only with: Panasonic CR123A, Duracell DL123A, or ADEMCO 466. 3. To replace the cover, engage the hooks along one edge and snap shut. SPECIFICATIONS Dimensions: 1-1/2"W x 3"H x 7/8"D (38mm x 76mm x 22mm) Battery: 3V Lithium (see Note in step 2 of BATTERY INSTALLATION/REPLACEMENT) BATTERY CAUTION: Risk of fire, explosion, and burns. Do not recharge, disas- semble, heat above 212°F (100°C), or in- cinerate. Dispose of used batteries promptly. Keep away from children. TO THE INSTALLER Regular maintenance and inspection (at least annually) by the installer and frequent testing by the user are vital to continuous satisfactory operation of any alarm system. The installer should assume the responsibility of developing and offering a regular maintenance program to the user, as well as acquainting the user with the proper operation and limitations of the alarm system and its component parts. Recommendations must be included for a specific program of frequent testing (at least weekly) to insure the system's operation at all times. REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL WITH WHICH THIS DEVICE IS USED, FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM. FCC STATEMENT This device compl…

Text truncated - open the document above for the full version.

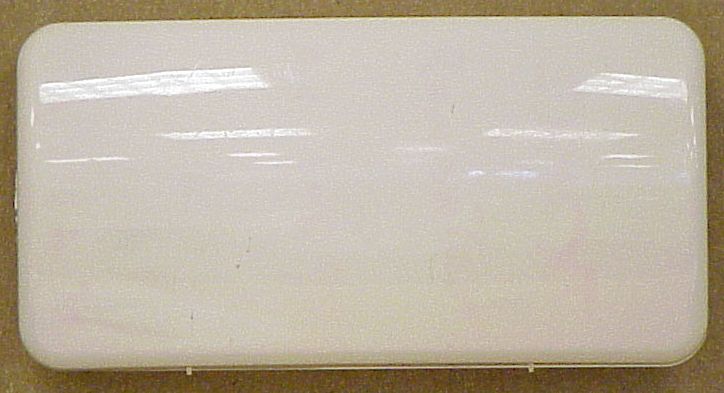

EXHIBIT 4-1 EXTERNAL PHOTOS CFS8DL5815XT / 573F-5815XT TOP PLASTIC: BOTTOM PLASTIC:

EXHIBIT 8 LABEL INFORMATION CFS8DL5815XT / 573F-5815XT SECTION 2.1033 (c) and Part 15.21 SECTION 2.1033 (c) Label and label location - A photo showing the identification label clearly (you must be able to see the name and FCC ID number), and the location on the device. In lieu of a photo for this, you may submit a engineer’s drawing. Part 15.21 / SECTION 2.1033 (c Statement - for all intentional and unintentional radiators is also printed on the label. All devices shall bear the following statement in a conspicuous location on the device: “ This device complies with Part 15 of the FCC Rules and RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “ EXACT LOCATION OF LABEL ON THE BOTTOM PLASTIC: ENGINEERS DRAWINGS OF THE LABEL:

EXHIBIT 4-2 INTERNAL PHOTOS: CFS8DL5815XT / 573F-5815XT PCB IN PLASTIC: TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DL5815XT / 573F-5815XT Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6". HONEYWELL SECURITY & CUSTOM ELECTRONICSREV K JAN 10 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC ID CFS8DL5815XT Date : 5/7/2010Tested by : Y. MohammedApproved by : K. Eskildsen Test Sample (model) : 5815LF-XT Rev F (ATMEL TX) Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 7 Notes: (1) Fo = 344.94 MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682 729 344.94v79.402.314.3763606.310.0%6360.67292 689.88h37.403.220.021074.010.0%107.4729 1034.82h27.804.424.85712.010.0%71.2500 1379.76h33.204.925.931590.410.0%159.0500 1724.70h30.705.526.961438.810.0%143.9729 2069.64h22.306.431.361006.910.0%100.7729 2414.58h22.706.932.151223.210.0%122.3729 2759.52 h 21.50 * 7.4 32.371157.410.0%115.7500 3104.46h19.90*7.932.731062.910.0%106.3729 3449.40h20.40*9.233.001349.010.0%134.9729 4000 NOTE: * = NOISE FLOOR LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682 EXHIBIT 5-4 Occupied Bandwidth Exhibit CFS8DL5815XT / 573F-5815XT 5815LF-XT Occupied Bandwidth (252.5 KHz) EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5815XT / 573F-5815XT Section 15.231 and ANSI C63.4 This is a list of all test equipment used. Test Equipment list for Honeywell OATS: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/12/09 10/12/10 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 07/10/09 07/10/10 PLEASE SE E PAGE 2-6 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected] I . : l:,irli r::::t::i.:,44i.,,i .: i:. illlil.,. lssue Date: 1011212009 Performed Bv: GENERAL CALIBRA-NON. INC. 2 MARS COURT MONTVILLE, NJ 07045 Equipmentlnformation ii '" ,:: Job No.: 018675 Manufacturer: R&S Description: SPECTRUM ANALYZER Deoartment: ALARMNET Temp./RH: 22 Ct45% Cal. Interval: 12 MONTHS CalDate:10t12t2009 Calibration Notes Company GENERALCALIBRATION 1031 GENERALCALIBRATION 434 GENERALCALIBRATION 650 GENERALCALIBRATION 774 GENERALCALIBRATION 967 General Calibration, Inc. 2 Mars Court, Boonton, New Jersey 07005 Phone (973) 299-2950 Fax (973) 299-0595 Asset Tag No.: MqdqlNumber: SerialNumber: Inspected By: Job Title: Calibration Result: Cal. Due Date: Certificate #: 15395MR Purchase Order: 5105648 Work Order #: MR309 Gustomer #: 001464 Location of Calibration: HONEYWELL SECURTTY (001464) 2 CORPOMTE CENTER DRIVE MELVILLE, NY 11747 10506 FSEA2O DE23427 MR::I METROLOGIST PASS 10t12t2010 Cal. Duo Date 02t02t2010 09t18t2010 12t08t2009 07 t13t2010 09t15t2010 Condition: Found In Tolerance and Lett In Tolerance Proceduro #GGP: R&S F$EA20 Standards Used To Calibrate Equipment | , ,,,' , ;,-',, r.D. SYNTHESIZED SWEEPER POWER SPLITTER POWER SPLITTER POWER SENSOR FUNCTION GENERATOR The above instrument has been checked and calibrated against the above working standard(s) which are traceable to the NIST. The test limits stated in the report correspond to the published specifications of the equipment, at the points tested. Afso, the collective uncertainties of measurement standards do not exceed 25o/o of lhe tolerance of the characteristics being caliprated, wlere possible. The metrology procedures utilized conform to and satisry the requirements set forth in ANSYNCSL 2540-1-1994,10 cFR part 21, lso 9001-2000, tso 10012-2003. and MtL-sr…
