CFS8DL5816OD-1Wireless Outdoor Sensor

5816OD Wireless Outdoor Sensor – Quick Installation Guide For Online Support visit: http://www.security.honeywell.com/hsc/resources/MyWebTech/ WARRANTY For the latest warranty information go to: http://www.security.honeywell.com/hsc/resources/wa/ General Information and Component Identification The Honeywell 5816OD Wireless Outdoor Sensor (referred to as the Sensor) brings the convenience of wireless technology to the outdoors. The major features are:  Weatherized security protection for an outdoor environment. Great for sheds, barns, garages, pool gates, fences, and rural mailbox (notifications).  Versatile mounting options on flat and round materials.  Cover and rear tamper detection.  Can be painted to coordinate with mounting surface.  Operating temp: – 40 to +50° C (– 40 to +122° F) at RH of 100% (rain, snow).  Maximum Magnet Gap: Wood: 1.75 inches Metal: 1.25 inches COMPONENT IDENTIFICATION 5816OD-001-V0 SENSOR MOUNTING PLATE MAGNET MAGNET SPACER SENSOR SEALING COVER Installing / Replacing the Batteries IMPORTANT:  Always change both batteries. Do not mix weak batteries with new batteries.  Use two (2) lithium 1.5VDC AA cells. (For best life, use Eveready's Energizer Ultimate LITHIUM AA batteries, Honeywell part number 462)  OBSERVE BATTERY POLARITY. Battery Replacement: 1. Remove cover screw and swing Sensor to remove from Sensor Mounting Plate. 2. Use screwdriver in any pivot point and pry Sealing Cover off. Replace batteries. 3. Orient the Sealing Cover so the screw hole lines up with the screw hole in the sensor cover, and press to close. 4. Engage Sensor tabs into mating holes in Sensor Mounting Plate and swing closed. Secure with cover screw. 5816OD-002-V0 PRY POINTS TERMINAL BLOCK FOR EXTERNAL CONTACT SWITCH Mounting Guidelines  This device is intended for vertical surfaces (to be mounted at a sufficient height) where snow, ice and water buildup will not interfere with its operation.  Mount the Magnet on the magnet sensing side of the Sensor as identified by the side ribs on the Sensor.  Mount the Sensor on a stationary surface, and mount the Magnet on the moveable surface.  When used on wooden sheds and barns, mount the sensor and magnet on the inside of the structure.  Use the Magnet Spacer when mounting on metal surfaces; or if needed to achieve proper alignment with the Sensor .  Use screws suitable for the material being fastened to. FLAT SURFACES COVER SCREW MOUNTING SCREW (4) 5816OD-003-V0 MAGNET MAGNET SPACER MOUNTING SCREW (2) SENSOR SENSOR MOUNTING PLATE FENCE GATE Curved Surfaces: Suggested mounting hardware such as the strap ties and cable ties are not supplied.  Mount using self locking stainless steel strap ties. 5816OD-005-V0 Self Locking Stainless Steel Strap Tie  Alternately you can use extra heavy duty Nylon 6/6 UV and Temperature Rated cable ties (0.5 inch wide).  If desired you may use screws in addition to the ties. CURVED SURFACES 5816OD-004-V0 MAGNET SENSOR GATE POST GATE MAGNET SENSING SLIDE COVER SCREW FENCE MAGNET SPACER SENSOR MOUNTING PLATE ROUTING EXTERNAL WIRING – Optional for use with external closed contact switches, such as the Honeywell N7945-2GY: Note: Use minimum of 22AWG jacketed cable. The contact switch must be a Form C (SPDT) type. UL – The wired contact must be less than 3 feet from the transmitter. 1. Strip cable jacket back 4-inches to allow enough slack to remove Sealing Cover when changing batteries. 2. Pass cable through the access hole in Sensor Mounting Plate . Use cable notch on mounting plate to pass jacketed portion of cable through. Then attach the Sensor Mounting Plate . 3. Route cable to the external contact switch and fasten at intervals to secure cable. 4. Remove the Sealing Cover and thread wires through the rubber wire seal. If installed, REMOVE ANY BATTERIES. 5. Connect wires to terminal block in battery chamber, then INSTALL the batteries. 6. Replace the Sealing Cover . (Note, orient the cover so the screw hole lines up with the screw hole in the sensor cover, and press to close.) 7. Engage Sensor tabs into Sensor Mounting Plate mating holes and swing closed. Secure with cover screw. SENSOR SENSOR MOUNTING PLATE SEALING COVER 5816OD-006-V0 TO EXTERNAL CONTACT SWITCH CONNECT WIRES TO TERMINAL BLOCK IN BATTERY CHAMBER CLOSED OPEN COMMON PAINTING THE SENSOR: The sensor and magnet may be painted to coordinate its color with the mounting surface. Use only paints that are made for plastic and follow the manufacturer’s direction for preparing the plastic and applying the paint. Observe the required drying and curing times. DO NOT USE METALLIC PAINT COLORS. Recommended Paints :  Krylon® "Fusion for Plastic"  Rust-Oleum® "Plastic"  Dupli-Color® "Vinyl & Fabric Coating" Programming the Control Panel You must program the transmitter's serial number, input type (RF Supervised), response type, and loop # in the control panel. (Either or both loops may be used. Loop # 2 is for the magnet sensing, and Loop # 1 is for the external contact switch.) Refer to the control panel’s instructions for further details. Note: The transmitter's serial number may be found on the carton, and in the Battery Chamber. FCC / IC STATEMENT This device complies with Part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit accepter toute interference reçue y compris les interferences causant une reception indésirable. FEDERAL COMMUNICATIONS COMMISSION STATEMENT The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructio…

Text truncated - open the document above for the full version.

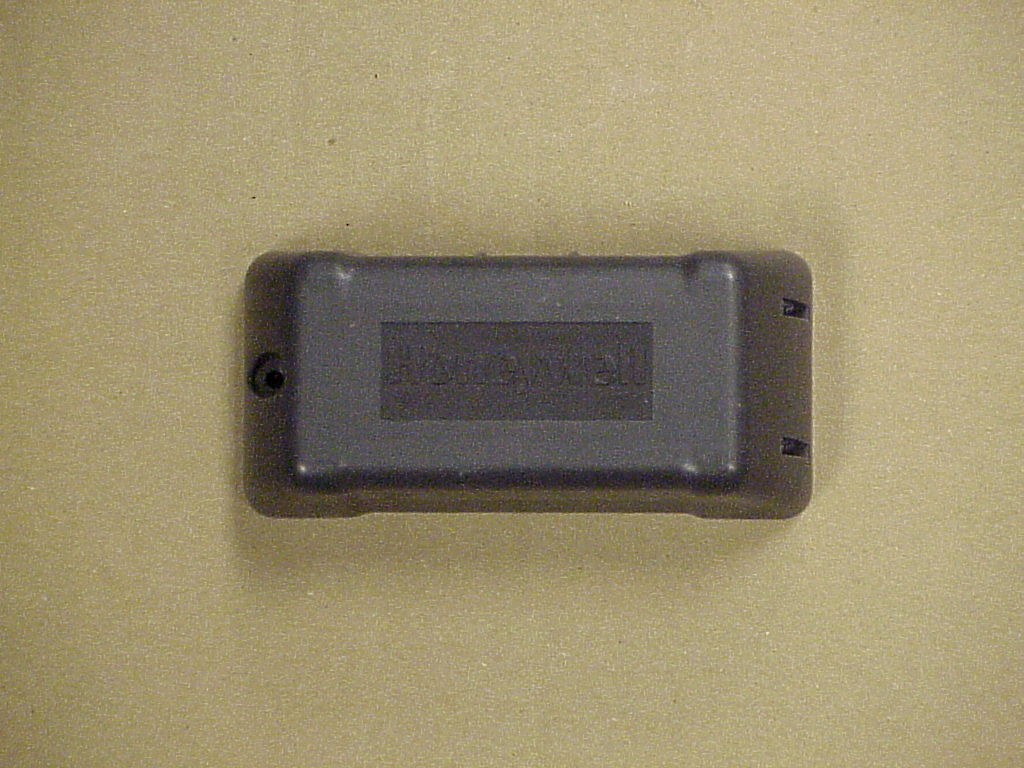

EXHIBIT 4-1 CFS8DL5816OD-1 / 573F-5816OD1 EXTERNAL PHOTOS TOP PLASTIC: BOTTOM PLASTIC:

EXHIBIT 8 CFS8DL5816OD-1 / 573F-5816OD1 ENGINEERS DRAWING OF THE INTERMEDIATE PLATE: LOCATION OF THE FCC / IC INFORMATION ON THE INTERMEDIATE PLATE:

EXHIBIT 4-2 INTERNAL PHOTOS CFS8DL5816OD-1 / 573F-5816OD1 ( 1) TOP PLASTIC, (2) BOTTOM PLASTIC, (3) MOUNTING BRACKET EXHIBIT 4-2 INTERNAL PHOTOS CFS8DL5816OD-1 / 573F-5816OD1 PCB IN PLASTIC, TOP & BOTTOM OF PCB

EXHIBIT 5-1 CFS8DL5816OD-1 / 573F-5816OD1 Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6". HONEYWELL SECURITY & CUSTOM ELECTRONICSREV N JAN 11 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC ID:CFS8DL5816OD-1 Date : 01/19/2010 Tested by : G. BARBATO Approved by : K. Eskildsen Test Sample (model) : 344.94 MHz 5816OD No 100-0054 Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 7 Notes: (1) Fo = 344.94MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 LAST CAL 01 JAN 10 CABLE C LAST CAL 28 APR 10 BICONILOG S/N:00029390 729 344.94v78.792.314.4059497.710.0%5949.87292 689.88v22.093.220.00183.910.0%18.4729 1034.82v28.674.424.30738.810.0%73.9500 1379.76v31.784.928.401794.710.0%179.5500 1724.70v28.275.529.301424.010.0%142.4729 2069.64v27.706.431.101819.710.0%182.0729 2414.58v21.206.932.501071.510.0%107.2729 2759.52 v 21.197.4 32.501133.710.0%113.4500 3104.46v23.597.932.601601.410.0%160.1729 3449.40v21.579.234.501834.410.0%183.4729 4000 LAST CAL 01 JAN 10 CABLE C LAST CAL 28 APR 10 BICONILOG S/N:00029390 EXHIBIT 5-4 OCCUPIED BANDWIDTH CFS8DL5816-1 / 573F-58161 MAXIMUM OCCUPIED BANDWIDTH = 862.35 KHz 5816-1 OCCUPIED BANDWIDTH: 180.36 KHz EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5816OD-1 / 573F-5816OD1 Section 15.231 and ANSI C63.4 This is a list of all test equipment used. Test Equipment list for Honeywell OATS: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/10 10/19/11 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 04/28/10 04/28/11 PLEASE SE E PAGE 2-3 FOR TEST EQUIPMENT TRACEABILITY If you need any additional i nformatio n from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PICTURES OF THE 5816OD-1 UNDER TEST CFS8DL5816OD-1 / 573F-5816OD1 SENSE ANT HORZ., UUT FORWARD SENSE ANT HORZ., UUT FORWARD SENSE ANT HORZ., UUT FORWARD SENSE ANT VERT., UUT FORWARD SENSE ANT VERT., UUT FORWARD SENSE ANT VERT., UUT FORWARD PICTURE OF THE HONEYWELL OATS AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747
