CFS8DL5816STWireless Door / Window Transmitter

EXHIBIT 4-1-2 CFS8DL5816ST / 573F-5816ST EXTERNAL PHOTOS - 5816ST PRODUCT VARIANT These are the external photos for the manufacturer product variant '5816ST', which includes the populated terminal block. CASE EXTERIOR CASE FRONT CASE REAR WITH MOUNTING PLATE Page 1 of 2 EXHIBIT 4-1-2 CFS8DL5816ST / 573F-5816ST EXTERNAL PHOTOS - 5816ST PRODUCT VARIANT CONT. CASE EXTERIOR CONT. CASE REAR WITHOUT MOUNTING PLATE CASE REAR - MECHANICAL DRAWING Page 2 of 2

EXHIBIT 4-1-1B CFS8DL5816ST / 573F-5816ST EXTERNAL PHOTOS - 5816S PRODUCT VARIANT These are the external photos for the manufacturer product variant '5816S', which excludes the populated terminal block. CASE EXTERIOR CASE FRONT CASE REAR WITH MOUNTING PLATE Page 1 of 2 EXHIBIT 4-1-1B CFS8DL5816ST / 573F-5816ST EXTERNAL PHOTOS - 5816S PRODUCT VARIANT CONT. CASE EXTERIOR CONT. CASE REAR WITHOUT MOUNTING PLATE CASE REAR - MECHANICAL DRAWING Page 2 of 2

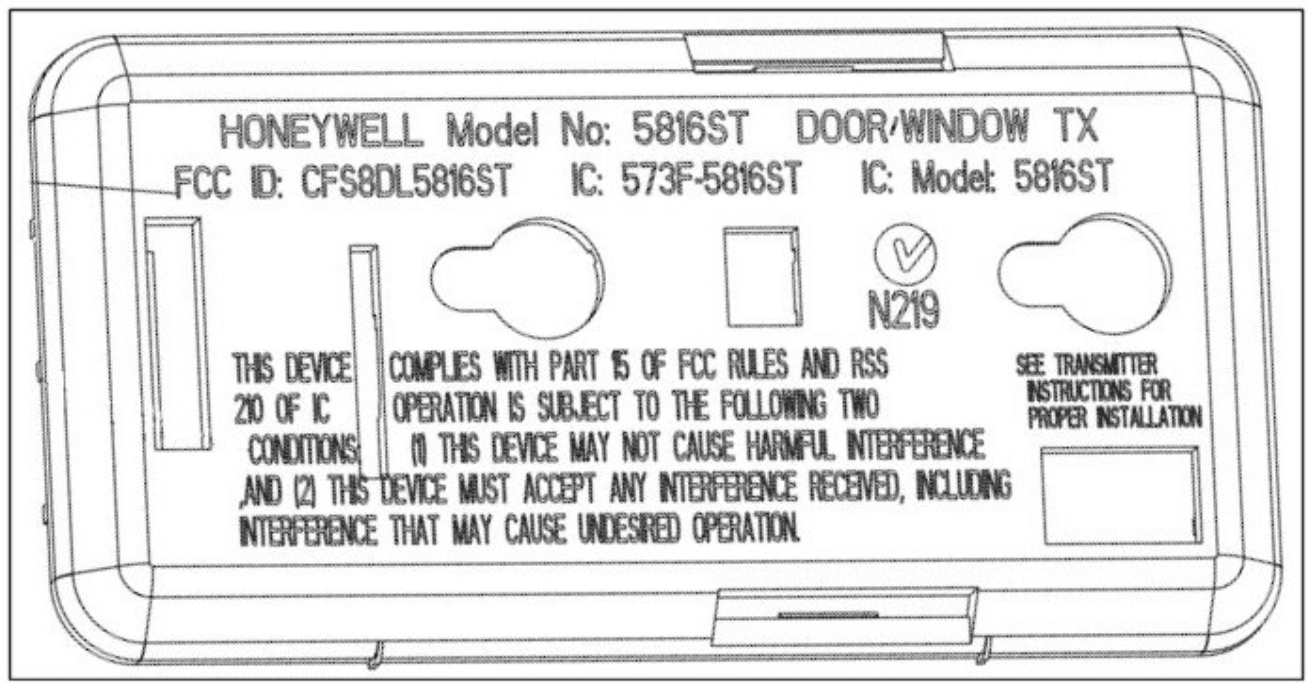

EXHIBIT 8C CFS8DL5816ST / 573F-5816ST LABEL INFORMATION EXACT LOCATION OF THE LABEL: LABEL WITH FCC / IC INFORMATION WILL BE EMBOSSED IN THE PLASTIC CASE BACK: MECHANICAL DRAWINGS Text locations and content for the 2 variations of the product (without the terminal block for 5816S, with the terminal block for 5816ST) are shown in these two mechanical drawings below WITHOUT TERMINAL BLOCK (FOR PMN 5816S) FCC / IC INFORMATION IN THIS AREA Page 1 of 2 EXHIBIT 8C CFS8DL5816ST / 573F-5816ST LABEL INFORMATION CONT. WITH TERMINAL BLOCK (FOR PMN 5816ST) Page 2 of 2

EXHIBIT 4-2-1A CFS8DL5816ST / 573F-5816ST INTERNAL PHOTOS - '5816S' PRODUCT VARIANT These are the internal photos for the manufacturer product variant '5816S', which excludes the populated terminal block. CASE INTERIOR CASE FRONT INTERIOR CASE FRONT INTERIOR TEXT SECTION 1 WITH CONTRAST TEXT SECTION 1 TEXT SECTION 2 Page 1 of 4 EXHIBIT 4-2-1A CFS8DL5816ST / 573F-5816ST INTERNAL PHOTOS - '5816S' PRODUCT VARIANT CONT. CASE FRONT INTERIOR CONT. CASE FRONT INTERIOR TEXT SECTION 2 WITH CONTRAST CASE BACK INTERIOR Page 2 of 4 EXHIBIT 4-2-1A CFS8DL5816ST / 573F-5816ST INTERNAL PHOTOS - '5816S' PRODUCT VARIANT CONT. PCA PCA FRONT PCA FRONT, LABEL REMOVED Page 3 of 4 EXHIBIT 4-2-1A CFS8DL5816ST / 573F-5816ST INTERNAL PHOTOS - '5816S' PRODUCT VARIANT CONT. PCA BACK Page 4 of 4

EXHIBIT 4-2-2A CFS8DL5816ST / 573F-5816ST INTERNAL PHOTOS - '5816ST' PRODUCT VARIANT These are the internal photos for the manufacturer product variant '5816ST', which includes the populated terminal block. CASE INTERIOR CASE FRONT INTERIOR CASE FRONT INTERIOR TEXT SECTION 1 WITH CONTRAST TEXT SECTION 1 TEXT SECTION 2 Page 1 of 4 EXHIBIT 4-2-2A CFS8DL5816ST / 573F-5816ST INTERNAL PHOTOS - '5816ST' PRODUCT VARIANT CONT. CASE FRONT INTERIOR CONT. CASE FRONT INTERIOR TEXT SECTION 2 WITH CONTRAST CASE BACK INTERIOR Page 2 of 4 EXHIBIT 4-2-2A CFS8DL5816ST / 573F-5816ST INTERNAL PHOTOS - '5816ST' PRODUCT VARIANT CONT. PCA PCA FRONT PCA FRONT, LABEL REMOVED Page 3 of 4 EXHIBIT 4-2-2A CFS8DL5816ST / 573F-5816ST INTERNAL PHOTOS - '5816ST' PRODUCT VARIANT CONT. PCA BACK Page 4 of 4

EXHIBIT 6 CFS8DL5816ST / 573F-5816ST TEST EQUIPMENT USED Part 15.231, ANSI C63.4, RSS 210 T his is a list of test equipment used for Occupied Bandwidth (Exhibit 5-4). Additional test equipment used can be found in the radiated emissions lab reports: exhibits 5-3A & 5-3B. Note: Calibration Certificates are on following pages. Test Equipment list for Honeywell OBW Measurements EQUIPMENT: MANUFACTURER: MODEL: CAL DATE: CAL DUE DATE: Spectrum Analyzer Rohde & Schwarz FSU3 5/7/2014 5/7/2015 If you need any additional information from Honeywell, please contact: A ndrew Roussin, Engineer (Acting for Mark Schmidt) Phone (Direct): 516-577-5935 Email: [email protected] Page 1 of 2 ili ]xi ul:.it!lli =r:i ,,,.l : iiiri[i\i Issue Date: Dsrir,+**;_d ill$liiliffi}i]lllllilii ili{gil GENERAL CALIBRATION. INC. 2 MARS COURT BOONTON. NJ O7OO5 ffiffi' General Calibration, Inc. uu:tn* :t::i:::::: t:::::::::::t: :: .: :iut:u: ::iuu::u +t:tit!:RRtax : , 4:r, 1ks*l,r..::: ..:i:ii;r{:/: }d#,' ;l,:1 ,- , .i.f , ",a' ' r{m'fr,,':- ., 1 15m l;FE+ ;,*++;r.r ,, Certificate #: GC48-11390 Work Order #z 48GCl47 Customer #z 001464 _MET$:O PASSED 0510712015 _ 0666rs R&S spECtnuvr nNap;zen n.o c:"/ tyyy.eio;3 __ - 12 MONTHS 05t07t20t4 2 Mars Court, Boonton, New Jersey 07005 Phone (973)299-2950 Fax (973) 299-0595 Ass 9t T-18 N-o-::"-* . Modg_lltumb-el: -s--91-ia-!=-\l.upb_."1___" fg_s_q9cre$"Byi Job Title: C,llibratjog Res-yJ!; C-_al, Dpg* D-ate-: -.'. Owner's Email: iffiltlrll,lfli'iiiii;a**i *;T.il#$$glgfii;t.$;;# np*ff=!,,$ xl,ill*w1i1 ,,,,,1,*6i,,'^iiiiiF,iiffiir',,,rlit HONEYWELL SECURTTY (001464) 2 CORPORATE CENTER DRTVE MELVILLE, NY 11747 fiffiffiffi 11493 --tFJj-: _-r9.9"92?* JTR "LryHHHHH,:Wi iiiffi #1iliiii il Calibration Notes: GENT,RA ! cA LIB l-AJ_l"qN - J 0 3 1 _ s yNrHE S IZ pD l_yppl ER t 2- 6 G_rrz GENERAL CALIBRATION 1I53 POWER METER 1204NZ:82s2 _ 10:040218J Jr2:u?0810 ?re:96?:80 . _ _?1?6a0f 88 us"3_?er134 51051 in* GENPRAL cAlrB-RA_rlgj __ 4t0 4 GENE$*I: CALJB YTI{\ 424 GENE**I 9*!IBS+TI9**N* J8: GENERA-L__cALrBl+rrgry f4e GENERALCALIBRATION 688 ATJ_E_I-U*r9"R ry_lalrENgY coy*\TP lollPR sENSol _ POWER SPLTTJER LEVEL GENERATOR 07 t29/20r4 ol:rz!lzor! 06/2U20.4 o'j!!!_slz"or+ 0612612014 0!lzPUtt 08/09t20r41640A01730 '[dsistoccni&6!tc6qil&[email protected]|ibntidsystdisincdaliecewithIso/IEcl?025.2005'ANsINcsLz540.t,ANsINcsLz51t0.3'ddIso 90ol2008'Thetestlinitsstat.dinthere?ottoorrcsPoddtodEMashcfdscalibtdiotedPublisIrdsPccifcsticofth.€quipmnt,rtth.points&st.<L obtgi!€[email protected]@M'[email protected]'fctttEpcrbf'a!"oofoquip&dafr6€cdibrdion(vcrmcadol)o'€qdt' Calibtdio! ofstandf&; rfrr. sisrdlrds ard iEt@diatc stsld$ds it ihi! cslibrario h!r b€.n chcck d dd crlibrEt d aFict the .bovo working strd rEasurfEnt d$ugh Natiooal lBtihn of Stmdnds ald T.chnolos/ or ott6 Natiotd M.$wnt Institutcs u!d.! CIPM MRA. Aty @dit d cslibdio ud.r d€nol.dwithA2lAaccredit€ds}rnbolond€cdihfttionc€'tifcate,IfifeAccr€ditedceiifcateiflud.sstlyuA4Edit.dit.mcdibntc4lh.ysJccl€&ly Best Unc.rcrinti.s rEpftsetrt e4and.d unc€$atui$ e4res$d d approximaoely lh€ 95% confdcncc l.wl uirg s covcragc bctor olk=2. 'Ite resnts do.unartcd i! this cedificste relat! oaly to dh€ iteo(s) oalitrried or testod Approved By .t{i)..-:),,.-u+' -.e:,i ;&:**1:':',*.* * General Calibration, Inc. - Q. A. Manager

EXHIBIT 5-3C RADIATED EMISSIONS COMPARISONCFS8DL5816ST / 573F-5816ST Page 1 of 1 HONEYWELL SECURITY & CUSTOM ELECTRONICS 2 Corporate Center Drive Melville, NY 11747 EXHIBIT 5-3C Freq (MHz)Harmonic 5816ST no TB 5816ST TB + cable Worst 345.01.090.291.791.7 690.02.061.569.469.4 1035.03.056.058.258.2 1380.04.063.363.963.9 1725.05.075.571.875.5 2070.06.074.076.276.2 2415.07.068.871.071.0 2760.08.063.664.764.7 3105.09.069.669.869.8 3450.010.058.159.959.9 Freq. (MHz): Harmonic Number Worst Reading from Above (dBuV/M) Duty Cycle (%): Corr. Reading (dBuV/M) : Corr. Reading (uV/M): Margin (dB) 345.00191.710.0%71.73845.9-5.6 690.00269.410.0%49.4295.1-7.9 1,035.00358.210.0%38.281.3-15.8 1,380.00463.910.0%43.9156.7-10.1 1,725.00575.510.0%55.5595.7-1.8 2,070.00676.210.0%56.2645.7-1.1 2,415.00771.010.0%51.0354.8-6.3 2,760.00864.710.0%44.7171.8-9.3 3,105.00969.810.0%49.8309.0-7.5 3,450.001059.910.0%39.998.9-17.4 3,750 EXHIBIT 5-3C MAX RADIATED EMISSIONS FCC ID: CFS8DL5816ST IC: 573F-5816ST Per §15.231(b)(2) Intentional radiators operating under the provisions of this section shall demonstrate compliance with the limits on the field strength of emissions, as shown in the above table, based on the average value of the measured emissions. As an alternative, compliance with the limits in the above table may be based on the use of measurement instrumentation with a CISPR quasi-peak detector. The specific method of measurement employed shall be specified in the application for equipment authorization. If average emission measurements are employed, the provisions in §15.35 for averaging pulsed emissions and for limiting peak emissions apply. Further, compliance with the provisions of §15.205 shall be demonstrated using the measurement instrumentation specified in that section. Fundamental frequency (MHz) 40.66-40.70 70-130 Field strength of fundamental (microvolts/meter) 2,250 1,250 Field strength of harmonics (microvolts/meter) 57.3 225 125 Limit @ 3M (uV/M): 7,292 729 500 500 729 729 729 500 729 729 57.3 57.3 57.3 54.0 57.3 77.3 57.3 54.0 54.0 125 to 375 375 375 to 1250 1,250 Limit @ 3M (dBuV/M): TEST NAME: RADIATED EMISSIONS The 5816ST contains a 345MHz transmitter. To verify that the level of radiation was not significant, the device underwent radiated emissions at an external test laboratory. With the transmitter in the ON state, peak emissions were checked at the fundamental frequency and the harmonics. The duty factor is used to calculate average emissions. The device is tested for the product variations with and without a terminating cable. The lab generated a report for each case. The worst case emissions for each frequency are used for calculations. Tested By: Rhein Tech Laboratories, Herndon, VA, USA (see separate test reports from Rhein Tech) Test Sample (model): 5816ST (with and without terminal block populated). Test Method: ANSI C63 10 2013 6 5 6 6 Rhein Tech Emission Measurements (dBuV/M) WORST CASE EMISSIONS VALUES The worst case emission at each frequency is shown in the table below. The worst case is taken from the two lab reports for the variant with and without the terminal block. Measurements for the variant with the terminal block were done with a 1M cable attached to the terminal block as per test requirements. COMPARING WORST CASE RADIATED EMISSIONS TO LIMITS The worst case emission in the table above is used in the average calculations below. 3,750 to 12,500 12,500 130-174 174-260 260-470 Above 470 1,250 to 3,750

Engineering Solutions & Electromagnetic Compatibility Services Intentional Radiated Emissions Test Report - FCC Part 15.231 & RSS-210 Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: Honeywell International Tel: 516-577-5863 2 Corporate Center Drive Melville, NY 11747 Contact: Andrew Roussin FCC ID CFS8DL5816ST Test Report Date May 1, 2015 IC 573F-5816ST RTL Work Order Number 2015054 Model # 5816S RTL Quote Number QRTL15-054 American National Standard Institute ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices FCC Rule Part(s) 15.231 Periodic operation in the band 40.66–40.70 MHz and above 70 MHz (10-01-14) IC Rule Part RSS-210 Issue 8 Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15, IC RSS-210, IC RSS-Gen and ANSI C63.10. Signature: Date: May 1, 2015 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories and Honeywell International. The test results relate only to the item(s) tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANAB. Refer to certificate and scope of accreditation AT-1445. 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com Rhein Tech Laboratories, Inc. Client: Honeywell International 360 Herndon Parkway Model #: 5816S Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: CFS8DL5816ST/573F-5816ST http://www.rheintech.com Report #: 2015054 Table of Contents 1 General Information ............................................................................................................................... 3 1.1 Scope ................................................................................................................................................ 3 1.2 Description of EUT ............................................................................................................................ 3 1.3 Test Facility ....................................................................................................................................... 3 1.4 Modifications ..................................................................................................................................... 3 2 Test Information ..................................................................................................................................... 4 2.1 Description of Test Modes ................................................................................................................ 4 2.2 EUT Disposition ................................................................................................................................ 4 2.3 Test Result Summary ........................................................................................................................ 4 2.4 Related Submittal(s)/Grant(s) ........................................................................................................... 4 2.5 Test System Details .......................................................................................................................... 4 2.6 Configuration of Tested System ........................................................................................................ 5 3 Radiated Emissions – FCC 15.209; IC RSS-210 .................................................................................. 6 3.1 Limits of Radiated Emissions Measurement ..................................................................................... 6 3.2 Radiated Emissions Measurement Test Procedure ......................................................................... 6 3.3 Radiated Emissions Test Results ..................................................................................................... 7 3.3.1 Radiated Emissions Harmonics/Spurious ................................................................................. 7 4 Conclusion ............................................................................................................................................. 7 Table Index Table 2-1: Frequencies Tested .............................................................................................................. 4 Table 2-2: Test Result Summary – FCC Part 15, Subpart C (Section 15.231) ...................................... 4 Table 2-3: Equipment Under Test .......................................................................................................... 4 Table 3-1: Radiated Emissions Test Equipment .................................................................................... 6 Table 3-2: Radiated Emissions Harmonics/ Spurious ............................................................................ 7 Appendix Index Appendix A: Test Configuration Photographs ........................................................................................... 8 Appendix B: EUT Photograph.................................................................................................................. 11 Photograph Index Photograph 1: Radiated Emissions .......................................................................................................... 8 Photograph 2: Radiated Emissions ......................................................................................................…

Text truncated - open the document above for the full version.

Engineering Solutions & Electromagnetic Compatibility Services Intentional Radiated Emissions Test Report - FCC Part 15.231 & RSS-210 Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: Honeywell International Tel: 516-577-5863 2 Corporate Center Drive Melville, NY 11747 Contact: Andrew Roussin FCC ID CFS8DL5816ST Test Report Date May 1, 2015 IC 573F-5816ST RTL Work Order Number 2015055 Model # 5816ST RTL Quote Number QRTL15-055 American National Standard Institute ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices FCC Rule Part(s) 15.231 Periodic operation in the band 40.66–40.70 MHz and above 70 MHz (10- 01-14) IC Rule Part RSS-210 Issue 8 Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15, IC RSS-210 and ANSI C63.10. Signature: Date: May 1, 2015 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories and Honeywell International. The test results relate only to the item(s) tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANAB. Refer to certificate and scope of accreditation AT-1445. 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com Rhein Tech Laboratories, Inc. Client: Honeywell International 360 Herndon Parkway Model #: 5816ST Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: CFS8DL5816ST/573F-5816ST http://www.rheintech.com Report #: 2015055 Table of Contents 1 General Information ............................................................................................................................... 3 1.1 Scope ................................................................................................................................................ 3 1.2 Description of EUT ............................................................................................................................ 3 1.3 Test Facility ....................................................................................................................................... 3 1.4 Modifications ..................................................................................................................................... 3 2 Test Information ..................................................................................................................................... 4 2.1 Description of Test Modes ................................................................................................................ 4 2.2 EUT Disposition ................................................................................................................................ 4 2.3 Test Result Summary ........................................................................................................................ 4 2.4 Related Submittal(s)/Grant(s) ........................................................................................................... 4 2.5 Test System Details .......................................................................................................................... 4 2.6 Configuration of Tested System ........................................................................................................ 5 3 Radiated Emissions – FCC 15.209; IC RSS-210 .................................................................................. 6 3.1 Limits of Radiated Emissions Measurement ..................................................................................... 6 3.2 Radiated Emissions Measurement Test Procedure ......................................................................... 6 3.3 Radiated Emissions Test Results ..................................................................................................... 7 3.3.1 Radiated Emissions Harmonics/Spurious ................................................................................. 7 4 Conclusion ............................................................................................................................................. 7 Table Index Table 2-1: Frequencies Tested .............................................................................................................. 4 Table 2-2: Test Result Summary – FCC Part 15, Subpart C (Section 15.231), IC RSS-210/IC RSS- Gen 4 Table 2-3: Equipment Under Test .......................................................................................................... 4 Table 3-1: Radiated Emissions Test Equipment .................................................................................... 6 Table 3-2: Radiated Emissions Harmonics/Spurious ............................................................................. 7 Appendix Index Appendix A: Test Photographs .................................................................................................................. 8 Appendix B: EUT Photograph.................................................................................................................. 11 Photograph Index Photograph 1: Radiated Emissions .......................................................................................................... 8 Photograph 2: Radiated Emissions .......................................................................................................... 9 Photogra…

Text truncated - open the document above for the full version.

EXHIBIT 5-2 CFS8DL5816ST / 573F-5816ST PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP Section 2.1093(c) Photo of the test setup shall be provided. Testing was done at Rhein Tech laboratory in Herndon, VA, USA. PHOTO 1: RADIATED EMISSIONS, NO TERMINATING CABLE - DUT Page 1 of 6 EXHIBIT 5-2 CFS8DL5816ST / 573F-5816ST PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP CONT. PHOTO 2: RADIATED EMISSIONS, NO TERMINATING CABLE - DUT Page 2 of 6 EXHIBIT 5-2 CFS8DL5816ST / 573F-5816ST PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP CONT. PHOTO 3: RADIATED EMISSIONS, NO TERMINATING CABLE - TEST SITE Page 3 of 6 EXHIBIT 5-2 CFS8DL5816ST / 573F-5816ST PHOTO 1: RADIATED EMISSIONS, WIT H TERMINATING CABLE - DUT Page 4 of 6 EXHIBIT 5-2 CFS8DL5816ST / 573F-5816ST PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP CONT. PHOTO 2: RADIATED EMISSIONS, WITH TERMINATING CABLE - DUT Page 5 of 6 EXHIBIT 5-2 CFS8DL5816ST / 573F-5816ST PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP CONT. PHOTO 3: RADIATED EMISSIONS, WITH TERMINATING CABLE - TEST SITE Page 6 of 6
