CFS8DL5817XTThree Zone Universal Transmitter

5817XT THREE-POINT UNIVERSAL TRANSMITTER – Installation and Setup Guide GENERAL INFORMATION The 5817XT Three-Point Universal Transmitter provides up to three connections for contact loops. Each loop transmits a unique serial number to a 5800 wireless system receiver connected to the system control panel. The Primary Loop’s connection requirements, response and transmission characteristics are set via DIP switch. (See table.) SPECIFICATIONS Dimensions Length 3.5” Width 1.6” Depth 1.2” (89mm) (40mm) (30mm) Tamper Detection Enrollment Type Activates when cover removed Supervised RF (Mandatory in UL installations) Battery Type Lithium 3V, supplied. Replace with only: Duracell DL 123 Duracell DL123A Panasonic CR123A ADEMCO 466 Contact Loops (3) Primary loop: DIP switch selectable options Response time 320mSec – 5mSec, approx. Aux loops: Closed circuit Response time 320mSec, approx. In UL installations, a contact must be installed within 3' of the transmitter, with no intervening walls or barriers. 1 Installation Guidelines This device is for professional installation only. •In Residential Fire installations, 5817XT may be connected to only one initiating device. In Residential Burglar Alarm installations, the transmitter may be connected to multiple initiating devices, only if all of these devices serve the same function (i.e., all devices are door contacts or all are window contacts). •Use of the included mounting plate is strongly recommended for ease of removal if the transmitter requires servicing. Holes in the transmitter’s rear case allow mounting directly to a surface. Holes are labeled “A”, located top and bottom left in Figure 2. •BEFORE separating the transmitter from the mounting plate, look at the concealed wiring entry next to the locking tab on the mounting plate. Note that the opening aligns with the concealed wiring access slot on the transmitter’s rear case. •Perform the Go/No Go test to determine the position for best signa l s trength BEFORE mounting the transmitter permanently (see control panel instructions). Verify best signal strength and reorient or relocate the transmitter as needed. •REMOVE the battery from the transmitter after finding the best location. Enrolling the transmitter in the control panel See the control panel’s instructions for more information. •Make sure all DIP switch positions are OFF during enrollment in the control panel. • Make sure to enroll the 5817XT as input type “RF” (Supervised RF). Mounting and Wiring 1.Remove the transmitter’s top cover. Insert a small flat-blade screwdriver into the cover pry-off slot seen in Figure 2. Twist the blade gently until the cover disengages. 2.Disengage the mounting plate from the transmitter’s rear case. Insert a small flat-blade screwdriver into the locking tab release window and press it against the locking tab, while sliding the mounting plate until free. See Figures 1 and 2. 3.Install the mounting plate at the transmitter’s planned location (optional). Use the flat-head screws supplied . 4.Route the wires •Concealed wiring: Align the device’s concealed wiring entry with the wire exit in the wall. Wire exit should not exceed 0.25" diameter. •Wired contact loop: F eed concealed wiring through the entry o penings, but do not connect the wire to the loop terminals yet. •Surface wiring entry: Use breakout slots on long sides of case. 5.Attach the case to the mounting plate. Press the case against the mounting plate and slide until the locking tab clicks into place. 6.C onnect loop wiring to the transmitter’s loop terminals, shown in Figure 2. Figure 1: Mounting Plate Figure 2: 5817XT, seen with front cover removed. EXHIBIT 7A B CFS8DL5817XT / 573F-5817XT 2 DIP Switch Settings After enrollment in the control panel, set the DIP switch for the desired primary loop characteristics, as described in the table at right. Notes a. DIP switches may be set by a professional installer only. They may not be changed by the end user. b. Due to FCC regulation 15.231(a)(4), DIP switch position 1 may not be set to ON unless Loop 1 is used to indicate a type of emergency involving fire, security or safety of life. c. Except in the case of the position 4 ON setting, the Auxiliary loops are not affected by the DIP switch settings. d. For UL installations with fire zones, the position 4 ON setting must not be used. IMPORTANT: The 5817XT transmitter resets when a DIP switch is changed. This can take up to one minute. SWITCH P R I M A R Y L O O P O P T I O N S – D I P S W I T C H P O S I T I O N S SETTING 1 2 3 4 ON REPEATING TRANSMISSION (every 4 sec.) Upon primary loop fault For high-priority alarm, such as fire. N.O. CIRCUIT PRIMARY LOOP NORMAL PRIMARY LOOP RESPONSE (Approx. 320mSec response time) 3 MINUTE, ALL LOOP TRANSMISSION INHIBIT After restore of primary loop. See note d. This affects all Aux. loops. Use on often-used doors, etc. to conserve battery. OFF SINGLE TRANSMISSION Per primary loop Ch ange-of-State N.C. CIRCUIT PRIMARY LOOP FAST PRIMARY LOOP RESPONSE (Approx. 5mSec response time) NO TRANSMISSION INHIBIT 3 Battery Installation / Replacement 1. Remove the transmitter's cover if it is still in place. See Step 1 under Mounting and Wiring. 2. Observe correct polarity and insert the battery into the battery holder (see Figure 2). 3. To replace the cover, engage the hooks on either side of the locking tab release, and snap shut. ENROLLMENT NOTE: Wait 30 seconds after battery installation before enrolling the transmitter. Replace the battery with only Duracell DL 123, Duracell DL123A, Panasonic CR123A or ADEMCO 466. BATTERY CAUTION Risk of fire, explosion, and burns. Do not recharge, disassemble, heat above 212°F (100°C), or incinerate. Dispose of used batteries promptly. Keep away from children. IMPORTANT: The 5817XT Transmitter should be tested at least once per week to ensure proper operation. FEDERAL COMMUNICATIONS COMMISSION STATEMENTS The user shall not make any changes or modifications to the equipment unless author…

Text truncated - open the document above for the full version.

EXHIBIT 7A B CFS8DL5817XT / 573F-5817XT CARTON INSTALLATION INSTRUCTIONS

EXHIBIT 4-1B CFS8DL5817XT / 573F-5817XT 5817XT EXTERNAL PHOTOS CASE EXTERIOR CASE FRONT CASE BACK, MARKINGS NOT SHOWN Note - Markings are on the next page. Page 1 of 3 EXHIBIT 4-1B CFS8DL5817XT / 573F-5817XT 5817XT EXTERNAL PHOTOS CONT. CASE EXTERIOR CONT. CASE BACK MARKINGS Note - These are the markings specified for the case back. Page 2 of 3 EXHIBIT 4-1B CFS8DL5817XT / 573F-5817XT 5817XT EXTERNAL PHOTOS CONT. MOUNTING PLATE CASE SIDE WALL SIDE (NO MARKINGS) Page 3 of 3

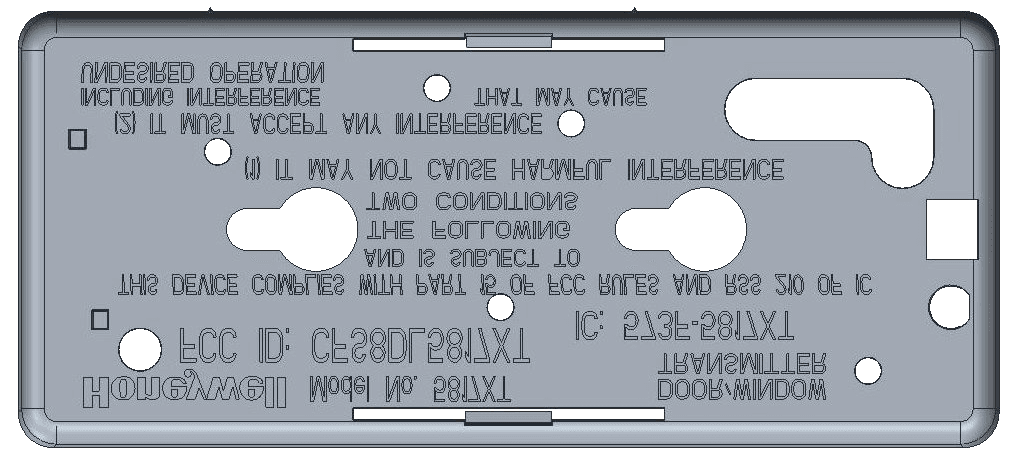

EXHIBIT 8A CFS8DL5817XT / 573F-5817XT LABEL INFORMATION EXACT LOCATION OF THE LABEL: LABEL WITH FCC / IC INFORMATION WILL BE EMBOSSED IN THE PLASTIC CASE BACK: TE XT LOCATIONS FOR LABEL WILL BE LOCATED ACCORDING TO THIS PLASTIC MODEL DRAWING: AN ENGINEER'S DRAWING OF THE CASE BACK WITH THE TEXT LOCATIONS AND DIMENSIONS IS ON THE NEXT PAGE: Page 1 of 2 NUMBER .XXX=
# .XX=
# 7.0 & OVER 4.0-6.999 IN. .XXX= .XX= 0-3.999 IN. OTHERWISE SPECIFIED) TOLERANCES (UNLESS MELVILLE, NY 11747 2 CORPORATE CENTER DR DRAWING TITLE DIMENSIONS ARE IN INCHES DATE APPROVED BY CHECKED BY DRAWN BY SCALE ANGULAR FRACTIONAL COMPUTER FILE NAME .XXX= .XX= SHEET 1 OF 1 EPL MFG THIS DRAWING CONTAINS PROPRIETARY INFORMATION AND SHALL NOT BE USED OR REPRODUCED WITHOUT WRITTEN AUTHORIZATION FROM HONEYWELL SECURITY ENGINEERING. DCBA 1 2 3 4 1 2 3 4 DCBA ( )0.38 CADMI MODIFY MOLDED IN TEXT: MODEL NO 5817XT WAS 5817; FCC ID CFS8DL 5817XT WAS CFS8DL 5817; IC: 573F-5817XT WAS 573F-5817; UPDATE NOTES TO LATEST GLOBAL SPECS; REMOVE REV FROM MOLD; N5797V3 WAS N5797V2 V3A5/13/14 CADMI REV V3A WAS NEVER IMPLEMENTED IN THE TOOL; UPDATE MOLDED IN TEXT BACK VIEW FIELD D1; NOTE 7: MAKE TEXT RECESSED INSTEAD OF RAISED ONLY BACK OF PART; REMOVE REV FROM MOLD; N5797V3 WAS N5797V2; REMOVE C-TICK; V3B8/14/14 NOTES: UNLESS OTHERWISE STATED 1. MATERIAL:HSPR00000731 PER 000-00296 LATEST REV. MATERIAL MAY CONSIST OF 10% BY VOLUME MAXIMUM REGRIND OF THE SPECIFIED RESIN ONLY. 2. COLOR :HSPC0WH9A066 PER 000-00296. COLOR CLASSIFICATION 2 PER 000-00297 LATEST REV. PRE-COLORED PLASTIC RESIN FROM THE PLASTIC MANUFACTURER IS REQUIRED. 3. TEXTURE ALL EXTERNAL SURFACES PER MOLD TECH 1055-2. REF (KOREAN STANDARD SA111), (CHINESE STANDARD YS1284) 4. 63 MICRO INCH OR BETTER FINISH ON ALL INTERNAL SURFACES MAXIMUM. 5. MOLD CLASS 3 OR BETTER PER 000-00292 LATEST REV. FOR MOLD CONSTRUCTION REQUIREMENTS. 6. WHERE PART SIZE ALLOWS, GENERIC PART NUMBER, MOLD NUMBER "MXXXX", CAVITY NUMBER (FOR MULTICAVITY TOOLS ONLY), RECYCLE LOGO, INTERCHANGEABLE MONTH/YEAR INDICATOR LOCATED AS SHOWN ON AN ADJUSTABLE REVISION WHEEL WHERE POSSIBLE.IF THE REVISION LETTER IS ALREADY IN THE TOOL REMOVE IT THE ORIENTATION OF THE TEXT INDICATED ABOVE IS NOT CRITICAL. 7. ALL OTHER MOLDED IN TEXT AND LOGOS NOT PREVIOUSLY MENTIONED TO BE RECESSED 0.005". 8. PART WARPAGE SHALL NOT EXCEED 0.003" PER INCH. 9. DRAWING SHALL BE USED IN CONJUNCTION WITH THE PRO/ENGINEER 3-D MODEL OF THE APPROPRIATE REVISION.DIMENSIONS SHOWN ARE TO AID QC INSPECTION. GEOMETRY SHALL BE DERIVED FROM PRO/E FILE. UNDIMENSIONED FEATURES SHALL NOT DEVIATE FROM THE PRO/E FILE MORE THAN +/-0.005" UNLESS OTHERWISE STATED ON THE DRAWING. ALL DRAWING DIMENSIONS TO BE CHECKED BY THE APPROPRIATE HONEYWELL INSPECTION GROUP INDICATED ON THE PO FOR TOOL APPROVAL. FIRST SHOT SAMPLES MUST BE APPROVED IN BOTH PRIMARY AND SECONDARY RESINS. ALL BALLOONED "INSPECTION" DIMENSIONS TO BE CHECKED BY HONEYWELL INCOMING INSPECTION DEPARTMENT. PART TO BE INSPECTED TO COSMETIC INSPECTION CLASSIFICATION 1 PER 000-00293 LATEST REV. 10.SEE 000-00295 LATEST REV. FOR ADDITIONAL STANDARD PART AND SHIPPING REQUIREMENTS. 11.GRAPHICS TO BE RESISTANT TO WEAR SUCH THAT RUBBING WITH A PLASTIC ERASER UNDER A 500g LOAD FOR 1500 CYCLES WILL NOT RENDER THE GRAPHICS ILLEGIBLE. 12.PART VOLUME 0.69 CU IN, PART WIEGHT 0.72 OZ. ALL MOLDED IN TEXT ON THIS SIDE TO BE RECESSED .005 IN (SEE NOTE 7) V3B V3B 0.140 0.210 +0.007 -0.005 0.280 2X 0.310 0.140 BREAK-OUT0.025 1.100 +0.005 -0.010 FIT WITH COVER 1.465 +0.000 -0.003 TYP3
$ 0.040 2X 0.065 2X 3
$ BOTTOM ONLY 0.100 2X SLOT0.04 2X 0.02 TYP3
$ R TYP0.080 MARKER LINES 1.50 2X MARKER LINES 0.17 AROUND 0.070 0.390 TYP 0.06 1.3751.000 +0.005 -0.007 0.870 TYP CENTERED 1.200 0.275 0.500 0.70 0.35 0.425 0.665 1.440 1.915 1.665 0.52 0.82 2.965 0.17 0.30 0.425 0.275 R0.06 R TYP 0.109 0.41 0.500 5X 0.093 0.375 2X X 82
$ CTR'SK 0.289 R +DFT DATUM EDGE 0.085 2X SLOT 1.10 0.020 5
$ 3.380 +0.004 -0.005 +2
$ DFT AT HOOKS3.040 2.76 4X 0.140 0.965 +0.005 -0.008 0.18 2X 0.30 1.55 TYP AROUND 0.040 2X CORED 0.050 CORED 0.050 -DFT0.09 2X TIP OF HOOK 0.045 2X 0.050 2X R0.14 2X 10
$ ()0.200 0.105 +0.005 -0.000 TYP AROUND 0.070 0.68 0.140 0.210 0.065 +0.008 -0.005 R BOSS0.155 0.202 0.010 R0.015 2X 0.110 +0.005 -0.012 2X 0.150 R0.025 2X 0.40 0.03 0.220 0.40 0.18 2X R0.06 2X 0.30 2X 0.150 0.242 +0.005 -0.008 2X 0.080 CENTER OF SPHERE 0.1150.003 BUMP 0.045 +0.003 -0.005 SR0.040 2X 10
$ CORED 0.050 .010 .005 .X .X .X .X 2:1 CASE BACK, 5817 N5797V3 N5797V3-XX GGS M.D. 3-20-91 APPRDRREVISION RECORDREVDATE DMIBP REDRAWN IN PRO/E. ADDED SECTION E-E. TO MATCH PART: A3: 1.100+.005/-.010 WAS 1.100 B2: .065+.008/-.005 WAS .065 .110+.005/-.012 WAS .110 .210 +.007/-.005 WAS .210 B3: .02 WAS .020 C2: R.015 MAX WAS .010, .105+.005/-0 WAS .105+.003/-0 C3: 3.380+0/-.005 WAS 3.380+0/-.003 .242+.005/-.008 WAS .242, .03 WAS .030 D2: .045+.003/-.005 WAS .045+/-.003 UPDATED RECYCLE LOGO TO CURRENT STANDARD. V2C4/21/08 DMIBP TO MATCH PART: REMOVED NO TEXTURE REQUIREMENT AROUND LETTERING. C3: 1.000 +.005/-.007 WAS 1.000. 3.380 +.004/-.005 WAS 3.380+0/-.005. C2: .965 +.005/-.008 WAS .965. V2C110/30/08 V2C V2C V2C V2C V2C V2C V2C1 V2C V2C1 V2C1 R0.125 SECTION A-A 4X R0.015 MAX SECTION B-B V2C V2C 0.012 HIGH, 0.020 WIDE (MARKER) SECTION D-D SECTION C-C SECTION E-E EXHIBIT 8A CFS8DL5817XT / 573F-5817XT PAGE 2 OF 2

EXHIBIT 4-2 CFS8DL5817XT / 573F-5817XT 5817XT INTERNAL PHOTOS CASE INTERIOR WITH PCA INSTALLED: CASE INTERIOR WITH PCA REMOVED: Page 1 of 3 EXHIBIT 4-2 CFS8DL5817XT / 573F-5817XT 5817XT INTERNAL PHOTOS CONT. PCA TOP: PCA BOTTOM: Page 2 of 3 EXHIBIT 4-2 CFS8DL5817XT / 573F-5817XT 5817XT INTERNAL PHOTOS CONT. CASE COVER INTERIOR: Page 3 of 3

EXHIBIT 5-1 CFS8DL5817XT / 573F-5817XT REPORT OF MEASUREMENTS Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 which is located at: 2 Corporate Center Drive, Melville, NY 11747 Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4- 2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2: "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height was re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note: The Spectrum Analyzer resolution bandwidths were set as follows: (Video Bandwidth is always set 3X greater than RBW) For Short Range Radio occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100KHz. Detector function set to peak. For radiated emissions above 1GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT (per C634. section 10.1.4) is recorded in "EXHIBIT 6". Page 1 of 1

EXHIBIT 5-3 CFS8DL5817XT / 573F-5817XT SHORT RANGE RADIO RADIATED EMISSIONS HONEYWELL SECURITY & CUSTOM ELECTRONICSREV 07/23/2013-O 2 Corporate Center Drive Melville, NY 11747 EXHIBIT 5-3FCC ID:CFS8DL Date :16-Jun2014Tested by: Notes:(1) Fo:344.94 (2) Detector = Peak SENSE / UUT: EL (cm): AZ (deg): Meter Reading (dB uV): (3) Frequency range scanned to 4 GHz. V/V 138.1124.177.31( Emissions not reported w ere more than 20dB below the specif ied unit ). H /V 400.0204.070.51[(Meter reading + Cable/Amp f actor + Antenna f actor) / 20 )] V/H 150.20.070.75(4) Conv. Reading = 10 H/H 100.080.075.01 (5) Corr. Reading = Conv. Reading X Duty Cycle V/O 133.0185.376.76(6) Six Highest Emissions Recorded H/O 247.0263.668.03 Freq. (MHz): Sense Antenna Polarity (V/H): THE ORENTATION OF THE UUT (V,H,O,): Meter Reading (dB uV): Cable/Amp Factor (dB): Antenna Factor (dB/m): Conv. Reading (uV/M): Duty Cycle (%): Corr. Reading (uV/M): Limit @ 3M (uV/M): 344.94VV77.312.814.9256,708.710.0%5670.97,289 689.88VV32.854.520.10741.110.0%74.1729 1034.82 VV35.346.024.822,041.510.0%204.2500 1379.76VV33.767.026.502,293.510.0%229.4500 1724.70VV30.648.029.002,419.910.0%242.0729 2069.64VV26.398.930.782,014.910.0%201.5729 2414.58VV23.029.832.161,779.110.0%177.9729 2759.52 VV 22.2910.9 31.841,788.310.0%178.8500 3104.46VV22.1711.832.132,005.910.0%200.6729 3449.40VV22.5712.233.852,707.710.0%270.8729 LAST CAL 18 MAR 14 LAST CAL 08-JULY-14 BICONILOG S/N:00029390 5817XT PRESCA N: Approved by: Mark Schmidt Eduardo Sayers Test Sample (model): Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Test method: ANSI C63.4 - 2003 5817XT P age 1 of 1

EXHIBIT 5-3A CFS8DL5817XT / 573F-5817XT SHORT RANGE RADIO RADIATED EMISSIONS Page 1 of 1

EXHIBIT 5-4A CFS8DL5817XT/ 573F-5817XT SHORT RANGE RADIO (SRR) OCCUPIED BANDWIDTH CFR47 §15.231(c): Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. The bandwidth of the emission shall be no wider than 0.25% of the center frequency for devices operating above 70 MHz and below 900 MHz. For devices operating above 900 MHz, the emission shall be no wider than 0.5% of the center frequency. Bandwidth is determined at the points 20 dB down from the modulated carrier. RSS-210A1.1.3 Bandwidth of Momentary Signals For the purpose of Section A1.1, the 99% bandwidth shall be no wider than 0.25% of the centre frequency for devices operating between 70 MHz and 900 MHz. For devices operating above 900 MHz, the emission shall be no wider than 0.5% of the centre frequency. RBW = 30KHz VBW = 100KHz OBW = 224.359KHz Occupied Bandwidth Limit @ 344.94 MHz (CFR47 §15.231(c) / RSS-210A1.1.3) 862.35 KHz Page 1 of 1
