CFS8DL5820LDoor / Window Contact Transmitter

Ademco K9230V3 5820L Exterior of box File: K9230V3_Blueline_Ademco_5820L_instruct_exterior.eps ASSEMBLED IN MEXICO © 2009 Honeywell International Inc. All Rights Reserved Long Life Battery Included ADEMCO 5820L See inside of carton for Installation Instructions Slim Line Transmitter Slim Line Transmitter ADEMCO 5820L Slim Line Transmitter 7/11K9230V3 ADEMCO 5820L Slim Line Transmitter ADEMCO 5820L <<< Open Carton Along Perforations >>> Perforation (1/4" x 1/8") Ideal for casement and double hung windows R R LITHIUMLITHIUM ADEMCO 5820L Slim Line Transmitter FEDERAL COMMUNICATIONS COMMISSION STATEMENTS: The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. + MOUNTING HOLE MOUNTING HOLE TAMPER PROTECTION BATTERY (1.5VDC, AAA LITHIUM. SEE NOTE INSIDE.) TAMPER SWITCH Sleek design is nearly half the size of competitors Easy to open case requires no special tools Case tamper protection (front and back) Ideal for double-hung windows Easy replaceable AAA lithium battery Sleek design is nearly half the size of competitors Easy to open case requires no special tools Case tamper protection (front and back) Ideal for double-hung windows Easy replaceable AAA lithium battery Front and back-case tamper is provided using the same switch. The front-case tamper is always enabled. Adding the third screw as shown in the figure enables the back-case tamper. Tamper Protection N219 ÊK9230V3HŠ Ademco K9230V3 5820L Interior of box File: K9230V3_Blueline_Ademco_5820L_instruct_interior.eps Battery Information NOTE FOR DOCUMENTATION AND ONLINE SUPPORThttp://www.security.honeywell.com/hsc/resources/MyWebTech FOR WARRANTY INFORMATION GO TO:http://www.security.honeywell.com/hsc/resources/wa See inside of carton for installation instructions. See inside of carton for installation instructions. REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS USED, FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM. 1. 2. 3. 5820L is a single-zone Slim-Line Door/Window contact transmitter that provides wireless notification of intrusion. Install mounting screws in the two outside mounting holes as shown in the diagram using a #1 Phillips. If the case-back tamper switch will be used, install a third screw in the middle hole. Mount the magnet (supplied) adjacent to the two vertical positioning lines on the case side (see diagram). The gap can be one-half of an inch maximum. To reinstall the cover, position the cover so that it covers the mounted case-back, and snap-shut. The two case halves can only be fitted together in one direction. Temporarily mount the 5820L and magnet using the double- back tape provided. If the Go/No Go test was successful, remove the transmitters cover by inserting the flat blade of a small screw- driver into the opening slot at one end of the unit as shown in the diagram and separate the two halves. The 5820L must only be mounted against a flat surface. A curved surface would cause undo stress to the unit and possible failure to operate properly. 4. 5. 6. 7. Before mounting permanently using the double-back tape or mounting screws, conduct a Go/No Go test to verify adequate signal strength and reorient or relocate the transmitter if necessary NOTE Installation Alkaline Battery Will Yield Less Battery Life than Lithium Replace battery only with: Energizer L92 AAA Lithium or AAA Alkaline, Duracell MX2400, Panasonic AM-4PI, Eveready Engeriger EN92. BATTERY CAUTION: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212 F (100 C) or incinerate. Dispose of used batteries properly. Keep away from children. Perforation (1/4 x 1/8) MAGNET OPENING SLOT GAP 0.5" MAX MAGNET ALIGNMENT LOCATORS Do NOT attempt to remove the PCB from the plastic cover for any reason. NOTE During the programming of the control panel transmitter must be enrolled as Input Type 3, Supervised RF), Loop 1. NOTE Observe correct polarity. FCC / IC Statement: This device complies with Part 15 of the FCC Rules, and RSS 210 of IC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit accepter toute interference reçue y compris les interferences causant une reception indésirable. K9232V2 7/11 Rev. A ADEMCO 5820L Door/Window Contact Transmitter Door/Window Contact TransmitterDoor/Window Contact Transmitter Door/Window Contact Transmitter INSTALLATION AND SETUP GUIDE GENERAL INFORMATION The 5820L is a single-zone Slim-Line Door/Window contact transmitter that provides wireless notification of intrusion. The 5820L can be used only with alarm systems that support 5800 Series wireless devices. The 5820L has its own unique serial number permanently assigned during manufacture. You must enroll the transmitter’s serial number in the control panel before it will operate in the system. Refer to the control panel’s installation instructions for programming details. Note: During programming of the control panel, 5820L transmitters must be enrolled as Input Type 3 (Supervised RF), Loop 1. The transmitter is powered by one AAA Lithium (or alkaline) battery that is easily replaced when a low battery condition is indicated by the control panel. TAMPER PROTECTION Front and back-case tamper is provided using the same switch. The front-case tamper is always enabled. Adding the third screw as shown in Figure 2 enables the back-case tamper. MAGNET OPENING SLOT GAP 0.5" MAX 5820-001-V0 MAGNET ALIGNMENT LOCATORS Figure 1. 5820L (Typical In…

Text truncated - open the document above for the full version.

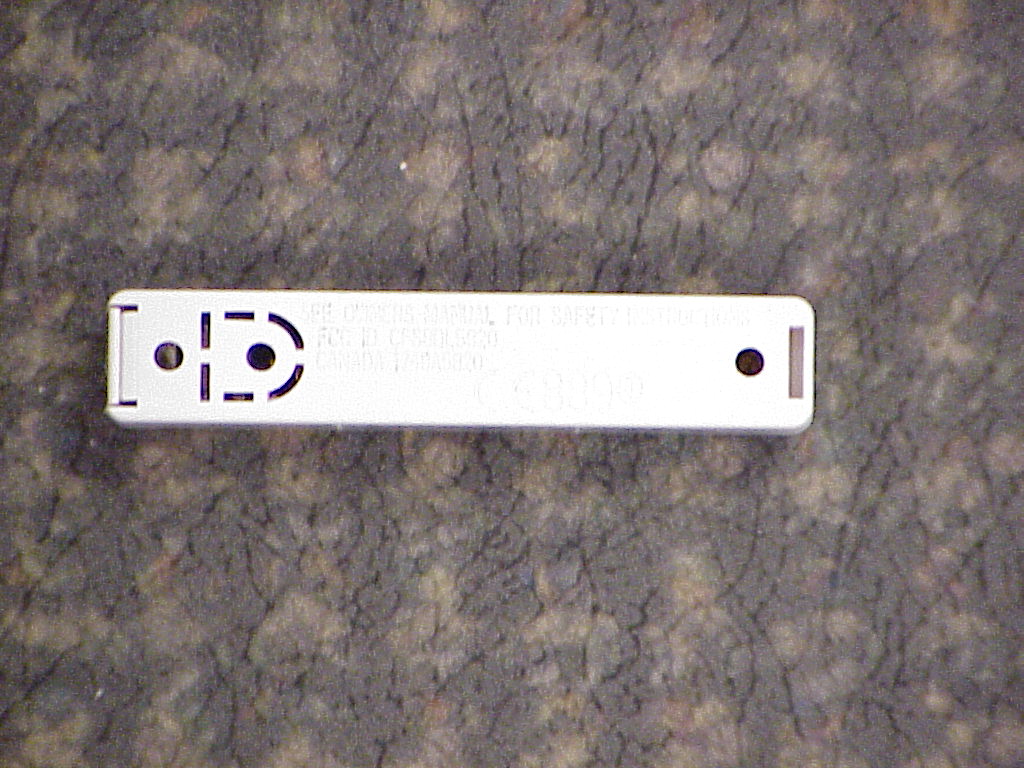

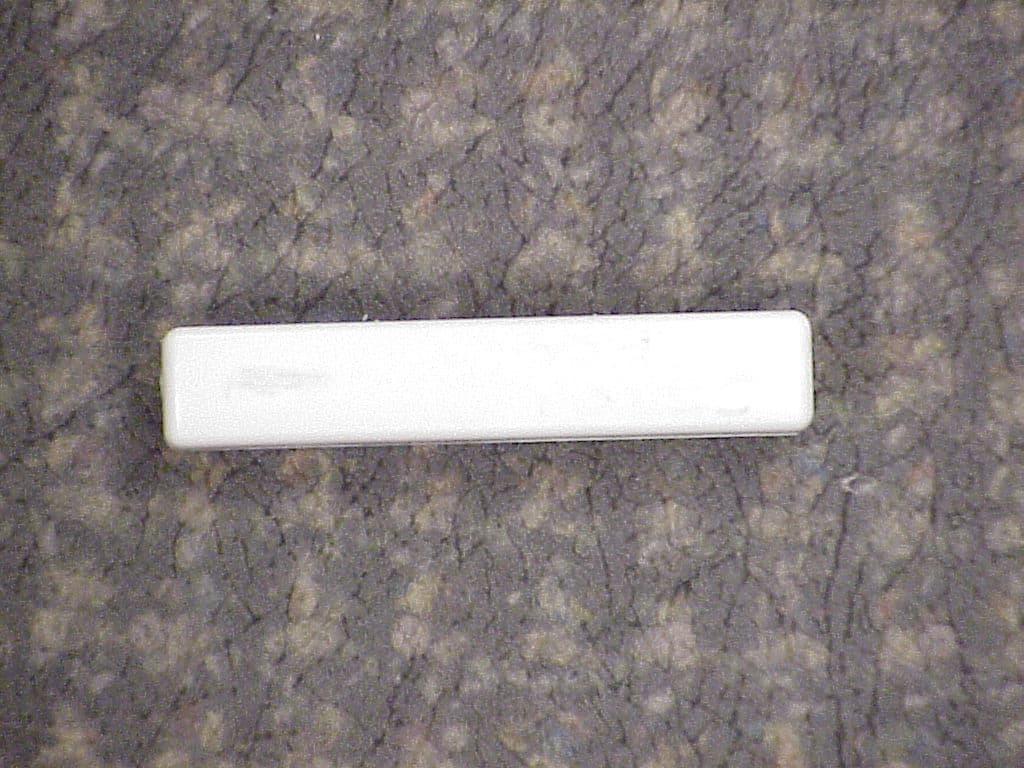

EXHIBIT 4-1 EXTERNAL PHOTOS CFS8DL5820L / 573F-5820L Top Plasti c: Bottom Plastic:

EXHIBIT 8 CFS8DL5820L / 573F-5820L 5820L LABEL INFORMATION NOTE: The area of the back plastic can only fit the FCC ID, IC ID, and IC MODEL No. Therefore, the FCC Statement is located in the Users Manual ( SEE EXHIBIT 7 ). ENGINEERS DRAWING OF THE 5820L BACK PLASTIC:

EXHIBIT 4-2 CFS8DL5820L / 573F-5820L 5820L INTERNAL PHOTOS PCB IN PLASTIC: TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DL5820L / 573F-5820L Report of Measurements Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at a height of 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV 2011C 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC ID:CFS8DL5820L Date :27-Jun 2011Tested by:Approved by: K. Eskildsen 5820L Notes: (1)Fo:344.94 (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz): Sense Antenna Polarity (V/H): THE ORENTATION OF THE UUT (V,H,O,): Meter Reading (dB uV): Cable/Amp Factor (dB): Antenna Factor (dB/m): Conv. Reading (uV/M): Duty Cycle (%): Corr. Reading (uV/M): Limit @ 3M (uV/M): 344.94VH58.802.314.806235.910.0%623.67292 689.88HO31.523.219.44510.710.0%51.1729 1034.82VO17.354.423.84190.410.0%19.0500 1379.76VV17.394.926.08262.210.0%26.2500 1724.70HV17.395.528.07353.110.0%35.3729 2069.64VV16.926.430.28478.810.0%47.9729 2414.58HO17.196.932.01638.410.0%63.8729 2759.52 VV 17.097.4 31.56634.910.0%63.5500 3104.46HV17.077.932.34733.810.0%73.4729 3449.40HV17.449.233.01960.710.0%96.1729 4000 LAST CAL 05 FEB 11 CABLE C LAST CAL 09-SEP-10 BICONILOG S/N:0004568 2 G. BARBATO Test Sample (model): Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Test method: ANSI C63.4 - 2004

EXHIBIT 5-4 CFS8DL5820L / 573F-5820L OCCUPIED BANDWIDTH

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5820L / 573F-5820L Part 15.2 31, ANSI C63.4 , RSS 210 This is a list o f all test equipment used. Test Equipment list for Honeywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/10 10/19/11 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 09/09/10 09/09/11 PLEASE SEE PAGE 2-7 F OR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PHOTOS OF TEST SETUP CFS8DL5820L / 573F-5820L SECTION 2.1093 (c) SECTION 2.1093 (c) Photo of the test setup shall be provided. INTENTIONAL RADIATOR SENSE HORZ , UUT VERT SENSE HORZ , UUT HORZ SENSE HORZ , UUT OBLQ SENSE VERT , UUT HORZ SENSE VERT , UUT VERT SENSE VERT , UUT OBLQ AT HONEYWELL’S OATS MEASUREMENT FACILITY AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747
