CFS8DL5822TTilt Sensor Transmitter

5822T Tilt Sensor Transmitter - Installation Instructions 1. OPEN THE SENSOR 2. CONNECT THE BATTERY • Observe correct polarity; • DO NOT touch the Tilt Sensor. 3. ENROLL THE SENSOR Enroll the sensor in the control panel. Refer to the control panel instructions for programming details. Program the sensor as an “RF” type (supervised RF) device. Sensor loops: Loop 1 Terminals (Input 1), for use with a wired normally- closed contact Loop 2 Tilt Sensor Either or both loops can be used. To enroll Loop 1, open and close the magnet connection (align the magnet with the sensor, move it at least 1” away and back) two times. To enroll the Loop 2, hold the sensor vertically (arrow UP), tilt to horizontal position and back to vertical position two times. 5822T-003-V0 4. MOUNT THE SENSOR Before permanently mounting the sensor, conduct Go/No Go tests (see control panel manual) to verify adequate signal strength. Relocate the sensor if necessary. • Use the double-sided tape (supplied) to mount the sensor. • Optional screws (supplied) are recommended. Mounting screws must be used in installations where temperatures drop to freezing 32° F (0° C). For Tilt Sensor: Mount with the arrow pointing UP. For Terminals Installation: Use a wired normally-closed contact. Feed wires through one of the concealed wiring holes or "breakout" areas. Double-sided Tape Mounting Screws (2) Cover Screw Magnet Front Cover Back Cover 1/2” or less Mountin g Surface 5822T-002-V0 Alignment Marks SPECIFICATIONS Battery*: (included) 1 x 3 V, Lithium; Panasonic CR123A, Duracell DL123, Duracell DL123A, or Honeywell 466 Operating Temperature: -4° to +131° F (-20° to +55° C) Relative Humidity: 95% max. (non-condensing) Dimensions: 1-9/16" W x 3-1/16" H x 1-3/16" D (40mm x 78mm x 30mm) * Battery Caution: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212° F (100° C), or incinerate. Dispose of used batteries promptly. Keep away from children. APPROVALS / LISTINGS • FCC part 15, Class B verified COMPLIANCE NOTES • IC, ICES-003, Class B verified Product must be tested at least once each year. FEDERAL COMMUNICATIONS COMMISSION STATEMENT: The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. CLASS B DIGITAL DEVICE STATEMENT This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • If using an indoor antenna, have a quality outdoor antenna installed. • Reorient the receiving antenna until interference is reduced or eliminated. • Move the radio or television receiver away from the receiver/control. • Move the antenna leads away from any wire runs to the receiver/control. • Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits. • Consult the dealer or an experienced radio/TV technician for help. INDUSTRY CANADA CLASS B STATEMENT This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC / IC STATEMENT: This device complies with Part 15 of the FCC Rules, and RSS 210 of Industry Canada (IC). Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit accepter toute interference reçue y compris les interferences causant une reception indésirable. Honeywell is a registered trademark of Honeywell International Inc. All other trademarks are the properties of their respective owners. All rights reserved. Assembled in Mexico. For the latest U.S. warranty information, please visit: www.honeywell.com/security/hsc/resources/wa or Please contact your local authorized Honeywell representative for product warranty information. Ê800-10946OŠ P/N 800-10946 Rev A 9/12 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 Copyright © 2012 Honeywell International Inc. www.honeywell.com/security REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL WITH WHICH THIS DEVICE IS USED FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM. Tilt Sensor Tamper Switch Battery INSIDE VIEW Reed Switch Back Cover 1 2 3 5822T-001-V0

EXHIBIT 4-1 CFS8DL5822T / 573F-5822T EXTERNAL PHOTOS TOP PLASTIC: BOTTOM PLASTIC:

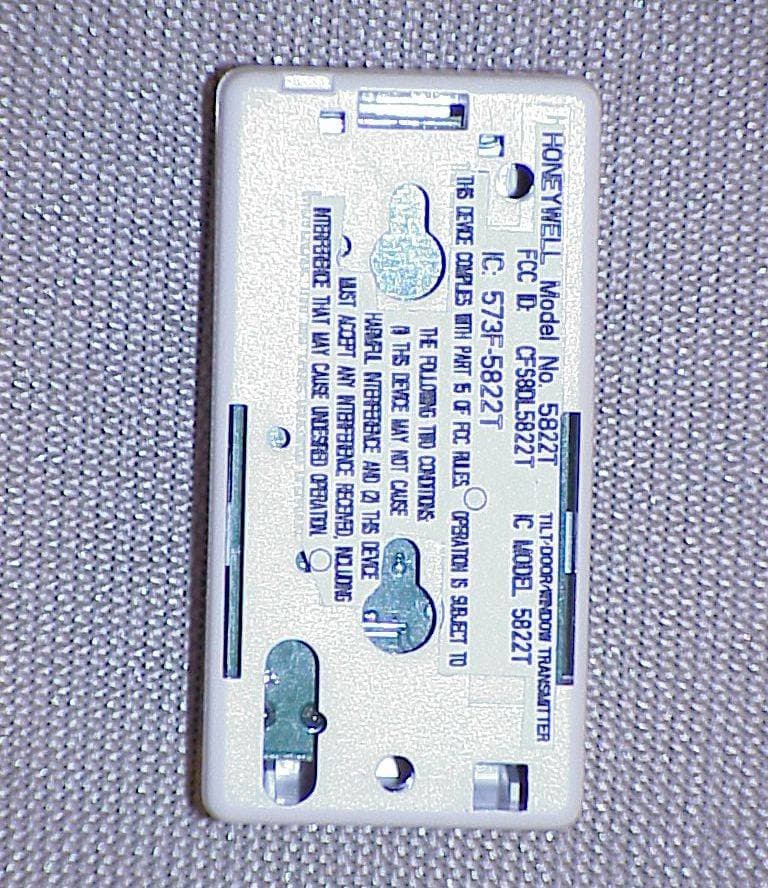

EXHIBIT 8 CFS8DL5822T / 573F-5822T LABEL INFORMATION SECTION 2.1033 (c) and Part 15.21 SECTION 2.1033 (c) Label and label location - A photo showing the identification label clearly (you must be able to see the name and FCC ID number), and the location on the device. In lieu of a photo for this, you may submit a engineer’s drawing. Part 15.21 / SECTION 2.1033 (c Statement - for all intentional and unintentional radiators is also printed on the label. All devices shall bear the following statement in a conspicuous location on the device: “ This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received , including interference that may cause undesired operation. “ PHOTO OF EXACT LABEL LOCATION ON THE BACK PLASTIC:

EXHIBIT 4-2 CFS8DL5822T / 573F-5822T INTERNAL PHOTOS PCB IN PLASTIC: TOP OF THE PCB: BOTTOM OF THE PCB:

EXHIBIT 5-1 CFS8DL5822T / 573F-5822T Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase i n signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV 08-21-2012-L 2 Corporate Center Drive Melville, NY 11747 EXHIBIT 5-3FCC ID: CFS8DL Date :6-Sep 2012Tested by: Notes:(1) Fo:344.94 (2) Detector = Peak SENSE / UUT: EL (cm): AZ (deg): Meter Reading (dB uV): (3) Frequency range scanned to 4 GHz. V/V 137.7140.076.86( Emissions not reported were more than 20dB below the specified unit ). H/V 100.00/36068.77 [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] V/H 137.7180.073.19(4) Conv. Reading = 10 H/H100.090.077.07(5) Corr. Reading = Conv. Reading X Duty Cycle V/O 100.00/36065.64(6) Six Highest Emissions Recorded H/O 214.00/36075.02 Freq. (MHz): Sense Antenna Polarity (V/H): THE ORENTATION OF THE UUT Meter Reading (dB uV): Cable/Amp Factor (dB): Antenna Factor (dB/m): Conv. Reading (uV/M): Duty Cycle (%): Corr. Reading (uV/M): Limit @ 3M (uV/M): HV 344.94HH76.862.515.91 58,009.6 10.0% 5801.0 7,289 689.88HH27.553.721.12416.410.0%41.6729 1034.82HH28.464.724.65777.110.0%77.7500 1379.76HH26.635.627.53973.910.0%97.4500 1724.70HH25.826.330.101,285.3 10.0%128.5729 2069.64HH28.277.331.042,128.1 10.0%212.8729 2414.58HH20.218.131.71997.710.0%99.8729 2759.52 HH 22.178.6 32.291,424.0 10.0%142.4500 3104.46HH20.359.132.811,298.7 10.0%129.9729 3449.40HH22.7710.034.462,290.9 10.0%229.1729 4000 LAST CAL 10 JUL 12 CABLE D LAST CAL 27-JUN-12 BICONILOG S/N:00020971 5822T PRESCAN: Approved by: K. EskildsenG. BARBATO Test Sample (model): Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Test method: ANSI C63.4 - 2003 5822T

EXHIBIT 5-4 CFS8DL5822T / 573F-5822T MAXIMUM OCCUPIED BANDWIDTH = 862.35 KHz 5822 OCCUPIED BANDWIDTH: 178.4 KHz

EXHIBIT 6 TEST EQUIPMENT USED . Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Honeywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/11 10/19/12 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 06/27/12 06/27/13 PLEASE SEE PAGE 2-3 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 CFS8DL5822T / 573F-5822T PICTURES OF THE UNIT UNDER TEST & THE TEST SETUP SENSE: VERT, UUT: HORZ SENSE: VERT, UUT: VERT SENSE: VERT, UUT: OBLQ SENSE: HORZ, UUT: VERT SENSE: HORZ, UUT:HORZ SENSE: HORZ, UUT: OBLQ HONEYWELL’S 3 METER OATS 2 Corporate Center Drive,Melville, NY 11747
