CFS8DL58241Wireless Key Transmitter

5834-4 Series Wireless Key Transmitter INSTALLATION AND SETUP GUIDE GENERAL INFORMATION The 5834-4/5834-4EN key transmitters are portable wireless transmitters for use only with wireless alarm systems that support 5800 Series receivers (ex. VISTA series, LYNX PLUS, LYNX Touch). The 5834-4EN is identical to the 5834-4 except the 5834-4EN has a plated bezel and key ring. References to the 5834-4 throughout this document refer to both models. • Buttons are typically used for arming and disarming, but can be programmed for any appropriate zone response. • A button must be pressed and held until the LED begins to flash to activate a button function. This press and hold feature minimizes the possibility of accidental transmissions. • The factory-installed replaceable lithium battery provides power for up to five (5) years. • The 5834-4 transmitter provides up to eight (8) functions and has an optional high security (encrypted) mode that sends rolling- code encrypted messaging to the RF receiver. High Security Mode Note: If used in high security mode, must be used with a receiver or control that supports high security mode. i.e., 5881EN, 5883, 6150RF, or 6160RF receiver or LYNXR Series control panel (Rev 13.1 or higher). PROGRAMMING For complete details on how to program the transmitter at the control panel, see the control unit's Installation Instructions. When programming, note the following: • Each 5834-4 transmitter has two unique serial numbers assigned during manufacture. • Each button on the unit also has a distinct "loop" number (refer to the Loop Number diagram at right) that you must program into the control panel during installation. • Assign each button to an individual zone and designate the Input Type as "BR" (Button Type). • When prompted for the serial number, press and release the appropriate button(s) twice, or, manually enter the serial number at the keypad. NOTE: Serial #2 is one (1) digit higher than serial #1, which is printed on the rear of the transmitter. USING HIGH SECURITY MODE IN COMPATIBLE RECEIVERS AND LOCALLY IN AN RF KEYPAD (eg., 6150RF) If used with LYNXR Series controls earlier than Revision 13.1, Standard Mode must be selected. First select High Security mode, then activate it. Activation syncs the key fob with the security system. 1. Select High Security mode: Mode Simultaneously hold down for 5 secs... High-Security A - C - D (LED flashes Red when transmitting) Standard B - C - D (LED flashes Green when transmitting) 2. Activate High Security mode: • if the key fob is enrolled into the panel, put the security system into Go/No Go Mode • if the key fob is enrolled locally into a 6150RF, go to Step 3 of 6150RF “ Programming WITH Local Wireless Keys”, then press the appropriate set of buttons as follows: Serial Number Simultaneously hold down until beeps sound... 1 A - B - C buttons (system beeps twice to confirm) 2 A - B - D buttons (system beeps twice to confirm) Loop Numbers for the 5834-4 Buttons 5834-008-V2 SERIAL #1 LOOP 4 SERIAL #1 LOOP 1 SERIAL #2 LOOP 1 SERIAL #2 LOOP 3 SERIAL #1 LOOP 3 SERIAL #2 LOOP 4 SERIAL #1 LOOP 2 SERIAL #1 FUNCTIONS ACTIVATE WHEN THE RESPECTIVE BUTTON IS HELD DOWN UNTIL THE LED FLASHES. SERIAL #2 FUNCTIONS ACTIVATE WHEN THE TWO RESPECTIVE SERIAL #2 BUTTONS ARE PRESSED AT THE SAME TIME AND HELD DOWN UNTIL THE LED FLASHES. NOTE 1. 2. SERIAL #2 LOOP 2 A C B D Using a Button: To activate a programmed function, press and hold the appropriate key(s) until the LED begins to flash (about ½ second). SIA INSTALLATIONS: Use only serial #2/loop 2 (C & D keys) for the panic function. Do not use serial #1/loop 1 (D) key. ASSIGNING A WIRELESS KEY TO A USER • On most control panels, if the wireless key is assigned to arm and disarm the system, you must assign it to a user in order for it to operate. This is accomplished through User Code programming at the control panel. See the control panel’s Installation and Setup Guide for specific instructions on programming User Codes. The table below summarizes the procedures. • If programming arming and disarming functions on both serial numbers, each serial number must be assigned to a separate user. On Vista 32/40/50/50P/100 and up You must assign a user to the button in order for it to operate. To assign a user number to the Arm/Disarm button: 1. Enter [4-digit User Code] + [8] + [User No.] + [new User Code]. 2. Answer Yes or No to the “Open/Close Report ?” question. 3. Answer Yes to the “RF Button ?” question. 4. Enter the zone number assigned to the button. 5. Keypad display shows summary of user information. 6. Test all functions for proper operation. On Vista-20P/15P/10P/Vista-21iP and variants You must assign a user to the button in order for it to operate, and must enter a sequence of keystrokes as described below. NOTE: There is a two-second timeout for keystroke commands on Vista P series panels, therefore you must enter the keystrokes as quickly as possible. 1. Enter [4-digit Master Code] + [8] + [User Number] + [# 4] + [two digit zone number] assigned to the fob. 2. Test all functions for proper operation. REPLACING THE BATTERY The LED will not flash during transmission if the battery is low. Replace the battery as follows. 1. Remove the screw from the case back, then remove the case back. 2. Insert the blade of a small screwdriver under the battery as shown. 3. Twist the screwdriver to release the battery. 4. With the Positive (+) end of a new battery facing UP, insert the battery as shown, sliding it under the gold tab, then pressing down to snap into place. IMPORTANT: Positive (+) end must face up. Use Maxell CR2032 or Duracell DL2032 lithium battery only. 5. Replace the case back and replace the screw to secure the case. ! • Improper installation will result in damage to the battery. • Do not remove the printed circuit board. Failure of Replaceable Batteries This wireless key has been designed to provide several years of battery life under normal conditions. The expected battery life is…

Text truncated - open the document above for the full version.

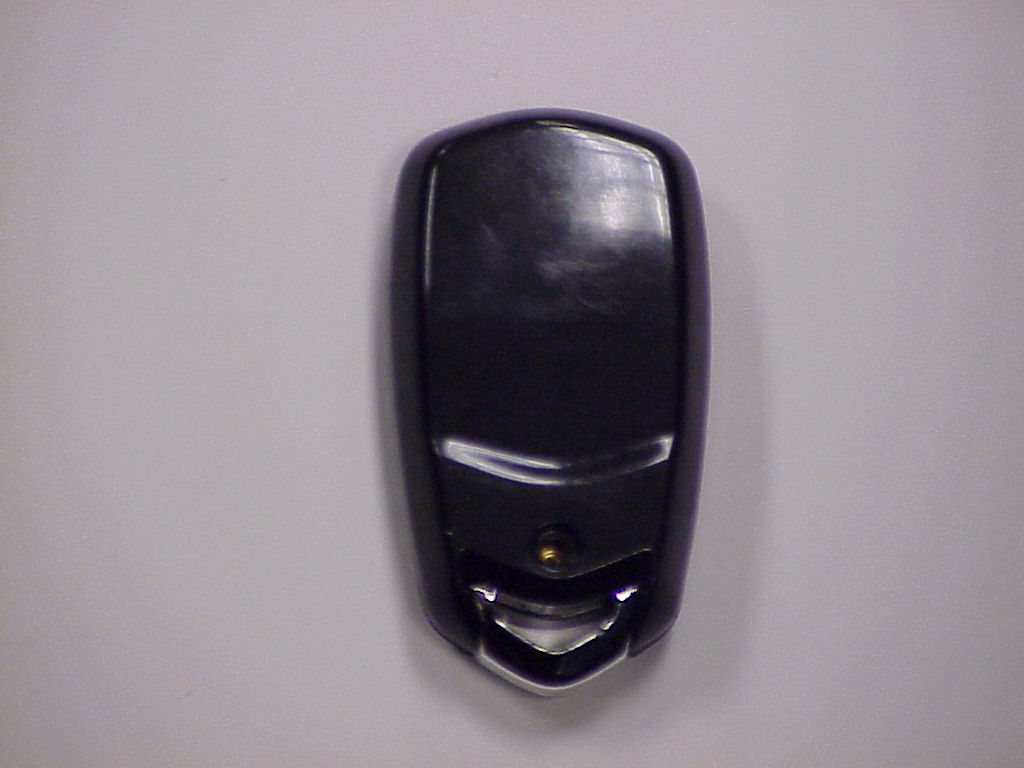

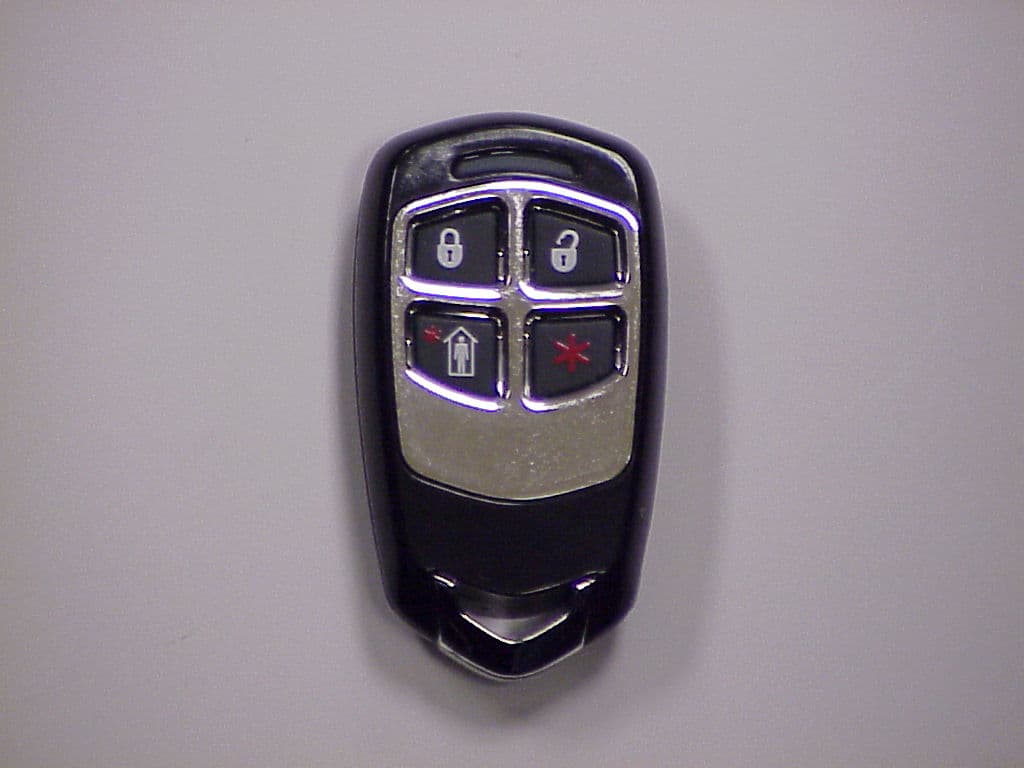

EXHIBIT 4-1 CFS8DL58241 / 573F-58241 EXTERNAL PHOTOS TOP PLASTIC: BOTTOM PLASTIC:

EXHIBIT 8 CFS8DL58241 / 573F-58241 LABEL INFORMATION: NOTE: DUE TO THE SMALL SIZE OF THE 58241 THE FCC & IC ID'S ARE STENCILED ONTO THE PCB, AND THE IC MODEL NUMBER IS PLACED IN THE USERS MANUAL WITH THE AGENCY INFORMATION. ( PREVIOUSLY DONE AND APPROVED ON THE CFS8DL5824 / 573F-5824)

EXHIBIT 4-2 CFS8DL58241 / 573F-58241 INTERNAL PHOTOS: PCB IN PLASTIC: EXHIBIT 4-2 ( CONT.) CFS8DL58241 / 573F-58241 INTERNAL PHOTOS ( CONT.) TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DL58241 / 573F-58241 Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV 10-17-2011-H 2 Corporate Center Drive Melville, NY 11747 EXHIBIT 5-3FCC ID:CFS8DL58241 Date :10-Jan 2012Tested by: Notes:(1) Fo:344.94 (2) Detector = Peak SENSE / UUT: EL (cm): AZ (deg): Meter Reading (dB uV): (3) Frequency range scanned to 4 GHz. V/V 146.327059.7( Emissions not reported were more than 20dB below the specified unit ). H/V 10036051.81 [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] V/H 15013535.37(4) Conv. Reading = 10 H/H10027058.86(5) Corr. Reading = Conv. Reading X Duty Cycle V/O 146.526534.27(6) Six Highest Emissions Recorded H/O 10030036.87 Freq. (MHz): Sense Antenna Polarity (V/H): THE ORENTATION OF THE UUT Meter Reading (dB uV): Cable/Amp Factor (dB): Antenna Factor (dB/m): Conv. Reading (uV/M): Duty Cycle (%): Corr. Reading (uV/M): Limit @ 3M (uV/M): HV 344.94VV59.702.515.287,481.7 10.0%748.27292 689.88VV27.333.719.89352.410.0%35.2729 1034.82VV26.504.724.12583.410.0%58.3500 1379.76VO27.835.626.06944.110.0%94.4500 1724.70VO26.456.328.541,154.8 10.0%115.5729 2069.64VV24.117.331.751,430.5 10.0%143.1729 2414.58VV22.468.131.791,304.7 10.0%130.5729 2759.52 VV 25.258.6 31.541,862.1 10.0%186.2500 3104.46VV24.879.131.951,979.2 10.0%197.9729 3449.40VV24.4310.033.702,541.0 10.0%254.1729 4000 LAST CAL 17 OCT 11 CABLE D LAST CAL 21-AUG-11 BICONILOG S/N:00045682 PRESCAN: Approved by: K. EskildsenG. BARBATO Test Sample (model): Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Test method: ANSI C63.4 - 2003 58241

EXHIBIT 5-4 CFS8DL58241 / 573F-58241 58241 OCCUPIED BANDWIDTH:

EXHIBIT 6 TEST EQUIPMENT USED . Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Honeywell OAT S & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/11 10/19/12 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 08/22/11 08/22/12 PLEASE SEE PAGE 2-7 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected] Cert l.D.: 86798 An ESCO Technologies Company 1301 Arrow Point Drive Cedar Park, Texas 78613 (512) 531-6498 Operating Range: 80 MHz - 6 GHz Instrument Type: Biconilog (Type 5) Date Code: Afternate lD: 11242 Customer: HONEYWELL (NY) 26 - 1000 MHz, +/-0.9 dB; 1000 - 2000 MHz, +L0.8 dB; 2000 - 6000 MHz, +l-1 .2 dB 26 - 1000 MHz, +/-0.9 dB; 1000 - 2000 MHz, +10.8 dB; 2000 - 6000 MHz, +f l .3 dB 26 - 1000 MHz, +/-'1 .0 dB; 1000 - 2000 MHz, +l-1 .4 dgi 2000 - 6000 MHz, +12.3 dB Manufacturer: Model Number: ETS-Lindgren 31 49. s 000023192 22-Aug-11 3 meter, Horizontal and Vertical N'Jl,,r. K S\ETS.LINDGREIU- ;.:::;lii,-:,..,; *ffil"+ IACCREDITEDI Calibr.tlon taboreio.y Codltlc.to 1207,01 Certificate of Cal i bration Conformance Page I of 5 The instrument identifed below has been individually calibrated in compliance with the following standard(s): SAE, ARP-958 - 2003, Electromagnetic lnterference Measurement Antennas; Standard Calibration Method, Society of Automotive Engineers, Aerospace Recommended Practice. Fixed height, three antenna rotation, 1 meter separation. 3 meter separation performed per Annex C. Vertical calibration performed per above listed methodology. Environment: Laboratory MTE is maintained in a temperature controlled environment with ambient conditions from 18 to 28 C, relative humidity less than 90%. The instrument under test has been calibrated on an open air test site (OATS) with environment temperature conditions ranging from 0 to 40 C which has no known influences on measurement quality. Serial Number/ lD: 00045682 Tracking Number: Date Completed: Test Type: CalibrationUncertainty: 01m k=2, (95ok Confidence Level) 03m Test Remarks: Calibrated down to 26 MHz per customer request. Calibration Traceability: All Measuring and Test Equipment (MffE) identified below are traceable to the Sl units through the National lnstitute for Standards and Technology (NIST). Calibraiion Laboratory and Quality System controls are compliant with ISO/lEC 17025-2005 and ANSI/NCSL 2540-1 -1994. Standards and Equipment Used: Make / Model / Name / S/N / Recall Date Condition of Instrument Upon Receipt: In Tolerance to Internal Qualitv Standards On Release: In Tolerance to Internal Qualitv Standards Anritsu MS4623A Network Analyzer 99220119-Mar-12 This document provides traceability of measurements to recognized national standards using contrblled processes at the ETS-L|ndgren Calibration Laboratory. UncertaintieslistedarederivedfromthemethodsdescribedbyNlSTTechNotel29T. Thiscertificateandreportmaynotbereproduced,exceptinfull,withoutthe written approval of ETS-Lindgren Calibration Laboratory in accordance with ISO/IEC 1 7025-2005 and ANSI/NCSL 2540-1 -1994. QAF 1 1 27 (03/1 1 ) Calibration and fssued on 22-Aug-1

EXHIBIT 5-2 CFS8DL58241 / 573F-58241 TEST SETUP PHOTOS UUT VERT , SENSE HORZ: UUT HORZ , SENSE HORZ: UUT OBLQ , SENSE HORZ: UUT VERT , SENSE VERT: UUT HORZ , SENSE VERT: UUT OBLQ , SENSE VERT: PICTURE OF THE HONEYWELL OATS AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747
