800-09008 5/11 Rev. A ADEMCO 5802WXT SUPERVISED MINIATURE TRANSMITTER INSTALLATION AND SETUP GUIDE The ADEMCO 5802WXT is a wireless transmitter that may be worn around the neck, on a wrist band or as an apparel clip that may also may be mounted to a desk, dresser, etc. (necklace, band, and clip supplied). Pressing the button on the transmitter sends a signal to the control receiver. The 5802WXT is intended for use only with wireless alarm systems that support 5800 Series devices. The transmitter is supervised, i.e., it automatically sends a message to the control receiver that includes battery status information every 70-90 minutes. This transmitter can be programmed as any zone type response (e.g., Emergency Panics, Relay Action, etc.). Battery Replacement The 5802WXT is powered by a long-life Lithium battery that may be replaced when a low battery is eventually indicated by the control unit. NOTE: Although water-resistant, please do not immerse in water at a depth below 10cm for more than 1 hour. Programming the Serial Number The 5802WXT has a unique identification code (serial number) permanently assigned during manufacture. You must “enroll” the transmitter’s serial number and loop number during system programming. The 5802WXT may be defined as Input Type “RF” (supervised RF, for an hourly check-in; do not take out of range) or “UR” (Unsupervised RF). Its loop number is “1.” See the control unit’s Installation Instructions for further details regarding programming. When installation is complete, verify operation from desired location(s). Specifications Unit Dimensions: 1.5” (3.9mm) Diameter LED: Lights when unit transmits. Battery: 3-Volt 2032 Lithium In UL installations: 3V Panasonic CR2032 only 5802WXT-001-V0 BATTERY SCREWS (4) TYP. 5802WXT-002-V0 INSERT BATTERY UNDER GOLD TAB AND PRESS DOWN 1. Remove 4 screws and lift off cover. 2. Using a small flat-blade screwdriver remove old battery. 3. Insert new battery by placing new battery under the gold tab and then pressing down. Ensure the POS + side of battery is face up after installation. 4. Align cover and attach with 4 screws. REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL WITH WHICH THIS DEVICE IS USED FOR WARRANTY INFORMATION AND FOR DETAILS REGARDING THE LIMITATIONS OF THE ENTIRE ALARM SYSTEM. FEDERAL COMMUNICATIONS COMMISSION STATEMENTS The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. FCC/IC STATEMENT This device complies with Part 15 of the FCC Rules, and RSS 210 of IC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit accepter toute interference reçue y compris les interferences causant une reception indésirable. IC MODEL: 5802WXT UL US Listings: HOUSEHOLD BURGLARY WARNING SYSTEM CONTROL UNIT ACCESSORY UL Canadian Listings: HOUSEHOLD BURGLARY WARNING SYSTEM CONTROL UNIT ACCESSORY ALSO LISTED FOR USE AS A SIGNAL APPLIANCE, MISCELLANEOUS CERTIFIED FOR CANADA. 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 Copyright © 2011 Honeywell International Inc. Ê800-090083 800-09008 5/11 Rev. A 800-09009 5/11 Rev. A ADEMCO 5802WXT-2 SUPERVISED MINIATURE TRANSMITTER INSTALLATION AND SETUP GUIDE The ADEMCO 5802WXT-2 is a wireless transmitter that may be worn around the neck, on a wrist band or as an apparel clip that may also may be mounted to a desk, dresser, etc. (necklace, band, and clip supplied). Pressing both buttons on the transmitter at the same time sends a signal to the control receiver. The 5802WXT-2 is intended for use only with wireless alarm systems that support 5800 Series devices. The transmitter is supervised, i.e., it automatically sends a message to the control receiver that includes battery status information every 70-90 minutes. This transmitter can be programmed as any zone type response (e.g., Emergency Panic, Relay Action, etc.). BATTERY REPLACEMENT The 5802WXT-2 is powered by a long-life Lithium battery that may be replaced when a low battery is eventually indicated by the control unit. NOTE: Although water-resistant, please do not immerse in water at a depth below 10cm for more than 1 hour. PROGRAMMING THE SERIAL NUMBER The 5802WXT-2 has a unique identification code (serial number) permanently assigned during manufacture. You must “enroll” the transmitter’s serial number and loop number during system programming. The 5802WXT-2 may be defined as Input Type “RF” (supervised RF, do not take out of range) or “UR” (Unsupervised RF). Its loop number is “1.” See the control unit’s Installation Instructions for further details regarding programming. When installation is complete, verify operation from desired location(s). Specifications Unit Dimensions: 1.5” (3.9mm) Diameter LED: Lights when unit transmits. Battery: 3-Volt 2032 Lithium In UL installations: 3V Panasonic CR2032 only 5802WXT-001-V0 BATTERY SCREWS (4) TYP. 5802WXT-002-V0 INSERT BATTERY UNDER GOLD TAB AND PRESS DOWN 1. Remove 4 screws and lift off cover. 2. Using a small flat-blade screwdriver remove old battery. 3. Insert new battery by placing new battery under the gold tab and then pressing down. Ensure the POS + side of battery is face up after installation. 4. Align cover and attach with 4 screws. REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL WITH WHICH THIS DEVICE IS USED FOR WARRANTY INFORMATION AND FOR DETAILS REGARDING THE LIMITATIONS OF THE ENTIRE ALARM SYSTEM. FEDERAL COMMUNICATIONS COMMISSION STATEMENTS The …

Text truncated - open the document above for the full version.

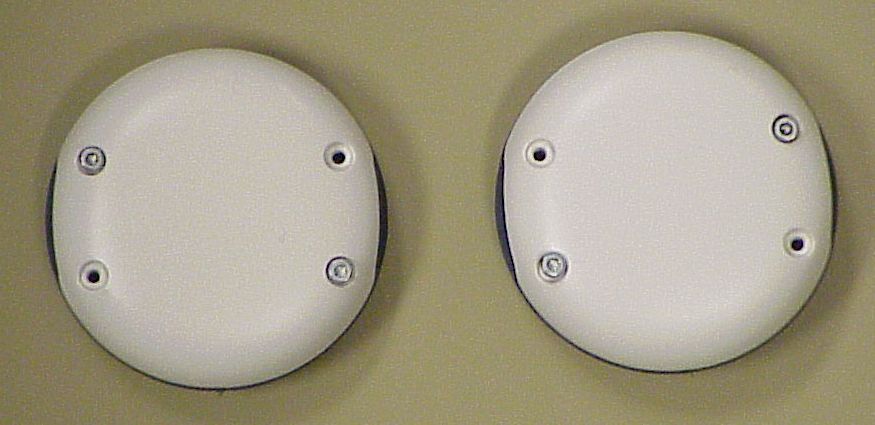

EXHIBIT 4-1 CFS8DL5831-3 / 573F-58313 EXTERNAL PICTURES TOP PLASTIC ONE BUTTON MODEL ( 5802WXT ): TWO BUTTON MODEL ( 5802WXT-2 ): BOTTOM PLASTIC ONE BUTTON MODEL ( 5802WXT ): TWO BUTTON MODEL ( 5802WXT-2 ):

EXHIBIT 8 FCC IC: CFS8DL5831-3 / IC: 573F-58313 LABEL INFORMATION (IC MODEL NUMBER & AGENCY STATEMENTS ARE IN USERS MANUAL) AS SEEN WHEN PCB IS IN PLASTIC: IC MODEL 5802WXT - ONE BUTTON OPTION: IC MODEL 5802WXT-2 - TWO BUTTON OPTION:

EXHIBIT 4-2 FCC IC: CFS8DL5831-3 / IC: 573F-58313 INTERNAL PHOTOS PCB IN PLASTIC: ONE BUTTON OPTION: TWO BUTTON OPTION:

EXHIBIT 5-1 CFS8DL5831-3 / 573F-58313 Report of Measurements Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2004. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at a height of 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". IF REQUIRED RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". IF REQUIRED LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV 2011D 2 Corporate Center Drive Melville, NY 11747 EXHIBIT 5-3FCC ID: CFS8DL 5831-3 Date :29-Jul2011Tested by:Approved by K. Eskildsen 5831-3 Notes: (1)Fo:344.94(2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz): Sense Antenna Polarity (V/H): THE ORENTATION OF THE UUT Meter Reading (dB uV): Cable/Amp Factor (dB): Antenna Factor (dB/m): Conv. Reading (uV/M): Duty Cycle (%): Corr. Reading (uV/M): Limit @ 3M (uV/M): HV 344.94HH61.532.314.928,659.610.0%866.07292 689.88HH18.173.220.12118.710.0%11.9729 1034.82HH16.464.422.89154.010.0%15.4500 1379.76HH17.264.925.71247.310.0%24.7500 1724.70HH16.775.528.58348.910.0%34.9729 2069.64HH16.566.432.39585.410.0%58.5729 2414.58HH16.536.930.49496.310.0%49.6729 2759.52 HH 16.347.4 32.33636.210.0%63.6500 3104.46HH16.347.932.63697.210.0%69.7729 3449.40HH16.419.231.94753.810.0%75.4729 4000 LAST CAL 05 FEB 11 CABLE C LAST CAL 17-MAY-11 BICONILOG S/N:00029390 G. Barbato Test Sample (model): Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Test method: ANSI C63.4 - 2004

EXHIBIT 5-4 FCC IC: CFS8DL5831-3 / 573F-58313 OCCUPIED BANDWIDTH OBW IS 216.4 KHz

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5831-3 / 573F-58313 Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Honeywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/10 10 /19/11 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 09/09/10 09/09/11 PLEASE SEE PAGE 2-7 FOR TEST EQUIPMENT TRACEABILITY If you need any additional i nformation from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 CFS8DL5831-3 / 573F-58313 TEST SETUP PHOTOS SENSE: HORZ UUT: HORZ SENSE: HORZ UUT: VERT SENSE: HORZ UUT: OBLQ SENSE: VERT UUT: HORZ SENSE: VERT UUT: VERT SENSE: VERT UUT: OBLQ THE OATS SITE: THE PHYSICAL LOCATION IS: 2 Corporate Center Drive Melville, NY 11747
