CFS8DL5853XTWireless Glassbreak Detector

Refer to Supplemental Information (next page) for complete descriptions of these installation steps 5-051-735-00E Page 1 FlexGuard ® 5853 Wireless Glassbreak Detector Installation Instructions 5853 Glassbreak Detector Internal Parts CR-123A CR-123A Mounting Hole Mounting Hole Batteries Front Tamper Switch LED Indicators Microphone Sensitivity Switches Wall Tamper (behind battery) Test Mode pads (on PCB) Front Cover Latch Break out flash for cover screw 2 1 O N O F F 5853_001-v0 Connect Batteries Remove pull tab to connect batteries Select Mounting Location For the best detector performance, select a mounting location that is: • within 7.6 m (25 feet) of the protected glass; • within clear view of the protected glass; • at least 2 m (6.5 feet) from the floor; • at least 1 m (3.3 feet) from forced air ducts; • at least 1 m (3.3 feet) from sirens or bells greater • than 5 cm (2 inches) in diameter. • between the protected glass and any heavy window coverings that may be present. Alternatively, when heavy window coverings are present, the detector can be mounted on the frame of the window. Avoid mounting the detector on the same wall as the protected glass, on free-standing posts or pillars, or in rooms with noisy equipment (air compressors, bells, power tools, etc.), if this equipment is operated when the detector is armed. Wall Mount (Top View) WallMnt-001-V0 CeilingMnt-001-V0 Ceiling Mount: (Side View) NOTE: If the device is ceiling mounted, the end with the hole (Microphone end) should face the protected glass. Set Sensitivity (Range) SENS2SENS1 CR-123ACR-123A SENS2SENS1 5853_004-v0 ON OFF SENS1 & SENS2 configure sensitivity SENSITIVITY APPROXIMATE RANGE SENS1 SENS2 MAX 7.6m (25 ft) OFF OFF MEDIUM 4.6m (15 ft) ON OFF LOW 3m (10 ft) OFF ON LOWEST 1.5m (5 ft) ON ON NOTE: Ranges are approximate and vary with each room’s acoustic properties. Always verify range with an ADEMCO GBS-7 or FlexGuard FG-701 Glassbreak Simulator. Enroll Detector Refer to text and control panel's installation instructions. When programming the transmitter, specify: • Input Type = 3 (Supervised RF) • Loop Number = 1 Mount Detector • Use mounting holes as a template to mark mounting locations on ceiling or wall. • If using the optional back tamper, remove the batteries, then mark the wall tamper location through its mounting hole. • Mount detector using appropriate hardware. NOTE: A screw capture feature designed to make ceiling mounting easier will cause some resistance when inserting the screw into the plastic. • Close detector cover when finished. CR-123A CR-123A SENS2SENS1 5853_003-v2 (Screw not supplied.) 3.5 mm x 38 mm (#6 x 1-1/2") 3.5 mm x 38 mm (#6 x 1-1/2") #6 (3.5 mm) screw for Optional Rear Tamper *3.5 mm (#6) screws works best with the screw retention feature. To work properly, the back tamper screw must be screwed into a framing stud or a heavy-duty hollow-wall anchor, such as a #8 self-tapping anchor. This type of back tamper is not suitable for use on acoustic ceiling tile. *The screw retention feature simplifies installation: A rib in the screw cavity lightly holds the screw in place when installing the detector. Test Detector Installation Enter Test Mode using an ADEMCO GBS-7 or FlexGuard FG-701 Glassbreak Simulator (see Testing the Detector on the next page). To enter Test Mode manually, short the Test Mode pads (as shown below). CR-123ACR-123A SENS2SENS1 SENS2SENS1 5853_005-v0 TEST TEST Install Cover Screw (optional) 5853_006-V1 2.9 mm (#4) screw, 6 mm (1/4-in.) long Refer to Installation Instructions and diagrams (next page) when installing this product ©2002 Honeywell International Inc. All Rights Reserved Honeywell, FlexGuard and IntelliSense are registered trademarks of Honeywell International Inc. - All other brands mentioned are the trademarks or registered trademarks of their respective owners. Specifications subject to change without prior notice. Made in China P/N 5-051-735-00 Rev E FlexGuard ® 5853 Wireless Glassbreak Detector Supplemental Information 1. General Information The 5853 Wireless Glassbreak detector with Transmitter senses the sound of breaking plate, tempered, laminated, wired, coated and sealed insulating glass. The self-contained detector includes a transmitter that can send alarms, tamper signals, and low battery messages to the control panel. The sensor is compatible with 5800-series wireless hardware*, and is designed for continuous operation using two 3V lithium batteries (CR-123A or equivalent; included). Prior to installation, you must: • Connect its batteries by removing the tab, • Adjust the detector’s sensitivity, and • “Enroll” the detector’s serial number. Refer to the following sections to install the 5853. This detector is both UL and ULC listed. * Compatible control units for use in Canada require the use of listed RF receivers that have been subjected to compatibility analyses by Underwriters’ Laboratories of Canada. Refer to the Installation Instructions for the control unit before installing burglar alarm components. 2. Connecting Batteries/Initial Power Up To connect the batteries, remove the tab from the end of the battery holder. The detector will start its power up sequence, in which both the LED indicators will illuminate for one second. (The LED indicators are described later in these instructions.) 3. Adjusting Detector Sensitivity (Range) The 5853 has four sensitivity settings, which are set using the SENS1 and SENS2 DIP switches. The settings are: 1) maximum; 2) medium; 3) low; and 4) lowest. By default, sensitivity is set to MAXIMUM. To change the detector’s sensitivity, use a small screwdriver to adjust the SENS1 and SENS2 switches, as shown in the table below: SENSITIVITY APPROX. RANGE SENS1 SENS2 MAX 7.6m (25 ft) OFF OFF MEDIUM 4.6m (15 ft) ON OFF LOW 3m (10 ft) OFF ON LOWEST 1.5m (5 ft) ON ON 4. Enrolling Detector Into 5800-Series Receiver Before the control panel will recognize the 5853, you must program the device's serial number into the co…

Text truncated - open the document above for the full version.

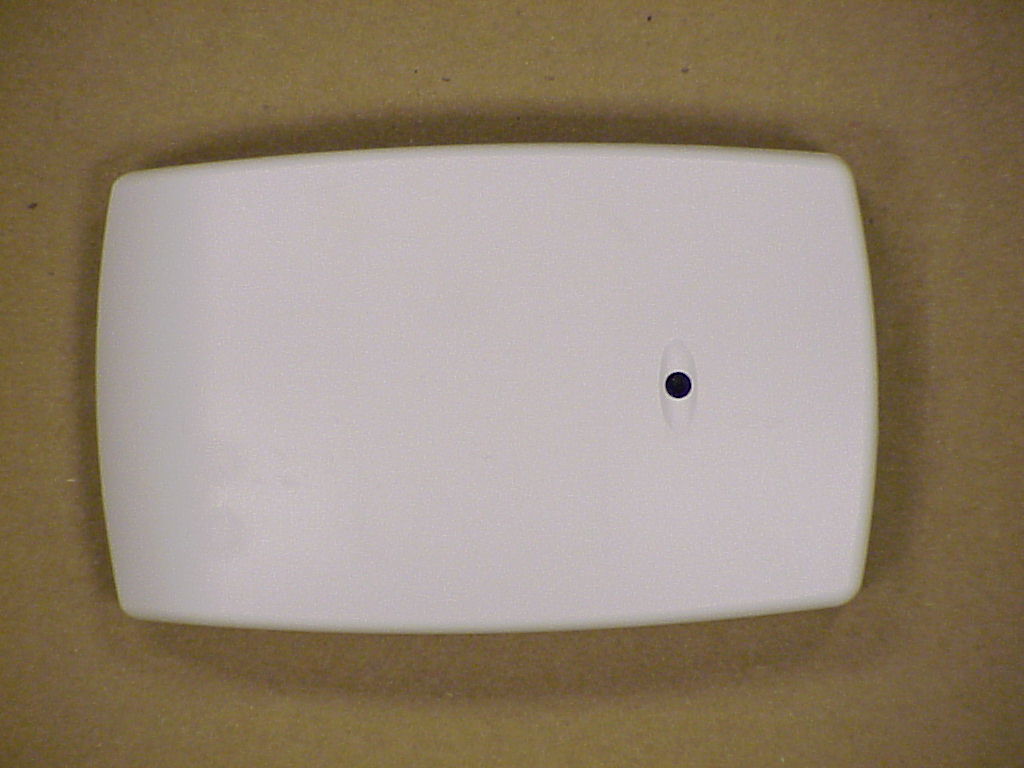

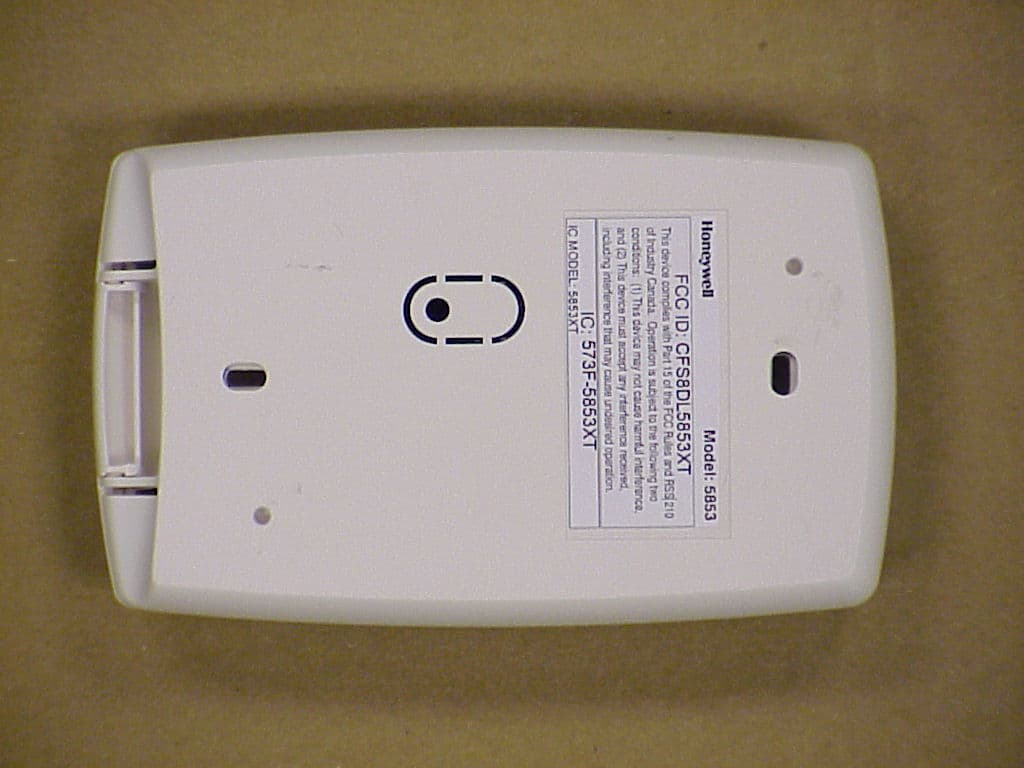

EXHIBIT 4-1 EXTERNAL PHOTOS CFS8DL5853XT / 573F-5853XT TOP PLASTIC: BOTTOM PLASTIC:

EXHIBIT 8 LABEL INFORMATION CFS8DL5853XT / 573F-5853XT SECTION 2.1033 (c) and Part 15.21 SECTION 2.1033 (c) Label and label location - A photo showing the identification label clearly (you must be able to see the name and FCC ID number), and the location on the device. In lieu of a photo for this, you may submit a engineer’s drawing. ENGINEERS DRAWING: Statement - for all intentional and unintentional radiators is also printed on the label. All devices shall bear the following statement in a conspicuous location on the device: “ This device complies with Part 15 of the FCC Rules AND RSS 210 of Industry Canada Operation is subject to the following two conditions: . (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “ ACTUAL PHYSICAL LOCATION:

EXHIBIT 4-2 INTERNAL PHOTOS CFS8DL5853XT / 573F-5853XT PAGE 1 of 2 TOP VIEW DUST DOOR OPEN: TOP VIEW AUXILIARY COVER OFF: EXHIBIT 4-2 INTERNAL PHOTOS CFS8DL5853XT / 573F-5853XT PAGE 2 of 2

EXHIBIT 5-1 CFS8DL5853XT / 573F-5853XT Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV J JULY 09 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC IDCFS8DL5853XT Date : 02/19/2010 Tested by : G. Barbato Approved by : K. Eskildsen Test Sample (model) : 344.94 MHz 5853XT Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 7 Notes: (1) Fo = 345MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682 729 344.94v80.492.314.3772110.710.0%7211.17292 689.88v35.283.219.66807.210.0%80.7729 1034.82v23.404.425.22447.710.0%44.8500 1379.76v26.634.926.35783.410.0%78.3500 1724.70v33.565.527.492125.710.0%212.6729 2069.64v26.456.431.341619.910.0%162.0729 2414.58v22.666.931.811170.810.0%117.1729 2759.52 v 19.017.4 31.56791.610.0%79.2500 3104.46v20.427.932.341078.910.0%107.9729 3449.40v20.009.233.091301.710.0%130.2729 4000 LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682

EXHIBIT 5-4 OCCUPIED BANDWIDTH CFS8DL5853XT / 573F-5853XT MAXIMUM OCCUPIED BANDWIDTH = 862.35 KHz 5853XT OCCUPIED BANDWIDTH: 334.7 KHz

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5853XT / 573F-5853XT Section 15.231 and ANSI C63.4 This is a list of all test equipment used. Test Equipment list for Honeywell OATS: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/12/09 10/12/10 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 07/10/09 07/10/10 PLEASE SEE PAGE 2- 4 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PHOTOS OF TEST SETUP CFS8DL5853-3 / 573F-58533 SECTION 2.1093 (c) SECTION 2.1093 (c) Photo of the test setup shall be provided. INTENTIONAL RADIATOR SENSE HORZ , UUT HORZ SENSE HORZ , UUT VERT SENSE HORZ , UUT OBLQ SENSE VERT , UUT HORZ SENSE VERT , UUT VERT SENSE VERT , UUT OBLQ AT HONEYWELL’S OATS MEASUREMENT FACILITY AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747
